WC2P400PORTABLE BLUETOOTH WIRELESS SPEAKER

ONE YEAR LIMITED WARRANTY SI PRODUCTS sells its products with the intent that they are free of defects in manufacture and workmanship for a period of one year from the date of original purchase, except as noted below. SI PRODUCTS warrants that its products will be free of defects in material and workmanship under normal use and service. This warranty extends only to consumers and does not extend to Retailers. To obtain warranty service on your Sharper Image product, contact a consumer relations representative by telephone at 1-888-856-6781 for assistance. Please make sure to have the model number of the product available. SI PRODUCTS does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate SI PRODUCTS in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturer’s recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of SI PRODUCTS. This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications is not covered under this warranty. THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. SI PRODUCTS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, SI PRODUCTS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT. This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or resealed products, including but not limited to sale of such products on Internet auction sites and/or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of SI PRODUCTS. This warranty provides you with specific legal rights. You may have additional rights which may vary from state to state. Because of individual regulations, some of the above limitations and exclusions may not apply to you. For more information regarding our product line in the USA, please visit: www.siproducts.com THE SHARPER IMAGE ® name and logo are registered trademarks. Marketed and distributed by SI Products under license. ©The Sharper Image. All rights reserved. IB-ESIP400 portable Bluetooth® wireless speaker Freedom Thank you for purchasing Sharper Image Freedom Portable Bluetooth® Wireless Speaker for smartphones, tablets, notebook computers and other Bluetooth enabled devices. This product, along with the entire Sharper Image Electronics lineup, combines high-tech innovation with design to provide you with years of dependability and enjoyment. Getting Started Unpack the unit carefully. Remove all the accessories from the display carton. Do not remove any labels or stickers on the rear of the unit and adaptor. Power Source To charge the Freedom, foldout the wall prongs – simply plug it into a wall outlet. Controls Volume Controls Speakerphone Button Play/Pause Button Power Switch Bluetooth® Indicator Battery Indicator Indicators Indicator Status Flashing Green Low Battery RED Charging Solid Green Fully Charged (when plugged into wall socket) Slowly Flash Blue Pairing Mode Quickly Flash Blue Connected RED Line-In Mode Line-In Audio Jack Flap to conceal fold out prongs Listening to your device wirelessly over Bluetooth® To listen to your music over Bluetooth wireless connection, you need to pair your device with The Sharper Image Freedom: 1. Make sure your device has Bluetooth capability. 2. Slide the POWER switch to turn on the unit, indicator will begin to flash. 3. Follow the instructions of your device to pair the unit. 4. Pair your device with the unit by selecting FREEDOM from your Bluetooth listings on your device or selecting YES. If prompted, enter “0000” as the passcode. 5. Press play on your device and use controls on the unit to adjust desired volume. NOTE: Once you have successfully paired your device, you will not need to repeat the above steps. Please ensure the AUX cable is unplugged, the unit source is set to Bluetooth and your device has Bluetooth enabled. Listening to your device through the Line In Audio Jack 1. Connect Aux-in cable to the headphone or line-out jack of an audio device and plug the other end of the cable into the Line-In Audio Jack on the back of the unit. 2. Slide the POWER SWITCH to turn on the unit. 3. Press PLAY on the device and use controls on the unit to adjust desired volume. FCC Disclaimer: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept…

Text truncated - open the document above for the full version.

万德仕科技发展有限公司 软件版本号 图名 A 级 B 级 C 级 0.501.00 1.20 1.50 0.200.35 0.70 0.50 0.30 0.20 315- 30-120 120-315 0.15 0.10 0-30 (V) 4 1 2 3 5 NO 设计变更原因 日期 核准 承办 一般公差 制图 原设计 单位 / 比例 核准 审核 表面处理 版本号 图号 材质及工艺 P 400 方框图 Rectification Valtage filtering AC Input DC 5V Bluetooth F-3089 AUX input LM358 Audio Battery Power TX3012 SP-OUT oscillation F3005 BMS6 Output transformation charging amplification processing module PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

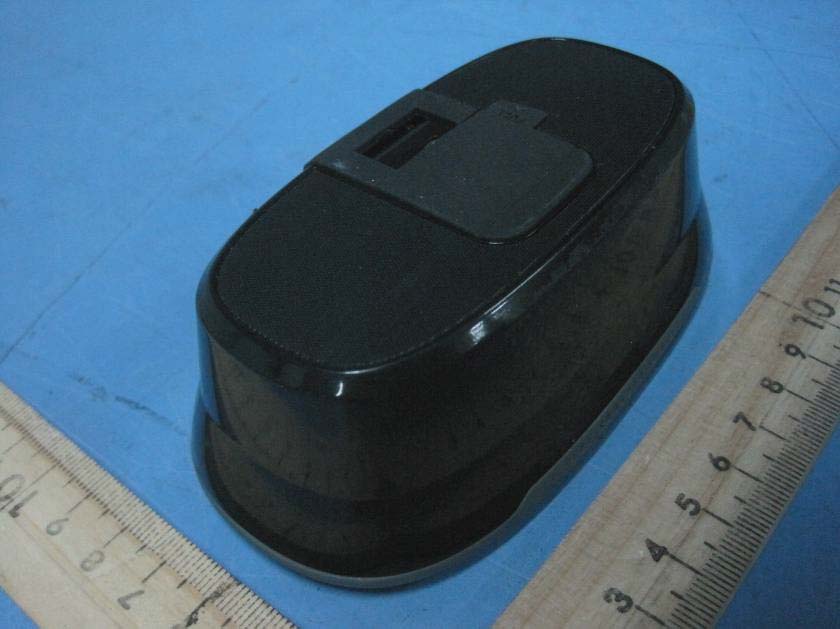

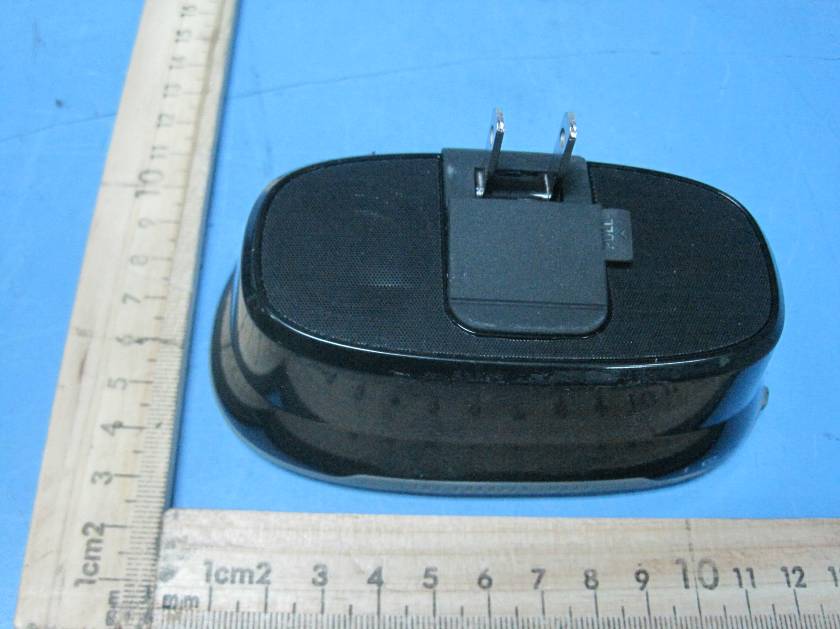

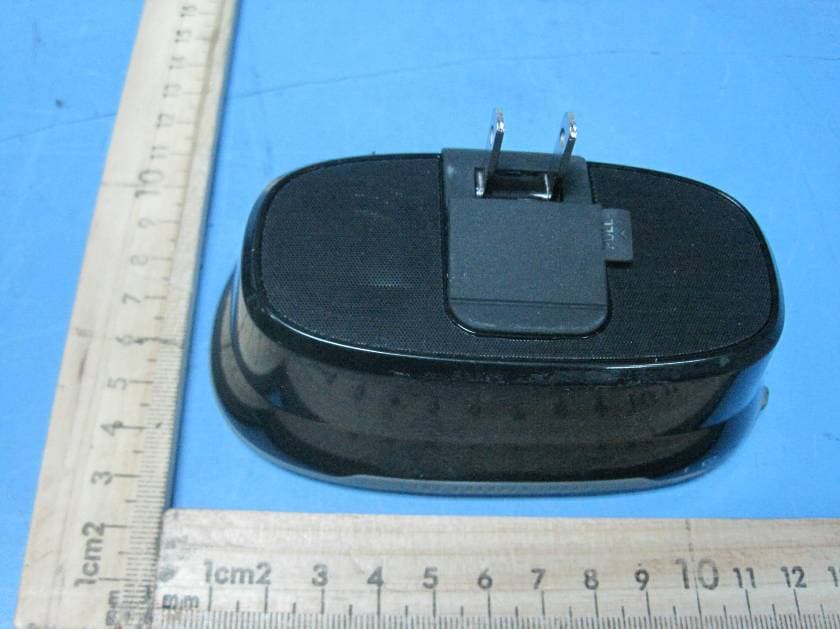

2.1 EUT – Appearance View

Page:54 of 54 Wonders Technology Co., Ltd. FCC ID: WC2P400 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12063820-D-S-F 17 FCC Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Top View/ proposed FCC Label Location FCC ID: WC2P400 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label Sample for modes: P400, ESI-P400 FCC ID: WC2P400 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2.1 EUT- Open View Battery 2.2 EUT – PCB View ANT

1/2 1 1．The main parameters: Power: AC 100-240V, 60Hz, 0.2A Max 2．Power amplifier circuit 1，P400 is a mono bluetooth speaker。 2，This speaker can play music with Aux or bluetooth 3，When play the music with Aux，Audio L, R signal through the ST-IN1 (headphones socket) input to the op-amp IC LM358 (U2) sound processing, into IC TX-3012 (U3) for power amplifier, sound output from the trumpet. 4，When play music through the bluetooth，after from bluetooth module F-3089(U4, crystal frequency:12MHz) output the signal through the op-amp IC IC LM358(U2) to process，into IC TX-3012(U3) to power amplifier ， sound output from the trumpet． 3．Power supply circuit AC input ，through the rectifier bridge (MBS6) to rectifiction，after rectifying, through the IC F0035 and the transformers by oscillation and variable pressure after rectifying，out put the filter after variabling pressure,output DC 5V for battery charging． 2/2 2 The device is a standard bluetooth speaker, The working frequency of RF module F-3089 is setted to 2402MHz ~ 2480MHz, the frequency separation is 1MHz and there are 79 channels. To make sure the communication stable, Bluetooth special design the fast acknowledge and frequency hopping plan to ensure that link stability. First link, between bluetooth devices will build a pseudorandom code, Only the pseudorandom code is same, the information transfer will be accepted. Other interference is not possible in the same sequence of interference. Bluetooth through the spread spectrum technology, Make the influence of interference may become very small. The working procedures are: 1. Power on,.The P400 will do the frequency hopping according to a certain sequence, and then send the connection command. 2. If there is a Device response, the P400 will judge whether it can be permitted to connect. Prompt enter a passkey. 3. If the passkey is right, then can be permitted to connect, send the connection command to build up the connection. 4. While the connection build up successfully, the data transmission is beginning. At the same time, the P400 and device will shift frequencies in synchronization per a same pseudo randomly ordered list of hopping frequencies, the hopping rate is 1600 times per second. 5. The bandwidth of the receiver, which is set to a fix width by the software, match the hopping channel bandwidth of their corresponding transmitter.

软件版本号 图名 A级 B级 C级 0.501.00 1.20 1.50 0.20 0.35 0.70 0.50 0.30 0.20 315- 30-120 120-315 0.15 0.10 0-30 (V) 4 1 2 3 5 NO 设计变更原因 日期 核准 承办 一般公差 制图 原设计 单位/比例 核准 审核 表面处理 版本号 图号 万德仕科技有限公司 材质及工艺 P-400 蓝牙原理图 ( 仅供参考 ) mute play RED C3 104pF R7 10K Ω R8 10K Ω +- 32 1 U2-A LM358 +- 56 7 U2-B LM358 48 U2-C LM358 R9 15K C7 47pF R10 10K Ω C8 104pF C9 104pF R11 15K Ω R12 56K Ω R13 36K Ω R14 20K Ω C10 104pF C11 105pF R15 36K Ω R16 22K Ω C12 104pF C13 105pF C18 471pF C19 104pF R22 22K Ω R36 56 Ω R37 10K Ω R38 10K Ω C16 105pF Q5 9014 R53 33K Ω 57 2.2K C1 104pF R18 100K Ω C17 100pF C21 104pF L5 100M/600R C26 225pF R30 10K Ω R35 100K Ω C30 100pF C33 104pF 12 CN3 Speaker 1 -OUT_L 2 PGND1 3 PGND2 4 +OUT_L 5 PVDD1 6 MUTE 7 VDD 8 INL 9 NC 10 VREF 11 NC1 12 NC2 24 -OUT_R 23 PGND3 22 PGND4 21 +OUT_R 20 PVDD2 19 SHDN 18 GND1 17 INR 16 NC5 15 RST 14 UP 13 DN U3 TX-3012 R1 100 Ω S5 - S6 - LED2 R17 330R C5 104P C6 106 R6 1K R61 10K Q2 8550 1 2 3 Q3 8050 R5 15K L2 100M/600R R2 100K R19 20K S3 免提 1 VOL+ 2 VOL- 3 F/F 4 REW 5 POW 6 V1.8 7 GND 8 VCC 9 LED1 10 LED2 16 AGND 15 SPAP 14 SPAN 13 SPBP 12 SPBN 11 MIC 17 TX 18 RX 19 VBUCK 20 MUTE U4 F-3089 R4 2K C4 104pF C14 100pF C22 NC L6 100M/600R L7 100M/600R C27 221pF C28 221pF 12 CN4 MIC C2 105pF S1 PLAY R21 10K Ω R24 10K Ω R25 10KΩ R29 10KΩ 53214 ST-IN1 C29 104pF 1 CHRG 3 BAT 5 PROG 4 VCC 2 GND IC2 HX6001 R26 2.7KΩ 12 CN5BAT LED1 G/R 2 1 3 K1 SW2 R3 2KΩ D1 M7 Q4 R31 2KΩ R32 22KΩ R33 4.7KΩ D2 SS14 R34 10KΩ R39 20K R54 22KΩ C35 104pF R56 33K R20 22K AMP_VDD AUX_DET AMP_VDD ROUT+ ROUT- ROUT- ROUT+ AMP_VDD ROUT AUX_DET BT-VCC AUX_DET BT-VCC ROUT A A +3.7V GND GND +5V 万德仕科技发展有限公司 软件版本号 图名 A级 B级 C级 0.501.00 1.20 1.50 0.20 0.35 0.70 0.50 0.30 0.20 315- 30-120 120-315 0.15 0.10 0-30 (V) 4 1 2 3 5 NO 设计变更原因 日期 核准 承办 一般公差 制图 原设计 单位/比例 核准 审核 表面处理 版本号 图号 材质及工艺 ESI-400 电源部分 t FR110R A K A K A K D5 A K D11 BMS6 1 2 C1B 6.8uF/400V 1 VDD 5 DRAIN 6 DRAIN1 3 FB 4 SENSE 2 VDD-G 7 GND 8 GND1 U1 F0035 1 2 C1A 3.3uF/400V R45 750K 1234 65 T1 TT A K D6 FR104 R46 2.2R A K D10 M7 R42 200K C240 1nF/630V R41 4R7 R49 4R7 CY1 1000PF/400V C25 47P A K D8 SB340 + C24 220UF/10V L1/2 3uH + C23 680UF/10V R51 10R C32 102 L1 2mH R43 200K R47 750K R48 750K 1 2 C15 10uF/10V C31 224 R52 56K R50 15K R44 12K A K D7 IN4148 C5/2 47PF/1000V +5V ~220V 220V BT Module F-3089

Page: 1 of 54 FCC TEST REPORT The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12063820-D-S-F FCC ID : WC2P400 Applicant : Wonders Technology Co., Ltd. Address : Doss Industrial Zone, Qiping Kengdu Industrial ARE Guihua Village, Guanlan Town, Baoan District, Shenzhen, China. Equipment Under Test (EUT) : Product Name : Portable Bluetooth wireless speaker Model No. : P400, ESI-P400 Standards : FCC CFR47 Part 15 Section 15.247:2010 Date of Test : June 13 ~ June 17, 2012 Date of Issue : June 21, 2012 Tested By : Zero Zhou / Engineer Reviewed By : Philo zhong / Manager Test Result : PASS Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel :+86-755-83551033 Fax:+86-755-83552400 — The sample detailed above has been tested to the requirements of Council Directives ANSI C63.4:2003. The test results have been reviewed against the Directives above and found to meet their essential requirements. Page:2 of 54 Wonders Technology Co., Ltd. FCC ID: WC2P400 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12063820-D-S-F 2 Test Summary Test Items Test Requirement Result Conducted Emissions (150kHz to 30MHz) 15.207 PASS Radiated Spurious Emissions (12MHz to 25GHz) 15.205(a) 15.209 15.247(d) PASS 20dB Bandwidth 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Page:3 of 54 Wonders Technology Co., Ltd. FCC ID: WC2P400 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12063820-D-S-F 3 Contents Page 1 COVER PAGE ........................................................................................................................................................ 1 2 TEST SUMMARY .................................................................................................................................................. 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION ................................................................................................................................ 5 4.1 CLIENT INFORMATION........................................................................................................................................... 5 4.2 GENERAL DESCRIPTION OF E.U.T. ........................................................................................................................ 5 4.3 DETAILS OF E.U.T................................................................................................................................................. 5 4.4 DESCRIPTION OF SUPPORT UNITS.......................................................................................................................... 5 4.5 STANDARDS APPLICABLE FOR TESTING................................................................................................................ 5 4.6 TEST MODE........................................................................................................................................................... 5 4.7 TEST FACILITY...................................................................................................................................................... 6 4.8 TEST LOCATION.................................................................................................................................................... 6 5 EQUIPMENT USED DURING TEST .................................................................................................................. 7 6 CONDUCTED EMISSION .................................................................................................................................... 8 6.1 E.U.T. OPERATION................................................................................................................................................ 8 6.2 EUT SETUP........................................................................................................................................................... 9 6.3 CONDUCTED EMISSION TEST RESULT................................................................................................................... 9 6.4 PHOTOGRAPH – CONDUCTED EMISSION TEST SETUP.......................................................................................... 12 7 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 13 7.1 EUT OPERATION :............................................................................................................................................... 13 7.2 MEASUREMENT UNCERTAINTY........................................................................................................................... 13 7.3 TEST SETUP......................................................................................................................................................... 14 7.4 SPECTRUM ANALYZER SETUP............................................................................................................................. 16 7.5 TEST PROCEDURE.............................................................................................…

Text truncated - open the document above for the full version.

2.1 Photograph – Radiation Spurious Emission Test Setup Below 30MHz From 30-1000MHz Above 1GHz 2.2 Photograph – Conducted Emission Test Setup
