WCS-PM7PowerMeter 7

Training System www.SRM.de PowerMeter 7 PowerControl 7 Short Manual SRM Training System Wireless PowerMeter 7 Wireless PowerControl 7 Quick Start Guide Version: Nov 16, 2010 A complete manual is available at http://www.srm.de TABLE OF CONTENTS Buttons and Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Installation of the SRM Training System Cadence Magnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 PowerMeter and Sensor Alignment . . . . . . . . . . . . . . . 8 Speed Transmitter and Handlebar Clip . . . . . . . . . . . . 9 Wake up from Sleep Mode . . . . . . . . . . . . . . . . . . . . . . .10 Real-Time Training Data Menu . . . . . . . . . . . . . . . . . . . .11 Average Training Data Menu . . . . . . . . . . . . . . . . . . .12 Maximum Training Data Menu . . . . . . . . . . . . . . . . . .13 Time/Date Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Sensor Pairing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Setting the Zero Offset / Altitude . . . . . . . . . . . . . . . . . . .19 Clear PC Display/ Battery Status / Total Training Menu .20 Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 SRM Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 FCC Compliance Declaration . . . . . . . . . . . . . . . . . . . . .25 BUTTONS ANd VIEWS PrO short key press: ·go to training zones ·”+” in setup mode long key press: ·enter pairing mode Note: Long key press is over 3 seconds, very long key press over 10 seconds SET short key press: ·start/end interval ·”-” in setup mode in pairing mode: ·search sensors long key press: ·enter setup mode MOdE short key press: ·awake from sleep ·change screen/item long key press: ·back to main screen very long key press: ·enter sleep mode - Page 5- INSTALLATION OF THE SrM TrAINING SYSTEM CAdENCE MAGNET 1.Remove your old cranks. 2.Remove the allen bolt for the cable guide, leaving the cables in place. Some guides are riveted or glued, or are not present. Consult a technican or get your system installed if you are uncertain. 3.Loosen the cables so you can slide the cadence magnet under the guide. Make sure the magnet faces the lid on the back of the PowerMeter 4.Align the magnet and cable guide to reinstall the bolt. Do not fully tighten. You will need to adjust it when testing the PowerControl (see page 8). - Page 7- - Page 8- INSTALLATION OF THE SrM TrAINING SYSTEM POWErMETEr ANd SENSOr ALIGNMENT 1.Install your new PowerMeter and cranks according to the original manufacturer instructions. If a bottom bracket came with your new PowerMeter you must install that. 2.Adjust the cadence magnet so it is 3-5mm from the lid on the back of the PowerMeter. 3.Tighten the cable guide bolt to fix the cadence magnet. 4.The PowerMeter is ready to pair. - Page 9- INSTALLATION OF THE SrM TrAINING SYSTEM SPEEd TrANSMITTEr 1. Install front wheel skewer or fork mounted pod. 2. Install the provided magnet on your spokes so it passes within 3-5mm of the speed transmitter. 3. Speed sensor is ready to pair. HANdLEBAr CLIP 1. SRM provides handlebar clips to mount PowerControls to various handlebars. 2. Mount the handlebar clip to the right of the stem so the balls point forward and the screw point upwards (aluminium model downwards). 3. Secure the handlebar clip with the bolt. Do not overtight. WAKE UP FrOM SLEEP MOdE In Sleep Mode the PowerControl shows the version of the firmware installed. In this example the firmware version is June 21, 2010. Press MOdEonce to awake the PowerControl from Sleep Mode. Starting with generation 7, the PowerControl has an integrated motion sensor that activates the unit when motion is detected. The PowerControl switches off into Sleep Mode automatically after three minutes (can be changed through the computer software). The integrated motion sensor switches the unit on as long as it is not switched off manually (see below). The PowerControl will not enter Sleep Mode while it is receiving data from any of the sensors. Press MOdElonger than 10 seconds to manually enter Sleep Mode and deactivate the integrated motion sensor. This is useful during transport. Press MOdEonce to awake the PowerControl from Sleep Mode and reactivate the integrated motion sensor. - Page 10 - rEAL-TIME TrAINING dATA MENU The real time training menu shows real time data as the athlete trains. •Top Line: Training Time, Distance [miles or km], Ascending Altitude [feet or m], Pedaling Time or all four alternating. These can be changed using the provided SRM Software. •Middle Line: Power [Watt; kW >1000], Heartrate [bpm]. •Bottom Line: Training Zone or Intervall if started, Speed [km/h or miles/h], Cadence [rpm] . If no signal from a sensor is picked up, the display shows “-“ for this sensor instead of a number (i.e. “-“ under speed if the speed sensor is not working). Press MOdEto change from real time to average training data menu. - Page 11 - AVErAGE TrAINING dATA MENU The average training data menu shows average data over the current training file. •Top Line: Training Time, Distance, Actual Altitude, Pedaling Time or all four alternating. •Middle Line: Power, Heartrate. •Bottom Line: Speed, Cadence. Press MOdEto change from average to maximum training data menu. - Page 12 - MAxIMUM TrAINING dATA MENU The maximum training data menu shows the maximum values recorded during a training session. •Top Line: Total mechanical energy expenditure in kilojoules [kJ] (Estimating an efficiency of 25% riding the bike and a 4:1 ratio of kilojoules to kilocalories [Cal] this is approximately equivalent to the total energy burned by the athlete in kilocalories = Cal). •Middle Line: Maximum Power, Maximum Heartrate. •Bottom Line: Maximum Speed, Maximum Cadence. Press MOdEto change from Maximum Training Data Menu to Time/Date Menu. - Page 13 - TIME/dATE MENU The Time/Date menu shows the time and date the PowerControl will use to store the data. • Top Line: Time of Day: Hours…

Text truncated - open the document above for the full version.

SRM Service Center, USA 720 West Monument St. Colorado Springs, CO 80904 (719) 266-4127 Fax (719) 266-4284 [email protected] Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: WCS-PM7 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram PowerMeter7_rev1_0_block_diagramm.pdf Schematics PowerMeter7_rev1_0_schematic.pdf Operational Description PowerMeter7_detailed_theory_of_operation.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. Public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Peter Rosenland CDO

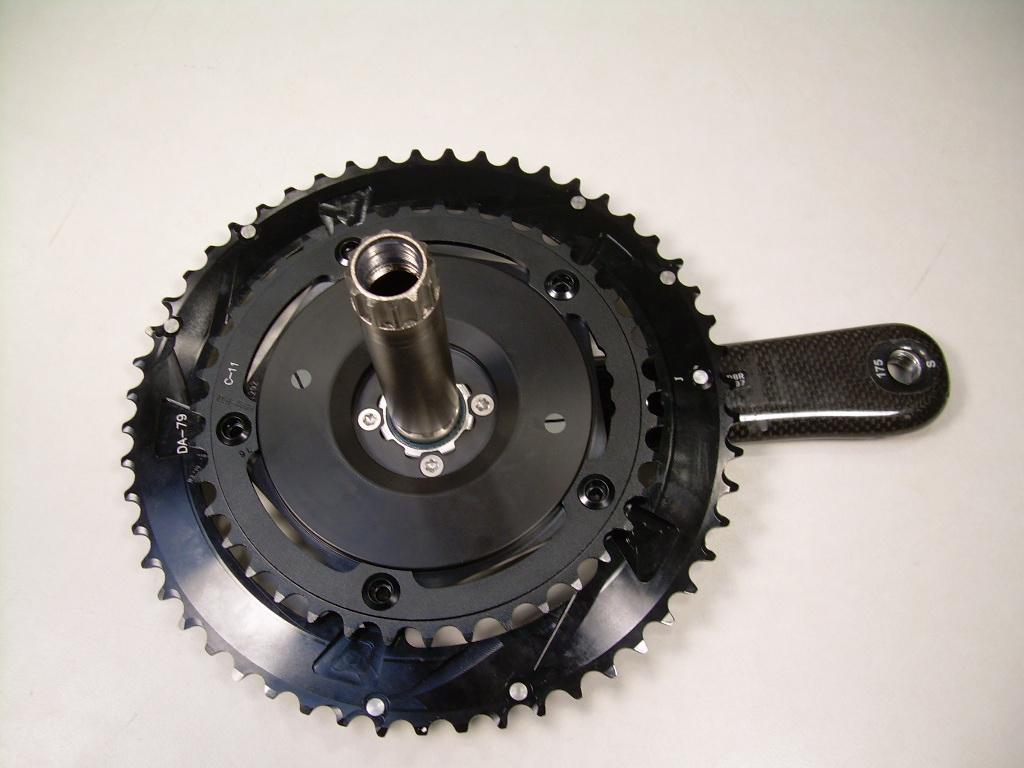

Front View of the EUT Back View of the EUT

1 1 2 2 3 3 4 4 DD CC BB AA ScaleSheet SizeFCSM No.DWG No.Rev A4 label_pm7_08_Nov_10.SchDoc FCC - IC Label 35.0mm 12.0mm PowerMeter 7 Schoberer Rad Messtechnik GmbH Rudolf Schulten Str. 6 D-52428 Jülich 1.0 1 of 1Peter Rosenland 11/15/10 1:1 1 1 2 2 3 3 4 4 DD CC BB AA ScaleSheet SizeFCSM No.DWG No.Rev A4 label_placement_pm7_08_Nov_10.SchDoc FCC - IC Label Placement 1.0 1 of 1Peter Rosenland 11/15/10 1:1 PowerMeter 7 Schoberer Rad Messtechnik GmbH Rudolf Schulten Str. 6 D-52428 Jülich

View of the Component Side of the PCB View of the Trace Side of the PCB

Nemko-CCL, Inc. 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Test Report Certification Test Of: PowerMeter 7 FCC ID#: WCS-PM7 Test Specification: FCC PART 15, Subpart C Test Report Serial No: 162447-4.1 Applicant: SRM Service Center, Inc. 720 West Monument Street Colorado Springs, CO 80904 Date of Test: November 30, 2010 Issue Date: December 1, 2010 Accredited Testing Laboratory By: NVLAP Lab Code 100272-0 Nemko-CCL, Inc. TEST REPORT: 162447-4.1 FCC ID#: WCS-PM7 Page 2 of 31 2 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Nemko-CCL, Inc. to document compliance of the device described below with the requirements of Federal Communications Commission (FCC) Part 15, Subpart C. This report may be reproduced in full. Partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: SRM Service Center, Inc. - Manufacturer: SRM Service Center, Inc. - Brand Name: SRM - Model Number: PowerMeter 7 - FCC ID Number: WCS-PM7 On this 1 st day of December 2010, I, individually, and for Nemko-CCL, Inc., certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has accredited the Nemko-CCL, Inc. EMC testing facilities, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Nemko-CCL, Inc. Tested by: Norman P. Hansen EMC Technician Nemko-CCL, Inc. TEST REPORT: 162447-4.1 FCC ID#: WCS-PM7 Page 3 of 31 3 TABLE OF CONTENTS PAGE SECTION 1.0 CLIENT INFORMATION .................................................................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) .................................................................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES .............................7 SECTION 4.0 OPERATION OF EUT DURING TESTING ..................................................10 SECTION 5.0 SUMMARY OF TEST RESULTS ...................................................................11 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS ..........12 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT ..........................................18 APPENDIX 2 PHOTOGRAPHS ................................................................................................20 APPENDIX 3 MANUFACTURER’S STATEMENT/ATTESTATION .................................28 APPENDIX 4 FCC PART 15/ICES-003 COMPLIANCE INFORMATION .........................29 Nemko-CCL, Inc. TEST REPORT: 162447-4.1 FCC ID#: WCS-PM7 Page 4 of 31 4 SECTION 1.0 CLIENT INFORMATION 1.1 Applicant: Company Name: SRM Service Center, Inc. 720 West Monument Street Colorado Springs, CO 80904 Contact Name: Peter Rosenland Title: Engineer 1.2 Manufacturer: Company Name: SRM Service Center, Inc. 720 West Monument Street Colorado Springs, CO 80904 Contact Name: Peter Rosenland Title: Engineer Nemko-CCL, Inc. TEST REPORT: 162447-4.1 FCC ID#: WCS-PM7 Page 5 of 31 5 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Brand Name: SRM Model Number: PowerMeter 7 Serial Number: None Country of Manufacture: U.S.A. 2.2 Description of EUT: The PowerMeter 7 is a module to measure the torque applied to a bicycle pedal and transmit the data to a control module. The PowerMeter 7 uses a 2.457 GHz transceiver using ANT + Sport protocol to send the data to the control module. The PowerMeter 7 is powered by 2 lithium 3.6 volt batteries. This report covers the circuitry of the device subject to FCC Part 15, Subpart C. Compliance of the device to FCC Part 15, Subpart B is shown in Nemko-CCL report # 162447- 3.1. 2.3 EUT and Support Equipment: The FCC ID numbers for all the EUT and support equipment used during the test are listed below: Brand Name Model Number Serial No. FCC ID Number Description Name of Interface Ports / Interface Cables BN: SRM MN: PowerMeter 7 SN: None WCS-PM7 Power Meter See Section 2.4 2.4 Interface Ports on EUT: There are not interface ports on the EUT. Nemko-CCL, Inc. TEST REPORT: 162447-4.1 FCC ID#: WCS-PM7 Page 6 of 31 6 2.5 Modification Incorporated/Special Accessories on EUT: There were no modifications or special accessories required to comply with the specification. This report is not complete without an accompanying signed attestation, included as Appendix 3, that the product will have all of the documented modifications incorporated into the product when manufactured and placed on the market. Nemko-CCL, Inc. TEST REPORT: 162447-4.1 FCC ID#: WCS-PM7 Page 7 of 31 7 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES 3.1 Test Specification: Title: FCC PART 15, Subpart C (47 CFR 15) §15.203 and §15.249 Limits and methods of measurement of radio interference characteristics of radio frequency devices Purpose of Test: The tests were performed to demonstrate initial compliance. 3.2 Methods & Procedures: 3.2.1 §15.203 Antenna Requirement An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this Section. The manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. This requirement does not apply to carrier current devices or to devices operated under the provisions of Sections 15.211, 15.213, 15.217, 15.219, or 15.221. Further, this requirement does not apply to intentional radiators that must be professionally installed, such as perimeter protection systems and some field disturbance sensors, or to other intentional radiators which, in accordance with Section 15.31(d), must be measured at the installation site. Howev…
