COMPROD COMMUNICATIONS LTD. Customer Instructio n Manual Model # UBDA3845 / UBDA4551 UHF BI-DIRECTIONAL AMPLIFIER Version 1 Technical Manual  2011, Comprod Communications LTD. 138 De La Barre Boucherville, QC, J4B 2X7 Phone 1.800.641.1454 • Fax 1.800.641.4616 3405 N. Benzing Road Orchard Park, NY, USA 14127 Phone 1.800.603.1454 • Fax 1.800.554.1033 UHF BI-DIRECTIONAL AMPLIFIER TECHNICAL MANUAL 3 IMPORTANT: The integrator is responsible for its product to comply with IC ICES-003 & FCC Part 15, Subpart B – Unintentional Radiators. Final product must comply with unintentional radiators before declaring compliance of their final product to Part 15 of the FCC Rules and Industry Canada ICES-003. UHF BI-DIRECTIONAL AMPLIFIER TECHNICAL MANUAL 4 Class B Amplifier Box Description 1) This Amplifier is designed around the philosophy of Anytime, Anywhere, and Anyplace and uses Class “AB” Amplifiers, designed for a more constant and reliable Amplifier unit. Designed to be used in buildings, tunnel, government facilities, airports, providing the communication throughout. Typically, the Amp box will be connected to either radiant cable or a distributed antenna system. (Example below) 2) An Amplifier box is used increase the coverage of RF communications in buildings or places were RF is unable to penetrate from the base station site. UHF BI-DIRECTIONAL AMPLIFIER TECHNICAL MANUAL 5 Specifications Our UHF amplifier have been designed with government agencies in mind. These are our highest level of performance and quality for continuous duty solutions while providing maximizing coverage. Available in rack mount, nema stainless steel, or painted steel nema enclosures. Block Diagram Details - The Downlink path receives signals from the donor antenna, and then amplifies them as they pass through the unit to the distribution system. - The Uplink path receives signals from the distribution system, and then amplifies them as they pass through the unit to the donor antenna. - Uplink and Downlink paths contain each a Variable Gain Amplifier (VGA) followed by a fixed gain Power Amplifier (PA). A mid-stage access allows channel filter to be inserted, in order to reject adjacent channel signals and to improve the main signal quality. - The VGA is basically a low noise amplifier featured Automatic Gain Control (AGC) circuit . The AGC circuit measures composite power level at the VGA input and adjusts automatically the gain, in order to maintain constant the signal level at the VGA output. Since the VGA output power is constant, the PA composite output power is also maintained constant at the factory set level. - The VGA provides also Input Level Adjustment and Output Power Setting by mean of two Manually Set Attenuators (MSA#1 and MSA#2). The MSA#1 allows additional attenuation and hence maintains the VGA under linear condition if the input signal is too strong ( greater than -25dBm). It is also used for adjusting the input signal to the optimum level (please see VGA Max Input Level and Optimum Input Level Setting ). The MSA#2 attenuator allows to adjust the VGA power, thus the PA output power can be also changed to the desired level, which can be differed to the factory set level. An MSA#2 setting table vs. VGA output power is supplied with the unit. The PA linear gain is also provided. - The Class-AB PA provides good performance for both linearity and efficiency. This amplifier is heat sink mounted and produces a high compression point and 3 rd order Intercept point. - The Power Supply bloc converts AC to DC voltages for supporting DC power needs of both Uplink and Downlink amplifiers. - The unit can accept 50/60Hz 100 to 260 Volt AC power source, but does not have UPS/Battery system. In case of need for inconsistency in the AC line power, surge protection, short Black outs, crossover time from line AC to generator power, circuit breaker for short circuit and over load protection, etc., an external UPS/Battery system is recommended. UHF BI-DIRECTIONAL AMPLIFIER TECHNICAL MANUAL 6 Figure 1: Bloc diagram of the UHF Amplifier with external filter/diplexer connection UHF BI-DIRECTIONAL AMPLIFIER TECHNICAL MANUAL 7 VGA Max Input Level and Optimum Input Level – MSA#1 Setting The VGA can maintain constant its output power for any composite input level from –60 to -25dBm. If the input level is too high, the MSA#1 must be used to provide additional attenuation, then decrease the input signal to the correct level. The MSA#1 attenuation can be set from 0 to 30dB per 2dB step, by mean of a hexadecimal switch (16 positions from “0” to “F”). When it is possible, it is recommended to set the nominal input power to -40dBm, such a setting allows maximum dynamic range of the AGC circuit, and the VGA output power will be constant even if several sub-carriers are suddenly added on or dropped from the main signal. The VGA displays two RSSI LED (Received Signal Strength Indicator LED) labeled HI and LOW. When both LED are on, the input composite power should be with-in the optimum range, .i.e. -42 to - 38dBm. Thus, if the received nominal input power is ranging from -42 to -8dBm, it is possible to set the VGA input to the optimum level, by changing the MSA#1 setting from 0 to 30dB of attenuation. If the received nominal level is lower than -42dBm, the MSA#1 should be set at 0dB attenuation. Table I: MSA#1 and MSA#2 attenuation versus Hexadecimal Rotary Switch Position Dial MSA #1 Att. (dB) MSA #2 Att. (dB) 0 0 0 1 2 1 2 4 2 3 6 3 4 8 4 5 10 5 6 12 6 7 14 7 8 16 8 9 18 9 A 20 10 B 22 11 C 24 12 D 26 13 E 28 14 F 30 15 UHF BI-DIRECTIONAL AMPLIFIER TECHNICAL MANUAL 8 Output Power Level – MSA#2 Setting The preset level of the MSA#2 is Factory set with a 2 carrier input while monitoring IM products, such that these IM products do not exceeding -13 dBm at the diplexer common port. This Factory set gives the maximum operable power, therefore the unit must not be re-adjusted for giving higher output. However, re-adjusting for lower output power…

Text truncated - open the document above for the full version.

UBDA3845/UBDA4551 Bi‐Directional Amplifier Module Block Diagram (UBDA3845 uses the PA option 1 / UBDA4551 uses the PA option 2) TRC Electronic NFM-20-5 AC to 5Volt DC Converter TRC Electronic MPS-120-48 AC to 48Volt DC Converter COMPROD DC Card (Routing and LC filters) 120/220 Volt AC In Filtered 52Volt Out Filtered 5.4Volt Out UBDA3845 / UBDA4551 DC Converter Assembly

August 16, 2012 Ultratech Engineering Labs, Inc. 3000 Bristol Circle Oakville, Ontario L6H 6G4 Subject: Equipment Certification under FCC 47 CFR, Parts 2 and 90 (Subpart I) - Licensed Non-Broadcast Station Transmitter Operating in the Frequency Band 450-512 MHz Applicant: Comprod Communications Ltd Product: UHF Bi-Directional Amplifier Model: UBDA4551 FCC ID: WDM-UBDA4551 Dear Sir/Madam: As appointed agent for Comprod Communications Ltd, we submit the application for equipment certification of the above product. Kindly review all required documents uploaded to your E-Filing Site. NOTE: This application is subject to limited modular approval; see Applicant’s cover letter requesting for limited modular approval. If you have any queries, please do not hesitate to contact us. Yours truly, DanHuynh Dan Huynh Authorized Agent UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 FCC 91038 1309 46390-2049 NvLap Lab Code 200093-0 SL2-IN-E-1119R Korea KCC-RRL CA2049 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

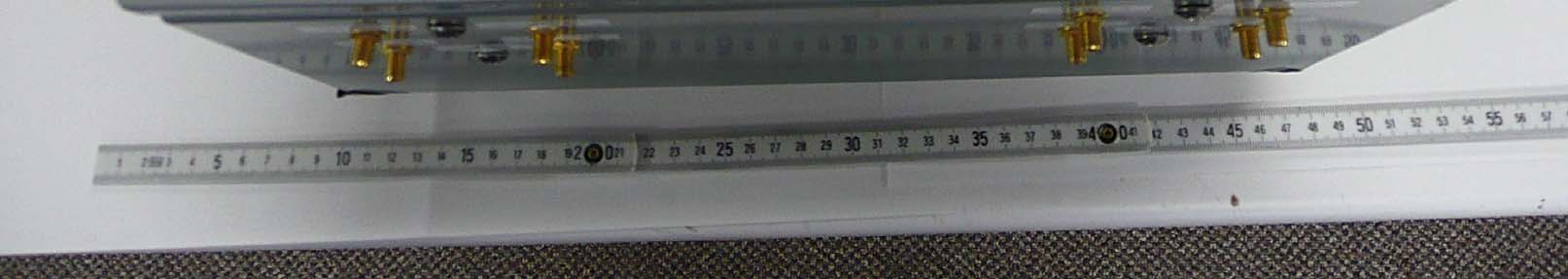

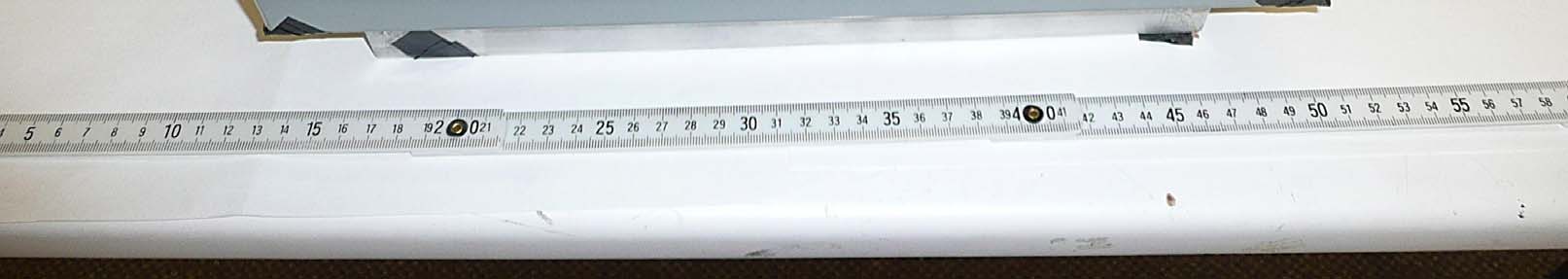

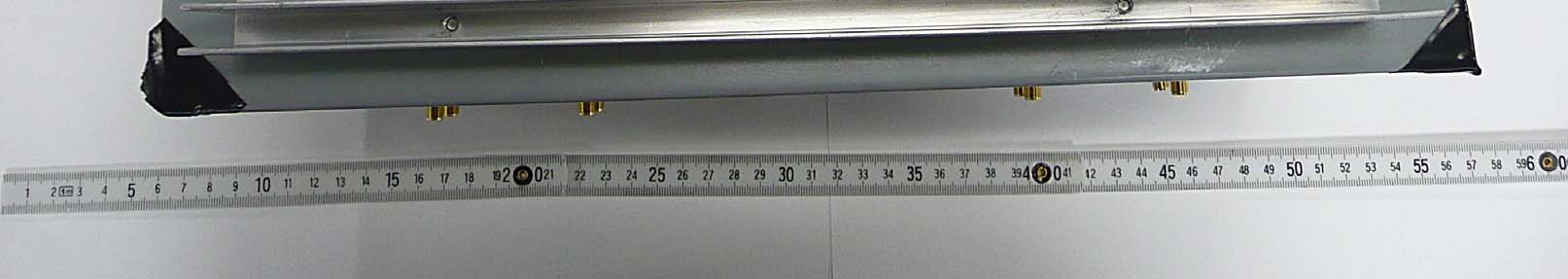

MAY 03 2012 FCC and IC Label for UBDA4551 Unit MAY 03 2012 FCC and IC Label on BDA Unit 2'' 2''

FCC Parts 2 and 90 - Amplifier Page 47 UHF Bi-Directional Amplifier, Model: UBDA4551 FCC ID: WDM-UBDA4551 ULTRATECH GROUP OF LABS File #: CMPR-008F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 August 16, 2012 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com  All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.6. RF EXPOSURE REQUIRMENTS @ 1.1310 & 2.1091 The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation. FCC 47 CFR § 1.1310: 5.6.1. Method of Measurements Refer to Sections 1.1310, 2.1091 In order to demonstrate compliance with MPE requirements (see Section 2.1091), the following information is typically needed: (1) Calculation that estimates the minimum separation distance (20 cm or more) between an antenna and persons required to satisfy power density limits defined for free space. (2) Antenna installation and device operating instructions for installers (professional/unskilled users), and the parties responsible for ensuring compliance with the RF exposure requirement (3) Any caution statements and/or warning labels that are necessary in order to comply with the exposure limits (4) Any other RF exposure related issues that may affect MPE compliance FCC Parts 2 and 90 - Amplifier Page 48 UHF Bi-Directional Amplifier, Model: UBDA4551 FCC ID: WDM-UBDA4551 ULTRATECH GROUP OF LABS File #: CMPR-008F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 August 16, 2012 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com  All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) Calculation Method of RF Safety Distance : 22 44r EIRP r GP S       Where: P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm 5.6.2. RF Evaluation EVALUATION OF RF EXPOSURE COMPLIANCE REQUIREMENTS RF Exposure Requirements Compliance with FCC Rules Minimum calculated separation distance between antenna and persons required: *46.7 cm Manufacturer’ instruction for separation distance between antenna and persons required: 66 cm. Antenna installation and device operating instructions for installers (professional/unskilled users), and the parties responsible for ensuring compliance with the RF exposure requirement Antenna installation and device operating instructions shall be provided to installers to maintain and ensure compliance with RF exposure requirements. Caution statements and/or warning labels that are necessary in order to comply with the exposure limits Refer to User’s Manual for RF Exposure Information. Any other RF exposure related issues that may affect MPE compliance None. *The minimum separation distance between the antenna and bodies of users are calculated using the following formula: S EIRP S GP r      44 S = 450/1500 mW/cm 2 EIRP = P (Max. ERP permitted) + 2.15 dB = 37 dBm + 2.15 dB = 39.15 dBm = 8222 mW (Worst Case) (Minimum Safe Distance, r) = cm S EIRP 7.46 )1500/450(4 8222 4     

UHF Bi-Directional Amplifier Model: UBDA4551 FCC ID: WDM-UBDA4551 Applicant: Comprod Communications Ltd 3405 North Benzing Road Orchard Park, NY 14127 USA Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Parts 2 & 90 UltraTech's File No.: CMPR-008F90 This Test report is Issued under the Authority of Tri M. Luu Vice President of Engineering UltraTech Group of Labs Date: August 16, 2012 Report Prepared by: Dan Huynh Issued Date: August 16, 2012 Tested by: Mr. Wei Wu Test Dates: June 14 ~ August 24, 2011  The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected.  This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] FCC Korea KCC-RRL 91038 1309 46390-2049 NvLap Lab Code 200093-0 SL2-IN-E-1119R CA2049 FCC Parts 2 and 90 - Amplifier Contents i UHF Bi-Directional Amplifier, Model: UBDA4551 FCC ID: WDM-UBDA4551 ULTRATECH GROUP OF LABS File #: CMPR-008F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 August 16, 2012 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com  All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION.................................................................................................................................................. 1 1.1. SCOPE......................................................................................................................................................................... 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 1 1.3. NORMATIVE REFERENCES ...................................................................................................................................... 1 EXHIBIT 2. PERFROMANCE ASSESSMENT........................................................................................................................ 2 2.1. CLIENT INFORMATION .............................................................................................................................................. 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ................................................................................................... 2 2.3. EUT’S TECHNICAL SPECIFICATIONS....................................................................................................................... 3 2.4. LIST OF EUT’S PORTS ............................................................................................................................................... 3 2.5. ASSOCIATED EQUIPMENT........................................................................................................................................ 4 2.6. ANCILLARY EQUIPMENT ........................................................................................................................................... 4 2.7. DRAWING OF TEST SETUP....................................................................................................................................... 4 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS................................................... 5 3.1. CLIMATE TEST CONDITIONS .................................................................................................................................... 5 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS....................................................... 5 EXHIBIT 4. SUMMARY OF TEST RESULTS ......................................................................................................................... 6 4.1. LOCATION OF TESTS ................................................................................................................................................ 6 4.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS .......................................................................6 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ................................................ 6 4.4. DEVIATION OF STANDARD TEST PROCEDURES................................................................................................... 6 EXHIBIT 5. TEST DATA ......................................................................................................................................................... 7 5.1. POWER LINE CONDUCTED EMISSIONS [[§ 15.107(b)]............................................................................................ 7 5.2. RF POWER OUTPUT [§§ 2.1046 and 90.205] .................................................................................... ...................... 10 5.3. OCCUPIED BANDWIDTH [§ 2.1049]......................................................................................................................... 12 5.4. SPURIOUS EMISSIONS AT ANTENNA TERMINAL AND INTERMODULATION [§§ 2.1051, 2.1057 & 90.210]...... 19 5.5. TRANSMITTER SPURIOUS/HARMONIC RADIATED EMISSIONS [§§ 90.210, 2.1057 & 2.1051]........................... 45 5.6. RF EXPOSURE REQUIRMENTS @ 1.1310 & 2.1091 .............................................................................................. 47 EXHIBIT 6. TEST EQUIPMENT LIST ................................................................................................................................... 49 EXHIBIT 7. MEASUREMENT UNCERTAINTY..................................................................................................................... 50 7.1. LINE CONDUCTED EMISSION MEASUREMENT UN…
