© CopyrightGallo Technologies. All Right Reserved-1-10810 Operation & Installation Manual for: Keyless Model # GTS-2 Keyless RFIDPush Button Start &SecuritySystem DISCLAIMER: This installation manual is designed for theprofessionalinstaller with agood understandingof automotive electrical systems,and if the vehicle is so equipped,the ability todisable the steering column locking mechanism.To easein properinstallation, werecommendthatthe installerREAD THIS MANUALthoroughlybefore beginningthe installation. This manual is provided as a GENERAL GUIDELINE and the information contained herein may differ from your vehicle. Gallo Technologies and its’ vendors shall not be liable for any accident resulting from themisuse of this product. Thisproductis designed to be professionally installed into a vehicle in which all systems and associated components are in perfect working condition.DAMAGE to theGTStarter-2unitresulting from incorrect installation or failure to follow guidelines stated in this manual,will not be covered under warranty and will be subject to repair or replacement charges.Links to nation-wideAlarm installers can be found on our web site at www.GalloTech.com. Table of Contents 1.1 Introduction 1.2 Remote Key FOB Operation 1.3 “PUSH START STOP” BUTTON OPERATION 1.4GTStarter-2Function Options 1.5Programming Function Set Up Options 1.6Installation Instructions 1.7Final Installation 1.8Troubleshooting FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation. www.GalloTech.com © CopyrightGallo Technologies. All Right Reserved-2-10810 IMPORTANT:READ ALL INSTRUCTIONS BEFORE INSTALLATION GTStarter-2has been designed toeliminate the need for an ignition key to unlock, start and stop the vehicle, and provide a high level of security. GTStarter-2 makes use of a sophisticated electronic technology called Passive RFID (Radio Frequency Identification). This technology allowsall the same functionsto be doneas an ignition key but completely hands free. Example: just walk up to the vehicle with the RFID key FOB in your pocket or purse and the doors will unlock automatically. After sitting in the vehicle the driver can press the“PUSH START STOP” button one timemomentarilyand the accessories will turn ON, OR Press and hold the “PUSH START STOP” button and theIgnitionwill turn ONor willstartif the brake/clutch is pressed. Put it in gear and drive away. To turn the vehicle off simple push the “PUSH START STOP” button andthe engine will stop. After opening the door and walking away from the vehicle, the doors will automatically lock and the accessories will turn OFF. Other functions such as trunk release, car locating, shock sensor, and other security functions are standard with GTStarter-2. GTStarter-2 can be installed in any vehicle(carbureted, fuel injected, diesel, automatic or manual transmission, and locking or non-locking steering column.)If your vehicle is equipped with a locking steering column, the installationrequires that the steering column lock be permanently disabled. Many late model vehicles (2002–present) have electrically locking steering columns. For electrically locking columns GTStarter-2 includes a “-“disarmoutput that can be used to activate the necessary vehicle specificsecurity by-passmodulethat will release the column lock when the system is in the disarm mode.If your vehicle has a factory installed security system witha key activatedimmobilizer, thenGTStarter-2must beinstalled with the use of an aftermarket securitykeybypass moduledesigned for that particular vehicle.These vehicle specific bypass modules should be supplied by the installer, or can be purchased through numerous aftermarketcar alarmsuppliers. To ease and reduceinstallation time, we suggest you consider the following points before starting: 1.Check all vehicle manufacturer cautions and warnings regarding electrical service (AIR BAGS, ABS BRAKES, ENGINE / BODY COMPUTER AND BATTERY).Use extreme care and do not probeany wires of the SRS system. 2.Additional vehicle specific wiring diagrams and other helpful installation information can be found on our web site atwww.gallotech.com/support.php 3.Determine the most suitable locations for all components to be placed. These components include: The control module,“PUSH START STOP”button, siren or possible extra relays. 4.GTStarter-2 can be installed with or without the ignition switch.If the ignition switch is left functional then the vehicle can be started with either the key or the“Push Start Stop”button.SeeFigure 1 Option 1. 5.Use aDigital Multi-Meter or 12-volt Test Probe (High-Impedance)to test and locate all connections. ConventionalTest Lights can damage a vehicle’s computer systems. 6.Record all color codes of vehicle wiring to be used for reference. This will save time by not having to re-test the same wires over again. Mark all vehicle wires with masking tape. 7.After locating and marking the appropriate wires DISCONNECT the (+) POS terminal at the battery. 8.Determine the type ofdoorlocking system the vehicle has before connecting any wires. Incorrect connection can result in damage to theGTStarter-2and/or vehicle locking system. There are several types of door lock systems in vehicles today. Below is listed the many types of common locking systems: Negative Trigger (-): Many Imports; Late model Ford & General Motors Negative trigger door lock systems send a Negative (Ground) pulse to existing factory relays to lock and unlock the vehicle doors. Positive Trigger (+): Many General Motors; Chrysler / Dodge / Plymouth Positive trigger door lock systems send a Positive (+12V) pulse to existing factory relays to lock and unlock the vehicle doors. Reverse Polarity: Many Ford/Lincoln/Mercury/Dodge/Chrysler/Plymouth and early 90’s GM Truc…

Text truncated - open the document above for the full version.

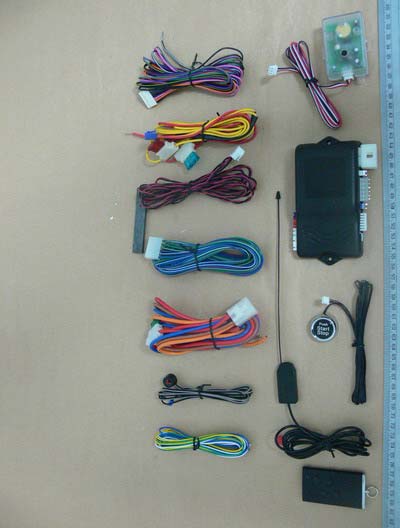

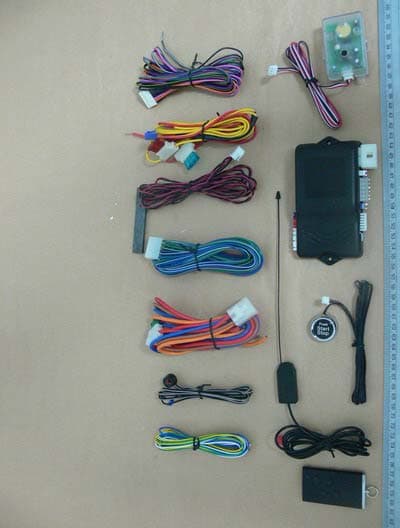

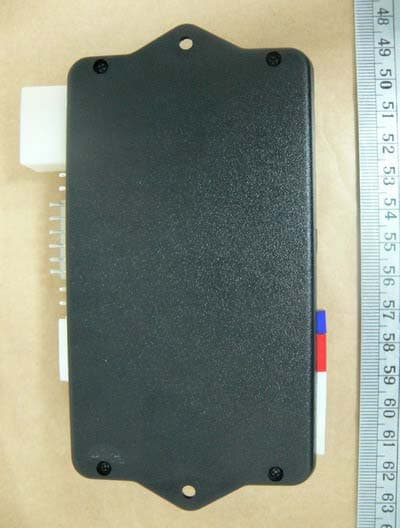

Registration number: W6M21012-11126 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 24 Pictures External Photos Registration number: W6M21012-11126 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 24 Transmitter Registration number: W6M21012-11126 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 24 Registration number: W6M21012-11126 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 24 Receiver Registration number: W6M21012-11126 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 24 Registration number: W6M21012-11126 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 24 Registration number: W6M21012-11126 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 24 Registration number: W6M21012-11126 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 24

Label & Location

Registration number: W6M21012-11126 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 15 of 24 Internal Photos Transmitter Registration number: W6M21012-11126 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 16 of 24 Registration number: W6M21012-11126 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 17 of 24 Registration number: W6M21012-11126 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 18 of 24 Registration number: W6M21012-11126 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 19 of 24 Receiver Registration number: W6M21012-11126 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 20 of 24 Registration number: W6M21012-11126 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 21 of 24

of Applicant: Gallo Technologies Address: 6224 Camellia Cir, Rocklin, CA, 95765, USA Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21012-11126-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for GTSTARTER2 Model No.: GTS2 FCC ID: WDOGTS20210 Registration number: W6M21012-11126-C-1 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 19 TABLE OF CONTENTS 1 GENERAL INFORMATION 2 1.1 NOTES 2 1.2 TESTING LABORATORY 3 1.2.1 Location 3 1.2.2 Details of accreditation status 3 1.3 D ETAILS OF APPROVAL HOLDER 4 1.4 APPLICATION DETAILS 4 1.5 TEST ITEM 4 1.6 TEST STANDARDS 5 2 TECHNICAL TEST 5 2.1 S UMMARY OF TEST RESULTS 5 2.2 TEST ENVIRONMENT 5 2.3 TEST MODE 5 2.4 T EST EQUIPMENT UTILIZED 6 2.5 GENERAL TEST PROCEDURE 8 3 TEST RESULTS (ENCLOSURE) 9 3.1 T RANSMISSION REQUIREMENTS 10 3.1.1 Limit of Transmission Time 10 3.1.2 Active Time 10 3.2 OUTPUT POWER (FIELD STRENGTH) 11 3.3 OUT OF BAND RADIATED EMISSIONS 12 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS 13 3.5 SPURIOUS EMISSION RADIATED, TRANSMITTER 14 3.6 CHANNEL BANDWIDTH 16 3.7 ANTENNA REQUIREMENT 17 3.8 DUTY CYCLE 18 3.9 CONDUCTED MEASUREMENT AT (AC) POWER LINE 19 Registration number: W6M21012-11126-C-1 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 19 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Tester: January 17, 2011 Robert Ren Date WTS-Lab. Name Signature Technical responsibility for area of testing: January 17, 2011 Chang Tse-Ming Date WTS Name Signature Registration number: W6M21012-11126-C-1 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 19 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang Sing Village, LiShuei Rd., Wanli Township, Taipei County 207, Taiwan (R.O.C.) Company Worldwide Testing Services(Taiwan) Co., Ltd. 6F, NO. 58, LANE 188, RUEY-KUANG RD. NEIHU, TAIPEI 114, TAIWAN R.O.C. Tel : 886-2-66068877 Fax : 886-2-66068879 1.2.2 Details of accreditation status Accredited testing laboratory A2LA accredited number: 2732.01 FCC filed test laboratory Reg. No. 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 Test location, where different from Worldwide Testing Services (Taiwan) Co., Ltd. : Name: ./. Accredited number: ./. Street: ./. Town: ./. Country: ./. Telephone: ./. Fax: ./. Registration number: W6M21012-11126-C-1 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Page 4 of 19 1.3 Details of approval holder Name: Gallo Technologies Street: 6224 Camellia Cir, Rocklin, Town: CA, 95765, Country: USA Telephone: 916-622-1902 Fax: 916-435-2939 1.4 Application details Date of receipt of test item: December 29, 2010 Date of test: from December 29, 2010 to January 17, 2011 1.5 Test item Description of test item: GTSTARTER2 Type identification: GTS2 Brand name: Gallo Technologies Multi-listing model number: ./. Transmitting frequency: 433.92MHz Operation mode: simplex Voltage supply: 3VDC (CR2032) (The device is tested under fresh battery condition.) Highest clock frequency: 433.92MHz Antenna type: PCB Antenna Photos: see Appendix Manufacturer (if applicable) Name: LEYTON TECHNOLOGIES LIMITED Street: No.6, New Pioneering Park West Area of Ningbo Free Trade Zone, Town: Beilum, Ningbo, Country: China Additional information: ./. Registration number: W6M21012-11126-C-1 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Page 5 of 19 1.6 Test standards Technical standard : FCC RULES SUBPART C § 15.231 (a) (2009-10) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course
of the tests performed. or The deviations as specified in 3 were ascertained in the course of the tests  performed. 2.2 Test environment Temperature: 23 o C Relative humidity content: 20 ... 75 % Air pressure: 86 ... 103 kPa Details of power supply: 3VDC (CR2032) 2.3 Test Mode This EUT is the portable device. So the EUT was tested on three different axes. Please see assessment test results as section 3 of this test report. Registration number: W6M21012-11126-C-1 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Page 6 of 19 2.4 Test equipment utilized No. Test equipment Type Serial No. Manufacturer Cal. Date Next Cal. Date ETSTW-CE 001 EMI TEST RECEIVER ESHS10 842121/013 R&S 2010/9/2 2011/9/1 ETSTW-CE 004 ZWEILEITER-V- NETZNACHBILDUNG TWO- LINE V-NETWORK ESH3-Z5 840731/011 R&S 2010/3/2 2011/3/1 ETSTW-CE 005 Line-Impedance Stabilisation Network NNBM 8126D 137 Schwarzbeck 2010/9/8 2011/9/7 ETSTW-CE 006 IMPULSBEGRENZER PULSE LIMITER ESH3-Z2 100226 R&S 2010/5/8 2011/5/7 ETSTW-CE 007 SPECTRUM ANALYZER 5GHz FSB 849670/001 R&S Pre-test Use NCR ETSTW-CE 008 HF- EICHLEIT…

Text truncated - open the document above for the full version.

Registration number: W6M21012-11126 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 22 of 24 Set Up Photos of Radiation EMI Registration number: W6M21012-11126 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 23 of 24 RF-Transmitter Registration number: W6M21012-11126 FCC ID: WDOGTS20210 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 24 of 24 RF-Receiver
