WHLIP306Network Camera

User's Manual V3.25 Network Camera Pl ease read this manual carefully before you attempt to install this product and retain it for your future reference. 1 Contents Main Features................................................................................................................................................ 6 Physical Description...................................................................................................................................... 9 Installation..................................................................................................................................................... 12 Hardware Installation............................................................................................................................. 12 Camera Network deployment................................................................................................................ 14 Camera setup installation & Usage........................................................................................................ 17 Network Camera Screen and Setup Window......................................................................................... 22 Operating Bar............................................................................................................................................... 24 Viewing the camera from your mobile phone.......................................................................................... 26 Network Camera Setting Interface............................................................................................................ 27 Camera......................................................................................................................................................... 29 Camera Setup......................................................................................................................................... 29 Stream Setup.......................................................................................................................................... 30 OSD Setup.............................................................................................................................................. 32 Night Vision Setup (IR-CUT)................................................................................................................ 33 Network......................................................................................................................................................... 34 Wireless Setup........................................................................................................................................ 34 TCP/IP Setup.......................................................................................................................................... 36 PPPoE Setup.......................................................................................................................................... 37 DDNS Setup........................................................................................................................................... 38 UPNP Setup........................................................................................................................................... 40 Alarm............................................................................................................................................................. 43 Digital I/O Setup.................................................................................................................................... 43 Motion Detection................................................................................................................................... 43 Schedule Setup....................................................................................................................................... 45 Alarm Management................................................................................................................................ 46 Periodic Sending.................................................................................................................................... 48 Buffer Management...............................................................................................................................50 Alarm Server................................................................................................................................................ 51 FTP Server............................................................................................................................................. 51 e-Mail Server.......................................................................................................................................... 52 HTTP Server.......................................................................................................................................... 53 SD Functions................................................................................................................................................ 54 Record on Alarm.................................................................................................................................... 54 Snapshot on Alarm................................................................................................................................. 56 Continuous Record................................................................................................................................. 57 Snapshot at Interval................................................................................................................................ 58 SD FTP Sending..................................................................................................................................... 59 Browse SD Card...............................…

Text truncated - open the document above for the full version.

This device must not be co-located or operating in conjunction with any other antenna or transmitter NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Regulatory information / Disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use on the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. MPE Statement (Safety Information) Your device contains a low power transmitter. When device is transmitted it sends out Radio Frequency (RF) signal. Safety Information In order to maintain compliance with the FCC RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use only with supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IEEE 802.11b/g operation of this product in the U.S.A. is firmware -limited to channels 1 through 11.

ORANTEK Ltd. 5/F, Building E, Dakan Tech Park, Dakan Village, Xili Town, Nanshan District, Shenzhen, China. Federal Communications Commission 7435 Oakland Mills Road Columbia, MD Date: May 20, 2010 SUBJECT: FCC Application for FCC ID: WHLIP306 To Whom It May Concern: This letter is to ascertain that ORANTEK Ltd. Product has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, please contact us Regards, Allan Wang

55 44 33 22 11 D D C C B B A A TitleSize Document Number Rev Date: Sheet of IP306 IP306 Functional Block Diagram 39 Thursday, April 15, 2010 TitleSize Document Number Rev Date: Sheet of IP306 IP306 Functional Block Diagram 39 Thursday, April 15, 2010 TitleSize Document Number Rev Date: Sheet of IP306 IP306 Functional Block Diagram 39 Thursday, April 15, 2010 ORANTEK Co.,Ltd MAC Ethernet AMR926JS DC-DC Convertor USB2.0 Interface 22.1184MHz 2.4G Antenna 30MHZ 25MHz The Clock of CCIR656 is 24MHz 24MHZ The Clock of SDRAM is 133MHz 802.11b ／ g Wireless Channels Power Adapter SDRAM SDRAM Power Voltage Detector CMOS Sensor CCIR656 I2C POWER NORFLASH EMIF WLAN Module USB2.0 Oscillator For PHY RJ45 RJ45 Crystal Resonator Crystal Resonator For ARM Transformer TX/RX RT8201 TX/RX MII Crystal Resonator For USB PHY GM8120 SDRAM MII I2CI2SCCIR655 USB2.0 EMIF GPIO IR LED Board Audio CODEC I2C I2S

ORANTEK Ltd. 5/F, Building E, Dakan Tech Park, Dakan Village, Xili Town, Nanshan District, Shenzhen, China. To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ORANTEK Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Network Camera Model name: IP306 We affirm that between SIEMIC and ORANTEK Ltd. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Allan Wang

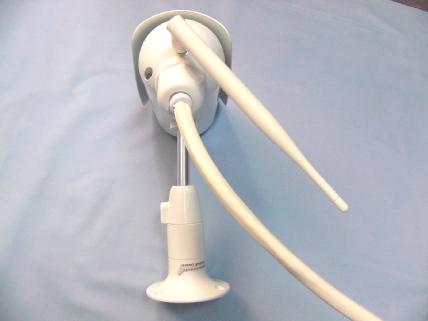

EUT top view EUT bottom view

FCC ID: FCC ID: WHLIP306 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Label Location

Main & RF board component side Main & RF board solder side

IP306 Operational Description The IP306 is a Network camera provides the ability to view the cameras monitored through PC or mobile phone as a live video stream, it supports the telecommunications standard of 3GPP streaming format. All 3G enabled mobile devices and most 2G phones that support the streaming standard of 3GPP are compatible. The U3 on OTIP306OV77251VC board is a CMOS image sensor, it captures the image data and the data is send to U on OTIPCAMCORE1VD board in ITU656 format. The U4 on OTIPCAMCORE1VD board is an ARM MCU including a MPEG4 CODEC, it implements all the control and TCP/IP protocol in the same time it will encode the image data come from U4. While the encoding is complete, the encoding data will be sent out in two ways. While the RJ45 is pluged, IP306 will send the compress image data by the CAT5 wire. While the RJ45 is unplugging, IP306 will send the compress image data by the WLAN Module using Wireless way. The U5 on OTIPCAMCORE1VD board and its periphery is use to Ethernet PHY, the U3 include a MAC, so U3 sent compress image data to Ethernet by U5. The camera allows live the MPEG-4 and Motion JPEG streams simultaneously. The camera features MPEG4 compression which compresses the video to make transmission faster and more efficient. The MPEG4 and MJPEG image can be transmitted at 30 frames per second. Because of its high-compression ratios, users can monitor high-quality moving images with low delay even at low bandwidths. The image size can be selected according to the network environment and application requirements. Image size can be selected from three modes: 640 x 480, 320 x 240, and 160 x 120.

0088 7. RF Exposure Requirements 7. 1 Test Equipment Please refer to Section 10 this report. 7. 2 Limit According to FCC 15.247(i), Systems operating under provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commissions guidelines. FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b)(1) of this chapter. 7. 3 Test Result Product : Network Camera Test Mode : IEEE 802.11b/g Test Item : RF Exposure Temperature : 25 °C Test Voltage : DC 5V (Power by DC Power Supply) Humidity : 56%RH Test Result : PASS Evaluation of RF Exposure Compliance Requirements MPE Prediction of MPE according to equation from page 19 of OET Bulletin 65, Edition 97-01 RF Exposure Requirements Compliance with FCC Rules S=PG/4∏R2 Where: S=Power density P=Power input to antenna G=Power gain of the antenna relative to an isotropic radiator R=Distance to the center of radiation of the antenna Maximum output power at antenna input terminal: 11.46dBm =14.00mW Prediction distance: 20 cm Antenna gain : 5.0dBi Prediction frequency: 2412MHz MPE limit for uncontrolled exposure at prediction frequency: 1.0 mW/cm 2 Power density at 20 cm: Antenna: 0. mW/cm 2

5 5 4 4 3 3 2 2 1 1 DD CC BB AA Title SizeDocument NumberRev Date:Sheet of OTIP306IF1VC Note 110Thursday, April 15, 2010 Title SizeDocument NumberRev Date:Sheet of OTIP306IF1VC Note 110Thursday, April 15, 2010 Title SizeDocument NumberRev Date:Sheet of OTIP306IF1VC Note 110Thursday, April 15, 2010 Data code/ Version Modification -First release1.0 Change log: ORANTEK Co.,Ltd 5 5 4 4 3 3 2 2 1 1 DD CC BB AA ETH_TX+ ETH_TX- ETH_RX+ ETH_RX+ ETH_RX- ETH_TX- ETH_TX+ TPTX- TPTX+ TPRX+ TPRX- PWFBOUT TPRX+ TPRX- PWFBOUT TPTX- TPTX+ TPRX+ TPRX- ETH_RX- 12V_POE 12V TPRX- TPRX+ PWFBOUT TPTX- TPTX+ Title Si zeDocument NumberRev Date:Sheet of OTIP306IF1VC Network,POE 210Thursday, April 15, 2010 Title SizeDocument NumberRev Date:Sheetof OTIP306IF1VC Network,POE 210Thursday, April 15, 2010 Title SizeDocument NumberRev Date:Sheetof OTIP306IF1VC Network,POE 210Thursday, April 15, 2010 ORANTEK Co.,Ltd PM44-11BG CAP_SMD_8X10MM5 R13 75R/1% R13 75R/1% J10 CON8_1MM25_SMT_90 J10 CON8_1MM25_SMT_90 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 R10 75R/1% R10 75R/1% R1649.9/1%R1649.9/1% C24 22nF C24 22nF C18 0.1uF C18 0.1uF C20 0.1uF C20 0.1uF C19 22nF C19 22nF R11 75R/1% R11 75R/1% D6 SS34D6 SS34 R15 75R/1% R15 75R/1% + C17 47uF/6.3V + C17 47uF/6.3V R1449.9/1%R1449.9/1% C15 0.001uF/2KV C15 0.001uF/2KV C16 22nF C16 22nF C23 22nF C23 22nF C21 0.1uF C21 0.1uF U9 AG9412S U9 AG9412S NC 6 VBIN- 4 +VDC 8 IC2 10 VAIN- 2 -VDC 7 ADJ 9 IC1 5 VAIN+ 1 VBIN+ 3 U13 HD06 U13 HD06 U10 VP8019 U10 VP8019 TD+ 1 TD- 3 RD+ 6 NC1 4 RD- 8 RXCT 10 NC3 12 RX+ 11 TX- 14 TX+ 16 TCT 2 RCT 7 RX- 9 TXCT 15 NC4 13 NC2 5 + C34 470uF/16V + C34 470uF/16V U12 HD06 U12 HD06 L61A,120ohm@100MHzL61A,120ohm@100MHz 5 5 4 4 3 3 2 2 1 1 DD CC BB AA IO_OUTPUT IO_INPUTI/O_DI I/O_DI I/O_DO I/O_DO 3V3 3V3 12V 12V 3V3 IO_OUTPUT IO_INPUT Title Si zeDocument NumberRev Date:Sheet of OTIP306IF1VC IO 310Thursday, April 15, 2010 Title SizeDocument NumberRev Date:Sheet of OTIP306IF1VC IO 310Thursday, April 15, 2010 Title SizeDocument NumberRev Date:Sheet of OTIP306IF1VC IO 310Thursday, April 15, 2010 ORANTEK Co.,Ltd TOP View Active HIGH A ctive HIGH SOT-89 U1 PS2701-1 U1 PS2701-1 1 23 4 R7 1K R7 1K R12 10K R12 10K U7 BST52 U7 BST52 1 2 3 R11KR11K R3320RR3320R U4 PS2701-1 U4 PS2701-1 1 23 4 R6 10K R6 10K D1 1N4001 D1 1N4001 J6 CON5 J6 CON5 1 1 2 2 3 3 4 4 5 5 6 6 R24 1K R24 1K 5 5 4 4 3 3 2 2 1 1 DD CC BB AA I2S_TXD I2S_BCLK I2S_RXD I2S_FS I2S_MCLK S1_TXD S1_RXD I2S_RXD S1_RXDS1_TXD GND I2S_MCLK I2S_BCLK I2S_FS GNDGND GNDGND I2S_TXD GND GND GND GND GND V_DI2 GNDGND V_DI0 V_DI1 GPIO14 V_DI6 V_DI4 SDA SCL GPIO13 GND V_DI7 V_DI5 V_DI3 GND V_PCLKIN IO_OUTPUT GND GND GND TPRX+ TPTX+ TPTX- TPRX- TPRX+ PWFBOUT GND GND SD_CMD SD_CLK SD_DAT2 PWFBOUT TPRX- SD_DAT3SD_DAT1 TPTX+TPTX- PWFBOUT SD_CDn GNDSD_DAT0 GND IO_INPUT 3V3 SD_CLK SD_CMD SD_DAT0 SD_DAT1 SD_DAT2 SD_DAT3 SD_CDn SD_DAT0 SD_DAT1 SD_DAT2 SD_DAT3 SD_CMD SD_CDn PowerLEDDefault_Set GPIO4 GPIO6 GPIO4 GPIO6 PowerLED Default_Set GPIO9 GPIO15 GPIO9 GPIO15 GPIO14 GPIO13 V_DI3 V_DI5 V_PCLKIN V_DI6 V_DI7 V_DI1 V_DI4 SCL SDA V_DI2 V_DI0 3V3 3V33V3 +5V+5V 3V3 3V3 3V3 +5V 3V3 3V3 3V3 3V3 +5V 12V I2S_RXD I2S_MCLK I2S_BCLK I2S_FS I2S_TXD SDA SCL PWFBOUT TPTX- TPRX- TPRX+ TPTX+ IO_OUTPUT IO_INPUT GPIO4 GPIO6 SCL SDA Title Si zeDocument NumberRev Date:Sheet of OTIP306IF1VC Connector 310Thursday, April 15, 2010 Title SizeDocument NumberRev Date:Sheetof OTIP306IF1VC Connector 310Thursday, April 15, 2010 Title SizeDocument NumberRev Date:Sheetof OTIP306IF1VC Connector 310Thursday, April 15, 2010 GPIO5 GPIO7 ORANTEK Co.,Ltd R21 1K R21 1K R2010KR2010K R224K7R224K7 R3210KR3210K T_CARD_Socket J16 T_CARD_Socket J16 DAT2 1 CD_DAT3 2 CMD 3 VDD 4 CLK 5 VSS 6 DAT0 7 DAT1 8 10 10 CD 9 13 13 12 12 11 11 C28 0.1uF C28 0.1uF R3110KR3110K J3 DIP13X2_1MM27 J3 DIP13X2_1MM27 1 3 5 7 9 11 13 15 17 19 21 23 25 2 4 6 8 10 12 14 16 18 20 22 24 26 D4 LED D4 LED R34 10K R34 10K + C27 47uF/6.3V + C27 47uF/6.3V R23 47K R23 47K J2 DIP13X2_1MM27 J2 DIP13X2_1MM27 1 3 5 7 9 11 13 15 17 19 21 23 25 2 4 6 8 10 12 14 16 18 20 22 24 26 + C29 47uF/6.3V + C29 47uF/6.3V R1910KR1910K J11 FPC24P-0.5mm J11 FPC24P-0.5mm 1 3 5 7 11 13 15 17 19 2 6 8 10 12 14 16 18 20 9 4 21 22 23 24 J1 DIP10X2_1MM27 J1 DIP10X2_1MM27 1 3 5 7 9 11 13 15 17 19 2 4 6 8 10 12 14 16 18 20 R1810KR1810K R3010KR3010K R35 10K R35 10K + C25 47uF/6.3V + C25 47uF/6.3V J7 4X1 J7 4X1 1 2 3 4 K1TS-1112EMK1TS-1112EM 5 5 4 4 3 3 2 2 1 1 DD CC BB AA 3V3_MIC MIC_AMP MIC_BIAS 3V3_A3V3_MIC SDA SCL AGND_AUDIO SDA SCL GND GP_CSn GND MIC_BIAS 3V3_AAGND I2S_RXD HPVDD GP_CSn VMID I2S_BCLK I2S_RXD I2S_FS I2S_MCLK I2S_BCLK I2S_MCLK MIC_AMP I2S_TXD I2S_FS I2S_TXD RHPOUT LHPOUT RHPOUT LHPOUT 3V3 3V33V3 3V3 3V3 3V33V3 3V3 3V3 SDA SCL I2S_RXD I2S_MCLK I2S_BCLK I2S_FS I2S_TXD Title Si zeDocument NumberRev Date:Sheet of OTIP306IF1VC Audio, RTC 910Thursday, April 15, 2010 Title SizeDocument NumberRev Date:Sheetof OTIP306IF1VC Audio, RTC 910Thursday, April 15, 2010 Title SizeDocument NumberRev Date:Sheetof OTIP306IF1VC Audio, RTC 910Thursday, April 15, 2010 MIC_BIAS = 3/4 AVDD R>(Vc-3.0-Vf)/Iu MS614S Iu(Maximum Charging Current at Battery Voltage of 3.0V) = 0.5mA R (BAT54C) (BAT 54C) ORANTEK Co.,Ltd 2-Wire mode address setting GP_CSn : 'H' : 0xC4, 'L': 0xC6 C8 0.1uF C8 0.1uF R26 47K R26 47K + C7 47uF/6.3V + C7 47uF/6.3V C14 0.1uF C14 0.1uF U5 LMV710M5U5 LMV710M5 OUT 1 IN+ 3 GND 2 IN- 4 VCC 5 C10 0.1uF C10 0.1uF R25 47K R25 47K C9 0.1uF C9 0.1uF C5 0.1uF C5 0.1uF Y1 32.768K Y1 32.768K R281KR281K C391uFC391uF C11 47PF C11 47PF J9 CON2 J9 CON2 + C36 47uF/6.3V + C36 47uF/6.3V R27470KR27470K R8 2.2K R8 2.2K C3833PFC3833PF R9 100RR9 100R R29 1K R29 1K L210uHL210uH C35 0.1uF C35 0.1uF J8 CON3 J8 CON3 U8 XWM8731EFL U8 XWM8731EFL DBVDD 5 CLKOUT 6 BCLK 7 DACDAT 8 DACLRC 9 ADCDAT 10 ADCLRC 11 HPVDD 12 LHPOUT 13 RHPOUT 14 HPGND 15 LOUT 16 ROUT 17 AVDD 18 AGND 19 VMID 20 MICBIAS 21 MICIN 22 RLININ 23 LLININ 24 MODE 25 CSB 26 SDIN 27 SCLK 28 XTI/MCLK 1 XTO 2 DCVDD 3 DGND 4 PAD 29 L5 1A,120ohm@100MHz L5 1A,120ohm@100MHz + C30 47uF/6.3V + C30 47uF/6…

Text truncated - open the document above for the full version.

The test report consists 40 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT Under FCC 15 Subpart C, Paragraph 15.247 Operating in 2400 ~ 2483.5 MHz Band Prepared For : ORANTEK Ltd. 5/F, Building E, Dakan Tech Park, Dakan Village, Xili Town, Nanshan District, Shenzhen, China. FCC ID: WHLIP306 EUT: Network Camera Model: IP306 May 17, 2010 Issue Date: Original Report Report Type: Test Engineer: Jacky Huang Review By: Apollo Liu / Manager Ke Mei Ou Laboratory Co., Ltd. 7A, Jiaxiangge, Jiahuixincheng, No.3027, Shennan Rd., Futian, Shenzhen, Guangdong, P.R.China. Zip Code: 518033 Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com ORANTEK Ltd. FCC ID: WHLIP306 KMO FCC ID Report Report #: KSZ2010042901J Page 2 of 40 TABLE OF CONTENTS 1. General Information ........................................................................................................................................................... 3 1. 1 Notes ............................................................................................................................................................................... 3 1. 2 Testing Laboratory .......................................................................................................................................................... 3 1. 3 Details of Applicant ........................................................................................................................................................ 3 1. 4 Application Details ......................................................................................................................................................... 3 1. 5 Test Item ......................................................................................................................................................................... 3 1. 6 Test Standards ................................................................................................................................................................. 3 2. Technical Test ....................................................................................................................................................................... 4 2. 1 Summary of Test Results ................................................................................................................................................ 4 2. 2 Antenna Requirement ..................................................................................................................................................... 4 3. EUT Modifications .............................................................................................................................................................. 4 4. Conducted Power Line Test ................................................................................................................................................ 5 4. 1 Test Equipment ............................................................................................................................................................... 5 4. 2 Test Procedure ................................................................................................................................................................ 5 4. 3 Test Setup ....................................................................................................................................................................... 5 4. 4 Configuration of the EUT ............................................................................................................................................... 6 4. 5 EUT Operating Condition ............................................................................................................................................... 7 4. 6 Conducted Power Line Emission Limits ........................................................................................................................ 7 4. 7 Conducted Power Line Test Result ................................................................................................................................. 8 5. FCC Part 15.247 Requirements for 802.11b/g Systems .................................................................................................. 10 5. 1 Test Equipment ............................................................................................................................................................. 10 5. 2 Test Procedure .............................................................................................................................................................. 10 5. 3 Test Setup ..................................................................................................................................................................... 10 5. 4 Configuration of the EUT ............................................................................................................................................. 10 5. 5 EUT Operating Condition ............................................................................................................................................. 10 5. 6 Limit ............................................................................................................................................................................. 10 5. 7 Test Result .....................................................................................................................................................................11 6. Transmitter Spurious Radiated Emission at 3 Meters .................................................................................................... 24 6. 1 Test…

Text truncated - open the document above for the full version.

Conducted emission test view Radiated Conducted emission test view Radiated emission test view
