WI212K834Bluetooth Speaker

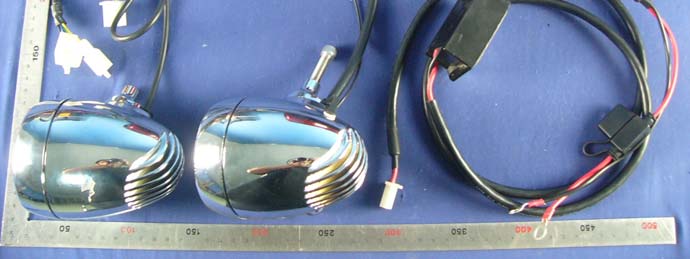

PARTS INCLUDED 2 Bluetooth Speaker Assemblies 2 1” Handlebar Clamp Assemblies 2 Stereo Plug Harnesses for Bluetooth-one 8” long and one 18” long 1 Fuse & Noise Filter Wiring Harness 1 Hardware Kit Including: 2 5/16”-18 x 2” Socket Head Cap Screws 3 Dielectric Grease Packs 4 5/16” Lock Washers 8 8” Cable Ties 1 Dielectric Grease 1 Anti-Seize Packet 1 Installation Instructions Please read and understand entire instructions before starting installation. THANK YOU FOR CHOOSING KϋRYAKYN! IN ORDER TO PROTECT YOU AND OTHERS FROM POSSIBLE INJURY AND/OR PROPERTY DAMAGE OR LOSS, PLEASE PAY CLOSE ATTENTION TO ALL INSTRUCTIONS, WARNINGS, CAUTIONS AND NOTICES REGARDING THE USE AND CARE OF THIS PRODUCT. TOOLS SUGGESTED Set of Hex Wrenches, Set of Combination Wrenches, Socket Set and Ratchet STRICTLY OBSERVE THE FOLLOWING GUIDELINES IN ORDER TO USE THE PRODUCT PROPERLY AND AVOID POTENTIALLY DANGEROUS ACCIDENTS. STEP 1 Read and understand all steps in the instructions before starting the installation. Park the motorcycle on a hard, level surface and turn off the ignition. Let cool. It is the end user’s responsibility to record the Bluetooth security code in the box below and retain these instructions for your records. Küryakyn does not keep records of these security codes and the speakers CANNOT be reprogrammed if you lose this code. Küryakyn WILL NOT issue a warranty for lost security codes. The security code is located on the label attached to the wiring harness of the speaker with the On-Off Volume switch. PIC 1 RECORD SECURITY CODE HERE OR ON BACK PAGE INSTALLATION CUSTOMER SERVICE 877.370.3604 (toll free) INSTALLATION QUESTIONS [email protected] or call 715.247.2983 LIMITED WARRANTY Küryakyn warrants that any Küryakyn products sold hereunder, shall be free of defects in materials and workmanship for a period of one (1) year from the date of purchase by the consumer excepting the following provisions: ● Küryakyn shall have no obligation in the event the customer is unable to provide a receipt showing the date the customer purchased the product(s). ●The product must be properly installed, maintained and operated under normal conditions. ●Küryakyn makes no warranty, expressed or implied, with respect to any gold plated products. ●Küryakyn shall not be liable for any consequential and incidental damages, including labor and paint, resulting from failure of a Küryakyn product, failure to deliver, delay in delivery, delivery in nonconforming condition, or for any breech of contract or duty between Küryakyn and a customer. ●Küryakyn products are often intended for use in specific applications. Küryakyn makes no warranty if a Küryakyn product is used in applications other than intended. ●Küryakyn electrical products are warranted for one (1) year from the date of purchase by the consumer. L.E.D.’S contained in components of Küryakyn products will be warranted for defects in materials and workmanship for 3 years from the date of purchase where as all other components shall be warranted for one(1) year. This includes, but is not limited to; control modules, wiring, chrome & other components. ●Küryakyn makes no warranty of any kind in regard to other manufacturer¹s products distributed by Küryakyn. Küryakyn will pass on all warranties made by the manufacturer and where possible, will expedite the claim on behalf of the customer, but ultimately, responsibility for disposition of the warranty claim lies with the manufacturer. ABOUT OUR CATALOG For purchasing Küryakyn® products, you can receive a complete catalog free of charge. Send the Proof-of-Purchase below with your address to: Küryakyn, P.O. Box 339, Somerset, WI 54025. Please indicate either Accessories Catalog for Harley-Davidson® or GL & Metric Cruisers. Be sure to ask your local dealer about other Küryakyn® products, the motorcycle parts and accessories designed for riders by riders. ©2005 Küryakyn USA® All Rights reserved. BLUETOOTH SOUND of CHROME 834 834-11MC-0712 -cont.- PROOF OF PURCHASE THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN CAN RESULT IN POTENTIAL DEATH OR SERIOUS INJURY. This indication alerts you to the fact that ignoring the contents described herein may negatively affect product performance and functionality. IF INSTALLING THIS PRODUCT FOR ANOTHER PARTY, PLEASE MAKE SURE THEY RECEIVE THIS COPY OF THE INSTALLATION INSTRUCTIONS SO THEY ARE AWARE OF THE IMPORTANT INFORMATION CONTAINED IN THEM. PAGE 2 YOU WILL BE WORKING AROUND THE ENGINE AND EXHAUST SYSTEM DURING INSTALLATION. ENSURE THAT THE ENGINE AND EXHAUST SYSTEM HAVE FULLY COOLED TO PREVENT INJURY. STEP 2 Cover the gas tank and front fender with a service cover, or a soft, clean blanket. STEP 3 Determine a location to install the clamps so that there will be sufficient clearance for the speakers. PIC 2 shows several mounting options. STEP 4 Remove the screws from the clamp, install the clamp on the handlebars, and make sure that no wires are being pinched; place a small amount of anti-seize to the screws and reinstall them, only tightening them enough to prevent the clamps from rotating. PIC 3 NOTE: The clamps may be installed in different directions/positions as needed for sufficient clearance. Be sure to use the supplied anti-seize on all threaded fasteners before installation. This will reduce galling and make future removal of the fasteners easier. STEP 5 Place a 5/16” lock washer on one of the 5/16”-18 x 2” Socket Head Cap Screws and insert it in the bracket as shown in PIC 3. Place another 5/16” lock washer over the protruding threads and place a small amount of anti-seize to the threads and secure into the bottom of the speaker. Do not tighten yet. NOTE: The speakers are not side specific, though we recommend placing the speaker with the volume control knob on the clutch side. STEP 6 Sit on the bike and adjust the speakers to desired location. NOTE: The speakers are directional and for best results need to be pointed towards the ri…

Text truncated - open the document above for the full version.

Dongguan XYE Computer Co.Ltd. Baotun Industrial District,Houjie Town,Dongguan City,Guangdong Province,China FCC Authorization Letter Number: CF304 Version: V01 Date: 01-02-2010 We, (the approval holder) Company name Dongguan XYE Computer Co.Ltd. Address Baotun Industrial District,Houjie Town,Dongguan City,Guangdong Province,China City Dongguan Country China declare that the following representative (agent): Name (person) Aven zhou Function Supervisor Company name Compliance Certification Services (Shenzhen) Inc. Addresss No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Bluetooth Speaker Type or Model(s) 834 Tradename or Brand(s) Kuryakyn We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Dongguan,China July 12th,2012 Sam Liou president

Dongguan XYE Computer Co.Ltd. Baotun Industrial District,Houjie Town,Dongguan City,Guangdong Province,China FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Dongguan XYE Computer Co.Ltd. Addresss Baotun Industrial District,Houjie Town,Dongguan City,Guangdong Province,China City Dongguan Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: WI2 12K834 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) Operational Description Block Diagrams Schematics Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Dongguan,China July 12th,2012 Sam Liou president

Report No: SZ120625B01-RP Page 1 / 9 Report No: SZ120625B01-RP Page 2 / 9 Report No: SZ120625B01-RP Page 3 / 9 Report No: SZ120625B01-RP Page 4 / 9 Report No: SZ120625B01-RP Page 5 / 9 Report No: SZ120625B01-RP Page 6 / 9 Report No: SZ120625B01-RP Page 7 / 9 Report No: SZ120625B01-RP Page 8 / 9 Report No: SZ120625B01-RP Page 9 / 9

Report No: SZ120625B01-RP Page 1 / 6 Internal Photos of EUT Report No: SZ120625B01-RP Page 2 / 6 Report No: SZ120625B01-RP Page 3 / 6 Report No: SZ120625B01-RP Page 4 / 6 Report No: SZ120625B01-RP Page 5 / 6 Report No: SZ120625B01-RP Page 6 / 6

FCC MPE Calculation FCC ID: WI212K834 Frequency: 2402-2480 MHz (79 channels) Modulation: FHSS (GFSK,π/4-DQPSK, 8DPSK) Mid-Channel: 2.441 GHz (channel 39) Mid-Channel Peak Power, Conducted: 1.09 dBm == 1.29 mW Antenna Gain: G = 0 dBi Calculation: Limit = 60/2.441 = 24.58 mW P radiated, max = P conducted, dBm + G dBi = 1.09 dBm + 0 dBi == 5.09 dBm = 1.09 mW Conclusion: The emitted power appears to be (far) below the required limit, so PASS. Note 1: f shall be the mid-band frequency expressed in GHz; the limit calculated with this mid-band frequency applies to all channels. For PTT with body-worn or face-held modes, d is the distance from the device case to a parson’s body; for modules with antennas inside laptops, d is the distance from the antenna to the person’s body. Note 2: Average Power levels are always equal or below the measured Peak Power levels, which means that calculating the EIRP using the Peak power can be considered as worst case.)

Report No: SZ120625B01-RP FCC ID: WI212K834 Page 1 of 59 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C TEST REPORT For Bluetooth Speaker Model: 834 Brand: Kuryakyn Test Report Number: SZ120625B01-RP Prepared for Dongguan XYE Computer Co., Ltd. Baotun Industrial District, Houjie Town, Dongguan City, Guangdong Province, China Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: July 12, 2012 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. Report No: SZ120625B01-RP FCC ID: WI212K834 Page 2 of 59 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 SZ120625B01-RP Initial Issue ALL Nancy Fu Report No: SZ120625B01-RP FCC ID: WI212K834 Page 3 of 59 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .....................................................................................4 2. EUT DESCRIPTION..........................................................................................................5 3. TEST METHODOLOGY ....................................................................................................6 3.1. DESCRIPTION OF TEST MODES ...............................................................................6 4. FACILITIES AND ACCREDITATIONS .............................................................................7 4.1. FACILITIES...................................................................................................................7 4.2. ACCREDITATIONS ......................................................................................................7 4.3. MEASUREMENT UNCERTAINTY ...............................................................................7 5. SETUP OF EQUIPMENT UNDER TEST ..........................................................................8 5.1. SETUP CONFIGURATION OF EUT ............................................................................8 5.2. SUPPORT EQUIPMENT ............................................................................................8 6. FCC PART 15.247 REQUIREMENTS ..............................................................................9 6.1. 20DB BANDWIDTH ......................................................................................................9 6.2. PEAK POWER............................................................................................................14 6.3. PEAK POWER SPECTRAL DENSITY .......................................................................16 6.4. BAND EDGES MEASUREMENT ...............................................................................17 6.5. FREQUENCY SEPARATION .....................................................................................27 6.6. NUMBER OF HOPPING FREQUENCY .....................................................................30 6.7. TIME OF OCCUPANCY (DWELL TIME) ....................................................................33 6.8. SPURIOUS EMISSIONS ............................................................................................40 6.9. POWERLINE CONDUCTED EMISSIONS .................................................................58 Report No: SZ120625B01-RP FCC ID: WI212K834 Page 4 of 59 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Product Bluetooth Speaker Model 834 Brand Kuryakyn Tested June 25~ July 12, 2012 Applicant Dongguan XYE Computer Co., Ltd. Baotun Industrial District, Houjie Town, Dongguan City, Guangdong Province, China Manufacturer Dongguan XYE Computer Co., Ltd. Baotun Industrial District, Houjie Town, Dongguan City, Guangdong Province, China APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Tom Gan Supervisor of EMC Dept. Compliance Certification Service Inc. Aven Zhou Supervisor of Report Dept. Compliance Certification Service Inc. Report No: SZ120625B01-RP FCC ID: WI212K834 Page 5 of 59 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION Product Bluetooth Speaker Model Number 834 Brand Kuryakyn Model Discrepancy N/A Identify Number SZ120625B01-RP Power Supply DC 14.5V Received Date June 25, 2012 Frequency Range 2402 ~ 2480 MHz Transmit Power GFSK: 1.90dBm 8DPSK: 0.83dBm Modulation Technique FHSS (GFSK for 1Mbps, π/4-DQPSK for 2Mbps, 8DPSK for 3Mbps) Number of Channels 79 Channels Antenna Specification PCB antenna with 0dBi gain(Max) Po…

Text truncated - open the document above for the full version.
