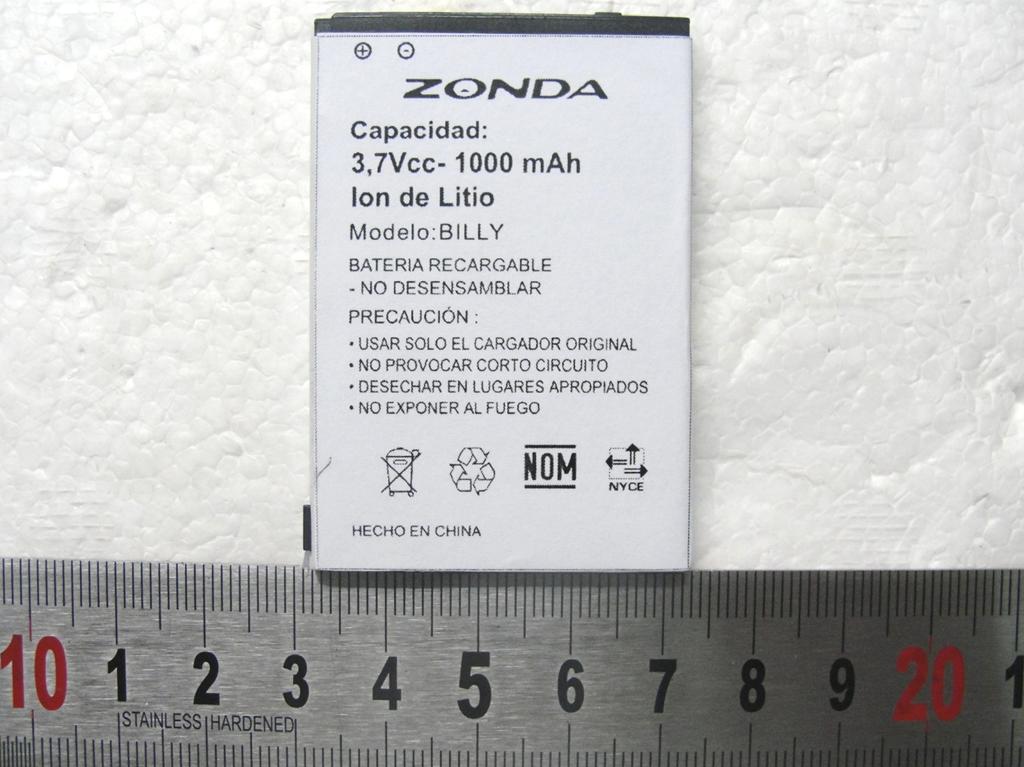

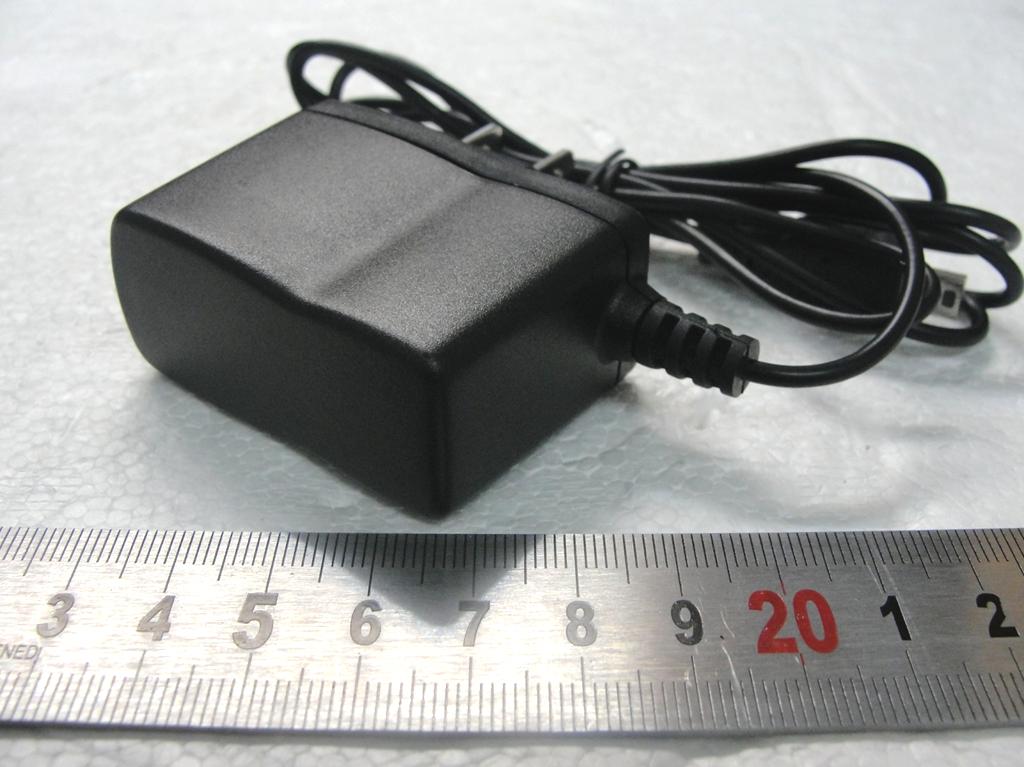

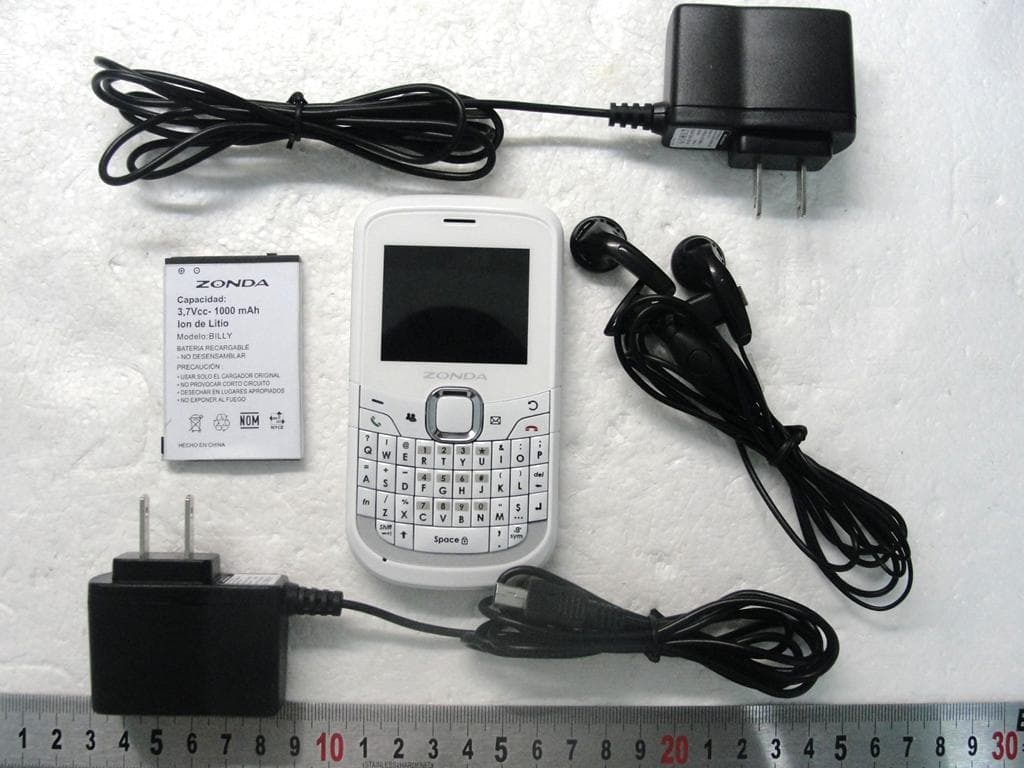

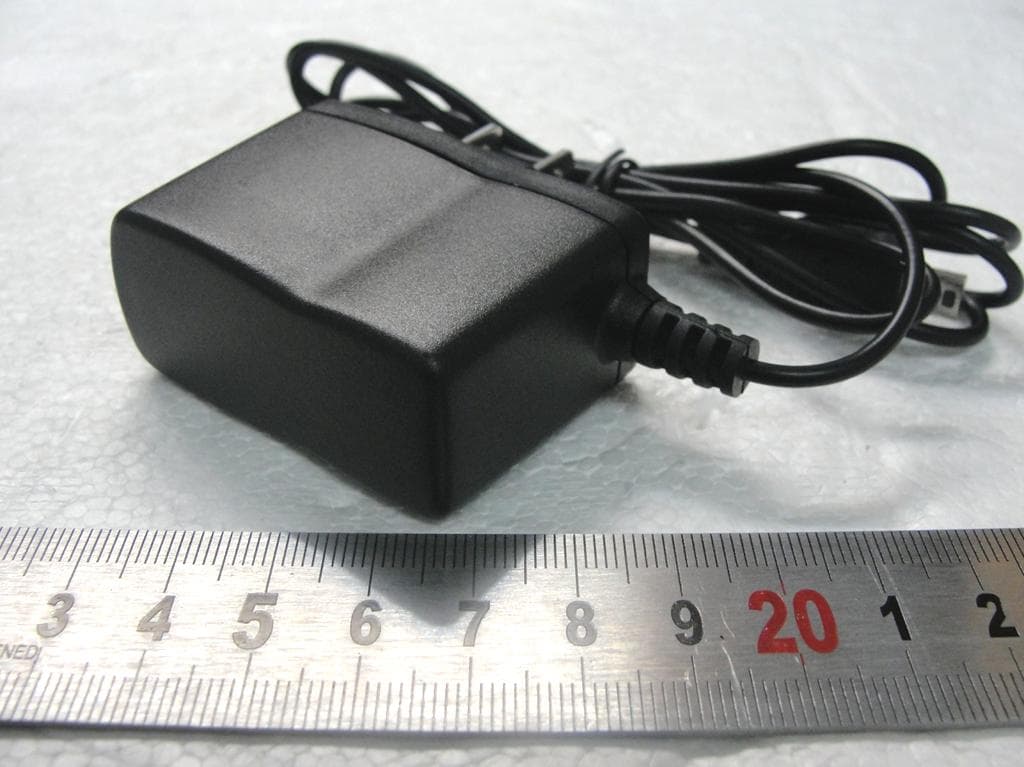

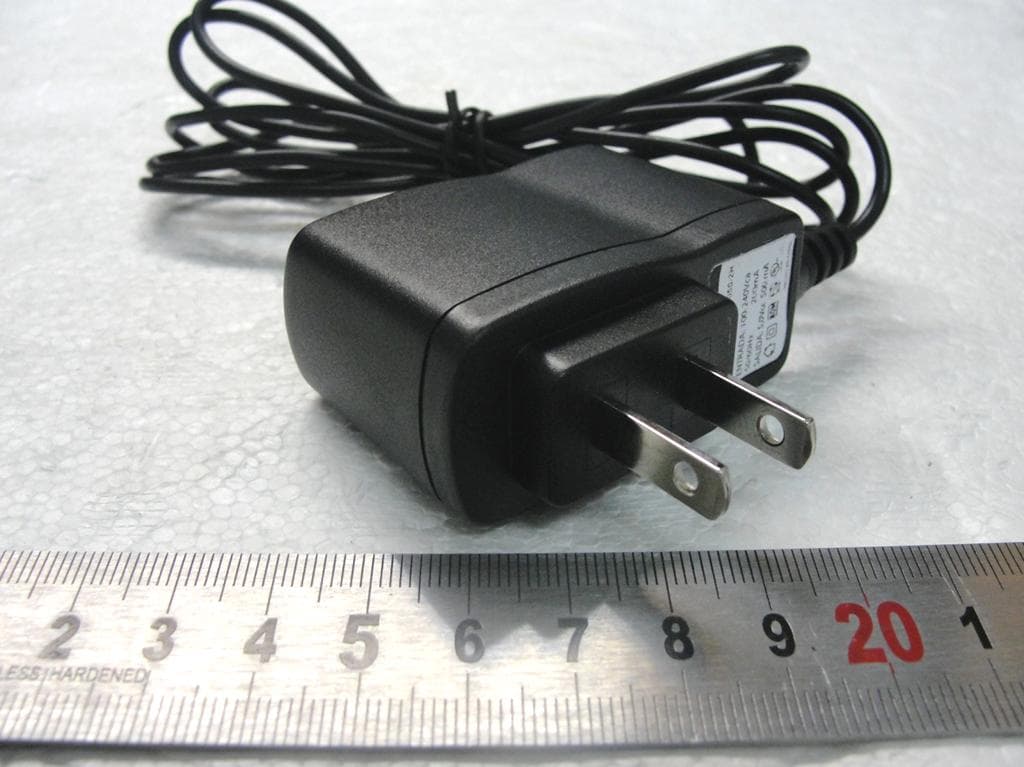

Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 1 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY 1. External Photograph of EUT Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 2 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 3 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 4 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 5 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 6 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY 720510 Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 7 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY List of Accessory: Specification of Accessory AC Adapter 1 Brand Name ZONDA Model Name HKC0055050-2H AC Adapter 2 Brand Name ZONDA Model Name TD095559R Battery Brand Name ZONDA Model Name BILLY Earphone Signal Line 1.6 meter non-shielded cable without ferrite core LCD Panel Brand Name TRULY Model Name TM020GDZ18 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 8 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY 720510 Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 9 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY Adapter 1 Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 10 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 11 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 12 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 13 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 14 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY Adapter 2 Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 15 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 16 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 17 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 18 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 19 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 20 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 21 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY

Label Location Label Here

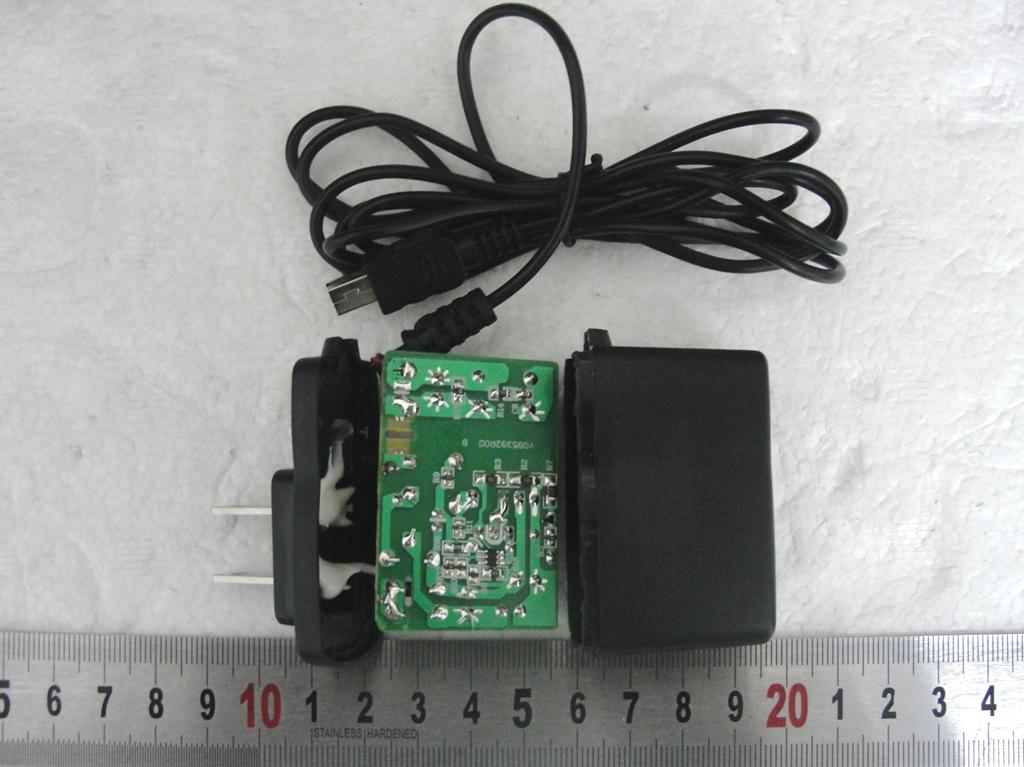

Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 22 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY 3. Internal Photograph of EUT Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 23 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 24 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 25 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 26 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY 720510 Photographs of EUT Report No.: EP072304 Brand Name: ZONDA / Model Name: BILLY SPORTON INTERNATIONAL INC. Page Number : 27 of 27 TEL : 886-3-327-3456 Report Issued Date : Aug. 17, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WIQBILLY WWAN Antenna <Tx / Rx>

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WIQBILLY FCC SAR Test Report Report No. : FA072304 FCC SAR Test Report APPLICANT : GUANGZHOU CK TELECOM LIMITED EQUIPMENT : GSM Dual Band GPRS Function Digital Mobile Telephone BRAND NAME : ZONDA MODEL NAME : BILLY FCC ID : WIQBILLY STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Jul. 23, 2010 and completely tested on Jul. 30, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WIQBILLY FCC SAR Test Report Report No. : FA072304 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Applied Standards ............................................................................................................................................ 7 3.3 Device Category and SAR Limits ..................................................................................................................... 7 3.4 Test Conditions ................................................................................................................................................. 7 3.4.1 Ambient Condition .................................................................................................................................. 7 3.4.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ...........................................................................................................................16 5.7.1 Data Storage .........................................................................................................................................16 5.7.2 Data Ev…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/07/29 System Check_Head_835MHz_100729 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_100729 Medium parameters used: f = 835 MHz; σ = 0.915 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Ambient Temperature : 23.7 °C; Liquid Temperature : 21.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.09 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.6 V/m; Power Drift = -0.0024 dB Peak SAR (extrapolated) = 1.54 W/kg SAR(1 g) = 1.01 mW/g; SAR(10 g) = 0.659 mW/g Maximum value of SAR (measured) = 1.09 mW/ g 0 dB = 1.09mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/07/30 System Check_Body_835MHz_100730 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_100730 Medium parameters used: f = 835 MHz; σ = 0.994 mho/m; ε r = 55.6; ρ = 1000 kg/m 3 Ambient Temperature : 23.7 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.22, 8.22, 8.22); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.03 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 32 V/m; Power Drift = -0.0034 dB Peak SAR (extrapolated) = 1.43 W/kg SAR(1 g) = 0.958 mW/g; SAR(10 g) = 0.633 mW/g Maximum value of SAR (measured) = 1.03 mW/ g 0 dB = 1.03mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/07/30 System Check_Head_1900MHz_100730 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_100730 Medium parameters used: f = 1900 MHz; σ = 1.44 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 Ambient Temperature : 23.6 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.32, 7.32, 7.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.63 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.5 V/m; Power Drift = -0.0086 dB Peak SAR (extrapolated) = 7.62 W/kg SAR(1 g) = 3.99 mW/g; SAR(10 g) = 2.06 mW/g Maximum value of SAR (measured) = 4.48 mW/ g 0 dB = 4.48mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/07/29 System Check_Body_1900MHz_100729 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_100729 Medium parameters used: f = 1900 MHz; σ = 1.51 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Ambient Temperature : 23.6 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.04, 7.04, 7.04); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM3; Type: QD OVA 001 BB; Serial: 1079 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.57 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.5 V/m; Power Drift = -0.00135 dB Peak SAR (extrapolated) = 7.55 W/kg SAR(1 g) = 4.01 mW/g; SAR(10 g) = 2.06 mW/g Maximum value of SAR (measured) = 4.57 mW/ g 0 dB = 4.57mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/07/29 #05 GSM850_Right Cheek_Ch128 DUT: 072201 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100729 Medium parameters used: f = 824.2 MHz; σ = 0.906 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Ambient Temperature : 23.7 °C; Liquid Temperature : 21.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.791 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.3 V/m; Power Drift = -0.141 dB Peak SAR (extrapolated) = 1.02 W/kg SAR(1 g) = 0.730 mW/g; SAR(10 g) = 0.523 mW/g Maximum value of SAR (measured) = 0.762 mW/ g 0 dB = 0.762mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/07/29 #05 GSM850_Right Cheek_Ch128_2D DUT: 072201 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100729 Medium parameters used: f = 824.2 MHz; σ = 0.906 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Ambient Temperature : 23.7 °C; Liquid Temperature : 21.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.791 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.3 V/m; Power Drift = -0.141 dB Peak SAR (extrapolated) = 1.02 W/kg SAR(1 g) = 0.730 mW/g; SAR(10 g) = 0.523 mW/g Maximum value of SAR (measured) = 0.762 mW/ g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/07/29 #02 GSM850_Right Tilted_Ch189 DUT: 072201 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100729 Medium parameters used: f = 836.6 MHz; σ = 0.917 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Ambient Temperature : 23.7 °C; Liquid Temperature : 21.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch189/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.564 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.6 V/m; Power Drift = -0.093 dB Peak SAR (extrapolated) = 0.786 W/kg SAR(1 g) = 0.512 mW/g; SAR(10 g) = 0.355 mW/g Maximum value of SAR (measured) = 0.543 mW/ g 0 dB = 0.543mW/g Test Laboratory: Sport…
