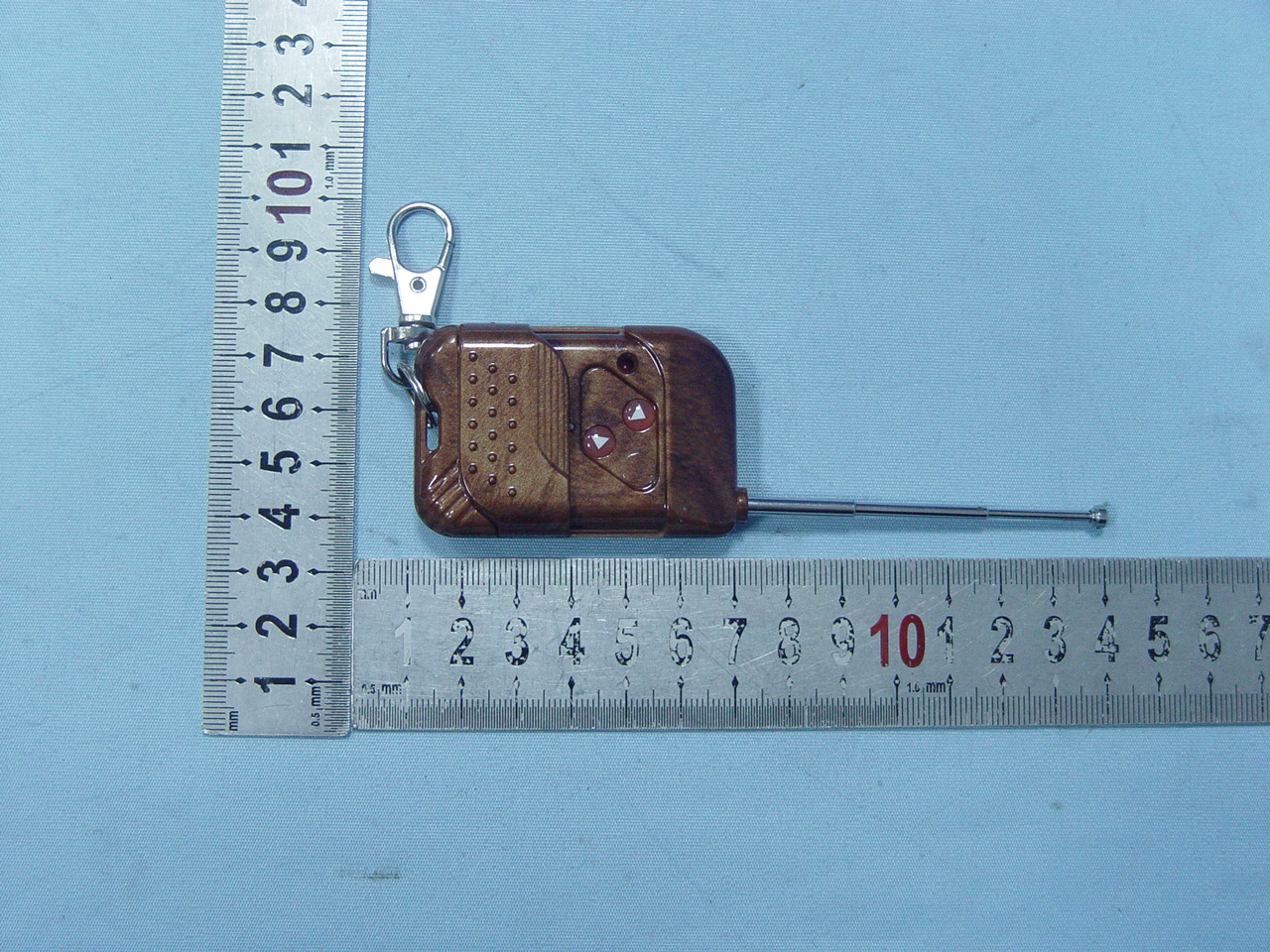

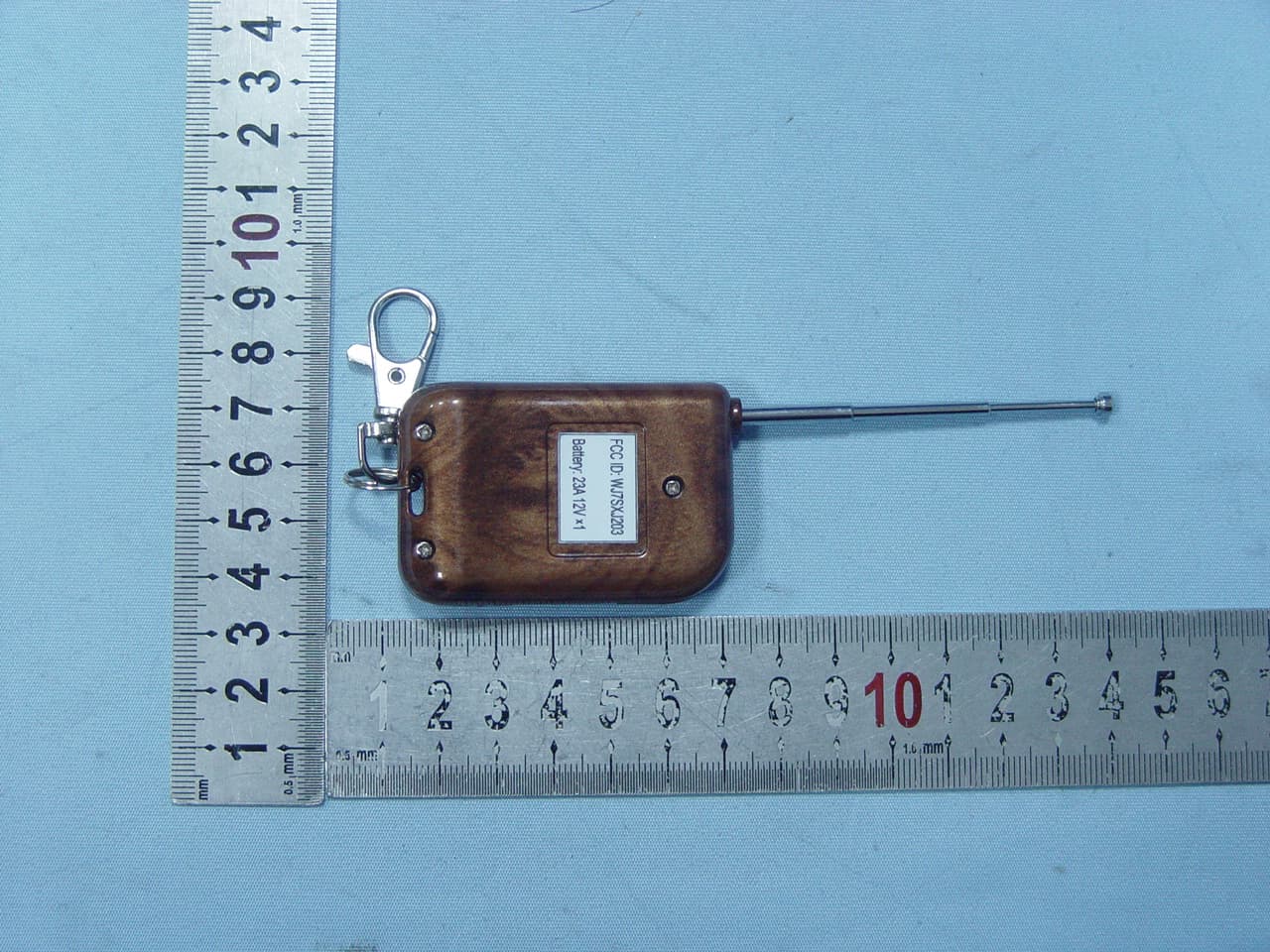

User’s Manual 1. General description: SXJ-203 transmitter is a small and portable 2-Key transmitter. It is very convenient for a user to put it in a pocket. The transmitter is used for control a winch motor for the opening & closing of door, curtain and parking exit. 2. Technical parameters: z Power supply: DC 12V (battery 23A or 27A); z Oscillating: SAW z Frequency: 315 MHz z Coding: PT2262 z Working current: < 10 mA z Modulation: ASK z Frequency error: +150 kHz (max.) z RF power: 1 mW 3. Transmitter functions: z 1 and 2 indicate input keys for remote control; z 3 indicates LED which lights on when transmission and lights off when no transmission. z 4 indicates antenna; z 5 indicates a key ring for convenient using by a user; z 6, 7 and 8 indicate screw positions of enclosure. z 9 indicates a position for labeling. FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Block Diagram Antenna 315MHz PT2262 Coding RF Circuit Address Coding KEY Battery DC12V
