WJACL002Smart box

ES2008 Infrared Radio converter USER GUIDER Set-up Insert the battery into the battery compartment of the infrared radio converter making sure polarity is correct. For first use Put the infrered radio converter onto the place where the IR signal can be received well,the LED of the infrered radio converter will flash once per second(under learning code situation).Meantime Plug wireless socket into a main or wall socket,the LED will flash once per second (under learning code situation).Point exist IR remote control at the converter, select one button of IR remote control,press it then the LED of converter flashes continuously in 2 seconds then LED is off that means code for converter is set and then press the same button of the IR remote control again the wireless socket flashes continuously,code set successfully. Now press the selected button of IR remote control once,the wireless socket works. For advanced use 1. Add more wireless socket via same button of IR remote control, just plug wireless socket into the main socket or wall socket,press the same button of IR remote control socket once,the wireless socket code will be set. 2. Add more wireless socket via different button of IR remote control, press the button on the top of convert for 3 second,the LED of converter flash once per second(under learning code situation),then repeat the first use step to set wireless socket code. 3. Add more converter via the same wireless socket,just make the wireless socket and new convere under learning code then repeat the first use step. ATTENTION: All C-UNION RF receivers(socket,switch,connecting box,lamp holder) can be controlled by the infared radion converter To operate Plug a lamp(or other electric device)into the socket and switch on the lamp.Then for on or off press the correct ON or OFF button just once. Trouble shooting If remote control will not operate RF socket- 1. The battery power may be low and the battery may be replacing. 2. The remote is too far away from the convert-move closer and try again. 3. The code is not learned successfully. Clearing codes Press the switch on the top of converter continuously for 3 seconds ,when LED flashes once per second then press the switch continuously for 3 seconds when LED flashes quickly to be once per second that means clearing code is successful. z Voltage: 3V z Frequency: 433.92MHz z ON/OFF indication: LED z Remote range: >20m z Code setting: Self-teach in z Battery type: 2XAA Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

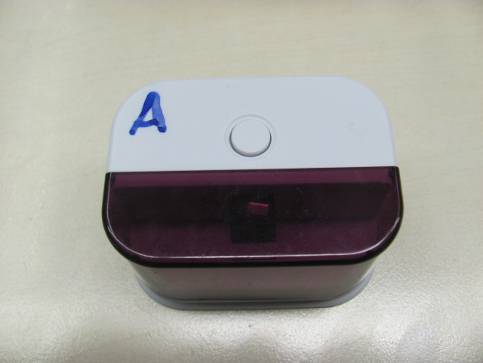

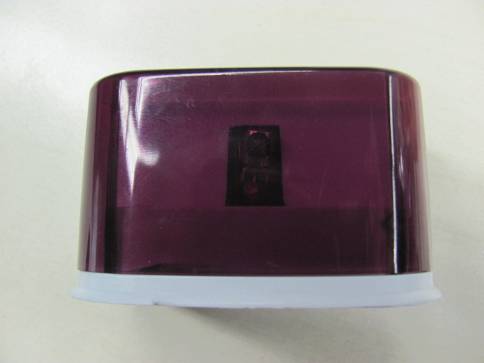

FCC ID: WJACL002 Page 1 of 3 External Picture FCC ID: WJACL002 Page 2 of 3 FCC ID: WJACL002 Page 3 of 3

FCC ID: WJACL002 Page 1 of 2 FCC ID LABLE FCC ID: WJACL002 Page 2 of 2 Maximum EUT Size: 68mm * 43mm Label position: Central of this surface

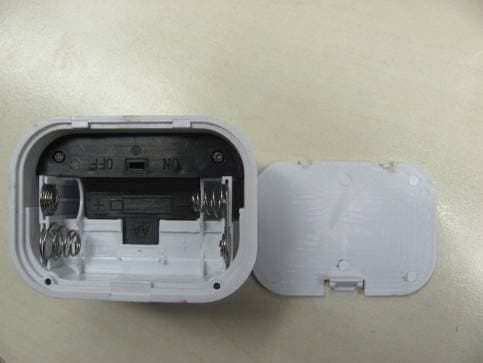

FCC ID: WJACL002 Page 1 of 3 Internal Picture FCC ID: WJACL002 Page 2 of 3 FCC ID: WJACL002 Page 3 of 3

FCC ID: WJACL002 Page 1 of 20 EMC TEST REPORT No. SH11101123-001 Applicant : Ningbo Jiangdong C-Union Electronic Co., Ltd. No.11 Qixin Road, Jiangdong District, Ningbo, 315040, China Manufacturer : Ningbo Jiangdong C-Union Electronic Co., Ltd. No.11 Qixin Road, Jiangdong District, Ningbo, 315040, China Equipment : Smart box Type/Model : ES2008 SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2010): Radio Frequency Devices ANSI C63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz RSS-210 Issue 8 (December 2010): Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment RSS-Gen Issue 3 (December 2010): General Requirements and Information for the Certification of Radiocommunication Equipment Date of issue: Dec 21, 2011 Prepared by: Reviewed by: Wakeyou Wang (Project Engineer) Daniel Zhao (Reviewer) FCC ID: WJACL002 Page 2 of 20 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: WJACL002 Page 3 of 20 Content SUMMARY .......................................................................................................................................................... 1 DESCRIPTION OF TEST FACILITY ......................................................................................................................... 2 1. GENERAL INFORMATION ............................................................................................................................ 4 1.1 Applicant Information ..................................................................................................... 4 1.2 Identification of the EUT ................................................................................................ 4 1.3 Technical specification ................................................................................................... 5 1.4 Mode of operation during the test / Test peripherals used .............................................. 5 2. TEST SPECIFICATION .................................................................................................................................. 6 2.1 Instrument list ................................................................................................................. 6 2.2 Test Standard .................................................................................................................. 6 3. FUNDAMENTAL & SPURIOUS EMISSION & RESTRICT BAND RADIATED EMISSION ................................... 8 3.1 Test limit ......................................................................................................................... 8 3.2 Test Configuration .......................................................................................................... 9 3.3 Test procedure and test setup .......................................................................................... 9 3.4 Test protocol ................................................................................................................. 10 4. DEACTIVATING TIME ................................................................................................................................ 12 4.1 Test limit ....................................................................................................................... 12 4.2 Test Configuration ........................................................................................................ 13 4.3 Test procedure and test setup ........................................................................................ 13 4.4 Test protocol ................................................................................................................. 13 5. POWER LINE CONDUCTED EMISSION ........................................................................................................ 14 5.1 Limit .............................................................................................................................. 14 5.2 Test configuration ......................................................................................................... 14 5.3 Test procedure and test set up ....................................................................................... 15 5.4 Test protocol ................................................................................................................. 16 6. EMISSION BANDWIDTH ............................................................................................................................. 17 6.1 Test limit ....................................................................................................................... 17 6.2 Test Configuration ........................................................................................................ 17 6.3 Test procedure and test setup ........................................................................................ 17 6.4 Test protocol ................................................................................................................. 18 7. OCCUPIED BANDWIDTH ............................................................................................................................ 19 7.1 Test limit ....................................................................................................................... 19 7.2 Test Configuration ........................................................................................................ 19 7.3 Test procedure and test setup ............................................................................…

Text truncated - open the document above for the full version.

FCC ID: WJACL002 Page 1 of 13 Test Data FCC ID: WJACL002 Page 2 of 13 1. Fundamental & Spurious Emission & Restrict band radiated emission Horizontal 30-1000MHz 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x x x x x x MES WAKE1120_H4_red MES WAKE1120_H4_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: WJACL002 Page 3 of 13 Restrict band 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 399.9M 402M 404M406M408M 410M Frequency [Hz] MES wake1120_lH_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: WJACL002 Page 4 of 13 1000-5000MHz 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 1G2G3G4G5G Frequency [Hz] x x x x x x x x x x x x x x x x MES WAKE1120_HH1_red MES WAKE1120_HH1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: WJACL002 Page 5 of 13 Vertical 30-1000MHz 20 30 40 50 60 70 80 90 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x x x x x x MES WAKE1120_V4_red MES WAKE1120_V4_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: WJACL002 Page 6 of 13 Restrict band 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 399.9M402M404M406M408M 410M Frequency [Hz] LIM FCC 15 F 3 QP Field Strength QP MES wake1120_VL_pre FCC ID: WJACL002 Page 7 of 13 1000-5000MHz 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 1G2G3G4G5G Frequency [Hz] x x x x x x x x x x x x MES WAKE1120_VV1_red MES WAKE1120_VV1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: WJACL002 Page 8 of 13 2. Deactivating time Ref 87 dBμVAtt 10 dB * A PS AC RBW 1 MHz VBW 3 MHz Center 433.92 MHz1 s/ SWT 10 s 3DB 1 AP VIEW -10 0 10 20 30 40 50 60 70 80 1 Marker 1 [T1 ] 68.52 dBμV 304.070000 ms 1 Delta 1 [T1 ] -38.16 dB 300.320000 ms Date: 28.NOV.2011 08:46:05 FCC ID: WJACL002 Page 9 of 13 3. Emission bandwidth FCC ID: WJACL002 Page 10 of 13 4. Occupied bandwidth FCC ID: WJACL002 Page 11 of 13 5. Duty Cycle FCC ID: WJACL002 Page 12 of 13 Ref 87 dBμVAtt 10 dB * A PS AC RBW 1 MHz VBW 3 MHz Center 433.92 MHz500 μs/ SWT 5 ms 3DB 1 AP VIEW -10 0 10 20 30 40 50 60 70 80 1 Marker 1 [T1 ] 69.06 dBμV 2.810000 ms 1 Delta 1 [T1 ] -41.97 dB 950.000000 μs Date: 28.NOV.2011 08:43:29 FCC ID: WJACL002 Page 13 of 13 Ref 87 dBμVAtt 10 dB * A PS AC RBW 1 MHz VBW 3 MHz Center 433.92 MHz500 μs/ SWT 5 ms 3DB 1 AP VIEW -10 0 10 20 30 40 50 60 70 80 1 Marker 1 [T1 ] 69.10 dBμV 4.070000 ms 1 Delta 1 [T1 ] -39.97 dB 320.000000 μs Date: 28.NOV.2011 08:43:51 The Duty cycle = (0.95*10 + 0.32*15) / 41.6 = 34.4%

FCC ID: WJACL002 Page 1 of 3 Test Setup FCC ID: WJACL002 Page 2 of 3 1. Radiated Emission 30MHz-1000MHz FCC ID: WJACL002 Page 3 of 3 Higher than 1GHz
