WKA-MXCP-P100Portable Cassette Player

MAXELL CORPORATION OF AMERICA Covered Equipment Certification Attestation Letter 10/9/2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: WKA-MXCP-P100 MAXELL CORPORATION OF AMERICA (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List , the applicant should include an explanation on why the equipment is not “covered” equipment. MAXELL CORPORATION OF AMERICA (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. MAXELL CORPORATION OF AMERICA (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). <Signature> Name: ERIC WALBRECHT Title: SENIOR PRODUCT MANAGER Company: MAXELL CORPORATION OF AMERICA Date: 10/9/2025

MAXELL CORPORATION OF AMERICA * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 10/9/2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: WKA-MXCP-P100 Applicant of FRN: 0026954198 Per section 2.911(d)(7) of the FCC rules, MAXELL CORPORATION OF AMERICA (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: MAXELL CORPORATION OF AMERICA FCC Registration Number (FRN): 0026954198 Physical U.S. Company Address: 3 Garret Mountain Plaza, Woodland Park New Jersey United States Contact Person: ERIC WALBRECHT Telephone No: 973-653-2462 Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different to Applicant): Signed: Signed: Printed name: ERIC WALBRECHT Printed name: Click here to enter text. Title: SENIOR PRODUCT MANAGER Title: Click here to enter text. Company Nam e: MAXELL CORPORATION OF AMERICA Company Name: Date: 10/9/2025 DateClick here to enter a date.

MAXELL CORPORATION OF AMERICA DATE : 2025.10.09 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint EST Technology Co., Ltd. Address: Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with MAXELL CORPORATION OF AMERICA Address: 3 Garret Mountain Plaza, Woodland Park New Jersey United States (Applicant Name and address) <Signature> Name: ERIC WALBRECHT Title: SENIOR PRODUCT MANAGER Company: MAXELL CORPORATION OF AMERICA

MAXELL CORPORATION OF AMERICA DATE : 2025.10.09 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: WKA-MXCP-P100 Product Name: Portable Cassette Player Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: ERIC WALBRECHT Title: SENIOR PRODUCT MANAGER Company: MAXELL CORPORATION OF AMERICA

MAXELL CORPORATION OF AMERICA I, the signer, The only difference between these models is the model name. They are electrically identical. Model name difference is for commercial purpose. Item Name ：Portable Cassette Player Model Number: MXCP-P100S Additional Model: MXCP-P100 <Signature> Name: ERIC WALBRECHT Title: SENIOR PRODUCT MANAGER Company: MAXELL CORPORATION OF AMERICA

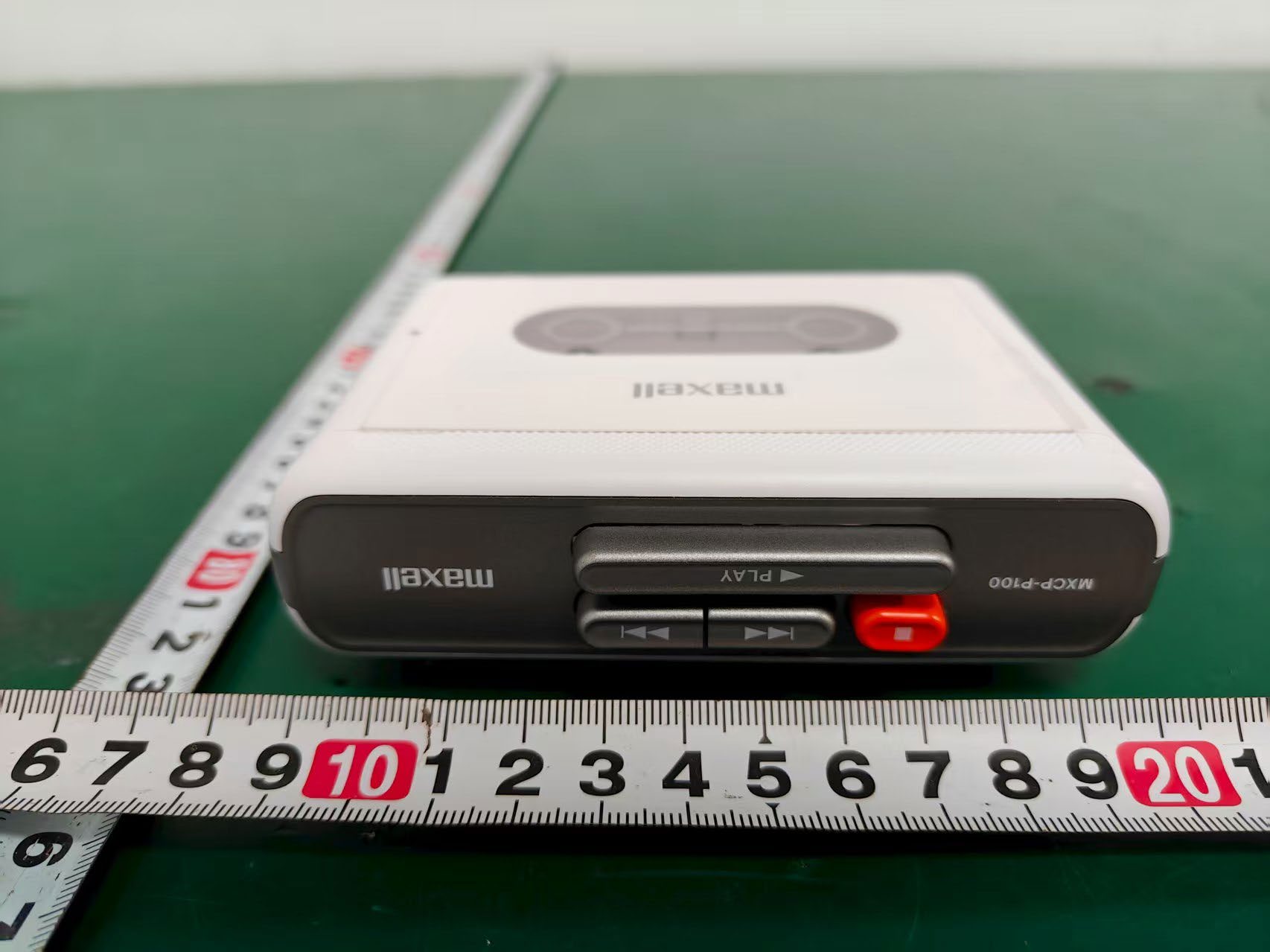

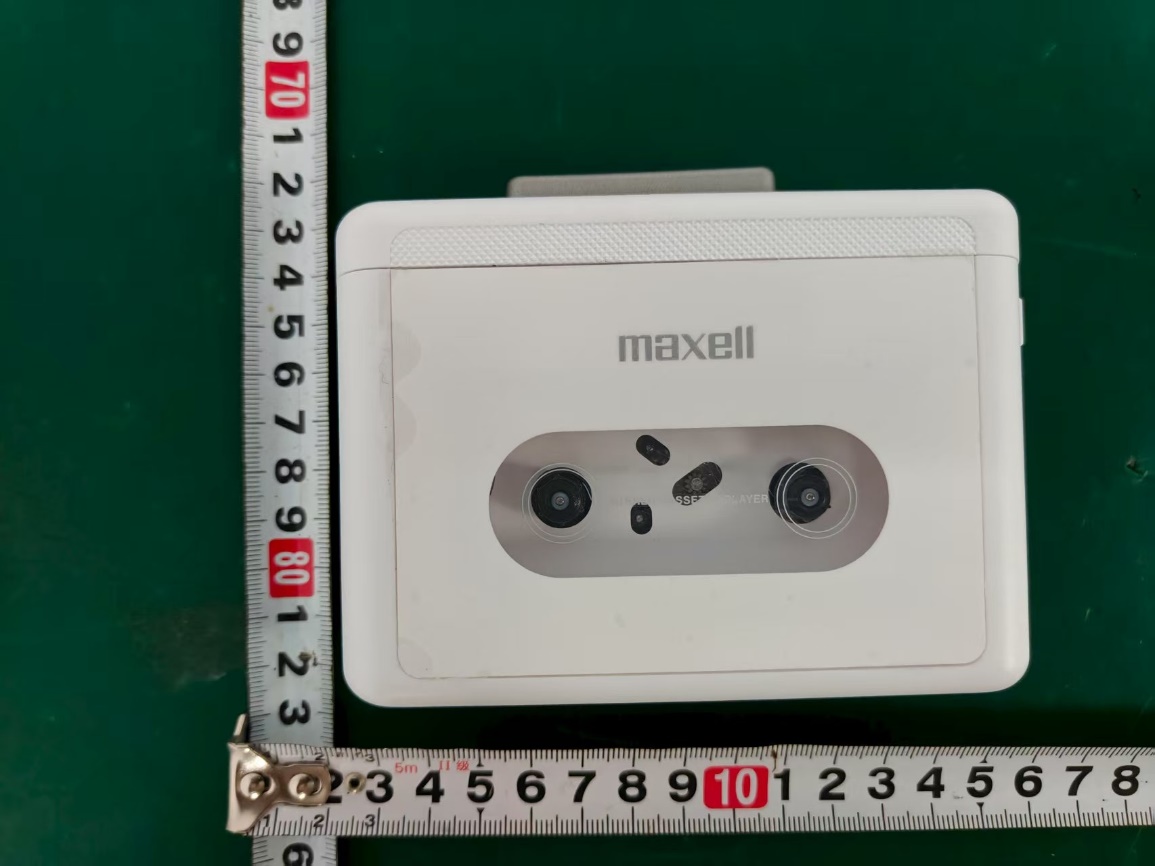

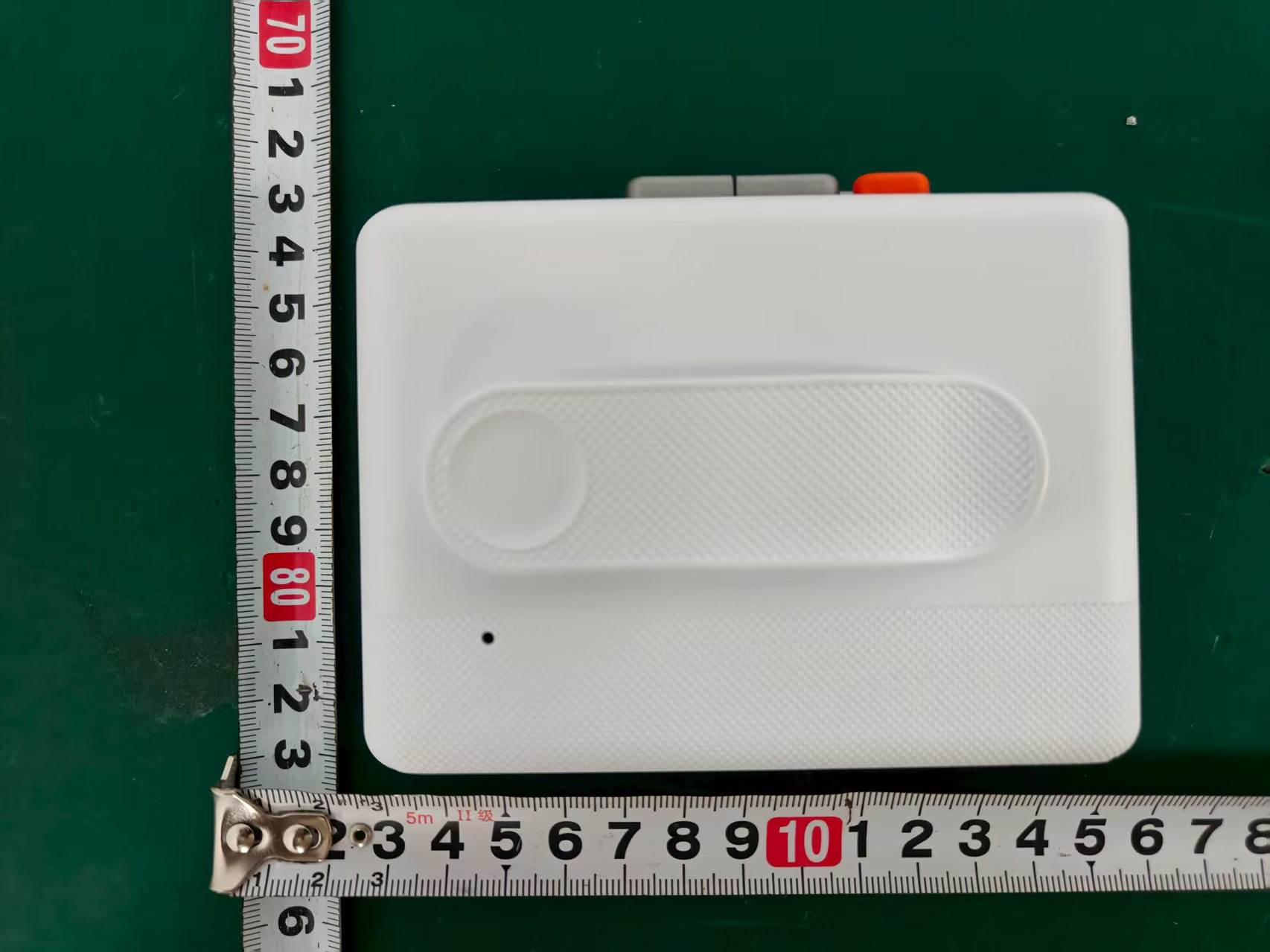

External Photos M/N: MXCP-P100S External Photos M/N: MXCP-P100S External Photos M/N: MXCP-P100S

Internal Photos M/N: MXCP-P100S Internal Photos M/N: MXCP-P100S Internal Photos M/N: MXCP-P100S Internal Photos M/N: MXCP-P100S Internal Photos M/N: MXCP-P100S Bluetooth Antenna

Page 1 of 3 Report No. ESTE-R2509057 FCC RF EXPOSURE REPORT MAXELL CORPORATION OF AMERICA Portable Cassette Player Model Number: MXCP-P100S Additional Model: MXCP-P100 FCC ID: WKA-MXCP-P100 Applicant: MAXELL CORPORATION OF AMERICA Address: 3 Garret Mountain Plaza, Woodland Park New Jersey United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2509057 Date of Test: Aug. 22, 2025~ Sep. 01, 2025 Date of Report: Sep. 03, 2025 Page 2 of 3 Report No. ESTE-R2509057 1. Applicable Standards FCC Part 2(Section 2.1093) FCC KDB 447498 D04 Interim General RF Exposure Guidance v01 2. Exposure Evaluation of Portable or Mobile Devices Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 300 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Page 3 of 3 Report No. ESTE-R2509057 3. Evaluation Results Mode CH Peak output Power (dBm) Antenna Gain (dBi) effective radiated power (dBm) Target power (dBm) Max. Target power (mW) SAR Test Exemption Limit (mW) GFSK 2402 -3.69 -0.68 -6.52 -3±1 0.631 2.72 2441 -3.49 -0.68 -6.32 -3±1 0.631 2.72 2480 -3.06 -0.68 -5.89 -3±1 0.631 2.72 π/4- DQPSK 2402 -3.05 -0.68 -5.88 -3±1 0.631 2.72 2441 -2.76 -0.68 -5.59 -2±1 0.794 2.72 2480 -2.33 -0.68 -5.16 -2±1 0.794 2.72 Note: 1. Limited=3060*(0.5/20)^x, x=-log(60/(3060*√f)). 2. We choose f=2.48GHz (Highest frequency operate at bluetooth) to calculate MPE limit as higher frequency will have lower MPE limits. 3. SAR Test Exclusion Thresholds is 2.72mW for separation distance 5mm. Therefore, SAR test is not required. End of Test Report

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Horizontal Vertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.73 -0.84 -0.68 -6.15 -3.70 -2.32 MAX. Gain -0.68 Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.73178 -30.0815 -8.48713 2450 -0.845801 -38.5605 -7.88012 2500 -0.685586 -24.0318 -6.79139 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -6.1530 -24.1420 -13.0295 2450 -3.7054 -26.5836 -10.6700 2500 -2.32122 -30.4301 -9.70536 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Page 1 of 34 Report No. ESTE-R2509056 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.918 2401.547 2402.465 --- --- DH5 Ant1 2441 0.948 2440.547 2441.495 --- --- DH5 Ant1 2480 0.948 2479.547 2480.495 --- --- 2DH5 Ant1 2402 1.266 2401.388 2402.654 --- --- 2DH5 Ant1 2441 1.338 2440.337 2441.675 --- --- 2DH5 Ant1 2480 1.278 2479.379 2480.657 --- --- Page 2 of 34 Report No. ESTE-R2509056 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 DH5-Ant1-2480 Page 3 of 34 Report No. ESTE-R2509056 2DH5-Ant1-2402 2DH5-Ant1-2441 Page 4 of 34 Report No. ESTE-R2509056 2DH5-Ant1-2480 Page 5 of 34 Report No. ESTE-R2509056 Appendix B: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -3.69 ≤20.97 PASS DH5 Ant1 2441 -3.49 ≤20.97 PASS DH5 Ant1 2480 -3.06 ≤20.97 PASS 2DH5 Ant1 2402 -3.05 ≤20.97 PASS 2DH5 Ant1 2441 -2.76 ≤20.97 PASS 2DH5 Ant1 2480 -2.33 ≤20.97 PASS Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Page 6 of 34 Report No. ESTE-R2509056 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS Page 7 of 34 Report No. ESTE-R2509056 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Page 8 of 34 Report No. ESTE-R2509056 Page 9 of 34 Report No. ESTE-R2509056 Appendix C: Carrier frequency separation Test Result TestMode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH5 Ant1 2402 1.047 ≥0.948 PASS DH5 Ant1 2441 1.008 ≥0.948 PASS DH5 Ant1 2480 0.993 ≥0.948 PASS 2DH5 Ant1 2402 1.008 ≥0.892 PASS 2DH5 Ant1 2441 1.485 ≥1.338 PASS 2DH5 Ant1 2480 0.993 ≥0.892 PASS Page 10 of 34 Report No. ESTE-R2509056 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS DH5-Ant1-2480-PASS Page 11 of 34 Report No. ESTE-R2509056 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS Page 12 of 34 Report No. ESTE-R2509056 2DH5-Ant1-2480-PASS Page 13 of 34 Report No. ESTE-R2509056 Appendix D: Time of occupancy Test Result TestMode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.372 318 0.118 ≤0.4 PASS DH3 Ant1 Hop 1.620 157 0.254 ≤0.4 PASS DH5 Ant1 Hop 2.850 108 0.308 ≤0.4 PASS 2DH1 Ant1 Hop 0.383 319 0.122 ≤0.4 PASS 2DH3 Ant1 Hop 1.620 154 0.249 ≤0.4 PASS 2DH5 Ant1 Hop 2.860 104 0.297 ≤0.4 PASS Page 14 of 34 Report No. ESTE-R2509056 Test Graphs DH1-Ant1-Hop-PASS DH3-Ant1-Hop-PASS Page 15 of 34 Report No. ESTE-R2509056 DH5-Ant1-Hop-PASS Page 16 of 34 Report No. ESTE-R2509056 2DH1-Ant1-Hop-PASS Page 17 of 34 Report No. ESTE-R2509056 2DH3-Ant1-Hop-PASS Page 18 of 34 Report No. ESTE-R2509056 2DH5-Ant1-Hop-PASS Page 19 of 34 Report No. ESTE-R2509056 Page 20 of 34 Report No. ESTE-R2509056 Appendix E: Number of hopping channels Test Result TestMode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS Page 21 of 34 Report No. ESTE-R2509056 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Page 22 of 34 Report No. ESTE-R2509056 Appendix F: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -4.95 -46.62 ≤-24.95 PASS DH5 Ant1 High 2480 -4.00 -49.27 ≤-24 PASS DH5 Ant1 Low Hop_2402 -4.27 -48.61 ≤-24.27 PASS DH5 Ant1 High Hop_2480 -3.49 -47.51 ≤-23.49 PASS 2DH5 Ant1 Low 2402 -4.44 -49.41 ≤-24.44 PASS 2DH5 Ant1 High 2480 -3.93 -48.38 ≤-23.93 PASS 2DH5 Ant1 Low Hop_2402 -7.08 -48.56 ≤-27.08 PASS 2DH5 Ant1 High Hop_2480 -4.61 -48.78 ≤-24.61 PASS Page 23 of 34 Report No. ESTE-R2509056 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS DH5-Ant1-Hop_2402-PASS Page 24 of 34 Report No. ESTE-R2509056 DH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS Page 25 of 34 Report No. ESTE-R2509056 2DH5-Ant1-2480-PASS 2DH5-Ant1-Hop_2402-PASS Page 26 of 34 Report No. ESTE-R2509056 2DH5-Ant1-Hop_2480-PASS Page 27 of 34 Report No. ESTE-R2509056 Appendix G: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~26500 -4.95 -41.97 ≤-24.95 PASS DH5 Ant1 2441 30~26500 -4.50 -40.78 ≤-24.5 PASS DH5 Ant1 2480 30~26500 -4.00 -41.8 ≤-24 PASS 2DH5 Ant1 2402 30~26500 -4.44 -41.34 ≤-24.44 PASS 2DH5 Ant1 2441 30~26500 -4.80 -41.38 ≤-24.8 PASS 2DH5 Ant1 2480 30~26500 -3.93 -41.77 ≤-23.93 PASS Page 28 of 34 Report No. ESTE-R2509056 Test Graphs DH5-Ant1-2402-30~26500-PASS DH5-Ant1-2441-30~26500-PASS DH5-Ant1-2480-30~26500-PASS Page 29 of 34 Report No. ESTE-R2509056 2DH5-Ant1-2402-30~26500-PASS 2DH5-Ant1-2441-30~26500-PASS Page 30 of 34 Report No. ESTE-R2509056 2DH5-Ant1-2480-30~26500-PASS Page 31 of 34 Report No. ESTE-R2509056 Appendix H: Reference level measurement Test Result TestMode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] DH5 Ant1 2402 2402.05 -4.95 DH5 Ant1 2441 2441.00 -4.50 DH5 Ant1 2480 2480.16 -4.00 2DH5 Ant1 2402 2402.17 -4.44 2DH5 Ant1 2441 2441.15 -4.80 2DH5 Ant1 2480 2479.84 -3.93 Page 32 of 34 Report No. ESTE-R2509056 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS DH5-Ant1-2480-PASS Page 33 of 34 Report No. ESTE-R2509056 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS Page 34 of 34 Report No. ESTE-R2509056 2DH5-Ant1-2480-PASS

Page 1 of 49 Report No. ESTE-R2509056 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of MAXELL CORPORATION OF AMERICA Portable Cassette Player Model Number: MXCP-P100S Additional Model: MXCP-P100 FCC ID: WKA-MXCP-P100 Applicant: MAXELL CORPORATION OF AMERICA Address: 3 Garret Mountain Plaza, Woodland Park New Jersey United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2509056 Date of Test: Aug. 22, 2025~ Sep. 01, 2025 Date of Report: Sep. 03, 2025 Page 2 of 49 Report No. ESTE-R2509056 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. Antenna Information ......................................................................................................................... 5 1.3. Information of RF Cable ................................................................................................................... 5 2. SUMMARY OF TEST ........................................................................................................................... 6 2.1. Summary of test result ..................................................................................................................... 6 2.2. Test Facilities ..................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................ 8 2.4. Assistant equipment used for test .................................................................................................. 8 2.5. Block Diagram ................................................................................................................................... 8 2.6. Test mode .......................................................................................................................................... 9 2.7. Channel List ..................................................................................................................................... 10 2.8. Power Setting of Test Software .................................................................................................... 10 2.9. Test Equipment ............................................................................................................................... 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................... 13 3.1. Limit ................................................................................................................................................... 13 3.2. Test Setup ........................................................................................................................................ 13 3.3. Spectrum Analyzer Setting ............................................................................................................ 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ....................................................................................................................................... 13 4. 20 DB BANDWIDTH ......................................................................................................................... 14 4.1. Limit ................................................................................................................................................... 14 4.2. Test Setup ........................................................................................................................................ 14 4.3. Spectrum Analyzer Setting ............................................................................................................ 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ....................................................................................................................................... 14 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 15 5.1. Limit ................................................................................................................................................... 15 5.2. Test Setup ........................................................................................................................................ 15 5.3. Spectrum Analyzer Setting ............................................................................................................ 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ....................................................................................................................................... 15 6. NUMBER OF HOPPING CHANNEL ................................................................................................... 16 6.1. Limit ................................................................................................................................................... 16 6.2. Test Setup .................................................................................................................................…

Text truncated - open the document above for the full version.

Radiated emission test: Below 1GHz Radiated emission test: Above 1GHz Conducted emission test: Connect EUT antenna terminal test
