WKN-G012.4GHz 5CH LCD MINI TRANSMITTER

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

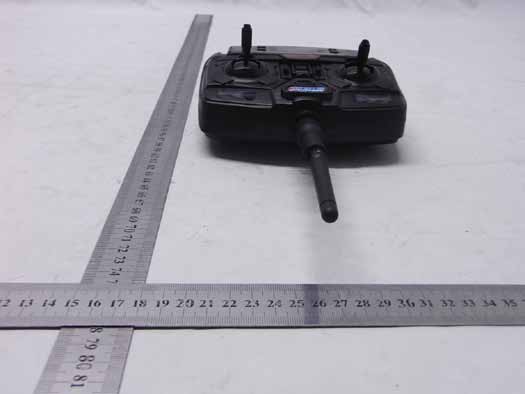

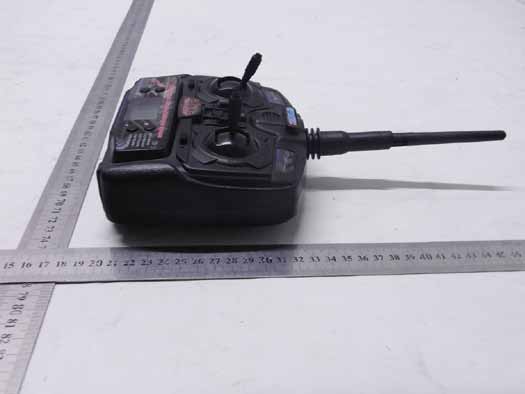

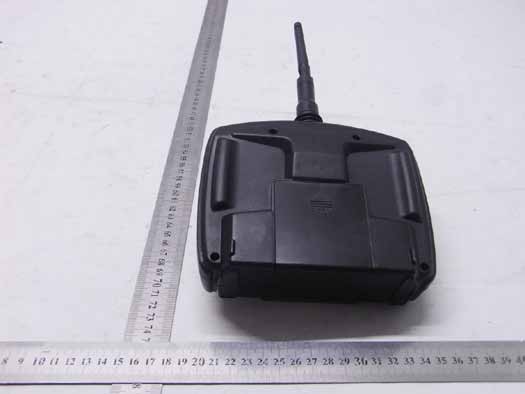

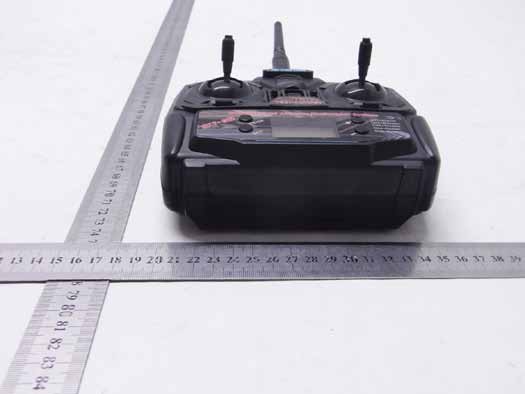

FCC ID: WKN-G01 Report No.: STS110402F1 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE FCC ID: WKN-G01 Report No.: STS110402F1 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE FCC ID: WKN-G01 Report No.: STS110402F1 TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE

FCC ID Label Sample for Product Name:2.4GHz 5CH LCD MINI Transmitter Model Name:G01 Brand Name: SKYARTEC FCC ID: WKN-G01 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: WKN-G01 Report No.: STS110402F1 INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE – 2 FCC ID: WKN-G01 Report No.: STS110402F1 INTERNAL PHOTO OF SAMPLE –3 INTERNAL PHOTO OF SAMPLE –4 FCC ID: WKN-G01 Report No.: STS110402F1 INTERNAL PHOTO OF SAMPLE –5

!"#$%&'%%($)*+,'-,.#% % Product 2.4GHz 5CH LCD MINI Transmitter Trade Name SKYARTEC Model Number G01 Series Number: GXXX, SKYXXX Description of Differences: Only the model name is different. Power Supply DC 6V by battery (4*AA) Frequency Range 2402MHz -2480MHz Modulation Type FHSS Antenna Type: Internal Fixed Channel Spacing: 1MHz Channel Number 79(CH Low: 2402MHz, CH Mid: 2441MHz, CH High: 2480MHz) Temperature Range -20°C ~ 50°C % Operation Description DESCRIPRION OF OPERATION Power support; The trandsmitter is fed by 1.5V×4AA Battery. Antenna: The transmitter and receiver utilize different antenna,dipole antenna for transmitter and wire line antenna for receiver. The coding signal that CPU output the pulse arrive this flaps will need of a signal processing,then to process of the RF transceiver microprocessor,at last,carry a signal through the hign frequency power the tube proceed to enlarge,and what L.C constitute choose the frequency network to select to validly carry a signal,output from the antenna Ground: There is no external ground connection.The ground is only that of the printed circuit board.

11 22 33 44 D D C C B B A A Title Number Revision Size Legal Date: 2011-4-25 Sheet of File: C:\Documents and Settings\..\SKY-G01(REV1.1).Sch Drawn By: C3104 GND 1 VOUT 2 VIN 3 U2 3.3V C147uF BAT C447uF C5104 12 BAT 12 SWITCH K2 K4K6 K7 DOWN K5K3 OK 123456789101112 CON1 R20 10K R3510K R4810K R3610K PA5 1 PC0 2 PC1 3 PB4 4 PB3 5 PB2 6 PB1 7 PB0 8 PA7 9 PA6 10 PB5 11 PB6 12 PC6 13 PB7 14 PC4 15 PC5 16 GND 17 PD0 18 PD1 19 VDD 20 PC7 21 PC2 22 PC3 23 PD2 24 PD3 25 PD4 26 PD5 27 PA0 28 PA1 29 PA2 30 PA3 31 PA4 32 U4MTF110 MENU K1K8 UP R3710K R3810K R3910K R191KR161K PA0PA1PA2PA3PA4PA5PA6 5V 12 CON2GEAR R2710K R261K PD3 5V 123 CON3HAND 5V R2910K R281K PD4 LEFTRIGH R4210K R411K 12 K 5V PD5 VDD L147uH CE 1 VOUT 2 NC 3 GND 4 LX 5 U3BL8530 D15819 C922uF C1110uF C10104 5V 123 CON4UART PB3PB4 12345 CON5ISP 5V PB5PB6PC7 VDDGNDVDDSCERST 123456789 LCD5510 D/CSCLKSDINVOUT 123456789 101112 CON6 GNDVDD R11K C3104 VDD SCLKSDIND/CSCE LED1 BLUE LED2 BLUE LED3 BLUE LED4 BLUE C110uF C2104 VDD GNDVDD R30 1K R31 1K R32 1K R33 1K R34 1K PB5PB6PB7PC4PC5 R21 1K R22 1K R23 1K R24 1K R25 1K SCLK 1 SO(GDO1) 2 GDO2 3 DVDD 4 DCOUPL 5 GDO0 6 CSn 7 XTAL1 8 AVDD 9 XTAL2 10 AVDD 11 RF_P 12 RF_N 13 AVDD 14 AVDD 15 GND 16 RBIAS 17 DGUIRD 18 GND 19 SI 20 CC2500 100P100P 1.2nH 1P 1P 1.2nH 1.8P 1.2nH 1.5P R6 1K R7 1K 104 56K R5 1K R8 1K R9 1K GNDVDDPB6PC7PB5PC3PD2 26M 10P 12P VDD VDDVDD VDD DW1-110K DW2-110KDW1-210K DW2-210K R141K VDD VDD VDD VDD R151KR111K R101K PB1 PB2 PC0 PC1 12345678910 CON7 VDDVDDGND R47 1K R46 1K R45 1K R44 1K R43 1K R12 100R R13 100R PA0 PA1 PA2 PA3 PA4 PA5 PA6 PB0PB1PB2PB3PB4 PB5 PB6 PB7 PC0PC1 PC2 PC3 PC4 PC5 PC6 PC7PD2 PD3 PD4 PD5 X4 8M 5V R31K R110K/1%R210K/1% C2104 BAT SP1 R40100R 5V C6104 C12104 VDD VDD 123 CON1VR VDD R41K PB0 LCD BOARD KEY MCU STICKPOWER CON 2.4G SKY-G01 REV1.1 1LONG 1

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant : RC Model Fun Ltd. Address : No.61,Tingkeng Rd, Tingshan, Houjie, Dongguan, Guangdong, China Product Name : 2.4GHz 5CH LCD MINI Transmitter Model Name : G01, GXXX, SKYXXX Brand Name : SKYARTEC FCC ID : WKN-G01 Report No. : STS110402F1 Date of Issue : May 20, 2011 Issued by :Shenzhen Super Test Service Technology Co., Ltd. Address : No.5, Langshan 2nd Rd., North Hi-Tech Industrial park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-2795 8522 Fax : 86-755-2795 8022 The report consists 32 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by STS. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: WKN-G01 Report No.: STS110402F1 Page 2 of 32 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 3 2. GENERAL INFORMATION ............................................................................................................................ 4 2.1 Product Information ...................................................................................................................................... 4 2.2 Objective ...................................................................................................................................................... 5 2.3 Test Standards and Results .......................................................................................................................... 5 2.4 Environmental Conditions............................................................................................................................. 5 3. TEST FACILITY.............................................................................................................................................. 6 3.1TEST FACILITY............................................................................................................................................. 6 3.2 GENERAL TEST PROCEDURES ................................................................................................................ 6 3.3 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS..................................................................... 7 4. SETUP OF EQUIPMENT UNDER TEST ....................................................................................................... 8 4.1 SUPPORT EQUIPMENT.............................................................................................................................. 8 4.2 TEST EQUIPMENT LIST ............................................................................................................................. 9 5. 47 CFR Part 15C 15.249 Requirements....................................................................................................... 10 5.1 Spurious Emission Test .............................................................................................................................. 10 5.1.1 Requirement............................................................................................................................................ 10 5.1.2 Test Description ........................................................................................................................................11 5.1.3 Test Description ....................................................................................................................................... 12 5.1.4 Test Result............................................................................................................................................... 13 5.2 Band Edge ................................................................................................................................................. 18 5.2.1 Requirement............................................................................................................................................ 18 5.2.2 Test Description ....................................................................................................................................... 18 5.2.3Test Result................................................................................................................................................ 18 5.3 LINE CONDUCTED EMISSION TEST ....................................................................................................... 21 5.3.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................................ 21 5.3.2. BLOCK DIAGRAM OF TEST SETUP..................................................................................................... 21 5.3.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................ 22 5.3.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST .......................................................... 22 5.3.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST .................................................................... 23 APPENDIX 1 .................................................................................................................................................... 24 PHOTOGRAPHS OF TEST SETUP................................................................................................................. 24 APPENDIX 2 .................................................................................................................................................... 26 PHOTOGRAPHS OF EUT ............................................................................................................................... 26 FCC ID: WKN-G01 …

Text truncated - open the document above for the full version.

FCC ID: WKN-G01 Report No.: STS110402F1 RE TEST SETUP
