WLHBAS-1000AVL-GSM

1 AVL-GSM User Installation Manual 2011.5.04 BNB Solutions Co., Ltd. 2 FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is con- nected. • Consult the dealer or an experienced radio/TV technician for help. Caution Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation IMPORTANT NOTE: FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 3 Revision version date revision basisengineer namereason of revision 0.0 2011.03.10 Son, Ki-bong draft 0.1 2011.05.04 Son, Ki-bong I/O Port Modify 4 List of Contents 1. Introduction......................................................................................................................................................................4 2. Composition.....................................................................................................................................................................4 1) Basic components.................................................................................................................................................4 2) Accessories for separate sale...........................................................................................................................5 3. Main body of the AVL-GSM......................................................................................................................................6 1) Front...........................................................................................................................................................................6 2) Rear.............................................................................................................................................................................7 4. Product specification.................................................................................................................................................10 5. RF specification............................................................................................................................................................10 1) GSM operating frequency..............................................................................................................................10 2) GSM Antenna.......................................................................................................................................................10 3) GPS Antenna........................................................................................................................................................10 6. Installation.....................................................................................................................................................................12 5 1. Introduction This machine is a device to transmit car locations in real time through the GSM network with the embedded GSM module and GPS module to the designated server. You can check a current location and route on the Web. Also you can enjoy more diverse and more convenient functions with RS-232 telecommunication by installing accessories additionally 2. Composition 1) Basic components (1) Main body of the AVL GSM (2) (GSM+GPS) unified antenna (3) Power cables  Color: TBD 6  Length: 3M 2) Accessories for separate sale. (1) Thermograph & interface cable Install a temperature sensor at the place to measure the temperature. You may measure the temperature by installing it at a car cargo section. Send the measured temperature data to the AVL-GSM, which transmits the data to the designated server. (2) Digital tachograph and interface cable This product installed in the car provides in real time the information including car overspeed, idling, quick-acceleration, and quick-deceleration. It is recommeded to install the digital tachograph at a garage or the designated shop. (3) Panic button In case of emergency, press the button to the server. The following picture shows a button as an example. (4) Keypad After connecting it with the body of AVL-GSM, if you press each button, its applicable information is transmitted to the server. 7 (5) Relay and cable The followings are the exterior relay for car ignition interlock and cables. 3. Main body of the AVL-GSM 1) Front ① Status indicating LED  GPS LED is a red LED and blinks every seconnd when a GPS module works normally.…

Text truncated - open the document above for the full version.

169-1, Jubuk-ri, Yangji-Myeon, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea TEL No : +82-31-337-1203 / FAX No : +82-31-337-1209 May 20, 2011 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 In re : BNB Solutions Co., Ltd. FCC Application for FCC ID : WLHBAS-1000 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, Sincerely, Byoung-Gil, Yoon Quality Control Team Tel: +82-31-337-1203 Fax: +82-31-337-1209

169-1, Jubuk-ri, Yangji-Myeon, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea TEL No : +82-31-337-1203 / FAX No : +82-31-337-1209 May 20, 2011 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 In re : BNB Solutions Co., Ltd. FCC ID : WLHBAS-1000 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, BNB Solutions Co., Ltd.. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give BNB Solutions Co., Ltd.. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name Schematics CONF APPENDIX WLHBAS-1000 SCH DIA.pdf Parts list CONF APPENDIX WLHBAS-1000 PL.pdf Block diagram CONF APPENDIX WLHBAS-1000 BLK DIA.pdf CONFIDENTIAL Operational description CONF APPENDIX WLHBAS-1000 OpDes.pdf External Photos SHORT-TERM CONF WLHBAS-1000 EXT Photo.pdf Internal Photos SHORT-TERM CONF WLHBAS-1000 INT Photo.pdf Test-Setup Photos SHORT-TERM CONF WLHBAS-1000 Test Photo.pdf SHORT-TERM CONFIDENTIAL User’s Manual SHORT-TERM CONF WLHBAS-1000 Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Byoung-Gil, Yoon Quality Control Team Tel: +82-31-337-1203 Fax: +82-31-337-1209

FCCID : WLHBAS-1000 Copyright Ⓒ 2011, LTA Co., Ltd. Page 1 of 4 FCCID : WLHBAS-1000 Copyright Ⓒ 2011, LTA Co., Ltd. Page 2 of 4 FCCID : WLHBAS-1000 Copyright Ⓒ 2011, LTA Co., Ltd. Page 3 of 4 FCCID : WLHBAS-1000 Copyright Ⓒ 2011, LTA Co., Ltd. Page 4 of 4

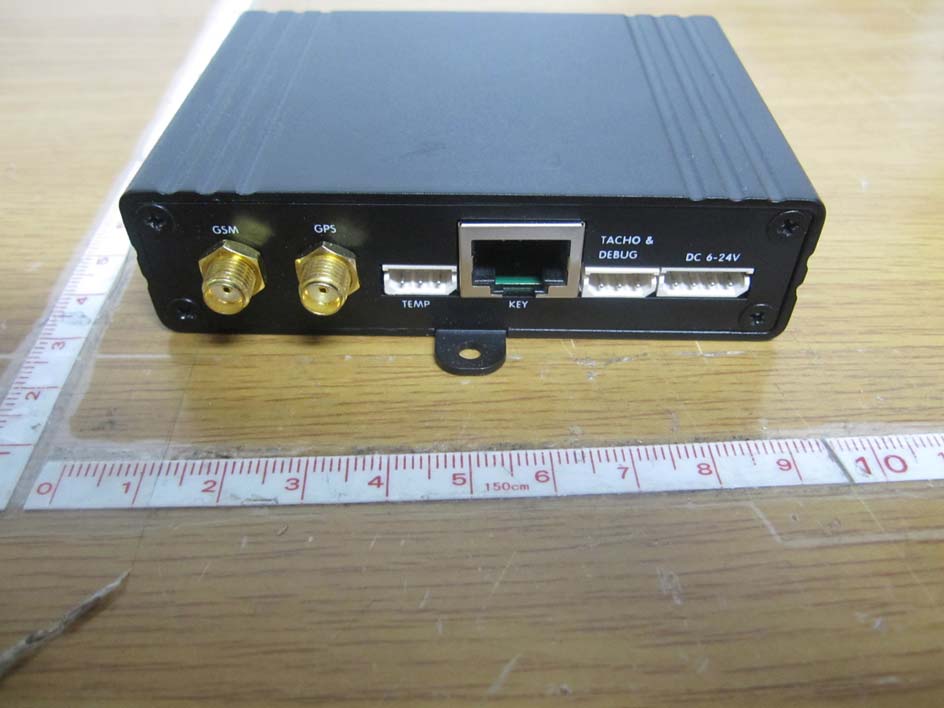

Model No.: BAS-1000 Copyright Ⓒ 2011, LTA Co., Ltd. Page 1 of 1 SAMPLE LABEL & LOCATION Label Location FCC ID:WLHBAS-1000 Contains FCC ID: QIPBG2 Model Name: BAS-1000 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in KOREA

FCCID : WLHBAS-1000 Copyright Ⓒ 2011, LTA Co., Ltd. Page 1 of 2 FCCID : WLHBAS-1000 Copyright Ⓒ 2011, LTA Co., Ltd. Page 2 of 2

FCC ID: WLHBAS-1000 ATTACHMENT ** MPE Calculations for GSM 850** The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 31.8 dBm + 2dBi EIRP = 33.8 dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) S = (1513.56*1.58) / (4 * 20 2 * π) S = 0.4775 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) R = √(1513.56*1.58/ 4π) R = 13.82Cm Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (2 / 10) G = 1.58 FCC ID: WLHBAS-1000 ATTACHMENT ** MPE Calculations for GSM 1900** The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 29.3 dBm + 1dBi EIRP = 30.3 dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) S = (851.14*1.26) / (4 * 20 2 * π) S = 0.2113 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) R = √(851.14*1.26/ 4π) R = 9.24Cm Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (1 / 10) G = 1.26

Ref. No.: LR500111105O Copyright ○ c 2011, LTA Co., Ltd. Page 1 of 20 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: May 16 ~ 23, 2011 Test Report S/N: LR500111105O Test Site : LTA CO., LTD. CERTIFICATIO OF COMPLIANCE FCC ID. APPLICANT FCC Classification : Licensed Portable Transmitter Worn on body (PCT) Manufacturing Description : AVL-GSM Manufacturer : BNB Solutions Co., Ltd. Manufacturer (RF Module) : Cinterion Wireless Modules GmbH Model name : BAS-1000 Test Device Serial No.: : Identical prototype Rule Part(s) : §24(E), §22(H), §2 TX Frequency Range : 824.2 ~ 848.8 MHz (GSM850)/1850.2 ~ 1909.8 MHz (PCS1900) RX Frequency Range : 869.2 ~ 893.8 MHz (GSM850)/1930.2 ~ 1989.8 MHz (PCS1900) RF Output Power : GSM850 (33dBm: Level 5) / PCS1900 (30dBm: Level 0) This test report is issued under the authority of: The test was supervised by: Hyun-Chae You, Manager Il-Shin kim, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. NVLAP LAB Code.: 200723-0 WLHBAS-1000 BNB Solutions Co., Ltd. Ref. No.: LR500111105O Copyright ○ c 2011, LTA Co., Ltd. Page 2 of 20 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 OUTPUT POWER(Conducted) ---------------------------------------------------------------- 3.2.2 EFFECTIVE RADIATED POWER --------------------------------------------------------------- 3.3.3 FIELD STRENGTH OF SPURIOUS EMISSIONS (RADIATED) ---------------------- 3.2.4 FIELD STRENGTH ----------------------------------------------------------------------------- 3.2.5 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 7 9 15 18 19 Ref. No.: LR500111105O Copyright ○ c 2011, LTA Co., Ltd. Page 3 of 20 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2011-09-30 ECT accredited Lab. KCC KOREA KR0049 2013-04-24 EMC accredited Lab. FCC U.S.A 610755 2014-04-27 FCC filing FCC U.S.A 649054 2011-05-26 FCC CAB VCCI JAPAN R2133(10m), C2307 2011-06-21 VCCI registration VCCI JAPAN T-2009 2013-12-23 VCCI registration IC CANADA IC5799 2012-05-14 IC filing Ref. No.: LR500111105O Copyright ○ c 2011, LTA Co., Ltd. Page 4 of 20 2. Information’s about test item 2-1 Client & Manufacturer Company name : BNB Solutions Co., Ltd. Address : 169-1, Jubuk-ri, Yangji-Myeon, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel / Fax : TEL: +82-31-337-1203 FAX: +82-31-337-1209 2-2 Equipment Under Test (EUT) Trade name : AVL-GSM Model name : BAS-1000 Serial number : Identical prototype Date of receipt : May 21, 2011 EUT condition : Pre-production, not damaged GSM Module : Cinterion Wireless Modules GmbH (BG2-W) Identification mark: 0682 Antenna type : Patch Antenna(TA070040) / 2dBi@850MHZ ; 1dBi@1800MHZ RF output power : 0.49 W ERP GSM850 (26.81dBm) 0.68 W EIRP GSM1900 (28.34dBm) Modulation : GMSK, 8PSK Power Source : DC 12/24 V Firmware version : V 1.0 2-3 Tested frequency Frequency Ch. GSM 850 Ch GSM1900 Low frequency (MHz) 128 824.2 512 1850.2 Middle frequency (MHz) 190 836.6 661 1880.0 High frequency (MHz) 251 848.8 810 1909.8 2.4 Test conditions Temperature : +15~35 °C Humidity : 30~65 %RH Pressure : 860~1030 mbar Operating mode : Air link mode GSM850 A communication link is established between the mobile station and the test simulator. The transmitter is operated at its maximum rated output power: 33 dBm (power class 4 = power control level 5) GSM1900 A communication link is established between the mobile station and the test simulator. The transmitter is operated at its maximum rated out put power: 30 dBm (power class 1 = power control level 0) Ref. No.: LR500111105O Copyright ○ c 2011, LTA Co., Ltd. Page 5 of 20 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Test Condition Status (note 1) 22.913(a)(2) Effective radiated power C 24.232(c) Effective isotropic radiated power C 2.1053 22.917(a) 24.238(a) Spurios radiated emission C 15.209 Field Strength of Harmonics Radiated C 15.207 AC Conducted Emissions Line Conducted NA Note3 Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. Note3: This device is only operated by DC The sample was tested according to the following specification: ANSI C-63.4-2003 Ref. No.: LR500111105O Copyright ○ c 2011, LTA Co., Ltd. Page 6 of 20 3.2 Technical Characteristics Test 3.3.1 Conducted Output Power GPRS Data GPRS GPRS Frequency 1 Tx Slot 2 Tx Slot Band (MHz) (dBm) (dBm) 824.2 31.8 31.6 836.6 31.8 31.7 GSM850 848.8 31.7 31.4 1950.2 29.1 29.0 1880.0 29.3 29.1 GSM1900 1909.8 …

Text truncated - open the document above for the full version.

Page 1 of 39 The test results relate only to the individual items which have been tested. This report shall not be reproduced in parts without the written approval of the testing laboratory © Copyright: All rights reserved by CETECOM Laboratory Accreditation and Listings DAT-P176/94-02 Reg. No.: 99538 MRA US-EU 0003 Industry Canada Reg. No.: 3462D-1 3462D-2 Reg. No.: R-2665, R-2666 C-2914, T-339 accredited according to DIN EN ISO/IEC 17025 CETECOM GmbH Laboratory Radio Communications & Electromagnetic Compatibility Im Teelbruch 116 • 45219 Essen • Germany Registered in Essen, Germany, Reg. No.: HRB Essen 8984 Tel.: + 49 (0) 20 54 / 95 19-954 • Fax: + 49 (0) 20 54 / 95 19-964 E-mail: [email protected] • Internet: www.cetecom.com T E S T R E P O R T No.: 2-20785798c/10 for Quad-Band GSM/GPRS Module BG2-W FCC-ID: QIPBG2 IC: 7830A-BG2 According to: FCC Regulations FCC Part 22/24 FCC Part 15.209C & IC Regulations RSS-132, Issue 2 RSS-133, Issue 5 RSS-Gen, Issue 2 Cinterion Wireless Modules GmbH Test Report 2-20785798c/10, Page 2 of 39 2_20785798c_10.doc Table of contents 1. SUMMARY OF TEST RESULTS ...................................................................................................................... 3 1.1. TESTS OVERVIEW FCC Part 15/22/24 and Kanada IC Standards (RSS) .................................................... 3 2. ADMINISTRATIVE DATA ............................................................................................................................... 5 2.1. Identification of the testing laboratory ............................................................................................................. 5 2.2. Test location .................................................................................................................................................... 5 2.3. Organizational items ........................................................................................................................................ 5 2.4. Applicant‟s details ........................................................................................................................................... 5 2.5. Manufacturer‟s details ..................................................................................................................................... 5 3. EQUIPMENT UNDER TEST (EUT) ................................................................................................................. 6 3.1. Additional declaration and description of main EUT ...................................................................................... 6 3.2. Configuration of cables used for testing .......................................................................................................... 6 3.3. EUT: Type, S/N etc. and short descriptions used in this test report ................................................................ 7 3.4. Auxiliary Equipment (AE): Type, S/N etc. and short descriptions .................................................................. 7 3.5. EUT set-ups ..................................................................................................................................................... 8 3.6. EUT operating modes ...................................................................................................................................... 8 3.7. Parameter Settings on mobile phone and base station CMU200 ..................................................................... 9 4. DESCRIPTION OF TEST SET-UP’S ................................................................................................................ 10 4.1. Test Set-up for conducted measurements ........................................................................................................ 10 4.2. Test set-up for radiated measurements ............................................................................................................ 11 5. MEASUREMENTS ............................................................................................................................................. 12 5.1. RF power output (Conducted and Radiated).................................................................................................... 12 5.2. Occupied bandwidth ........................................................................................................................................ 16 5.3. Radiated emissions, below 30 MHz, §15.205 and §15.209C, RSS210, RSS310, RSS-gen ............................ 18 5.4. Emission limits (Spurious emission conducted/radiated) f> 30 MHz .............................................................. 20 5.5. Frequency stability on temperature and voltage variations ............................................................................. 28 6. CALIBRATION METHOD OF ANECHOIC CHAMBER ............................................................................. 33 7. MEASUREMENT UNCERTAINTIES .............................................................................................................. 34 8. USED EQUIPMENT “CTC” .............................................................................................................................. 35 9. CORRECTION FACTORS DUE TO REDUCED MEAS. DISTANCE (F< 30 MHZ) ................................. 39 Table of annex Total pages SEPARATE DOCUMENT 2_20785798C_10_A1.PDF: DIAGRAMS OF TESTING 90 SEPARATE DOCUMENT 2_20785798C_10_A2.PDF: PHOTOS OF EUT 7 SEPARATE DOCUMENT 2_20785798C_10_A3.PDF: PHOTOS OF SET-UP 4 Test Report 2-20785798c/10, Page 3 of 39 2_20785798c_10.doc 1. Summary of test results The presented GSM 850/900/1800/1900 Module can be build inside host applications and extends their capability by wireless GSM technology. Data transmissions or voice applications are possible field applications. In order to verify the compliance with applicable rules, a representative configuration consisting of representative auxiliary…

Text truncated - open the document above for the full version.

FCCID : WLHBAS-1000 Copyright ○ c 2011, LTA Co., Ltd. Page 1 of 2 Radiated Emission (f<1GHz) FCCID : WLHBAS-1000 Copyright ○ c 2011, LTA Co., Ltd. Page 2 of 2 Radiated Emission (f>1GHz)
