WN6-E206XT3G WiFi Router

1 Maestro E200 Series www.maestro-wireless.com QUICK START GUIDE-M2M products E200 Series – Cellular / WAN / LAN / Wi-Fi Router Version 1.1 2 Maestro E200 Series www.maestro-wireless.com Copyright Copyright© 2015 Maestro Wireless Solutions Limited. All right reserved. This document is for the use of intended recipients only and the contents may not be reproduced, redistributed, or copied in whole or in part for any purpose without Maestro prior express consent.  Note: This document is subject to change without notice This manual cover the following M2M products: Maestro E205XT02 Maestro E205XT04 Maestro E206XT DOCUMENT VERSION DATE 1.0 Initial document release 26 Sep. 14 1.1 Added illustration 18 Mar. 15 3 Maestro E200 Series www.maestro-wireless.com This manual is written without any warranty. Maestro Wireless Solutions Ltd. reserves the right to modify or improve the product and its accessories which can also be withdrawn without prior notice. Our company stresses the fact that the performance of the product and its accessories depends on the proper use conditions as well as the surrounding environment. Maestro Wireless Solutions Ltd. assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the router and this manual. This software, solution or application is provided on an "as is" basis. No warranty whether expressed or implied is given by Maestro Wireless Solutions Ltd. in relation to this software, solution or application. User shall assume the entire risk of using or relying on this software, solution, and application. In no event will Maestro Wireless Solutions Ltd. be liable for any loss or damage including without limitation, indirect or consequential loss, damage, or any loss, damage 4 Maestro E200 Series www.maestro-wireless.com whatsoever arising from loss of data or profit arising out of, or in connection with, the use of this router product. Every effort is made to keep the product and its software up and running smoothly. However, Maestro Wireless Solutions Ltd. takes no responsibility for, and will not be liable for, the product or its software being temporarily unavailable due to technical issues beyond our control. The above terms and conditions are subject to change without prior notice. The present use of this product solution implies that the user approves and understands all the above terms and conditions. 5 Maestro E200 Series www.maestro-wireless.com Table of Contents 2 SAFETY PRECAUTIONS ............................................................................................................ 7 2.1 GENERAL PRECAUTIONS ....................................................................................................................... 7 2.2 USING THE ROUTER IN VEHICLE .......................................................................................................... 7 3 PROTECTING YOUR ROUTER ................................................................................................ 7 4 OVERVIEW ................................................................................................................................... 8 4.1 SCOPE ...................................................................................................................................................... 8 4.2 TARGET AUDIENCE ................................................................................................................................ 8 5 PREREQUISITES ......................................................................................................................... 8 6 USER MANUAL CONVENTIONS .............................................................................................. 8 7 PRODUCT OVERVIEW ............................................................................................................ 10 7.1 E200 SERIES AT A GLANCE ................................................................................................................10 7.2 BUNDLE CONTENT ...............................................................................................................................10 8 PRODUCT FEATURES ............................................................................................................. 12 9 PHYSICAL DIMENSIONS AND LED ...................................................................................... 13 9.1 PHYSICAL DIMENSIONS .......................................................................................................................13 9.2 LED INDICATORS .................................................................................................................................14 9.3 ETHERNET PORT LED INDICATORS ..................................................................................................16 10 HARDWARE INSTALLATION ............................................................................................. 17 10.1 INSTALL THE SIM CARD ...................................................................................................................17 10.2 CONNECT THE CELLULAR (WWAN) ANTENNA(S) ....................................................................17 10.3 CONNECT THE LAN CABLE .............................................................................................................18 10.4 CONNECT THE POWER SUPPLY .......................................................................................................18 11 E205 BASIC CONFIGURATION .......................................................................................... 19 11.1 CONNECTING TO THE WEB INTERFACE .........................................................................................19 11.2 LAN CONFIGURATION ......................................................................................................................20 11.3 WAN CONFIGURATION ................................................................…

Text truncated - open the document above for the full version.

E200 Series Multimode LAN/WAN/Wi-Fi Router Model names:E206XT Technical information:  GSM/GPRS/EDGE bands:850/900/1800/1900MHz  GPRS class B, multislot class 10 operation  EDGE multislot class 12 operation  HSDPA bands: 800/850/1900/2100MHz  Max. RF power output: 2W(850/900MHz),1W(1800/1900 MHz)  SIM interface (2FF) 1.8V/3V, with support for MFF2 SIM  Support data (dl/ul up to 14.4Mbps/5.76Mbps), SMS, gpsOne Power requirement:  Input voltage: 9V to 60VDC  Rated current: 650mA DC input 9V 12V 24V 48V Idle state (Ethernet, Wi-Fi & Cellular n/c) 110mA 82mA 43mA 23mA Ethernet connected (Wi-Fi & Cellular n/c) 150mA 112mA 57mA 31mA Ethernet & Wi-Fi connected (Cellular n/c) 202mA 151mA 76mA 41mA Ethernet & Wi-Fi connected (Cellular standby) 222mA 167mA 84mA 46mA Ethernet & Wi-Fi connected Cellular (CDMA2000@23dBm) 610mA 450mA 220mA 115mA Interface Connections:  SIM holder  RJ45 8P8C WAN connector  RJ45 8P8C LAN connector  Wi-Fi RP-SMA antenna connector (50Ω)  Active GPS SMA antenna connector (50Ω)  Cellular SMA antenna connector (50Ω)  4-pin MicroFit Molex connector for power supply and DI/Os  Reset button Dimensions:  Overall size: 83.9mm x 60mm x 25mm  Weight:130g Temperature range:  Operating: -20°C ~ 60°C  Storage: -40°C ~ 80°C  Relative humidity: up to 95% without condensation Optional Accessories:  Ultra-wide band antenna – ACC-A22  Wi-Fi antenna – ACC-A21  Ethernet cable – ACC-CA29  DIN Rail Mount–ACC-DIN  Power cord with fuse – ACC-CA10  Power supply Europe – ACC-PS01  Power supply America – ACC-PS09  Power supply Australia – ACC-PS10  Power supply UK – ACC-PS11 Safety Precautions  The modem generates radio frequency (RF) power. When using the modem care must be taken on safety issues related to RF interference as well as regulations of RF equipment.  Do not use your phone in aircrafts, hospitals, petrol stations or in places where using GSM products is prohibited.  Be sure that the modem will not be interfering with nearby equipment. For example: pacemakers or medical equipment. The antenna of the modem should be away from computers, office equipment, home appliance, etc.  An external antenna must be connected to the modem for proper operation. Only use approved antennas with the modem. Please contact authorized dealer on finding an approved antenna.  Always keep the antenna with minimum safety distance of 26.6 cm or more from human body.  Do not put the antenna inside metallic box, containers, etc. Using the modem in vehicle  Check for any regulation or law authorizing the use of GSM in vehicle in your country before installing the modem  Install the modem by qualified personnel. Consult your vehicle dealer for any possible interference of electronic parts by the modem.  The modem should be connected to the vehicle’s supply system by using a fuse-protected terminal in the vehicle’s fuse box.  Be careful when the modem is powered by the vehicle’s main battery. The battery may be drained after extended period. Protecting your modem  To ensure error-free usage, please install and operate your modem with care. Do remember the following:  Do not expose the modem to extreme conditions such as high humidity/rain, high temperatures, direct sunlight, caustic/harsh chemicals, dust, or water.  Do not try to disassemble or modify the modem. There is no user serviceable part inside and the warranty would be void.  Do not drop, hit or shake the modem. Do not use the modem under extreme vibrating condition.  Do not pull the antenna or power supply cable. Attach/ detach by holding the connector.  Connect the modem only according to the instruction manual. Failure to do it will void the warranty.  In case of problem, please contact authorized dealer. DEALER’S CHOP Federal Communications Commission (FCC) Declaration of Conformity This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital , pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. Industry Canada Note This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device . Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en Thi…

Text truncated - open the document above for the full version.

MAESTRO WIRELESS HOLDINGS LIMITED 9th Floor, Wing Cheong Factory Building, 121 King Lam Street, Cheung Sha Wan, Kowloon, Hong Kong Tel: 852-39550226 ; Fax: 852-35684833 Statement We, MAESTRO WIRELESS HOLDINGS LIMITED, states that our device, Model name: E206XT with FCC ID: WN6-E206XT; IC: 20055-E206XT is a 3G WiFi Router integrated an approved WWAN Module which supports WCDMA B1/2/5, CDMA2000 BC0/1 and 850/900/DCS/PCS function. However, our device Model name: E206XT about CDMA2000 BC0/1 are not available in US and Canada market for disabled by software. Contact Person: Frank Tang Company: MAESTRO WIRELESS HOLDINGS LIMITED TEL: 852-39550226 FAX: 852-35684833 E-mail: [email protected]

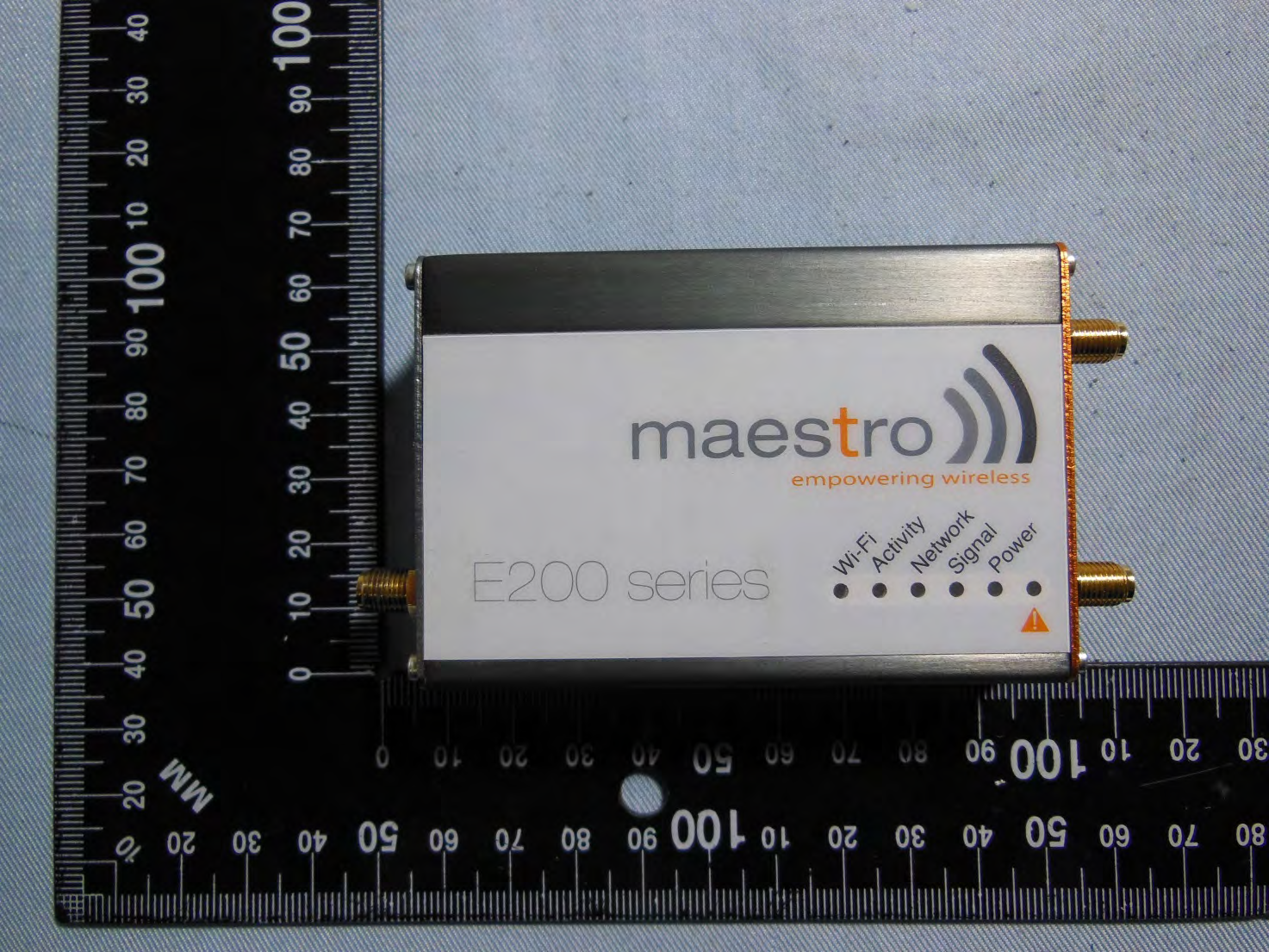

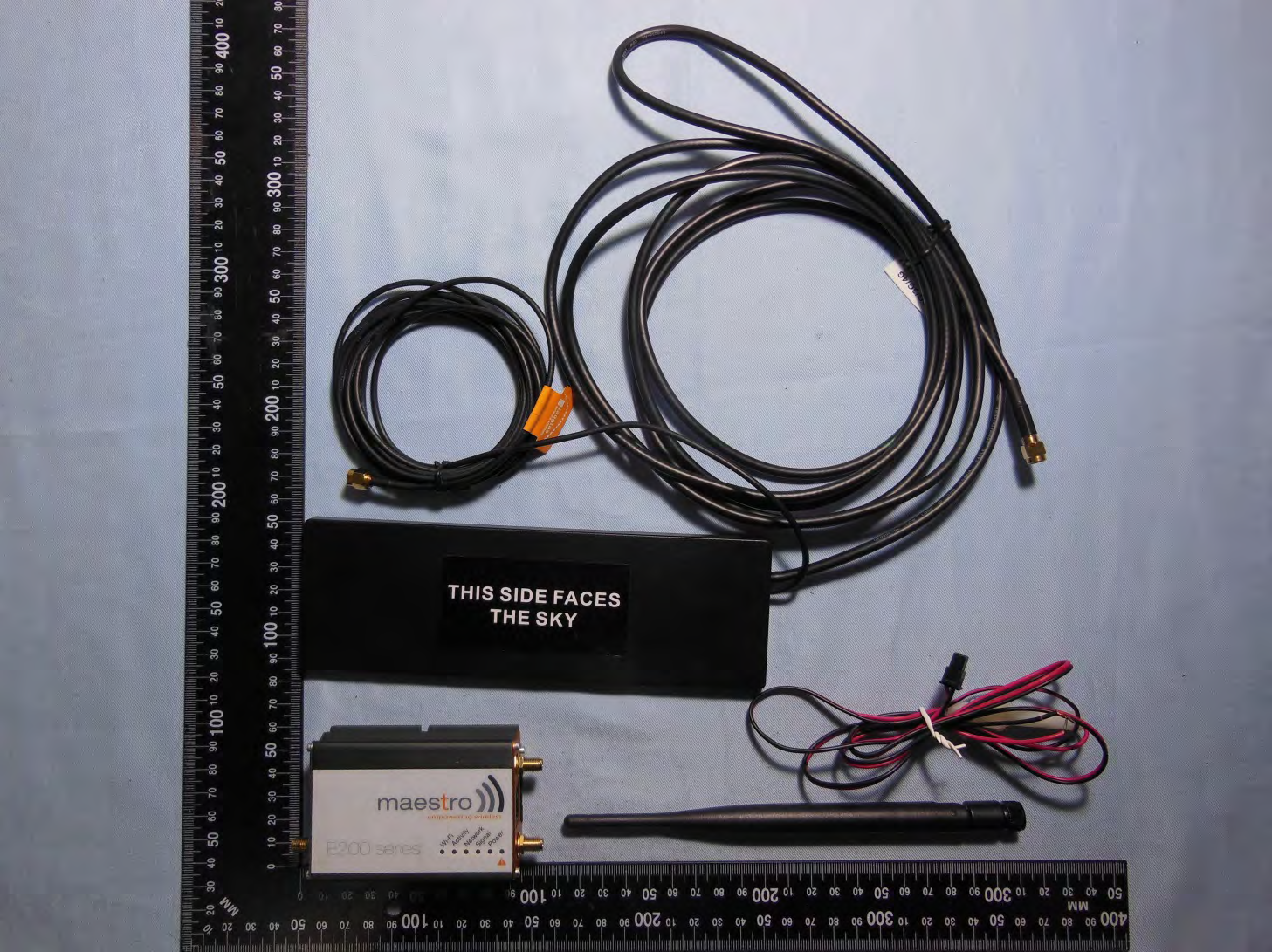

Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT 1. External Photograph of EUT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 7 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 8 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT

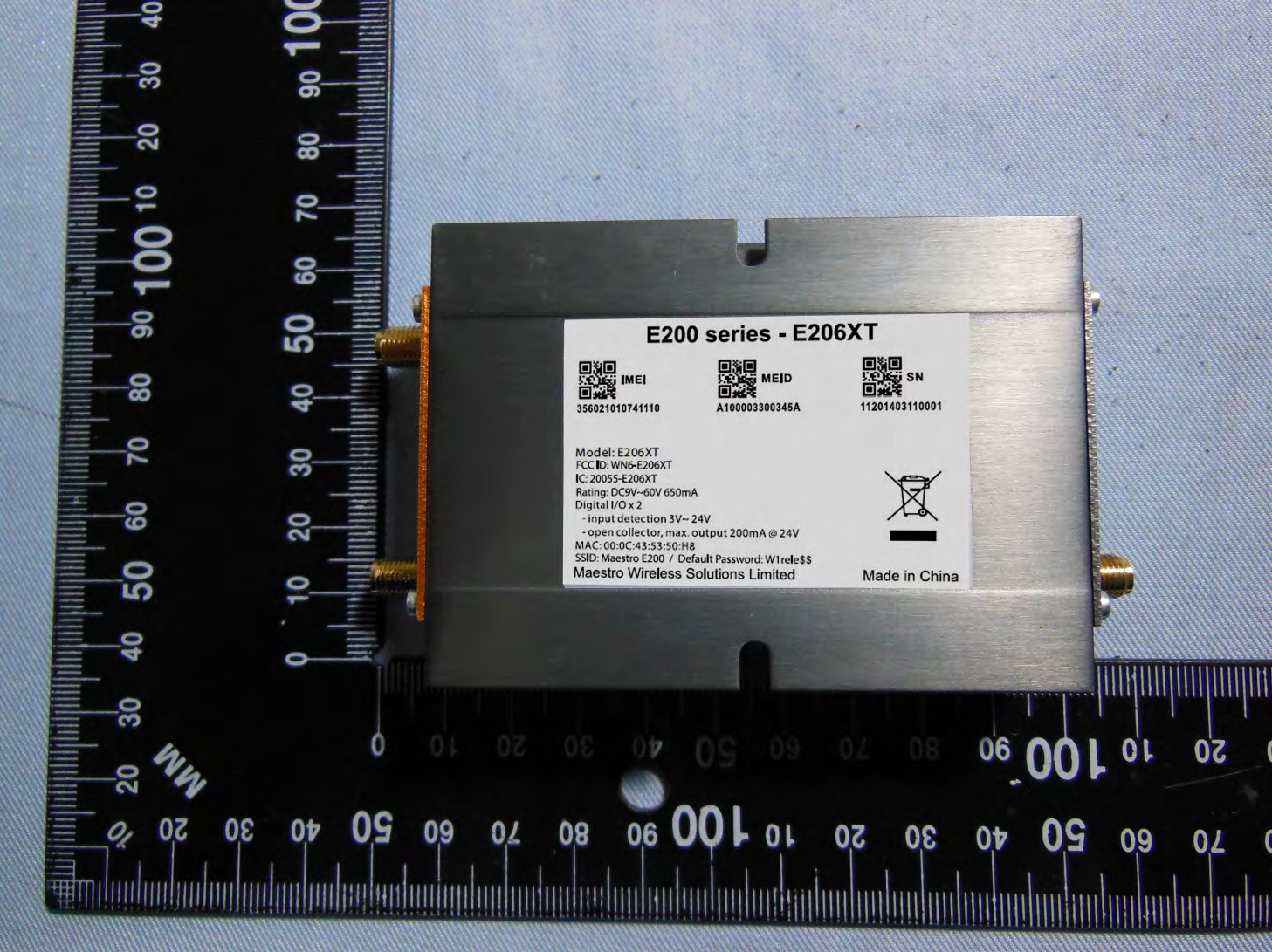

XT 356021010741110 01011504080001 MEIDIMEISN A100003300345A : . .Size 50 0mmX34 0mm+0/-0.1mm Materials:Silver Paper TITLE: MODEL: DOC. No. DRAWN. CHK. SMART GEARS LTD APP. SCALE: DATE: DATE: DATE: REMARK: SCALE 1:1 QR code IMEI# QR code SN# E200 series-E206XT Back Label 13-Apr.-2014 V1.1 1:1 MAC eg.00:0C:43:53:50:H8 QR code MEID# Serial No. From 0001 to 9999 SN#:01011504080001 Hardware Revision Lot No. Prodcution Date Matthieu/Robin Matthieu/Sam Model: E206XT Model: E206XT

Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 9 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT 2. Internal Photograph of EUT WWAN Antenna Port <Tx / Rx> GPS Antenna Port <Rx> WLAN Antenna Port <Tx / Rx> Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 10 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 11 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 12 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 13 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 14 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 15 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 16 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 17 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 18 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 19 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 20 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 21 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 22 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 23 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT WWAN Antenna <Tx / Rx> GPS Antenna <Rx> Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 24 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 25 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT WLAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP531712 Brand Name: Maestro; Model Name: E206XT SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 26 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: WN6-E206XT

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 9 TEL : 86-755-8637-9589 / FAX : 86-755-8637-9595 Report Issued Date : Apr. 23, 2015 FCC ID : WN6-E206XT Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA531712 RF Exposure Evaluation Report APPLICANT : Maestro Wireless Holdings Limited EQUIPMENT : 3G WiFi Router BRAND NAME : Maestro MODEL NAME : E206XT MARKETING NAME : E206XT FCC ID : WN6-E206XT STANDARD : 47 CFR Part 2.1091 We, SPORTON INTERNATIONAL (SHENZHEN) INC., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091, and pass the limit. Without written approval of SPORTON INTERNATIONAL (SHENZHEN) INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL (SHENZHEN) INC. 1F & 2F, Building A, Morning Business Center, No. 4003 ShiGu Rd., Xili Town, Nanshan District, Shenzhen, Guangdong, P. R. China Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 9 TEL : 86-755-8637-9589 / FAX : 86-755-8637-9595 Report Issued Date : Apr. 23, 2015 FCC ID : WN6-E206XT Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA531712 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 4 1.1. Testing Laboratory ............................................................................................................................. 4 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 5 3. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 6 4. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 7 5. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 8 5.1. Standalone Power Density Calculation ............................................................................................. 8 5.2. Collocated Power Density Calculation .............................................................................................. 9 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 9 TEL : 86-755-8637-9589 / FAX : 86-755-8637-9595 Report Issued Date : Apr. 23, 2015 FCC ID : WN6-E206XT Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA531712 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA531712 Rev. 01 Initial issue of report Apr. 23, 2015 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 9 TEL : 86-755-8637-9589 / FAX : 86-755-8637-9595 Report Issued Date : Apr. 23, 2015 FCC ID : WN6-E206XT Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA531712 1. Administration Data 1.1. Testing Laboratory Testing Laboratory Test Site SPORTON INTERNATIONAL (SHENZHEN) INC. Test Site Location 1F & 2F,Building A, Morning Business Center, No. 4003 ShiGu Rd., Xili Town, Nanshan District, Shenzhen, Guangdong, P. R. China TEL: +86-755-8637-9589 FAX: +86-755-8637-9595 Applicant Company Name Maestro Wireless Holdings Limited Address FLAT A & B, 9/F, WING CHEONG FACTORY BUILDING, 121 KING LAM STREET, CHEUNG SHA WAN, HONG KONG Manufacturer Company Name Maestro Wireless Holdings Limited Address FLAT A & B, 9/F, WING CHEONG FACTORY BUILDING, 121 KING LAM STREET, CHEUNG SHA WAN, HONG KONG SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 9 TEL : 86-755-8637-9589 / FAX : 86-755-8637-9595 Report Issued Date : Apr. 23, 2015 FCC ID : WN6-E206XT Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA531712 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type 3G WiFi Router Brand Name Maestro Model Name E206XT Marketing Name E206XT FCC ID WN6-E206XT IMEI Code 013165000063780 Wireless Technology and Frequency Range GSM850: 824.2 MHz ~ 848.8 MHz GSM1900: 1850.2 MHz ~ 1909.8 MHz WCDMA Band V: 826.4 MHz ~ 846.6 MHz WCDMA Band II: 1852.4 MHz ~ 1907.6 MHz WLAN 2.4GHz Band: 2412 MHz ~ 2462 MHz Mode ‧GPRS/EGPRS ‧RMC 12.2Kbps Rel 99 ‧HSDPA Rel 6 ‧HSUPA Rel 6 ‧802.11b/g/n HT20/HT40 Integrated WWAN Module Brand Name: AirPrime Model Name: SL9090 Antenna Type WWAN: Dipole Antenna WLAN: Dipole Antenna GPS: Ceramic Patch Antenna HW Version V06 SW Version V2.0 EUT Stage Pre-Production Remark: 1. This device supports GRPS mode up to multi-slot class10 and EGPRS multi-slot class12. 2. The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 9 TEL : 86-755-8637-9589 / FAX : 86-755-8637-9595 Report Issued Date : Apr. 23, 2015 FCC ID : WN6-E206XT Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA531712 3. Maximum RF average output power among production units Mode GSM 850 GSM 1900 Average power(dBm) GPRS (GMSK, 1 Tx slot) 32.50 29.50 GPRS (GMSK, 2 Tx slots) 32.50 29.50 EDGE (8PSK, 1 Tx slot) 27.00 25.50 EDGE (8PSK, 2 Tx slots) 27.00 25.50 EDGE (8PSK, 3 Tx slots) 27.00 25.50 EDGE (8PSK, 4 Tx slots) 27.00 25.50 Mode WCDMA Band V WCDMA Band II average power(dBm) RMC 12.2Kbps 23.50 23.00 HSDPA Subtest-1 23.00 22.00 HSDPA Subtest-2 23.00 22.00 HSDPA Subtest-3 22.50 21.50 HSDPA Subtest-4 22.50 21.50 HSUPA Subtest-1 22.50 21.50 HSUPA Subtest-2 21.00 20.50 HSUPA Subtest-3 21.50 20.50 HSUPA Subtest-4 21.50 21.00 HSUPA Subtest-5 23.00 22.00 Mode Maximum Average Power (dBm) 2.4GHz 802.11b 14.50 802.11g 14.00 802.11n-HT20 13.00 802.11n-HT40 10.50 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 7 of 9 TEL : 86-755-8637-9589 / FAX : 86-755-8637-9595 Report Issued Date : Apr. 23, 2015 FCC ID : WN6-E206XT Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA531712 4. RF Exposure Limit Introduction According to ANSI/IEEE C95.1-1992, the c…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : WN6-E206XT FCC RF Test Report Report No. : FR531712 FCC RF Test Report APPLICANT : Maestro Wireless Holdings Limited EQUIPMENT : 3G WiFi Router BRAND NAME : Maestro MODEL NAME : E206XT MARKETING NAME : E206XT FCC ID : WN6-E206XT STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DTS) Digital Transmission System The product was received on Mar. 17, 2015 and testing was completed on Apr. 16, 2015. We, SPORTON INTERNATIONAL (SHENZHEN) INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (SHENZHEN) INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL (SHENZHEN) INC. 1F & 2F, Building A, Morning Business Center, No. 4003 ShiGu Rd., Xili Town, Nanshan District, Shenzhen, Guangdong, P. R. China SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 23, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : WN6-E206XT FCC RF Test Report Report No. : FR531712 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Product Feature of Equipment Under Test ........................................................................................ 5 1.4 Product Specification subjective to this standard .............................................................................. 6 1.5 Modification of EUT ........................................................................................................................... 7 1.6 Testing Location ................................................................................................................................ 7 1.7 Applicable Standards ......................................................................................................................... 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 Carrier Frequency Channel ............................................................................................................... 8 2.2 Pre-Scanned RF Power ..................................................................................................................... 9 2.3 Test Mode ........................................................................................................................................ 10 2.4 Connection Diagram of Test System ............................................................................................... 10 2.5 Support Unit used in test configuration and…

Text truncated - open the document above for the full version.
