WNA-A6Full HD Cloudio TV Set-Top Box

User manual Content General information Main features For your safety Unpacking RCU Front Panel Real Panel System wizard and activation Update Troubleshooting 1 1 2 3 3 4 4 7 10 11 GENERAL INFORMATION Cloudio TV box will take you to the new and exciting world of , digital sound and new services. To make full use of your please take time to familiarise yourself with the extensive features of the unit detailed in this user guide. If you need help in setting up please call your dealer or a customer service adviser. entertainment interactive new receiver Main Features Web browser and a multitude of applications 480i/p, 576i/p, 720p, 1080i, 1080p, with HDCP copy protection Video player supporting MP4, AVI, MKV, FLV, MPEG TS Music player supporting MP3, AAC, OGG, MPEG, MPEG Audio, Dolby AC-3 Photo viewer supporting JPEG, PNG, BMP, GIF 1 For Your Safety Do not touch the receiver during thunderstorms in case of electric shock. Do not block ventilation holes of the receiver so that air can circulate freely. Do not expose the receiver under the sunlight. And keep it away from the heat source. Keep the receiver away from flower vases, tubs, sinks, etc., in order to avoid damaging the equipment. To avoid electric-shock hazards, do not open the receiver, refer servicing to qualified personnel only. When an abnormal phenomenon occurs, you should cut off the power immediately. 2 Unpacking Remote ControlUser manual External power supply Receiver(Set-top box) AV cable Batteries User manu al HDMI Cable Key Function Standby On/Off Back to the previous menu on the menu screen or escape from the menu Enter main menu Adjust the volume Press for additional functions The picture is only for reference, please make the object as the standard. RCU 3 Navigate around the menu and change the channels Navigate around the menu and change the channels Front Panel LAN Real Panel CONNECT TO USB DEVICE CONNECT TO THE INTERNET VIA ETHERNET CABLE CONNECT TO SD CARD The picture is only for reference, please make the object as the standard. 4 Real Panel IR AV SPDIF Power A CONNECT TO INFRARED RECEIVER (optional) CONNECT TO AV CONVERTOR CONNECT TO TV SET HDMI INPUT CONNECT TO A DIGITAL AMPLIFIER CONNECT TO POWER SUPPLY ON/OFF Connecting to T V using AV cable IR AV SPDIF Power A VIDEOAUDIO L R TV CONNECT TO THE POWER SUPPLY The picture is only for reference, please make the object as the standard. 5 Connecting to T V using HDMI suppor t TV HDMI CONNECT TO THE POWER SUPPLY External IR-sensor IR AV SPDIF Power A Connecting to Digital Amplifier RL SPEAKER DIGITAL AUDIO CONVERTOR OR AMPLIFIER SPDIF IR AV SPDIF Power A The picture is only for reference, please make the object as the standard. 6 System wizard and activation Please follow step by step To activate the Box. Press Back button to change settings any time. 1. Welcome When you first star t up the Box it will star t in the welcome page. 2. Display Settings Adjust display by resolution or position to best effect. 2.1 Resolution Settings Click Resolution button, select resolution from the list, confirm resolution change from dialog popup. Press back to return to main menu. 7 2.2 Display Position Click Display Position button, use arrows up/down keys to adjust the zoom level, adjusted results will take effect immediately. Press Back key to save and exit. 3. Internet configuration Set up your internet connection by Ethernet settings or Wifi settings. 3.1 Ethernet Settings Connect the Ethernet cable to the box. Click Ethernet settings button and select DHCP to get IP address automatically or select Static IP to connect internet by entering the IP address,gate way address,net mask and DNS address. Press back to return to main menu. 3.2 Wifi settings Click Wifi settings to select one available point, and then input the password to connect to the internet. 8 4. Date and Time configuration Select date and time that suitable for your place. The default time Zone is London, Dublin, GMT+1:00. 5. Box activation Follow the activation procedure in order to activate the box. The code will be displayed in this page if internet is available, just remember it will be used in the following steps. 6. Web Activation Go to www.cloudio.tv/ activate and login with your email address. If you forgot the password,please click the “forgot password”link. 7. Web activation Page Login with your account successfully, input the activation code in step 5. 9 8. Box Activate Success After completing web activation, the Box will confirm automatically. 9. Home The Home screen shows you weather and news information and access to Movies, T V, Music, Shows and Store. Update Keep your box with the latest version and enjoy the latest features. Turn to the update page in system settings. Clicking the update button will upgrade system automatically. 10 Troubleshooting 11 No power 1、Please check the main cable which is plugged into the power socket, when the light shows blue which means is turned on and red means is on stand by. 2、If there is still no power, please retr y to plug into the power socket. No sound 1、Please check whether it is kept in the home menu, as there is no sound in the home menu. 2、If music is playing press “ Vol+”to see if the volume was too quite or in mute. 3、Please check if the connection for Audio cable is fine. Blank Screen or Pictures showed abnormal 1、Please check whether the AV Cable connected is fine. 2、Please check whether the input mode of system or T V is set up correctly. The RCU is not working 1、Batter y might be empty or incorrectly aligned. 2、Please check whether adjusting the distance and angle improves signal strength. 3、Please check whether there is a strong light source nearby as this might conflict with the infrared signal. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

Shenzhen Skyworth Digital Technology Co., LTD PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 12.10.2013 Authority to Act as an Agent We declare that the following representative (agent) Name Mark Wen Position General Manager Company Name Most Technology Service Co., Ltd. Address No.5, 2 nd Langshan Road, North District, Hi-Tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel / Fax 86-755-86170306/86-755-86170310 E-Mail [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name Full HD Cloudio TV Set-Top Box Model Name HPM5, A6 Brand Name SKYWORTH Yours sincerely, Signatory Name Wenping Song Position Manager Company Name Shenzhen Skyworth Digital Technology Co., LTD Address Unit A14/F.Skyworth Building.,Gaoxin Ave.1s.,Nanshan District, Shenzhen,China Tel / Fax 86-755-26010039 /86-755-26010028 E-Mail [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 21.06.07 Datum: 00.00.00 Seite 1 von 1 Shenzhen Skyworth Digital Technology Co., LTD Date: 2013-10-17 Subject: Ad Hoc Mode Function Declaration FCC ID: WNA-A6 To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, (YOUR CONTACT DETAILS) Name: Mark Wen Position: General Manager Company: Most Technology Service Co., Ltd. Shenzhen,Guangdong, China Tel.: +86-755-2601 3588 Fax.: +86-755-8617 0310 E-Mail: [email protected] Adress: No.5, Langshan 2nd Rd., North Hi-Tech Industrial park, Nanshan,

Model difference letter October 12, 2013 Dear PHONIEX Reviewer, This is a new Application from Shenhen Skyworth Digital Technology Co., LTD HPM5 and A6 only different in appearance. Thank you for your cooperation! Y ours sincerely , Signatory: Name: Wenping Song Position: Manager Company Name: Shenhen Skyworth Digital Technology Co., LTD Address: Unit A14/F.Skyworth Building.,Gaoxin Ave.1s.,Nanshan District, Shenhen,China E-Mail: [email protected]

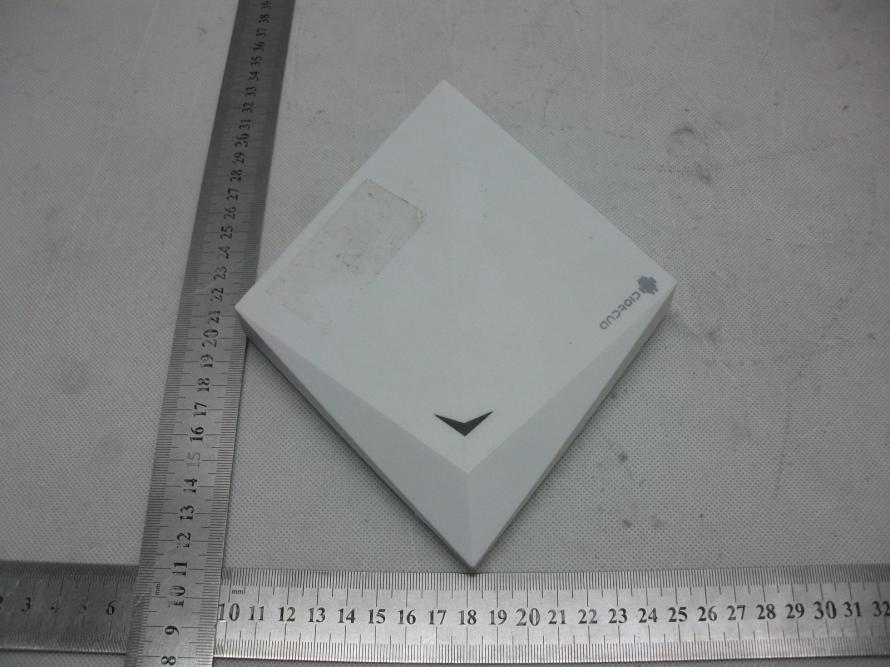

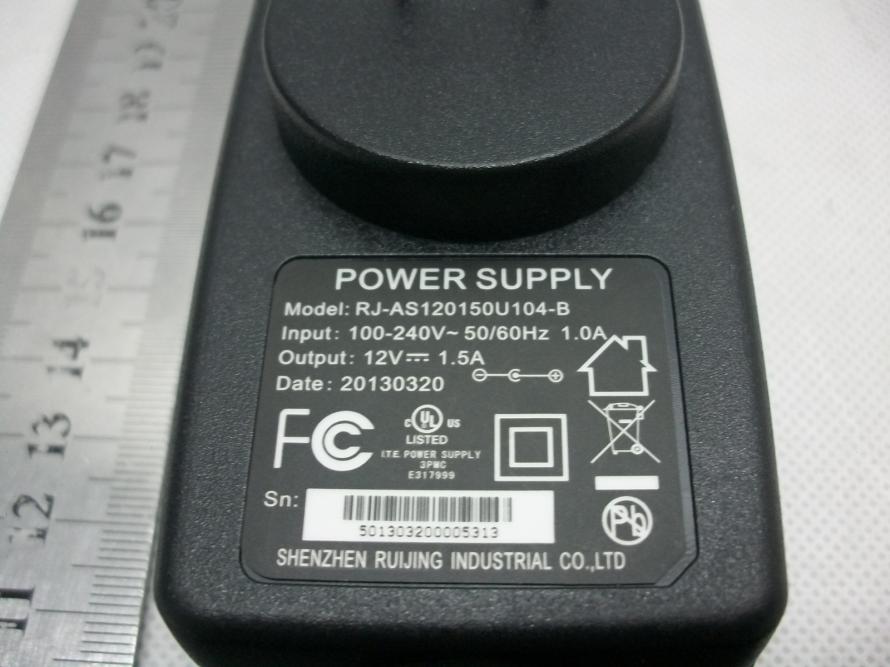

Model No.: HPM5 Page 1 of 5 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Model No.: HPM5 Page 2 of 5 UP VIEW OF SAMPLE DOWN VIEW OF SAMPLE Model No.: HPM5 Page 3 of 5 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Model No.: HPM5 Page 4 of 5 PHOTO OF POWER SUPPLY-1 PHOTO OF THE ENTIRE SAMPLE Model No.: HPM5 Page 5 of 5 PHOTO OF THE ENTIRE SAMPLE

Model Name: HPM5 Brand Name: SKYWORTH FCC ID: WNA-A6 This device complies with part 15 of the FCC rules.Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2)this device must accept any interference received,including interference that may causeundesired operation

Label Location 50mm*30mm

Model No.: HPM5 Page 1 of 4 INTERNAL PHOTO OF SAMPLE - 1 INTERNAL PHOTO OF SAMPLE - 2 Model No.: HPM5 Page 2 of 4 INTERNAL PHOTO OF SAMPLE - 3 INTERNAL PHOTO OF SAMPLE -4 Model No.: HPM5 Page 3 of 4 INTERNAL PHOTO OF SAMPLE -5 INTERNAL PHOTO OF SAMPLE -6 Model No.: HPM5 Page 4 of 4 INTERNAL PHOTO OF SAMPLE -7 INTERNAL PHOTO OF SAMPLE -8

FCC §15.247 (i) & §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 1.1307 (b)(1), 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Antenna Gain Conducted Power Frequency (MHz) (dBi) (numeric) (dBm) (mW) Evaluation Distance(cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) 2462 0 1 18.23 66.53 20 0.013 1 Note: To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliance

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant : Shenzhen Skyworth Digital Technology Co., LTD. Address : Unit A14/F.Skyworth Building.,Gaoxin Ave.1s.,Nanshan District, Shenzhen,China Product Name : Full HD Cloudio TV Set-Top Box Model Name : HPM5, A6 Brand Name : SKYWORTH FCC ID : WNA-A6 Report No. : MTE/DAL/T13091303 Date of Issue : Sep. 26, 2013 Issued by : Most Technology Service Co., Ltd. Address : No.5, Langshan 2nd Rd., North Hi-Tech Industrial park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8617 0306 Fax : 86-755-8617 0310 The report consists 78 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID:WNA-A6 Report No.: MTE/DAL/T13091303 Page 2 of 79 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ....................................................................................... 4 2. GENERAL INFORMATION.................................................................................................... 5 2.1 Product Information.................................................................................................................................. 5 2.2 Objective.................................................................................................................................................... 6 2.3 Test Standards and Results ..................................................................................................................... 6 2.4 Environmental Conditions........................................................................................................................ 6 2.5 MEASUREMENT UNCERTAINTY ............................................................................................................... 6 3. TEST FACILITY ..................................................................................................................... 7 3.2 Test Conditions .......................................................................................................................................... 8 3.3 Channel List................................................................................................................................................ 8 3.4 Description of Test Modes......................................................................................................................... 8 3.5 Table of Parameters of Text Software Setting.......................................................................................... 8 4. TEST EQUIPMENT LIST ....................................................................................................... 9 5. 47 CFR Part 15 C 15.247 Requirements.............................................................................. 9 5.1 6dB Bandwidth .......................................................................................................................................... 9 5.1.1 Definition ........................................................................................................................................... 9 5.1.2 Limit................................................................................................................................................... 9 5.1. 3 Test Configuration.............................................................................................................................. 9 5.1.4 Test Procedure.................................................................................................................................... 9 5.1.5 Test Result.......................................................................................................................................... 9 5.2 Peak Output Power ................................................................................................................................... 9 5.2.1 Definition ........................................................................................................................................... 9 5.2.2 Limit................................................................................................................................................... 9 5.2.3 Test Configuration.............................................................................................................................. 9 5.2.4 Test Procedure.................................................................................................................................... 9 5.2.5 Test Result.......................................................................................................................................... 9 5.3 Conducted Spurious Emission ................................................................................................................ 9 5.3.1 Definition ........................................................................................................................................... 9 5.3.2 Test Description ................................................................................................................................. 9 5.3.3 Test Result.......................................................................................................................................... 9 5.4 Band Edge ................................................................................................................................................. 9 5.4.1 Definition ........................................................................................................................................... 9 5.4.2 Test Description ............................................................…

Text truncated - open the document above for the full version.

Model No.: HPM5 Page 1 of 2 CE TEST SETUP RE TEST SETUP Model No.: HPM5 Page 2 of 2 SPURIOUS EMISSION TEST SETUP
