WNA-GN543VGPON ONT

1: 公差(Tolerance): ±2mm 2: 原材料及后处理工艺均能满足ROHS和WEEE的要求. (Raw materials and the corresponding post processing should meet requirements defined in the ROHS and WEEE.) 技术要求(NOTES): 料号(Part No.): 待定 展开尺寸(Unfolding Size): 475x145 mm 成品尺寸(Folded Size): 95x145 mm 印刷颜色(Print Color): 黑色(Black) 材质(Material): 80g书纸(80g Writing paper) 厂家/Manufacturer: Voion/Fuweizhi/Jiahui 设计/Designer: 罗运鸿 日期/Date: 2023.09.12认证加签/Certification Audit:审核/Audit: Quick Installation Guide GPON ONT GN543V Safety Instr uctions 1.This equipment is a Class III electrical appliance which is designed to be supplied from a separated/safety extr a-low voltage (SELV) power source. The voltage from a SELV supply is lo w enough that under normal conditions a person can safely come into contact with it without risk of electrical shock. 2.WARNING: To reduce the risk of fire or electric shock, do not expose this device to rain or moisture. The devi ce shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus. AVERTISSEMENT : Pour réduire le risque d'incendie ou de choc électrique, ne pas exposer cet appareil à la pluie ou à l'humidité. L'appareil ne doit pas être exposé à des gouttes d'eau ou des éclaboussures, et des objets remplis de liquides, tels que des vases, ne doivent pas être placés sur l'appareil. AVERTISSEMENT : La fiche d'alimentation/l'adaptateur enfichable directement utilisé comme dispositif de déconnexion doit rester facilement utilisable. 3.WARNING: the power plug/direct plug-in adapter is used as disconnect device, the disconnect device shall remain readily operable. 4. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To p r eve n t p ossible h arm t o the e n vironment o r h uman h e alth fr o m uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer or service operator where the product was purchased. They can take this product for environmental safe recycling. 5. For the terminals marked with symbol of “ ” may be of sufficient magnitude to constitute a risk of electric shock. The external wiring connected to the terminals requires installation by an instructed person or the used of ready-made leads or cords. Avertissement: Pour réduire le risque de choc électrique, ne pas retirer le capot (ou l'arrière) car il n'y a pas de pièces réparables par l'utilisateur à l'intérieur. Confier l'entretien à un personnel qualifié. 6. CAUTION ! RISK OF ELECTRIC SHOCK DO NOT OPEN This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. Warning: to reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel. 7.Use only the AC adapter which is included in the product package. Any other adapter may cause damage to the device. Such damage is not covered under warranty. Please pay attention to the following important safety instructions for ONT inst allation and use. Please stop using the device during a lightning storm. To avoid damage by lightning strike, please cut off power and disconnect all the cables. Please keep device on a stable platf orm, and make device in well- ventilated and sunlight-free environment. During storage, transport and use of this device, please keep it dry strictly, If any liquid accidently fall inside the device, please cut off power supply immediately, and contact your local operator Please use the original power adapter and other accessories. To avoid electric shock, please keep the power plug dry and clean, and never use damaged power cord. To avoid swallowing and other dangerous behavior, do not allow unsupervised children to use or play with this device and accessories. If any abnormal phenomena found, such as smoke, abnormal sound or peculiar smell, please stop using it immediately and cut off power immediately. Please keep at least 10cm space around this device for ventilation when place it, and away from heat/fire source, such as heater or candle Do not place any objects on the device or power cord/plug, and never cover ventilation holes with any objects Stop using the device and cut off power supply before cle aning. Please use a soft, dry cloth to clean outer case while it’s necessary. To reduce the risk of electric shock, do not open the outer case of the device. Please refer servicing to qualified personnel only. The outer case will have a certain degree of heat after long-running, don’t worry, this device can still work normally. Product Specifications ItemSpecification Product NameGPON ONT GPON StandardITU-T G.984, TR156/TR255 Maximum PON speed2. 5Gbps/1.25Gbps Wi-Fi StandardIEEE802.11b/g/n/ac Maximum Wi-Fi speed 2.4GHz: WiFi5 300Mbps(11n@40MHz) 5GHz: WiFi5 1732Mbps(11ac@80MHz) Optical Interface1* SC/APC, 1310/1490WDM LAN Interface4*Gigabit Ethernet Ports, RJ45 Phone Interface2*FXS Phone Ports, RJ11 Wi-Fi Antenna2.4G: 2*3dBi; 5G: 2*3dBi, Omni-directional Environment Rated Power Input12VDC/1.5A Operating Temperature0 ~ 45 ( 32~113) Storage Temperature -20 ~ 65 (-4~149) Operating Humidity 0 ~ 95% non-condensing Packaging Items GN543VGPON ONT, with 4 Wi-Fi antennas Power Adapter Output 12VDC/1.5A Switching Power Adapter Ethernet Cable Standard CAT5e Ethernet cable for connecting your devices to the ONT Quick Installation Guide This QIG provides basic product specification and information for installing the device and get it up and running on your home network Front Panel LEDs LEDColorStatusDescription PowerGreen OnPower On OffPower Off PONGreenRefer to table below: “PON LED Status Instruction” …

Text truncated - open the document above for the full version.

Shenzhen Skyworth Digital Technology Co.,LTD * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 9/13/2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: WNA-GN543V Per section 2.911(d)(7) of the FCC rules, Shenzhen Skyworth Digital Technology Co.,LTD (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Federal Registration Number (FRN): 0033401829 Company Name: EMCTEK Physical U.S. Company Address: 11788 Big Canyon Ln, San Diego, CA 92131 USA Agent name: Fang Liu Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different to Applicant): Signed: Signed: Printed name: Wenping Song Printed name: Fang Liu Title: Engineer Title: Manager Company Name: Shenzhen Skyworth Digital Technology Co.,LTD Company Name: EMCTEK Date: 9/13/2023 Date: 9/13/2023

ShenzhenSkyworthDigitalTechnologyCo.,LTD CoveredEquipmentCertificationAttestationLetter DATE NemkoNorthAmerica,Inc. 303RiverRoad Ottawa K1V1H2 Canada ATTN.:ReviewingEngineer FCCID:WNA-GN543V ShenzhenSkyworthDigitalTechnologyCo.,LTD(“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipmentprohibitedfrom receivinganequipmentauthorizationpursuanttosection2.903oftheFCCrules. Note:Iftheequipmentforwhichtheapplicantseeksauthorizationisproducedby anyoftheentitiesidentifiedonthecurrentCoveredList,theapplicantshould includeanexplanationonwhytheequipmentisnot“covered”equipment. ShenzhenSkyworthDigitalTechnologyCo.,LTD(“theapplicant”)certifiesthat,asofthe dateofthefilingoftheapplication,theapplicantisnotidentifiedontheCoveredListas anentityproducing“covered”equipment. Signed: Printedname:WenpingSong Title:Engineer CompanyName:ShenzhenSkyworthDigitalTechnologyCo.,LTD Date:9/13/2023

ShenzhenSkyworthDigitalTechnologyCo.,LTD Date:2023.09.13 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 FCCID:WNA-GN543V ProductName:GPONONT RequestforConfidentiality PursuanttoSections0.457and0.459ofthecommissionsrules,weherebyrequestthat thefollowingdocumentsbeheldconfidential: (Listherethedocumentsforwhichyouareseekingconfidentiality–forexample...)  Schematics BlockDiagram OperationDescription Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoourcompetitors. Signature: Name:WenpingSong Company:ShenzhenSkyworthDigitalTechnologyCo.,LTD Address:UnitA14/F,SkyworthBuilding,GaoxinAve.1s.,NanshanDistrict,Shenzhen, China Phone:+86-755-26010039 Fax:+86-755-26010028 Email:[email protected]

DifferencesDeclaration Towhomconcern, WecompanyShenzhenSkyworthDigitalTechnologyCo.,LTDHerebydeclares: The product model(s) GN543V, SK-G5110, TCN22 (All these models are identical in the same PCB, layout, electrical circuit and enclosure. The difference is the product model number.) Sincerelyyours, Signature: Name:WenpingSong Company:ShenzhenSkyworthDigitalTechnologyCo.,LTD Address:UnitA14/F,SkyworthBuilding,GaoxinAve.1s.,NanshanDistrict, Shenzhen,China Phone:+86-755-26010039 Fax:+86-755-26010028 Email:[email protected]

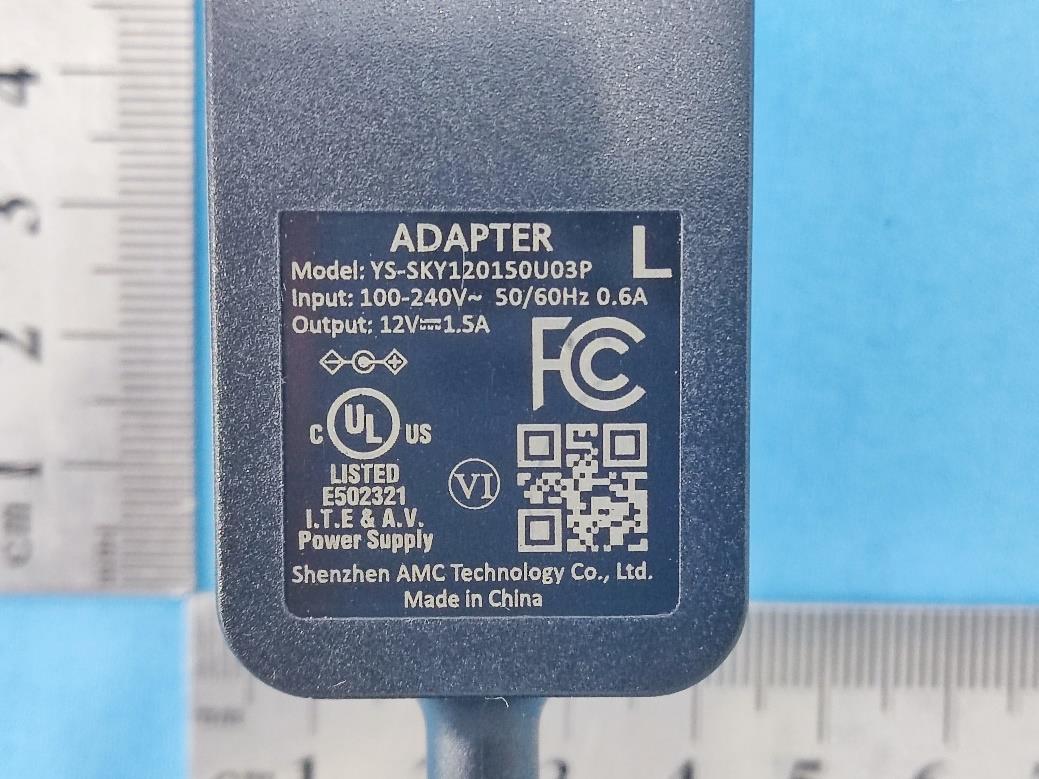

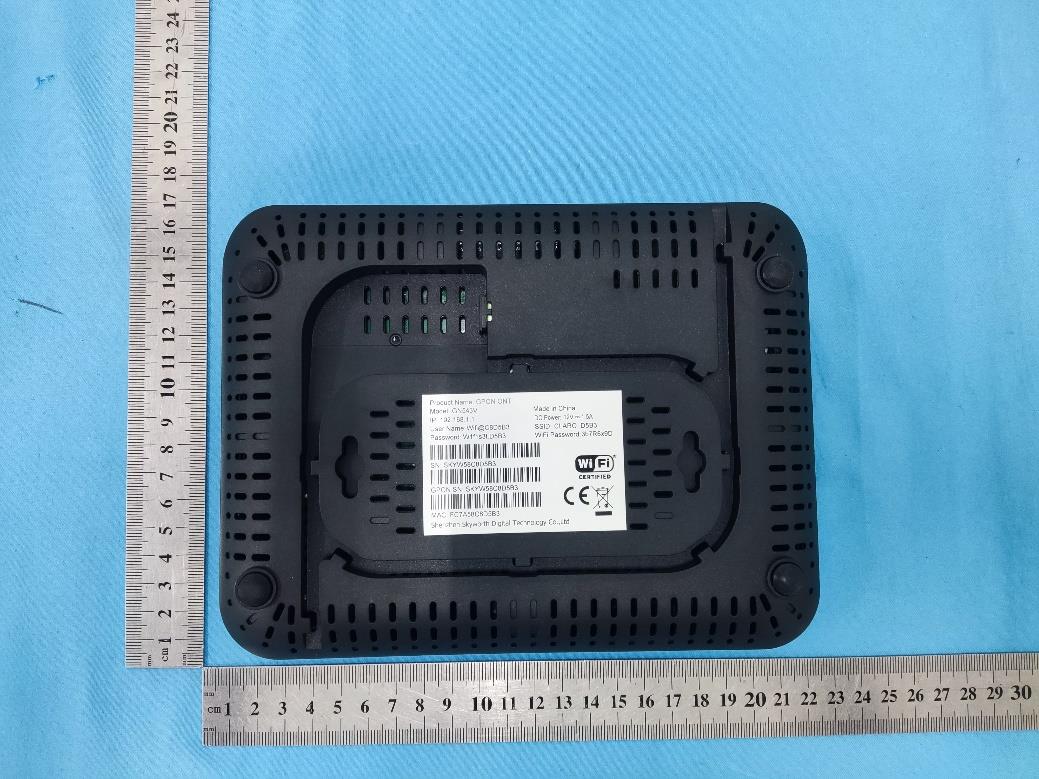

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn External Photographs Page 2 of 8 Report No.: CTC20231618E Without logo Page 3 of 8 Report No.: CTC20231618E Page 4 of 8 Report No.: CTC20231618E Page 5 of 8 Report No.: CTC20231618E With logo Page 6 of 8 Report No.: CTC20231618E Page 7 of 8 Report No.: CTC20231618E Page 8 of 8 Report No.: CTC20231618E

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 Http://www.sz-ctc.org.cn Page 1 of 1 Label Label Location

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Internal Photographs Page 2 of 5 Report No.: CTC20231618E 2.4G&5G ANT0 2.4G&5G ANT1 5G ANT3 5G ANT2 Page 3 of 5 Report No.: CTC20231618E Page 4 of 5 Report No.: CTC20231618E Page 5 of 5 Report No.: CTC20231618E

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Maximum Permissible Exposure Evaluation FCC ID: WNA-GN543V According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) EUT Specification Product Name: GPON ONT Trade Mark: SKYWORTH Model/Type reference: GN543V Listed Model(s): SK-G5110, TCN22 Frequency band (Operating) WLAN: 2412MHz ~ 2462MHz RLAN: 5150MHz ~ 5350MHz RLAN: 5470MHz ~ 5725MHz RLAN: 5725MHz ~ 5850MHz Device category Portable (<5mm separation) Mobile (>20cm separation) Fixed (>20cm separation) Others ___ Exposure classification Occupational/Controlled exposure (S=5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Antenna gain (Max) WLAN (2*2): 3dBi RLAN (4*4): 3dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 30 1500-100000 -- -- 1 30 Friis transmission formula: Pd=(Pout*G)\(4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout= output power to antenna in mW G= gain of antenna in linear scale Page 2 of 2 Report No.: CTC20231618E04 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Pi= 3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, We will know the distance where the MPE limit is reached. Measurement Result Band Frequency (MHz) Antenna Gain (dBi) Maximum Power (dBm) Average Power (dBm) Tune up tolerance (dBm) Max. Tune up Power (dBm) Power Density at 20cm (mW/cm 2 ) Limit (mW/cm 2 ) WLAN 802.11b(ANT1) 2412 3 / 19.52 19±1 20 0.03970 1.000 RLAN U-NII-1 802.11n(HT20) 5200 3 / 24.19 24±1 25 0.12553 1.000 RLAN U-NII-2A 802.11 ac(VHT80) 5290 3 / 20.25 20±1 21 0.04997 1.000 RLAN U-NII-2C 802.11ac(VHT80) 5610 3 / 20.40 20±1 21 0.04997 1.000 RLAN U-NII-3 802.11n(HT40) 5755 3 / 26.77 26±1 27 0.19895 1.000 Worst case Type Frequency (MHz) Antenna Gain (dBi) Power density at 20cm (mW/cm 2 ) WLAN+RLAN Power density at 20cm (mW/cm 2 ) Power density Limits (mW/cm 2 ) WLAN 802.11b(ANT1) 2412 3 0.03970 0.23865 1 RLAN U-NII-3 802.11n(HT40) 5755 3 0.19895 Note: 1. For a more detailed features description, Please refer to the RF Test Report. **********************THE END**********************

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn TEST REPORT Report No. ··························: CTC20231618E01 FCC ID································: WNA-GN543V Applicant····························: Shenzhen Skyworth Digital Technology Co.,LTD Address·······························: 14/F,Block A,Skyworth Building,Gaoxin Ave.1.S.,Nanshan District,Shenzhen,China Manufacturer ·····················: Shenzhen Skyworth Digital Technology Co.,LTD Address·······························: 14/F,Block A,Skyworth Building,Gaoxin Ave.1.S.,Nanshan District,Shenzhen,China Product Name······················: GPON ONT Trade Mark···························: SKYWORTH Model/Type reference·············: GN543V Listed Model(s) ····················: SK-G5110, TCN22 Standard·····························: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample...: Aug. 01, 2023 Date of testing.......................: Aug. 01, 2023 to Sep. 11, 2023 Date of issue.........................: Sep. 12, 2023 Result.................................: PASS Compiled by: (Printed name+signature) Lucy Lan Supervised by: (Printed name+signature) Eric Zhang Approved by: (Printed name+signature) Totti Zhao $英文检测章$ $Totti$ Testing Laboratory Name......: CTC Laboratories, Inc. Address...............................: 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely correspond to the test sample. Page 2 of 101 Report No.: CTC20231618E01 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Table of Contents Page 1. TEST SUMMARY ....................................................................................................................................................... 3 1.1. TEST STANDARDS .................................................................................................................................................. 3 1.2. REPORT VERSION ................................................................................................................................................... 3 1.3. TEST DESCRIPTION ................................................................................................................................................. 4 1.4. TEST FACILITY ....................................................................................................................................................... 5 1.5. MEASUREMENT UNCERTAINTY .................................................................................................................................. 6 1.6. ENVIRONMENTAL CONDITIONS .................................................................................................................................. 6 2. GENERAL INFORMATION .......................................................................................................................................... 7 2.1. CLIENT INFORMATION............................................................................................................................................. 7 2.2. GENERAL DESCRIPTION OF EUT ................................................................................................................................ 7 2.3. ACCESSORY EQUIPMENT INFORMATION....................................................................................................................... 8 2.4. OPERATION STATE .................................................................................................................................................. 8 2.5. MEASUREMENT INSTRUMENTS LIST ......................................................................................................................... 10 3. TEST ITEM AND RESULTS ........................................................................................................................................ 11 3.1. CONDUCTED EMISSION ......................................................................................................................................... 11 3.2. RADIATED EMISSION ............................................................................................................................................ 14 3.3. BAND EDGE EMISSIONS ........................................................................................................................................ 36 3.4. BAND EDGE AND SPURIOUS EMISSIONS (CONDUCTED).................................................................................................. 61 3.5. BANDWIDTH ...................................................................................................................................................... 74 3.6. OUTPUT POWER ................................................................................................................................................. 84 3.7. POWER SPECTRAL DENSITY ..........................................…

Text truncated - open the document above for the full version.

Page 68 of 101 Report No.: CTC20231618E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Out Of Band Emission IEEE 802.11g_Channel 11_20MHz_Antenna 1 Spurious Emission IEEE 802.11g_Channel 11_20MHz_Antenna 1 In-Band Reference Level IEEE 802.11n_Channel 1_20MHz_Antenna 0 Out Of Band Emission IEEE 802.11n_Channel 1_20MHz_Antenna 0 Spurious Emission IEEE 802.11n_Channel 1_20MHz_Antenna 0 In-Band Reference Level IEEE 802.11n_Channel 1_20MHz_Antenna 1 Page 69 of 101 Report No.: CTC20231618E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Out Of Band Emission IEEE 802.11n_Channel 1_20MHz_Antenna 1 Spurious Emission IEEE 802.11n_Channel 1_20MHz_Antenna 1 In-Band Reference Level IEEE 802.11n_Channel 6_20MHz_Antenna 0 Spurious Emissions IEEE 802.11n_Channel 6_20MHz_Antenna 0 In-Band Reference Level IEEE 802.11n_Channel 6_20MHz_Antenna 1 Spurious Emissions IEEE 802.11n_Channel 6_20MHz_Antenna 1 Page 70 of 101 Report No.: CTC20231618E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn In-Band Reference Level IEEE 802.11n_Channel 11_20MHz_Antenna 0 Out Of Band Emission IEEE 802.11n_Channel 11_20MHz_Antenna 0 Spurious Emission IEEE 802.11n_Channel 11_20MHz_Antenna 0 In-Band Reference Level IEEE 802.11n_Channel 11_20MHz_Antenna 1 Out Of Band Emission IEEE 802.11n_Channel 11_20MHz_Antenna 1 Spurious Emission IEEE 802.11n_Channel 11_20MHz_Antenna 1 Page 71 of 101 Report No.: CTC20231618E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn In-Band Reference Level IEEE 802.11n_Channel 3_40MHz_Antenna 0 Out Of Band Emission IEEE 802.11n_Channel 3_40MHz_Antenna 0 Spurious Emission IEEE 802.11n_Channel 3_40MHz_Antenna 0 In-Band Reference Level IEEE 802.11n_Channel 3_40MHz_Antenna 1 Out Of Band Emission IEEE 802.11n_Channel 3_40MHz_Antenna 1 Spurious Emission IEEE 802.11n_Channel 3_40MHz_Antenna 1 Page 72 of 101 Report No.: CTC20231618E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn In-Band Reference Level IEEE 802.11n_Channel 6_40MHz_Antenna 0 Spurious Emissions IEEE 802.11n_Channel 6_40MHz_Antenna 0 In-Band Reference Level IEEE 802.11n_Channel 6_40MHz_Antenna 1 Spurious Emissions IEEE 802.11n_Channel 6_40MHz_Antenna 1 In-Band Reference Level IEEE 802.11n_Channel 9_40MHz_Antenna 0 Out Of Band Emission IEEE 802.11n_Channel 9_40MHz_Antenna 0 Page 73 of 101 Report No.: CTC20231618E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Spurious Emission IEEE 802.11n_Channel 9_40MHz_Antenna 0 In-Band Reference Level IEEE 802.11n_Channel 9_40MHz_Antenna 1 Out Of Band Emission IEEE 802.11n_Channel 9_40MHz_Antenna 1 Spurious Emission IEEE 802.11n_Channel 9_40MHz_Antenna 1 Page 74 of 101 Report No.: CTC20231618E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 3.5. Bandwidth Limit FCC CFR Title 47 Part 15 Subpart C Section 15.247 (a)(2) Test Item Limit Frequency Range(MHz) Bandwidth >=500 KHz (6dB bandwidth) 2400~2483.5 Test Configuration Test Procedure 5. The EUT was directly connected to the spectrum analyzer and antenna output port as show in the block diagram above. 6. DTS Spectrum Setting: (1) Set RBW = 100 kHz. (2) Set the video bandwidth (VBW) ≥ 3 RBW. (3) Detector = Peak. (4) Trace mode = Max hold. (5) Sweep = Auto couple. OCB Spectrum Setting: (1) Set RBW = 1% ~ 5% occupied bandwidth. (2) Set the video bandwidth (VBW) ≥ 3 RBW. (3) Detector = Peak. (4) Trace mode = Max hold. (5) Sweep = Auto couple. NOTE: The EUT was set to continuously transmitting in each mode and low, Middle and high channel for the test. Test Mode Please refer to the clause 2.3. Test Results Page 75 of 101 Report No.: CTC20231618E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn DTS Bandwidth Test Result Mode Ant. Center Frequency (MHz) 6 …

Text truncated - open the document above for the full version.

Page 84 of 101 Report No.: CTC20231618E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 3.6. Output Power Limit FCC CFR Title 47 Part 15 Subpart C Section 15.247 (b)(3) Section Test Item Limit Frequency Range(MHz) CFR 47 FCC 15.247(b)(3) Maximum conducted output power 1 Watt or 30dBm 2400~2483.5 Test Configuration Test Procedure 1. The maximum conducted output power may be measured using a broadband RF power meter. 2. Power measurements were performed only when the EUT was transmitting at its maximum power control level using a broadband power meter with a pulse sensor. 3. The power meter implemented triggering and gating capabilities which were set up such that power measurements were recorded only during the ON time of the transmitter. 4. Record the measurement data. Test Mode Please refer to the clause 2.3 Test Result Page 85 of 101 Report No.: CTC20231618E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Mode Channel Ant. 0 (dBm) Ant. 1 (dBm) Total (dBm) Limit (dBm) Result IEEE 802.11b 1 19.45 19.52 N/A 30 PASS 6 19.32 18.95 N/A 30 PASS 11 18.92 19.44 N/A 30 PASS IEEE 802.11g 1 16.13 15.8 N/A 30 PASS 6 15.99 15.79 N/A 30 PASS 11 15.51 15.49 N/A 30 PASS IEEE 802.11n_20 1 15.22 15.62 18.43 30 PASS 6 14.78 14.65 17.73 30 PASS 11 14.37 14.7 17.55 30 PASS IEEE 802.11n_40 3 13.84 14.03 16.95 30 PASS 6 14.47 13.97 17.24 30 PASS 9 14.14 13.0 16.62 30 PASS Note: 1. Test results increased RF cable loss by 0.5dB. Page 86 of 101 Report No.: CTC20231618E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 3.7. Power Spectral Density Limit FCC CFR Title 47 Part 15 Subpart C Section 15.247 (e) Test Item Limit Frequency Range(MHz) Power Spectral Density 8dBm(in any 3 kHz) 2400~2483.5 Test Configuration Test Procedure 1. The EUT was directly connected to the spectrum analyzer and antenna output port as show in the block diagram above. 2. The EUT was directly connected to the Spectrum Analyzer and antenna output port as show in the block diagram above. The measurement according to section 10.2 of KDB 558074 D01 DTS Meas Guidance v05r02. 3. Spectrum Setting: Set analyzer center frequency to DTS channel center frequency. Set the span to 1.5 times the DTS bandwidth. Set the RBW to: 3 kHz Set the VBW to: 10 kHz Detector: peak Sweep time: auto Allow trace to fully stabilize. Then use the peak marker function to determine the maximum amplitude level. Test Mode Please refer to the clause 2.3 Test Result Mode Channel PSD (dBm/3kHz) Ant. 0 PSD (dBm/3kHz) Ant. 1 Total PSD (dBm/3kHz) Limit (dBm/3kHz) Result IEEE 802.11b 1 -5.347 6.708 N/A 8 PASS 6 7.585 -3.939 N/A PASS 11 4.663 6.990 N/A PASS IE…

Text truncated - open the document above for the full version.
