WNA-HP5116Set Top Box

HDMI AV SPDIF IR Port Ethernet Android Model 2G 8G FeaturesHow to InstallFAQ’s Remote Control Specifications Noxious substance Warranty bill ( reserved by the user) What’s included SKYWORTH Set Top Box Power Adaptor Two AA Batteries RemoteUser’s ManualHDMI Cable Power Set Top Box HP5116 Dolby,Dolby Audio and double-D symbol are trademarks of Dolby Laboratories. Ethernet CableAudio/Video Cable Q: A: Q: A: Q: A: Quick Start Guide HP5116 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, thereis noguaranteethatinterferencewill not occurina particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined byturning theequipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipmentintoanoutlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changesormodifica tions not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables whenconnectingto computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: The equipment complies with FCC Radiation exposure limits set forth for uncontrolled enviroment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. . -30--+50 Working temperature:

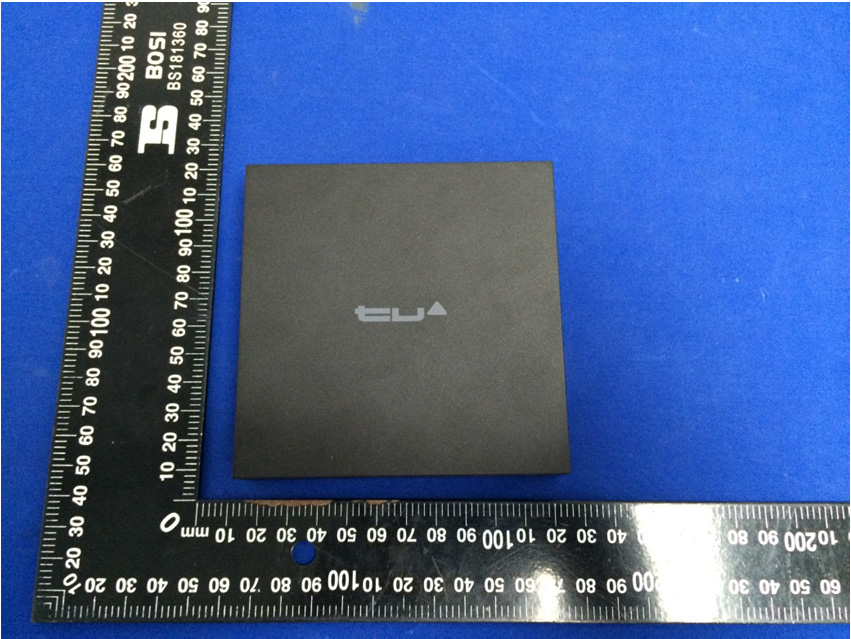

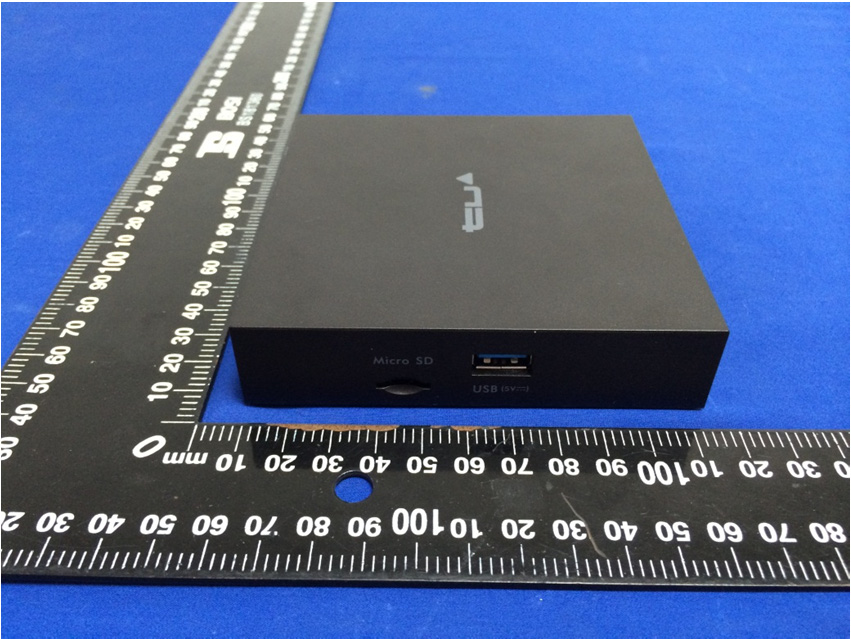

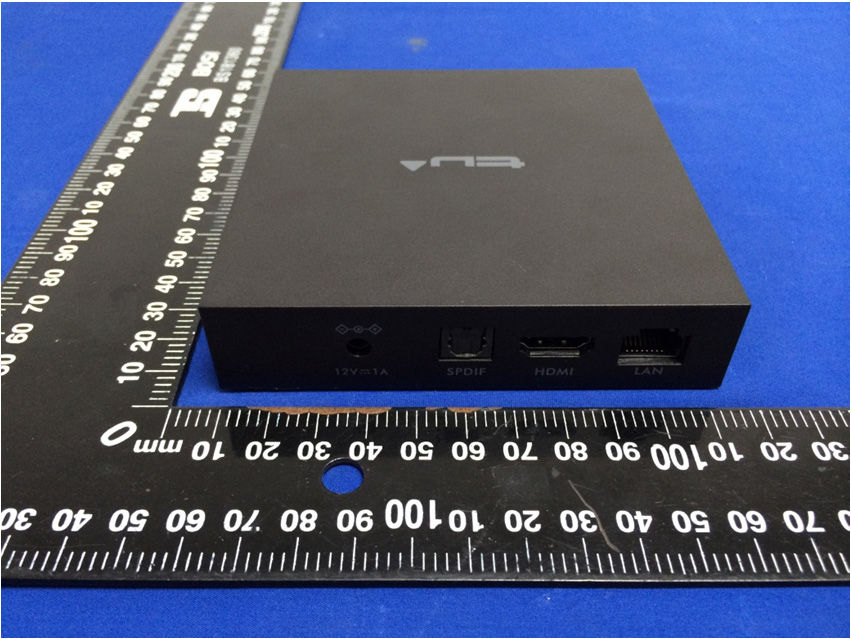

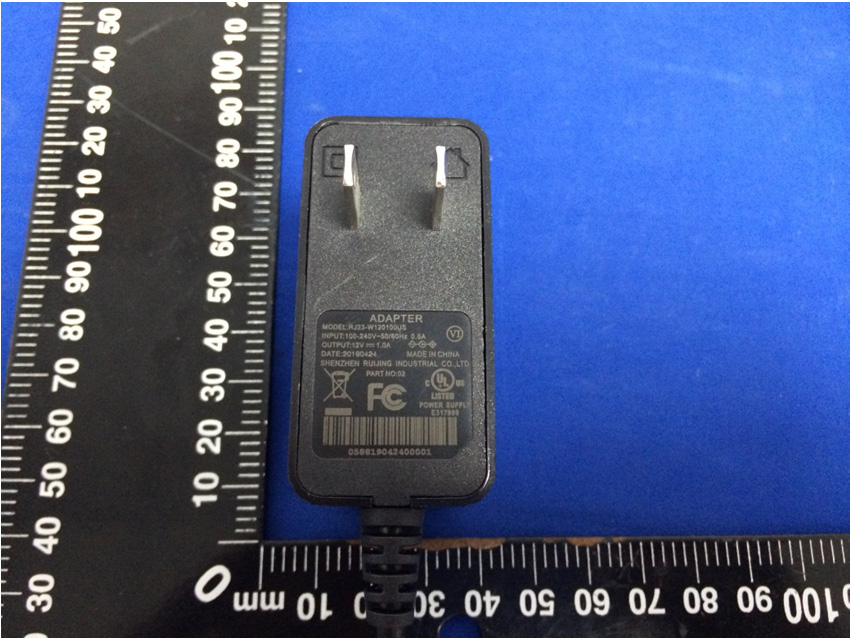

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Page 1 of 5 External Photographs Page 2 of 5 Page 3 of 5 Page 4 of 5 Page 5 of 5

CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Label Label Location 1. Page 1 of 1

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Page 1 of 4 Internal Photographs 2.4G WIFI/ 5G WIFI BT/ 2.4G WIFI/ 5G WIFI Page 2 of 4 Page 3 of 4 Page 4 of 4

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Maximum Permissible Exposure Evaluation FCC ID: WNA-HP5116 According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) EUT Specification Product Name: Set Top Box Trade Mark: SKYWORTH, TVUP Model/Type reference: HP5116 Listed Model(s): HPA12 Frequency band (Operating) BT: 2.402GHz ~ 2.480GHz BLE: 2.402GHz ~ 2.480GHz WLAN: 2.412GHz ~ 2.462GHz RLAN: 5.180GHz ~ 5.240GHz RLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) fixed (>20cm separation) Others ___ Exposure classification Occupational/Controlled exposure (S=5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Antenna gain (Max) 4dBi for BT 4dBi for 2.4GHz WIFI Ant 1 3dBi for 2.4GHz WIFI Ant 2 4.5dBi for 5GHz WIFI Ant 1 4.3dBi for 5GHz WIFI Ant 2 Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Page 2 of 3 Report No.: CTC20200268E07 Friis transmission formula: Pd=(Pout*G)\(4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout= output power to antenna in mW G= gain of antenna in linear scale Pi= 3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Only show the value of the worst antenna BLE Type Channel frequency (MHz) Max. Measured Power (dBm) Tune up tolerance (dBm) Max. Tune up Power (dBm) Antenna Gain (dBi) Power density at 20cm (mW/cm 2 ) Power density Limits (mW/cm 2 ) GFSK 2402 6.00 6±1 7 4 0.00250 1 2440 6.39 6±1 7 4 0.00250 1 2480 5.80 6±1 7 4 0.00250 1 BR/ EDR Type Channel frequency (MHz) Max. Measured Power (dBm) Tune up tolerance (dBm) Max. Tune up Power (dBm) Antenna Gain (dBi) Power density at 20cm (mW/cm 2 ) Power density Limits (mW/cm 2 ) 8-DPSK 2402 6.67 6±1 7 4 0.00250 1 2441 6.83 6±1 7 4 0.00250 1 2480 6.33 6±1 7 4 0.00250 1 2.4G WIFI Type Channel frequency (MHz) Max. Measured Power (dBm) Tune up tolerance (dBm) Max. Tune up Power (dBm) Antenna Gain (dBi) Power density at 20cm (mW/cm 2 ) Power density Limits (mW/cm 2 ) 802.11 b 2462 17.51 17±1 18 3 0.02505 1 802.11 g 2462 17.02 17±1 18 3 0.02505 1 802.11 n20 2462 19.00 19±1 20 6.52 0.08928 1 802.11 n40 2452 17.70 17±1 18 6.52 0.05633 1 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Page 3 of 3 Report No.: CTC20200268E07 5G WIFI U-NII-1 Type Channel frequency (MHz) Max. Measured Power (dBm) Tune up tolerance (dBm) Max. Tune up Power (dBm) Antenna Gain (dBi) Power density at 20cm (mW/cm 2 ) Power density Limits (mW/cm 2 ) 802.11a 5200 16.63 16±1 17 4.5 0.02810 1 802.11 n20 5180 18.10 18±1 19 7.41 0.08704 1 802.11 ac20 5200 18.20 18±1 19 7.41 0.08704 1 802.11 n40 5230 17.10 17±1 18 7.41 0.06914 1 802.11 ac40 5230 17.30 17±1 18 7.41 0.06914 1 802.11 ac80 5210 15.60 15±1 16 7.41 0.04363 1 5G WIFI U-NII-3 Type Channel frequency (MHz) Max. Measured Power (dBm) Tune up tolerance (dBm) Max. Tune up Power (dBm) Antenna Gain (dBi) Power density at 20cm (mW/cm 2 ) Power density Limits (mW/cm 2 ) 802.11a 5745 15.67 15±1 16 4.3 0.02132 1 802.11 n20 5745 17.40 17±1 18 7.41 0.06914 1 802.11 ac20 5745 18.00 18±1 19 7.41 0.08704 1 802.11 n40 5755 18.20 18±1 19 7.41 0.08704 1 802.11 ac40 5755 17.00 17±1 18 7.41 0.06914 1 802.11 ac80 5775 16.30 16±1 17 7.41 0.05492 1 The WLAN or Bluetooth can transmit simultaneously WLAN Power density at 20cm (mW/cm 2 ) BT Power density at 20cm (mW/cm 2 ) To t a l Power density at 20cm (mW/cm 2 ) Power density Limits (mW/cm 2 ) 0.08928 0.00250 0.09178 1 Note For a more detailed features description, please refer to the RF Test Report. **********************THE END********************** CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Appendix for 5G WIFI Applicant: Shenzhen Skyworth Digital Technology Co.,LTD. Address: 14/F Unit A. Skyworth Building, Gaoxin Ave.1s., Nanshan District, Shenzhen, China Model: HP5116 FCC ID: WNA-HP5116 Page 2 of 96 TABLE OF CONTENTS Appendix A1: Emission Bandwidth .................................................................................................. 3 Appendix A2: Occupied channel bandwidth ................................................................................... 14 Appendix A3: Min emission bandwidth .......................................................................................... 35 Appendix B: Maximum conducted output power ............................................................................ 46 Appendix C: Maximum power spectral density .............................................................................. 48 Appendix D: Frequency Stability .................................................................................................... 69 Appendix E: Duty Cycle ................................................................................................................. 76 Page 3 of 96 Appendix A1: Emission Bandwidth Test Result Test Mode Antenna Channel 26db EBW [MHz] F L [MHz] F H [MHz] Verdict 11A Ant1 5180 20.800 5169.640 5190.440 PASS Ant2 5180 20.120 5170.040 5190.160 PASS Ant1 5200 20.000 5190.120 5210.120 PASS Ant2 5200 20.040 5190.040 5210.080 PASS Ant1 5240 20.120 5230.040 5250.160 PASS Ant2 5240 19.960 5230.080 5250.040 PASS 11N20SISO Ant1 5180 21.360 5169.200 5190.560 PASS Ant2 5180 21.720 5169.320 5191.040 PASS Ant1 5200 20.840 5189.600 5210.440 PASS Ant2 5200 21.200 5189.360 5210.560 PASS Ant1 5240 20.840 5229.600 5250.440 PASS Ant2 5240 21.000 5229.360 5250.360 PASS 11N40SISO Ant1 5190 43.680 5168.160 5211.840 PASS Ant2 5190 43.600 5168.320 5211.920 PASS Ant1 5230 44.080 5208.080 5252.160 PASS Ant2 5230 43.360 5208.640 5252.000 PASS 11AC20SISO Ant1 5180 21.240 5169.320 5190.560 PASS Ant2 5180 21.000 5169.480 5190.480 PASS Ant1 5200 21.040 5189.600 5210.640 PASS Ant2 5200 20.840 5189.680 5210.520 PASS Ant1 5240 20.920 5229.640 5250.560 PASS Ant2 5240 21.160 5229.400 5250.560 PASS 11AC40SISO Ant1 5190 43.120 5168.320 5211.440 PASS Ant2 5190 43.040 5168.720 5211.760 PASS Ant1 5230 42.800 5208.400 5251.200 PASS Ant2 5230 42.800 5208.640 5251.440 PASS 11AC80SISO Ant1 5210 82.560 5169.040 5251.600 PASS Ant2 5210 81.440 5169.680 5251.120 PASS Page 4 of 96 Test Graphs 11A_Ant1_5180 11A_Ant2_5180 11A_Ant1_5200 11A_Ant2_5200 Page 5 of 96 11A_Ant1_5240 11A_Ant2_5240 11N20SISO_Ant1_5180 Page 6 of 96 11N20SISO_Ant2_5180 11N20SISO_Ant1_5200 11N20SISO_Ant2_5200 Page 7 of 96 11N20SISO_Ant1_5240 11N20SISO_Ant2_5240 11N40SISO_Ant1_5190 Page 8 of 96 11N40SISO_Ant2_5190 11N40SISO_Ant1_5230 11N40SISO_Ant2_5230 Page 9 of 96 11AC20SISO_Ant1_5180 11AC20SISO_Ant2_5180 11AC20SISO_Ant1_5200 Page 10 of 96 11AC20SISO_Ant2_5200 11AC20SISO_Ant1_5240 11AC20SISO_Ant2_5240 Page 11 of 96 11AC40SISO_Ant1_5190 11AC40SISO_Ant2_5190 11AC40SISO_Ant1_5230 Page 12 of 96 11AC40SISO_Ant2_5230 11AC80SISO_Ant1_5210 11AC80SISO_Ant2_5210 Page 13 of 96 Page 14 of 96 Appendix A2: Occupied channel bandwidth Test Result Test Mode Antenna Channel OCB [MHz] F L [MHz] F H [MHz] Verdict 11A Ant1 5180 17.143 5171.409 5188.551 PASS Ant2 5180 16.863 5171.608 5188.472 PASS Ant1 5200 17.183 5191.528 5208.711 PASS Ant2 5200 17.303 5191.369 5208.671 PASS Ant1 5240 17.063 5231.489 5248.551 PASS Ant2 5240 16.943 5231.608 5248.551 PASS Ant1 5745 17.143 5736.449 5753.591 PASS Ant2 5745 16.983 5736.489 5753.472 PASS Ant1 5785 17.063 5776.489 5793.551 PASS Ant2 5785 16.943 5776.528 5793.472 PASS Ant1 5825 16.983 5816.409 5833.392 PASS Ant2 5825 16.983 5816.489 5833.472 PASS 11N20SISO Ant1 5180 18.262 5170.969 5189.231 PASS Ant2 5180 18.182 5170.969 5189.151 PASS Ant1 5200 18.222 5191.009 5209.231 PASS Ant2 5200 18.102 5191.049 5209.151 PASS Ant1 5240 18.062 5230.929 5248.991 PASS Ant2 5240 17.982 5231.009 5248.991 PASS Ant1 5745 18.182 5736.049 5754.231 PASS Ant2 5745 18.222 5736.009 5754.231 PASS Ant1 5785 18.062 5775.889 5793.951 PASS Ant2 5785 18.222 5775.929 5794.151 PASS Ant1 5825 18.142 5816.049 5834.191 PASS Ant2 5825 18.102 5816.009 5834.111 PASS 11N40SISO Ant1 5190 37.403 5171.299 5208.701 PASS Ant2 5190 37.323 5171.219 5208.541 PASS Ant1 5230 36.923 5211.618 5248.541 PASS Ant2 5230 36.523 5211.778 5248.302 PASS Ant1 5755 36.683 5736.538 5773.222 PASS Ant2 5755 37.323 5736.538 5773.861 PASS Ant1 5795 36.683 5776.618 5813.302 PASS Ant2 5795 36.923 5776.618 5813.541 PASS 11AC20SISO Ant1 5180 18.062 5170.929 5188.991 PASS Ant2 5180 18.102 5170.929 5189.031 PASS Ant1 5200 18.302 5190.889 5209.191 PASS Ant2 5200 18.022 5191.009 5209.031 PASS Ant1 5240 18.022 5231.049 5249.071 PASS Ant2 5240 17.982 5230.969 5248.951 PASS Ant1 5745 18.062 5735.969 5754.031 PASS Ant2 5745 18.222 5735.969 5754.191 PASS Ant1 5785 18.222 5775.929 5794.151 PASS Page 15 of 96 Ant2 5785 18.342 5775.929 5794.271 PASS Ant1 5825 18.102 5815.929 5834.031 PASS Ant2 5825 17.902 5816.009 5833.911 PASS 11AC40SISO Ant1 5190 36.683 5171.618 5208.302 PASS Ant2 5190 36.923 5171.618 5208.541 PASS Ant1 5230 36.843 5211.459 5248.302 PASS Ant2 5230 36.923 5211.459 5248.382 PASS Ant1 5755 36.843 5736.618 5773.462 PASS Ant2 5755 36.763 5736.618 5773.382 PASS Ant1 5795 36.683 5776.698 5813.382 PASS Ant2 5795 37.163 5776.618 5813.781 PASS 11AC80SISO Ant1 5210 75.764 5172.438 5248.202 PASS Ant2 5210 75.764 5172.438 5248.202 PASS Ant1 5775 75.924 5736.798 5812.722 PASS Ant2 5775 75.924 5737.118 5813.042 PASS Page 16 of 96 Test Graphs 11A_Ant1_5180 11A_Ant2_5180 11A_Ant1_5200 11A_Ant2_5200 Page 17 of 96 11A_Ant1_5240 11A_Ant2_5240 11A_Ant1_5745 Page 18 of 96 11A_Ant2_5745 11A_Ant1_5785 11A_Ant2_5785 Page 19 of 96 11A_Ant1_5825 11A_Ant2_5825 11N20SIS…

Text truncated - open the document above for the full version.

Page 31 of 96 11AC40SISO_Ant1_5230 11AC40SISO_Ant2_5230 11AC40SISO_Ant1_5755 Page 32 of 96 11AC40SISO_Ant2_5755 11AC40SISO_Ant1_5795 11AC40SISO_Ant2_5795 Page 33 of 96 11AC80SISO_Ant1_5210 11AC80SISO_Ant2_5210 11AC80SISO_Ant1_5775 Page 34 of 96 11AC80SISO_Ant2_5775 Page 35 of 96 Appendix A3: Min emission bandwidth Test Result Test Mode Antenna Channel 6db EBW [MHz]F L [MHz] F H [MHz] Limit [MHz] Verdict 11A Ant1 5745 16.360 5736.800 5753.160 0.5 PASS Ant2 5745 16.400 5736.800 5753.200 0.5 PASS Ant1 5785 16.400 5776.800 5793.200 0.5 PASS Ant2 5785 16.400 5776.800 5793.200 0.5 PASS Ant1 5825 16.400 5816.800 5833.200 0.5 PASS Ant2 5825 16.400 5816.800 5833.200 0.5 PASS 11N20SISO Ant1 5745 17.160 5736.400 5753.560 0.5 PASS Ant2 5745 17.160 5736.400 5753.560 0.5 PASS Ant1 5785 17.160 5776.400 5793.560 0.5 PASS Ant2 5785 17.040 5776.400 5793.440 0.5 PASS Ant1 5825 17.120 5816.400 5833.520 0.5 PASS Ant2 5825 17.160 5816.400 5833.560 0.5 PASS 11N40SISO Ant1 5755 36.000 5737.000 5773.000 0.5 PASS Ant2 5755 36.480 5736.760 5773.240 0.5 PASS Ant1 5795 36.080 5776.760 5812.840 0.5 PASS Ant2 5795 36.240 5776.760 5813.000 0.5 PASS 11AC20SISO Ant1 5745 17.640 5736.160 5753.800 0.5 PASS Ant2 5745 17.160 5736.400 5753.560 0.5 PASS Ant1 5785 17.040 5776.400 5793.440 0.5 PASS Ant2 5785 17.160 5776.400 5793.560 0.5 PASS Ant1 5825 17.040 5816.400 5833.440 0.5 PASS Ant2 5825 17.160 5816.400 5833.560 0.5 PASS 11AC40SISO Ant1 5755 36.480 5736.760 5773.240 0.5 PASS Ant2 5755 36.480 5736.760 5773.240 0.5 PASS Ant1 5795 36.240 5776.760 5813.000 0.5 PASS Ant2 5795 36.240 5776.760 5813.000 0.5 PASS 11AC80SISO Ant1 5775 75.520 5737.240 5812.760 0.5 PASS Ant2 5775 75.520 5737.240 5812.760 0.5 PASS Page 36 of 96 Test Graphs 11A_Ant1_5745 11A_Ant2_5745 11A_Ant1_5785 11A_Ant2_5785 Page 37 of 96 11A_Ant1_5825 11A_Ant2_5825 11N20SISO_Ant1_5745 Page 38 of 96 11N20SISO_Ant2_5745 11N20SISO_Ant1_5785 11N20SISO_Ant2_5785 Page 39 of 96 11N20SISO_Ant1_5825 11N20SISO_Ant2_5825 11N40SISO_Ant1_5755 Page 40 of 96 11N40SISO_Ant2_5755 11N40SISO_Ant1_5795 11N40SISO_Ant2_5795 Page 41 of 96 11AC20SISO_Ant1_5745 11AC20SISO_Ant2_5745 11AC20SISO_Ant1_5785 Page 42 of 96 11AC20SISO_Ant2_5785 11AC20SISO_Ant1_5825 11AC20SISO_Ant2_5825 Page 43 of 96 11AC40SISO_Ant1_5755 11AC40SISO_Ant2_5755 11AC40SISO_Ant1_5795 Page 44 of 96 11AC40SISO_Ant2_5795 11AC80SISO_Ant1_5775 11AC80SISO_Ant2_5775 Page 45 of 96 Page 46 of 96 Appendix B: Maximum conducted output power Test Result Test Mode Antenna Channel Result [dBm] Limit [dBm] Verdict 11A Ant1 5180 16.35 <=30 PASS Ant2 5180 15.10 <=30 PASS Ant1 5200 16.63 <=30 PASS Ant2 5200 15.37 <=30 PASS Ant1 5240 16.43 <=30 PASS Ant2 5240 15.81 <=30 PASS Ant1 5745 15.60 <=30 PASS Ant2 5745 15.67 <=30 PASS Ant1 5785 15.43 <=30 PASS Ant2 5785 15.38 <=30 PASS Ant1 5825 15.12 <=30 PASS Ant2 5825 15.17 <=30 PASS 11N20SISO Ant1 5180 15.67 <=30 PASS Ant2 5180 14.31 <=30 PASS Ant1 5200 14.92 <=30 PASS Ant2 5200 14.33 <=30 PASS Ant1 5240 15.74 <=30 PASS Ant2 5240 14.24 <=30 PASS Ant1 5745 14.78 <=30 PASS Ant2 5745 13.94 <=30 PASS Ant1 5785 14.40 <=30 PASS Ant2 5785 13.79 <=30 PASS Ant1 5825 14.01 <=30 PASS Ant2 5825 14.14 <=30 PASS 11N40SISO Ant1 5190 13.37 <=30 PASS Ant2 5190 13.40 <=30 PASS Ant1 5230 13.92 <=30 PASS Ant2 5230 14.32 <=30 PASS Ant1 5755 15.10 <=30 PASS Ant2 5755 15.36 <=30 PASS Ant1 5795 14.67 <=30 PASS Ant2 5795 15.02 <=30 PASS 11AC20SISO Ant1 5180 15.42 <=30 PASS Ant2 5180 13.85 <=30 PASS Ant1 5200 15.87 <=30 PASS Ant2 5200 14.30 <=30 PASS Ant1 5240 15.74 <=30 PASS Ant2 5240 14.16 <=30 PASS Ant1 5745 15.78 <=30 PASS Ant2 5745 14.00 <=30 PASS Ant1 5785 15.42 <=30 PASS Page 47 of 96 Ant2 5785 13.81 <=30 PASS Ant1 5825 15.04 <=30 PASS Ant2 5825 14.12 <=30 PASS 11AC40SISO Ant1 5190 14.00 <=30 PASS Ant2 5190 13.49 <=30 PASS Ant1 5230 14.34 <=30 PASS Ant2 5230 14.28 <=30 PASS Ant1 5755 14.14 <=30 PASS Ant2 5755 13.83 <=30 PASS Ant1 5795 13.83 <=30 PASS Ant2 5795 13.51 <=30 PASS 11AC80SISO Ant1 5210 12.80 <=30 PASS Ant2 5210 12.35 <=30 PASS Ant1 5775 13.29 <=30 PASS Ant2 5775 13.19 <=30 PASS 11N20MIMO Ant1 + Ant2 5180 18.10 <=28.59 PASS 5200 17.60 <=28.59 PASS 5240 18.10 <=28.59 PASS 5745 17.40 <=28.59 PASS 5785 17.10 <=28.59 PASS 5825 17.10 <=28.59 PASS 11N40MIMO Ant1 + Ant2 5190 16.40 <=28.59 PASS 5230 17.10 <=28.59 PASS 5755 18.20 <=28.59 PASS 5795 17.90 <=28.59 PASS 11AC20MIMO Ant1 + Ant2 5180 17.70 <=28.59 PASS 5200 18.20 <=28.59 PASS 5240 18.00 <=28.59 PASS 5745 18.00 <=28.59 PASS 5785 17.70 <=28.59 PASS 5825 17.60 <=28.59 PASS 11AC40MIMO Ant1 + Ant2 5190 16.80 <=28.59 PASS 5230 17.30 <=28.59 PASS 5755 17.00 <=28.59 PASS 5795 16.70 <=28.59 PASS 11AC80MIMO Ant1 + Ant2 5210 15.60 <=28.59 PASS 5775 16.30 <=28.59 PASS Note：Test results increased RF cable loss by 0.5dB. MIMO= (Ant1 + Ant2)/2 The MIMO Directional Gain=7.41dBi ＞6dBi. So Pout =P limit ‐(G TX ‐6)]=30‐1.41=28.59dBm Page 48 of 96 Appendix C: Maximum power spectral density Test Result Test Mode Antenna Channel Result [dBm/MHz] Limit [dBm/MHz] Verdict 11A Ant1 5180 8.48 <=17 PASS Ant2 5180 6.49 <=17 PASS Ant1 5200 8.28 <=17 PASS Ant2 5200 7.16 <=17 PASS Ant1 5240 8.21 <=17 PASS Ant2 5240 8.08 <=17 PASS Ant1 5745 3.77 <=30 PASS Ant2 5745 4.23 <=30 PASS Ant1 5785 3.71 <=30 PASS Ant2 5785 3.69 <=30 PASS Ant1 5825 3.59 <=30 PASS Ant2 5825 3.93 <=30 PASS 11N20SISO Ant1 5180 7.18 <=17 PASS Ant2 5180 5.93 <=17 PASS Ant1 5200 6.79 <=17 PASS Ant2 5200 6.55 <=17 PASS Ant1 5240 8.19 <=17 PASS Ant2 5240 6.62 <=17 PASS Ant1 5745 2.66 <=30 PASS Ant2 5745 1.65 <=30 PASS Ant1 5785 2.88 <=30 PASS Ant2 5785 3.15 <=30 PASS Ant1 5825 1.93 <=30 PASS Ant2 5825 1.96 <=30 PASS 11N40SISO Ant1 5190 2.5 <=17 PASS Ant2 5190 2.58 <=17 PASS Ant1 5230 3.37 <=17 PASS Ant2 5230 2.79 <=17 PASS Ant1 5755 0.24 <=30 PASS Ant2 5755 0.8 <=30 PASS Ant1 5795 -0.62 <=30 PASS Ant2 5795 -0.06 <=30 PASS 11AC20SISO Ant1 5180 7.12 <=17 PASS Ant2 5180 5.48 <=17 PASS Ant1 5200 7.89 <=17 PASS Ant2 5200 5.58 <=17 PASS Ant1 5240 8.23 <=17 PASS Ant2 5240 5.91 <=17 PASS Ant1 5745 3.63 <=30 PASS Ant2 5745 3.6…

Text truncated - open the document above for the full version.

Page 61 of 96 11AC20SISO_Ant1_5200 11AC20SISO_Ant2_5200 11AC20SISO_Ant1_5240 Page 62 of 96 11AC20SISO_Ant2_5240 11AC20SISO_Ant1_5745 11AC20SISO_Ant2_5745 Page 63 of 96 11AC20SISO_Ant1_5785 11AC20SISO_Ant2_5785 11AC20SISO_Ant1_5825 Page 64 of 96 11AC20SISO_Ant2_5825 11AC40SISO_Ant1_5190 11AC40SISO_Ant2_5190 Page 65 of 96 11AC40SISO_Ant1_5230 11AC40SISO_Ant2_5230 11AC40SISO_Ant1_5755 Page 66 of 96 11AC40SISO_Ant2_5755 11AC40SISO_Ant1_5795 11AC40SISO_Ant2_5795 Page 67 of 96 11AC80SISO_Ant1_5210 11AC80SISO_Ant2_5210 11AC80SISO_Ant1_5775 Page 68 of 96 11AC80SISO_Ant2_5775 Page 69 of 96 Appendix D: Frequency Stability Test Result Voltage Test Mode Antenna Channel Voltage [Vdc] Tempera ture (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict 20MHz Bandwidth Ant1 5180 NV NT -12000 -2.316602 20 PASS LV NT -12000 -2.316602 20 PASS HV NT -12000 -2.316602 20 PASS Ant2 5180 NV NT -12000 -2.316602 20 PASS LV NT -12000 -2.316602 20 PASS HV NT -12000 -2.316602 20 PASS Ant1 5200 NV NT -12000 -2.307692 20 PASS LV NT -12000 -2.307692 20 PASS HV NT -12000 -2.307692 20 PASS Ant2 5200 NV NT -12000 -2.307692 20 PASS LV NT -12000 -2.307692 20 PASS HV NT -12000 -2.307692 20 PASS Ant1 5240 NV NT -12000 -2.290076 20 PASS LV NT -12000 -2.290076 20 PASS HV NT -12000 -2.290076 20 PASS Ant2 5240 NV NT -12000 -2.290076 20 PASS LV NT -12000 -2.290076 20 PASS HV NT -12000 -2.290076 20 PASS Ant1 5745 NV NT -14000 -2.436902 20 PASS LV NT -14000 -2.436902 20 PASS HV NT -13000 -2.262837 20 PASS Ant2 5745 NV NT -14000 -2.436902 20 PASS LV NT -13000 -2.262837 20 PASS HV NT -14000 -2.436902 20 PASS Ant1 5785 NV NT -14000 -2.420052 20 PASS LV NT -14000 -2.420052 20 PASS HV NT -14000 -2.420052 20 PASS Ant2 5785 NV NT -14000 -2.420052 20 PASS LV NT -13000 -2.247191 20 PASS HV NT -14000 -2.420052 20 PASS Ant1 5825 NV NT -14000 -2.403433 20 PASS LV NT -14000 -2.403433 20 PASS HV NT -14000 -2.403433 20 PASS Ant2 5825 NV NT -14000 -2.403433 20 PASS LV NT -13000 -2.231760 20 PASS HV NT -14000 -2.403433 20 PASS 40MHz Bandwidth Ant1 5190 NV NT -12000 -2.312139 20 PASS LV NT -12000 -2.312139 20 PASS HV NT -12000 -2.312139 20 PASS Ant2 5190 NV NT -12000 -2.312139 20 PASS Page 70 of 96 LV NT -12000 -2.312139 20 PASS HV NT -12000 -2.312139 20 PASS Ant1 5230 NV NT -12000 -2.294455 20 PASS LV NT -12000 -2.294455 20 PASS HV NT -12000 -2.294455 20 PASS Ant2 5230 NV NT -12000 -2.294455 20 PASS LV NT -12000 -2.294455 20 PASS HV NT -12000 -2.294455 20 PASS Ant1 5755 NV NT -14000 -2.432667 20 PASS LV NT -13000 -2.258905 20 PASS HV NT -13000 -2.258905 20 PASS Ant2 5755 NV NT -14000 -2.432667 20 PASS LV NT -13000 -2.258905 20 PASS HV NT -13000 -2.258905 20 PASS Ant1 5795 NV NT -14000 -2.415876 20 PASS LV NT -13000 -2.243313 20 PASS HV NT -13000 -2.243313 20 PASS Ant2 5795 NV NT -14000 -2.415876 20 PASS LV NT -13000 -2.243313 20 PASS HV NT -13000 -2.243313 20 PASS 80MHz Bandwidth Ant1 5210 NV NT -13000 -2.495202 20 PASS LV NT -12000 -2.303263 20 PASS HV NT -12000 -2.303263 20 PASS Ant2 5210 NV NT -13000 -2.495202 20 PASS LV NT -12000 -2.303263 20 PASS HV NT -12000 -2.303263 20 PASS Ant1 5775 NV NT -14000 -2.424242 20 PASS LV NT -14000 -2.424242 20 PASS HV NT -13000 -2.251082 20 PASS Ant2 5775 NV NT -14000 -2.424242 20 PASS LV NT -14000 -2.424242 20 PASS HV NT -13000 -2.251082 20 PASS Temperature Test Mode Antenna Channel Voltage [Vdc] Tempera ture (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict 20MHz Bandwidth Ant1 5180 NV -30 -12000 -2.316602 20 PASS NV -20 -12000 -2.316602 20 PASS NV -10 -12000 -2.316602 20 PASS NV 0 -12000 -2.316602 20 PASS NV 10 -12000 -2.316602 20 PASS NV 20 -12000 -2.316602 20 PASS NV 30 -12000 -2.316602 20 PASS NV 40 -12000 -2.316602 20 PASS NV 50 -12000 -2.316602 20 PASS Ant2 5180 NV -30 -12000 -2.316602 20 PASS Page 71 of 96 NV -20 -12000 -2.316602 20 PASS NV -10 -12000 -2.316602 20 PASS NV 0 -12000 -2.316602 20 PASS NV 10 -12000 -2.316602 20 PASS NV 20 -12000 -2.316602 20 PASS NV 30 -12000 -2.316602 20 PASS NV 40 -12000 -2.316602 20 PASS NV 50 -12000 -2.316602 20 PASS Ant1 5200 NV -30 -12000 -2.307692 20 PASS NV -20 -12000 -2.307692 20 PASS NV -10 -12000 -2.307692 20 PASS NV 0 -12000 -2.307692 20 PASS NV 10 -12000 -2.307692 20 PASS NV 20 -12000 -2.307692 20 PASS NV 30 -12000 -2.307692 20 PASS NV 40 -12000 -2.307692 20 PASS NV 50 -12000 -2.307692 20 PASS Ant2 5200 NV -30 -12000 -2.307692 20 PASS NV -20 -12000 -2.307692 20 PASS NV -10 -12000 -2.307692 20 PASS NV 0 -12000 -2.307692 20 PASS NV 10 -12000 -2.307692 20 PASS NV 20 -12000 -2.307692 20 PASS NV 30 -12000 -2.307692 20 PASS NV 40 -12000 -2.307692 20 PASS NV 50 -12000 -2.307692 20 PASS Ant1 5240 NV -30 -12000 -2.290076 20 PASS NV -20 -12000 -2.290076 20 PASS NV -10 -12000 -2.290076 20 PASS NV 0 -12000 -2.290076 20 PASS NV 10 -12000 -2.290076 20 PASS NV 20 -12000 -2.290076 20 PASS NV 30 -12000 -2.290076 20 PASS NV 40 -12000 -2.290076 20 PASS NV 50 -12000 -2.290076 20 PASS Ant2 5240 NV -30 -12000 -2.290076 20 PASS NV -20 -12000 -2.290076 20 PASS NV -10 -12000 -2.290076 20 PASS NV 0 -12000 -2.290076 20 PASS NV 10 -12000 -2.290076 20 PASS NV 20 -12000 -2.290076 20 PASS NV 30 -12000 -2.290076 20 PASS NV 40 -12000 -2.290076 20 PASS NV 50 -12000 -2.290076 20 PASS Ant1 5745 NV -30 -13000 -2.262837 20 PASS NV -20 -13000 -2.262837 20 PASS Page 72 of 96 NV -10 -13000 -2.262837 20 PASS NV 0 -13000 -2.262837 20 PASS NV 10 -13000 -2.262837 20 PASS NV 20 -13000 -2.262837 20 PASS NV 30 -13000 -2.262837 20 PASS NV 40 -13000 -2.262837 20 PASS NV 50 -13000 -2.262837 20 PASS Ant2 5745 NV -30 -13000 -2.262837 20 PASS NV -20 -13000 -2.262837 20 PASS NV -10 -13000 -2.262837 20 PASS NV 0 -13000 -2.262837 20 PASS NV 10 -13000 -2.262837 20 PASS NV 20 -13000 -2.262837 20 PASS NV 30 -14000 -2.436902 20 PASS NV 40 -13000 -2.262837 20 PASS NV 50 -13000 -2.262837 20 PASS Ant1 5785 NV -30 -13000 -2.247191 20 PASS NV -20 -13000 -2.247191 20 PASS NV -10 -13000 -2.247191 20 PASS NV 0 -14000 -2.420052 20 PASS NV 10 -13000 -2.247191 20 PASS NV 20 -13000 -2.247191 20 PASS NV 30 -14000 -2.420052 20 …

Text truncated - open the document above for the full version.

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn TEST REPORT Report No..................................: CTC20200482E05 FCC ID······································: WNA-HP5116 Applicant......................................... : Shenzhen Skyworth Digital Technology Co.,LTD. Address......................................: 14/F Unit A. Skyworth Building, Gaoxin Ave.1s., Nanshan District, Shenzhen, China Manufacturer....................................: Shenzhen Skyworth Digital Technology Co.,LTD. Address............................................: 14/F Unit A. Skyworth Building, Gaoxin Ave.1s., Nanshan District, Shenzhen, China Product Name ................................ : Set Top Box Trade Mark ....................................... : SKYWORTH, TVUP Model/Type reference ...................... : HP5116 Listed Model(s) ................................ : HPA12 Standard ......................................... : FCC Part 15, Subpart E 15. 407 Date of receipt of test sample...: Apr. 30, 2020 Date of testing.......................: May. 01, 2020 to May. 21, 2020 Date of issue.........................: May. 22, 2020 Result.................................: PASS Compiled by: (Printed name+signature) Te r r y S u Supervised by: (Printed name+signature) Miller Ma Approved by: (Printed name+signature) Walter Chen Testing Laboratory Name .............. : CTC Laboratories, Inc. Address ............................................ : 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely correspond to the test sample. Page 2 of 138 Report No.: CTC20200482E05 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Table of Contents Page 1. TEST SUMMARY .................................................................................................................................................... 3 1.1. TEST STANDARDS .......................................................................................................................................................... 3 1.2. REPORT VERSION .......................................................................................................................................................... 3 1.3. TEST DESCRIPTION ........................................................................................................................................................ 4 1.4. TEST FACILITY .…
