Cross Match ® Technologies, Inc. D SCAN ® AUTHENTICATOR CF ™ Document Authentication Reader User Manual Version 2.1 Version 2.1 (April 2010) Specifications are subject to change without prior notice. Cross Match Technologies GmbH assumes no liability for maloperation or improper use of products. Cross Match® and D SCAN® are registered trademarks, and the CROSS MATCH TECHNOLOGIES logo is a trademark of Cross Match Technologies, Inc. All other trademarks, brands and names are the property of their respective owners and are protected by US and international copyright and trademark laws. No portion of this guide may be reproduced in any form or by any means without the express written permission of Cross Match® Technologies. © Copyright 2010, Cross Match Technologies. All rights reserved. Basic health and safety instructions iii Basic health and safety instructions The D SCAN ® AUTHENTICATOR CF document reader is designed, manufactured and tested to meet international safety standards. The document reader contains an RF transmission device, and is therefore subject to national and international regulations. The Authenticator transmits at a frequency of 13,56 MHz. However, all electric appliances can emit spurious RF-signals at other than the specified frequency. To ensure safe operation of the D SCAN AUTHENTICATOR CF: • The operator of the D SCAN AUTHENTICATOR CF must observe the guidelines and particularly the safety precautions outlined in this document and according to related country regulation requirements. • You must restrict the use of the device in potentially hazardous environments. The environments include fuel depots, chemical plants and areas where the air contains chemicals or particles (such as grain, dust, or metal powders). The restrictions apply in any other area where you would normally be asked to turn off your vehicle engine. • Transmitted radio frequency energy may interfere with some hearing aids, pacemakers or other medical devices if the person is positioned too close to the document reader. • To reduce the RF exposure refer to your related country regulation requirements. See the specifications table and the section “Magnetic field strength” on page 4-3 for detailed information. • Read the User Manual on the CDROM for detailed information to operate the D SCAN AUTHENTICATOR CF. • Turn off the document reader when not in use. • Do not open the device. Repairs must be done by Cross Match Technologies. Changes or modifications not expressly approved by Cross Match Technologies could void the user's authority to operate the equipment. Cross Match Technologies GmbH assumes no liability for the customer's failure to comply with these requirements. iv D S C A N ® AUTHENTICATOR CF™ User Manual v2.1 The optional coaxial light feature v The optional coaxial light feature The D SCAN® AUTHENTICATOR CF is a high performance device for reading all kinds of personal identification documents such as passports and national ID cards. Any document compliant to the specifications of the ICAO can be placed on the glass plate on top of the device for capturing the image of the personalized page. The optional RFID feature further provides the functionality for reading out the contents of the digital data chip contained in the new electronic passports. How does the optical reading of the device work? The D SCAN AUTHENTICATOR CF device contains a built-in high resolution camera and several sources of light. Each light source can be turned on before taking one image with the camera. Thereby the user can take an image of the personalized page as it appears under normal visible light or under ultraviolet (UV) or infrared (IR) light. In the interest of a very uniform intensity level of the light on the document page being captured the light sources are arranged in a way to provide a diffuse kind of light rather than a directed light under a specific angle. This is also helpful to avoid reflections. After the image was taken by the build-in camera it is being transferred through the USB 2.0 interface cable to the PC. The software belonging to the D SCAN AUTHENTICATOR CF receives the image and makes it available through the Application Programming Interface (API). Thereby the image becomes accessible for the application software of the system integrator. Among the available options is the "coaxial light" feature. This is an illumination which works similar to the other ones but delivers its light under the same angle as the camera view angle to the document. Thereby camera and illumination are arranged on the same axis - or coaxially, hence the name. Which functionality does the coaxial light feature provide? This optional feature provides the functionality of turning the coaxial illumination on while all other illuminations are off, taking one image with the camera, turning the coaxial illumination off, and making the captured image available as a digital bitmap via the API to the application software of the system integrator. The application can then take this image and display it on the screen of the PC so that the operator can view it. vi D S C A N ® AUTHENTICATOR CF™ User Manual v2.1 A personalized page of a document covered with a protective laminate may show certain retro reflective patterns when viewed with the coaxial illumination. When viewed with one of the diffuse illuminations the same page will not show the retro reflective pattern. Thereby the existence of such a laminate can be checked visually. The coaxial light product feature of the D SCAN AUTHENTICATOR CF does not provide any kind of image processing or image analysis e.g. intended for the automatic detection of tampering and alteration of documents having security laminates such as the 3M™ Confirm™ Laminates. Cross Match Technologies does not provide any product option or product extension or separate product for performing such kind of automatic detections. Image captured with an D SCAN AUTHENTICATOR CF under coaxial light sh…

Text truncated - open the document above for the full version.

Quick Reference Intended use of the device The D SCAN ® AUTHENTICATOR CF is a full colour image and full page reader for the intended use of acquisition and transmission of personal and document data. It is intended for the use in IT-devices area and the operation and installation must be in connection with suitable computer equipment. When operating, the electrical installation and cabling must comply with the IEC 60950 standard. The device has the capability to capture images of an entire data page of any ID document in different illuminations (visible, IR, coaxial and UV light) and to read RFID chip data contactless using a 13.56 MHz RFID Transceiver. To capture and transmit data the high speed USB 2.0 interface will be used. The additionally installed card reader provides a contact interface, which allows to read the chip data of ID cards. The operation and display of results is controlled by the special software as well as all functions. Basic health and safety instructions To ensure safe operation of the D SCAN AUTHENTICATOR CF: • All persons who operate the D SCAN AUTHENTICATOR CF must observe the guidelines and particularly the safety precautions outlined in this document and according to related country regulation requirements. • You must observe restrictions on the use of the device in potentially hazardous atmospheres such as fuel depots, chemical plants and areas where the air contains chemicals or particles (such as grain, dust, or metal powders) and any other area where you would normally be advised to turn off your vehicle engine. • Transmitted radio frequency energy may interfere with some hearing aids, pacemakers or other medical devices if the person is positioned too close to the document reader. • To reduce the RF exposure refer to your related country regulation requirements. See the specifications table and read the User Manual on the CD-ROM for detailed information. • Switch off the document reader if not in use. • Do not open the device. Repairs are only allowed by Cross Match Technologies. Changes or modifications not expressly approved by Cross Match Technologies could void the user's authority to operate the equipment. D SCAN ® AUTHENTICATOR CF Device: Documentreader Type: D SCAN AUTHENTICATOR CF Model-Nr.: RJ0479 V2 Rated Input: 18-24 V DC / 1 A, external power supply Signal Inputs/Outputs: 1 x USB 2.0 RFID operating frequency: 13,56 MHz RFID magnetic field strength: max. 4,0 A/m RFID transmitting power: max. 200 mW Dimensions, W x H x D: 263 mm x 150 mm x 212 mm [10.35 in x 5.90 in x 8.35 in] Weight: 2,3 kg [5.1 lbs] Quick reference v2.1 D SCAN ® AUTHENTICATOR CF FCC Notice FCC ID: WO8RJ0479 V2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The power source for the AUTHENTICATOR CF must provide an output voltage of 18-24 V DC. The electric current range of the power supply unit must be min. 1 A and max. 7 A. Use only power supply units that comply with the class B limits of 47 CFR 15, Subpart B. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Industry Canada IC: 7944A-RJ0479 V2 This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The power source for the AUTHENTICATOR CF must provide an output voltage of 18-24 V DC. The electric current range of the power supply unit must be min. 1 A and max. 7 A. Use only power supply units that comply with the class B limits of ICES-003. Installation The power supply for the D SCAN AUTHENTICATOR CF must be provided by a certified power supply unit with an output voltage of 18-24 V DC. The electric current range of the power supply unit must be min. 1 A and max. 7 A. To connect the document reader to a computer, use a shielded USB data cable as supplied with the reader. Operation of the device The device must be operated only in dry rooms. Exclude any condensation. The environmental temperature range is 41 °F to 113 °F (+5 °C to +45 °C). Warning Do not look directly into the lights of the document contact area. Maintain a required minimum distance of not less than 0.3 meters. Cross Match Technologies GmbH assumes no liability for the customer's failure to comply with these requirements. 19 - 04 - 2010 Cross Match Technologies GmbH Date (Stamp and signature of the Applicant) Customer Care: The Technical Support department is available for the D SCAN AUTHENTICATOR CF. Monday- Friday 8 am to 4 pm CET Customer Service Tel: +49 (0)3641 4297-852 Fax: +49 (0)3641 4297-757 [email protected] Corporate Headquarters: Cross Match Technologies, Inc. 3950 RCA Bouleva…

Text truncated - open the document above for the full version.

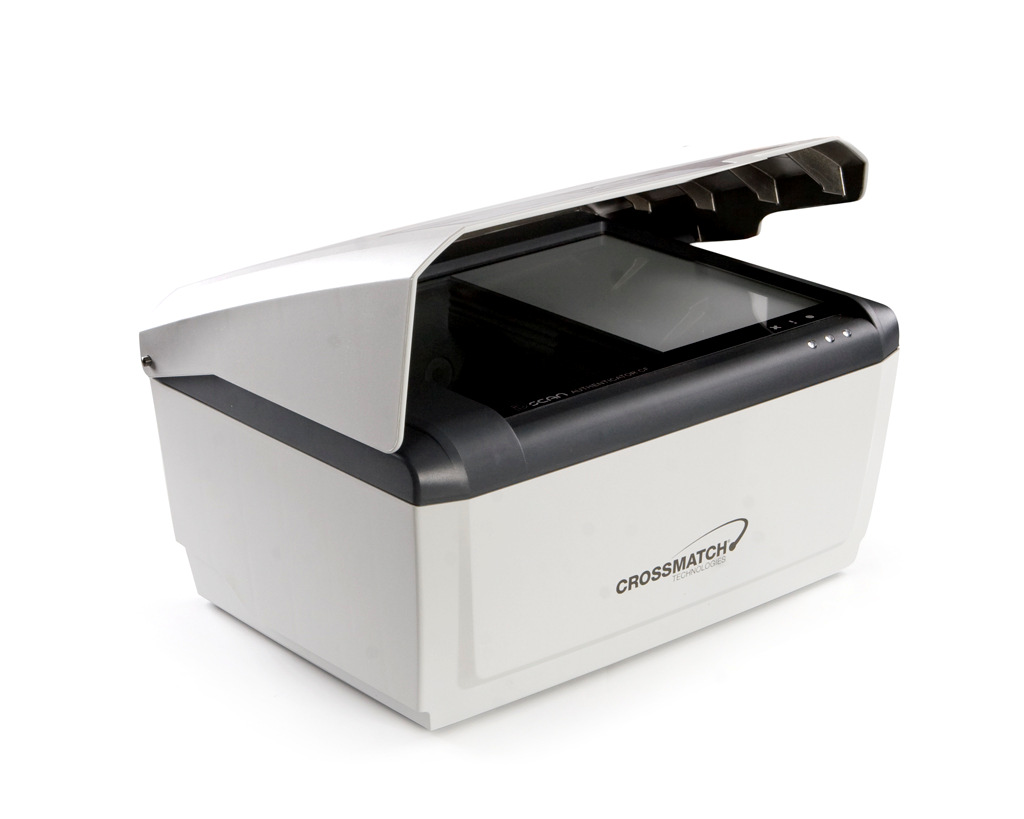

D SCAN ® AUTHENTICATOR CF Personal ID document reader as OEM component for system integrators The Coaxial Light Feature Option The D SCAN ® AUTHENTICATOR CF is a high performance device for reading all kinds of personal identification documents such as passports and national ID cards. Any document compliant to the specifications of the ICAO can be placed on the glass plate on top of the device for capturing the image of the personalized page. The optional RFID feature further provides the functionality for reading out the contents of the digital data chip contained in the new electronic passports. How does the optical reading of the device work? The D SCAN AUTHENTICATOR CF device contains a built-in high resolution camera and several sources of light. Each light source can be turned on before taking one image with the camera. Thereby the user can take an image of the personalized page as it appears under normal white light or under ultraviolet (UV) or infrared (IR) light. In the interest of a very uniform intensity level of the light on the document page being captured the light sources are arranged in a way to provide a diffuse kind of light rather than a directed light under a specific angle. This is also helpful to avoid reflections. After the image was taken by the build-in camera it is being transferred through the USB 2.0 interface cable to the PC. The software belonging to the D SCAN AUTHENTICATOR CF receives the image and makes it available through the Application Programming Interface (API). Thereby the image becomes accessible for the application software of the system integrator. Among the available options is the “coaxial light” feature. This is an illumination which works similar to the other ones but delivers its light under the same angle as the camera view angle to the document. Thereby camera and illumination are arranged on the same axis – or coaxially, hence the name. Coaxial Light Feature Option D SCAN ® AUTHENTICATOR CF Which functionality does the coaxial light feature of the D SCAN AUTHENTICATOR CF product provide? This optional feature provides the functionality of turning the coaxial illumination on while all other illuminations are off, taking one image with the camera, turning the coaxial illumination off, and making the captured image available as a digital bitmap via the API to the application software of the system integrator. The application can then take this image and display it on the screen of the PC so that the operator can view it. A personalized page of a document covered with a protective laminate may show certain retro reflective patterns when viewed with the coaxial illumination. When viewed with one of the diffuse illuminations the same page will not show the retro reflective pattern. Thereby the existence of such a laminate can be checked visually. The coaxial light product feature of the D SCAN AUTHENTICATOR CF does not provide any kind of image processing or image analysis e.g. intended for the automatic detection of tampering and alteration of documents having security laminates such as the 3M™ Confirm™ Laminates. Cross Match Technologies does not provide any product option or product extension or separate product for performing such kind of automatic detections. Notice to system integrators System integrators shall be aware that an automatic detection of tampering and alteration of documents having security laminates is the subject of a technical invention filed by Minnesota Mining and Manufacturing Co. and published as patent in the following countries: AU 685830, CA 2173230, DE 69418 887 T2, ES 2133583 T3, FR 0722597, GB 0722597, HK 1013873, IT 0722597, JP 09504629 T2, KR 0354883 B, US 6019287, US 6611612, and US publication 2004-022420 A1. Disclaimer Cross Match Technologies explicitly reminds the integrators of the D SCAN AUTHENTICATOR CF of the existence of the above mentioned patents. The use of the D SCAN AUTHENTICATOR CF for reading documents with the coaxial light is authorized by Cross Match Technologies only for the purpose of taking the image without any kind of image processing for the automatic detection of tampering and alteration. Cross Match Technologies shall not be liable for any violation of the rights and claims of the patents mentioned above. System integrators and end users interested in performing such automatic detection shall consider to contact the owner of the above mentioned patents for a potential licensing. This documentation belongs to the D SCAN AUTHENTICATOR CF product if it is equipped with the coaxial lighting feature option (CX2). System integrators and resellers shall forward this documentation to the end user. Image captured with an D SCAN AUTHENTICATOR CF under coaxial light showing a document having a 3M™ Confirm™ Laminate on top of the personalized page. The retro reflective marks are clearly visible while the underlying text and picturesarealmostinvisible. Corporate Headquarters: Cross Match Technologies, Inc. 3950 RCA Boulevard Suite 5001 Palm Beach Gardens, FL 33410 U.S.A. Toll Free: 866-725-3926 Phone: 561-622-1650 Fax: 561-622-9938 [email protected] www.crossmatch.com German Operations: Cross Match Technologies GmbH Unstrutweg 4 07743 Jena Germany Phone: +49 (0) 3641 4297-0 Fax: +49 (0) 3641 4297-14 [email protected] (Sales EMEA, Asia & Pacific) D SCAN ® and the Cross Match ® logo are registered trademarks of Cross Match Technologies, Inc. in the USA and the EU. AUTHENTICATOR™ is a trademark of Cross Match Technologies. All other trademarks, brands and names are the property of their respective owners and are protected by US and international and national copyright and trademark laws. D SCAN ® AUTHENTICATOR Option CX2 - 28 October 2009 © Cross Match Technologies. Modifications reserved.

Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF Model No.: RJ0479 Version 2 US contact.doc 12.04.2010 Page 1/1 Contact in the USA Timothy McDow Electrical Engineering Manager Tel.: 1 561 622 3876 Fax: 1 561 622 4868 mailto: [email protected] Cross Match Technologies, Inc. 3950 RCA Boulevard Suite 5001 Palm Beach Gardens, FL 33410 United States http://www.crossmatch.com

Non-Conformities FCC ID: WO8RJ0479V2 (CKC CS Ref # E10-000028-FCC-01) The items listed below represent requests for information following review of this application for certification under United S tates (FCC) regulations. Further question may arise pending review of responses to these items. OK ID # Non-Conformity or Comment Subm itted Response Respondent / Date of Response X 1 Schematics of the RFID board are missing: RJ0479_388.25A and RJ0479_389.25A. corresponding to the layout diagram of “HID Antenna Assy 388_25A drawing.pdf “ and “HID RFID Module 389.25A drawing.pdf” Please provide the schematic diagrams in accordance with 2.1033. Schematics provided. Wolfgang Klos, VDE Institute 2010-04-21 X 2 The users manual is missing the statement required by 15.105 for a class B computer peripheral. A revised manual and a revised edition of the Quick reference with the required statements are attached. Wolfgang Klos, VDE Institute 2010-04-21 X 3 Test report notes no modification to the equipment for compliance, however, copper tape is implemented in the installation of the product. It is assumed that the copper tape is in place for compliance (grounding) purposes; therefore the grant note 20 will be applied to the equipment authorization. “All electrical and mechanical devices employed for spurious radiation suppression, including any modifications made during certification testing, must be incorporated in each unit marketed.” Indeed, the copper tape will be mounted in each unit marketed. The test sample was submitted to the lab with this measure implemented already. Wolfgang Klos, VDE Institute 2010-04-21 X 4 The test report does not address voltage variations of the power supply with respect to the carrier output levels in accordance with 15.31(e), “(e) For intentional radiators, measurements of the variation of the input power or the radiated signal level of the fundamental frequency component of the emission, as appropriate, shall be performed with the supply voltage varied between 85% and 115% of the nominal rated supply voltage.” Please provide carrier output level information over a range of voltage variations as prescribed. A revised edition of the test report has been prepared. The carrier output level information over a range of voltage variations can be found in Sections 3.2 and 3.5 of the report. Wolfgang Klos, VDE Institute 2010-04-21 5 6 The items indicated above must be submitted before processing can continue on the referenced application. Failure to provide t he requested information within 60 days may result in application dismissal pursuant to Section 2.917(c) and forfeiture of the filing fee pursuant to Se ction 1.1106. How to read the table: OK column indicates closure by CKC CS. ID column is for use with Agents to assist in identifying the probable source for closure. A – Application issue TL – Test lab issue C – Client issue R – Retesting may be necessary # column indicates unique or separate non-conformity items (note some items may be related). Non-Conformity or Comment column indicates the evaluators specific question or comment. Submitted response column indicates the response or a summary of the response provided. Respondent / Date of Response column indicates the responding party or agent and the date of the response was either received or logged.

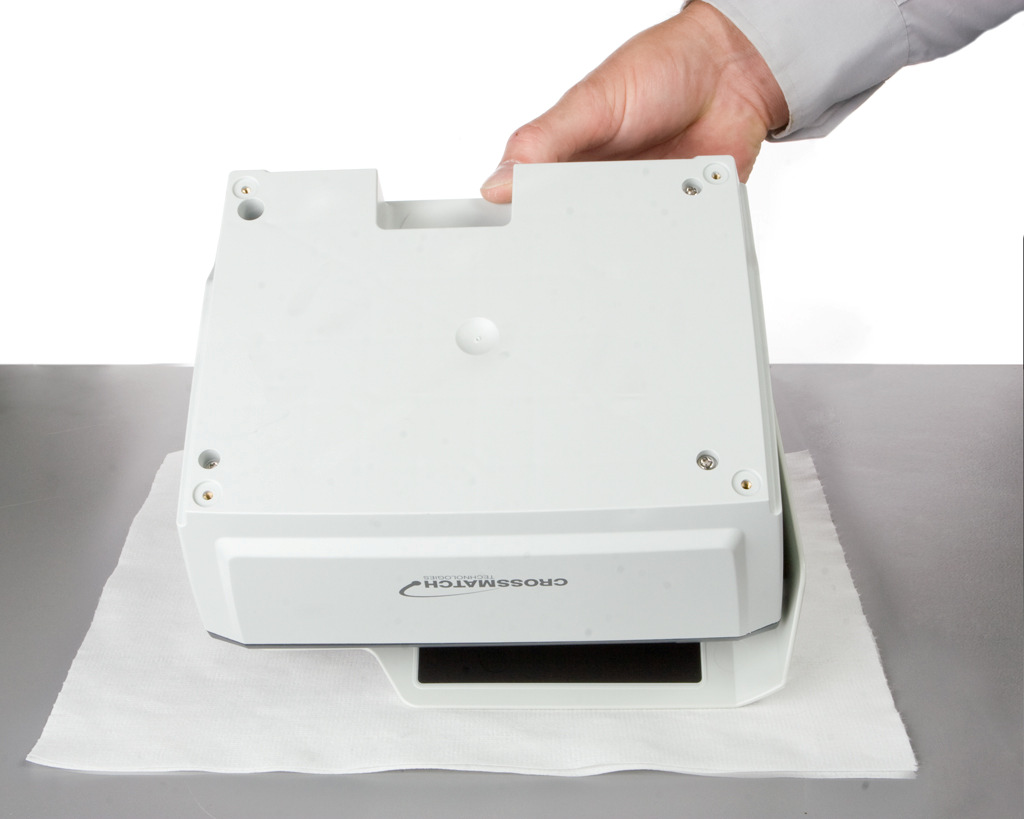

Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 External photos RJ0479V2.doc 29.03.2010 Page 1/8 External Photos Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 External photos RJ0479V2.doc 29.03.2010 Page 2/8 Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 External photos RJ0479V2.doc 29.03.2010 Page 3/8 Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 External photos RJ0479V2.doc 29.03.2010 Page 4/8 Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 External photos RJ0479V2.doc 29.03.2010 Page 5/8 Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 External photos RJ0479V2.doc 29.03.2010 Page 6/8 Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 External photos RJ0479V2.doc 29.03.2010 Page 7/8 Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 External photos RJ0479V2.doc 29.03.2010 Page 8/8

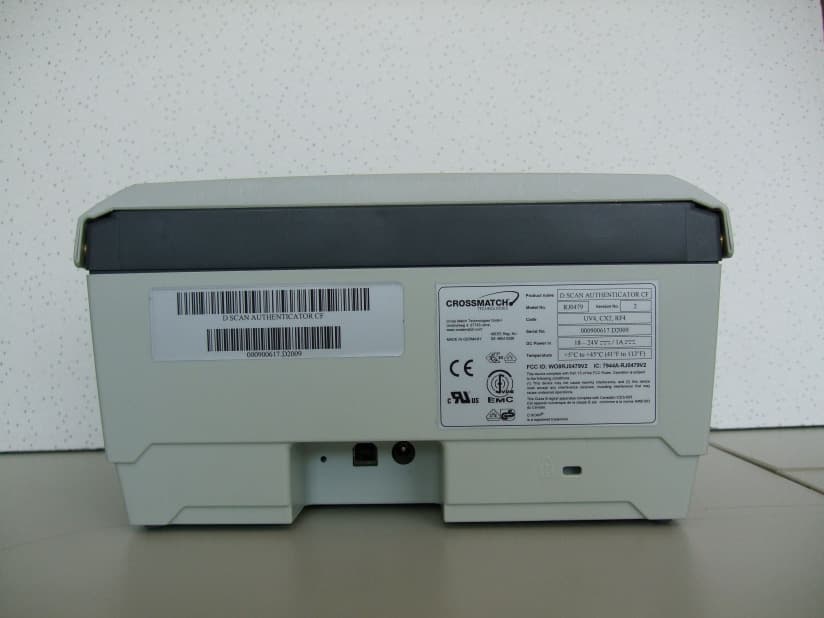

Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479, Version 2 ID Label and Location Info RJ0479V2.doc 29.03.2010 Page 1/1 ID Label and Location Info

Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 Internal photos of RJ0479V2 - Assy.doc 29.03.2010 Page 1/9 Internal photos of the device Figure 1 Figure 2 Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 Internal photos of RJ0479V2 - Assy.doc 29.03.2010 Page 2/9 Figure 3 Figure 4 Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 Internal photos of RJ0479V2 - Assy.doc 29.03.2010 Page 3/9 Figure 5 Figure 6 Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 Internal photos of RJ0479V2 - Assy.doc 29.03.2010 Page 4/9 Figure 7 Figure 8 Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 Internal photos of RJ0479V2 - Assy.doc 29.03.2010 Page 5/9 Figure 9 Figure 10 Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 Internal photos of RJ0479V2 - Assy.doc 29.03.2010 Page 6/9 Figure 11 Figure 12 Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 Internal photos of RJ0479V2 - Assy.doc 29.03.2010 Page 7/9 Figure 13 Figure 14 Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 Internal photos of RJ0479V2 - Assy.doc 29.03.2010 Page 8/9 Figure 15 Figure 16 Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 Internal photos of RJ0479V2 - Assy.doc 29.03.2010 Page 9/9 Figure 17

Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 Internal photos RJ0479V2 - PCBs.doc 29.03.2010 Page 1/7 Internal Photos - PCBs Figure 1 RFID Controller, RJ0479:388.25 RevA, Side with components Figure 2 RFID Controller, RJ0479:388.25 RevA, Rear Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 Internal photos RJ0479V2 - PCBs.doc 29.03.2010 Page 2/7 Figure 3 Antenna with Card Reader, RJ0479:389.25 RevA, Side with components Figure 4 Antenna with Card Reader, RJ0479:389.25 RevA, Rear Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 Internal photos RJ0479V2 - PCBs.doc 29.03.2010 Page 3/7 Figure 5 Power PCB with LED and lens, RJ0479:312.25 RevD, Side with components and shield Figure 6 Power PCB with LED and lens, RJ0479:312.25 RevD, Side with components after removal of the shield Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 Internal photos RJ0479V2 - PCBs.doc 29.03.2010 Page 4/7 Figure 7 Power PCB with LED and lens, RJ0479:312.25 RevD, Rear Figure 8 Power PCB without lens, RJ0479:312.25 RevD, Side with components Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 Internal photos RJ0479V2 - PCBs.doc 29.03.2010 Page 5/7 Figure 9 Illumination PCB, RJ0479:324.25 RevE, Side with components Figure 10 Illumination PCB, RJ0479:324.25 RevE, Rear Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 Internal photos RJ0479V2 - PCBs.doc 29.03.2010 Page 6/7 Figure 11 Base Cam RJ0479:302.25AEZ01 (with shield), Side with components Figure 12 Base Cam RJ0479:302.25AEZ01 (without shield), Side with components Cross Match Technologies GmbH FCC ID: WO8RJ0479V2 Product Name: D Scan Authenticator CF IC: 7944A-RJ0479V2 Model No.: RJ0479 Version 2 Internal photos RJ0479V2 - PCBs.doc 29.03.2010 Page 7/7 Figure 13 Base Cam RJ0479:302.25AEZ01, Rear

VDE Testing and Certification Institute File number: 2295300-3250-0011/124999 (Testreport-FG43-6-124999.doc) Page 2 of 53 Contents Directory 1 Description of the sample (EUT)..................................................................3 2 Summary of test results ...............................................................................6 2.1 Test results for intentional radiators ...................................................................... 6 2.2 Test results for unintentional radiators.................................................................. 6 3 Test and measuring results for intentional radiators ................................7 3.1 AC Power Line Conducted Emissions (150 kHz - 30 MHz) ................................... 7 3.1.1 Summary ...................................................................................................................................7 3.1.2 Detailed test protocol ................................................................................................................8 3.2 Radiated emissions within the band 13.110-14.010 MHz...................................... 9 3.3 Radiated emissions outside the band 13.110-14.010 MHz ................................. 14 3.3.1 Frequency range 9 kHz ... 30 MHz .........................................................................................14 3.3.2 Frequency range 30 MHz ... 1000 MHz .................................................................................16 3.3.3 Frequency range 1 GHz ... 5 GHz..........................................................................................20 3.4 Frequency stability under extreme conditions.................................................... 24 3.5 Variation of the radiated signal level of the fundamental frequency component caused by variation of the input power ........................................... 27 4 Test and measuring results for unintentional radiators ..........................28 4.1 AC Power Line Conducted Emissions (150 kHz - 30 MHz) ................................. 28 4.1.1 Summary .................................................................................................................................28 4.1.2 Detailed test protocol ..............................................................................................................29 4.2 Measurement of the electric field strength (30 MHz – 1000 MHz) ...................... 30 4.2.1 Summary ..........................................................…
