WP8-26-S2WCRGBPro Wireless Controller for Switch and Switch 2&PC

 Pulse Glow Pro Wireless Controller / Pulse Pro Wireless Controller for Nintendo Switch, Switch 2 & PC Connect to NS/OLED/NS 2 Console-Wireless Mode Note: 1. Do not touch the stick while connected. 2. Turn o Airplane Mode in the console's system settings. Step 1: On the Console home screen, click the "Controllers" option, then click the "Change Grip/Order" option. Step 2: Press and hold the Homebutton on the controller for 3–5 seconds, the indicator light changes from a slow ash to a fast ash, and the controller will then automatically connect to the console. Once the connection is established, the indicator light will remain on. Connect to NS/OLED/NS 2 Console-Wired Mode Joystick Light Settings - Only applies to 26-S2WCRGB-RG-BLK Connect to Windows Note: Open the console's system settings, select and open "Controllers and Sensors" (or "Controllers and Accessories") – "Pro Controller Wired Communication" Place the game console into the dock, ensuring that the dock is plugged in and the console is not turned o, then use the included charging cable (data cable) to connect the controller to the dock. Once the connection is established, unplug the data cable, and the controller will switch to a wireless connection. Press the SET button on the back of the controller once to cycle through the lighting modes: Colorful, Single Color, Slow Color Change, and O. In single color mode, hold down the SET button and briey press the D-pad left or right to cycle through colors. There are seven colors to choose from: red, orange, yellow, green, cyan, blue, and purple. Hold down the SET button and briey press the directional pad up or down to adjust the brightness. There are three brightness levels: 30%, 60%, and 100%. 1. 2. 3. To connect to Windows PC (wired mode): Power o the controller, connect it to your PC via USB cable (default Xinput mode) — LED2 will ash during connection and remain steadily lit when fully charged. To switch to Dinput mode, press and hold "+" and "-" simultaneously for 5 seconds, then LED3 will light up (ashing) and stay solidly on when fully charged. To connect to Windows PC (wireless mode): Power o the controller, then press and hold R + HOME to enter pairing mode (channel LED ashes rapidly), select "Xbox Wireless Controller" on your PC and click Pair, and the connection is conrmed when LED2 remains solidly on. Function Settings Back Button Settings Turbo Settings The following buttons can be mapped to the GL/GR back buttons: A/B/X/Y/L/ZL/R/ZR/Left stick/Right stick/D-pad (up, down, left, right). Each back button can be assigned up to 16 button values, and the time intervals between them are recorded. Procedure: Hold down the GL (or GR) button and the M button simultaneously for 3 seconds until the controller’s indicator light ashes. Then press the buttons you want to assign (e.g., A-B), followed by a single press of the GL (or GR) button. The controller will vibrate once, indicating the setup is complete (at this point, the GL (or GR) button functions as A-B). Clearing the back button function: Press and hold the GL (or GR) button and the M button simultaneously for 3 seconds until the controller’s indicator light ashes. Then, briey press the GL (or GR) button to clear the GL (or GR) button. 1. 2. 3. 4. The buttons that support turbo functionality are: A/B/X/Y/L/ZL/R/ZR. Using the A button as an example, here are the steps: Step 1: Simultaneously press and release the M and A buttons to activate manual turbo for the A button. While holding down the A button, the controller will continuously and rapidly execute the A function; Step 2: Repeat the operation (simultaneously press and release the M and A buttons) to activate automatic turbo. You do not need to hold down the A button; the controller will automatically and continuously execute the A function; Step 3: Repeat the operation once more to disable the turbo function. 1. 2. Turbo Speed Adjustment: Hold down the M button and push the left stick to the left once to decrease the speed by one level; hold down the M button and push the left stick to the right once to increase the speed by one level. There are three speed levels: Low (5 pulses per second), Medium (12 pulses per second), and High (20 pulses per second). The GL and GR button can be used in combination with the M button to enable cyclic output: Suppose the GL button has been programmed with the A-B key value. If you briey press the M and GL buttons simultaneously, the system will automatically cycle through A/B/A/B/A/B...... . Pressing the M and GL buttons simultaneously again will cancel the cyclic output. Press the M button and the Capture button at the same time to clear all turbo settings. 3. 4. 5. Summary of Troubleshooting Methods Solution for can’t connecting to the NS console Make sure the controller has enough power. Use the data cable to connect the controller for the rst time. The bluetooth signal may be blocked or interfered(For example, there are too many wireless devices nearby), you can try again elsewhere (leave away from the spot to a distance about 30ft) or at other times. Clear the connected devices on the console. Steps: Open "System Settings - Controllers and Sensors - Disconnect Controllers", then press and hold the X button. 1. 2. 3. 4. Solution for Joystick Stuck 6-Axis Gyroscope Calibbration Joystick/Trigger Button Calibration Controller Reset If the six-axis gyroscope exhibits issues such as skew or drift, you can calibrate it using the Switch console or the controller itself. Here are the steps to calibrate the controller: With the controller powered o, place it at on a level surface. Press and hold the B button, the - button, and the Home button simultaneously. Once the indicator light ashes, press the + button once. Wait one or two seconds to complete the calibration. You can try to push the stick to the center position, and press down the stick vertically from the top of the stick. He…

Text truncated - open the document above for the full version.

Rev 1/26/2023 ZEN Factory Group (Asia) Limited Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 08-22-2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: WP8-26-S2WCRGB [ZEN Factory Group (Asia) Limited] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [ZEN Factory Group (Asia) Limited] certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) (Applicant printed name) Shirley Luo Rev 1/26/2023 ZEN Factory Group (Asia) Limited Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 08-22-2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: WP8-26-S2WCRGB [ZEN Factory Group (Asia) Limited] ce8rtifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Shirley Luo

ZEN Factory Group (Asia) Limited U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: August 22, 2026 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: WP8-26-S2WCRGB ZEN Factory Group (Asia) Limited(“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: ZEN Factory Group (Asia) Limited FRN: 0018116533 Address: A5-B, 12/F, Block A, Hong Kong Industrial Centre, 489-491 Castle Peak Road, Kowloon, Hong Kong Signature: Contact Person: Shirley Luo Tel: (86)0760-28106482 Email: [email protected]

ZEN Factory Group (Asia) Limited Date: August 22, 2026 Product Model Number: 26-S2WCRGB-RG-BLK, 26-S2WC-RG-BLK FCC ID: WP8-26-S2WCRGB To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. Signature： By: Shirley Luo Title: Manager Tel.: (86)0760-28106482 Email: [email protected] On behalf of: ZEN Factory Group (Asia) Limited

ZEN Factory Group (Asia) Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 22, 2026 Subject; Request for Confidentiality FCC ID: WP8-26-S2WCRGB To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature： By: Shirley Luo Title: Manager

ZEN Factory Group (Asia) Limited Model Difference Statement Date: August 22, 2026 FCC ID: WP8-26-S2WCRGB Dear Sir/Madam, Added models 26-S2WC-RG-BLK basis of the original product 26-S2WCRGB-RG-BLK. The model names of the listed series models are different from the main model, and the main model has a backlight while the series models do not. However, the circuits and electronic structures are the same, as declared by the manufacturer. Sincerely, Name: Shirley Luo Title: Manager Company name: ZEN Factory Group (Asia) Limited Address: A5-B, 12/F, Block A, Hong Kong Industrial Centre, 489-491 Castle Peak Road, Kowloon, Hong Kong

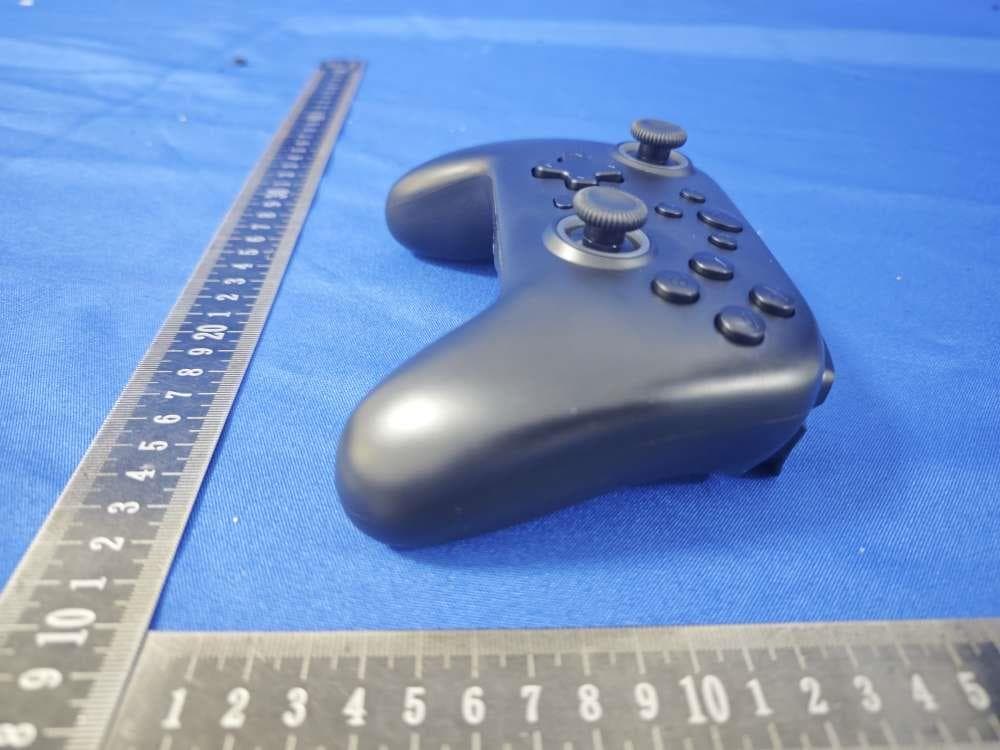

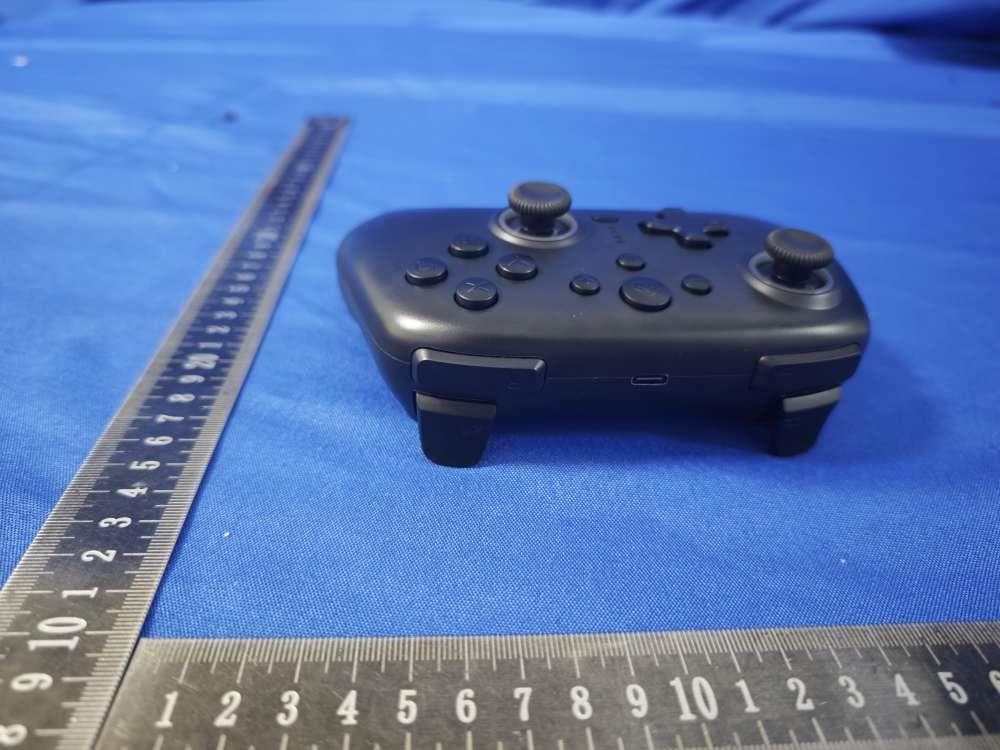

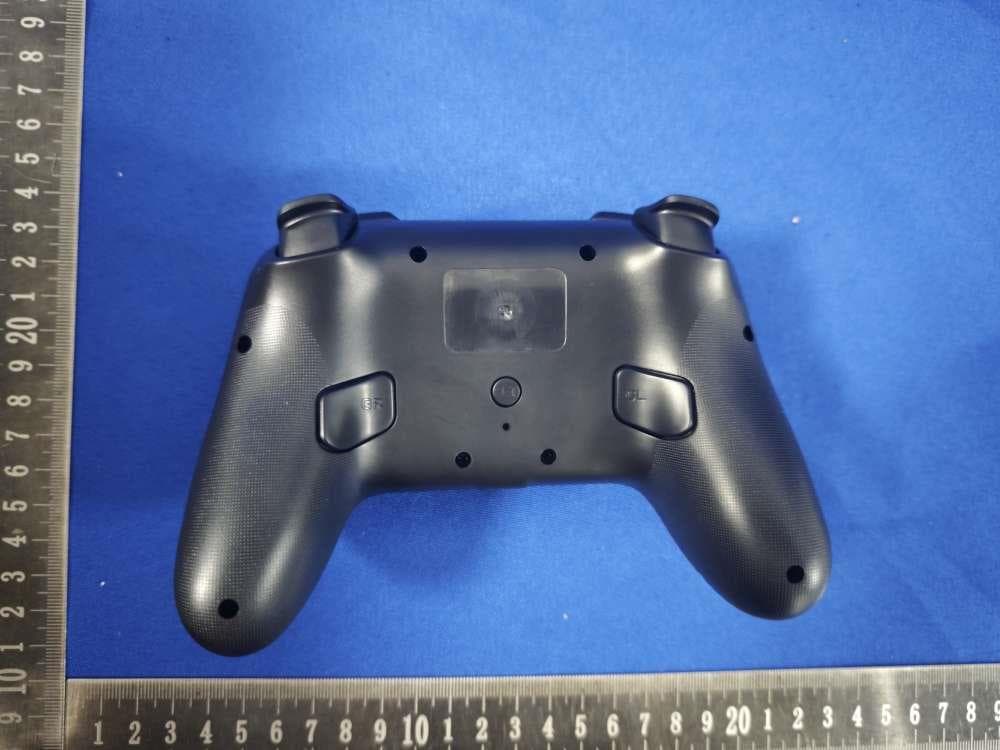

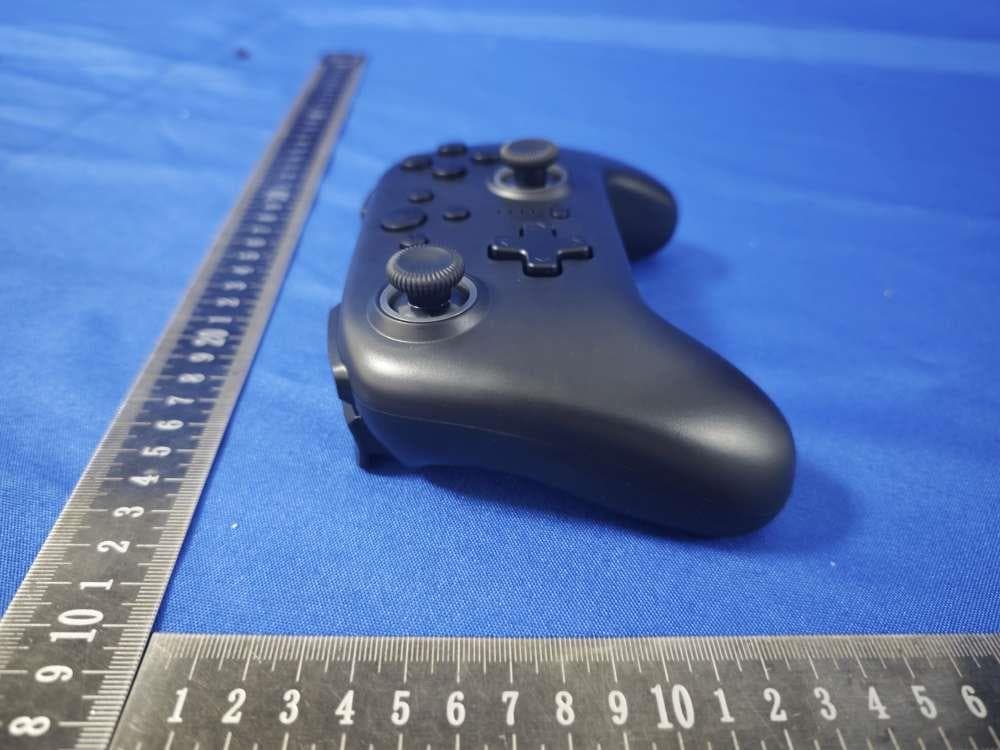

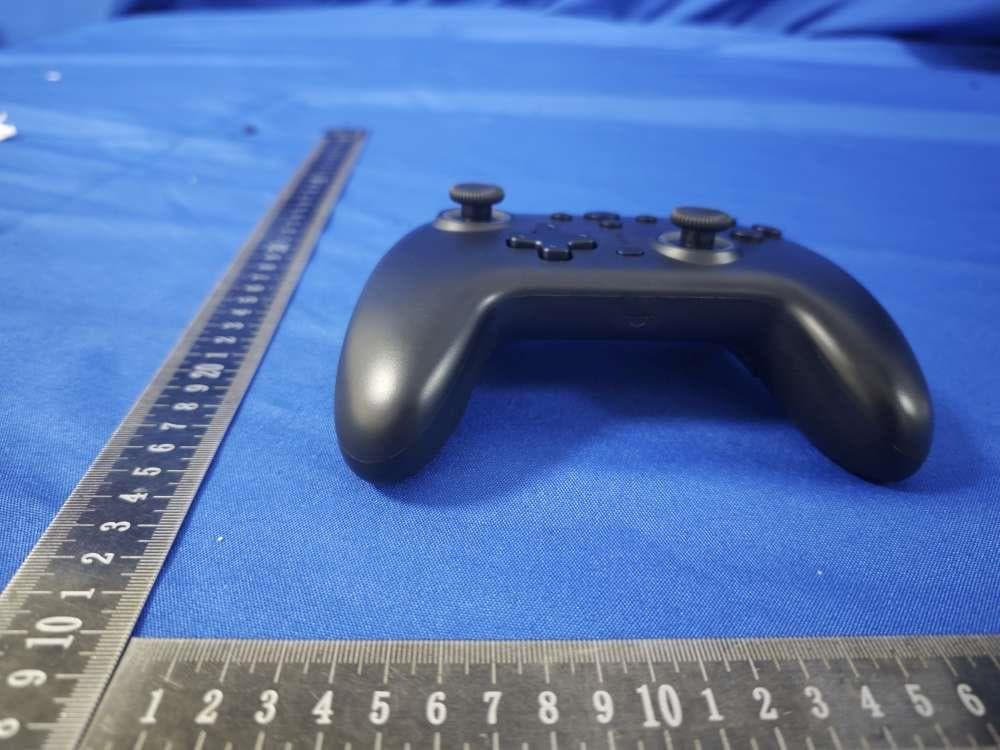

Report No: DSP26080068-1 FCC ID: WP8-26-S2WCRGB Annex of Test Report Annex A. EUT External Photos Model: 26-S2WCRGB-RG-BLK EUT View 1 EUT View 2 Report No: DSP26080068-1 FCC ID: WP8-26-S2WCRGB Annex of Test Report EUT View 3 EUT View 4 Report No: DSP26080068-1 FCC ID: WP8-26-S2WCRGB Annex of Test Report EUT View 5 EUT View 6

Report No: DSP26080068-1 FCC ID: WP8-26-S2WCRGB Annex of Test Report Annex D. Label and Information FCC Label Sample Label Size:32mm*18mm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

Report No: DSP26080068-1 FCC ID: WP8-26-S2WCRGB Annex of Test Report Annex B. EUT Internal Photos Model: 26-S2WCRGB-RG-BLK EUT Internal View 1 EUT Internal View 2 Report No: DSP26080068-1 FCC ID: WP8-26-S2WCRGB Annex of Test Report EUT Internal View 3 EUT Internal View 4 PCB Antenna Report No: DSP26080068-1 FCC ID: WP8-26-S2WCRGB Annex of Test Report EUT Internal View 5

FCC ID: WP8-26-S2WCRGB RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BR+EDR Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 2.82 2(±1) 3 1.995 2480 5 0.6283 3.0 So a SAR test is not required

Report No: DSP26080068-1 FCC Test Report Page 1 of 51 FCC TEST REPORT FCC ID: WP8-26-S2WCRGB Report No. : DSP26080068-1 Applicant : ZEN Factory Group (Asia) Limited Product Name : Pro Wireless Controller for Switch and Switch 2&PC Model Name : 26-S2WCRGB-RG-BLK Test Standard : FCC Part 15.247 Date of Issue : 2026-08-16 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.zrlklab.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: DSP26080068-1 FCC Test Report Page 2 of 51 Test Report Basic Information Applicant..................................: ZEN Factory Group (Asia) Limited Address of Applicant...............: A5-B, 12/F, Block A, Hong Kong Industrial Centre, 489-491 Castle Peak Road, Kowloon, Hong Kong Manufacturer..........................: ZEN Factory Group (Asia) Limited Address of Manufacturer........: A5-B, 12/F, Block A, Hong Kong Industrial Centre, 489-491 Castle Peak Road, Kowloon, Hong Kong Product Name.........................: Pro Wireless Controller for Switch and Switch 2&PC Brand Name.............................: - Main Model..............................: 26-S2WCRGB-RG-BLK Series Models..........................: 26-S2WC-RG-BLK Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2020 + Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024 Date of Test .............................: 2026-08-04 to 2026-08-14 Test Result...............................: PASS Tested By ................................: (Coke Huang) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: DSP26080068-1 FCC Test Report Page 3 of 51 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 22 6.1 Standard and Limit.............................................................................................................................................. 22 6.2 Test Procedure.................................................................................................................................................... 22 6.3 Test Data and Results .................................................…

Text truncated - open the document above for the full version.

1 Shenzh en Lin Jian Electronic Technology Co., Ltd. No. 501, 5th Floor, Science Park, No. 1, Dongshang ang, Xixiang Street, Bao'an District, Shenzhen City Antenna Performance Test Specification Document 2 APPlications ※Bluetooth Home RF ※ISM band 2.4GHz applications 1.Dimensions 2.Specifications number Item Specifications 1 Working Central Frequency 2441 MHz 2 Band Width (2402-2480)MHz 3 Gain 3dBi 4 VSWR ≤2.0 5 Antenna type PCB antenna 6 Azimuth Beam width Omni‐directional 7 Impedance 50 Ω 8 Modulation mode GFSK 3 3.Instrument testing, software simulation parameters ①VSWR Mkr1: 2397MHz 1.47 Mkr2: 2450MHz 1.51 Mkr3: 2482 MHz 1.59 ②Smith Char Mkr1: 2397MHz 73.4 Mkr2: 2450MHz 62.7 Mkr3: 2482MHz 66.8 4 ③Return Loss Mkr1: 2397MHz -15 Mkr2: 2450MHz -18 Mkr3: 2482 MHz -16 ④Smith Char仿真 Mkr1: 2400MHz 1.234 Mkr2: 2500MHz 1.051 Mkr3: 2600MHz 1.322 5 ⑤Return Loss Mkr1: 2400MHz -19.59 Mkr2: 2450MHz -27.70 Mkr3: 2500MHz - 31.97 Mkr4: 2550MHz -21.83 ⑥Phase Mkr1: 2400MHz -54.89 Mkr2: 2500MHz -82.03 Mkr3: 2600MHz -102.6 6 4. Radiation Pattems XY-plane XZ-plane 7 YZ-plane 3D Radiation field pattern diagram

Report No: DSP26080068-1 FCC ID: WP8-26-S2WCRGB Annex of Test Report Annex C. Test Photos Conducted Emission Test View 1 Radiated Emission Test View Below 1GHz Report No: DSP26080068-1 FCC ID: WP8-26-S2WCRGB Annex of Test Report Radiated Emission Test View Above 1GHz
