WPX-ATGBAir-To-Ground TransceiverModular

The master version of this document resides on the Gogo LLC Configuration Management Server. Printed copies are considered uncontrolled, until verified as current by comparing with the master. It is the responsibility of the user to verify the most current revision. Gogo LLC Confidential and Proprietary Template D13480, Rev E CURRENT REVISION REV ECO NUMBER EFFECTIVE DATE ORIGINATOR A C01395 2008-01-16 Brad Schnair B C01462 2008-02-21 Brad Schnair C C01794 2008-08-18 Brad Schnair D C02220 2008-11-20 Brad Schnair E C05139 2010-04-15 Brad Schnair F C 2014-12-31 Joseph Tobin INFORMATION IN THIS DOCUMENT IS PROPRIETARY. IT IS ISSUED IN CONFIDENCE AND SHALL NOT BE USED AS A BASIS FOR MANUFACTURE WITHOUT WRITTEN PERMISSION FROM GOGO LLC Gogo LLC 1250 N. Arlington Heights Rd. Suite 500 Itasca, IL 60143 Gogo LLC 814 Thorndale Avenue Bensenville, IL 60106 APPROVALS: TITLE: PREPARED BY JOSEPH TOBIN ABS OPERATIONAL USER’S MANUAL DOCUMENT APPROVALS ARE ELECTRONIC AND ARE MAINTAINED IN THE CONFIGURATION MANAGEMENT DATABASE SYSTEM (AGILE) SIZE A CAGE CODE 1NQ67 DOCUMENT NUMBER D12751 REV F SH 1 OF 30 Itasca, IL Bensenville, IL SIZE A CAGE CODE 1NQ67 DOCUMENT NUMBER D12751 REV F SH 2 of 28 Title: ABS OPERATIONAL USER’S MANUAL The master version of this document resides on the Gogo LLC Configuration Management Server. Printed copies are considered uncontrolled, until verified as current by comparing with the master. It is the responsibility of the user to verify the most current revision. Gogo LLC Confidential and Proprietary Template D13480, Rev E Change History Revision Date Description of Change Approval A 2008-01-16 New/Initial Release Brad Schnair B 2008-02-21 Added menu-based software reset, section 12 Brad Schnair C 2008-08-18 ABS Master Switch: Added statement regarding system start-up time Section 4 - Placing a Call: Added statement regarding availability of Direct Dialing Section 10 - Setup Menu, Option 2 ABS Status: Added description of features now available Section 11 - ABS Corded SIP Handset Icons: Added description of ABS Link Status Icon Brad Schnair D 2008-11-20 ABS Master Switch: Removed reference to switch illumination Section 1 - Powering On: Added statements for Rev E (or earlier) handsets and Rev F (or later) handsets Section 1 - Added instructions for powering Off Section 2 - Idle Displays: Added description of Display Blanking and recovery Section 4 - Placing a Call: Added instructions for ending a direct-dialed call that has been blocked Section 7 - Receiving a Call: Added statement regarding the availability of incoming calls Section 10, Option 1, Item 6 - Display Blanking Timer: Added statement that the “Never” option is not recommended Section 13 (new) - Comm Control Menu: Inserted section that adds description of FCN 8 menu for control of WiFi SSIDs Brad Schnair Itasca, IL Bensenville, IL SIZE A CAGE CODE 1NQ67 DOCUMENT NUMBER D12751 REV F SH 3 of 28 Title: ABS OPERATIONAL USER’S MANUAL The master version of this document resides on the Gogo LLC Configuration Management Server. Printed copies are considered uncontrolled, until verified as current by comparing with the master. It is the responsibility of the user to verify the most current revision. Gogo LLC Confidential and Proprietary Template D13480, Rev E Change History (continued) Revision Date Description of Change Approval E 2010-04-15 Section 1 - Replaced Display #1 picture with “Axxess” boot screen Section 1 - Removed note about display blanking during handset boot-up Section 1 - Added guidance that handsets may power off during brief power interruptions Section 2 - Deleted references to TM radio link Sections 2, 4, and 7 - Added guidance that phone calls are not supported below 10,000 feet AGL Section 12 - Changed section name from “Handset Software Reboot” to “Handset Reboot”. Added preferred handset reboot method for Revision F (or later) handsets. Removed the previous revision’s Section 13 “Communication Control Menu” and set the FCN 8 menu status back to “For Future Use” Brad Schnair F 2014-12-31 Updated Template Replaced Aircell with Gogo Pg 4 - Removed Aircell Logo Pg 6 - Added Transmitter Section Joseph Tobin Itasca, IL Bensenville, IL SIZE A CAGE CODE 1NQ67 DOCUMENT NUMBER D12751 REV F SH 4 of 28 Title: ABS OPERATIONAL USER’S MANUAL The master version of this document resides on the Gogo LLC Configuration Management Server. Printed copies are considered uncontrolled, until verified as current by comparing with the master. It is the responsibility of the user to verify the most current revision. Gogo LLC Confidential and Proprietary Template D13480, Rev E ABS Operational User’s Manual Revision F Dec 31, 2014 Itasca, IL Bensenville, IL SIZE A CAGE CODE 1NQ67 DOCUMENT NUMBER D12751 REV F SH 5 of 28 Title: ABS OPERATIONAL USER’S MANUAL The master version of this document resides on the Gogo LLC Configuration Management Server. Printed copies are considered uncontrolled, until verified as current by comparing with the master. It is the responsibility of the user to verify the most current revision. Gogo LLC Confidential and Proprietary Template D13480, Rev E Table of Contents Transmitters ................................................................................................................................................. 6 ABS Master Switch ...................................................................................................................................... 7 ABS Breakers ............................................................................................................................................... 7 ABS Corded SIP Handset ............................................................................................................................ 8 1. Powering On and Off ......................................................................................................................... 9 2. Idle Displays ................................................................…

Text truncated - open the document above for the full version.

FCC ID: WPX-ATGB Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided) All inputs to the modules are buffered. 3 Have it own power supply regulation The device contains internal power regulation. 4 Meet the antenna requirements of Section 15.203 The device is used in professional installations. Appropriate RF loss between the module and the antennas will be installed to operate within FCC ERP limits. The required losses for the different antennas are: Omni (Small): 1.1 dB Omni (Large): 4.4 dB Side Mount: 3.4 dB 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested stand- alone configuration. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format are included in the filing. One of label is to be placed on the module and the other label is to be placed on the outside of the host. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. The module is intalled exclusively within Gogo’s avionics products for use within Gogo’s Air-To- Ground Network. Gogo’s software functions control the operation of the module to operate within FCC rules. 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). See SAR test report The antennas are installed external to the aircraft. To maintain the RF safety exposure of 52 cm, Gogo’s software prohibits transmission when the aircraft is on the ground.

1 Daniel Park To:Joe Tobin Subject:RE: GoGo Inc. Project 13N16402 Manual user on Part 15 statement explanation from reviewer. From:Joe Tobin [mailto:[email protected]] Sent:Monday, January 19, 2015 9:53 AM To:Kanamatsu, Ayako Cc:Rincand, Grace; Hoque, Claire Subject:RE: GoGo Inc. Project 13N16402 Manual user on Part 15 statement explanation from reviewer. Ayako, The device is used exclusively on aircraft under 15.103(a). Regards, Joe From:Kanamatsu, Ayako [mailto:[email protected]] Sent:Friday, January 16, 2015 8:51 PM To:Joe Tobin Cc:Rincand, Grace; Hoque,Claire Subject:RE: GoGo Inc. Project 13N16402 Manual user on Part 15 statement explanation from reviewer. Hi Joe, I’m sorry for keep you waiting.Please read the explanation below from the reviewer. Let me know how I can help you. Thank you, Ayako Kanamatsu 1.I am still waiting for the clear answer to why Part 15 statement need to be in present when you are submitting for Part 22. <Response form the reviewer> I am sure the device also contains digital circuitry which would make it subject to Part15 Subpart B (verification most likely). They can provide a statement to confirm that the manual and product label will contain the relevant statements per FCC Part 15 OR They can explain that they are exempt from digital device requirements because the device is one of the 15.103 equipment categories. §15.103Exempted devices. The following devices are subject only to the general conditions of operation in §§15.5 and 15.29 and are exempt from the specific technical standards and other requirements contained in this part. The operator of the 2 exempted device shall be required to stop operating the device upon a finding by the Commission or its representative that the device is causing harmful interference. Operation shall not resume until the condition causing the harmful interference has been corrected. Although not mandatory, itis strongly recommended that the manufacturer of an exempted device endeavor to have the device meet the specific technical standards in this part. (a) A digital device utilized exclusively in any transportation vehicle including motor vehicles and aircraft. (b) A digital device used exclusively as an electronic control or power system utilized by a public utility or in an industrial plant. The term public utility includes equipment only to the extent that it is in a dedicated building or large room owned or leased by the utility and does not extend to equipment installed in a subscriber's facility. (c) A digital device used exclusively as industrial, commercial, or medical test equipment. (d) A digital device utilized exclusively in an appliance, e.g., microwave oven, dishwasher, clothes dryer, air conditioner (central or window), etc. (e) Specialized medical digital devices (generally used at the direction of or under the supervision of a licensed health care practitioner) whether used in a patient's home or a health care facility. Non-specialized medical devices, i.e., devices marketed through retail channels for use by the general public, are not exempted. This exemption also does not apply to digital devices used for record keeping or any purpose not directly connected with medical treatment. (f) Digital devices that have a power consumption not exceeding 6 nW. (g) Joystick controllers or similar devices, such as a mouse, used with digital devices but which contain only non- digital circuitryor a simple circuit to convert the signal to the format required (e.g., an integrated circuit for analog to digital conversion) are viewed as passive add-on devices, not themselves directly subject to the technical standards or the equipment authorizationrequirements. (h) Digital devices in which both the highest frequency generated and the highest frequency used are less than 1.705 MHz and which do not operate from the AC power lines or contain provisions for operation while connected to the AC power lines. Digital devices that include, or make provision for the use of, battery eliminators, AC adaptors or battery chargers which permit operation while charging or that connect to the AC power lines indirectly, obtaining their power through another device which is connected to the AC power lines, do not fall under this exemption. (i) Responsible parties should note that equipment containing more than one device is not exempt from the technical standards in this part unless all of the devices in the equipment meet the criteria for exemption. If only one of the included devices qualifies for exemption, the remainder of the equipment must comply with any applicable regulations. If a device performs more than one function and all of those functions do not meetthe criteria for exemption, the device does not qualify for inclusion under the exemptions. From:Kanamatsu, Ayako Sent:Friday, January 16, 2015 2:44 PM To:'Joe Tobin' Cc:Rincand, Grace; Hoque, Claire Subject:RE: GoGo Inc. Project 13N16402 Thank you I responded back with your response.

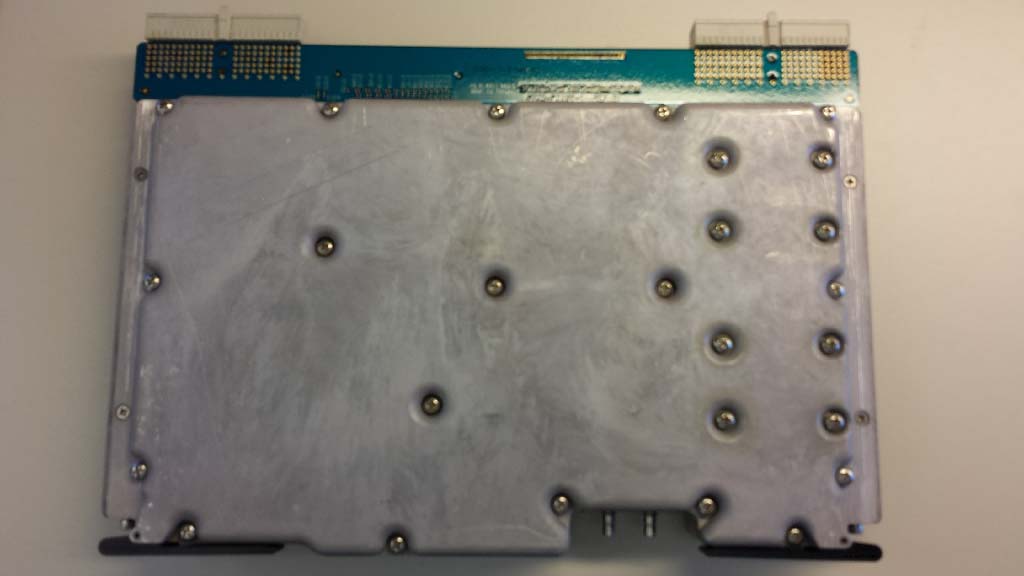

Top Side Back Side

The following label will be applied to the aircard: Example of label on the exterior of the aircard: FCC ID WPX-ATGB IC ID 8014A-ATGB Arial Font 9pt. Permanent Adhesive (3M 9671LE or Equivalent) Corners may be rounded .375” 1.64” Drawing Not to Scale The following label will be applied to the outside of the enclosure: Example of label on the exterior of the enclosure: This Device Contains the Following Transmitters: FCC ID WPX-ATGB IC ID 8014A-ATGB Arial Font 9pt. Permanent Adhesive (3M 9671LE or Equivalent) Corners may be rounded .5” 1.64” Drawing Not to Scale

Top Side Back Side

MPE Calculation Applicant : Gogo Type of Equipment : Air-to-Ground Transceiver Model No. : ATGB FCC ID : WPX-ATGB RF Exposure Calculations: FCC 2.1091 The following information provides the minimum separation distance for the highest gain antenna provided with the as calculated from FCC OET Bulletin 65 Appendix A, T able (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 0.6mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = EIRP/(4*Pi*D^2) Power ERP W: 12 Power ERP dBm: 40.79181 Power EiRP mW: 19687.08 Power EiRP dBm: 42.94181 Distance cm: 52 S = Power Density mW/cm^2: 0.579675 This above assumes worst case output power of 12W ERP. The minimum separation distance that must be maintained between bystanders and the antenna must be 52cm. Because of the location of the antenna that distance will be easily maintained at all times.

FCC 47 CFR PART 22 SUBPART G INDUSTRY CANADA RSS-127 ISSUE 1 CERTIFICATION TEST REPORT FOR Air-To-Ground Transceiver MODEL NUMBER: ATGB FCC ID: WPX-ATGB IC: 8014A-ATGB REPORT NUMBER: ISSUE DATE: July 31, 2014 Prepared for GOGO Inc. 1250 N. Arlington Heights Road Itasca, IL 60143 Prepared by UL VERIFICATION SERVICES INC. 333 PFINGSTEN ROAD NORTHBROOK, IL, 60062, U.S.A. TEL: (847) 272-8800 REPORT NO: 10107243 DATE: July 31, 2014 FCC ID: WPX-ATGB IC: 8014A-ATGB Page 2 of 38 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Road, Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC. Revision History Rev. Issue Date Revisions Revised By -- 07-21- 2014 Initial Issue BM REPORT NO: 10107243 DATE: July 31, 2014 FCC ID: WPX-ATGB IC: 8014A-ATGB Page 3 of 38 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Road, Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION ................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................. 5 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 5 4.2. SAMPLE CALCULATION ............................................................................................... 5 4.3. MEASUREMENT UNCERTAINTY ................................................................................. 5 5. EQUIPMENT UNDER TEST ................................................................................................. 6 5.1. DESCRIPTION OF EUT ................................................................................................. 6 5.2. MAXIMUM OUTPUT POWER ........................................................................................ 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................ 6 5.4. SOFTWARE AND FIRMWARE ...................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE ........................................................... 6 5.6. DESCRIPTION OF TEST SETUP .................................................................................. 7 5.7. TEST AND MEASUREMENT EQUIPMENT .................................................................. 9 5.7.1. OCCUPIED BANDWIDTH .................................................................................... 10 5.7.2. OUTPUT POWER ................................................................................................. 13 5.7.3. FREQUENCY STABILITY ..................................................................................... 26 5.7.4. SPURIOUS EMISSION AT ANTENNA TERMINAL .............................................. 27 5.7.5. FIELD STRENGTH OF SPURIOUS RADIATION ................................................. 32 6. SETUP PHOTOS ................................................................................................................ 35 REPORT NO: 10107243 DATE: July 31, 2014 FCC ID: WPX-ATGB IC: 8014A-ATGB Page 4 of 38 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Road, Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: GOGO Inc. 1250 N. Arlington Heights Road Itasca, IL 60143 EUT DESCRIPTION: Air-To-Ground transceiver MODEL: ATGB SERIAL NUMBER: Not Provided DATE TESTED: January 2014 to July 2014 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 22 Subpart G Complaint INDUSTRY CANADA RSS-127 Issue 1 Complaint UL Verification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Verification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Verification Services Inc. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL CCS By: Tested By: Michael Ferrer Bart Mucha EMC ENGINEER EMC ENGINEER UL Verification Services Inc. UL Verification Services Inc. REPORT NO: 10107243 DATE: July 31, 2014 FCC ID: WPX-ATGB IC: 8014A-ATGB Page 5 of 38 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Road, Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with TIA-603-C, FCC CFR 47 Part 2, FCC CFR 47 Part 22G, RSS-127 Issue 1, FCC Guidance for Certification of Licensed Digital Transmitters (971168 D01 Power Meas license Digital Systems V02r01). 3. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to c…

Text truncated - open the document above for the full version.

REPORT NO: 10107243 DATE: July 31, 2014 FCC ID: WPX-ATGB IC: 8014A-ATGB Page 35 of 38 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Road, Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC. 6. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP and Temperature Stability Measurement Setup * antenna port measurements for power and bandwidth were done outside of the chamber, but in the same configuration / connection setup as above. REPORT NO: 10107243 DATE: July 31, 2014 FCC ID: WPX-ATGB IC: 8014A-ATGB Page 36 of 38 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Road, Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC. RADIATED RF MEASUREMENT SETUP FOR Side Antenna – Showing Antenna Position REPORT NO: 10107243 DATE: July 31, 2014 FCC ID: WPX-ATGB IC: 8014A-ATGB Page 37 of 38 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Road, Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC. RADIATED RF MEASUREMENT SETUP FOR Large Omni Antenna – Showing Antenna Position REPORT NO: 10107243 DATE: July 31, 2014 FCC ID: WPX-ATGB IC: 8014A-ATGB Page 38 of 38 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Road, Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC. RADIATED RF MEASUREMENT SETUP FOR Small Omni Antenna – Showing Antenna Position END OF REPORT
