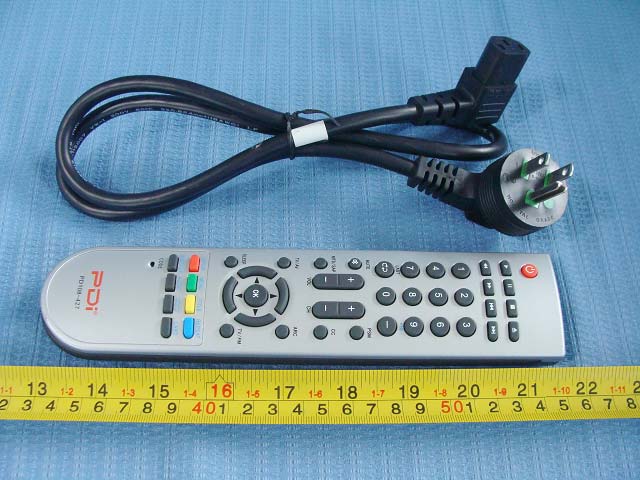

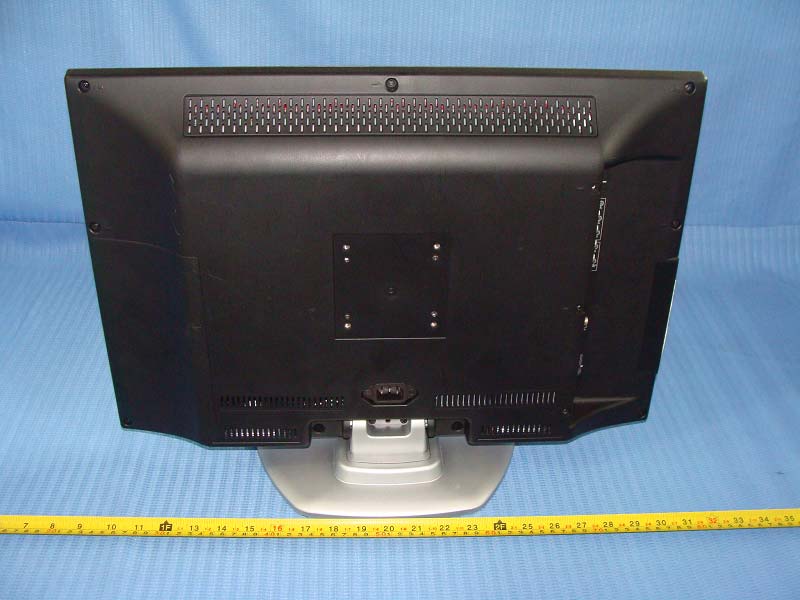

WQ5CV22Hospital Grade LCD TV Receiver

Quick Start Guide CV22 Television Model: CV22 WARNINGS To reduce the risk of electric shock, DO NOT performs any servicing other than what is contained in the operating instructions, unless you are qualified to do so. This symbol is intended to alert the user of the presence of un-insulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. NOTE TO CABLE TV INSTALLER This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electrical Code. The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical. SAFETY INSTRUCTIONS INSTRUCTIONS Be sure to read, follow, and keep these instructions. Heed all the warnings. MAINTENANCE AND SERVICING Servicing is required when the TV has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the TV, the TV has been exposed to rain or moisture, does not operate normally, or has been dropped. Never remove the back cover of the TV; this can expose you to high voltage and other hazards. If the TV does not operate properly, unplug it and call an authorized service center. CAUTION: These servicing instructions are for use by qualified service personnel only. POWER CORD Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and the point where they exit from the apparatus. To avoid any malfunctions of the unit and unwanted electric shock or fire accidents, please observe the following: • Hold the plug firmly when connecting or disconnecting the AC power cord to/from an outlet. • DO NOT connect or disconnect the AC power cord when your hands are wet. • Keep the AC power cord away from heating appliances. • Never put any heavy objects on the AC power cord. • DO NOT attempt to repair or reconstruct the AC power cord in any way under any circumstance. • Remove dust, dirt, etc. from the plug periodically. • If the unit has been dropped or otherwise damaged, turn off the power and disconnect the AC power cord from the outlet. • If smoke, odors or noises are emitting from the unit, disconnect the AC power cord immediately. PLACEMENT Avoid placing the unit in surroundings with: • Direct sunlight or heat sources, like radiators or ovens. • High temperature (over 40 C) or high humidity (over 90%). • Excessive dust. • Electro-static effect. • Vibration, impact, or tilted surfaces. Otherwise the internal parts may be damaged. NON-USE PERIODS • Turn off the power when the unit is not used. • It should be unplugged from the AC outlet when the unit is idle for a long period of time. STACKING Place the unit in a horizontal place, and DO NOT lay anything heavy on it. CONDENSATION Moisture may condense on the lens if placed in a steamy or very humid room or if moved from a cold environment to a warm one. If moisture appears inside this unit, it may not operate normally. In this case, unplug the power cord and wait for about 1 hour to let it dry. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. CAUTION: DO NOT defeat the safety of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two plates and a third grounding prong. The wide blade or the third prong is provided for your safety. If the plug does not fit into your outlet, consult an electrician. RAIN AND MOISTURE WARNING: To avoid the hazards of fire or electrical shock, DO NOT expose this TV to rain or moisture. INSTALLATION DO NOT block any ventilation openings. DO NOT install near any heat source such as radiators, heat registers, stoves, or other apparatus that produce heat. WET LOCATION The TV SHOULD NOT is exposed to dripping or splashing. Objects filled with liquids, such as vases, SHOULD NOT are placed on the TV. OXYGEN ENVIRONMENT WARNING: DO NOT use in an oxygen tent or an oxygen chamber. Such use can cause a fire hazard. CLEANING AND DISINFECTION Clean the exterior of this TV by removing dust with a lint-free cloth. CAUTION: DO NOT use abrasive or chemical cleaning agents. Clean only with a dry cloth. PRODUCT MODIFICATION DO NOT attempt to modify this product in any way without written authorization. Unauthorized modification could void the user’s authority to operate this product. OVERHEAD FALLING HAZARD WARNING: To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation instructions. TVs can pose a striking hazard when mounted at an elevated position. OTHER EQUIPMENT Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the TV. Use caution when moving the cart. WARNING: To reduce the chance of fire or electric shock, only utilize the accessories recommended by the manufacturer. FCC, Copyright, Disclaimer, and Trademarks FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential or commercial installation. If this equipment does cause harmful interference to radio or TV reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ƒ Reorient or relocate the receiving antenna. ƒ Increase the separation between the equipment and receiver. ƒ Connect the equipmen…

Text truncated - open the document above for the full version.

DATE： 21/06/2010 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:_ _WQ5CV22_ Product Name: Hospital Grade LCD TV Receiver Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 21/06/2010 By: Norman L.Mau Signature Printed Title: Manager On behalf of : PDi Communication Systems. Inc Telephone: (937) 743-6010

CAUTION FCC ID:WQ5CV22 E136994 2L94 Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. 1992-1997Dolby Laboratories,lnc. All rights reserved. CV22 CV22铭牌 CV22 55

FCC ID Label Location

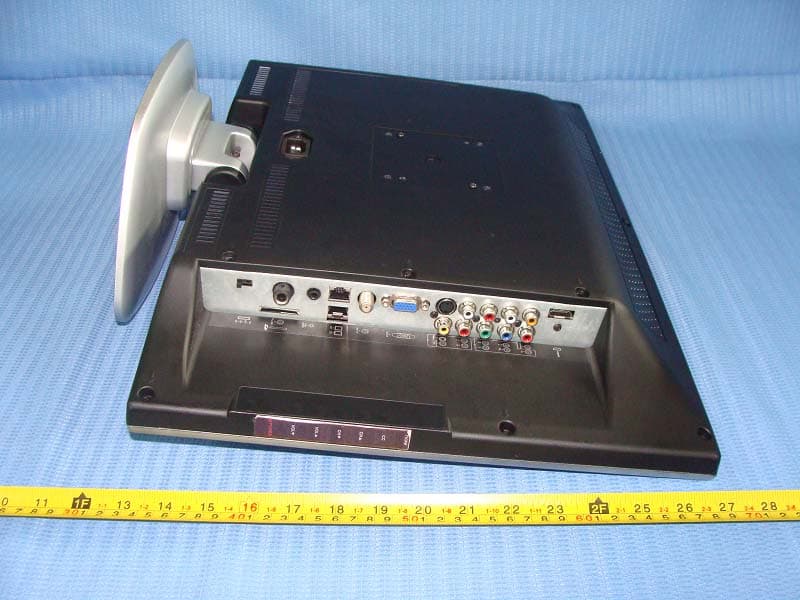

LT-A2147 solution： TV ZR39760HGCF+MST9883B-C-110+TDQU3-601A Panel 21.6’CMO Inverter MP1048 Power supply NCP1351 1、 Features ◎ 21.6’ 16:10 panel ,1366 X 768 ◎ Y/Pb/Pr interface ,support 480P ,720P,1080I. ◎ Support AV VGA S-Video HDMI, SPDIF out ,CCI&MTI ,PILLOW SPEAKER ,NTSC/ATSC TUNER,FM ◎ V-chip and CCD ◎ Support independent DVD module or IPTV module 2、 General Specifications Dimension 458mmx184mmx373mm (with stand) weight 12.2 Pounds (5.54 Kg) ( TV Only without stand) Voltage 100-240V Temperature -10~+40°C Frequency Range 57~ 803MHz Receive Sensitivity 0DB~80DB Power Consumption 60W 3、The channel center frequency and CHNL_ID numbers shall be shown in the following table. Tuner Channel Center Frequency CHNL_ID Frequency (MHz) 2 57 3 63 4 69 5 79 6 85 7 177 8 183 9 189 10 195 11 201 12 207 13 213 14 473 15 479 16 485 17 491 18 497 19 503 20 509 21 515 22 521 23 527 24 533 25 539 26 545 27 551 28 557 29 563 30 569 31 575 32 581 33 587 34 593 35 599 36 605 37 611 38 617 39 623 40 629 41 635 42 641 43 647 44 653 45 659 46 665 47 671 48 677 49 683 50 689 51 695 52 701 53 707 54 713 55 719 56 725 57 731 58 737 59 743 60 749 61 755 62 761 63 767 64 773 65 779 66 785 67 791 68 797 69 803

ISO/IEC17025 Accredited Lab. Report No: FCC 1005307 File reference No: 2010-06-12 Applicant: PDi Communication Systems. Inc Product: Hospital Grade LCD TV Receiver Brand Name: PDI Model No: CV22 Test Standards: FCC Part 15 Subpart B: 2008 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 regulations for the evaluation of electromagnetic compatibility Approved By Terry Tong Manager Dated: June 12, 2010 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD East 5/Block 4, Anhua Industrial Zone, No.8, Tairan Rd. Chegongmiao, FuTian District, Shenzhen, CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 1005307 Page 2 of 97 Date: 2010-06-12 TEST REPORT "The report refers only to the sample tested and does not apply to the bulk production. This report is issued in confidential to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co., Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for illegal purpose. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co., Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co., Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co., Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate." Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:2005 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 899988. IC- Registration No.: IC5205A-01 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration IC No.: 5205A-01. VCCI- Registration No.: R-3015 and C-3332 The EMC Laboratory has been registered and fully described in a report filed with the (VCCI) Voluntary Control Council for Interference. The acceptance letter from the VCCI is maintained in our files. Registration IC No.: R-3015 and C-3332 Report No: 1005307 Page 3 of 97 Date: 2010-06-12 TEST REPORT "The report refers only to the sample tested and does not apply to the bulk production. This report is issued in confidential to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co., Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for illegal purpose. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co., Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co., Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co., Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate." Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT ............................................................................................4 1.4 Test Uncertainty................................................................................................ 4 1.5 Submitted Sample............................................................................................. 4 1.6 Test Duration.................................................................................................. 4 2.0 List of Measurement Equipment........................................................................ 5 2.1 Conducted Emission Test..................................................................................... 5 2.2 Radiated electromagnetic disturbance test................................................................. 5 2.3 Auxiliary Equipment.......................................................................................... 5 2.4 I/O Cable....................................................................................................... 5 3.0 Technical Details............................................................................................. 6 3.1 Investigations Requested..................................................................................... 6 3.2 Test Standards.................................................................................................. …

Text truncated - open the document above for the full version.
