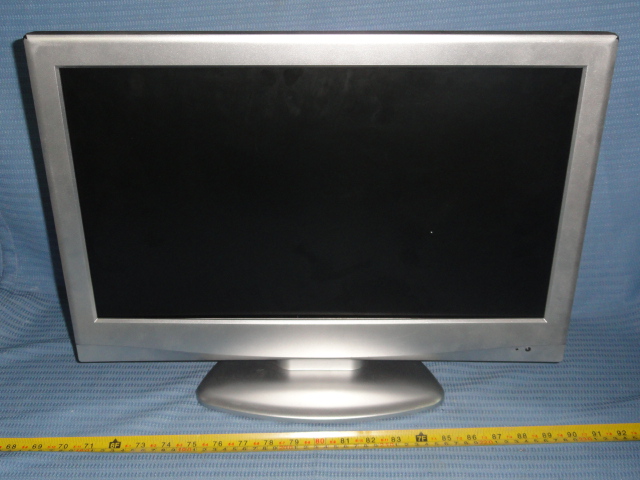

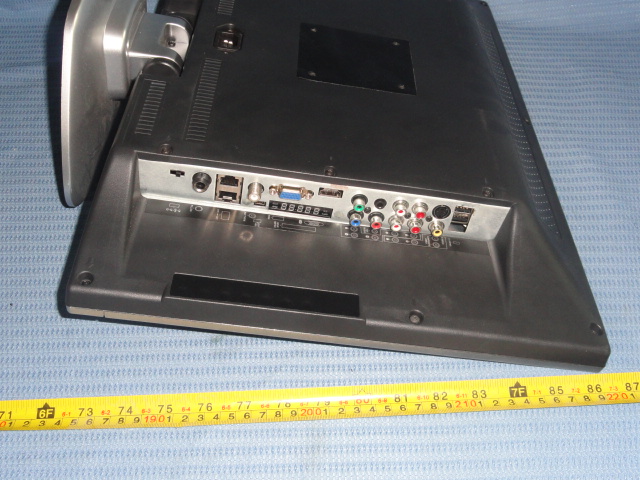

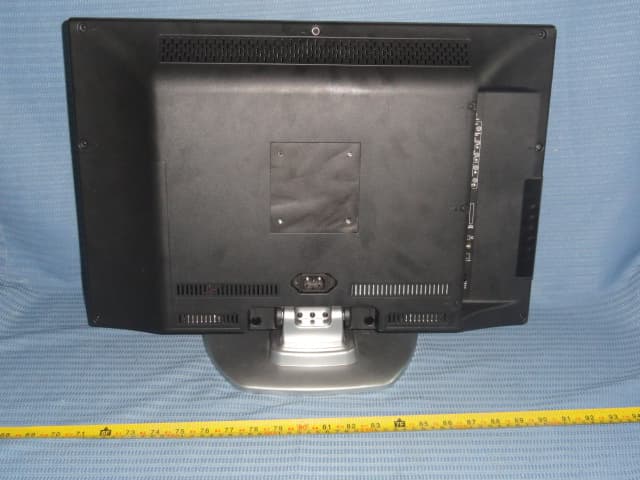

WQ5CV2200MLCD TV

PDI Communication Systems Model PDI-CV2200 22” Healthcare LCD TV User Manual Document Number: PD196-171R1 Communication Systems Inc. MODEL NUMBER: PDI-CV2200 DOCUMENT NUMBER: PD196-171 R1 DESCRIPTION: PDI-CV2200 Television User Manual PAGE 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ! CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL 7KLVOLJKWQLQJÀDVKZLWKDUURZKHDGV\PERO ZLWKLQDQHTXLODWHUDOWULDQJOHLVLQWHQGHGWR DOHUWWKHXVHUWRWKHSUHVHQFHRIXQLQVXODWHG GDQJHURXVYROWDJHZLWKLQWKHSURGXFW¶V HQFORVXUHWKDWPD\EHRIVXI¿FLHQWPDJQLWXGHWR FRQVWLWXWHDULVNRIHOHFWULFVKRFNWRSHUVRQV 7KHH[FODPDWLRQSRLQWZLWKLQDQHTXLODWHUDO WULDQJOHLVLQWHQGHGWRDOHUWWKHXVHUWR WKHSUHVHQFHRILPSRUWDQWRSHUDWLQJDQG PDLQWHQDQFH VHUYLFLQJ LQVWUXFWLRQVLQWKH OLWHUDWXUHDFFRPSDQ\LQJWKHSURGXFW WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. WARNING: Do not install this equipment in a confined space such as a bookcase or similar unit. CAUTION: Do not block ventilation openings. Install in accordance with the manufacturer’s instructions. REGULATORY INFORMATION FCC Part 15 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, many cause harmful interference to radio communications. However, there is not guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: t
Reorient or relocate the receiving antenna. t
Increase the separation between the equipment and receiver. t
Connect the equipment into an outlet on a circuit different from that to which the receive is connected. t
Consult the dealer or an experienced radio/TV technician for help. Modifications Any changes or modifications made to this device that are not expressly ap- proved by PDI may void the user’s authority to operate the equipment. Cables Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations. Healthcare Grade Television The PDI Healthcare series television is specifically designed for installation and use in a healthcare environment. The TV’s special design and safety features have been investigated by the Underwriters Laboratory and Listed for use in Hospitals, Nursing Facilities, Dialysis Clinics, and similar healthcare services. SERVICING User Servicing If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. Damage Requiring Service Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: t
When the power supply cord or plug is damaged. t
If liquid has been spilled, or objects have fallen into the product. t
If the product has been exposed to rain or water. t
If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. t
If the product has been dropped or damaged in any way. t
When the product exhibits a distinct change in performance which indicates a need for service. Replacement Parts When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating conditions. Cleaning & Disinfecting t
Unplug the TV Before Cleaning. t
Use a soft damp cloth to clean. t
Do not use harsh chemicals such as solvents. t
Wipe off water droplets from the cabinet and screen as soon as possible as they may leave spots. Communication Systems Inc. MODEL NUMBER: PDI-CV2200 DOCUMENT NUMBER: PD196-171 R1 DESCRIPTION: PDI-CV2200 Television User Manual PAGE 3 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A ground- ing type plug has two blades and a third grounding prong. The wide blade or the third prong are pro- vided for your safety. If the provided plug does not fit into your outlet, consult an electrician for re…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A VCC3_3 GND INVERTER POWER SUPPLY:5V STANDBY,12V FOR MAIN BOARD, 24V FOR INVERTER & AUDIO AMPLIFIER CCFL BACKLIGHT 24V module MSD119 component TV composite S_VIDEO HDMI CVBS BUFFER FMS6143 AV OUT PVRMODU(OPTION) VIDEO SWITCH HDMIRECEIVER H , V SYNC CD4O52 1PC AUDIO SWITCH DUAL 4-CHANNEL DEMUX module VGA VGA component TUNER SIF DIF DIGITAL IFDEMODULATOR FM RADIO TDA1517 AUDIO CLASS-AB AMPLIFIER 2*3W MEMORY16MBit FLASH &256MBit DDR1 MPEG2DECODER LVDSDRIVER PANEL REGULATORS ( 2.5V, 1.8V, 3,3V, 5V ) 12V 5W(MAX) CLASS-ABAMPLIFIER TDA1517 (IPTV DVD ...) MTIDECODER RJ45 MTI RJ45 CCI CCIDECODER PILLOW SPEAKER ZENITH PHILIPS RCADECODER MEGA16 I2C DSUB9 USED FOR MEGA16UPDATE FIRMWARE !PADS-POWERPCB-V5.0-BASIC! DESIGN DATABASE ASCII FILE 1.0 TS IN composite/S-VIDEO 4052-OUT AUDIO OUT S5H1411 H , V SYNC AND DECODER MODU CVBS TV-CVBS AV OUT VIDEO SWITCH FSAV330 TS OUT Pro:Idiom POWER BOARD 12V MP1423 m a x 2 . 5 A m a x 4 7 0 M A m a x 1 A m a x 2 3 0 m A 7 0 m A m a x 9 0 0 m A AZ1117-3.3 AZ1117-ADJ AVDD_MEMPLL 5VA MP1411 5VDC VCC1.2V LVDS VCC3.3_BT MSD7828 AZ1117-3.3 AZ1117-1.8 MSD119 MSD119 DDR DDR MSD119 9435 5VMst VCC2.5 m a x 6 0 0 m A m a x 5 2 0 M A Total3.3V(mW) 1331.55 400mA 1.2V(mW) 924 770mA1.8V(mW) 125.28 70mATotal(mW) 2380.83 注 MSD7828 m a x 7 7 0 M A t o t a l = 1 . 2 9 A MP1411 VCC3.3V 78L05 IR&LED AZ1117-3.3 TUNER AZ1117-ADJ VCC1.2 TUNER VCC3.3 IN4007+AZ1117-1.8 TUNER VCC1.8 Y47.38 MHzY47.38 MHz 1 2 3 Y732MHZY732MHZ 12 3 Y227MHz Y227MHz GND 2 VDD 4 OUT 3 NC 1 Y124.69MHzY124.69MHz 1 2 3 Y3 12MHZ CRY Y3 12MHZ CRY 1 2 3

DATE： 05/02/2010 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: WQ5CV2200M_ Product Name: LCD TV Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 05/02/2011 By: Norman L.Mau Signature Printed Title: Compliance Officer On behalf of : PDi Communication Systems. Inc Telephone: (937) 743-6010

2011.04.13 PDI PDI-CV2200面板丝印 PDI-CV2200 2011071 PDI-CV2200 WQ5CV2200M 6 . 2 9 9 15.19mm 246.40mm 96.20 100 . 20 75.00 75 . 00 4 -∅ 5 . 90

FCC ID Label Location

PDI-CV2200 Operation Technical Description solution： TV MSD119+XC5000＋LGDT1129 Panel 21.5’AU M215HW01 V0 Inverter MP1048 Power supply NCP1351 1、 Features ◎ 21.5’ 16:10 panel ,1920 X 1080. ◎ Y/Pb/Pr interface ,support 480P ,720P,1080I. ◎ Support AV VGA S-Video HDMI, CCI&MTI ,PILLOW SPEAKER ,NTSC/ATSC TUNER,FM ◎ V-chip and CCD 2、 General Specifications Voltage 100-240V Temperature -10~+40°C Frequency Range 57~ 803MHz Receive Sensitivity 0DB~80DB Power Consumption 60W 3、The channel center frequency and CHNL_ID numbers shall be shown in the following table. Tuner Channel Center Frequency CHNL_ID Frequency (MHz) 2 57 3 63 4 69 5 79 6 85 7 177 8 183 9 189 10 195 11 201 12 207 13 213 14 473 15 479 16 485 17 491 18 497 19 503 20 509 21 515 22 521 23 527 24 533 25 539 26 545 27 551 28 557 29 563 30 569 31 575 32 581 33 587 34 593 35 599 36 605 37 611 38 617 39 623 40 629 41 635 42 641 43 647 44 653 45 659 46 665 47 671 48 677 49 683 50 689 51 695 52 701 53 707 54 713 55 719 56 725 57 731 58 737 59 743 60 749 61 755 62 761 63 767 64 773 65 779 66 785 67 791 68 797 69 803

ISO/IEC17025 Accredited Lab. Report No: FCC 1104184 File reference No: 2011-05-12 Applicant: PDI Communication Systems. Inc Product: LCD TV Brand Name: N/A Model No: PDI-CV2200 Test Standards: FCC Part 15 Subpart B: 2008 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 regulations for the evaluation of electromagnetic compatibility Approved By Terry Tong Manager Dated: May 12, 2011 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD East 5/Block 4, Anhua Industrial Zone, No.8, Tairan Rd. Chegongmiao, FuTian District, Shenzhen, CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 1104184 Page 2 of 118 Date: 2011-05-12 TEST REPORT "The report refers only to the sample tested and does not apply to the bulk production. This report is issued in confidential to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co., Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for illegal purpose. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co., Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co., Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co., Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate." Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:2005 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 899988. IC- Registration No.: IC5205A-01 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration IC No.: 5205A-01. VCCI- Registration No.: R-3015 and C-3332 The EMC Laboratory has been registered and fully described in a report filed with the (VCCI) Voluntary Control Council for Interference. The acceptance letter from the VCCI is maintained in our files. Registration IC No.: R-3015 and C-3332 Report No: 1104184 Page 3 of 118 Date: 2011-05-12 TEST REPORT "The report refers only to the sample tested and does not apply to the bulk production. This report is issued in confidential to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co., Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for illegal purpose. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co., Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co., Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co., Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate." Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT ............................................................................................4 1.4 Test Uncertainty................................................................................................ 4 1.5 Submitted Sample............................................................................................. 4 1.6 Test Duration.................................................................................................. 4 2.0 List of Measurement Equipment........................................................................ 5 2.1 Conducted Emission Test..................................................................................... 5 2.2 Radiated electromagnetic disturbance test................................................................. 5 2.3 Auxiliary Equipment.......................................................................................... 5 2.4 I/O Cable....................................................................................................... 5 3.0 Technical Details............................................................................................. 6 3.1 Investigations Requested..................................................................................... 6 3.2 Test Standards.................................................................................................. 6 4.0 Power line …

Text truncated - open the document above for the full version.

Conducted Emissions: Radiated Emissions:
