Communication Systems Inc. PDI-P26/P32/P40LCDE Quick Start Guide Page 1 of 12 Better Solutions Are Within Reach™ PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196I190R1.DOC WARNINGS This symbol is intended to alert the user of the presence of un-insulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. NOTE TO CABLE TV INSTALLER This reminder is provided to call the cable TV systems installer’s attention to Article 820-40 of the National Electrical Code. The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical. FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential or commercial installation. If this equipment does cause harmful interference to radio or TV reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures: ƒ Reorient or relocate the receiving antenna. ƒ Increase the separation between the equipment and receiver. ƒ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ƒ Consult the dealer or an experienced radio/TV technician for help. SAFETY INSTRUCTIONS INSTRUCTIONS Be sure to read, follow, and keep these instructions. Heed all the warnings. OTHER EQUIPMENT Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus. Use caution when moving the cart / apparatus combination to avoid injury from tip- over. MAINTENANCE AND SERVICING Servicing is required when the apparatus has been damaged in any way: the power cord or plug is damaged, liquid has been spilled, objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, it does not operate normally, or it has been dropped. Never remove the back cover of the TV; this can expose you to high voltage and other hazards. If the TV does not operate properly, unplug it and call an authorized service center or PDI. POWER CORD Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and the point where it exits from the apparatus. CAUTION: DO NOT defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two plates and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. RAIN AND MOISTURE WARNING: To avoid the hazards of fire or electrical shock, DO NOT expose this TV to rain or moisture. WET LOCATION The apparatus SHOULD NOT be exposed to dripping or splashing. Objects filled with liquids, such as vases, SHOULD NOT be placed on the apparatus. OXYGEN ENVIRONMENT WARNING: DO NOT use in an oxygen tent or an oxygen chamber. Such use may cause a fire hazard. CLEANING AND DISINFECTION Clean the exterior of this TV by removing dust with a lint-free cloth. CAUTION: To avoid damage to the surface of the TV, DO NOT use abrasive or chemical cleaning agents. Clean only with a dry cloth. DISCONNECTING DEVICE FROM MAINS The main plug is the disconnecting device. CAUTION: Unplug this apparatus during lightning storms or when unused for long periods of time. PRODUCT MODIFICATION DO NOT attempt to modify this product in any way without written authorization. Unauthorized modification could void the user’s authority to operate this product. OVERHEAD FALLING HAZARD WARNING: To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation instructions. TVs can pose a striking hazard when mounted at an elevated position. Communication Systems Inc. PDI-P26/P32/P40LCDE Quick Start Guide Page 2 of 12 Better Solutions Are Within Reach™ PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196I190R1.DOC Copyright, Disclaimer, & Trademarks COPYRIGHT PDI Communication Systems, Inc. claims proprietary right to the material disclosed in this user guide. This guide is issued for user information only and may not be used to manufacture anything shown herein . Copyright 2011 by PDI Communication Systems, Inc. All rights reserved. DISCLAIMER The author and publisher have used their best efforts in preparing this guide. PDI Communication Systems, Inc. makes no representation or warranties with respect to the accuracy or completeness of the content of this guide and specifically disclaims any implied warranties or merchantability or fitness for any particular purpose and shall in no event be liable for any loss of profit or any other damages. The information contained herein is believed to be accurate, but is not warranted, and is subject to change without notice or obligation. TRADEMARKS Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. All other brand names and product names used in this guide are trademarks, registered trademarks, or trade names of their respective holders. PDI and Better Solutions Are Within Reach are registered trademarks of PDI Communication Systems, Inc., Springboro, Ohio. LOCATION GUIDELINES The model PDI-P26/P32/P4…

Text truncated - open the document above for the full version.

Authority to Act as Agent DATE :2011-7-05 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification On our behalf, I appoint Most Technology Service Co.,Ltd. { Mark Wen (General Manager) }to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. This authorization is valid until further written notice from PDI Communication System, Inc. Dated this Day of 2011.07.05 20 Agency agreement expiration date: Usually Give 8 - 12 Months By: Norman Mau Signature Printed Title: Manager On behalf of : PDI Communication System, Inc. Telephone: 937-743-6010

DATE :07/05/2011 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: WQ5P26LCDE Product Name: LCD TV Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 07/05/2011 By: Signature Norman Mau Printed Title: Manager On behalf of: PDI Communication System, Inc. Telephone: 937-743-6010

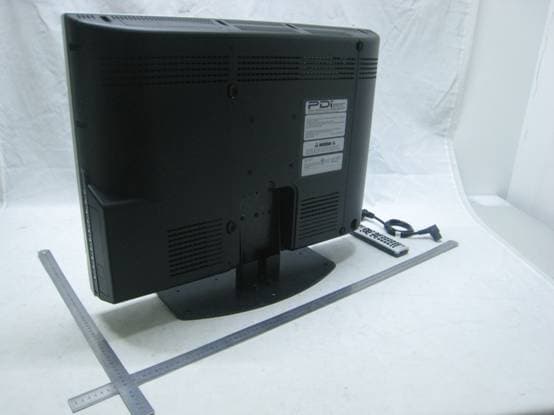

Label Location

2011.06.11 2011147 PDI PDI-P26LCDE铭牌 PDI-P26LCDE CAUTION E136994 2L94 Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. 1992-1997Dolby Laboratories,lnc. All rights reserved. FCC ID:WQ5P26LCDE PDI-P26LCDE LT-92601 9 COMPOSITE VIDEO COMPOSITE VIDEO 此前相关图纸作废

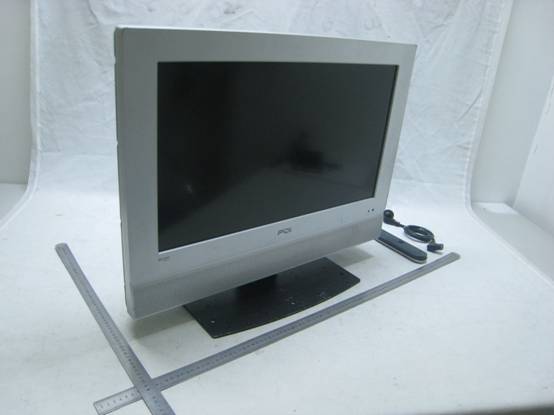

LT-A2647 solution： TV MSD119+XC5000 ＋LGDT1129 Panel 26’ AUO T260XW04 V7 Inverter ：build in with panel Power supply ：NA 1、 Features ◎ 26’ 16:10 panel ,1366 X 768 ◎ Y/Pb/Pr interface ,support 480P ,720P,1080I. ◎ Support AV VGA S-Video HDMI, SPDIF out ,CCI&MTI ,PILLOW SPEAKER ,NTSC/ATSC TUNER,FM ◎ V-chip and CCD 2、 General Specifications Dimension TBD (with stand) weight TBD Voltage 100-240V Temperature -10~+40°C Frequency Range 57~ 803MHz Receive Sensitivity 0DB~80DB Power Consumption 60W 3、The channel center frequency and CHNL_ID numbers shall be shown in the following table. Tuner Channel Center Frequency CHNL_I D Frequenc y (MHz) CHNL_I D Frequenc y (MHz) CHNL_I D Frequenc y (MHz) CHNL_I D Frequenc y (MHz) 2 57 21 515 40 629 59 743 3 63 22 521 41 635 60 749 4 69 23 527 42 641 61 755 5 79 24 533 43 647 62 761 6 85 25 539 44 653 63 767 7 177 26 545 45 659 64 773 8 183 27 551 46 665 65 779 9 189 28 557 47 671 66 785 10 195 29 563 48 677 67 791 11 201 30 569 49 683 68 797 12 207 31 575 50 689 69 803 13 213 32 581 51 695 14 473 33 587 52 701 15 479 34 593 53 707 16 485 35 599 54 713 17 491 36 605 55 719 18 497 37 611 56 725 19 503 38 617 57 731 20 509 39 623 58 737

FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 1 of 102 FCC PART 15 SUBPART B Test Report Applicant: PDI Communication System, Inc. Address: 40 Greenwood Lane, Springboro Ohio 45066 Product Name: LCD TV Model Name: PDI-P26LCDE Brand Name: N/A FCC ID: WQ5P26LCED Date of Issue: Jul.09, 2011 Issued by: Most Technology Service Co., Ltd. Address: No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel: 86-755-86170306 Fax: 86-755-86170310 The report consists 102 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 2 of 102 TABLE OF CONTENTS 1.VERIFICATION OF CONFORMITY...............................................................................................3 2.GENERAL INFORMATION ..............................................................................................................4 2.1 PRODUCT INFORMATION....................................................................................................................4 2.2. OBJECTIVE........................................................................................................................................4 2.3 TEST STANDARDS AND RESULTS........................................................................................................4 2.4 MEASUREMENT UNCERTAINTY..........................................................................................................4 2.5 ENVIRONMENTAL CONDITIONS..........................................................................................................4 3.TEST FACILITY..................................................................................................................................5 3.1 TEST FACILITY...................................................................................................................................5 3.2 GENERAL TEST PROCEDURES............................................................................................................5 4.SETUP OF EQUIPMENT UNDER TEST .........................................................................................6 4.1 SUPPORT EQUIPMENT........................................................................................................................6 4.2 TEST EQUIPMENT LIST.......................................................................................................................6 5.TEST REQUIREMENTS ....................................................................................................................7 5.1 LIMITS OF LINE CONDUCTED EMISSION TEST....................................................................................7 5.2 BLOCK DIAGRAM OF TEST SETUP......................................................................................................7 5.3 PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST.......................................................7 5.4 TEST RESULT OF LINE CONDUCTED EMISSION TEST............................................................................8 6.TEST RADIATED EMISSION REQUIREMENT .........................................................................39 6.1 LIMITS OF RADIATED DISTURBANCES AT 3M DISTANCES FOR CLASS B .............................................39 6.2：BLOCK OF RADIATION INTERFERENCE..........................................................................................39 6.3 PRELIMINARY RADIATED EMISSION TEST.........................................................................................39 6.4 TEST RESULT OF RADIATION EMISSION TEST....................................................................................39 7.ANTENNA CONDUCTED POWER ..............................................................................................101 7.1: TEST METHOD..............................................................................................................................101 7.2: LIMIT............................................................................................................................................101 7.3: TEST RESULT OF ANTENNA CONDUCTED POWER...........................................................................101 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 3 of 102 1.VERIFICATION OF CONFORMITY Equipment under test: LCD TV Brand Name: N/A Model Number: PDI-P26LCDE FCC ID: WQ5P26LCDE Applicant: PDI Communication Systems, Inc. 40 Greenwood Lane, Springboro Ohio 45066 Manufacturer: Wanlida Group Co.,Ltd Wanlida Industry Zone, Nanjing,Fujian,China.363601 Technical Standards: FCC Part 15 Subpart B File Number: MOST MTEKEYE11070807 Date of test: Jul. 06, 2011-Jul.08, 2011 Deviation: None Condition of Test Sample: Normal Test Result: PASS The above equipment was tested by Most for compliance with the requirements set forth in FCC Rules and the Technical Standards mentioned above. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment and the level of the immunity endurance of the equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified in the report. Test by: (Candy Zhang) Reviewed by: (Key Wang) Approved by: (Yvette Zhou) FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 4 of 102 2. GENERAL INFORMATION 2.1 Product Information Display T315XW04 Version 6961C_V2.3 Chip MSD119 MPEG2 DECODER NOTE: Please refer to the photographs of the EUT. For more detailed features description about the EUT, please refer to …

Text truncated - open the document above for the full version.

FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 41 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 42 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 43 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 44 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 45 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 46 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 47 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 48 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 49 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 50 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 51 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 52 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 53 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 54 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 55 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 56 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 57 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 58 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 59 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 60 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 61 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 62 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 63 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 64 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 65 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 66 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 67 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 68 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 69 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 70 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 71 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 72 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 73 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 74 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 75 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 76 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 77 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 78 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 79 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 80 of 102

FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 81 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 82 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 83 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 84 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 85 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 86 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 87 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 88 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 89 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 90 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 91 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 92 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 93 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 94 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 95 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 96 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 97 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 98 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 99 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 100 of 102 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 101 of 102 7.ANTENNA CONDUCTED POWER 7.1: Test Method 1: The EUT was placed on a table, which is 0.8m above ground plane 2: Maximum procedure was performed to ensure EUT Compliance 3: A impedance matching pad(75ohm/50ohm) is used for the test from the tuner to the receiver Input port 4: A EMI test receiver(R&S Test receiver ESCS30) is used to test the emissions from the antenna Port through the impedance matching pad. 7.2: Limit Frequency MHz Power nW Voltage dBuV Detector 30-5000 2 51.8 PEAK Remark: During the Antenna conducted power test, all the channels in TV mode, DTV mode and FM mode are applied, and the results are met the limit of requirement, the test data which listed in the report are the typical channels of High Middle and Low. 7.3: Test Result Of Antenna Conducted Power Test Mode TV(CH 02)-55.25MHz Frequency range 30M-1000MHz Frequency(MHz) Emission level(dBuV) Reading level (dBuV) Connection factor(dB) Limit dBuV Margin (dB) 689.50 34.4 23.5 10.5 51.8 17.4 784.48 33.3 22.6 10.7 51.8 18.5 Test Mode TV (CH 14)-471.25MHz Frequency range 30M-5000MHz Frequency(MHz) Emission level(dBuV) Reading level (dBuV) Connection factor(dB) Limit dBuV Margin (dB) 682.43 33.9 22.4 10.5 51.8 17.9 750.57 32.6 22.5 10.6 51.8 19.2 Test Mode TV (CH 69)-801.25MHz Frequency range 30M-5000MHz Frequency(MHz) Emission level(dBuV) Reading level (dBuV) Connection factor(dB) Limit dBuV Margin (dB) 179.62 33.8 25.6 8.2 51.8 18.0 617.31 32.9 22.7 10.2 51.8 18.9 702.11 33.1 22.6 10.5 51.8 18.7 FCC ID:WQ5P26LCDE Report No. : MOST MTEKEYE11070807 Page 102 of 102 Test Mode DTV CH 02-1)-57MHz Frequency range 30M-1000MHz Frequency(MHz) Emission level(dBuV) Reading level (dBuV) Connection factor(dB) Limit dBuV Margin (dB) 363.25 33.0 23.8 9.2 51.8 18.8 555.12 33.7 23.8 9.9 51.8 18.1 Test Mode DTV (CH 14-1)-473MHz Frequency range 30M-5000MHz Frequency(MHz) Emission level(dBuV) Reading level (dBuV) Connection factor(dB) Limit dBuV Margin (dB) 198.31 31.9 23.7 8.2 51.8 19.9 446.93 33.3 23.9 9.4 51.8 18.5 Test Mode DTV (CH 69-1)-803MHz Frequency range 30M-5000MHz Frequency(MHz) Emission level(dBuV) Reading level (dBuV) Connection factor(dB) Limit dBuV Margin (dB) 214.55 32.6 24.2 8.4 51.8 19.2 385.43 32.6 23.4 9.2 51.8 19.2 Test Mode FM 88.1MHz Frequency range 30M-1000MHz Frequency(MHz) Emission level(dBuV) Reading level (dBuV) Connection factor(dB) Limit dBuV Margin (dB) 703.93 36.3 25.8 10.5 51.8 15.5 952.68 37.1 25.9 11.2 51.8 14.7 Test Mode FM 98.1MHz Frequency range 30M-1000MHz Frequency(MHz) Emission level(dBuV) Reading level (dBuV) Connection factor(dB) Limit dBuV Margin (dB) 783.06 36.4 25.7 10.7 51.8 15.4 953.45 37.9 26.7 11.2 51.8 13.9 Test Mode FM 107.9MHz Frequency range 30M-1000MHz Frequency(MHz) Emission level(dBuV) Reading level (dBuV) Connection factor(dB) Limit dBuV Margin (dB) 935.61 38.3 27.2 11.1 51.8 13.5 953.65 36.1 24.5 11.2 51.8 15.7

Test photo of radiated emission (30MHz-1000MHz) Test photo of Conducted emission Test photo of radiated emission (1000MHz-5000MHz)
