WQ8-DV2311HANDHELD HEAVY DUTY SCANNER

FCC STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF Exposure Information (SAR) This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy. The exposure standard for wireless devices employs a unit of measurement known as Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/Kg. For body-worn operation, this device has been tested and meets the FCC RF exposure guidelines for use with an accessory that contains no metal. RF exposure compliance with any body-worn accessory that contains metal was not tested and certified, and use of such body-worn accessory should be avoided. Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. ISED Statement English: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICES-3 (B)/NMB-3(B). French: Cet appareil contient des émetteurs/récepteurs exempts de licence qui sont conformes aux RSS exemptés de licence d'Innovation, Sciences et Développement économique Canada. L'exploitation est soumise aux deux conditions suivantes : (1) Cet appareil ne doit pas provoquer d'interférences. (2) Cet appareil doit accepter toute interférence, y compris les interferences susceptibles de provoquer un fonctionnement indésirable de l'appareil. l'appareil numérique du ciem conforme canadien peut - 3 (b) / nmb - 3 (b).

Rev1/26/2023 AutelIntelligentTechnologyCorp.,Ltd. FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:12-06-2023 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing FCCID:WQ8-DV2311 AutelIntelligentTechnologyCorp.,Ltd.(“theapplicant”)certifiesthattheequipmentfor whichauthorizationissoughtisnot“covered”equipmentprohibitedfromreceivingan equipmentauthorizationpursuanttosection2.903oftheFCCrules. Sincerely, FrankLi Rev1/26/2023 AutelIntelligentTechnologyCorp.,Ltd. FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:12-06-2023 Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing FCCID:WQ8-DV2311 AutelIntelligentTechnologyCorp.,Ltd.(“theapplicant”)certifiesthat,asofthedateof thefilingoftheapplication,theapplicantisnotidentifiedontheCoveredList(asa specificallynamedentityoranyofitssubsidiariesoraffiliates)asanentityproducing “covered” equipment. Sincerely, FrankLi

AutelIntelligentTechnologyCorp.,Ltd. SDoCAttestationLetter FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA FCCID:WQ8-DV2311 ProductDescription:HANDHELDHEAVYDUTYSCANNER TypeDesignation:MaxiDiagMD600CV Trademark:AUTEL ToWhomItMayConcern: HasbeentheunitsusedforconductingFCCcompliancetesting,theSDoCpartwillbe testedbyEMTEK(SHENZHEN)CO.,LTD. Ifyouhaveanyquestionorconcerns,pls.contactus. Client’sSignature: FrankLi Date:2023.12.06

- Autel Intelligent Technology Corp., Ltd. - The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 12/8/2023 U.S. Agent Designation Autel Intelligent Technology Corp., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: WQ8-DV2311): Name and company of U.S. agent: Autel US, Inc Physical U.S. address of agent: 36 Harbor Park Dr, Port Washington, NY, 11050 FRN of U.S. agent: 0032544660 FRN of applicant: 0018132787 Email address of U.S. [email protected] Autel US, Inc acknowledges their obligation to accept service of process on behalf of Autel Intelligent Technology Corp., Ltd. Autel Intelligent Technology Corp., Ltd. accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature Frank Li Manager Autel Intelligent Technology Corp., Ltd. Signature Mr Paul A Marshall Sr. Product & Operations Manager Autel US, Inc

AutelIntelligentTechnologyCorp.,Ltd. Rev11/20/07 ConfidentialityLetter FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA ConfidentialityRequestregardingapplicationforcertificationofFCCID:WQ8-DV2311 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram CircuitSchematic OperationDescription SoftwareSecurityInformation Tune-upProcedure BlockDiagram CircuitSchematic OperationDescription SoftwareSecurityInformation Tune-upProcedure Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. PursuanttoDA04-1705June15,2004oftheCommission’spublicnotice,wealsorequest temporaryconfidentialtreatmentofinformationaccompanyingthisapplicationasoutlinedbelow foraperiodof180days: ExhibitTypeFileName UserManual ExternalPhotos InternalPhotos TestSetupPhotos UserManual ExternalPhotos InternalPhotos TestSetupPhotos Client’sSignature: FrankLi Date:2023.12.06

U-NII-DTSDeclarationLetter Towhomitmayconcern: WehavedeclaredbelowfeaturedforFCCequipmentauthorization, DeviceFCCID:WQ8-DV2311 (1)DFSDevice--Master,ClientwithRadardetectioncapability, Clientwithoutradardetectioncapability,N/A (2)Active/PassiveScanning,adhocmodeaccesspointcapability FrequencyBand (MHz) ActiveScanning (thedevicecan transmitaprobe (beacon)) passivescanning (wherethedeviceis canlistenonlywith noprobes) AdHocModeor WIFIDirect capability Accesspoint capability 5180-5240Yes,NoYes,NoYes,NoYes,No 5745-5825Yes,NoYes,NoYes,NoYes,No 5190-5230Yes,NoYes,NoYes,NoYes,No 5755-5795Yes,NoYes,NoYes,NoYes,No 5210-5210Yes,NoYes,NoYes,NoYes,No 5775-5775Yes,NoYes,NoYes,NoYes,No (3)Countrycodeselectionability-Yes,No Ifyes,plsexplainhowitwasimplemented:(plsalsohelptoprovidedetailofoptionsforeachcountryselection) (4)Meet15.202requirement-Yes,No, plscheckbelow: Amasterdeviceisdefinedasadeviceoperatinginamodeinwhichithasthecapabilitytotransmitwithout receivinganenablingsignal.Inthismodeitisabletoselectachannelandinitiateanetworkbysendingenabling signalstootherdevices Aclientdeviceisdefinedasadeviceoperatinginamodeinwhichthetransmissionsofthedeviceareunder controlofthemaster.Adeviceinclientmodeisnotabletoinitiateanetwork. (5)Forclientdevicesthathavesoftwareconfigurationcontroltooperateindifferentmodes(activescanningin someandpassivescanninginothers)indifferentbands(deviceswithmultipleequipmentclassesorthosethat operateonnon-DFSfrequencies)ormodulardeviceswhichconfigurethemodesofoperationsthroughsoftware,the applicationmustprovidesoftwareandoperationsdescriptiononhowthesoftwareand/orhardwareisimplemented toensurethatproperoperationsmodescannotbemodifiedbyenduseroraninstaller. Apply,NoApply, (Ifapply,plshelptoprovideexplanationonitwasimplement,andhowsoftwarewascontrolled) Client’sSignature: FrankLi Date:2023.12.06 AutelIntelligentTechnologyCorp.,Ltd.

AutelIntelligentTechnologyCorp.,Ltd. POALetter FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA FCCApplicationforFCCID:WQ8-DV2311 ToWhomItMayConcern: We,theundersigned,herebyauthorizeLisaWangatEMTEK(SHENZHEN)CO.,LTD.onour behalf,toapplytotheFederalCommunicationsCommissiononourequipment.Anyandallacts carriedoutbyEMTEK(SHENZHEN)CO.,LTD.onourbehalfshallhavethesameeffectasacts ofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,theapplicant, arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301oftheAnti-DrugActof 1988,21USC853a,andnopartytotheapplicationissubjecttoadenialoffederalbenefits pursuanttothatsection. Client’sSignature: FrankLi Date:2023.12.06

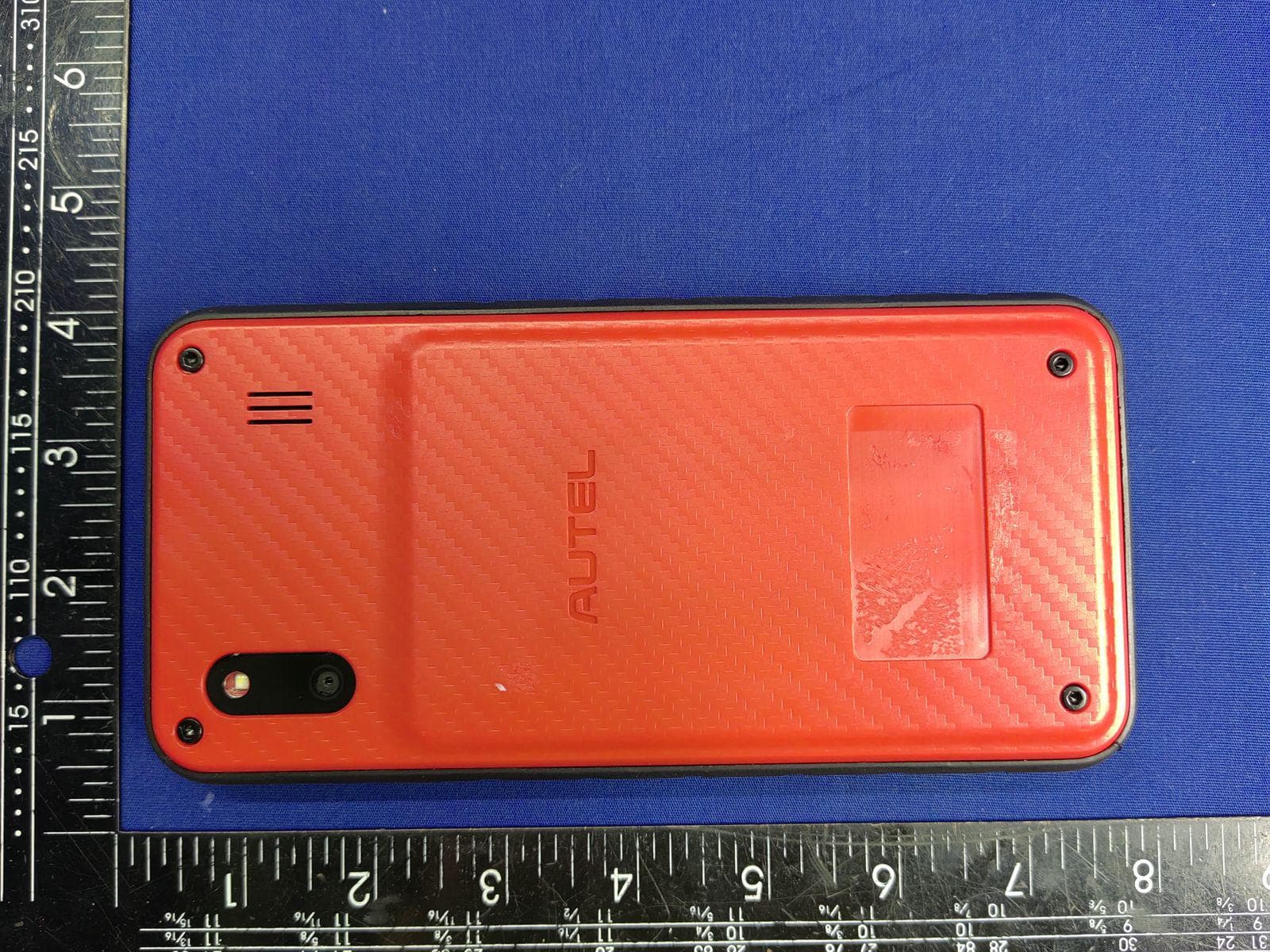

Page1of4 EXTERNALPHOTOS Page2of4 Page3of4 Page4of4 -----TheEnd-----

Page1of6 INTERNALPHOTOS Page2of6 WIFIANT Page3of6 BTANT Page4of6 Page5of6 Page6of6 -----TheEnd-----

. Test Laboratory: Shenzhen EMTEK Co.,Ltd.Date: 2023/11/10 System Check_H2450 DUT: Dipole 2450 MHz; Type:D2450V2; SN:927 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H2450 Medium parameters used: f = 2450 MHz;σ=1.77S/m;ε r =40.12;ρ=1000kg/m 3 AmbientTemperature：22.1°C; LiquidTemperature：21.9°C DASY5 Configuration: - Probe: EX3DV4 - SN3970; ConvF(8.06, 8.06, 8.06); Calibrated: 2023/5/17; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1418; Calibrated: 2023/4/25 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1231 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (41x51x1):Interpolated grid: dx=2.000 mm, dy=2.000 mm Maximum value of SAR (interpolated) = 25.4 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0:Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 116.8 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 30.4 W/kg SAR(1 g) = 13.1 W/kg; SAR(10 g) = 6.07 W/kg Maximum value of SAR (measured) = 23.0 W/kg Test Laboratory: Shenzhen EMTEK Co.,Ltd.Date: 2023/11/13 System Check_H5250 DUT: Dipole 5GHzV2;Type:D5GHzV2; SN:1169 Communication System: CW; Frequency: 5250 MHz;Duty Cycle: 1:1 Medium: H5G Medium parameters used: f = 5250 MHz;σ=4.70S/m;ε r = 36.79;ρ= 1000 kg/m 3 AmbientTemperature：22.4°C; LiquidTemperature：22.2°C DASY5 Configuration: - Probe: EX3DV4 - SN3970; ConvF(5.85, 5.85, 5.85); Calibrated: 2023/5/17; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1418; Calibrated: 2023/4/25 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1231 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=100mW/Area Scan (7x9x1):Interpolated grid: dx=10.00 mm, dy=10.00 mm Maximum value of SAR (interpolated) = 22.0 W/kg Pin=100mW/Zoom Scan (8x8x13)/Cube 0:Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 57.360 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 37.6 W/kg SAR(1 g) =7.58 W/kg; SAR(10 g) = 2.12 W/kg Maximum value of SAR (measured) = 23.4 W/kg . Test Laboratory: Shenzhen EMTEK Co.,Ltd.Date: 2023/11/15 System Check_H5750 DUT: Dipole 5GHzV2;Type:D5GHzV2; SN:1169 Communication System: CW; Frequency: 5750 MHz;Duty Cycle: 1:1 Medium: H5G Medium parameters used: f = 5750 MHz;σ=5.44S/m;ε r = 35.71;ρ= 1000 kg/m 3 AmbientTemperature：22.1°C; LiquidTemperature：22.0°C DASY5 Configuration: - Probe: EX3DV4 - SN3970; ConvF(5.2, 5.2, 5.2); Calibrated: 2023/5/17; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1418; Calibrated: 2023/4/25 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1231 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=100mW/Area Scan (7x9x1):Interpolated grid: dx=10.00 mm, dy=10.00 mm Maximum value of SAR (interpolated) = 20.6 W/kg Pin=100mW/Zoom Scan (8x8x13)/Cube 0:Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 50.682 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 35.0 W/kg SAR(1 g) = 7.55 W/kg; SAR(10 g) = 2.13W/kg Maximum value of SAR (measured) = 21.5 W/kg

Test Laboratory: Shenzhen EMTEK Co.,Ltd.Date: 2023/11/10 2.4GWIFI DUT: MD600 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: H2450 Medium parameters used: f = 2462 MHz;σ=1.80S/m;ε r =40.28;ρ=1000kg/m 3 AmbientTemperature：22.1°C; LiquidTemperature：21.9°C DASY5 Configuration: - Probe: EX3DV4 - SN3970; ConvF(8.06, 8.06, 8.06); Calibrated: 2023/5/17; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1418; Calibrated: 2023/4/25 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1231 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Right/Area Scan (6x12x1):Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.629 W/kg Right/Zoom Scan (5x5x7)/Cube 0:Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.645 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 2.84 W/kg SAR(1 g) = 0.614 W/kg; SAR(10 g) = 0.345 W/kg Maximum value of SAR (measured) = 1.02 W/kg Test Laboratory: Shenzhen EMTEK Co.,Ltd.Date: 2023/11/13 5.2GWIFI DUT: MD600 Communication System: 802.11a ; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: H5G Medium parameters used: f = 5200 MHz;σ=4.69S/m;ε r = 36.99;ρ= 1000 kg/m 3 AmbientTemperature：22.4°C; LiquidTemperature：22.2°C DASY5 Configuration: - Probe: EX3DV4 - SN3970; ConvF(5.8, 5.8, 5.8); Calibrated: 2023/5/17; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1418; Calibrated: 2023/4/25 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1231 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Right/Area Scan (6x12x1):Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.658 W/kg Right/Zoom Scan (5x5x7)/Cube 0:Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 12.996 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 5.87 W/kg SAR(1 g) = 0.811 W/kg; SAR(10 g) = 0.348 W/kg Maximum value of SAR (measured) = 1.18 W/kg Test Laboratory: Shenzhen EMTEK Co.,Ltd.Date: 2023/11/15 5.8GWIFI DUT: MD600 Communication System: 802.11a ; Frequency: 5745 MHz;Duty Cycle: 1:1 Medium: H5G Medium parameters used: f = 5745 MHz;σ=5.35S/m;ε r = 35.85;ρ= 1000 kg/m 3 AmbientTemperature：22.1°C; LiquidTemperature：22.0°C DASY5 Configuration: - Probe: EX3DV4 - SN3970; ConvF(5.29, 5.29, 5.29); Calibrated: 2023/5/17; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1418; Calibrated: 2023/4/25 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1231 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Right-Low/Area Scan (6x12x1):Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.415 W/kg Right-Low/Zoom Scan (7x7x7)/Cube 0:Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 11.536 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 3.27 W/kg SAR(1 g) = 0.831 W/kg; SAR(10 g) = 0.269 W/kg Maximum value of SAR (measured) = 1.13 W/kg

ReportNo.ENS2310300246W00105RPage 1 of 45 Ver.1.0 TESTREPORT ProductName ： HANDHELDHEAVYDUTYSCANNER ModelNumber ： MaxiDiagMD600CV FCCID ： WQ8-DV2311 Preparedfor:AutelIntelligentTechnologyCorp.,Ltd. Address:Floor2,CaihongKejiBuilding,36Hi-techNorthSixRoad, SongpingshanCommunity,XiliSub-district,NanshanDistri ct,ShenzhenCity,China Preparedby:EMTEK(SHENZHEN)CO.,LTD. Address:Bldg69,MajialongIndustryZone,NanshanDistrict, Shenzhen,Guangdong,China Tel:(0755)26954280 Fax:(0755)26954282 ReportNumber:ENS2310300246W00105R Date(s)ofTests:November10,2023toNovember15,2023 DateofIssue:November16,2023 ReportNo.ENS2310300246W00105RPage 2 of 45 Ver.1.0 TABLEOFCONTENTS 1.TESTRESULTCERTIFICATION..........................................................................................................................................4 2.DescriptionofEquipmentUnderTest .............................................................................................................................. 6 3.SARMeasurementSystem .................................................................................................................................................. 7 3.1DefinitionofSpecificAbsorptionRate(SAR) .............................................................................................................. 7 3.2SPEAGDASYSystem...................................................................................................................................................7 3.2.1Robot..................................................................................................................................................................8 3.2.2Probes................................................................................................................................................................9 3.2.3DataAcquisitionElectronics(DAE) ............................................................................................................... 9 3.2.4Phantoms ........................................................................................................................................................ 10 3.2.5DeviceHolder ................................................................................................................................................. 11 3.2.6SystemValidationDipoles............................................................................................................................11 3.2.7TissueSimulatingLiquids.............................................................................................................................12 3.3SARSystemVerification..............................................................................................................................................14 3.4SARMeasurementProcedure .................................................................................................................................... 15 3.4.1Area&ZoomScanProcedure ..................................................................................................................... 15 3.4.2VolumeScanProcedure ............................................................................................................................... 15 3.4.3PowerDriftMonitoring..................................................................................................................................16 3.4.4SpatialPeakSAREvaluation......................................................................................................................16 3.4.5SARAveragedMethods...............................................................................................................................16 4.SARMeasurementEvaluation .......................................................................................................................................... 17 4.1ApplicableStandards .................................................................................................................................................... 17 4.2EUTConfigurationandSetting ................................................................................................................................... 17 4.3EUTTestingPosition....................................................................................................................................................19 4.3.1BodyExposureConditions...........................................................................................................................19 4.3.2SARTestExclusionEvaluations.................................................................................................................21 4.4TissueVerification ......................................................................................................................................................... 23 4.5SystemValidation .......................................................................................................................................................... 23 4.6SystemVerification ....................................................................................................................................................... 24 4.7MaximumOutputPower..............................................................................................................................................25 4.7.1MaximumConductedPower........................................................................................................................25 4.7.2MeasuredConductedPowerResult...........................................................................................................26 4.8SARTestingResults ..................................................................................................................................................... 30 4.8.1SARTestReductionConsiderations ..........................................................................................…

Text truncated - open the document above for the full version.

Report No.ENS2310300246W00104RPage 1 of 95Ver.1.0 TEST REPORT Product Name：HANDHELD HEAVY DUTY SCANNER Model Number：MaxiDiag MD600CV FCC ID：WQ8-DV2311 Prepared for:Autel Intelligent Technology Corp.,Ltd. Address:Floor 2, Caihong Keji Building, 36 Hi-tech North Six Road, Songpingshan Community, Xili Sub-district, Nanshan Distri ct, Shenzhen City, China Prepared by:EMTEK (SHENZHEN) CO., LTD. Address:Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number:ENS2310300246W00104R Date(s) of Tests:November 7, 2023 to November 27, 2023 Date of issue:November 29, 2023 $二维码$ Report No.ENS2310300246W00104RPage 2 of 95Ver.1.0 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ....................................................................................................................... 4 2 EUT TECHNICAL DESCRIPTION ..................................................................................................................... 5 3 SUMMARY OF TEST RESULT...........................................................................................................................6 4 TEST METHODOLOGY.......................................................................................................................................7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS.........................................................................7 4.2 MEASUREMENT EQUIPMENT USED ...................................................................................................... 7 4.3 DESCRIPTION OF TEST MODES ............................................................................................................. 8 5 FACILITIES AND ACCREDITATIONS ............................................................................................................ 10 5.1 FACILITIES...................................................................................................................................................10 5.2 LABORATORY ACCREDITATIONS AND LISTINGS.............................................................................10 6 TEST SYSTEM UNCERTAINTY.......................................................................................................................11 7 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................ 12 7.1 RADIO FREQUENCY TEST SETUP ........................................................................................................ 12 7.2 RADIO FREQUENCY TEST SETUP ........................................................................................................ 12 7.3 CONDUCTED EMISSION TEST SETUP................................................................................................14 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM.................................................................15 7.5 SUPPORT EQUIPMENT............................................................................................................................15 8 TEST REQUIREMENTS .................................................................................................................................... 16 8.1 BANDWIDTH MEASUREMENT ................................................................................................................ 16 8.2 MAXIMUM CONDUCTED OUTPUT POWER ........................................................................................ 46 8.3 MAXIMUM PEAK POWER DENSITY......................................................................................................58 8.4 UNDESIRABLE RADIATED SPURIOUS EMISSION............................................................................71 8.5 POWER LINE CONDUCTED EMISSIONS.............................................................................................90 8.6 ANTENNA APPLICATION .......................................................................................................................... 93 Report No.ENS2310300246W00104RPage 3 of 95Ver.1.0 Modified Information VersionReport No.Revision DateSummary Ver.1.0ENS2310300246W00104R/Original Report Report No.ENS2310300246W00104RPage 4 of 95Ver.1.0 1 TEST RESULT CERTIFICATION Applicant:Autel Intelligent Technology Corp.,Ltd. Address： Floor 2, Caihong Keji Building, 36 Hi-tech North Six Road, Songpingshan Comm unity, Xili Sub-district, Nanshan District, Shenzhen City, China Manufacturer:Autel Intelligent Technology Corp.,Ltd. Address： Floor 2, Caihong Keji Building, 36 Hi-tech North Six Road, Songpingshan Comm unity, Xili Sub-district, Nanshan District, Shenzhen City, China EUT:HANDHELD HEAVY DUTY SCANNER Model Name:MaxiDiag MD600CV Trademark:AUTEL Measurement Procedure Used: APPLICABLE STANDARDS STANDARDTEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart E PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the above table standards requirement. The test results of this report relate only to the tested sample identified in this report. Date of Test:November 7, 2023 to November 27, 2023 Prepared by: Una Yu/Editor Reviewer: Joe Xia/Supervisor Approved & Authorized Signer : Lisa Wang/Manager Report No.ENS2310300246W00104RPage 5 of 95Ver.1.0 2 EUT TECHNICAL DESCRIPTION CharacteristicsDescription ProductHANDHELD HEAVY DUTY SCANNER Model NumberMaxiDiag MD600CV Wifi Type UNII-1: 5150MHz-5250MHz Band UNII-3 with 5725MHz-5850MHz Band WLAN Supported 802.11a 802.11n(20MHz channel bandwidth) 802.11n(40MHz channel bandwidth) 802.11ac(20MHz channel bandwidth) 802.11ac(40MHz channel bandwidth) 802.11ac(80MHz channel bandwidth) Data Rate 802.11a:54/48/36/24/18/12/9/6…

Text truncated - open the document above for the full version.

Report No.ENS2310300246W00104RPage 78 of 95Ver.1.0 Test Model UNII Band I Undesirable radiated Spurious Emission in Restricted Band (5350-5400MHz ) 802.11a802.11n(HT20)802.11n(HT40) 518052205240Ant.PolH Test Model UNII Band I Undesirable radiated Spurious Emission in Restricted Band (5350-5400MHz ) 802.11a802.11n(HT20)802.11n(HT40) 518052205240Ant.PolV Report No.ENS2310300246W00104RPage 79 of 95Ver.1.0 For Undesirable radiated Spurious Emission in UNII Band III All the modes 802.11a/n/ac has been tested and the worst result 802.11a recorded as below: Undesirable radiated Spurious Emission Above 1GHz (1GHz to 40GHz) Temperature : 25°C Test By:HZB Humidity :60 %Frequency(MHz):5745 Test mode:802.11a Freq. (MHz) Ant.Pol. Field Strength (dBuV/m) E.I.R.P (dBm) Limit (dBm)Over(dB) H/V 11519.7V59.77-35.46-278.46 15533.7V62.33-32.9-275.9 17489.7V66.21-29.02-272.02 12582.7H59.40-35.83-278.83 14530.2H61.67-33.56-276.56 17498.2H66.78-28.45-271.45 Temperature : 25°C Test By:HZB Humidity :60 %Frequency(MHz):5785 Test mode:802.11a Freq. (MHz) Ant.Pol. Field Strength (dBuV/m) E.I.R.P (dBm) Limit (dBm)Over(dB) H/V 10669.3V59.52-35.71-278.71 14547.2V61.50-33.73-276.73 17498.2V66.90-28.33-271.33 11511.2H59.47-35.76-278.76 14589.7H61.79-33.44-276.44 17498.2H65.78-29.45-272.45 Temperature : 25°C Test By:HZB Humidity :60 %Frequency(MHz):5825 Test mode:802.11a Freq. (MHz) Ant.Pol. …
