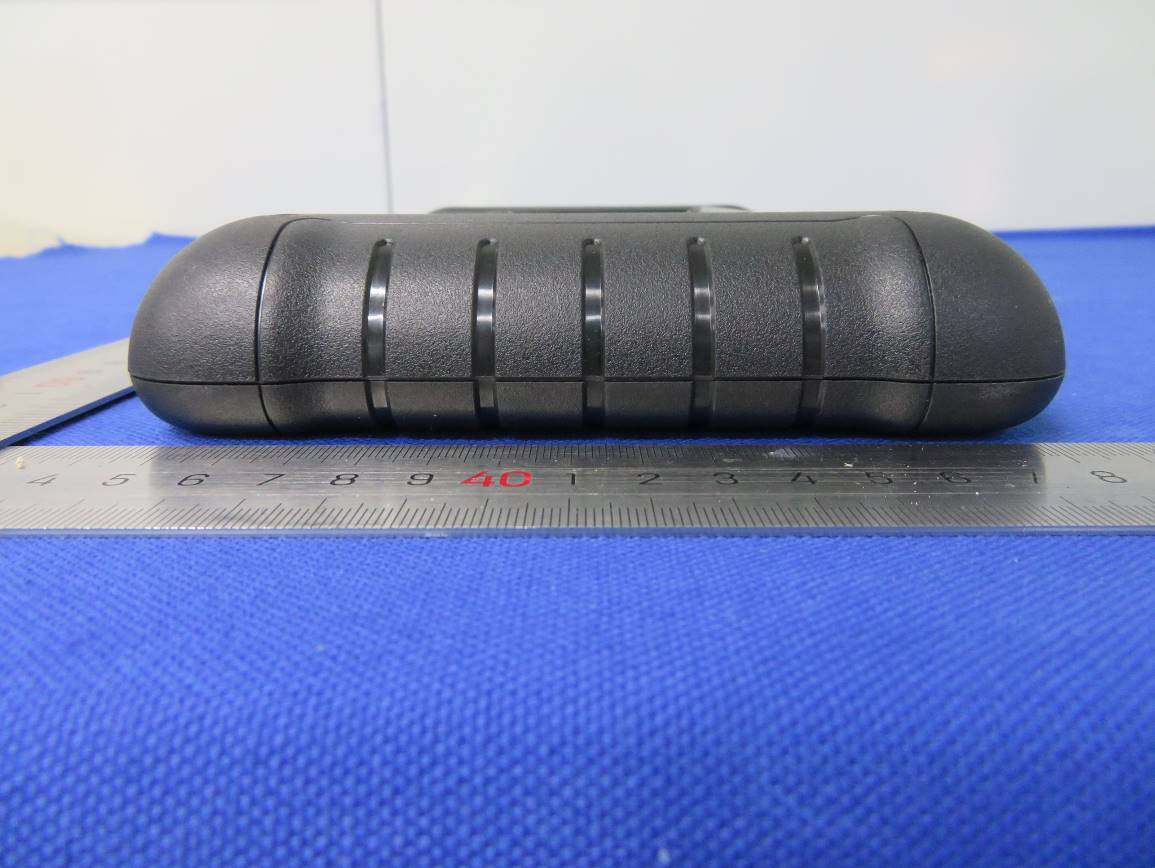

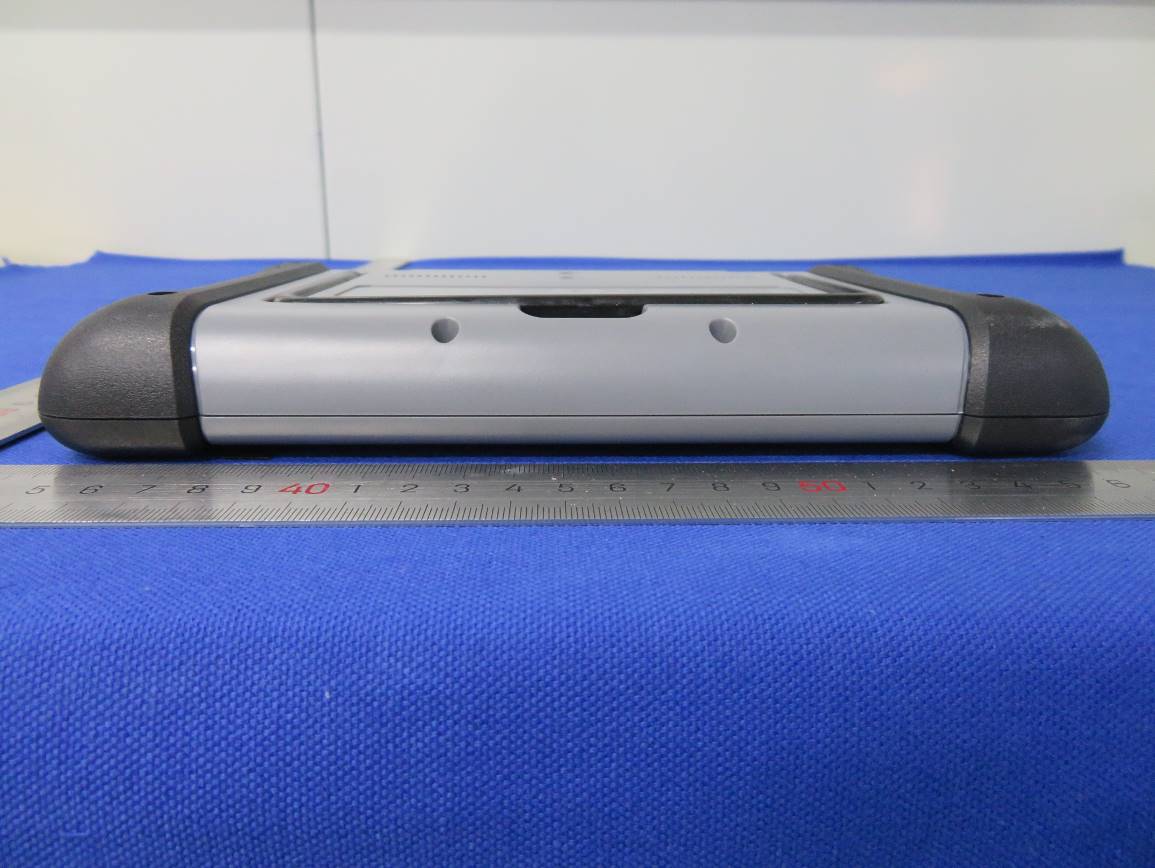

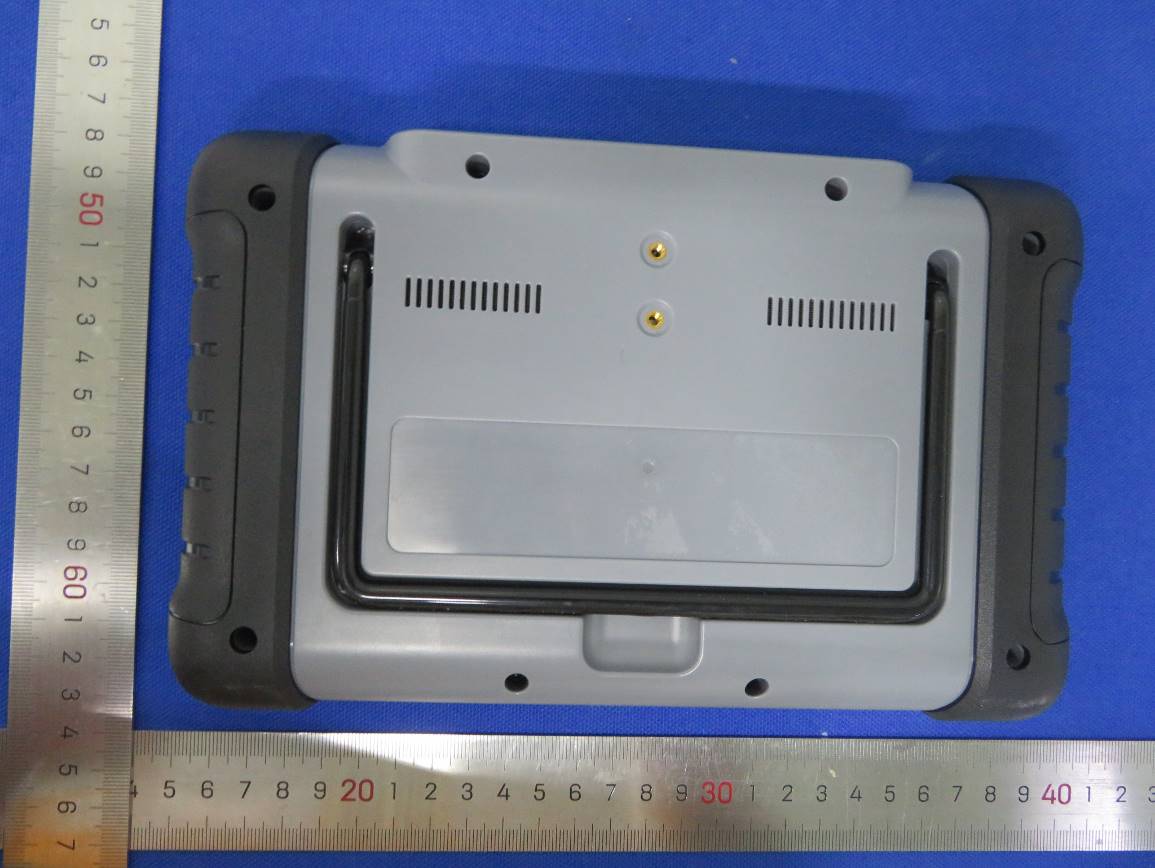

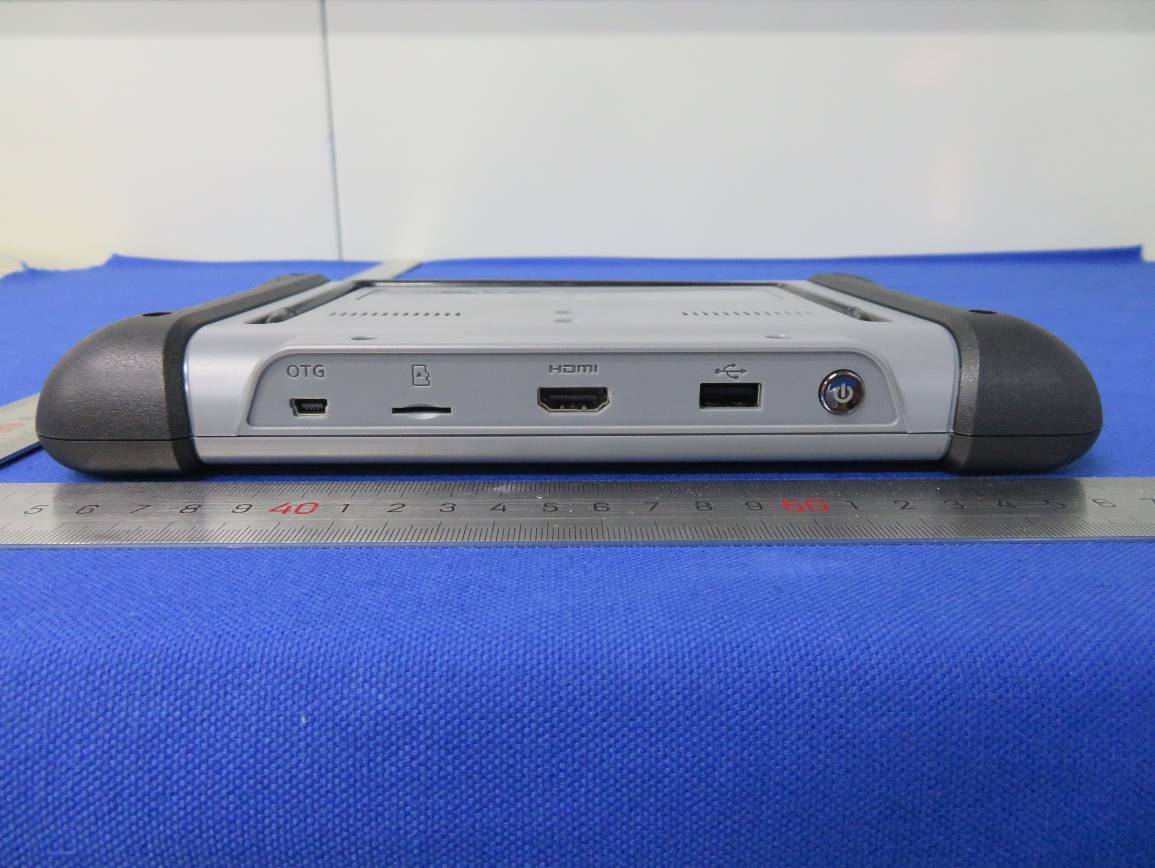

WQ8-MK808BTAUTOMOTIVE DIAGNOSTIS AND ANALYSISSYSTEM

2 3 Al 一 B c D 一 E 4 5 6 L_ 7 REV IPOSITIONI DATE I B DESCRIPTION � 颜色备注 ，、 UTE ·· 道通科技股份有限公司 TITLE : 快速指引 同骂 ， ． “• Autel '",.11；何0"'Technol。gCo rp ,Ltd. F『 i z 自：：：；< DIM Sh础1etal M且恤 ing ... u，俨“ A ←－－－ B c i--- D ←－－－ E 「－－－ 言司 。－ 6 0.10 0 . 05 阳、张贝贝 illlTS: 19 归他run DWGNO ... <kS O 6 ～ 30 0.15 0.10 These Drawings And Sp创fication AUT6206062 9 ip 二i 三三 F Are The Pro阿甲OfAUTEL .And Shall g: 30～ 120 0.25 0.15 N OT Be RJ叩roduoed Cap�ed Or Used CH K D ：杨柳 FINISH: 口 ... 里... 120 ～ 300 0.35 0.20 lnAnyMannerWithoutThePrior I PARTNO.: E, 工 3『，：：： Written ConsentOf AUTEL STA D : MASS(Kg): 』」口3 昌Z 300 ～ 600 0.50 0.2S 500005653 盟国 600-1200 0.60 0.30 APPD：廖岳龙SCALE: 注· Al厅EL设计部不指定供应商。效果做到 3 地terial: 参考样品 一 致即可。 >1200 o.so o.so PROJ S H EET : 1 OF 1 PRODUC T : MK808BT/EN 1 20g书写纸 ANG. IN 30 A3 2 3 4 5 6 7 8 FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement.

TCB Authority to Act as Agent Number: MS‐0045317 Revision: 0 Effective date: Oct 8, 2021 Page 1 of 1 Authority to Act as Agent Date: 24 August 2022 TUV Rheinland of North America, Inc. 1279 Quarry Lane., Suite. A Pleasanton, CA 94566 To Whom It May Concern: I appoint TUV Rheinland (Shenzhen) Co., Ltd. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with Autel Intelligent Tech. Corp., Ltd. / 7th-8th, 10th Floor, Bldg. B1, Zhiyuan,Xueyuan Rd. Xili, Nanshan, Shenzhen China 518055 For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Date: 12 Months Agreement is valid for 12 months from the above date. By: Frank Li (Signature) (Print name) President +86-0755 86147779 (Title) (Telephone) On behalf of: Autel Intelligent Tech. Corp., Ltd. (Company Name)

Standard Form Sample Request for Confidentiality Letter MS-0044715 Page 1 of 1 Revision 0 The following is a sample Confidentiality Request letter, which needs to be completed on company letterhead, signed by an authorized Applicant/Agent, and submitted to TÜV Rheinland. Date: 2022-8-23 Subject: Confidentiality Request for FCC ID: WQ8-MK808BT Pursuant to FCC 47 CRF 0.457(d) and 0.459 the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Internal Photos *** Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Permanent User’s Manual*** Short Term n/a Test Setup Short Term n/a External Photos _Autel Intelligent Tech. Corp., Ltd. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. (*** PAG only) Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: ________________ __________ Frank Li______________ (Signature/Title) (Print name)

Justification for Re-use of radio test results We, Autel Intelligent Tech. Corp., Ltd., believe that the conducted signal tests f or w if i module AP6212 in the original reports f or model MaxiTPMS TS608 can be re-used f or the current model MaxiCOM MK808BT, as the f ollow ing reason: The dif f erence betw een them is that the new design of MaxiCOM MK808BT to integrate w ith new BT module and depopulate the 315MHz, 433MHz and 0.125MHz transmitter. This change not af f ects w if i in conducted signals. FCC ID: WQ8-MK808BT FCC ID: WQ8MX808-T PMS As per KDB 484596 D01 Ref erencing Test Data v01, conducted signal tests in f ollow ing reports re-used. FCC Part Referrence ID Report No. Approv al date 15.247, FCC ID: WQ8MX808-T PMS GT SL202101000019F03 Approved on 16 Mar. 2017 Autel Intelligent Tech. Corp., Ltd. 7th-8th, 10th Floor, Bldg. B1, Zhiyuan, Xueyuan Rd. Xili, Nanshan, Shenzhen, 518055, China By: ___________________ ______________ __________Frank Li______________ (Signature/Title) (Print name)

Model Difference Statement Hereby have our company: Autel Intelligent Technology Corp., Ltd. Product name：AUTOMOTIVE DIAGNOSTIS & ANALYSIS SYSTEM, Product number： MaxiCOM MK808BT ，Series model：MaxiDAS DS808BT，MaxiPRO MP808BT， The series model is consistent with the main model in circuit design,circuit layout and internal structure,the difference is mainly due to the inconsistent model name and sales area. Stamp： Autel Intelligent Technology Corp., Ltd. Date： 08 th , Aug, 2022.

RF ANT

add：东莞市长安镇沙头区合兴路149号B栋2楼T el:0769-85535057 Fax:0769-81664308 客 户 道通 CUSTOM ER: 客户料号 TS608 CUSTOM ER NO: 品 名 WIFI Antenna L=80mm MHF PART NAME: 供方料号 GX005I.300038.I01 SUPP LIER NO: 送样日期 Date: 送样数量 Q"TY : PCS 东莞市国旭电子通讯有限公司 Dongguan Guoxu Electronics Communication Co.,Ltd. 供方确认 SUPPLIER SIGNA TURE APPROVALCHECKDESIGN ShaneLiuNiWangTing 客户确认CUST OMER APPROVED BY APPROVALCHIEFSUPERVISOR 日 期 2017/01/04 Date 编 号 17010404 File No 版 本 1.0 R evision 规 格 承 认 书 SPECI FICATION FOR APPROVAL GX-RD-F04-B add：东莞市长安镇沙头区合兴路149号B栋2楼Tel:0769-85535057 Fax:0769-81664308 承认书项目表 NO. 内 容 （Contents） 页 数 （Number of Page） 页 码 （Page Code） 1承认书封面 （Spec Cover）11 2承认书项目表 （ Spec Item ）12 3工程成品图 （Drawing）13 4天线规格（Antenna Specification）14 5S参数测试 （S Parameter ）15 6无源测试 （Passive Test ）26 ~ 7 7天线装配图（Antenna Profile）28 ~ 9 8材质证明（ Material Certificate ）22 10 ~ 31 9RoHS报告（ RoHS Test Report ）**** 10N/AN/AN/A 11--- 12--- 13--- add：东莞市长安镇沙头区合兴路149号B栋2楼Tel:0769-85535057 Fax:0769-81664308 天 线 规 格 Antenna Specification Electrical Properties Frequency2400~2484MHz Impedance 50 Ohm Nominal V.S.W.R1.92: 1 Max Return Loss -10 dB Max RadiationOmni-directional Gain (Peak) See Page 7 PolarizationLinear Connector1代IPEX Physical Properties Antenna MaterialFPC Cable TypeO.D.1.13mm//L=80mm Operating Temp.-10 ~ +60 ̊C Storage Temp.-10 ~ +70 ̊C Cable ColorBlack add：东莞市长安镇沙头区合兴路149号B栋2楼Tel:0769-85535057 Fax:0769-81664308 Agilent E5071B Antenna Performance Test add：东莞市长安镇沙头区合兴路149号B栋2楼Tel:0769-85535057 Fax:0769-81664308 Antenna Passive Test add：东莞市长安镇沙头区合兴路149号B栋2楼Tel:0769-85535057 Fax:0769-81664308 Passive Test For WiFi(2.4G) Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 240044.4 -3.5 -1.2 241045.6 -3.4 -1.4 242046.7 -3.3 -1.4 243048.2 -3.2 -1.5 244047.8 -3.2 -1.2 245049.9 -3.0 -1.2 246049.6 -3.0-0.9 247049.1 -3.1-1.3 248046.9 -3.3-1.5 249044.8 -3.5-1.6 250042.1 -3.8 -1. 9 add：东莞市长安镇沙头区合兴路149号B栋2楼Tel:0769-85535057 Fax:0769-81664308 Device Antenna WiFi Antenna Profile add：东莞市长安镇沙头区合兴路149号B栋2楼Tel:0769-85535057 Fax:0769-81664308 Assembly Drawing WiFi 物 質 安 全 資 料 表 一、物品與廠商資料 物品名稱 :KTM-303F BKM1/HD-303F-B 其它名稱 : 建議用途: 印刷油墨 製造商或供應商名稱：供應商 –凱耀科技股份有限公司 製造商 –凱耀科技股份有限公司 製造商或供應商地址：供應商 –新竹縣竹北市博愛街646巷18號 工 廠 –新竹縣竹北市博愛街646巷18號 緊急聯絡電話： (03)555-1822 傳真電話：(03)553-1338 二. 危害辨識資料 物品危害分類： 易燃液體第3級、皮膚腐蝕/刺激、造成嚴重眼睛損傷、可能造成皮膚過敏、吸入性危害物質第1級、特定標的器官系統 毒性物質－重複暴露第2級長期或重複暴露可能對器官造成傷害、危害水生環境 標示內容：乙基二乙二醇乙酸酯、甲基二丙二醇醚、 象 徵 符 號：易燃液體、健康危害 警 示 語：危險 危害警告訊息：易燃液體和蒸氣；長期或重複暴露可能會對器官造成傷害； 對水生生物有害 危害防範措施：緊蓋容器；遠離引火源-禁止抽煙；置容器於通風良好的地方；衣服一經污染，立即脫掉；戴眼罩/護 面罩；使用時勿吃、喝，避免釋放於環境中 其它危害：-- 三、成份辨識資料 KTM-303F BKM1 危害物質成份之中英文名稱 濃度或濃度範圍(成份百分比) CAS No. 環氧樹酯 32 % 未公開 填充料 38 % 13463-67-7 黑色顏料 15 % 1333-86-4 添加劑 5 % 未公開 甲基二丙二醇醚10 % 34590-94-8 合計 100% HD-303F-B 危害物質成份之中英文名稱 濃度或濃度範圍(成份百分比) CAS No. 壓克力樹酯 52 % 未公開 添加劑 6 % 未公開 乙基二乙二醇乙酸酯24% 112-15-2 甲基二丙二醇醚18% 34590-94-8 合計 100% 四. 急救措施： 不同暴露途徑之急救方法： 吸入 ：1.立即將患者移致新鮮空氣處。2.若呼吸停止施予人 工呼吸，若心跳停止，則施予心肺復甦術。 3 .立即就醫。 皮膚接觸：1.立即用溫水緩和沖洗 10分鐘以上。 2.在沖水中脫掉污染衣物，鞋子及皮飾品﹝如：錶帶、皮帶﹞。 3.若有刺激感反覆沖洗。 眼睛接觸：1.立即將眼皮撐開，用緩和的溫水沖洗。 2.勿讓沖洗過的污水污染其他不位。 3.立即就醫。 食入 ：1.若患已喪失意識或痙攣，勿餵食。 2.用水徹底清洗口腔，勿催吐。3.給患者喝240~300ML水以稀釋胃 中物質。4.若患者自發性嘔吐，令其漱口並反覆給水。5.立即就醫。 最重要症狀：會抑制神經系統、頭痛、嘔心，甚至失去意識。 對急救人員之防護：戴防護手套，以避免接觸污染物。 對醫師之提示：患者吞食時，考慮洗胃及通便。 五、滅火措施 適用滅火劑： 二氧化碳，化學乾粉，乾砂泡沫材料。 滅火時可能遭遇之特殊危害： 1.易燃，室溫下易引燃。2.蒸氣比空氣重，會傳播致遠處，遇火源可能造成回火。3.火場中可能 釋出毒性氣體。4.可能蓄積於密閉空間，造成毒性及易燃性的危害。5.濃的水溶液亦可燃。6.密閉容器加 熱可能劇烈爆炸。 特殊滅火程序： 1. 將容器運離火場並於上風處滅火。2.在不為及人員安全下，先止漏，因其蒸氣可與空氣混合而在引燃。 3.若無法止漏且周圍空曠，責任火燒盡。4.不宜用水霧滅火，但可噴水霧以冷卻暴露於火焰之容器外側 ，並驅散或稀釋其蒸氣。5.物料儲存區發生大火，應使用無人控制之水帶控制架或自動搖擺消防水瞄以 水灌救。 消防人員之特殊防護設備： 消防人員必須配戴空氣呼吸器，消防衣及防護手套。 六、洩漏處理方法 個人應注意事項： 1. 限制人員進入，直至外溢區完全清乾淨為止。 2. 確定是由受過訓之人員負責清理工作。 3. 穿戴適當個人防護裝備。 環境注意事項： 1.對該區進行通風換氣。 2.撲滅或除去所有發火源。 3.報告政府安全衛生與環保相關單位。 清理方法： 1.不要碰觸外洩物。2.避免外洩物流入下水道或其他密閉空間。3.在安全許可狀況下設法阻止或減少溢漏。 4.用砂，泥土或其他不予洩漏物質反應之吸收物質來圍堵著洩漏物。5.少量溢漏時，用不會和外洩物反應之 吸收劑吸收。已污染的吸收劑和外洩物具有同樣危害性，須置於加蓋並標示的適當的容器裡。用水沖洗溢漏 區域。6.大量溢漏時，連絡消防，緊急處理單位及供應商以尋求協助。 七、安全處置與儲存方法 處置： 1. 此物質是易燃性液體，處置時工程控制應運轉及善用個人防護設備；工作人員應受適當有關物質之危 險性及安全使用法之訓練。 2.除去所有發火源並遠離熱及不相容物。 3.工作區應有"禁止抽煙"標誌。 4.液體會累積電荷，考慮額外之設計以增加電導性。如所有桶槽、轉裝容器和管線都要接地，接地時必須接觸到 裸金屬，輸送操作中，應降低流速，增加液體留在管線中之時間或低溫操作。 5.當調配之操作不是在密閉系統進行時，確保調配的容器和接收的輸送設備和容器要等電位連接。 6.空的桶槽、容器和管線可能仍具危害性的殘留物，未清理前不得從事任何焊接、切割、鑽孔或其他熱的工作進行。 7.桶槽或儲存容器可填充惰性氣體以減少火災和爆炸的危險。 8.作業場所使用不產生火花的通風系統，設備應為防暴型。 9.保持走道和出口暢通無阻。 10.儲存區和大量操作的區域，考慮安裝溢漏和火災偵測系統及適當的自動消防系統或足夠的緊急處理裝備。 11.作業避免產生霧滴或蒸氣，在通風良好的指定區內操作並採最小使用量，操作區與儲存區分開。 12.必要時穿戴適當的個人防護設備以避免與此化學品或受污染的設備接觸。 13.不要與相容物一起使用﹝如強氧化劑﹞以免增加火災和爆炸的危險。 14.使用相容物質製成的儲存容器，分裝時小心不要噴灑出來。 15.不要以空氣或惰性氣體將液體自容器中加壓而輸送出來。 16.除非調配區以耐火結構隔離，否則不要在儲存區進行調配工作。 17.使用經認可的易燃性液體儲存容器和調配設備。 18.不要將受污染的液體倒回原儲存容器。 19.容器要標示，不使用時保持緊密並避免受損。 20.儲存在陰涼、乾燥、通風良好以及陽光無法直接照射的地方，遠離熱源，發火源及不相容物。 21.儲存設備以耐火材料構築。 22.地板應以不滲透性材料構築以免自地板吸收。 23.門口設斜坡或門檻或挖溝槽使洩漏物可排放至安全的地方 儲存： 1.儲區應標示清楚，無障礙物並允許指定或受過訓人員進入。2.儲存區與工作區應分開；遠離升降機，房間出口或 主要通道儲存。3.儲存區附近應有適當的滅火劑和清理溢漏設備。4.定期檢查儲存容器是否破損或溢漏。5.檢查所 有新進容器是否適當標示並無破損。6.限量儲存。7.以相容物質製成的儲存容器裝溢漏物。8.儲桶接地與其他設備 等電位連接。 9.儲存易燃液體的所有桶子應安裝釋放壓閥和真空釋放閥。10.依化學品製造商或供應商所建議之儲存溫度儲存， 必要時可安裝偵溫警報器，以竟是溫度是否過高或過低。11.避免大量儲存於室內，盡可能儲存於隔離的防火建築。 12.儲槽之排氣管應加裝火焰防止裝置。13.儲槽須為地面儲槽，底部整個區域應封住以防滲漏，周圍須有能圍堵整 個容量之防溢堤。 八、暴露預防措施 工程控制：局部排氣裝置或整體換氣裝置。 控制參數：八小時日時量平均容許濃度/短時間時量平均容許濃度/最高容許濃度： 100mg/m3 個人防護設備： 呼吸防護：600PPm以下：供氣式呼吸防護具 不知濃度：正壓全面型供氣式呼吸防護具輔以正壓自攜式呼吸防護具。 手部防護：防滲手套，材質建議以丁基橡膠，Tefion、4H、Barricale、Chemrel 眼睛防護：1.護目鏡﹝最小8英吋﹞。2.防濺安全護目鏡。3.勿戴隱形眼鏡。 皮膚及身體防護：化學防護衣。 衛生措施： 1.工作後儘速脫掉污染之物，洗淨後才可再穿戴或丟棄且須告知洗衣人員污染物之無害性。 2 .工作場所嚴禁抽煙或飲食。3.處理此物後，需徹底洗手。4.維持作業場所清潔 九、物理及化學性質 物質狀態：粘稠膏狀液體 形狀：膏狀液體 顏色： 黑 氣味：芳香味 pH值：可能為微酸性 沸點/熔點範圍： 分解溫度：未測量 閃火點： 測試方法： 開 杯 閉 杯 自燃溫度： 爆炸界限： LEL： UEL： 蒸氣壓： 蒸氣密度：＞1(空氣1) / 比重：1.2~1.4 (25/25°C) 對水溶解度： 十、安定性及反應性 安定性：正常狀況下安定 特殊狀況下可能之危害反應： 1. 正常狀況下安定，但因其可行成過氧化物，在長期暴露於空氣或受熱下，則可能爆炸，故應避開火焰、 火花、靜電、熱及其他引火源。2.氧化劑﹝如過氧化物，硝酸鹽，過氯酸鹽﹞：增加火災、爆炸的危險。 應避免之狀況： 1. 正常狀況下安定。 2 . 避免強氧化劑與之接觸易起火或爆炸。 應避免物質： 強氧化劑、氟、氯、二氧化氮。 危害分解物： 二氧化碳 十一、毒性資料 暴露途徑：皮膚接觸、眼睛接觸、食入 症狀：皮膚紅腫、眼睛損傷 急毒性： 吸入：1.會引起頭痛、噁心、頭昏眼花。 2 .及高濃度則可能導致意識喪失、甚至死亡。 皮膚：引起輕度刺激。 眼睛：蒸氣與吸入同。 食入：影響與吸入同。 LD50(測試動物、吸收途徑)＞2000mg/kg(大鼠，吞食) 局部效應： --- 致敏感性： --- 慢毒應或長期毒性： 特殊效應： 。 十二、生態資料 生態毒性： 持久性及降解性：無 生物蓄積性：無 土壤中之流動性：無 其它不良效應：無 十三、廢棄處置方法 廢棄處置方法 : 1.依現行法規處理。 2 .考慮以衛生掩埋或在合格的溶劑燃燒塔燃燒。 十四、運送資料 聯合國編號： 1210 聯合國運輸名稱：可燃液體 運輸危…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN22YF1T 002 Auftrags-Nr.: Order no.: 168345062 Seite 1 von 34 Page 1 of 34 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2021-11-25 Auftraggeber: Client: Autel Intelligent Tech. Corp., Ltd. 7th-8th, 10th Floor, Bldg. B1, Zhiyuan, Xueyuan Rd. Xili, Nanshan, Shenzhen, 518055, China Prüfgegenstand: Test item: AUTOMOTIVE DIAGNOSTIS & ANALYSIS SYSTEM Bezeichnung / Typ-Nr.: Identification / Type no.: MaxiCOM MK808BT, MaxiDAS DS808BT, MaxiPRO MP808BT (Trademark: AUTEL) Auftrags-Inhalt: Order content: FCC approval Prüfgrundlage: Test specification: FCC 47 CFR § 2.1093 IC RSS-102 Issue 5: March 2015 Wareneingangsdatum: Date of sample receipt: 2022-01-28 Please refer to Photo Document Prüfmuster-Nr.: Test sample no: A003191554-006 Prüfzeitraum: Testing period: 2022-10-10 –2022-10-10 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: X Signed by: Breeze Jiang genehmigt von: authorized by: X Signed by: Lin Lin Datum: Date: 2022-10-11 Ausstellungsdatum: Issue date: 2022-10-11 Stellung / Position: Assistant Project Manager Stellung / Position: Reviewer Sonstiges / Other: FCC ID: WQ8-MK808BT The 802.11b power in Anbotek original test report No.: GTSL2021101000019F03 was max. power, This report base on Sunway original SAR report No.: TS20170203 only retest 802.11b. Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (Shenzhen) Co., Ltd. 1601 R&D Room, 1602-1604, 17-18F, Building 7 Site C, Vanke Cloud City Phase I, Xingke First Street, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P.R. China Mail: [email protected] · Web: www.tuv.com jjj Produkte Products Prüfbericht - Nr.: Test Report No. CN22YF1T 002 Seite 2 von 34 Page 2 of 34 Table of Contents 1. GENERAL INFORMATION ...................................................................................................................... 4 1.1. STATEMENT OF COMPLIANCE .............................................................................................................. 4 1.2. EQUIPMENT UNDER TEST (EUT) INFORMATION .................................................................................... 5 1.2.1. General Information ................................................................................................................. 5 1.2.2. Wireless Technologies ............................................................................................................. 5 2. TEST SITES ........................................................................................................................................ 6 2.1. TEST FACILITIES ................................................................................................................................. 6 2.2. AMBIENT CONDITION ........................................................................................................................... 6 2.3. LIST OF TEST AND MEASUREMENT INSTRUMENTS................................................................................. 7 3. MEASUREMENT UNCERTAINTY............................................................................................................. 8 4. TEST SPECIFICATION, METHODS AND PROCEDURES ............................................................................. 9 5. SAR MEASUREMENT SYSTEM ...........................................................................................................10 5.1. DEFINITION OF SPECIFIC ABSORPTION RATE (SAR) ...........................................................................10 5.2. SPEAG DASY SYSTEM ...................................................................................................................10 5.2.1. Robot ......................................................................................................................................11 5.2.2. Probes ....................................................................................................................................12 5.2.3. Data Acquisition Electronics (DAE) .......................................................................................12 5.2.4. Phantoms ...............................................................................................................................13 5.2.5. Device Holder ........................................................................................................................14 5.2.6. System Validation Dipoles .....................................................................................................14 5.2.7. Tissue Simulating Liquids ......................................................................................................15 5.2.8. SAR System Verification ........................................................................................................18 6. SAR MEASUREMEN…

Text truncated - open the document above for the full version.

Test Laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Date: 2022/10/10 System Check-D2450V2_H2450 DUT: Dipole 2450 MHz D2450V2 SN:1014 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H2450 Medium parameters used: f = 2450 MHz; σ = 1.872 S/m; ε r = 38.153; ρ = 1000 kg/m 3 DASY5 Configuration: -Probe: EX3DV4 -SN7506; ConvF(7.85, 7.85, 7.85) @ 2450 MHz; Calibrated: 2022/5/31 -Sensor-Surface: 1.4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1557; Calibrated: 2022/1/20 -Phantom: ELI V8.0; Type: QD OVA 004 Ax; Serial: 2094 -Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=250 mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 21.5 W/kg Pin=250 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 107.5 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 26.2 W/kg SAR(1 g) = 12.9 W/kg; SAR(10 g) = 6.08 W/kg Smallest distance from peaks to all points 3 dB below = 9 mm Ratio of SAR at M2 to SAR at M1 = 49.7% Maximum value of SAR (measured) = 21.3 W/kg

Test Laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Date: 2022/10/10 P01 802.11b_Top Side_0cm_Ch1 DUT: EUT Communication System: 802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: H2450 Medium parameters used: f = 2412 MHz; σ = 1.843 S/m; ε r = 38.224; ρ = 1000 kg/m 3 DASY5 Configuration: -Probe: EX3DV4 -SN7506; ConvF(7.85, 7.85, 7.85) @ 2412 MHz; Calibrated: 2022/5/31 -Sensor-Surface: 1.4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1557; Calibrated: 2022/1/20 -Phantom: ELI V8.0; Type: QD OVA 004 Ax; Serial: 2094 -Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) -Area Scan (61x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.73 W/kg - Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.429 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 2.15 W/kg SAR(1 g) = 0.858 W/kg; SAR(10 g) = 0.374 W/kg Smallest distance from peaks to all points 3 dB below = 6.7 mm Ratio of SAR at M2 to SAR at M1 = 41.5% Maximum value of SAR (measured) = 1.63 W/kg

Justification for Extended SAR Dipole Calibrations Dipole Date of Measurement Return Loss (dB) Delta (%) Impedance (ohm) Delta (ohm) Head 2450MHz May 19, 2021 -28.3 -2.71 53.8 -4.17 May 17, 2022 -27.5 49.7 Note: The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification results meet the requirement of extended calibration.

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN22YF1T 001 Auftrags-Nr.: Order no.: 168345062 Seite 1 von 23 Page 1 of 23 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2021-11-25 Auftraggeber: Client: Autel Intelligent Tech. Corp., Ltd. 7th-8th, 10th Floor, Bldg. B1, Zhiyuan, Xueyuan Rd. Xili, Nanshan, Shenzhen, 518055, China Prüfgegenstand: Test item: AUTOMOTIVE DIAGNOSTIS & ANALYSIS SYSTEM Bezeichnung / Typ-Nr.: Identification / Type no.: MaxiCOM MK808BT, MaxiDAS DS808BT, MaxiPRO MP808BT (Trademark: AUTEL) Auftrags-Inhalt: Order content: Test Report Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 Wareneingangsdatum: Date of sample receipt: 2022-01-28 Please refer to Photo Document Prüfmuster-Nr.: Test sample no: A003191554-005~006 A003191554-017 Prüfzeitraum: Testing period: 2022-02-23 – 2022-03-08 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: X Signed by: Breeze Jiang genehmigt von: authorized by: X Signed by: Lin Lin Datum: Date: 2022-08-25 Ausstellungsdatum: Issue date: 2022-08-25 Stellung / Position: Assistant Project Manager Stellung / Position: Reviewer Sonstiges / Other: FCC ID: WQ8-MK808BT Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (Shenzhen) Co., Ltd. 1601 R&D Room, 1602-1604, 17-18F, Building 7 Site C, Vanke Cloud City Phase I, Xingke First Street, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P.R. China Mail: [email protected] · Web: www.tuv.com jjj Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No.: CN22YF1T 001 Seite 2 von 23 Page 2 of 23 Test Summary 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER RESULT: Pass 5.1.3 99% BANDWIDTH RESULT: Pass 5.1.4 20DB BANDWIDTH RESULT: Pass 5.1.5 CARRIER FREQUENCY SEPARATION RESULT: Pass 5.1.6 NUMBER OF HOPPING FREQUENCY RESULT: Pass 5.1.7 TIME OF OCCUPANCY RESULT: Pass 5.1.8 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH RESULT: Pass 5.1.9 RADIATED SPURIOUS EMISSION RESULT: Pass 5.1.10 CONDUCTED EMISSION RESULT: Pass Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No.: CN22YF1T 001 Seite 3 von 23 Page 3 of 23 Contents 1 GENERAL REMARKS ........................................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ............................................................................................................ 4 2 TEST SITES ........................................................................................................................................ 5 2.1 TEST FACILITIES ................................................................................................................................. 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS................................................................................. 5 2.3 TRACEABILITY .................................................................................................................................... 6 2.4 CALIBRATION ..................................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY............................................................................................................. 6 2.6 LOCATION OF ORIGINAL DATA ............................................................................................................. 6 2.7 STATUS OF FACILITY USED FOR TESTING ............................................................................................. 6 3 GENERAL PRODUCT INFORMATION ...................................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................................................. 7 3.2 RATINGS AND SYSTEM DETAILS .......................................................................................................... 7 3.3 INDEPENDENT OPERATION MODES ...................................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ......................................................................... 9 3.5 SUBMITTED DOCUMENTS..................................................................................................................... 9 4 TEST SET-UP AND OPERATION MODES ..............................................................................................10 4.1 PRINCIPLE OF CONFIGURATION SELECTION .......................................................................................10 4.2 TEST OPERATION AND TEST SOFTWARE ............................................................................................10 4.3 SPECIAL A…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix B CN22YF1T 001 Page 1 of 53 Appendix B: Test Results of FCC Part 15C APPENDIX B: TEST RESULTS OF FCC PART 15C ............................................................................................................... 1 APPENDIX B.1: TEST RESULTS OF 99% BANDWIDTH ................................................................................................................... 2 APPENDIX B.2: TEST RESULTS OF 20DB BANDWIDTH .................................................................................................................. 5 APPENDIX B.3: TEST RESULTS OF CARRIER FREQUENCY SEPARATION ............................................................................................. 8 APPENDIX B.4: TEST RESULTS OF NUMBER OF HOPPING FREQUENCY ............................................................................................ 9 APPENDIX B.5: TEST RESULTS OF TIME OF OCCUPANCY ............................................................................................................. 10 APPENDIX B.6: TEST RESULTS OF CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH ....................................... 15 Conducted Spurious Emission ..................................................................................................................................... 15 Band Edge ................................................................................................................................................................... 22 APPENDIX B.7: TEST RESU…
