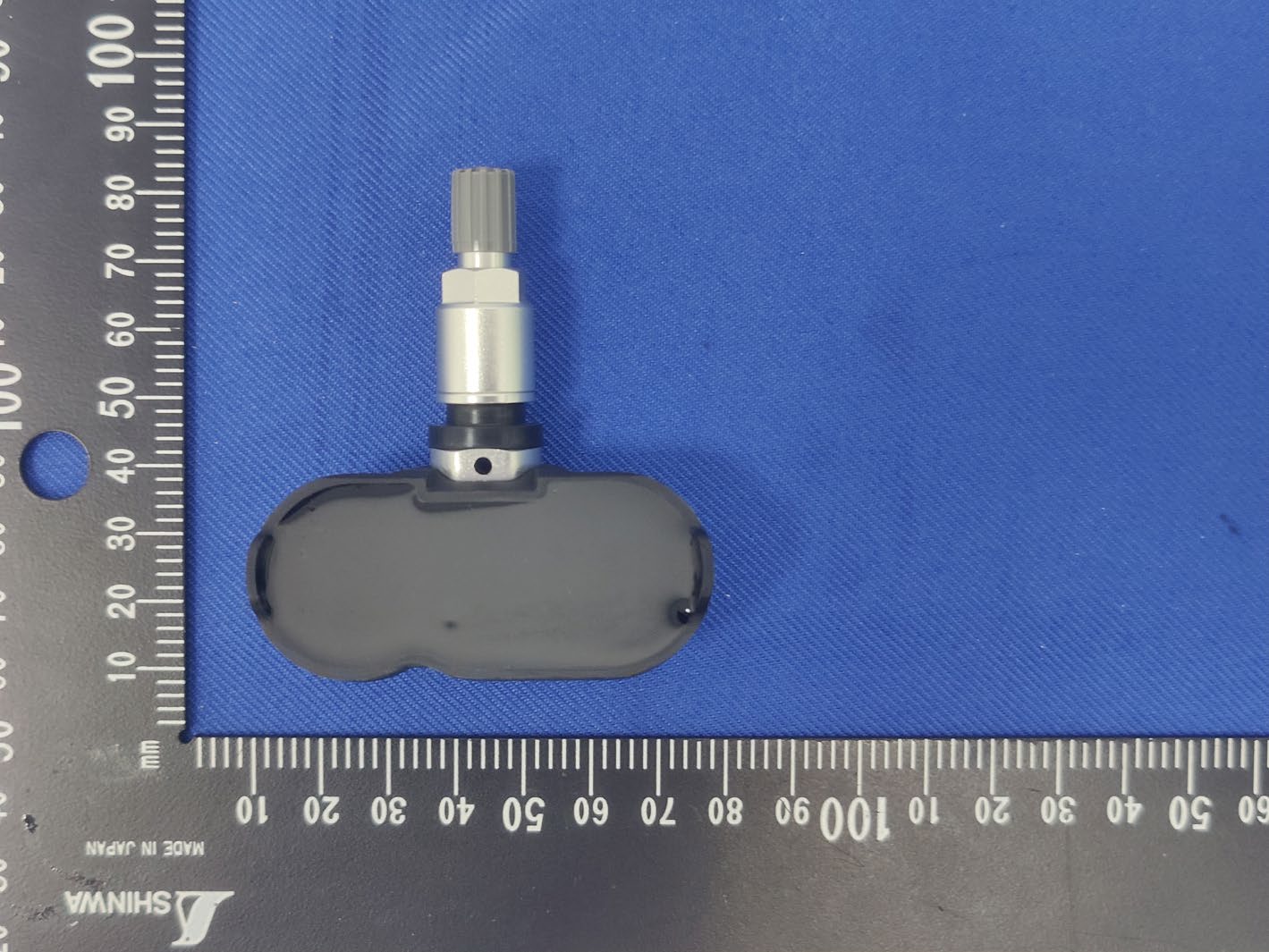

EXPLODED VIEW OF SENSOR Technical data of the sensor CAUTION: Each time a tir e is serviced or dismounted, or if the sensor is removed or replaced, it is mandatory to replace the rubber gr ommet, washer, nut and valve core with our parts to ensure proper sealing. It is mandatory to replace the sensor if it is externally damaged. Correct sensor nut torque: 4 Newton-meters. Weight of sensor without valve23.8 g Dimensions approx. 63.6 x 33.5 x 22.62 mm Max. pressure range800 kPa Screw Sensor body Washer Screw-nut Cap SAFETY INSTRUCTIONS Before installing the sensor, read the installation and safety instructions carefully. For reasons of safety and for optimal operation, we recommend that any maintenance and repair work be carried out by trained experts only, in accordance with the guidelines of the vehicle manufacturer . The valves ar e safety-relevant parts which ar e intended for pr ofessional installation only. Failure to do so may result in the failure of the TPMS sensor. AUTEL does not assume any liability in case of faulty or incorrect installation of the product. CAUTION • The TPMS sensor assemblies are replacement or maintenance parts for vehicles with factory installed TPMS. • Make sure to program the sensors by AUTEL sensor program- ming tools by the specific vehicle make, model and year before installation. • Do not install programmed TPMS sensors in damaged wheels. • In order to guarantee optimal function, the sensors may only be installed with original valves and accessories provided by AUTEL. • Upon completing the installation, test the vehicle's TPMS following the procedures described in the original manufactur- er's user guide to confirm proper installation. CAUTION: Do Not race with the vehicle on which the Clamp-in MX-Sensor is mounted, and always keep the drive speed under 240 km/h. PROGRAMMABLE BLE TPMS SENSOR MX-SENSOR 2.4 GHz Metal Valve (Screw-in) Take BLE-A001 sensor as an example in this manual. Valve stem, rubber gr ommet and valve core assembly Email: [email protected] Web: www.autel.com www.maxitpms.com WARRANTY AUTEL guarantees that the sensor is free from material and manufacturing defects for a period of twenty-four (24) months or for 25,000 miles, whichever comes first. AUTEL will at its discretion replace any merchandise during the warranty period. The warranty shall be void if any of the following occurs: 1. Improper installation of products 2. Improper usage 3. Induction of defect by other products 4. Mishandling of products 5. Incorrect application 6. Damage due to collision or tire failure 7. Damage due to racing or competition 8. Exceeding specific limits of the product INSTALLATION GUIDE Loosening the tire IMPORTANT: Before operating or maintaining this unit, please read these instructions carefully and pay extra attention to the safety warnings and precautions. Use this unit correctly and with care. Failur e to do so may cause damage and/or personal injury and will void the warranty. Remove the valve cap and core and deflate the tire. Use the bead loosener to unseat the tire bead. 1 CAUTION: The bead loosener must be facing the valve. Mounting the tire 5 Dismounting the tire Clamp the tir e onto the tir e changer, and adjust the valve at 1 o'clock relative to the tir e separation head. Insert the tir e tool and lift the tir e bead onto the mounting head to dismount the bead. 2 CAUTION: This starting position must be observed during the whole dismounting process. Mounting sensor and valve 4 Dismounting the sensor3 Remove the fastening screw and the sensor from the valve stem with a screwdriver, and then loosen the nut to remove the valve. Place the tire on the rim, make sure that the valve faces the separation head at an angle of 180°. Mount the tire over the rim. Step 1 Slide the valve stem through the valve hole of the rim. Step 2 Tighten the screw-nut with 4.0 N·m with the help of the fixed rod. Step 3 Adjust the installation angle so that the sensor fits the rim tightly, and then tighten the screw. Step 4 The sensor and valve are now installed. CAUTION: The tir e should be mounted to the wheel using tir e changer manufacturer’ s instructions. Step 1Step 2 Step 3Step 4 FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. - English: " This device complies with Industry Canada licence-exempt RSS standard( s). Operation is subject to the following…
Text truncated - open the document above for the full version.
- Autel Intelligent Technology Corp., Ltd. - The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/9/2023 U.S. Agent Designation [Autel Intelligent Technology Corp., Ltd.] acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: [WQ8TPMST6N8]): Name and company of U.S. agent: Autel US, Inc Physical U. S. address of agent: 36 Harbor Park Drive, Port Washington, NY 11050-4651, United States FRN of U.S. agent: 0032544660 Email address of U.S. agent: [email protected] [Autel US, Inc] acknowledges their obligation to accept service of process on behalf of [Autel Intelligent Technology Corp., Ltd.]. [Autel Intelligent Technology Corp., Ltd.] with the FRN [0018132787] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanentl y terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm th e above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature [Name] Frank Li [Title] President [Company] Autel Intelligent Technology Corp., Ltd. Signature [Name of U.S. agent] Paul A Marshall [Title of U.S. agent] Manager [Company of U.S. agent] Autel US, Inc 48_[mo del] US_Agent_2.911(d)(7) - U, V04
Autel Intelligent Technology Corp., Ltd. The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/9/2023 To whom it may concern: We, [Autel Intelligent Technology Corp., Ltd.], hereby certify that the equipment for which authorization is sought (FCC ID: [WQ8TPMST6N8]) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the fi lin g of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist ) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). Sincerely, Signature [Name] Frank Li [Title] President [Company] Autel Intelligent Technology Corp., Ltd. 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V02
FCC ID: WQ8TPMST6N8 ---------------- End ----------------
Label Location On EUT Label Product Name: MX-Sensor Model Number: BLE-A001 Trademark: AUTEL FCC ID: WQ8TPMST6N8
FCC ID: WQ8TPMST6N8 ---------------- End ---------------- Spring Antenna
RF EXPOSURE EVALUATION FCC ID: WQ8TPMST6N8 According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b): Routine SAR evaluation refers to that specifically required by §2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to qu alify for TCB approval. Channel (MHz) Maximum output power (dBm) Tune up tolerance (dBm) Max Tune Up Power (dBm) Distance (mm) Calculation results Limit Operating Mode 2402 3.03 3.03±1 4.03 5 0.784 3 BLE 2440 2.68 2.68±1 3.68 5 0.729 3 2480 1.71 1.71±1 2.71 5 0.588 3 Tes t Results: PASS.
Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 1 / 21 Appendix A RF Test Data for BLE(Conducted Measurement) Product Name: MX-Sensor Trade Mark: AUTEL Test Model: BLE-A001 Environmental Conditions Temperature: 24.6°C Relative Humidity: 51.4% ATM Pressure: 101Kpa Test Engineer: Simba Huang Supervised by: Seal Chen Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 2 / 21 B.1. Duty Cycle Test Result Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 0.183 0.625 29.28 5.33 0.05 2440 0.184 0.625 29.44 5.31 0.06 2480 0.184 0.625 29.44 5.31 0.06 Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 3 / 21 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 4 / 21 1M_HCH_2480MHz_Ant1_NTNV Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 5 / 21 B.2. Maximum Conducted Output Power Test Result Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 3.03 <=30 Pass 2440 2.68 <=30 Pass 2480 1.71 <=30 Pass Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 6 / 21 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 7 / 21 1M_HCH_2480MHz_Ant1_NTNV Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 8 / 21 B.3. 6dB BW Test Result Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.677 >=0.5 Pass 2440 1 0.690 >=0.5 Pass 2480 1 0.693 >=0.5 Pass Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 9 / 21 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 10 / 21 1M_HCH_2480MHz_Ant1_NTNV Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 11 / 21 B.4. Maximum Power Spectral Density Test Result Mode TX Type Frequency (MHz) Maximum PSD (dBm/3kHz) Verdict ANT1 Limit 1M SISO 2402 -13.53 <=8 Pass 2440 -14.04 <=8 Pass 2480 -14.90 <=8 Pass Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 12 / 21 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 13 / 21 1M_HCH_2480MHz_Ant1_NTNV Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 14 / 21 B.5. Conducted Spurious Emissions Test Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 2.90 2440 1 2.54 2480 1 1.57 Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 15 / 21 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 16 / 21 1M_HCH_2480MHz_Ant1_NTNV Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 17 / 21 CSE Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 2.90 -17.10 Pass 2440 1 2.90 -17.10 Pass 2480 1 2.90 -17.10 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 18 / 21 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 19 / 21 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 20 / 21 1M_HCH_2480MHz_Ant1_NTNV Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 21 / 21 B.6. Conducted band edge emission Test Test Mode: GFSK Pol. Frequen cy (MHz) Meter Reading (dBuV) Pre- amplifier (dB) Cable Loss (dB) Antenna Factor (dB/m) Emission level (dBuV/m) Limit (dBuV/ m) Margin (dB) Detect or Type Result Low Channel: 2402MHz H 2390.00 46.69 29.15 3.41 34.01 45.24 74.00 -28.76 PK PASS H 2400.00 64.02 29.16 3.43 34.01 62.60 74.00 -11.40 PK PASS V 2390.00 47.60 29.15 3.41 34.01 46.15 74.00 -27.85 PK PASS V 2400.00 66.46 29.16 3.43 34.01 65.04 74.00 -8.96 PK PASS H 2390.00 36.38 29.15 3.41 34.01 34.93 54.00 -19.07 AV PASS H 2400.00 47.84 29.16 3.43 34.01 46.42 54.00 -7.58 AV PASS V 2390.00 36.59 29.15 3.41 34.01 35.14 54.00 -18.86 AV PASS V 2400.00 44.85 29.16 3.43 34.01 43.43 54.00 -10.57 AV PASS High Channel: 2480MHz H 2483.50 49.24 29.28 3.53 34.03 48.02 74.00 -25.98 PK PASS H 2500.00 47.69 29.30 3.56 34.03 46.52 74.00 -27.48 PK PASS V 2483.50 50.72 29.28 3.53 34.03 49.50 74.00 -24.50 PK PASS V 2500.00 49.05 29.30 3.56 34.03 47.88 74.00 -26.12 PK PASS H 2483.50 39.25 29.28 3.53 34.03 38.03 54.00 -15.97 AV PASS H 2500.00 36.71 29.30 3.56 34.03 35.54 54.00 -18.46 AV PASS V 2483.50 40.78 29.28 3.53 34.03 39.56 54.00 -14.44 AV PASS V 2500.00 36.94 29.30 3.56 34.03 35.77 54.00 -18.23 AV PASS Remark: 1. Emission Level = Meter Reading + Antenna Factor + Cable Loss – Pre-amplifier, Margin= Emission Level - Limit **End of the report**
Page 1 of 34 Report No.: AIT23071411FW1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. TEST REPORT Client Information: Applicant: Autel Intelligent Technology Corp., Ltd. Applicant add.: Floor 2, Caihong Keji Building, 36 Hi-tech North Six Road, Songpingshan Community, Xili, Nanshan, Shenzhen City, China Manufacturer: Autel Intelligent Technology Corp., Ltd. Manufacturer add.: Floor 2, Caihong Keji Building, 36 Hi-tech North Six Road, Songpingshan Community, Xili, Nanshan, Shenzhen City, China Product Information: Product Name: MX-Sensor Model No.: BLE-A001 Brand Name: AUTEL FCC ID: WQ8TPMST6N8 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Prepared By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang,Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Date of Receipt: Jun. 15, 2023 Date of Test: Jun. 15, 2023 – Jun. 28, 2023 Date of Issue: Jul. 10, 2023 Test Result: Pass This device described above has been tested by Dongguan Yaxu (AiT) Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited, this document may be altered or revised by Dongguan Yaxu (AiT) Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Simba Huang Seal.chen Page 2 of 34 Report No.: AIT23071411FW1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS ..................................................................................................................................................... 2 2 TEST SUMMARY ............................................................................................................................................. 4 2.1 Statement of the Measurement Uncertainty ...................................................................................... 4 2.2 Measurement Uncertainty .................................................................................................................. 4 3 TEST FACILITY ............................................................................................................................................... 5 3.1 Deviation from standard ..................................................................................................................... 5 3.2 Abnormalities from standard conditions ............................................................................................. 5 3.3 Test Location ...................................................................................................................................... 5 4 GENERAL INFORMATION .............................................................................................................................. 6 4.1 Test frequencies ................................................................................................................................. 7 4.2 EUT Peripheral List ............................................................................................................................ 7 4.3 Test Peripheral List ............................................................................................................................ 7 4.4 TEST METHODOLOGY .................................................................................................................... 8 4.5 Description of Test Modes .................................................................................................................. 9 5 EQUIPMENT USED DURING TEST ............................................................................................................. 10 6 TEST RESULTS AND MEASUREMENT DATA ............................................................................................ 11 6.1 Antenna requirement ....................................................................................................................... 11 6.2 On Time and Duty Cycle .................................................................................................................. 12 6.3 Maximum Conducted Output Peak Power Measurement ............................................................... 13 6.4 6 dB Spectrum Bandwidth Measurement ........................................................................................ 14 6.5 Conducted Spurious Emissions and Band Edges Test .................................................................... 15 6.6 Restrict-band Band-edge Measurements ........................................................................................ 17 6.7 Radiated Emissions Measurement .................................................................................................. 20 6.8 Power Spectral Density .................................................................................................................... 31 6.9 Conducted Emissions ...................................................................................................................... 33 7 TEST SETUP PHOTOGRAPHS OF EUT ...................................................................................................... 34 8 EXTERNAL PHOTOGRAPHS OF EUT ......................................................................................................... 34 9 INTERNAL PHOTOGRAPHS OF EUT .......................................................................................................... 34 Page 3 of 34 Report No.: AIT23071411FW1 Dongguan Yaxu (AiT) Technology Li…
Text truncated - open the document above for the full version.
version01 Autel Intelligent Technology Corp., Ltd. Declaration concerning Antenna Specification It i s hereby declared that the product Model No.: MX-Sensor FCC ID: WQ8TPMST6N8 fulfill s the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Spring antenna type(s) described below: Model No. of antenna: 501011476 Type of antenna: Spring Antenna Gain of the antenna: 0.3 dBi Frequency range: 2400-2500 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Autel Intelligent Technology Corp., Ltd. Address: Floor 2, Caihong Keji Building, 36 Hi-tech North Six Road, Songpingshan Community, Xili, Nanshan, Shenzhen City, China City: Shenzhen, ZIP / Postal code: Country: China Place: Place: Date: 2023-07-10 Signature:
东莞市一佳电子通讯科技有限公司 Dongguan YiJia Electronics Communication Technology Co.,Ltd. 规格承认书 SPECIFICATION FOR APPROVAL 日期 Date 2023/06/12 编号 File No 23061201 版本 Revision 1.0 客户 CUSTOMER: 道通 客户料号 CUSTOMER NO: 501011476 品名 RFAntenna 品名 PART NAME: RF Antenna 供方料号 SUPPLIER NO: YJI01.005.073.301A 送样日期 Date: 送样数量Q“TY: 客户确认CUSTOMER APPROVED BY APPROVALCHIEFSUPERVISOR 供方确认SUPPLIER SIGNATURE APPROVALCHECKDESIGN add:东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 APPROVALCHECKDESIGN ChenGuoqiangXieLiChenXingyi YJ-RD-F04-A 承认书项目表 NO . 内容 (Contents) 页数 (Number of Page) 页码 (Page Code) 1 承认书封面(Spec Cover) 11 承认书封面(p) 2 承认书项目表(Spec Item ) 12 3 工程成品图(Drawing) 13 4 天线规格(Antenna Specification) 14 5 S参数测试(S Parameter ) 15 6 无源测试(Passive Test ) 26 ~ 7 7 天线匹配电路(Antenna Matching Circuit) 18 8 方向图(Radiation Pattern) 129 ~ 20 线装 图 9 天线装配图(Antenna Profile) 121 10 材质证明(Material Certificate ) 122 11 RoHS报告(RoHS Test Report ) **** add:东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 12N/AN/AN/A 13--- 天线规格 Antenna Specification Electrical Properties Frequency 2.4-2.5GHz qy Impedance50 Ohm Nominal V.S.W.R2.0 Max Gain 03dBi Gain 0.3 dBi RadiationOmni-directional PolarizationLinear Physical Properties ConnectorNone Cable TypeNone Cable LengthNone Cable ColorNone add:东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Operating Temp.-40 ~ +85 ̊C Storage Temp / Humidity 25±5 ̊C / <70% Antenna Performance Test Agilent Antenna Performance Te s t Agilent E5071B SS Parameter Test // BT Antenna add:东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 AntennaPassive TestAntenna Passive Te s t Z YY X X Z Y add:东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Passive Test For BT Antenna FreqEffiEffiGain (MHz)(%)(dB)(dBi) 240038.9 -4.1 0.2 241039.7 -4.0 0.2 242040.6 -3.9 0.2 243040.6 -3.9 0.0 244040.6 -3.9 -0.1 245042.3 -3.7 0.2 246042.2 -3.8 0.1 247042.5 -3.7 0.3 248041.1 -3.9 0.1 add:东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 249040.2 -4.0 0.1 250040.4 -3.9 0.0 BT Antenna Matching Circuit 1 pF 0 Ohm add:东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For BT Antenna add:东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For BT Antenna add:东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For BT Antenna add:东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For BT Antenna add:东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For BT Antenna add:东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For BT Antenna add:东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For BT Antenna add:东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For BT Antenna add:东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For BT Antenna add:东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For BT Antenna add:东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For BT Antenna add:东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For BT Antenna add:东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 BT Antenna add:东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 MSDS物料安全资料 产品名称:镀镍高碳弹簧钢丝 公司名称:东莞市信宣金属材料有限公司 地 址:东莞市长安镇振安东路业盛金属材料广场 电 话:0769-85345468 1、物料成分: C:0.72% Si:0.15% Mn:0.5% P:0.011% S:0.004% 2、物理性质: 外观:银白色,光滑 熔点:1440°C 密度:7.93g/cm 2 可溶性:不溶于水 3、可燃性: 不燃 4、反应性、稳定性: 稳定性:良好,不分解 危险的分解产物:无 避免接触物:强酸、强碱、强氧化剂、水 5、保护措施: 工作场所要防火、防雨 库房要防火、防雨 6、健康危险数据: 侵害人体主要途径:无 致癌化学物或隐性致癌物:无 7、搬运与储存时的注意事项: 搬运时要防止擦伤表面 存放于阴凉干燥处,远离火源和热源 8、NPA危害评估:健康
Report No.: AIT23071411FW1 FCC ID: WQ8TPMST6N8 Dongguan Yaxu(AiT) Technology Limited 1 / 2 TEST SETUP PHOTOS 1 Radiated Emission --BLANK BELOW--
