AR2146 (EVO5000AP) User Manual Kaonmedia Proprietary and Confidential. Copyright 2017 KAON MEDIA CO., LTD. All Rights Reserved.2019-12-19 l V 1. 2 3Kaonmedia Proprietary and Confidential. Copyright 2017 KAON MEDIA CO., LTD. All Rights Reserved. Table of Contents 10.2.3 Filtering – MAC Filtering 10.3. Parental Control 11. Service Menu 11.1. Dynamic DNS 11.2. DLNA 12. Management Setting menu 12.1. Passwords 12.2. Backup Settings 12.3. Update Software 12.4. Reset 12.5. TR-069 Client 12.6. System Log 4 6 6 6 7 9 10 10 10 10 11 11 11 13 14 15 16 17 18 19 20 21 21 22 24 26 27 28 29 29 30 32 33 34 35 36 36 37 38 39 40 41 42 43 44 45 45 46 47 48 49 50 51 52 54 1. Introduction 2. Product Overview 2.1. Product Introduction 2.2. Package Contents 2.3. Product Interfaces 2.4. Product Specification 3. Installation 3.1. Note for Placement 3.2. Hardware Set-up 3.3. Completing Set-up 4. Configuration 4.1. Note for Configuration 4.2. Configuration Set-up 5. Login 6. Home 7. Device Info Menu 7.1. Summary 7.2. WAN 7.3. LAN 7.4. Wireless 7.5. Network Statistics 8. Network Menu 8.1. Wan Service - IPoE & PPPoE 8.1.1 WAN Service - IPoE 8.1.2 WAN Service – PPPoE 8.2.1 LAN Service – IPv4 Setup 8.2.2 LAN Service – IPv6 LAN Auto Configuration 8.3. Internet Time 9. Wireless Menu 9.1. Wireless Wi-Fi 9.1.1 Wi-Fi – Primary Wi-Fi 2.4GHz & 5GHz Setting 9.1.2 Wi-Fi – Guest Wi-Fi 2.4GHz & 5GHz Setting 9.1.3 Wi-Fi – 2.4GHz & 5GHz Advanced Settings 9.2.1. Mesh – Mesh Setting 9.2.2. Mesh – Mesh Topology 10. Access Control Menu 10.1. NAT 10.1.1. NAT – Port Forwarding 10.1.2. NAT – Port Triggering 10.1.3. NAT – DMZ Host 10.2. Filtering 10.2.1. Filtering – IP Outgoing Filtering 10.2.2 Filtering – IP Incomming Filtering ········································································ ······························································· ················································· ······················································ ······················································ ················································ ············································································ ···················································· ························································ ···················································· ······································································· ·············································· ················································· ······················································································ ····················································································· ······························································· ······································································ ··············································································· ················································································ ········································································· ······················································ ···································································· ····································· ·················································· ·············································· ······································· ···· ······························································· ····································································· ······························································· ··· ······· ······· ············································· ·········································· ······················································· ·············································································· ········································ ·········································· ··················································· ······································································ ······················· ····················· ······································ ······················································· ···································································· ···························································· ··········································································· ·········································· ·································································· ························································ ······················································ ············································································ ····························································· ································································ 4Kaonmedia Proprietary and Confidential. Copyright 2017 KAON MEDIA CO., LTD. All Rights Reserved. Introduction Copyright Statement FCC Interference Statement This user manual is designed to provide the detailed instruction on how to set-up and manage AR2146. Before the instruction started, please check out the below notes. AR2146 does not assume any liability arising out of the application or use of any products, or software described here- in. Neither does it convey any license under its patent rights nor patent rights of others. AR 2146 further reserves the right to make changes to any products described herein without notice. This publication is subject to change without notice. Any trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective owners. Please note that features of AR2146 may vary slightly depending on the model and software version you have, and on your location, language and internet service provider. All images, parameters and descriptions documented in this guide are used for informational purposes only, and may change without notice. This publication may not be reproduced, in whole or in part, without prior expressed written permission from KAONMEDIA Co., Ltd. Thi…

Text truncated - open the document above for the full version.

31Kaonmedia Proprietary and Confidential. Copyright 2017 KAON MEDIA CO., LTD. All Rights Reserved. 8) Radius port User can configure the port number of the radius server. 9) Encryption User can configure the encryption method when communicating with the radius sever either as AES or TKIP/AES. 10) Radius key User must enter the radius key value which is given by the radius server. 11) Password User can configure the password for the selected SSID connection. 12) Encryption User can enable or disable the client isolation function. With this function, the clients under this WiFi interface can not communicate each other. 32Kaonmedia Proprietary and Confidential. Copyright 2017 KAON MEDIA CO., LTD. All Rights Reserved. 9.1.2 Wi-Fi – Guest Wi-Fi 2.4GHz & 5GHz Setting 13) WiFi network User can enable or disable the Wi-Fi network. 14) SSID hidden User can hide the SSID. 15) Service type User can create the SSID. 16) Security User can select one of the following security mode: Open, WPA2-enterprise, WPA2-PSK, WPA/WPA2 encryption. 17) WPA group rekey interval User can configure the WPA group key renewal time. “0” means the key is not being regenerated. The unit is second. 18) Radius server IP address User can configure the IP address of the radius server. 19) Radius port User can configure the port number of the radius server. 20) Encryption User can configure the encryption method when communicating with the radius sever either as AES or TKIP/AES. 21) Radius key User must enter the radius key value which is given by the radius server. 22) Password User can configure the password for the selected SSID connection. 23) Clients isolation User can enable or disable the client isolation function. With this function, the clients under this WiFi interface can not communicate each other. * 2.4GHz and 5GHz configuration menus are same. 13 14 15 16 17 18 19 20 21 22 23 Open Open WPA2-enterprise WPA2-PSK WPA/WPA2 encryption AES AES TKIP/AES 33Kaonmedia Proprietary and Confidential. Copyright 2017 KAON MEDIA CO., LTD. All Rights Reserved. 9.1.3 Wi-Fi – 2.4GHz & 5GHz Advanced Settings 24) Wireless multicast forwarding Wireless multicast forward (WMF) transforms the incoming multicast packets to unicast packets. User can enable or disable this WMF function. 25) Bandwidth User can configure the bandwidth at each frequency band. 2.4GHz Options: 20Mhz, 20/40Mhz @ 2.4GHz 5GHz Options: 20Mhz, 20/40Mhz, 20/40/80MHz 26) Channel selection User can select a specific channel or automatic mode. 27) Control sideband User can select low channel or upper channel for control messaging. 28) WMM (Wi-Fi Multimedia) User can enable or disable of the WMM QoS function. 29) Airtime fairness User can enable or disable of airtime fairness function. Airtime fairness: Make Intelligent Airtime Scheduling for Wi-Fi QoS. Improve Wi-Fi QoS by controlling clients airtime usage. 30) DFS (Dynamic Frequency Selection) User can enable or disable DFS function. 31) Apply Click the “Apply” button in order to save settings. * 2.4GHz and 5GHz configuration menus are almost same. However a few of menus @ 5GHz is different. In this case, we have additional description in the below table. Low Low Upper 20Mhz 20Mhz 20/40Mhz 24 25 26 27 28 29 30 31 34Kaonmedia Proprietary and Confidential. Copyright 2017 KAON MEDIA CO., LTD. All Rights Reserved. 9.2.1 Mesh - Mesh Setting 1) Mesh Setting User can set the Mesh function of the AR2146. 2) Mesh Topology Mesh topology shows the network map of the AR2146 to the user. 3) Friendly name User can make a friendly SSID name of the WiFi Mesh so that others can easily find it. 4) Smart Connect User click “Smart Connect” button to initiate Mesh grouping. 5) Save Click “Apply” button for applying friendly name. 6) MAC address You can manually enter the MAC addresses of the target repeaters if you cannot make QR code scan. You need to put “:” between the MAC addresses. e.g. AA:BB:CC:DD:EE:FF 7) Apply You can save the configureation. 8) OBAL List OBAL means onboarding extender. This list shows Mesh Node List shows the mesh. User can configure regarding Mesh function in this page. 1 2 3 8 6 4 5 7 35Kaonmedia Proprietary and Confidential. Copyright 2017 KAON MEDIA CO., LTD. All Rights Reserved. 9.2.2 Mesh - Mesh Topology 1) Mesh topology Mesh topology shows the current mesh network between the AR2146 and extenders. It also shows the all clients connected to each node. This page shows the Mesh network topology the AR2146 forms with the Mesh repeaters 1 36Kaonmedia Proprietary and Confidential. Copyright 2017 KAON MEDIA CO., LTD. All Rights Reserved. 10. Access Control Menu 10.1 NAT A user can configure port forwarding services in this page. The user can choose pre-defined port-forwarding services or make the user’s own services. This might need to connect specific devices via the AR2146. The table shows the external port start numbers, external port end numbers, and their relevant internal port start numbers and internal port end numbers. 37Kaonmedia Proprietary and Confidential. Copyright 2017 KAON MEDIA CO., LTD. All Rights Reserved. A user can configure port forwarding services in this page. The user can choose pre-defined port-forwarding services or make the user’s own services. This might need to connect specific devices via the AR2146. The table shows the external port start numbers, external port end numbers, and their relevant internal port start numbers and internal port end numbers. 10.1.1 NAT – Port Forwarding 1) Select a Service You can choose pre-defined port-forwarding services from this section Predefined services are following; 2) Custom service You can configure the user’s own port-forwarding services by entering service name, service type, server IP address, and related port numbers 3) Service type You can select either IPv4 or IPv6. 4) Serve IP Address You can configure the IP address you want to use for Port Forwarding service. 1 2 3 4 38Kaonmedia Proprietary and Confidential. Copyright 2017 KAON MEDIA CO.,…

Text truncated - open the document above for the full version.

KAONMEDIA Co., Ltd. KAONMEDIA Building, 513-4 Yatap-Dong, Bundang-Gu, Sungnam-City, Kyonggi-Do, South Korea, 463-839 Tel. +82-31-724-8500 / Fax. +82-31-724-8999 . Declaration of Similarity Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Date: February 5, 2020 Dear Sir, We, KAON Media Co.,Ltd., hereby declare that we have a product named as AP Router (Model number: AR2146 , FCC ID: WQT-AP5000) was tested by KCTL Inc. Meanwhile, for our marketing purpose, we would like to list a series models (EVO5000AP) on reports and certificate. The basic and derivative model are electrically identical. The derivative model is only for the simplified derivation based on buyer’s model name. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Signature: Name / Title: Kim Tae-Sung / Manager Email: [email protected]

KAONMEDIA Co., Ltd. KAONMEDIA Building, 513-4 Yatap-Dong, Bundang-Gu, Sungnam-City, Kyonggi-Do, South Korea, 463-839 Tel. +82-31-724-8500 / Fax. +82-31-724-8999 . Date: February 5, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL Verification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Athena Kim/Assistant manager of KCTL Inc. and hereafter referred to as KCTL to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Athena Kim/Assistant manager of KCTL Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KCTL as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Name / Title: Kim Tae-Sung / Manager Email: [email protected]

KAONMEDIA Co., Ltd. KAONMEDIA Building, 513-4 Yatap-Dong, Bundang-Gu, Sungnam-City, Kyonggi-Do, South Korea, 463-839 Tel. +82-31-724-8500 / Fax. +82-31-724-8999 . CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 February 5, 2020 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, KAON Media Co.,Ltd. requests confidentiality for the following products: FCC ID Number Product Title/Model WQT-AP5000 AP Router /AR2146, EVO5000AP The following exhibits contain trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our product. This material is not customarily available to the general public and we request that it be withheld from public inspection. We request that the following information submitted be held permanent confidential treatment. Permanent Confidential Request -. Schematics -. Block Diagram -. Operational Description -. Parts list We also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give temporary confidentiality of commercially sensitive information prior to product release. Short-Term Confidential Request -. External Photos -. Internal Photos -. Test set-up photo -. User Manual If you have any questions, please feel free to contact me at the address shown below. Sincerely, Signature: Name / Title: Kim Tae-Sung / Manager Email: [email protected]

KAONMEDIA Co., Ltd. KAONMEDIA Building, 513-4 Yatap-Dong, Bundang-Gu, Sungnam-City, Kyonggi-Do, South Korea, 463-839 Tel. +82-31-724-8500 / Fax. +82-31-724-8999 . WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: WQT-AP5000 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo-location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title: Kim Tae-Sung / Manager Signature: Email: [email protected]

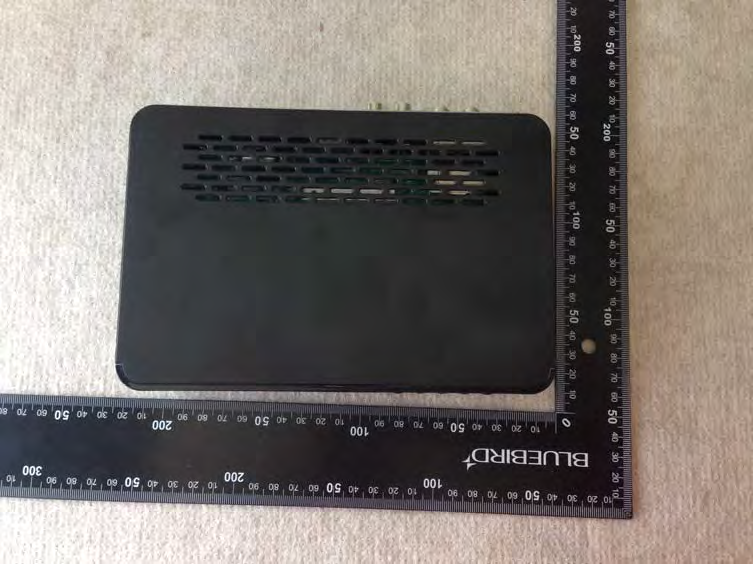

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval External photos of EUT http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval -Adaptor http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval

<Label design & location>

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Internal photos of EUT http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval PCB Antenna

verify No.058292944455 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0030-D Page (2) of (1046) KCTL-TIR001-003/2 Report revision history Date Revision Page No 2020-02-03 Initial report - 2020-02-10 Updated 19~22, 137~140, 255~258 2020-02-19 Updated 360,361,365, 369,373 2020-02-26 Updated 10,11,12,19,21, 22,40,41, 79~133,137, 139,140,142, 143,198~252, 1046 2020-02-27 Updated 141 This report shall not be reproduced except in full, without the written approval of KCTL Inc. This document may be altered or revised by KCTL Inc. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by KCTL Inc. will constitute fraud and shall nullify the document. This test report is a General report that does not use the KOLAS accreditation mark and is not related to KOLAS accreditation. Note. The report No. KR20-SRF0030-C is superseded by the report No. KR20-SRF0030-D. KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0030-D Page (3) of (1046) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 CONTENTS 1. General information ......................................................................................................4 2. Device information ........................................................................................................4 2.1. Accessory information ............................................................................................5 2.2. Information about derivative model .........................................................................5 2.3. Frequency/channel operations................................................................................6 2.4. Duty Cycle Correction Factor ..................................................................................7 2.5. Power level setup in software ............................................................................... 10 3. Antenna requirement .................................................................................................. 12 3.1 Antenna information ................................................................................................. 12 3.2 Directional Gain Calculations ................................................................................... 12 4. Summary of tests ........................................................................................................ 13 5. Measurement uncertainty ........................................................................................... 14 6. Measurement results explanation example ................................................................ 15 7. Test results ................................................................................................................. 16 7.1. Maximum conducted output power ....................................................................... 16 7.2. Maximum Power Spectral Density ...................................................................... 135 7.3. 26 ㏈ Bandwidth ................................................................................................ 254 7.4. 6 ㏈ Bandwidth .................................................................................................. 359 7.5. Frequency Stability ............................................................................................. 377 7.6. Spurious Emission, Band Edge and Restricted bands ........................................ 382 7.7. AC Conducted emission ................................................................................... 1044 8. Measurement equipment ........................................................................................ 1046 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0030-D Page (4) of (1046) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 1. General information Client : KAON Media Co.,Ltd. Address : Kaonmedia Building, 884-3, Seongnam-daero, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea Manufacturer : KAON Media Co.,Ltd. Address : Kaonmedia Building, 884-3, Seongnam-daero, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea Laboratory : KCTL Inc. Address : 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea Accreditations : FCC Site Designation No: KR0040, FCC Site Registration No: 687132 VCCI Registration No. : R-20080, G-20078, C-20059, T-20056 Industry Canada Registration No. : 8035A KOLAS No.: KT231 2. Device information Equipment under test : AP Router Model : AR2146 Derivative model : EVO5000AP Frequency range : 2 412 ㎒ ~ 2 462 ㎒ (802.11b/g/n_HT20) 2 422 ㎒ ~ 2 452 ㎒ (802.11n_HT40) UNII-1: 5 180 ㎒ ~ 5 240 ㎒ (11a/n_HT20/ac_VHT20) UNII-1: 5 190 ㎒ ~ 5 230 ㎒ (11n_HT40/ac_VHT40) UNII-1: 5 210 ㎒ (11ac_VHT80) UNII-2A: 5 260 ㎒ ~ 5 320 ㎒ (11a/n_HT20/ac_VHT20) UNII-2A: 5 270 ㎒ ~ 5 310 ㎒ (11n_HT40/ac_VHT40) UNII-2A: 5 290 ㎒ (11ac_VHT80) UNII-2C: 5 500 ㎒ ~ 5 720 ㎒ (11a/n_HT20/ac_VHT20) UNII-2C: 5 510 ㎒ ~ 5 710 ㎒ (11n_HT40/ac_VHT40) UNII-2C: 5 530 ㎒ ~ 5 690 ㎒ (11ac_VHT80) UNII-3: 5 745 ㎒ ~ 5 825 ㎒ (11a/n_HT20/ac_VHT20) UNII-3: 5 755 ㎒ ~ 5 795 ㎒ (11n_HT40/ac_VHT40) UNII-3: 5 775 ㎒ (11ac_VHT80) Modulation technique : DSSS (802.11b) OFDM (802.11a/g/n_HT20/ HT40/ac_VHT20/ VHT40/ VHT80) Number of channels : 11 ch (802.11b/g/n_HT20)_2.4 ㎓ Band 9 ch (802.11n_HT40)_2.4 ㎓ Band UNII-1: 4 ch (20 ㎒), 2 ch (40 ㎒), 1 ch (80 ㎒) UNII-2A: 4 ch (20 ㎒), 2 ch (40 ㎒), 1 ch (80 ㎒) UNII-2C: 12 ch (20 ㎒), 6 ch (40 ㎒), 3 ch (80 ㎒) UNII-3: 5 ch (20 ㎒), 2 ch (40 ㎒), 1 ch (80 ㎒) Power source : DC 12 V Antenna specification : PCB Antenna 2.4G 1.88 ㏈i UNII-1 1.98 ㏈i UNII-2A 1.97 ㏈i KCTL Inc. 65, Sinwo…

Text truncated - open the document above for the full version.

KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0030-D Page (96) of (1046) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 UNII-1 / 802.11n HT20 / 5 180 ㎒ UNII-2A / 802.11n HT20 / 5 260 ㎒ UNII-1 / 802.11n HT20 / 5 220 ㎒ UNII-2A / 802.11n HT20 / 5 300 ㎒ UNII-1 / 802.11n HT20 / 5 240 ㎒ UNII-2A / 802.11n HT20 / 5 320 ㎒ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0030-D Page (97) of (1046) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 UNII-2C / 802.11n HT20 / 5 500 ㎒ UNII-2C / 802.11n HT20 / 5 700 ㎒ UNII-2C / 802.11n HT20 / 5 600 ㎒ UNII-2C / 802.11n HT20 / 5 720 ㎒ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0030-D Page (98) of (1046) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 UNII-3 / 802.11n HT20 / 5 745 ㎒ UNII-3 / 802.11n HT20 / 5 785 ㎒ UNII-3 / 802.11n HT20 / 5 825 ㎒ - Blank KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0030-D Page (99) of (1046) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 UNII-1 / 802.11n HT40 / 5 190 ㎒ UNII-2A / 802.11n HT40 / 5 270 ㎒ UNII-1 / 802.11n HT40 / 5 230 ㎒ UNII-2A / 802.11n HT40 / 5 310 ㎒ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0030-D Page (100) of (1046) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 UNII-2C / 802.11n HT40 / 5 510 ㎒ UNII-2C / 802.11n HT40 / 5 670 ㎒ UNII-2C / 802.11n HT40 / 5 590 ㎒ UNII-2C / 802.11n HT40 / 5 710 ㎒ UNII-3 / 802.11n HT40 / 5 755 ㎒ UNII-3 / 802.11n HT40 / 5 795 ㎒ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0030-D Page (101) of (1046) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 UNII-1 / 802.11ac VHT20 / 5 180 ㎒ UNII-2A / 802. 11ac VHT20 / 5 260 ㎒ UNII-1 / 802. 11ac VHT20 / 5 220 ㎒ UNII-2A / 802. 11ac VHT20 / 5 300 ㎒ UNII-1 / 802. 11ac VHT20 / 5 240 ㎒ UNII-2A / 802. 11ac VHT20 / 5 320 ㎒ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0030-D Page (102) of (1046) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 UNII-2C / 802.11ac VHT20 / 5 500 ㎒ UNII-2C / 802.11ac VHT20 / 5 700 ㎒ UNII-2C / 802.11ac VHT20 / 5 600 ㎒ UNII-2C / 802.11ac VHT20 / 5 720 ㎒ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0030-D Page (103) of (1046) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 UNII-3 / 802.11ac VHT20 / 5 745 ㎒ UNII-3 / 802.11ac VHT20 / 5 785 ㎒ UNII-3 / 802.11ac VHT20 / 5 825 ㎒ - Blank KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0030-D Page (104) of (1046) This test report shall not be reproduced, except in full, without the writ…
