WRH-PRT01Printer

WRH-PRT01 label location label

§ 1.1310 Radiofrequency radiation exposure limits FCC ID: Conducted Power (dBm):12.919 milliWatts Maximum Antenna Gain (dBi):2.1 Minimum TX Cable Loss (dB): Minimum TX Jumpers and Adapter Loss(dB): EIRP (dBm):15.0or31 milliWatts At frequency (MHz):907.4 General MPE Limit (mW/cm^2):0.605 Occupational MPE Limit (mW/cm^2):3.025 Given the following equation Equation 1: Solve for r: Equation 2: Using Equation 1, the power density at 20 cm is:0.01 mW/cm^2 Margin-19.86 dBnegative number is below the limit General Results: Using Equation 2, the MPE limit is met at:2.0 cmor0.02 meters Occupational Results: Using Equation 2, the MPE limit is met at:0.9 cmor0.00 meters To comply with Maximum Permissible Exposure (MPE) requirements, the maximum composite output from the antenna cannot exceed 1000 Watts EIRP (2000 Watts EIRP for rural areas) and the antenna must be permanently installed in a fixed location that provides at least 0.02 meters of separation from all persons. WRH-PRT01 2 4r GP P tt d π = d tt P GP r π4 =

Client: Product Designation: Wave 2 - Printer Report Number: 100278403ATL-015a All services undertaken are subject to the following general policy: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST, or any agency of the US Government. Tested by: Tests performed by:Report reviewed by: Standard: Richard C. Bianco EMC Project Engineer Jeremy Pickens EMC Department Manager Scientific Games LLC 1500 Bluegrass Lakes Parkway Alpharetta, GA 30004 Contact: Tony Crumpton Phone: 770.825.4374 Fax: 770.772.7699 TEST REPORT December 31, 2010 Intertek Testing Services NA Inc. 1950 Evergreen Blvd., Suite 100 Duluth, GA 30096 FCC 15.249 - Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHZ, and 24.0-24.25 GHz. RSS-210, Issue 7, 2007 Page 1 of 26EMC Report for Scientific Games LLC on the Wave 2 - Printer 12/31/2010Report Number: 100278403ATL-015aIssued: Intertek 2.0 Test Summary 1.0 Introduction and Conclusion Test DateTest Full NameResultSection System setup including cable interconnection details, support equipment and simplified block diagram. (System Setup)4.0 12/07/2010Overview of EUT (Low Power Transmitters) (FCC 15C - EUT Overview)5.0 12/08/2010Duty Cycle Determination (FCC 15A - 15.35(c))PASS6.0 11/30/2010Conducted emissions on AC power lines (Conducted Emissions)PASS7.0 12/07/2010Radiated emissions (E-field) for low power intentional radiators. (Radiated Emissions LPD)PASS8.0 12/08/2010Occupied Bandwidth (FCC Part 2.1049)PASS9.0 12/09/2010Additional provisions to the general radiated emission limitations. (FCC 15C - 15.215)PASS10.0 The tests indicated in section 2.0 were performed on the product constructed as described in section 3.0. The remaining test sections are the verbatum text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complies with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. Page 2 of 26EMC Report for Scientific Games LLC on the Wave 2 - Printer 12/31/2010Report Number: 100278403ATL-015aIssued: Intertek 3.0 Description of Equipment Under Test Eq uip me nt Unde r T est Description Manu fac ture r Mo del N umbe r Serial Nu mb er Point of Sale Console Scientific Games LLC Wave 2 EVT 1L Printer Cogniti ve Wave 2 0024556 EUT receive date: November 30 th 2010 EUT receive condition: Good Description of EUT provided by Client: The Wave 2 is an wireless RF lottery ticket point of sale station consisting of a console, and a printer. The EUT was configured with a Saw -touch single CPU and Solid State drive, & Cognitive printer. Steward Ferrite 28A2029-0A2 on Printer cable only close to display connector. Description of EUT exercising: The Wave 2 system was placed in a continuous transmit state and normal modulation was applied during testing. Page 3 of 26EMC Report for Scientific Games LLC on the Wave 2 - Printer 12/31/2010Report Number: 100278403ATL-015aIssued: Intertek System setup including cable interconnection details, support equipment and simplified block diagram. (System Setup) 4.0 Method: Record the details of EUTcabling, document the support equipment, and show the interconnections in a block diagram. Data: Monitor Pr in ter (EUT) Con sole (EUT) AB C D E AC Mo use Monitor Pr in ter (EUT) Con sole (EUT) AB C D E AC Mo use Simplified Block Diagram Drawing: Page 4 of 26EMC Report for Scientific Games LLC on the Wave 2 - Printer 12/31/2010Report Number: 100278403ATL-015aIssued: Intertek System setup including cable interconnection details, support equipment and simplified block diagram. (System Setup) 4.0 A B C D E MonitorHPSH 2493CQ93601YW MouseLogitechM-UAE-96LZ952AC0TXN Support Equipment DescriptionManufacturerModel NumberSerial Number EUT ConsoleEUT Printer EUT ConsoleMonitor AC SourceMonitor Monitor Cable1.4myesyes AC Power Line1.5mnono Printer Cable0.3myesyes nono nonoAC Power Line1.5m Ethernet Line2.0m AC SourceEUT Console EUT ConsoleUnterminated Description EUT Cabling Connection Length Shielding FerritesIDFromTo Page 5 of 26EMC Report for Scientific Games LLC on the Wave 2 - Printer 12/31/2010Report Number: 100278403ATL-015aIssued: Intertek Overview of EUT (Low Power Transmitters) (FCC 15C - EUT Overview)5.0 Method: Complete the overview spreadsheet. Related Submittal(s) Grants: This report is for use with an application for certification of a low power transmitter. One transmitter is included in the application. Scien t ific Games In t ern at io n al 1055 W ind ward Ridg e Pkwy Su ite 100 A lp h aretta GA 30004 Trade Name & Model No. Wave II Printer FCC Identifier TBD Frequency Range (MHz) 902.5-927.5 A nten na Typ e (15.203) In teg ral - In tern al Scien t ific Games In t ern at io n al 1055 W ind ward Ridg e Pkwy Su ite 100 A lp h aretta…

Text truncated - open the document above for the full version.

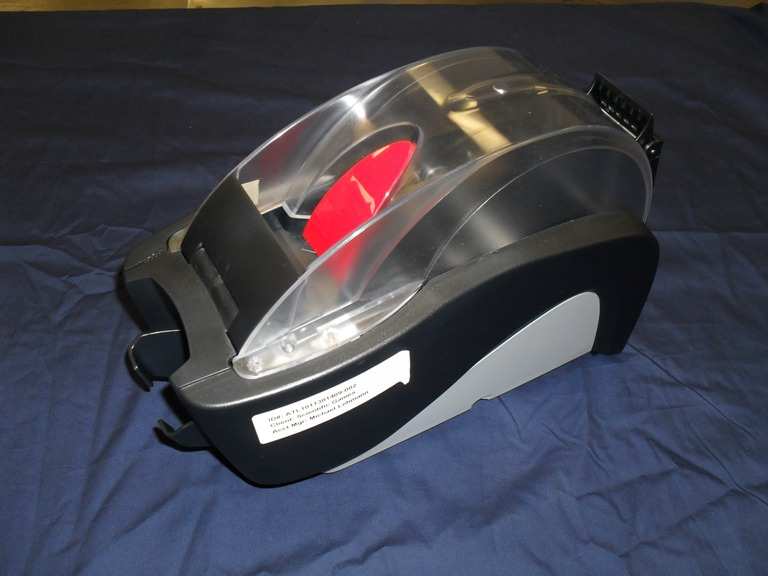

WRH-PRT01 – front view WRH-PRT01 – rear view
