WSB-WT-V4Wireless environmental monitoring sensor

Cooltrax Wireless Sensor Manual Models Sensor WT-V4 Probe WP-V4 Wedge WW-V4 Integrated Sensors • Temperature • Magnetic contact • Accelerometer and shock • Humidity • Light sensor Wireless Capability Bluetooth 5 Low Energy (BLE) Long Range (LR) Compliance Regulatory Australia and New Zealand United States FCC ID: WSB-WT-V4 FCC ID: WSB-WW-V4 FCC ID: WSB-WP-V4 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Warning - changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Warning - a separation distance of at least 20cm from the radiating structure and the body of the user or nearby persons must be maintained to comply with MPE (Maximum Permissible Exposure) requirements. Canada IC: 10944A-WTV4 IC: 10944A-WWV4 IC: 10944A-WPV4 CAN ICES-003 (A) / NMB-003 (A) ENGLISH This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. Warning - a separation distance greater than 20cm from the radiating element and the user and/or bystander must be maintained to comply with RF exposure requirements. FRENCH Cet appareil contient un ou des émetteurs/récepteurs exempts de licence conformes aux RSS exempts de licence d'Innovation, Sciences et Développement économique Canada. Le fonctionnement est soumis aux deux conditions suivantes: 1. Cet appareil ne doit pas causer d'interférences. 2. Cet appareil doit accepter toutes les interférences, y compris les interférences pouvant entraîner un fonctionnement indésirable de l'appareil. Avertissement - une distance de séparation supérieure à 20 cm entre l'élément rayonnant et l'utilisateur et/ou le spectateur doit être maintenue pour se conformer aux exigences d'exposition RF. Safety The ingress-protection rating of this product is IP67. The package contains a Lithium-thionyl Chloride (Li- SOCl 2 ) battery Getting started The Cooltrax Sensor has a single mode of operation (on) and can be switched off when not in use. Checking the status Hold the button for half a second The light will indicate whether the sensor is currently on or off Green = On Red = Off Changing the state of the sensor Hold the button for half a second to see the current state of the sensor Continue to hold the button until the light changes colour From Red to Green = On From Green to Red = Off Factory reset Warning! A factory reset will dispose of any data records being held on the device If you are having any issues with your sensor tag then you may need to perform a factory reset. Press the button five times LEDs will flash red, green, red, green, red For one minute after the factory reset the sensor will be available on Bluetooth LE modulation before switching back to long-range modulation.

Cooltrax Asia Pacific Pty Ltd 138b Thistlethwaite Street, South Melbourne VIC 3205 Phone: +61 3 9686 6011 ABN: 42 083 280 040 Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 21-07-2023 Ref: Attestation Statements Part 2.911(d)(7) Filing Grantee Code: WSB FCC ID: WSB-WT-V4 Cooltrax Asia Pacific Pty Ltd (“the applicant”) certifies that, as of the date of the filing of the application, Cooltrax Americas LLC is our designated U.S. agent for service of process for the above referenced FCC ID. Cooltrax Asia Pacific Pty Ltd accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Cooltrax Americas LLC accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Cooltrax Americas llc FRN: 0034036772 Address: 11660 Alpharetta Hwy, Suite 155, Roswell, GA 30076 Contact Person: Mike Sharpe Email: [email protected] Sincerely, Cooltrax Asia Pacific Pty Ltd Cooltrax Americas llc Tim Miller Mike Sharpe x x

Cooltrax Asia Pacific Pty Ltd 138b Thistlethwaite Street, South Melbourne VIC 3205 Phone: +61 3 9686 6011 ABN: 42 083 280 040 Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 21, 2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: WSB-WT-V4 Cooltrax Asia Pacific Pty Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Tim Miller Cooltrax Asia Pacific Pty Ltd 138b Thistlethwaite Street, South Melbourne VIC 3205 Phone: +61 3 9686 6011 ABN: 42 083 280 040 Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 21, 2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: WSB-WT-V4 Cooltrax Asia Pacific Pty Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Tim Miller

Page 1 of 1 Global Approvals ABN: 25 497 357 455 Waterman Business Centre PH: +61 3 9887 4963 PD 393 /44 Lakeview Drive Email: [email protected] Scoresby, Vic, 3179, AU Website: www.globalapprovals.com.au Global Approvals www.globalapprovals.com.au +61 3 9887 4963 Date: 11 May 2023 Attention: To whom it may concern Company: TIMCO Engineering, Inc Address: 849 NW State Road 45, Newberry, Florida 32669 Reference: ISED & FCC Certification of Cooltrax Wireless Sensor Dear TIMCO, Global Approvals are seeking ISED certification and FCC certification of the following product, on behalf of our client Cooltrax Asia pacific Pty Ltd: Name: Cooltrax Wireless Sensor Model: WT-V4 IC: 10944A-WTV4 FCC ID: WSB-WT-V4 The Cooltrax SensorTag is a battery powered device that records various sensor values, stores these to non-volatile memory and then transmits them over BLE to either Cooltrax UMD4 or Cooltrax mobile application. To comply with the relevant rules, the device firmware was modified as follows: 1. Data rate set to 1Mbit/s 2. Upper operating channel restricted to 2478MHz (#38) Sincerely, Andrew Whiteford Principal Engineer Global Approvals

Cooltrax Asia Pacific Pty Ltd 138b Thistlethwaite Street, South Melbourne VIC 3205 Phone: +61 3 9686 6011 ABN: 42 083 280 040 23 June 2023 Federal Communications Commission 445 12th St SW, Washington DC 20024 Re: FCC Certification Request for Confidentiality To whom it may concern, With reference to §§ 0.457(d) and 0.459 of the FCC Rules as the authority for requesting confidentiality, I confirm that we request the following documents be kept confidential: Document Type Filename Time Frame User manual WT-V4 manual 180 days Block diagram WT-V4 Block Diagrams Permanent Internal photos WT-V4 FCC 15.247 test report (external & internal photos) 180 days Schematics WT-V4 Schematics (17 Dec 22) Permanent Product Name: Cooltrax Wireless Sensor Model: WT-V4 FCC ID: WSB-WT-V4 Kind regards, Tim Miller Head of Engineering Cooltrax

Cooltrax Asia Pacific Pty Ltd 138b Thistlethwaite Street, South Melbourne VIC 3205 Phone: +61 3 9686 6011 ABN: 42 083 280 040 To Whom It May Concern: This letter is to grant authority to Mr Andrew Whiteford of Global Approvals (ABN: 25 497 357 455) to act on behalf of Cooltrax Asia Pacific Pty Ltd, for matters related to the regulatory compliance of the below listed products with the US Federal Communications Commission (FCC), and Innovation, Science and Economic Development Canada (ISED). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Cooltrax Asia Pacific Pty Ltd FCC Grantee Code: WSB (FRN: 0028029387) ISED Company Number: 10944A Product Model Name Proposed FCC ID Proposed ISED UPN WT-V4 Cooltrax Wireless Sensor WSB-WT-V4 IC:10944A-WTV4 Date: 21st June 2023 Signed: Tim Miller Head of Engineering Cooltrax Asia Pacific Pty Ltd

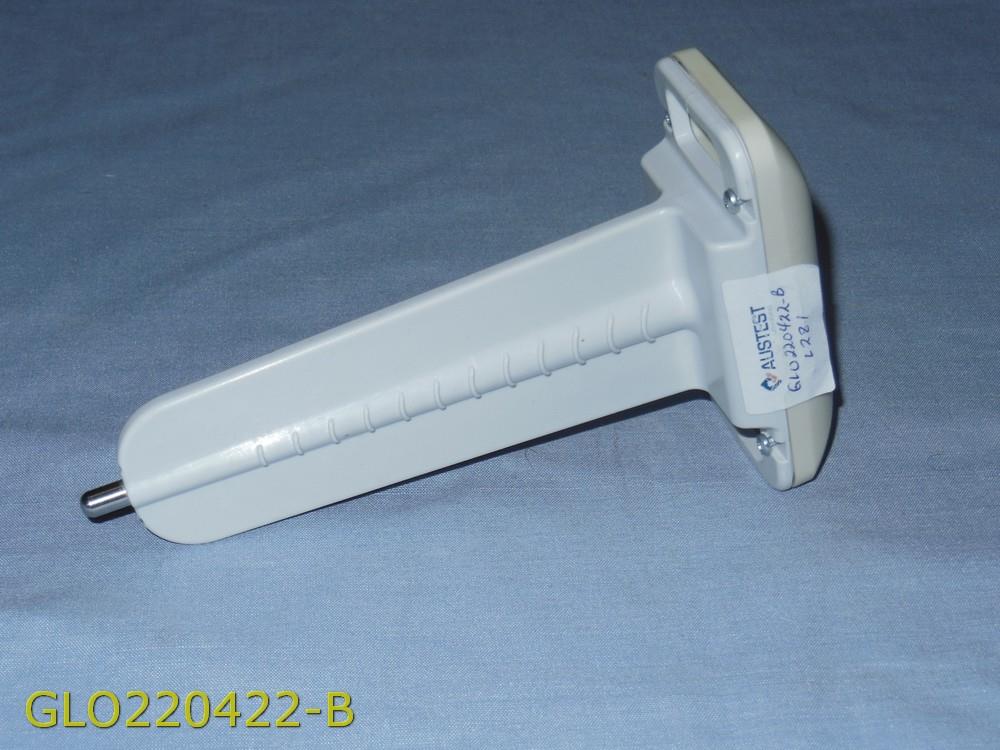

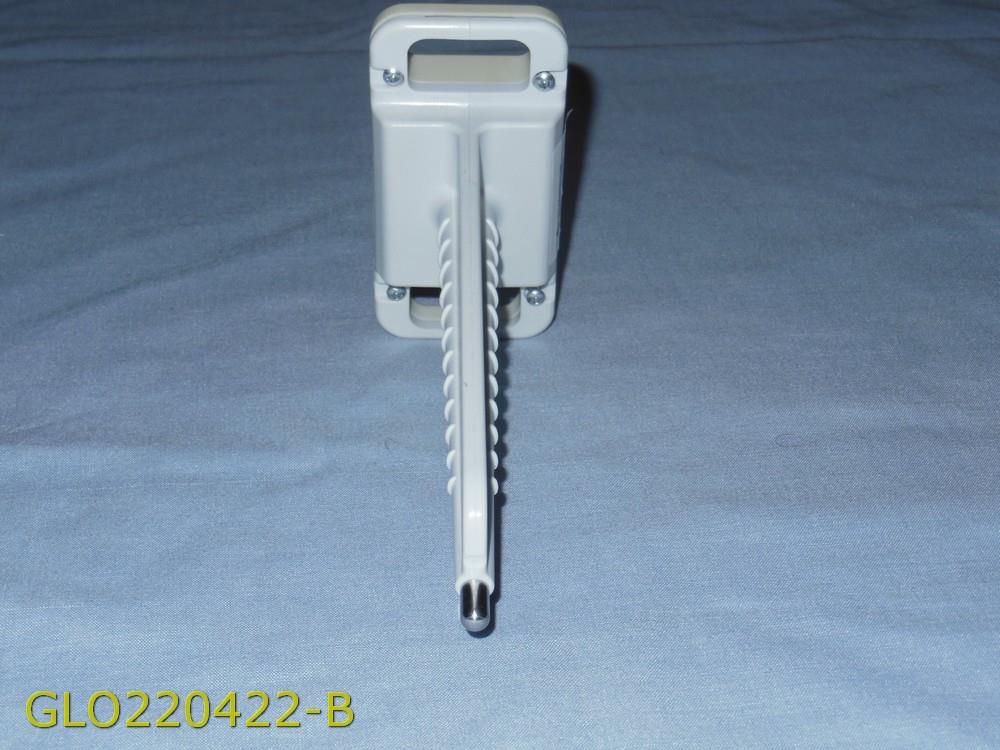

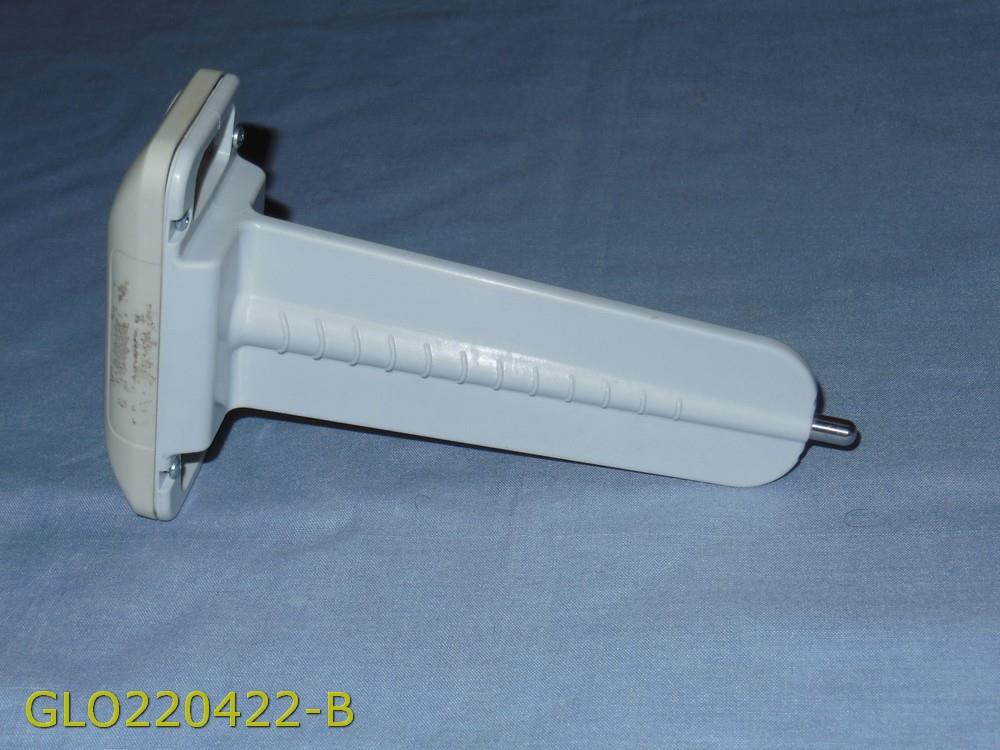

EMC Test Report No: 0529GLO_WT-V4_FCC15C FCC ID: WSB-WT-V4 Page 27 of 35 This document shall not be reproduced in any form except in full. APPENDIX A – EXTERNAL PHOTOGRAPHIC RECORD OF SAMPLE External View – Front External View - Rear EMC Test Report No: 0529GLO_WT-V4_FCC15C FCC ID: WSB-WT-V4 Page 28 of 35 This document shall not be reproduced in any form except in full. External View – RHS External View - LHS

TM ARTWORK TITLE PRODUCTION REFERENCEQUOTATION ONLY PROTOTYPE ONLY SYDNEY Melbourne COOLTRAX LABEL CLIENT CODE COO JOB NO.PART NO. 21181 07 Jun 2022RW 07 Jun 2022RB 07 Jun 2022RB PROJECT SENSOR TAG CLIENT COOLTRAX DATE 07/06/2022 DATE DRAWN REVIEWED DATE APPROVEDDATE DATE SCALE 1:1 SHEET 1 OF 1 2 ISSUE BLACK NOTES COLOURS TL D+I-108-052-A THIS ARTWORK DESCRIBES THE CRITICAL PRINT LAYERS, COLOURS, PERFORATION, CUT AND FOLD LINES REQUIRED TO PRODUCE THE REFERENCED PA R T. ARTWORK TO BE APPLIED TO: CAD COO-2118-0001 Top Level Assembly CAD COO-2118-0002 Wall Mount Assembly CAD COO-2118-0003 Probe Assembly - 500 CAD COO-2118-0004 Probe Assembly - 1000 CAD COO-2118-0005 Probe Assembly - 1500 CAD COO-2118-0006 Wedge Assembly MATERIAL: LABEL SHALL BE AN APPROPRIATE MATERISL FOR THE SHIPPING + ROUGH HANDELLING ENVIRONMENT. MODEL WT-V3 912772 FCC ID:WSB-CTRX-UB-T2 IC:10944A-WT-V3 ACMA: N31242 This ISM device complies with Canadian ICES-001 Warranty void if removed

EMC Test Report No: 0529GLO_WT-V4_FCC15C FCC ID: WSB-WT-V4 Page 29 of 35 This document shall not be reproduced in any form except in full. APPENDIX B – INTERNAL PHOTOGRAPHIC RECORD OF SAMPLE Internal View 1 Internal View 2 EMC Test Report No: 0529GLO_WT-V4_FCC15C FCC ID: WSB-WT-V4 Page 30 of 35 This document shall not be reproduced in any form except in full. Internal View – PCB Rear With Battery Attached Internal View – PCB Rear With Battery Removed EMC Test Report No: 0529GLO_WT-V4_FCC15C FCC ID: WSB-WT-V4 Page 31 of 35 This document shall not be reproduced in any form except in full. APPENDIX C – PCB PHOTOGRAPHIC RECORD OF SAMPLE Component Side “Emissions” PCB EMC Test Report No: 0529GLO_WT-V4_FCC15C FCC ID: WSB-WT-V4 Page 32 of 35 This document shall not be reproduced in any form except in full. Component Side – “Radio” PCB EMC Test Report No: 0529GLO_WT-V4_FCC15C FCC ID: WSB-WT-V4 Page 33 of 35 This document shall not be reproduced in any form except in full. Component Side – PCB With Modified Antenna Port EMC Test Report No: 0529GLO_WT-V4_FCC15C FCC ID: WSB-WT-V4 Page 34 of 35 This document shall not be reproduced in any form except in full. Rear View – PCB

See email thread reference below dated 17/10/2023 from Blake Fuller at D&I (Blake Fuller <[email protected]>) “RE: Cooltrax SensorTag, AU, NZ, USA, CA compliance, Global approvals project P220602” Operational description: The Cooltrax SensorTag WT-V4 is a battery powered device that records various sensor values, stores these to non-volatile memory and then transmits them over BLE to either Cooltrax UMD4 or Cooltrax mobile application.

Page 1 of 9 Global Approvals ABN: 25 497 357 455 Waterman Business Centre PH: +61 3 9887 4963 PD 393, 44 Lakeview Drive Email: [email protected] Scoresby, Vic, 3179, AU Website: www.globalapprovals.com.au Apart from the Certificate on page 3, this document may only be reproduced in full. MPE ASSESSMENT REPORT COUNTRY: USA STANDARD: CFR Title 47 Part 2.1091 REPORT NUMBER: R220602-3 REV1 CUSTOMER: Cooltrax Asia Pacific Pty Ltd PRODUCT NAME: Cooltrax Wireless Sensor MODEL NO: WT-V4 FCC ID WSB-WT-V4 DATE OF ISSUE: 15 JUNE 2023 Page 2 of 9 Report No. R220602-3 Rev1 Apart from the Certificate on page 3, this document may only be reproduced in full. TABLE OF CONTENTS 1 Introduction ...................................................................................................................................... 4 2 Revision History ............................................................................................................................... 4 3 Summary .......................................................................................................................................... 4 4 Disclaimer ........................................................................................................................................ 4 5 Company Overview .......................................................................................................................... 4 6 Quality System ................................................................................................................................. 4 7 Abbreviations ................................................................................................................................... 5 8 Referenced Legislation and Standards............................................................................................ 5 9 Referenced Documents ................................................................................................................... 6 10 Product Details ............................................................................................................................ 6 10.1 Overview ................................................................................................................................. 6 10.2 Radio module specifications ................................................................................................... 6 10.3 Antenna RF specifications ...................................................................................................... 6 11 Background Information .............................................................................................................. 7 12 MPE Limits .................................................................................................................................. 8 13 Essential Parameters and Assumptions ..................................................................................... 8 14 Results ........................................................................................................................................ 9 15 Conclusion ................................................................................................................................... 9 Page 3 of 9 Report No. R220602-3 Rev1 Apart from the Certificate on page 3, this document may only be reproduced in full. MPE ASSESSMENT CERTIFICATE Prepared for: Cooltrax Asia Pacific Pty Ltd Address: 138b Thistlethwaite Street South Melbourne, VIC, 3205 Contact Name: Tim Miller Phone Number: 0414 181 845. Email: [email protected] Product Name: Cooltrax Wireless Sensor Model Number: WT-V4 FCC ID: WSB-WT-V4 Transmitter: Bluetooth 5 BLE (2.4GHz) at 8dBm maximum Antennas: Integral, Chip, +1.5dBi peak gain Standard: FCC CFR Title 47: Telecommunication PART 2—FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS Subpart J—Equipment Authorization Procedures Part 2.1091 Radiofrequency radiation exposure evaluation: mobile devices. Summary: The Cooltrax Asia Pacific Pty Ltd Cooltrax Wireless Sensor, model WT- V4, complies with CFR Title 47 Part 2.1091 General Population Maximum Permissible Exposure (MPE) limits at a minimum separation distance of 20cm. Refer to Global Approvals report R220602-3 Rev1 for details. Assessment date(s): 07 Feb 2023 – 28 Apr 2023 Issue Date: 15 June 2023 Prepared by: Hans Koch (Technical Officer) Assessed and authorised by: Andrew Whiteford (Principal Engineer) Issued by: Global Approvals ABN: 25 497 357 455 Waterman Business Centre PH: +61 3 9887 4963 PD 393, 44 Lakeview Drive Email: [email protected] Scoresby, Vic, 3179, AU Website: www.globalapprovals.com.au Page 4 of 9 Report No. R220602-3 Rev1 Apart from the Certificate on page 3, this document may only be reproduced in full. MPE ASSESSMENT REPORT 1 Introduction Global Approvals assessed the Cooltrax Asia Pacific Pty Ltd Cooltrax Wireless Sensor, model WT- V4, against FCC MPE requirements of CFR Title 47 Part 2.1091 per the methodology of FCC KDB 447498 D01. Relevant product and subcomponent documentation were used as part of the assessment to determine compliance. 2 Revision History Version Section Changed Details Date - - Initial Release 11/05/2023 REV1 Cover page, certificate, 10.1 Added FCC ID Number 15/06/2023 Table 1. 3 Summary The Cooltrax Asia Pacific Pty Ltd Cooltrax Wireless Sensor, model WT-V4, complies with CFR Title 47 Part 2.1091 General Population MPE limits at a minimum separation distance of 20cm. A separation distance of at least 20cm from the antenna and radiating structure must be maintained. The worst-case result was 0.22% of the limit. 4 Disclaimer This assessment report is based on the information supplied by the customer, subcomponent suppliers and regulatory requirements in force on the date of issue. The report is only valid for the product sample assessed. The responsible supplier must ensure all production samples are …

Text truncated - open the document above for the full version.

AEC-Q200 Qualification Available New Global P/N 2450AT18D0100001 Legacy P/N 2450AT18D0100 Detail Specification: Page 1 of 7 Top Bottom ¹Efficiency measured on Johanson's evaluation board PN 2450AT18D0100001CE1 No. ±± 1 ±± 2 ±± 3 4 ±± Function 1: Antenna fed from left Function 2: Antenna fed from right https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 4.4 2021 Johanson Technology, Inc. All Rights Reserved Frequency (GHz) Peak Gain (dBi) Average Gain (dBi) Radiated Efficiency¹ 2.4 - 2.5 1.5 typ. (XZ-total) -1.0 typ. (XZ-total) 72% Humidity 45 - 75% RH 50 3 max. (CW) -40 to +125°C Recommended Storage Conditions and Period for unused Product on T&R 18 months max. +5 to +35°C Return Loss (dB) Impedance (Ω) Input Power (W) Operating Temperature 10 min. e.g. 2450AT18D0100001B e.g. 2450AT18D0100001E Packing Style T & R 3,000 Reel Quantity (pcs./reel) Bulk (loose pcs.) Part Number Explanation (See last page for more info on new and legacy part numbers) e.g. 2450AT18D0100001(B or S) Suffix = B Suffix = E 100% TinSuffix = None Terminal Configuration FEED GND GND GND GND GND GND FEED Function 1Function 2 b 0.0200.500.20.008 a 0.0120.30+0.1 / -0.2 +0.004 / -0.008 1.200.10.004 2450AT18D0100001CE1 mm Evaluation Board Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. P/N Suffix Mechanical Dimensions In L 0.1260.0083.200.2 W 0.0630.0081.600.2 T 0.047 High Frequency Ceramic Solutions 8/24/2022 Let us help you with the antenna design, optimization, and tuning! 2450AT18D0100001 2.45 GHz SMD Antenna, EIA 1206, Detuning resilient, Edge Mount Design https://www.johansontechnology.com/ask-a-question General Specifications New Global Part Number 1 2 4 3 b T L a w b New Global P/N 2450AT18D0100001 Legacy P/N 2450AT18D0100 Detail Specification:Page 2 of 7 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 4.4 2021 Johanson Technology, Inc. All Rights Reserved High Frequency Ceramic Solutions 8/24/2022 Mounting Considerations 1: Evaluation Board (Standard Layout) Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. 2.45 GHz SMD Antenna, EIA 1206, Detuning resilient, Edge Mount Design To order a pre-tuned 50Ω EVB with a female SMA connector click here: https:// www.johansontechnology.com/request-a-sample Reference p/n: 2450AT18D0100001CE1 Units inmm Ground Vias Feeding Line Ground clearance 40mm 20mm Matching Circuits Measured radiated efficiency of 2450AT18D0100 on this evaluation board is 72% 1.02.01.0 0.6 0.7 0.6 4.1 4.0 0 Ohm Matching Circuits No ground, metal PCB layers, or other metallic components like batteries directly underneath antenna! Ground Ground Ground 6.0 Land Solder Resist 50Ω Trace (Grounded CPWG type is preferred) GND Vias New Global P/N 2450AT18D0100001 Legacy P/N 2450AT18D0100 Detail Specification:Page 3 of 7 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 4.4 2021 Johanson Technology, Inc. All Rights Reserved High Frequency Ceramic Solutions 8/24/2022 Mounting Considerations 1: Electrical Performance @25°C Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. 2.45 GHz SMD Antenna, EIA 1206, Detuning resilient, Edge Mount Design MeasuredReturn Loss Would you like the antenna layout? Have antenna tuning issues? Please contact us if you have any questions regarding the implementation of this antenna in your PCB's layout. We'll be happy to guide you to maximize the antenna's performance. Contact our applications engineers at: https://www.johansontechnology.com/ask-a-question 2.22.42.62.82.03.0 -20 -10 -30 0 f req, GHz dB(S(1,1)) m1 m2 m3 m1 f req= dB(S(1,1))=-13.935 2.400GHz m2 f req= dB(S(1,1))=-14.774 2.500GHz m3 f req= dB(S(1,1))=-24.894 2.450GHz New Global P/N 2450AT18D0100001 Legacy P/N 2450AT18D0100 Detail Specification:Page 4 of 7 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 4.4 2021 Johanson Technology, Inc. All Rights Reserved High Frequency Ceramic Solutions 8/24/2022 Mounting Considerations 1: Typical 2D radiation patterns @ 2.44GHz Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. 2.45 GHz SMD Antenna, EIA 1206, Detuning resilient, Edge Mount Design YZ-plane XZ-plane XY-plane θ +Z (θ= 0°) +Y (θ= 90°) -Y -Z θ +Z (θ= 0°) +X (θ= 90°) -X -Z φ +X (φ= 0°) -X +Y (φ= 90°) -Y +Z -Z +Y -Y +Z -Z +X -X +X -X +Y -Y New Global P/N 2450AT18D0100001 Legacy P/N 2450AT18D0100 Detail Specification:Page 5 of 7 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 4.4 2021 Johanson Technology, Inc. All Rights Reserved Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. Mounting Considerations 2: Small Clearance or "Thin edge" Applications* 2.450.3 (XZ-plane) High Frequency Ceramic Solutions 2.45 GHz SMD Antenna, EIA 1206, Detuning resilient, Edge Mount Design 8/24/2022 Mounting Considerations 3: "Thind edge" application on circular PCB Frequency (GHz)Peak Gain (dBi)Average Gain (dBi)Radiated Efficiency (%) -3.6 (XZ-plane)66 Units inmm Land Solder Resist *Evaluationboard not available * 1.02.01.0 0.6 0.7 0.6 1.5 8.0 Matching Circuits Ground 0.6 2.8 0.6 3.4 3.4 GND clearance *Evaluationboard not available 50Ω Trace (Grounded CPWG type is preferred) No ground, metal PCB layers, or other metallic components like batteries and displays directly underneath antenna! Groun…

Text truncated - open the document above for the full version.

EMC Test Report No: 0529GLO_WT-V4_FCC15C FCC ID: WSB-WT-V4 Page 1 of 35 This document shall not be reproduced in any form except in full. TEST REPORT RADIOCOMMUNICATIONS FCC TITLE 47 PART 15C (DTS) Client: Cooltrax Asia Pacific Pty Ltd Address: 138b Thistlethwaite St. South Melbourne, Vic, 3205 Report Number: 0529GLO_WT-V4_FCC15C Date of Testing: 28 th September 2022 to 23 rd January 2023 File Number: GLO220422-B Equipment Name: Cooltrax Wireless Sensor Model Number WT-V4 FCC ID: WSB-WT-V4 Description: Wireless Environmental Monitoring Sensor Result: The sample tested COMPLIED with the applicable requirements of the standard. (Refer to Compliance Summary page for details). Tested by: Steven Garnham Test Engineer Approved by: Richard Turner Assessment Engineer Date of Issue: 29 th May 2023 Results appearing herein relate only to the sample(s) tested. This report is issued errors and omissions exempt and is subject to withdrawal at Austest Laboratories discretion. EMC Test Report No: 0529GLO_WT-V4_FCC15C FCC ID: WSB-WT-V4 Page 2 of 35 This document shall not be reproduced in any form except in full. TABLE OF CONTENTS 1 REPORT REVISION HISTORY ................................................................................................................. 3 2 REFERENCES ........................................................................................................................................... 3 3 COMPLIANCE SUMMARY ........................................................................................................................ 4 4 CONDITIONS FOR COMPLIANCE ........................................................................................................... 4 5 EQUIPMENT UNDER TEST INFORMATION ............................................................................................ 5 6 TEST SETUP AND EUT CONFIGURATION ............................................................................................. 6 7 TEST SPECIFICATIONS ........................................................................................................................... 7 8 ANTENNA REQUIREMENT, §15.203 ........................................................................................................ 9 9 RESTRICTED BANDS OF OPERATION, §15.205 .................................................................................... 9 10 RADIATED EMISSIONS §15.209, RESTRICTED BANDS .................................................................... 9 11 DTS BANDWIDTH, §15.247(a)(2) ........................................................................................................ 20 12 PEAK CONDUCTED OUTPUT POWER, §15.247(b)(3) ...................................................................... 21 13 POWER SPECTRAL DENSITY, §15.247(e) ........................................................................................ 22 14 OUT OF BAND EMISSIONS – §15.247(d) ........................................................................................... 23 15 FCC Part 2J, §2.1049 – 99% BANDWIDTH ......................................................................................... 26 APPENDIX A – EXTERNAL PHOTOGRAPHIC RECORD OF SAMPLE ....................................................... 27 APPENDIX B – INTERNAL PHOTOGRAPHIC RECORD OF SAMPLE ........................................................ 29 APPENDIX C – PCB PHOTOGRAPHIC RECORD OF SAMPLE ................................................................... 31 APPENDIX D – TEST SETUP PHOTOGRAPHS ........................................................................................... 35 EMC Test Report No: 0529GLO_WT-V4_FCC15C FCC ID: WSB-WT-V4 Page 3 of 35 This document shall not be reproduced in any form except in full. 1 REPORT REVISION HISTORY Date Report Number Changes 28/03/2023 0328GLO_WT-V4_FCC15C Original Report. 29/05/23 0529GLO_WT-V4_FCC15C Address TCB points: Duty cycle statement Separate Appendices 2 REFERENCES Document Issue/ Amended FCC Title 47 FCC Title 47 Part 15 – Radio Frequency Devices Current as of March 2023 ANSI C63.10 American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices 2013 558074 D01 Guidance for compliance measurements on digital transmission system, frequency hopping spread spectrum system, and hybrid system devices operating under Section 15.247 of the FCC rules v05r02 April 2, 2019 ANSI C63.4 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz 2014 Compliance Test Plan Compliance Test Plan Doc. R220602-1 8th August 2022 EMC Test Report No: 0529GLO_WT-V4_FCC15C FCC ID: WSB-WT-V4 Page 4 of 35 This document shall not be reproduced in any form except in full. 3 COMPLIANCE SUMMARY DISCLAIMER: Austest Laboratories makes no claim regarding the consistency of production versions of the EUT. The results in this report apply only to the sample tested, as described in Section 5 of this report. FCC Part 15, Subpart C – Intentional Radiators Result Notes 15.203 Antenna Requirement N.A. - 15.205 Restricted Bands of Operation Complied - 15.207 Conducted Limits N.A. (ii) 15.209 Radiated Emission Limits, General Requirements Complied - 15.247 Operation within the Bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz Complied (i) 15.247(a)(1) Channel Separat…

Text truncated - open the document above for the full version.
