WV2611849144431ARRH4x40-PCS KS24829L11

PCS RRH List11 Installation Guide Issue: 1.0.0 1/17 PMC CONFIDENTIAL PCS RRH List11 Installation Guide Product Name : RRH4x40-PCS KS24829L11 Model Number : 849144431 Issue: 1.0.0 Date; July 21, 2011 PCS RRH List11 Installation Guide Issue: 1.0.0 2/17 PMC CONFIDENTIAL Revison History Issue No. Description Date 1.0.0 First edition July 08, 2011 PCS RRH List11 Installation Guide Issue: 1.0.0 3/17 PMC CONFIDENTIAL Table of Contents Revison History ..................................................................................................................................... 2 Table of Contents ................................................................................................................................... 3 1 INTRODUCTION ............................................................................................................................. 4 1.1 System Overview ...................................................................................................................... 4 1.2 Equipment Outline .................................................................................................................... 5 1.3 Structural Outline ...................................................................................................................... 6 1.4 Specification ............................................................................................................................. 7 1.4.1 System Specification .......................................................................................................... 7 1.4.2 Optical Module Specification .............................................................................................. 8 1.4.3 PCS Band Remote Radio Heads Specification ................................................................... 9 2 Installing the RRH ......................................................................................................................... 10 2.1 Appearance ............................................................................................................................ 10 2.2 User Interface ......................................................................................................................... 11 2.3 Cable List ............................................................................................................................... 13 2.4 Power cable installing procedure ............................................................................................ 14 2.5 Powering On the RRH ............................................................................................................ 16 2.6 System Start-Up Procedure .................................................................................................... 16 3 FCC WARING ............................................................................................................................... 17 PCS RRH List11 Installation Guide Issue: 1.0.0 4/17 PMC CONFIDENTIAL 1 IN TRODUCTION 1.1 S ystem Overview PCS RRH List11 connect with BBU which made by Alcatel-Lucent. And, this RR H is transiver system which is support LTE and CDMA fuction in 1900MHz frequency band range. List11 consist from 2pcs of List10 whch is connected by optical cabel. CPRI Interface of one PCS RRH List10 connect to BBU (LTE) Another one CPRI interface connect to BBU (CDMA) BBU（LTE) BBU（CDMA) PCS RRH TX25MHｚ List10 PCS RRH TX25MHｚ List10 CPRI PCS RRH List11 Figure 1-1 System Overview PCS RRH List11 Installation Guide Issue: 1.0.0 5/17 PMC CONFIDENTIAL 1.2 Equipment Outline Figure 1-2 Equipment Outline ① Execute transmit and receive BBU and UL/DL Digital Signal by optical interface ② Enable to maintain RRH with O CI (On site Confi guration Inte rface) an d Pe rsonal Computer. ③ Enable to use Alarm-interface detect function(one is monitoring. another is detection for 2pcs List10) ④ AISG supply and control power function w hich is connec ted to towe r-top equipment from RRH ⑤ This system support DC -48 Vpower input ⑥ Execute sever al fun ctions (S tatus-Control/Tranciver-Control/Mesurement/Failure -Control...) based on control message of BBU. ⑦ Enable to download Software(Control Software, DSP Firmware、FPGA Data) as Remotely. BBU （LTE) BBU （CDMA ) PCS RRH TX25MHｚ List10 PCS RRH TX25MHｚ List10 CPRI CPRI CPRI Tower-top Equipment AISG DC - 48V OCI （ Ether） Alams Monitor Alams Identification connector DC - 48V Primary Primary Secondary Secondary PCS RRH List11 PCS RRH List11 Installation Guide Issue: 1.0.0 6/17 PMC CONFIDENTIAL 1.3 S tructural Outline 【Structure Outline】 ① 1system(List11) consist from 2pcs of RRH（List10） ② Thermal method is naturally air‐cooled engine(Cooling Fan Less) ③ Enable to l oad next cable (Power Cable/Optical Cable/AISG Cable/ALM Cable/AUX Cable) from bottom side of the RRH. And, enable to load Antenna Cable from Upper side of the system ④ Equipped M6 electrical ground in lower side of the system ⑤ In order to monitoring output power of transmission point, Implement 2pcs (List10) of electrical terminal. ⑥ There are installing “Water proof cap” and “Dust Proof Cap” as external connector ⑦ There are LED in bottom side of the RRH which can monitoring system status. ⑧ All function can control by control box which box can be open ⑨ Enable to install “ibolt” to upper side of the system PCS RRH List11 Installation Guide Issue: 1.0.0 7/17 PMC CONFIDENTIAL 1.4 S pecification 1.4.1 S ystem Specification No Item Content Remark 1 Input Power -48V (-37V～-57V) 2 Powe r Consumption 340.7W x2 3 W eight Less than 20kg 4 Water resistant level IP65 as specified by IEC529 IP66 as specified by IEC60529 NEMA type4 5 T emperature range -40～+55°C 6 Humi dity range 5～95% 7 Dime nsion W：330 mm D：176 mm H：530 mm （ not include connectors ） 8 Thermal Type naturally air cooled engine 9 Setting Location Outside PCS RRH List11 Installation Guide Issue: 1.0.0 8/17 PMC CONFIDENTIAL 1.4.2 Optical Module Specification No Item…

Text truncated - open the document above for the full version.

FCC ID : WV2611849144431A FCC ID Label Panasonic Mobile Communications Co., Ltd. Photograph of FCC ID Label Affixed FCC ID Label Drawing

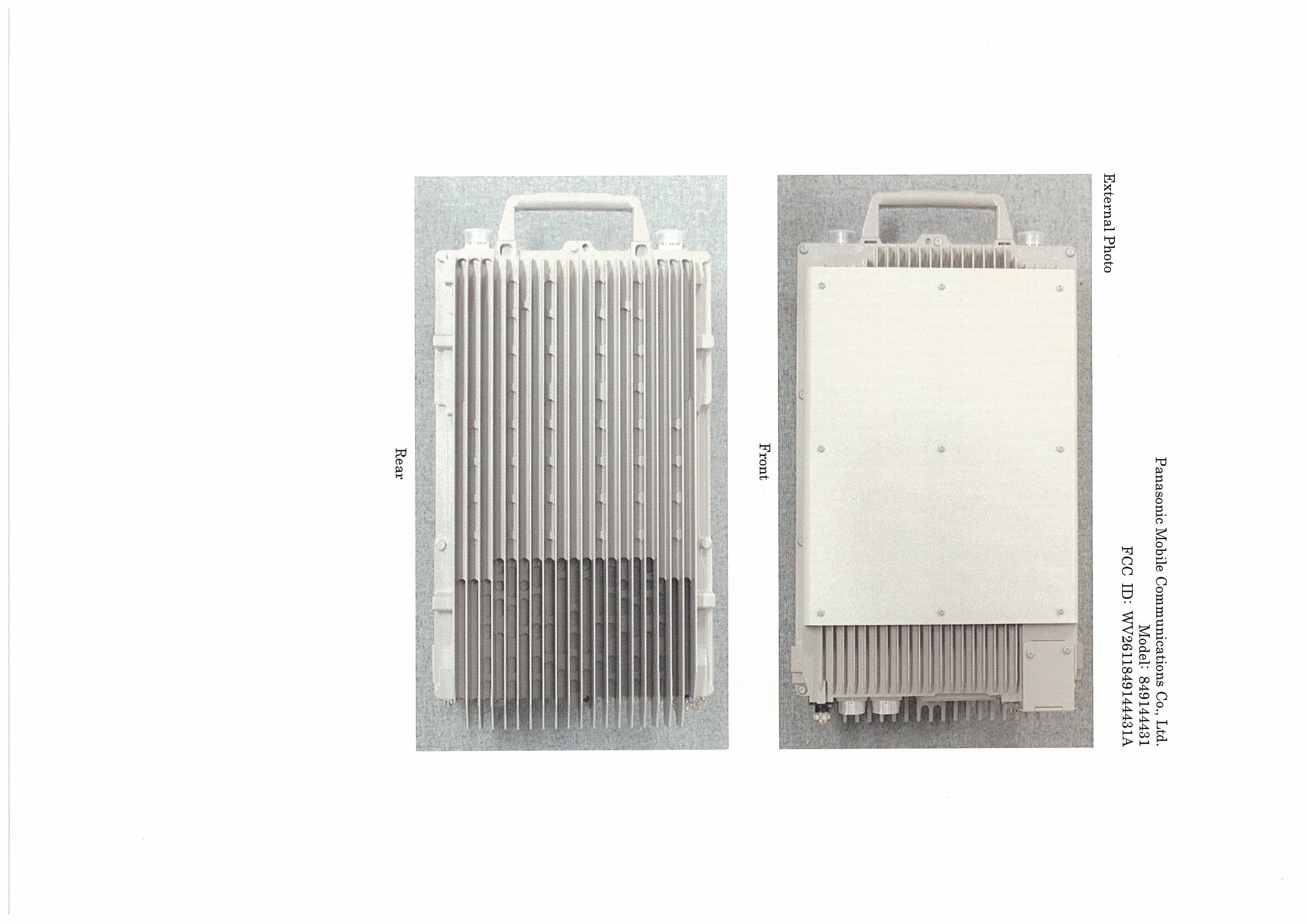

Panasonic Mobile Communications Co., Ltd. Model: 849144431 FCC ID: WV2611849144431A Internal Photo TRX Side A TRX Side B Panasonic Mobile Communications Co., Ltd. Model: 849144431 FCC ID: WV2611849144431A Internal Photo Cover Open Panasonic Mobile Communications Co., Ltd. Model: 849144431 FCC ID: WV2611849144431A Internal Photo PA Side A PA Side B Panasonic Mobile Communications Co., Ltd. Model: 849144431 FCC ID: WV2611849144431A Internal Photo Cover Open

Test report No. : 31JE0290-SH-01-A Page : 2 of 86 Issued date : July26 , 2011 FCC ID : WV2611849144431A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 CONTENTS PAGE SECTION 1: Customer information .................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 3 SECTION 3: Test specification, procedures & results ........................................................ 4 SECTION 4: Operation of E.U.T. during testing ................................................................ 7 SECTION 5: Peak Output Power, Spurious emission and Band-Edge (Conducted/Radiated) ............................................................................................................ 9 SECTION 6: Bandwidth (Conducted) ............................................................................... 10 SECTION 7: Frequency Stability (Conducted) ................................................................. 10 Contents of APPENDIXES .................................................................................................. 11 Test report No. : 31JE0290-SH-01-A Page : 3 of 86 Issued date : July26 , 2011 FCC ID : WV2611849144431A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name :Panasonic Mobile Communications Co.,Ltd. Brand Name :Panasonic Address :600 Saedo-cho, Tsuduki-ku, Yokohama-shi, Kanagawa-ken, 224-8539, Japan Telephone Number :+81-50-3686-6079 Facsimile Number :+81-45-938-2456 Contact Person : Nakajo Tomohiko SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : RRH4x40-PCS KS24829L11 Model Number : 849144431 Serial Number : LBALLU-M51121D159A, LBALLU-M51121D159B Rating : DC -48V (typical), DC -37 V to -57V Country of Mass- production: Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : June 15, 2011 Modification of EUT : The test lab did not make the modification to the EUT supplied from the customer to have it pass the tests. 2.2 Product Description Model No.: 849144431 (referred to as the EUT in this report) is RRH4x40-PCS KS24829L11. (PCS: Personal Communications Service, RRH: Remote Radio Head) <Radio part> Equipment type : Transceiver Frequency of operation : Transmitting (Downlink): 1930.700MHz to 1994.300MHz Receiving (Uplink): 1810.700MHz to 1914.300MHz Radio part clock frequenc y: 61.44MHz Bandwidth : CDMA: 1.25MHz LTE: 1.4MHz, 3MHz, 5MHz, 10MHz, 15MHz, 20MHz Type of modulation : LTE: 64QAM, 16QAM, QPS K CDMA: QPSK, HPSK, BPSK, RF Output Power : 40 W(Average) at 1 port (at antenna terminal port) RF Output Power Limit : ( 1640 W/MHz(E.I.R.P., HAAT < 300m) ) 46.15dBm/MHz ( = 41.19W/MHz ) for antenna gain 16dBi ( = 62.15dBm/MHz (=1640W/MHz) – 16dBi ) Antenna type : N/A Antenna connector type : Ntype Antenna gain : ( 16dBi max ) ITU code : G1W / G7 W/ D1W/ D7W Operating Voltage (Radio part) : DC -48V Operation temperature range: -40 deg.C. to +55 deg.C. Revised date : September 5, 2011 Test report No. : 31JE0290-SH-01-A Page : 4 of 86 Issued date : July26 , 2011 FCC ID : WV2611849144431A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 24 2008, final revised on May 2, 2008with Amendment(s) published in 73 FR 24183 on May 2, 2008 (Effective date: June 2, 2008) Title : FCC 47CFR Part 24 Personal Communications Services 3.2 Procedures and results Item Test Method FCC Regulations Remarks Deviation Worst margin Results Peak Output Power FCC Part2 Section 2.1046(a) Section 24.232(a)(2)Conducted N/A - Complied Emission Bandwidth, 99% Occupied Bandwidth FCC Part2 Section 2.1049(h) Section 24.238 Conducted N/A - Complied Band-Edge FCC Part2 Section 2.1051 FCC Part24 Section 24.238(b) Section 24.238(a),(b) Conducted N/A - Complied Spurious Emission (Conducted) FCC Part2 Section 2.1051 Section 24.238(a) Conducted N/A - Complied Spurious Emission (Radiated) FCC Part2 Section 2.1053 Section 24.238(a) Radiated N/A [CDMA, (Mid ch)] 1.8dB, 15700.000MHz, Horizontal Complied Frequency Stability (Temperature Variation) FCC Part2 Section 2.1055(a) (1) and (b) Section 24.235 Conducted N/A - Complied Frequency Stability (Voltage Variation) FCC Part2 Section 2.1055(d)(1) and (2) Section 24.235 Conducted N/A - Complied Peak-to-Average Ratio - Section 24.232(d) Conducted N/A - Complied Note: UL Japan, Inc.’s EMI Work Procedures No. 13-EM-W0420 *These tests were also referred to TIA-603-C “ Land Mobile FM or PM Communications Equipment Measurement and Performance Standards.” Test report No. : 31JE0290-SH-01-A Page : 5 of 86 Issued date : July26 , 2011 FCC ID : WV2611849144431A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 3.3 Addition to standard Item Test Method Regulations Remarks Deviation Worst margin Results 1 99% Occupied Band Width RSS-Gen 4.6.1 RSS-Gen 4.6.1 Conducted N/A N/A N/A Other than above, no addition, exclusion nor deviation has been made from the standard. 3.4 Confirmation UL Japan, Inc. hereby confirms that E.U.T., in the configuration tested, complies with the specifications FCC Part 24. 3.5 Uncertainty The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. Item Frequency range No.1 SAC *1 (±) No.2 SAC(±) No.3 SAC (±) Radiated emission (Substitution measurement;3m) (EUT height 0.8m) 30MHz-300MHz 4.8 dB 4.8 dB 4.8 dB 300MHz-1…

Text truncated - open the document above for the full version.

Test Report No.: 31JE0290-SH-01-A Issued date : July 26, 2011 Revised date : September 5, 2011 FCC ID : WV2611849144431A APPENDIX 2: Data of EMI test Test placeUL Japan, Inc. Shonan EMC Lab. No.6 Shielded Room DateJune 16, 2011 Temperature / Humidity27deg.C, 65%RH EngineerTatsuya Arai ModeTx, CDMA, PN9, worst antenna : TX1worst mode : 1 Carrier (Antenna terminal output power) ChFreq.S/ACableAtten.Margin ReadingLossLoss [MHz] [dBm/MHz][dB][dB][dBm/MHz][W/MHz][dBm/MHz][W/MHz][dB] Low1930.7000-6.772.1750.1445.5435.8146.1541.190.61 Mid1962.5000-6.452.1850.1545.8838.7346.1541.190.27 High1994.3000-6.672.2150.1645.7037.1546.1541.190.45 Sample Calculation: Result = Reading + Cable Loss (supplied by customer) + Atten. Loss (Reference data, (total power)) ChFreq.P/M (PK)CableAtten. ReadingLossLoss [MHz][dBm][dB][dB][dBm][W] Low1930.7000-0.492.1750.1451.82152.05 Mid1962.5000-0.062.1850.1552.27168.66 High1994.3000-0.562.2150.1651.81151.71 (Reference data) ChFreq.P/M (AV)CableAtten.PAR ReadingLossLoss [MHz][dBm][dB][dB][dBm][W][dB] Low1930.7000-7.072.1750.1445.2433.426.58 Mid1962.5000-6.912.1850.1545.4234.836.85 High1994.3000-7.082.2150.1645.2933.816.52 Sample Calculation:*PAR: Peak-to-Average Ratio ( = Peak value - Average value) Result = Reading + Cable Loss (supplied by customer) + Atten. Loss [Pre check] (total power), (Reference data) Antenna TX1 NumberFreq.P/M (PK)CableAtten. Ant.of CarrierReadingLossLoss [MHz][dBm][dB][dB][dBm][W] TX111962.5000-0.062.1850.1552.27168.66 TX121962.5000-0.072.1850.1552.26168.27 TX131962.5000-0.092.1850.1552.24167.49 TX141962.5000-0.072.1850.1552.26168.27 TX151962.5000-0.102.1850.1552.23167.11 TX161962.5000-0.102.1850.1552.23167.11 TX171962.5000-0.112.1850.1552.22166.72 TX181962.5000-0.112.1850.1552.22166.72 Antenna TX2, TX3, TX4 NumberFreq.P/M (PK)CableAtten. Ant.of CarrierReadingLossLoss [MHz][dBm][dB][dB][dBm][W] TX211962.5000-0.082.1850.1552.25167.88 TX311962.5000-0.122.1850.1552.21166.34 TX411962.5000-0.072.1850.1552.26168.27 Sample Calculation: Result = Reading + Cable Loss (supplied by customer) + Atten. Loss Peak Output Power (Conducted) Result Result Result Result Result Limit UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Test Report No.: 31JE0290-SH-01-A Issued date : July 26, 2011 FCC ID : WV2611849144431 A Transmitting(1994.3MHz, 1 carrier, TX1) Transmitting(1930.7MHz, 1 carrier, TX1)Transmitting(1962.5MHz, 1 carrier, TX1) Peak Output Power (Conducted) UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Test Report No.: 31JE0290-SH-01-A Issued date : July 26, 2011 Revised date : September 5, 2011 FCC ID : WV2611849144431A Test placeUL Japan, Inc. Shonan EMC Lab. No.6 Shielded Room DateJune 21, 2011 Temperature / Humidity23deg.C, 47%RH EngineerKenichi Adachi ModeTx, LTE, PN9, worst antenna :TX2worst antenna :1.4M, 1carrier ChFreq.S/ACableAtten.Margin ReadingLossLoss [MHz] [dBm/MHz][dB][dB][dBm/MHz][W/MHz][dBm/MHz][W/MHz][dB] TX1 Low1930.7000-6.762.1750.1445.5535.8946.1541.190.60 Mid1962.5000-6.432.1850.1545.9038.9046.1541.190.25 High1994.3000-6.812.2150.1645.5635.9746.1541.190.59 TX2Low1930.7000-6.662.1750.1445.6536.7346.1541.190.50 Mid1962.5000-6.332.1850.1546.0039.8146.1541.190.15 High1994.3000-6.652.2150.1645.7237.3346.1541.190.43 TX3Low1930.7000-6.762.1750.1445.5535.8946.1541.190.60 Mid1962.5000-6.692.1850.1545.6436.6446.1541.190.51 High1994.3000-6.802.2150.1645.5736.0646.1541.190.58 TX4Low1930.7000-6.732.1750.1445.5836.1446.1541.190.57 Mid1962.5000-6.412.1850.1545.9239.0846.1541.190.23 High1994.3000-6.712.2150.1645.6636.8146.1541.190.49 Sample Calculation: Result = Reading + Cable Loss (supplied by customer) + Atten. Loss (Reference data, (total power)) ChFreq.P/M (PK)CableAtten. ReadingLossLoss [MHz][dBm][dB][dB][dBm][W] TX1Low1930.70000.012.1750.1452.32170.61 Mid1962.50000.402.1850.1552.73187.50 High1994.30000.002.2150.1652.37172.58 TX2Low1930.70000.252.1750.1452.56180.30 Mid1962.50000.632.1850.1552.96197.70 High1994.30000.202.2150.1652.57180.72 TX3Low1930.7000-0.132.1750.1452.18165.20 Mid1962.50000.282.1850.1552.61182.39 High1994.3000-0.142.2150.1652.23167.11 TX4Low1930.70000.202.1750.1452.51178.24 Mid1962.50000.562.1850.1552.89194.54 High1994.30000.172.2150.1652.54179.47 (Reference data) ChFreq.P/M (AV)CableAtten.PAR ReadingLossLoss [MHz][dBm][dB][dB][dBm][W][dB] TX1Low1930.7000-7.182.1750.1445.1332.587.19 Mid1962.5000-7.002.1850.1545.3334.127.40 High1994.3000-7.092.2150.1645.2833.737.09 TX2Low1930.7000-6.902.1750.1445.4134.757.15 Mid1962.5000-6.752.1850.1545.5836.147.38 High1994.3000-6.982.2150.1645.3934.597.18 TX3Low1930.7000-7.192.1750.1445.1232.517.06 Mid1962.5000-7.012.1850.1545.3234.047.29 High1994.3000-7.182.2150.1645.1933.047.04 TX4Low1930.7000-6.982.1750.1445.3334.127.18 Mid1962.5000-6.792.1850.1545.5435.817.35 High1994.3000-7.012.2150.1645.3634.367.18 Sample Calculation:*PAR: Peak-to-Average Ratio ( = Peak value - Average value) Result = Reading + Cable Loss (supplied by customer) + Atten. Loss Peak Output Power (Conducted) Result ResultLimit Result UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Test Report No.: 31JE0290-SH-01-A Issued date : July 26, 2011 FCC ID : WV2611849144431 A Peak Output Power (Conducted) Transmitting(1930.7MHz, 1.4M, 1 carrier, TX1)Transmitting(1930.7MHz, 1.4M, 1 carrier, TX2) Transmitting(1962.5MHz, 1.4M, 1 carrier, TX1)Transmitting(1962.5MHz, 1.4M, 1 carrier, TX2) Transmitting(1994.3MHz, 1.4M, 1 carrier, TX1)Transmitting(1994.3MHz, 1.4M, 1 carrier, TX2) UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Test Report No.: 31JE0290-SH-01-A Issued date : July 26, 2011 FCC ID : WV2611849144431 A Peak Output Power (Conducted) Transmit…

Text truncated - open the document above for the full version.

Test report No. : 31JE0290-SH-01-A Page : 12 of 86 Issued date : July26 , 2011 FCC ID : WV2611849144431A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 1: Photographs of test setup Radiated emission Photo 1 Photo 2 Photo 3 Test report No. : 31JE0290-SH-01-A Page : 13 of 86 Issued date : July26 , 2011 FCC ID : WV2611849144431A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Antenna terminal tests Photo 4
