WXAUM800L

GIGA-TMS INC.

UHF RFID Reader Module

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Nov 17, 2015
Application Purpose: Original Equipment
Date of Application: Nov 17, 2015
Equipment Note: UHF RFID Reader Module
Frequency Range: 902.75000000 - 927.25000000
Company: GIGA-TMS INC.
Country: Taiwan

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

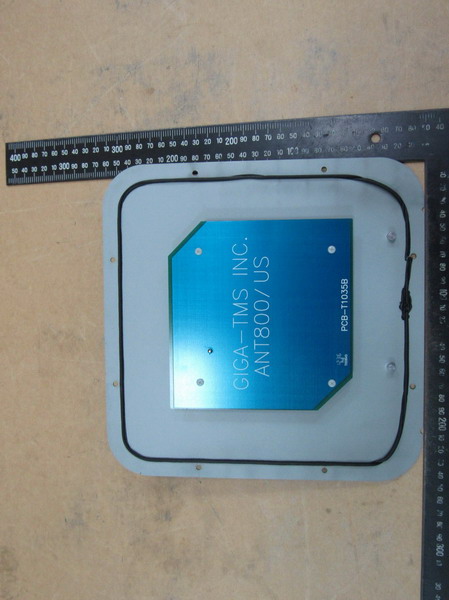

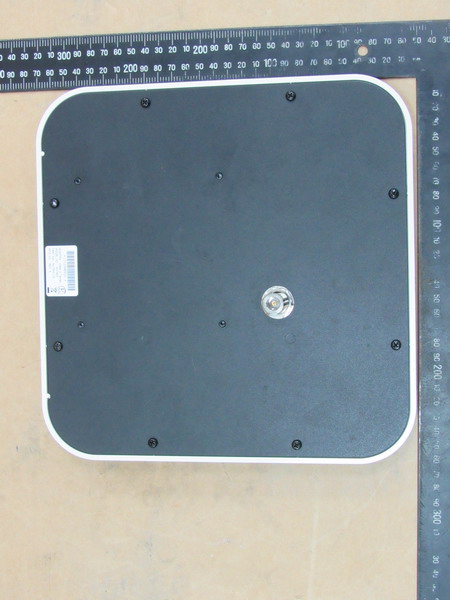

External Photos

ID Label/Location Info

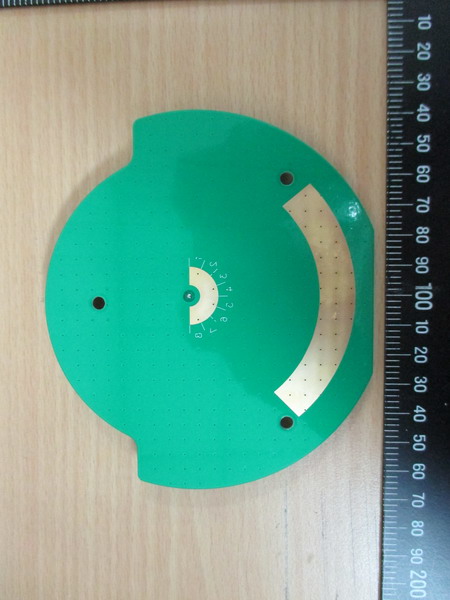

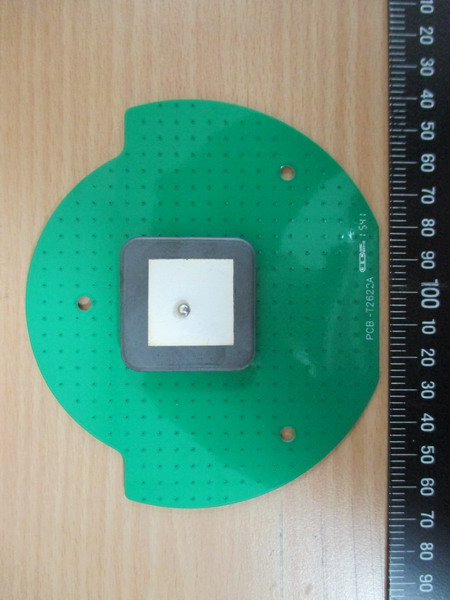

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

MT Wang(General Manager)

[email protected]886-2-26954214Fax: 886-2-26954213

Technical Contact

Worldwide Testing Services (Taiwan) Co., Ltd.Danny Sung

[email protected]+886-2-6606-8877

6F., No. 58, Lane 188, Ruey Kuand Rd. · Taipei · Taiwan

Test Firm

Worldwide Testing Services (Taiwan) Co., Ltd.Rex Kao

[email protected]886-2-6606-8877Fax: 886-2-6606-8879

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	902.75 MHz - 927.25 MHz	446.68 mW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Single Modular Approval. Output power listed is conducted. Only the antenna(s) documented in this filing, installed in the manner specified, can be used with this device. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. End-users and OEM integrators must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
