WZ5-RE1000Racing Scanner

INDEX 1. GENERAL .................................................................................................................... 1 2. Know your scanner....................................................................................................... 1 3. LCD Full Display .......................................................................................................... 2 4. OPERATION ................................................................................................................ 3 4.1 Power on/Power off ................................................................................................ 3 4.2 Volume Alignment................................................................................................... 3 4.3 CAR channel Select ............................................................................................... 3 4.4 Key-lock ................................................................................................................. 3 4.5 CAR channel Scanning function............................................................................. 3 4.6 CAR Scan List Setting............................................................................................ 4 4.7 Set squelch level .................................................................................................... 4 4.8 Set battery saving .................................................................................................. 4 4.9 Set To [MRN] Station .............................................................................................. 4 4.10 Set radio’s channel spacing ................................................................................. 5 4.11 LCD Back light...................................................................................................... 5 4.12 Reset .................................................................................................................... 5 5. CAR CHANNEL SETTING ........................................................................................... 5 5.1 Frequecy setting..................................................................................................... 5 5.2Channel name setting ............................................................................................. 5 5.3 PL/DPL setting ....................................................................................................... 6 5.4 LOCK OUT setting ................................................................................................. 6 6. Programming................................................................................................................ 6 7. Clone............................................................................................................................ 6 1 1. GENERAL Frequency range: 400 - 480 MHz Number of Channels: 200 channels Channel Spacing: 12.5k Battery: AAA batteries * 3PCS Data inputting to scanner: PC programmer, Clone 2. Know your scanner. * 0 E nter 9 wxyz 8 7 tuv pqrs 4 ghi 5 jkl 6 mno def 3 2 abc 1 1) POWER & VOLUME SWITCH 2) Car Key 3) UP Key 4) Down Key 5) Scan Key 6) Function Key 7) SQ key 8) Earphone Jack 9) Programming Jack 10) Microphone 11) Antenna 12) Battery Door 13) Battery Lock 14) Belt Clip 2 3. LCD Full Display 1. ---Operating channel, volume level indicator 2. --- Receiving signal strength indicator. 3. CAR ---- CAR channel indicator 4. ---Signal indicator 5. --- “Key Lock” function indicator. 6. Sc ---- Scan List & scan function indicator 7. ----Narrow band indicator 8. --- Wide band indicator. 9. --- Battery capacity indicator. 3 4. OPERATION 4.1 Power on/Power off Turn “Power” knob clockwise to turn on the radio. Turn it with anti-clockwise to turn off the radio. The “click” sound to indicate the power 0n/Off. The LCD will indicate “RE 1000 RENTAL (see Figure (1), could be changed by PC program). (1) 4.2 Volume Alignment Press & hold “SQ” button, set the SQ off & speaker has the background noise on, tune the volume knob clockwise to increase speaker level. Tune the volume knob anti-clockwise to decrease speaker level. FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 4.3 CAR channel Select Press “Digit” + “Enter” buttons to the desired CAR channel, (1~ 200 car channels), Press “ “or “ “ button to choose the previous or next CAR channel. ---Press and hold “F” button can check frequency (see LCD indicator Figure (2)). LCD shows the driver name of the car channel if it has been programmed. When pressing the “ “or “ “button, radio will skip the car channel that is not programmed. Typing the CAR channel number, the frequency will flash, then press “Enter” to store this setting. Pressing “F” + “CAR” , users could set PL/DPL for each CAR channel. (2) 4.4 Key-lock Press and hold the “F” button, then press “ ” button to the Key-lock function on, press again to quit this function. When key lock is on, the icon “ ” will on, it will disable all the buttons except “F” , “ “ & “SQ”.(See LCD indicator in Figure (3) ) (3) 4.5 CAR channel Scanning function 4 At CAR channel mode, press “SCAN” button to scan the “CAR Scan List”, press “ “ or “ “ button to choose the scan channel fequence increasing or decreasing. Press “SCAN“ button again will stop the scan function, and will go back to the channel before scanning. But if signal received during the scanning, pressing “SCAN” button, radio will stop at this channel. (See LCD indicator in Figure (4-1)) The scan frequency shows & icon [Sc] flashes during scanning, it will stop if signal received…

Text truncated - open the document above for the full version.

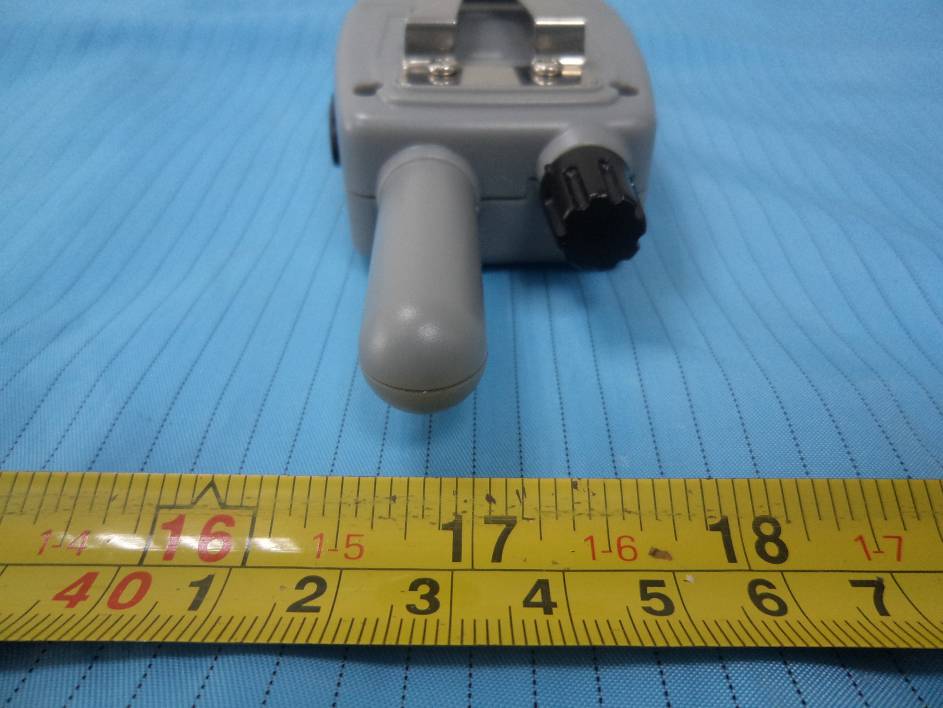

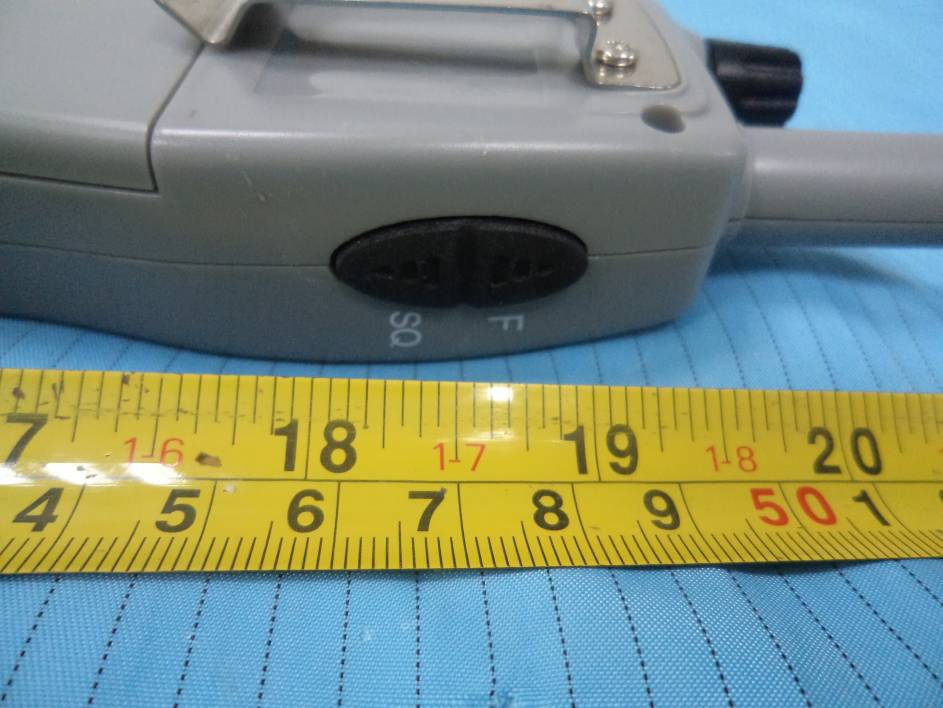

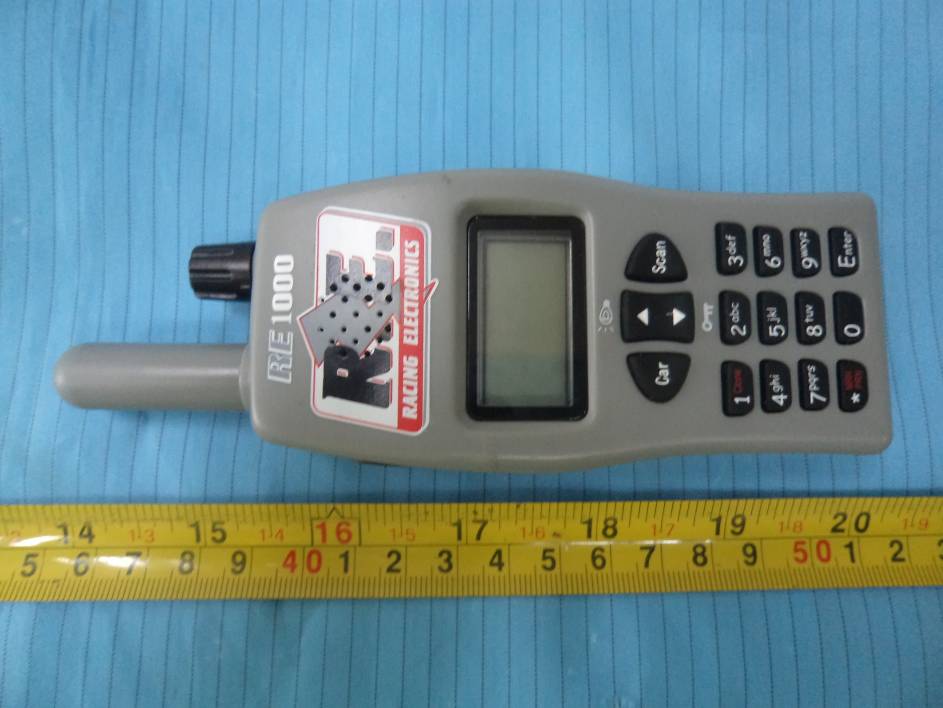

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Top View EUT – Left View EUT – Right View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) TEST REPORT For Racing Electronics 840 Derita Road, Concord, North Carolina 28027, USA FCC PART 15 CLASS B FCC ID: WZ5-RE1000 Report Type: Original Report Product Type: Racing Scanner Test Engineer: Grace Xi Report Number: RSZ110705001-00 Report Date: 2011-08-18 Reviewed By: Merry Zhao EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110705001-00 FCC Part15 Class B Test Report Page 2 of 12 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................4 CONFIGURATION OF TEST SETUP.................................................................................................................................4 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS ...............................................................................................................................6 FCC §15.109 - RADIATED SPURIOUS EMISSIONS ..............................................................................................7 MEASUREMENT UNCERTAINTY....................................................................................................................................7 EUT SETUP..................................................................................................................................................................7 EMI TEST RECEIVER SETUP.........................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 TEST PROCEDURE........................................................................................................................................................8 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................8 TEST RESULTS SUMMARY............................................................................................................................................8 TEST DATA..................................................................................................................................................................9 FCC §15.121 (B) - CELLULAR BAND REJECTION .............................................................................................12 STANDARD APPLICABLE............................................................................................................................................12 TEST METHOD...........................................................................................................................................................12 TEST DATA................................................................................................................................................................12 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110705001-00 FCC Part15 Class B Test Report Page 3 of 12 GENERAL INFORMATION Product Description for Equipment under Test (EUT) The Racing Electronics’s product, model number: RE1000 (FCC ID: WZ5-RE1000) ("EUT”) in this report is a Racing Scanner, which was measured approximately: 15.0 cm (L) x 5.5 cm (W) x 2.7 cm (H), rated input voltage: DC 3*1.5V battery. * All measurement and test data in this report was gathered from production sample serial number: 1107003 (Assigned by applicant). The EUT was received on 2011-07-05. Objective This report is prepared on behalf of Racing Electronics in accordance with Part 2-Subpart J, Part 15- Subparts A and B …

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions - Front View (Below 1 GHz) Radiated Emissions - Rear View (Below 1 GHz) Radiated Emissions - Front View (Above 1 GHz) Radiated Emissions - Rear View (Above 1 GHz)
