WZ9F75MDHobby Metal Detector

Comprehensive Operating Manual & Guide to Metal Detecting Metal Detector Comprehensive Operating Manual & Guide to Metal Detecting Comprehensive Operating Manual & Guide to Metal Detecting Comprehensive Operating Manual & Guide to Metal Detecting 2 43 F75 F75 The F75 is a multipurpose metal detector. Its most popular uses are coinshooting and relic hunting, and it is also well-suited to gold prospecting. How Metal Detectors Work Most hobby metal detectors use VLF Induction Balance technology. Here's how they work. The searchcoil (also called search head or loop) contains two electrical induction coils which are like antennas. One coil transmits a rapidly alternating magnetic field, illuminating the region surrounding the searchcoil. If metal is present, its electrical conductivity distorts the magnetic field. If iron metal is present, its magnetism also distorts the magnetic field, but in a different way, allowing the metal detector to distinguish between ferrous and nonferrous metals. The other coil is a receiving antenna which detects changes in the magnetic field caused by the presence of metal. Electronic circuits amplify this weak signal, analyze it to determine the changes which occur as the searchcoil sweeps over the target, and then convey the information to the user in the form of a visual display or audio tones. Most modern metal detectors perform many of these tasks in software running on an internal microcomputer. The iron minerals which are present in most soils also distort the magnetic field, obscuring the weak signals of small or deep objects. This can cause the object to go undetected, or to be misidentified when it is detected. Much of the technology that goes into modern metal detectors is devoted to the task of eliminating the unwanted signals from iron minerals in the soil, while not losing the signals from metal objects. Copyright Fisher Research Labs, Inc. 2007. F75-MANUAL.qx6 8/15/07 9:42 AM Page 2 PRODUCT FEATURES • Light weight and well-balanced: best ergonomically engineered detector in the industry. • Intuitive menu-driven user interface • Large LCD screen • Visual indicators of important values such as: Target Identification Target Confidence Target Depth (both running-depth and pinpoint-depth) Ground Mineralization • Multiple Search Modes: Discrimination Static All-Metal Motion All-Metal • Trigger-actuated FASTGRAB™ ground balancing with manual override • Waterproof 11-inch open-frame BiAxial™ searchcoil Housing constructed of a carbon fiber-polycarbonate blend • Trigger-actuated target pinpointing with variable audio pitch • Fully Adjustable Arm Rest • Display backlight for night and low-light conditions • Notch and discrimination controls • Covers provided for both the control housing and battery box. • Made in the USA If you have any questions, or need assistance with your metal detector, Call 1-915-225-0333, and ask for Fisher Hobby Technical Service Copyright Fisher Research Labs, Inc., Mar. 19, 2010 Comprehensive Operating Manual & Guide to Metal Detecting Comprehensive Operating Manual & Guide to Metal Detecting 42 3 F75 F75 Table Of Contents Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Quick-Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Mechanicals Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7 Mechanicals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Arm Rest adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Using Headphones (not included) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Introduction to the F75 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-12 Menu System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Ground Balancing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-16 Motion All Metal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Static All Metal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Discrimination Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-22 PinPoint Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 LCD Visual Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-26 Numeric Target Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Probable Target Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Target Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Depth Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Confidence Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Fe 3 O 4 Graph . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Battery Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 G.B. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..26 Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Frequency Shifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 Capabilities & Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28-30 Tips & Techniques Search Techniques How to sweep the searchcoil . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Pinpointing targets . . . …

Text truncated - open the document above for the full version.

Flrst~ January7, 2009 To WhomIt MayConcern: Thisis yourletterof authorizationto acceptour appointmentof CKCCertificationServices,LLCas Agent for FirstTexasProductsLLC,1465-HHenryBrennanDrive,EI Paso,TX 79936,to sign applications beforethe agencyon our behalf,and to receiveand exchangedata betweenour companyand the agencyin connectionwithcertification. ;:/;~ Tom~ President FirstTexasProducts,LLC 1465-HHenryBrennan,EI Paso,TX79936,USA• Ph 915.633.8354• Fx 915.633.8529 www.detecting.com• www.nightowloptics.com• www.fisherlab.com

1465-H Henry Brennan, El Paso,TX 79936, USA • Ph 915.633.8354 • Fx 915.633.8529 www.detecting.com • www.nightowloptics.com • www.fisherlab.com March 16, 2009 To Whom It May Concern: This is your letter of authorization to accept our appointment of Art Nemirow to sign letters and applications for any filings with the agency on our behalf, and to receive and exchange data between our company, the agents company and the agency in connection with certification for any products that our company owns or manufactures. Sincerely, Tom Walsh President First Texas Products, LLC 1465-H Henry Brennan Dr. El Paso, TX 79936 915-633-8354

Non-Conformities FCC ID: WZ9F75M D (CKC CS Ref # E09-000107-FCC-01) The items listed below represent requests for information following review of this application for certification under United S tates (FCC) regulations. Further question may arise pending review of responses to these items. OK ID # Non-Conformity or Comment Subm itted Response Respondent / Date of Response x C 1 Please provide an updated user s manual incorporating the statement required by 15.21. Provided revised manual. First Texas Products 3/24/10 x C 2 Please provide a photo or diagram as to where the label will be affixed. 7/28/09 F-75 label is correct and don’t need one for the F-5 Note: only F75 label applies First Texas Products 3/19/10 x C 3 Please provide additional reasoning for keeping the internal photos confidential. These are not normally kept confidential. Updated documents provided. First Texas Products 2/11/10 4 5 6 The items indicated above must be submitted before processing can continue on the referenced application. Failure to provide t he requested information within 60 days may result in application dismissal pursuant to Section 2.917(c) and forfeiture of the filing fee pursuant to Se ction 1.1106. How to read the table: OK column indicates closure by CKC CS. ID column is for use with Agents to assist in identifying the probable source for closure. A – Application issue TL – Test lab issue C – Client issue R – Retesting may be necessary # column indicates unique or separate non-conformity items (note some items may be related). Non-Conformity or Comment column indicates the evaluators specific question or comment. Submitted response column indicates the response or a summary of the response provided. Respondent / Date of Response column indicates the responding party or agent and the date of the response was either received or logged.

First Texas Products MODEL: F5 This device complies with RSS-210 of IC Rules and Part 15 of FCC the Rules. Operation is subject to two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. First Texas Products MODEL: QD II This device complies with RSS-210 of IC Rules and Part 15 of FCC the Rules. Operation is subject to two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may First Texas Products MODEL: F75 FCC ID: WZ9F75MD IC: 8188A- F75MD This device complies with RSS-210 of IC Rules and Part 15 of FCC the Rules. Operation is subject to two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. First Texas Products MODEL: SS2 This device complies with RSS-210 of IC Rules and Part 15 of FCC the Rules. Operation is subject to two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1 1/2” 1/2”

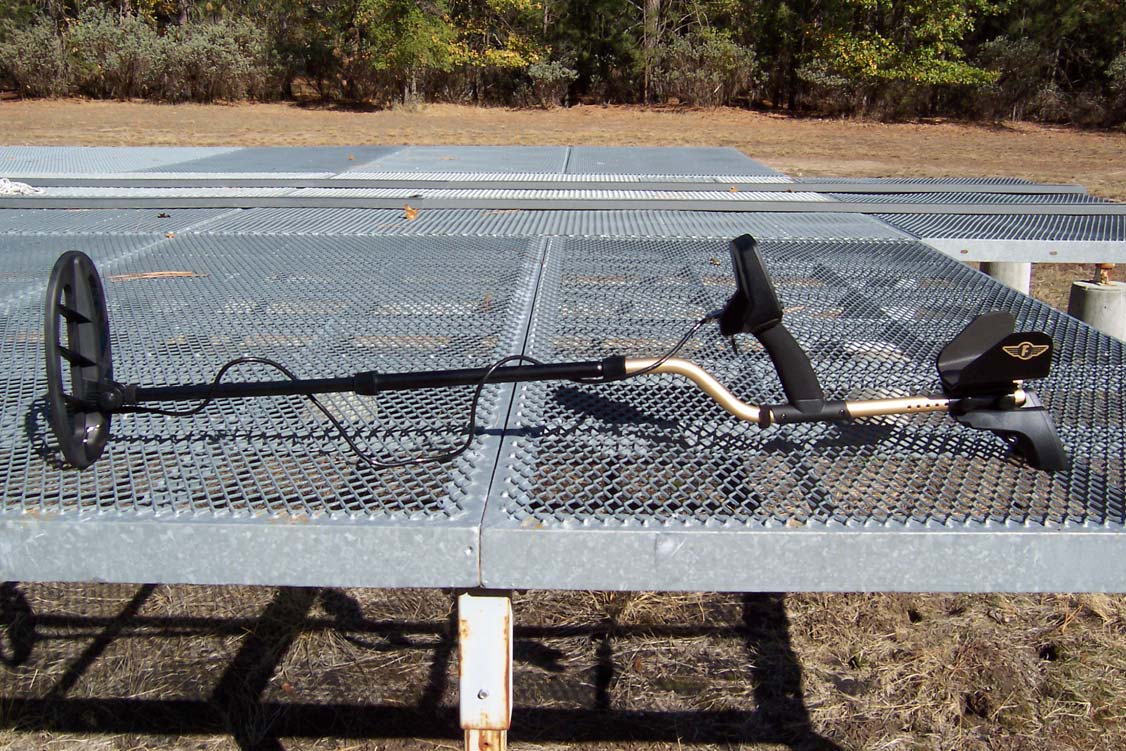

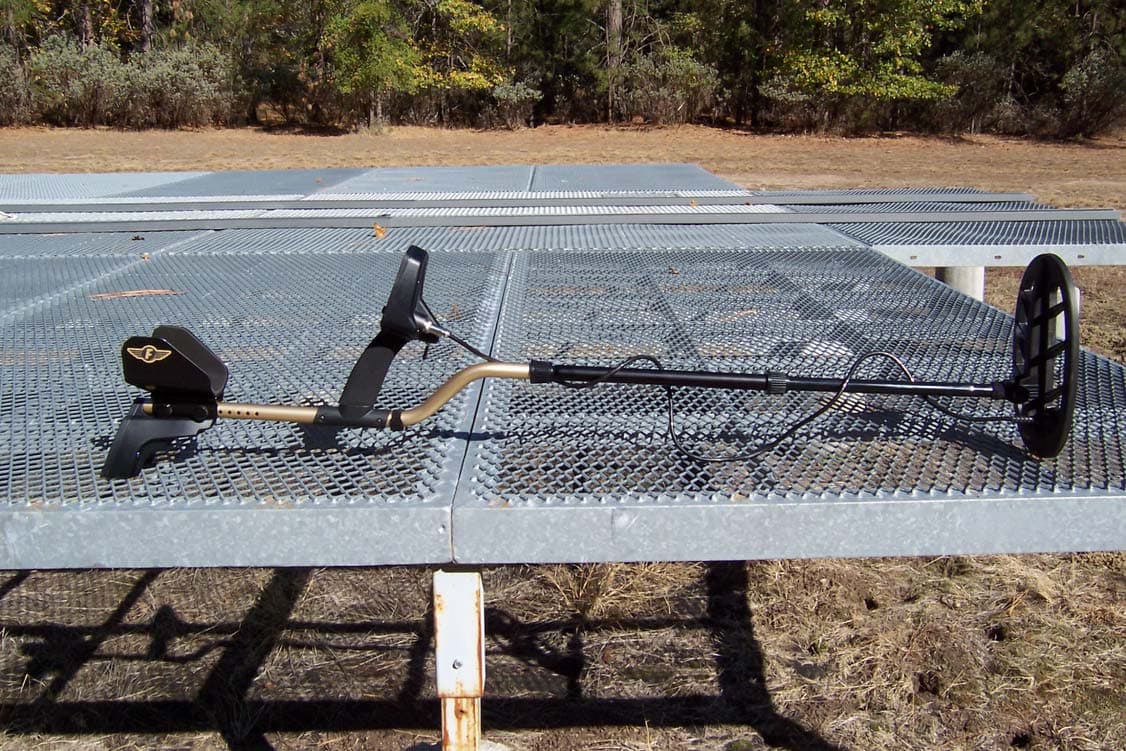

Page 1 of 23 Report No.: FC08-103 TESTING CERT #803.01, 803.02, 803.05, 803.06 FIRST TEXAS PRODUCTS LLC TEST REPORT FOR THE METAL DETECTOR, F75 (TI-MICROCONTROLLER PLATFORM) FCC PART 15 SUBPART C SECTION 15.209 AND SUBPART B SECTION 15.109 CLASS B TESTING DATE OF ISSUE: NOVEMBER 7, 2008 PREPARED FOR: First Texas Products LLC 1465-H Henry Brennan El Paso, TX 79936 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 P.O. No.: 005891-00 Date of test:October 20-24, 2008 W.O. No.: 88547 Report No.: FC08-103 This report contains a total of 23 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 23 Report No.: FC08-103 TABLE OF CONTENTS Administrative Information .............................................................................................3 Approvals .........................................................................................................................3 Summary of Results .........................................................................................................4 Conditions During Testing ...............................................................................................4 FCC 15.31(e) Voltage Variation ......................................................................................5 FCC 15.31(m) Number Of Channels ...............................................................................5 FCC 15.33(a) Frequency Ranges Tested .........................................................................5 FCC 15.35 Analyzer Bandwidth Settings ........................................................................5 FCC 15.203 Antenna Requirements ................................................................................5 EUT Operating Frequency ...............................................................................................5 Temperature And Humidity During Testing....................................................................5 Equipment Under Test (EUT) Description ......................................................................6 Equipment Under Test .....................................................................................................6 Peripheral Devices ...........................................................................................................6 Report of Emissions Measurements.................................................................................7 Testing Parameters ...............................................................................................7 FCC 15.109 Radiated Emissions .........................................................................9 FCC 15.209 Carrier Emissions ............................................................................13 FCC 15.209 Radiated Emissions .........................................................................15 Occupied Bandwidth ............................................................................................21 Page 3 of 23 Report No.: FC08-103 ADMINISTRATIVE INFORMATION DATE OF TEST: October 20-24, 2008 DATE OF RECEIPT: October 20-24, 2008 REPRESENTATIVE: Art Nemirow MANUFACTURER: First Texas Products LLC 1465-H Henry Brennan El Paso, TX 79936 TEST LOCATION: CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 TEST METHOD: ANSI C63.4 (2003) PURPOSE OF TEST: To perform the testing of the Metal Detector, F75 (TI-Microcontroller Platform) with the requirements for FCC Part 15 Subpart C Section 15.209 and Subpart B Section 15.109 Class B devices. APPROVALS Steve Behm, Director of Engineering Services QUALITY ASSURANCE: TEST PERSONNEL: Mike Wilkinson, Senior EMC Engineer/Lab Manager Randy Clark, EMC Engineer Page 4 of 23 Report No.: FC08-103 SUMMARY OF RESULTS Test Specification Results Radiated Emissions FCC Part 15 Subpart B Section 15.109 Class B Pass Carrier Emissions FCC Part 15 Subpart C Section 15.209 Pass Radiated Emissions FCC Part 15 Subpart C Section 15.209 Pass Occupied Bandwidth Pass Site File No. FCC Site No. 90477 IC Site No. 3082-A CONDITIONS DURING TESTING No modifications to the EUT were necessary during testing. Conducted emissions not required for this device because it is battery powered. Page 5 of 23 Report No.: FC08-103 FCC 15.31(e) Voltage Variations Not applicable to this device because it is battery powered and it was tested with a new battery. FCC 15.31(m) Number Of Channels This device was tested on a single channel. FCC 15.33(a) Frequency Ranges Tested 15.109 Radiated Emissions: 30 MHz – 1000 MHz 15.209 Radiated Emissions: 9 kHz – 1000 MHz FCC SECTION 15.35: ANALYZER BANDWIDTH SETTINGS PER FREQUENCY RANGE TEST BEGINNING FREQUENCY ENDING FREQUENCY BANDWIDTH SETTING RADIATED EMISSIONS 9 kHz 150 kHz 200 Hz RADIATED EMISSIONS 150 kHz 30 MHz 9 kHz RADIATED EMISSIONS 30 MHz 1000 MHz 120 kHz FCC 15.203 Antenna Requirements The antenna has a unique connector; therefore the EUT complies with Section 15.203 of the FCC rules. EUT Operating Frequency The EUT was operating at 12.9 kHz. Temperature and Humidity During Testing The temperature during testing was within +15°C and + 35°C. The relative humidity was between 20% and 75%. Page 6 of 23 Report No.: FC08-103 EQUIPMENT UNDER TEST (EUT) DESCRIPTION The customer declares the EUT tested by CKC Laboratories was representative of a production unit. EQUIPMENT UNDER TEST Metal Detectors Manuf: First Texas Products LLC Model: Quick Draw II Serial: CKC assigned #2 FCC ID: pending Metal Detectors Manuf: First Texas Products LLC Model: F5 Serial: CKC assigned #1 FCC ID: pending Metal Detectors Manuf: First Texas Products LLC Model: F75 (T1-microcontroller platform) Serial: 09088773 FCC ID: pending PERIPHERAL DEVICES The EUT was tested with the following peripheral device(s): Headphones (3 each) Manuf: Fir…
