X33-WSS-BLMBLUETOOTH MOUSE

Optical Mouse BM083 User’s Guide Please DO NOT direct the laser beam at anyone’s eye. CAUTION: To use this product properly, please read the user's guide before installation Welcome Congratulations on selecting BM083 Bluetooth Optical Mouse. The BM083 Bluetooth Optical Mouse works without a receiver for the ultimate in hassle-free mobility. It instantly connects to a PC/notebook enabled with Bluetooth wireless technology, providing up to 30 feet of cordless range. Power-saving sleep modes, a low-battery indicator light, and an on/off switch let you manage working power wisely. The stylish & comfortable design provides you with the best way to work with your notebook or PC. Overview Green LED ON: Charging Blue LED Blinking: Pairing Low in Battery System Requirement
IBM or PC Compatible/Mac PC enable with Bluetooth wireless technology.
Windows system with Bluetooth software installed (Windows XP SP2 or above, Windows vista, Toshiba stack, Widcomm BTW, or IVT Bluecoleil).
Mac OS 10.2.8 or above with Bluetooth software installed. Installation Guide Step 1. Inserting the Batteries The efficiency of the rechargeable battery is by the quality of actual enclosing battery. For better efficiency purpose, additional fine brand of the rechargeable battery is highly suggested.
Press the button on the mouse and pull the battery cover backward
Insert the batteries as shown inside the battery compartment.
Replace the cover. Charging the battery When to charge 1 First-Time Use: Please charge at least 7 hours for the first time usage and charge at least 2 hours when battery runs low 2 Red LED Blinking: When the red LED starts blinking, it means the battery is nearly empty How to charge Plug the USB cable into your mouse and computer by USB port respectively and it starts charging. Mouse can work uninterruptedly during charging. Step 2. Pairing your Bluetooth mouse with your computer Before pairing your Bluetooth mouse with your computer, you should read through the instructions that came with your Bluetooth hardware and software for detail how to pair a device to your specific Bluetooth configuration. Follow below steps to pair your Bluetooth mouse under Windows XP/SP2 system,. Widcomm BTW and IVT Bluecoleil
Before you can install your BM083 Bluetooth optical mouse, please make sure you have done the Bluetooth dongle installation procedure.
Turn on the switch on the bottom of the mouse, Press the “Discovery” button on the bottom of the mouse for 5-8 seconds. The mouse will be switched to the standby mode for pairing, the red light LED will flash., Note: the “Discovery” button is only used for pairing operation
Next Pairing Steps A. Use Bluetooth mouse on Windows XP SP2 Bluetooth stack steps 1）.Click Start menu, click Control Panel and double click “Bluetooth Devices”., On the “Devices” tab, click “Add”. 2）. Select "My device is set up and ready to be found", when find the Bluetooth mouse, you can select it and click "next" 3）. Select "Don't use passkey", and click "next", operating system will install the bluetooth HID device automatically. B. Use Bluetooth mouse on WIDCOMM Bluetooth stack steps 1）. Make sure the bluetooth function have been activated on the computer system, double click the BTW icon in toolbar, select “Bluetooth” and click "search for devices" 2）.Select the Bluetooth mouse icon, press right button and select “Connect Device” 3）. Then come out the following window, after complete confirming, the operating system will install the bluetooth HID device automatically. C. Use Bluetooth mouse on IVT Bluetooth stack steps 1）.Make sure the bluetooth function have been activated on the computer system, double click the BTW icon in toolbar, then click "Bluetooth Device Discovery" under "My Bluetooth" in toolbar. 2）. Select the found bluetooth mouse device, press the right button and select "Refresh Services" 3）. Then select the Bluetooth mouse icon, press right button to select “Connect” and click “Bluetooth Human Interface Device Service” the operating system will install the bluetooth HID device automatically Product Specifications
Bluetooth Specification: Version 2.0 Class 2
Range of Frequency: 2.4GHz Spectrum
Operating Voltage: 2.0 ~3.3Vdc ( powered by AAA batteries )
Moving Current: < 26mA
Standby Current: 2.0~ 3.5mA
Sleep Current: < 1.8 mA
Switch at OFF < 10 uA
Transmit Range: up to 10 meters
Resolution: 1000cpi
Storage Temperature: -40 ~ +125 degree
Dimensions: 105mm(L)x56mm（W）x35mm（H）
Weight: 70.5g+/-2g Troubleshooting If you are unable to connect your BM083 mouse to PC or can not use normally, please try the following:
Ensure your bluetooth device of PC is properly starting up
Ensure Bluetooth mouse has been paired to PC (If you have completed the connection before, but started up the connection button later, then you have to re-connect them )
Ensure the Bluetooth mouse is within a 10 meters range of your PC
Ensure your bluetooth device of PC have not be changed.(you have to re-connect if changed)
If your PC bluetooth still connect other bluetooth device, make sure there is enough data for them.
Reset the switch If the above steps do not solve your problem, please replacing the batteries Precaution ! The mouse cannot work on a glass surface. ! For consideration of saving battery power, it is strongly recommended to operate the mouse on a bright surface with fine texture to obtain lower power consumption, A very dark surface will cause higher power consumption. ! For a better transmission distance, avoid to use this device on a metal plate or desktop because a larger surface of iron, aluminum, Operating on a metal may cause the transmission distance shorter. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operat…

Text truncated - open the document above for the full version.

Dongguan kaiyun Electronic Co.,Ltd _____________________________________________________________________ Date:01 March 2010 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: X33-WSS-BLM To Whom It May Concern: This letter is to ascertain that Dongguan kaiyun Electronic Co.,Ltd. Product WIRELESS OPTICAL MOUSE has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Signature: Name :Wang shaomei Title: manager Company Name: Dongguan kaiyun Electronic Co.,Ltd Address: Dabandi Industrial Zone,Daning district Humen Town,Dongguan City,China Telephone: +86-0769-86232178 Fax No.: +86-0769-85232833

TOD3003 Bluetooth ® Single Chip for HID (Product Data Sheet) Copyright © Terax Communication Technologies Inc. All rights reserved. Terax Confidential & Proprietary. All the descriptions and information in this material, in whole or in part, are provided by Terax “AS IS”, without warranty of any kind, and Terax reserves the right to make changes to this specification and its products at any time without notice. Customers are advised to obtain the latest version of this device specification as finally confirmed by Terax, before relying on any published information and before placing orders for products. Terax Communication www.terax.com.tw Version 1.04 Technologies Inc. Page 1 of 28 02/17/2009 General Description The TOD3003 is a highly integrated single chip Bluetooth device with a stand-alone baseband processor and integrated 2.4 GHz transceiver and is compliant to Bluetooth 2.0. This chip is specifically designed for applications in wireless input devices including keyboards, mice, presenters and gaming controllers. Built-in firmware is fully compliant to Bluetooth ® Human Interface Device (HID) profile. Application − Wireless mouse − Wireless keyboard − Game controllers − Presenters − Remote controls − GPS mouse (G-mouse) RF-Transceiver − Clean, fast hopping synthesizer − 0 dBm, 1 Mbps GFSK transmitter − Analog and Digital filtered receiver − Internal VCO resonator and PLL filter − 50 ohm ant. port eliminates most external RF parts Features − Compliant with Bluetooth ® Specification V2.0 − Compliant with Bluetooth ® HID profile version 1.0 − Support AFH − Embedded 8-bits ’C51 compatible Micro-Controller − Internal 128 kB mask ROM and 8 kB SRAM − On chip support for common mouse sensor interface eliminates external processor − On chip support for Serial Peripheral Interface (SPI) (mater/slave mode) − Optional I 2 C compatible interface − Built-in Power On Reset (POR) − Built-in 8-bit accuracy/10-bit resolution ADC with 4 input channels for detecting low power of battery and reading various analog sensors such as 3-axis accelerometer, etc. − Low Power 1.8V core operation − Integrated Switch-mode Regulators (1 BUCK and 1 BOOST) to support external sensor, LED/Laser and MCU to reduce external BOM cost. − Crystal oscillator with built-in digital trimming − Power management includes digital shutdown and wake up commands with an integrated low power oscillator for sniff mode − Support MCP option with 4 Megabit Flash − Support COB (Chip on Board) option − 56-Pin QFN package available (8 x 8 x 0.9 mm) UART GPIO Battery Antenna 12MHz XTAL Baseband MCUROMRAM 2.4Ghz Radio Boost 8 bit ADC POR SPI Buck Figure 1 – Functional Block Diagram

Dongguan kaiyun Electronic Co.,Ltd _____________________________________________________________________ SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 Dongguan kaiyun Electronic Co.,Ltd _____________________________________________________________________ SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 (February 4, 2010) To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _ Dongguan kaiyun Electronic Co.,Ltd_ hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: BLUETOOTH MOUSE model name: WSS-BM01～～WSS-BM40 WSS-BLM01～～WSS-BLM30 We affirm that between SIEMIC and _ Dongguan kaiyun Electronic Co.,Ltd _ , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature: Name :Wang shaomei Title: manager Company Name: Dongguan kaiyun Electronic Co.,Ltd Address: Dabandi Industrial Zone,Daning district Humen Town,Dongguan City,China Telephone: +86-0769-86232178 Fax No.: +86-0769-85232833

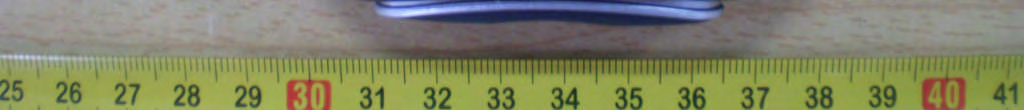

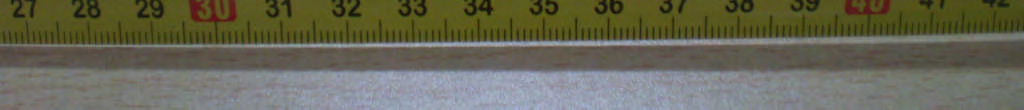

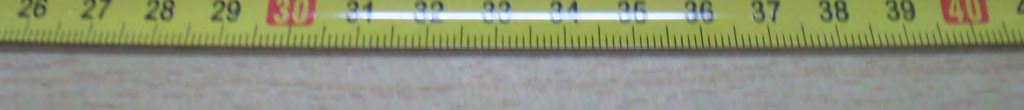

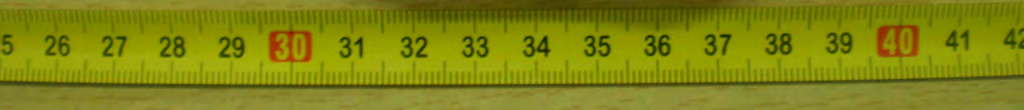

Title:RFTest Report forBLUETOOTHMOUSE Model:WSS-BM01～～WSS-BM40 WSS-BLM01～～WSS-BLM30 To:FCC15.249:2009 Serial#:1002033 Issue Date:March052010 Page22of42 www.siemic.com.cn Annex B.EUT ANDTESTSETUPPHOTOGRAPHS Annex B.i.Photograph : EUTPhoto Title:RFTest Report forBLUETOOTHMOUSE Model:WSS-BM01～～WSS-BM40 WSS-BLM01～～WSS-BLM30 To:FCC15.249:2009 Serial#:1002033 Issue Date:March052010 Page23of42 www.siemic.com.cn

FCC ID: X33-WSS-BLM This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label Location Label location

Title:RFTest Report forBLUETOOTHMOUSE Model:WSS-BM01～～WSS-BM40 WSS-BLM01～～WSS-BLM30 To:FCC15.249:2009 Serial#:1002033 Issue Date:March052010 Page24of42 www.siemic.com.cn Title:RFTest Report forBLUETOOTHMOUSE Model:WSS-BM01～～WSS-BM40 WSS-BLM01～～WSS-BLM30 To:FCC15.249:2009 Serial#:1002033 Issue Date:March052010 Page25of42 www.siemic.com.cn

TOD3003 Bluetooth ® Single Chip for HID (Product Data Sheet) Copyright © Terax Communication Technologies Inc. All rights reserved. Terax Confidential & Proprietary. All the descriptions and information in this material, in whole or in part, are provided by Terax “AS IS”, without warranty of any kind, and Terax reserves the right to make changes to this specification and its products at any time without notice. Customers are advised to obtain the latest version of this device specification as finally confirmed by Terax, before relying on any published information and before placing orders for products. Terax Communication www.terax.com.tw Version 1.04 Technologies Inc. Page 1 of 28 02/17/2009 General Description The TOD3003 is a highly integrated single chip Bluetooth device with a stand-alone baseband processor and integrated 2.4 GHz transceiver and is compliant to Bluetooth 2.0. This chip is specifically designed for applications in wireless input devices including keyboards, mice, presenters and gaming controllers. Built-in firmware is fully compliant to Bluetooth ® Human Interface Device (HID) profile. Application − Wireless mouse − Wireless keyboard − Game controllers − Presenters − Remote controls − GPS mouse (G-mouse) RF-Transceiver − Clean, fast hopping synthesizer − 0 dBm, 1 Mbps GFSK transmitter − Analog and Digital filtered receiver − Internal VCO resonator and PLL filter − 50 ohm ant. port eliminates most external RF parts Features − Compliant with Bluetooth ® Specification V2.0 − Compliant with Bluetooth ® HID profile version 1.0 − Support AFH − Embedded 8-bits ’C51 compatible Micro-Controller − Internal 128 kB mask ROM and 8 kB SRAM − On chip support for common mouse sensor interface eliminates external processor − On chip support for Serial Peripheral Interface (SPI) (mater/slave mode) − Optional I 2 C compatible interface − Built-in Power On Reset (POR) − Built-in 8-bit accuracy/10-bit resolution ADC with 4 input channels for detecting low power of battery and reading various analog sensors such as 3-axis accelerometer, etc. − Low Power 1.8V core operation − Integrated Switch-mode Regulators (1 BUCK and 1 BOOST) to support external sensor, LED/Laser and MCU to reduce external BOM cost. − Crystal oscillator with built-in digital trimming − Power management includes digital shutdown and wake up commands with an integrated low power oscillator for sniff mode − Support MCP option with 4 Megabit Flash − Support COB (Chip on Board) option − 56-Pin QFN package available (8 x 8 x 0.9 mm) UART GPIO Battery Antenna 12MHz XTAL Baseband MCUROMRAM 2.4Ghz Radio Boost 8 bit ADC POR SPI Buck Figure 1 – Functional Block Diagram

TOD3003 Bluetooth ® Single Chip for HID (Product Data Sheet) Copyright © Terax Communication Technologies Inc. All rights reserved. Terax Confidential & Proprietary. All the descriptions and information in this material, in whole or in part, are provided by Terax “AS IS”, without warranty of any kind, and Terax reserves the right to make changes to this specification and its products at any time without notice. Customers are advised to obtain the latest version of this device specification as finally confirmed by Terax, before relying on any published information and before placing orders for products. Terax Communication www.terax.com.tw Version 1.04 Technologies Inc. Page 9 of 28 02/17/2009 Reference Circuits Bluetooth Wireless Mouse Z1 R_Key Pairing_Key LED0Optical LED TOD3003 HIDModule MD 1 TOD3003-HID-Module 19 121316 10 5 17 18 6 7 3 20 22 23 24 11 21 9 8 26 27 25 28 4 2 15 29 14 1 30 Power-On/Off BATN BATP 1V8-In LED0 PK 1V8-out GND2 Z1 Z2 LK 4K/SPI-sdi SDOWN Motion/Wkup SDIO LED1 5K/SPI-seln RxD/7K/sdo TxD/6K/SPI-sclk MISO 8AK SCLK RK MK VADC Bst-out RSTn VDDIO-In GND1 GND3 4_Key 4_Key RSTn 1V8 Indicator of LEDs Z1 RSTn R2 10K Simple Bluetooth Wireless Mousewith Pushbutton on/offusing Pix a rt PAN3204DB Optical Sensorand Terax TOD3003Bluetooth HID Module(see next page) Boost_Out T3 Tes t -Pad 1 R6 470 + C4 100uF/16V Pwr_On_Off SDIO S9S3 Led_1 J1 BATTERY 12 C30.1uF PAN3204DB Sensor C111uF BAT+ Rotary Sensor Encoder C9 10uF TxD_6Key TxD_6Key BAT+ M_Key Boost_Out M_Key R_Key Led_1 L_Key S6 LED2 LED 1 2 Note: 1. LEDs are f or status indication of Pairing, Pow er-on,battery-level (H/M/L/very-low /Lock-out), and Warm-start.2. Indicating pattern and LED can be def ined and assigned byEEPROM s e t t i n g . S7 1V8 BAT+ T1 Tes t -Pad 1 Z2 RSTn 5_Key S8 8_Key R5 470 S4 RxD_7Key SCLK RxD_7Key RxD_7Key Boost_Out T2 Tes t -Pad 1 R3 36k Motion/Wkup LED1 LED 1 2 L_Key C210uF SWs for Keys function Boost_Out Motion/Wkup S1 C1010uF Pairing_Key Pwr_On_Of f BAT+ Led_0 Power On SCLK SDIO Led_0 S2 8_Key SW1Rotary _Sensor 1 3 2 A COM B S5 U1 PAN3204DB 3214 5678 SDIOMOTSW KOSC_RESSCLK LEDVSS VDD VDDA 5_Key T0 Tes t -Pad 1 ( Z/ 2 , Z/ 4 ) Z2 T4 Tes t -Pad 1 1V8 S10 Power on/of f R4 R Test points TxD_6Key C8 10uF TOD3003 HID Module TOD3003 Bluetooth ® Single Chip for HID (Product Data Sheet) Copyright © Terax Communication Technologies Inc. All rights reserved. Terax Confidential & Proprietary. All the descriptions and information in this material, in whole or in part, are provided by Terax “AS IS”, without warranty of any kind, and Terax reserves the right to make changes to this specification and its products at any time without notice. Customers are advised to obtain the latest version of this device specification as finally confirmed by Terax, before relying on any published information and before placing orders for products. Terax Communication www.terax.com.tw Version 1.04 Technologies Inc. Page 10 of 28 02/17/2009 Bluetooth HID Module Schematic: LK/In1 1 R2 2k 17 PK/In3 1 CP6 4.7uF RSTn 1 Z1 GND 1 VCC_1V8 VDD_IO XO 1V8-Out 1 SDIO/SDA/MOSI 1 RXD/7K/SPI-sdo 1 Pin 46 1 SCLK_SCL Buck and Boost Power Converters REG_Out C3 should be close to L2 Pin 52 Power-On/Off 1 Low-Batte ry De te ct SDA C12 NC M_Key BATN 1 SCLK/SCL 1 12 VDD_IO SDWN/8BK 1 CP3 4.7uF GND 1 Motion/Wkup 1 VBAT_P ANT 30 CP4 1uF C6 15pF NCS/8AK 1 Z1 1 CP1 1uF C4 4.7uF VBAT_P R3 560k 1% 5K/SPI-seln 1 LED1_OD Power_On +1.83V nom. VBAT_P Vboost Config. EEPROM Pin 22 C5 15pF CP10 1uF GND 1 11 CP8 1uF P_Key C3 4.7uF Z2 Capacitors should be close to the indicated U1 pin number(s). 19 RXD_K7 C10 0 ohm CP9 1uF C2 4.7uF TXD_K6 Buck_LX Pin 31 XI 5_Key MISO 1 VBAT_P CP11 1uF C8 0.1uF 1V8-In 1 CP5 4.7uF BATP 1 RK 1 SDIO_MOSI Boost_LX 18 RSTn Pin 9Pin 1 LED0_OD LED1 1 FL1 BF2520-B2R4CAC 1 2 3 4 GND OUT GND IN LED0 1 VDD_IO E1 2.4 GHz Ant. TXD/6K/SPI-sclk 1 MK/In2 1 VADC 1 Pin 54 MISO LED1_OD Motion VCC_1V8 Y1 12 MHz xtal 4K/SPI-sdi 1 Clock Fre q. Reference SCL R1 1M R4 560k 1% Z2 1 CP12 1uF C11 NC Bst-Out(FB) 1 Vbuck L1 4.7uH LED0_OD L_Key NCS_8AK Pins 3, 6 VCC_1V8 L2 10uH Pin 40 U2 24LC32 45 6 7 81 2 3 GNDSDA SCL WP VCCA0 A1 A2 R_Key Pin 53 SHTDWN_8BK TXD _K6 4_Key 20 ADC_IN0 VCC_1V8 VDDIO-In 1 CP2 1uF U1 Terax TOD 3003 123456789 45 48 47 3229 28 25 26 27 5516 15 23 12 18 22 131410 35363738 21 41 20 19 42 43 39 49 34 44 50 51 52 53 54 56 40 11 24 17 3033 46 31 57 VDD-RANTVDD-ITPTNAVDD-AVSS-ADCADC-IN0VDD-ADC TM1 TM0 VSS18-C2 Buck-LX REG-on/off Boost-BATP Boost-BATN Boost-LX Boost-FB REG-OSDA SCL LED1 ADC-IN3 VDD-IO1 VDD18-C1 GPIO3GPIO4ADC-IN1 GPIO6GPIO7GPIO8GPIO9 LED0 VSS-IO2 Rxd-8051 Txd-8051 GPIO11 GPIO12 GPIO10 RST-N GPIO5 GPIO13 XO XI VDD-PL VDD-A VDD-V VT VDD-IO2 ADC-IN2 VSS18-C1 VSS-IO1 Buck-FB Buck-BATN VDD18-C2 Buck-BATP VSS-R C1 4.7uF RXD_K7 Photo: Bluetooth HID Module soldered to mouse PCB Buck power converter parts installed. Optional Boost power converter parts not installed.

DongguankaiyunElectronic Co.,Ltd DongguanLonggoldElectronic Co.,Ltd BLUETOOTHMOUSE Model:WSS-BM01～～WSS-BM40 WSS-BLM01～～WSS-BLM30 March052010 ReportNo.:1002033 (ThisreportsupersedesNONE) Modificationsmadetotheproduct:None ThisTestReportisIssuedUndertheAuthorityof: AlexWang ComplianceEngineer JacksonChen TechnicalManager Thistestreportmaybereproducedinfullonly. Testresultpresentedinthistestreportisapplicabletotherepresentativesampleonly. Title:RFTest Report forBLUETOOTHMOUSE Model:WSS-BM01～～WSS-BM40 WSS-BLM01～～WSS-BLM30 To:FCC15.249:2009 Serial#:1002033 Issue Date:March052010 Page2 of42 www.siemic.com.cn Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US andAsia, is one of the leading independent testing and certification facilities providingcustomers withone-stop shop servicesfor Compliance Testing and Global Certifications. In addition totestingandcertification, SIEMIC provides initial design reviews andcompliance managementthrough out a project. Our extensive experience withChina, Asia Pacific, North America, European, and internationalcompliance requirements, assures the fastest,most cost effective way to attain regulatory compliance for theglobal markets. Accreditations for Conformity Assessment Country/RegionAccreditation BodyScope USAFCC, A2LAEMC , RF/Wireless, Telecom CanadaIC, A2LA, NISTEMC,RF /Wireless, Telecom TaiwanBSMI , NCC , NISTEMC, RF, Telecom , Safety Hong KongOFTA , NISTRF /Wireless,Telecom AustraliaNATA, NISTEMC, RF, Telecom , Safety KoreaKCC/RRA, NISTEMI, EMS, RF , Telecom, Safety JapanVCCI, JATE, TELEC,RFTEMI,RF /Wireless, Telecom MexicoNOM, COFETEL,CanietySafety,EMC , RF/Wireless, Telecom EuropeA2LA, NISTEMC, RF, Telecom , Safety Accreditations for Product Certifications CountryAccreditation BodyScope USAFCCTCB, NISTEMC , RF , Telecom CanadaICFCB, NISTEMC , RF , Telecom SingaporeiDA, NISTEMC , RF , Telecom Title:RFTest Report forBLUETOOTHMOUSE Model:WSS-BM01～～WSS-BM40 WSS-BLM01～～WSS-BLM30 To:FCC15.249:2009 Serial#:1002033 Issue Date:March052010 Page3 of42 www.siemic.com.cn This page has been left blank intentionally. Title:RFTest Report forBLUETOOTHMOUSE Model:WSS-BM01～～WSS-BM40 WSS-BLM01～～WSS-BLM30 To:FCC15.249:2009 Serial#:1002033 Issue Date:March052010 Page4 of42 www.siemic.com.cn CONTENTS 1EXECUTIVE SUMMARY & EUT INFORMATION.............................................................................................................5 2TECHNICAL DETAILS..................................................................................................................................................6 3MODIFICATION............................................................................................................................................................7 4TEST SUMMARY..........................................................................................................................................................8 5MEASUREMENTS, EXAMINATION AND DERIVED RESULTS........................................................................................9 ANNEX A. TEST INSTRUMENT & METHOD.........................................................................................................................18 ANNEX B.EUT AND TEST SETUP PHOTOGRAPHS...........................................................................................................22 ANNEX C.TEST SETUP AND SUPPORTING EQUIPMENT................................................................................................... 27 ANNEXD. USER MANUAL / BLOCKDIAGRAM / SCHEMATICS/ PART LIST.......................................................................30 ANNEXE. SIEMIC ACCREDITATIONCERTIFICATES..........................................................................................................31 Title:RFTest Report forBLUETOOTHMOUSE Model:WSS-BM01～～WSS-BM40 WSS-BLM01～～WSS-BLM30 To:FCC15.249:2009 Serial#:1002033 Issue Date:March052010 Page5 of42 www.siemic.com.cn 1Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of theDongguankaiyun ElectronicCo.,Ltd DongguanLonggoldElectronicCo.,Ltd, BLUETOOTHMOUSE, and model:WSS-BM01～～WSS- BM40 WSS-BLM01～～WSS-BLM30against the current Stipulated Standards. TheBLUETOOTHMOUSEhas demonstrated compliance with theFCC15.249:2009. EUT Information EUT Description BLUETOOTHMOUSE Model No WSS-BM01～～WSS-BM40 WSS-BLM01～～WSS-BLM30 Input Power DC3V (Dry Battery) Classification Per Stipulated Test Standard DXT Title:RFTest Report forBLUETOOTHMOUSE Model:WSS-BM01～～WSS-BM40 WSS-BLM01～～WSS-BLM30 To:FCC15.249:2009 Serial#:1002033 Issue Date:March052010 Page6 of42 www.siemic.com.cn 2TECHNICAL DETAILS Purpose Compliance testing ofWIFIModule with stipulated standard Applicant / Client DongguankaiyunElectronicCo.,Ltd DongguanLonggoldElectronicCo.,Ltd Manufacturer DongguankaiyunElectronicCo.,Ltd DongguanLonggoldElectronicCo.,Ltd DabandiIndustrialZone,DaningdistrictHumen Town,Dongguan City,China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 1002033 Date EUT received February202010 Standard appliedFCC15.249:2009 Dates of test (from– to) February25~282010 No of Units: #4 Equipment Category: DXT Trade Name: Kaiyun longgao Model : WSS-BM01～～WSS-BM40 WSS-BLM01～～WSS-BLM30 RF Operating Frequency (ies) 2402MHz-2480MHz Modulation : GFSK FCC ID： X33-WSS-BLM Title:RFTest Report forBLUETOOTHMOUSE Model:WSS-BM01～～WSS-BM40 WSS-BLM01～～WSS-BLM30 To:FCC15.249:2009 Serial#:1002033 Issue Date:March052010 Page7 of42 www.siemic.com.cn 3MODIFICATION NONE Title:RFTest Report forBLUETOOTHMOUSE Model:WSS-BM01～～WSS-BM40 WSS-BLM01～～WSS-BLM30 To:FCC15.249:2009 Serial#:1002033 Issue Date:March052010 Page8 of42 www.siemic.com.cn 4TEST SUMMARY The product was tested in accordance with the followin…

Text truncated - open the document above for the full version.

Title:RFTest Report forBLUETOOTHMOUSE Model:WSS-BM01～～WSS-BM40 WSS-BLM01～～WSS-BLM30 To:FCC15.249:2009 Serial#:1002033 Issue Date:March052010 Page26of42 www.siemic.com.cn Annex B.i iPhotograph4: Test SetupPhoto RadiatedSpuriousEmissions Test Setup (30MHz-1GHz) RadiatedSpuriousEmissions Test Setup (Above 1GHz)
