X69GG400005FM transmitter

FCC Caution. § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.21 Changes or modification warning Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC ID: X69GG400005 1) How does this device operate? Plug into MP3 & similar device and powered from Car Cigarette lighter.. 2) Provide information on the device and its antenna. The transmitter’s antenna is same cable as Power line from Car Cigarette, this is permanently attached antenna and meets the requirements of the section. 3) How is it installed? The EUT will direct plug into MP3 Audio connector. And power by 12Vdc Car Power. 4) What test procedure was used? Operating condition is according to ANSI C63.4-2003 5) If tested in a car, how was it configured/tested? N/A 6) Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify maximum tuning range. EUT was adjusted to work at the selected channels: 88.1 MHz, 98.1 MHz, and 107.9 MHz. The EUT will not allow operation below 88.1 MHz and will not allow operation above 107.9 MHz. 7) Was the bandwidth properly tested with maximum audio input? Emissions from the intentional radiator shall be confined within a band 200 kHz wide centered on the operation frequency. The 200 kHz band shall lie wholly within the frequency range of 88 – 108 MHz. Setup the EUT and simulators as shown in the report. Enable RF signal and confirm EUT active. Modulate output capacity of EUT up to specifications. 8) Provide the test report. Test Report Submitted. Client’s signature Signature Name: Brent Alexander Title: Director Tel: +61 3 9499 7888 Company: Gecko Gear Australia Pty Ltd Address: First floor, 370 Darebin Road, Thornbury, Victoria 3071, Australia

Gecko Gear Australia Pty Ltd SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 Gecko Gear Australia Pty Ltd SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2013/12/23 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Gecko Gear Australia Pty Ltd hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product： FM transmitter Model Name： GG400005 FCC ID： X69GG400005 Trade Name: Gecko We affirm that between SIEMIC and ___ Gecko Gear Australia Pty Ltd __, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Signature Name: Brent Alexander Title: Director Tel: +61 3 9499 7888 Company: Gecko Gear Australia Pty Ltd Address: First floor, 370 Darebin Road, Thornbury, Victoria 3071, Australia

Gecko Gear Australia Pty Ltd SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 Gecko Gear Australia Pty Ltd SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2013/12/23 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: X69GG400005 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Signature Name: Brent Alexander Title: Director Tel: +61 3 9499 7888 Company: Gecko Gear Australia Pty Ltd

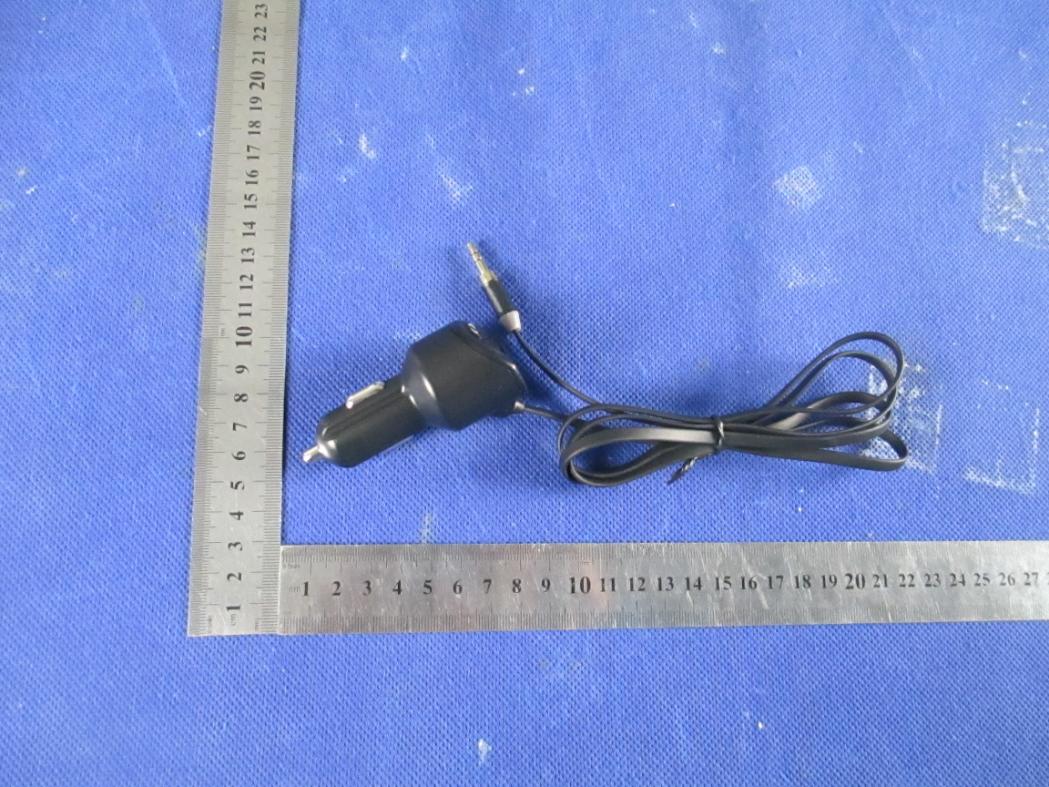

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4

Label FM Transmitter Model: GG400005 FCC ID: X69GG400005

Photo 5 Photo 6 Antenna Photo 7 Photo 8 Photo 9 Photo 10

FCC RADIO TEST REPORT FCC ID: X69GG400005 Product： FM Transmitter Trade Name： Gecko Model Name： GG400005 Serial Model： N/A Report No.： BZT1312096F Prepared for Gecko Gear Australia Pty Ltd First floor, 370 Darebin Road, Thornbury, Victoria 3071, Australia Prepared by BZT Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Page 2 of 30 Report No.:BZT1312096F ` TEST RESULT CERTIFICATION Applicant’s name ................. : Gecko Gear Australia Pty Ltd Address ................................. : First floor, 370 Darebin Road, Thornbury, Victoria 3071, Australia Manufacture's Name ............ : Gecko Gear Australia Pty Ltd Address ................................. : First floor, 370 Darebin Road, Thornbury, Victoria 3071, Australia Product description Product name............................ : FM Transmitter Model and/or type reference : GG400005 Serial Model： N/A Rating(s) ................................ : DC 12V Standards ............................. : FCC Part15.239 Test procedure ............................... : ANSI C63.4-2003 This device described above has been tested by BZT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BZT,, this document may be altered or revised by BZT,, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 23 Dec. 2013 ~27 Dec 2013 Date of Issue .......................................... : 28 Dec. 2013 Test Result.............................................. : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 30 Report No.:BZT1312096F ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . ANTENNA REQUIREMENT 11 3.1 STANDARD REQUIREMENT 11 3.2 EUT ANTENNA 11 3.3 CONDUCTED EMISSION MEASUREMENT 12 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.3.2 TEST PROCEDURE 13 3.3.3 DEVIATION FROM TEST STANDARD 13 3.3.4 TEST SETUP 13 3.2.5 TEST RESULT 14 3.4 RADIATED EMISSION MEASUREMENT 15 3.4.1 RADIATED EMISSION LIMITS 15 3.4.2 TEST PROCEDURE 16 3.4.3 DEVIATION FROM TEST STANDARD 16 3.4.4 TEST SETUP 17 3.4.5 TEST RESULTS (BLOW 30MHZ) 19 3.4.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 20 4 . BANDWIDTH TEST 26 4.1 TEST PROCEDURE 26 4.2 DEVIATION FROM STANDARD 26 4.3 TEST SETUP 26 4.4 TEST RESULTS 27 5 . EUT TEST PHOTO 30 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 30 Report No.:BZT1312096F ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.239) Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.203 Antenna Requirement Pass 15.239 & 15.209 Radiated Spurious Emission Pass 15.239 Occupied Bandwidth Pass Page 5 of 30 Report No.:BZT1312096F ` 1.1 TEST FACILITY BZT Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.: 701733 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 30 Report No.:BZT1312096F ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment FM Transmitter Trade Name Gecko Model Name GG400005 Serial Model N/A Model Difference N/A Product Description The EUT is a FM Transmitter Product Type Low Power Communication Device Transmitter Operation Frequency: 88.1-107.9MHz Modulation Type: FM Number Of Channel 199CH. Antenna Designation: Wire antenna Antenna Gain(Peak) 0dBi Output Power: 52.84dBuV/m (PK Max.) Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List N/A Adapter N/A Battery N/A Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 7 of 30 Report No.:BZT1312096F ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 88.1MHz Mode 2 98.1MHz Mode 3 107.9MHz For Conducted Emission Final Test Mode Description N/A N/A For Radiated Emission Final Test Mode Description Mode 1 88.1MHz Mode 2 98.1MHz Mode 3 107.9MHz Note: (1) The measurements are performed at the highest, middle, lowest available channels. (2) During testing, the EUT was actively playing music set to its maximum audio volume in order to generate the worst case emissions (e.g. to generate the maximum bandwidth during bandwidth test). No test tones were used for testing. The tuning range of the EUT was manually verified and the conclusion is that it only works at selected channels within 88.1-107.9MHz…

Text truncated - open the document above for the full version.

Page 30 of 30 Report No.:BZT1312096F ` 5. EUT TEST PHOTO Radiated Measurement Photos
