X6AHCM-800NHCM-800N Repeater

HCM-800N User’s Manual Future Comm Co., Ltd. #1105-302, BucheonTechnopark III, 36-1, Samjeon-Dong, Ojeong-Gu Bucheon-Si, Kyungki-Do, Korea Tel: +82-32-624-1290 Fax:+82-32-624-1296 1. Product Overview 1.1 This device improves the reception rate of the wireless receiver. 1.2 CCTV installation effect can be made as it has the same appearance as the CCTV. 1.3 The LED's blinking during its operation makes the device look more like the CCTV. 1.4 Several units can be installed at the same time due to the response time adjusting function. 2. Product Components Repeater(including nails for fixing it) Adaptor 3. How to use the product 3.1 Supply the power by connecting the adaptor to the DC plug on the back side of the Repeater 3.2 Once the power is supplied to the product, the LED on the front side turns on red. 3.3 When the calling bell is pressed, the color of the LED changes to green while emitting radio waves. 4. Product Specification Power DC 12V / 1A Reception Sensitivity -105dBm Used Frequency 433.92MHz ±1MHz Transmission time Within 5 sec after receiving. Product Size 117X117X77 mm 5 How to opertate. 1. The signal of 24 bits is inputted from transmitter(Call bell). 2. The receiving part is inputted with 433.93MHz and the signal is amplified with transistor. 3. The amplified signal becomes FM IF DETECTOR IC(TA31136FG). 4. For the IF IC in order to do BUILT-IN 2 ND MIX, the receiver receive FREQUENCY(F2) of output.. 5. The 2 ND frequency makes difference of (F1)-(F2), 10.7MHz. To make 10.7MHz, The 10.7MHz is sending by using filter of 10.7MHz. 6. The IC which makes signal of IF is weak. So, the signal is amplifying by IF AMP.. 7. The amplified IF signal is inverting for conversion of A/D. 8. This time, The 24 bits to transmitter determine pulse width. 9. IF IC passes 는 AUDIO Data,300Hz~3KHz.. 10. The passed signal inputs to MCU(PIC16F54). The MCU is storing codes of transmitter by firmware. The transmitter consists of 1,000,000 codes., the inputted codes compare with software. If the codes agree each other, the correspondent data is sent to transmitter.. 11. The received signal is agreed and transmitted. And then, transmission time is within 0.5sec from receiption. After transmission. Automatically, the transmission becomes off. 12. The receiver of repeater receives data from various transmitter. If the data are not agree with the ones of MCU, the transmission does not happen. 13. The agreed data are received within 5 sec. But the data is not transmitted.. 14. If the other signal of 24 bits continuously is inputted, the last signal only is transmitted and the signal is off after 5 sec. 15. The transmitted signal is oscillating 433.92MHz by original oscillation signal. The signal is resonating and emitting through antenna. 6. How to attach the Repeater 6.1 Drive each enclosed nail into a ceiling or a wall keeping each other 67mm away. 6.2 Put the product on the nails while adjusting the holes on its back side to them and turn it counter-clockwise. 1. Since this is a precision RF device, be cautious about any external shock when handling it. 2. Only technicians authorized by the company can remodel the product. 3. When cleaning the product, use only a dry cloth. Do not use water or organic solvent. 4. Please avoid using the product around any device making a strong noise. ※ Warranty Service ※ 1. Free warranty service will be provided for 12 months after the purchase of the product. 2. Only product malfunctions during the normal operation caused by the product's original defects can be covered. ※ Pay Service ※ 1. Pay service will be provided after the product warranty period. 2. In case product malfunctions are caused by the user intentionally or by mistake. Contact point for A/S : Store of purchase

#1105-302, BucheonTechnopark III, 36-1 Samjeon-Dong Ojeong-Gu TEL No : +82-32-624-1290 FAX No : +82-32-624-1296 February 10, 2010 Federal Communications Commision Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Future Comm Co., Ltd. FCC ID : X6AHCM-800N Request for Confidentiality Gentlemen : In accordance with 0.457 and 0.459 of CFR 47, Future Comm Co., Ltd. Here by requests confidentiality of the Schematics, Block diagram, Part list and Operational description of the attached test report. These documents contain detailed system and equipment description and related information about the product which Future Comm Co., Ltd. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Future Comm Co., Ltd. Considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Janny, Yoo / President

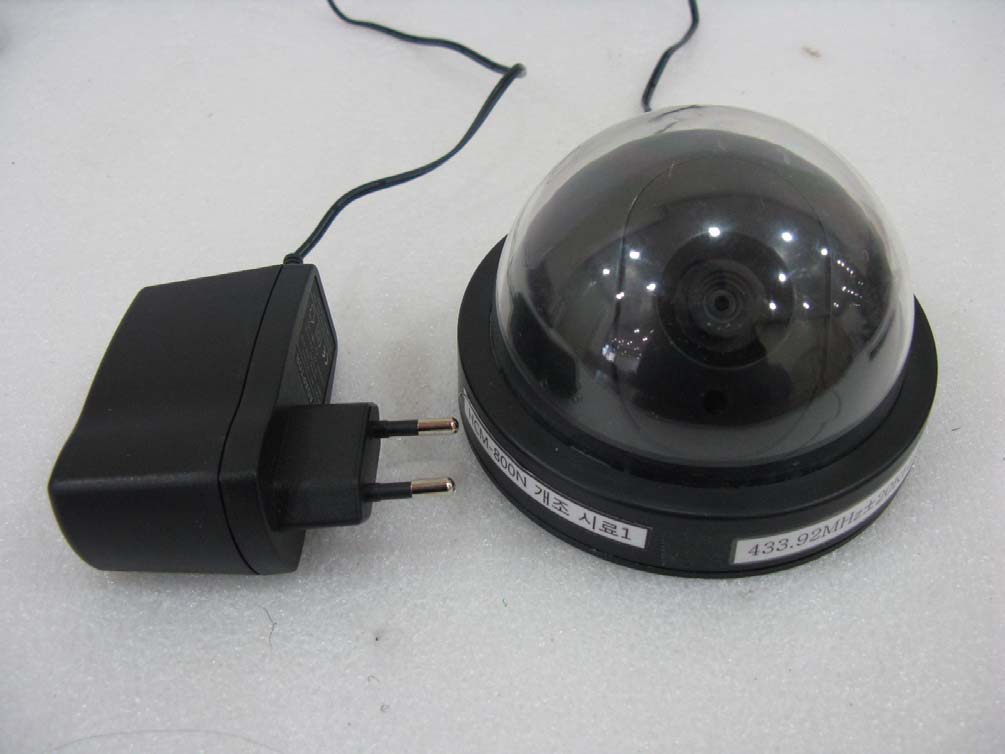

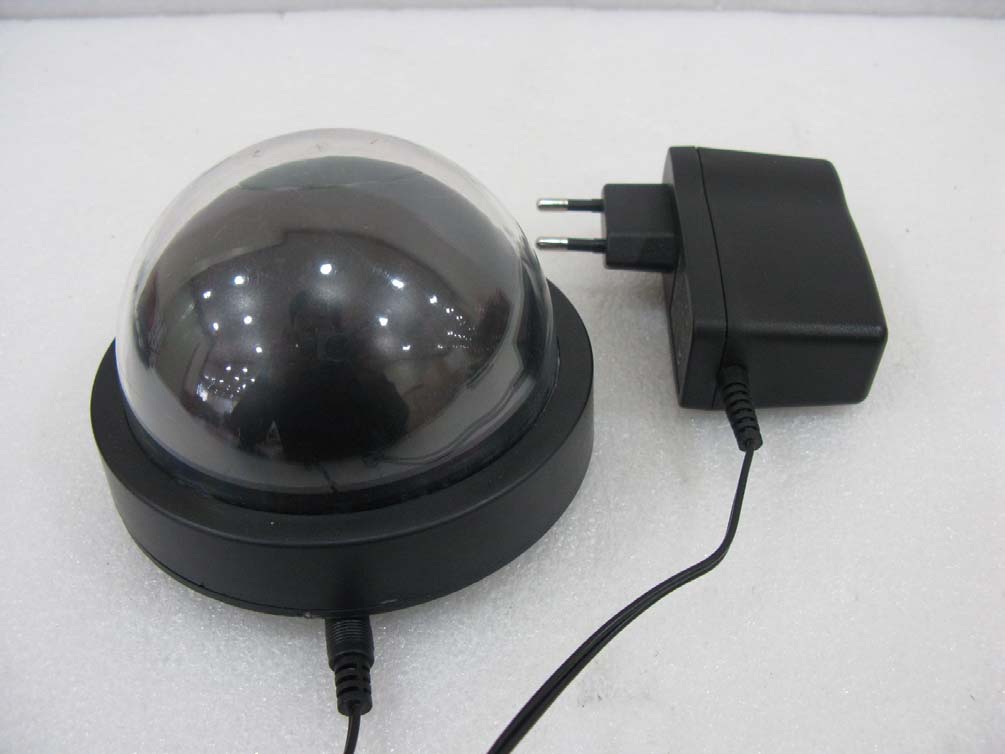

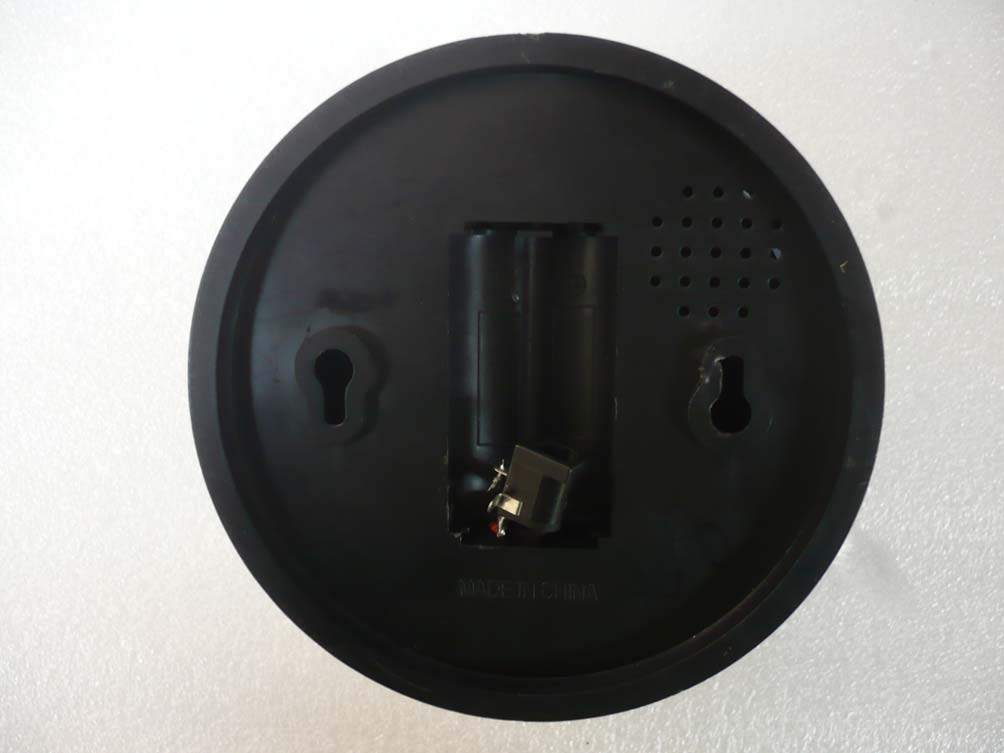

Furure Comm Co., Ltd. REPEATER HCM-800N Report No: BWS-10-RF-0001 Page Number : Page 1 to 6 BWS TECH Inc. Appendix 3. External Photographs Issue Date : February 12, 2010 Appendix 3. External Photographs of EUT 1. Front Furure Comm Co., Ltd. REPEATER HCM-800N Report No: BWS-10-RF-0001 Page Number : Page 2 to 6 BWS TECH Inc. Appendix 3. External Photographs Issue Date : February 12, 2010 Appendix 2. External Photographs of EUT 2. Back Furure Comm Co., Ltd. REPEATER HCM-800N Report No: BWS-10-RF-0001 Page Number : Page 3 to 6 BWS TECH Inc. Appendix 3. External Photographs Issue Date : February 12, 2010 Appendix 2. External Photographs of EUT 3. Left Side Furure Comm Co., Ltd. REPEATER HCM-800N Report No: BWS-10-RF-0001 Page Number : Page 4 to 6 BWS TECH Inc. Appendix 3. External Photographs Issue Date : February 12, 2010 Appendix 2. External Photographs of EUT 4. Right Side Furure Comm Co., Ltd. REPEATER HCM-800N Report No: BWS-10-RF-0001 Page Number : Page 5 to 6 BWS TECH Inc. Appendix 3. External Photographs Issue Date : February 12, 2010 Appendix 2. External Photographs of EUT 5. Top Furure Comm Co., Ltd. REPEATER HCM-800N Report No: BWS-10-RF-0001 Page Number : Page 6 to 6 BWS TECH Inc. Appendix 3. External Photographs Issue Date : February 12, 2010 Appendix 2. External Photographs of EUT 6. Bottom

Furure Comm Co., Ltd. REPEATER HCM-800N FCC ID Label and Location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This devices may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Model No : HCM-800N FCC ID : X6AHCM-800N Future Comm Co., Ltd. Made in Korea FCC Label

Furure Comm Co., Ltd. REPEATER HCM-800N Report No: BWS-10-RF-0001 Page Number : Page 1 to 3 BWS TECH Inc. Appendix 4. Internal Photographs Issue Date : Febraury 10, 2010 Appendix 4. Internal Photographs of EUT 1. Internal Furure Comm Co., Ltd. REPEATER HCM-800N Report No: BWS-10-RF-0001 Page Number : Page 2 to 3 BWS TECH Inc. Appendix 4. Internal Photographs Issue Date : Febraury 10, 2010 Appendix 3. Internal Photographs of EUT 2. Top of Main Board Furure Comm Co., Ltd. REPEATER HCM-800N Report No: BWS-10-RF-0001 Page Number : Page 3 to 3 BWS TECH Inc. Appendix 4. Internal Photographs Issue Date : Febraury 10, 2010 Appendix 3. Internal Photographs of EUT 3. Bottom of Main Board

FCC Test Report Furure Comm Co., Ltd. REPEATER HCM-800N This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. BWS TECH Inc. www.bws.co.kr #611-1 Maesan-Ri, Mohyeon-Myeon, Yongin-Si, Gyeonggi-Do, 449-853 Korea TEL: +82 31 333 5997 FAX: +82 31 333 0017 February 10, 2008 (Date) Reviewed by TaeHyun, Nam Febrauary 10, 2010 (Date) Reviewed by HyunSup, Jin FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE PRODUCT : REPEATER MODEL/TYPE NO : HCM-800N FCC ID : X6AHCM-800N TRADE NAME : APPLICANT : Future Comm Co., Ltd. #1105-302 BucheonTechnopark III, 36-1 Samjeon-Dong, Ojeong-Gu, Bucheon-Si, Kyungki-Do, Korea RULE PART(S) : FCC Part 15C FCC PROCEDURE : Certification DATES OF TEST : January 4 to February 9, 2010 DATES OF ISSUE : February 10, 2010 TEST REPORT No. : BWS-10-RF-0001 TEST LAB. : BWS TECH Inc. (Registration No. : 553281) This REPEATER HCM-800N has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 and ANSI/TIA-603-C-2004 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part 15. I attest to the accuracy of data. All measurement herein was performed by me or were made under my supervision. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system, which was tested only. Other similar equipment may not necessarily produce the same results due to production tolerance and measurement uncertainties. FCC Test Report Future Comm Co., Ltd. REPEATER Model:HCM-800N Report No: BWS-10-RF-0001 Page Number : 2 of 17 BWS TECH Inc. FCC Test Report Data of Issue : February 10, 2010 TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Summary of Test Results 6~7 5. Test Data 8 5.1 Power Line Conducted Emission 7 5.2 Field strength of the fundamental & spurious emission 11 5.3 Transmission time 13 5.4 Bandwidth of operation frequency 14 6. Test Equipment List 16 FCC Test Report Future Comm Co., Ltd. REPEATER Model:HCM-800N Report No: BWS-10-RF-0001 Page Number : 3 of 17 BWS TECH Inc. FCC Test Report Data of Issue : February 10, 2010 FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) 1. General Information Applicant Manufacturer Company Name Future Comm Co., Ltd. Company Address #1105-302 BucheonTechnopark III, 36-1 Samjeon-Dong, Ojeong-Gu, Bucheon-Si, Kyungki-Do, Korea Phone/Fax Tel No. : +82.32.624.1290 Fax No. : +82.32.624.1296 Company Name Future Comm Co., Ltd. Company Address #1105-302 BucheonTechnopark III, 36-1 Samjeon-Dong, Ojeong-Gu, Bucheon-Si, Kyungki-Do, Korea Phone/Fax Phone : 82-32-624-1290 Fax :82-32-624-1296 z EUT Type REPEATER z Model Number HCM-800N z FCC Identifier X6AHCM-800N z S/N Prototype z FCC Rule Part(s) FCC Part 15C z Frequency 433.92 MHz z Modulation Method ASK z Emission Designator N/A z Channel 1 z Dates of Tests January 4 to February 9, 2010 z Place of Tests BWS TECH Inc.(FCC Registration Number : 553281) #611-1 Maesan-Ri, Mohyeon-Myeon, Yongin-Si, Gyeonggi-Do, 449-853 Korea TEL: +82 31 333 5997 FAX: +82 31 333 0017 z Test Report No. BWS-10-RF-0001 FCC Test Report Future Comm Co., Ltd. REPEATER Model:HCM-800N Report No: BWS-10-RF-0001 Page Number : 4 of 17 BWS TECH Inc. FCC Test Report Data of Issue : February 10, 2010 2. Description of Test Facility The measurement for radiated and conducted emission test were conducted at the open area test site of BWS TECH Inc. facility located at #611-1 Maesan-Ri, Mohyeon-Myeon, Yongin-Si, Gyeonggi-Do, 449-853 Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10-meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2003) was used in determining radiated and conducted emissions from the Future Comm Co., Ltd. REPEATER Model : HCM-800N. FCC Test Report Future Comm Co., Ltd. REPEATER Model:HCM-800N Report No: BWS-10-RF-0001 Page Number : 5 of 17 BWS TECH Inc. FCC Test Report Data of Issue : February 10, 2010 3. Product Information 3.1 General Specification Kind of Product Repeater Model Name HCM-800N Serial Number Proto Type Power Supply AC 100~230V DC 12V / 1A Frequency Range 433.92 MHz Modulation Technique ASK Number of Channels 1 Operating Conditions 433.92 MHz Antenna Type Internal type (Hellical Antenna) Product Size 117X117X77 mm Reception Sensitivity -105dBm FCC Test Report Future Comm Co., Ltd. REPEATER Model:HCM-800N Report No: BWS-10-RF-0001 Page Number : 6 of 17 BWS TECH Inc. FCC Test Report Data of Issue : February 10, 2010 4. Summery of The Test Result No. Test case FCC reference Verdict 1 Power Line Conducted Emission 15.207 Pass 2 Field strength of the fundamental & spurious emissions 15.209 15.231(b) Pass 3 Transmission time 15.231(a) Pass 4 Bandwidth of operation frequency 15.231(c) Pass 5. TEST DATA FCC Test Report Future Comm Co., Ltd. REPEATER Model:HCM-800N Report No: BWS-10-RF-0001 Page Number : 7 of 17 BWS TECH Inc. FCC Test Report Data of Issue : February 10, 2010 5.1 Power Line Conducted Emission 5.1.1 Specification Con…
