X6CGM-633VHF WIRELESS MICROPHONE

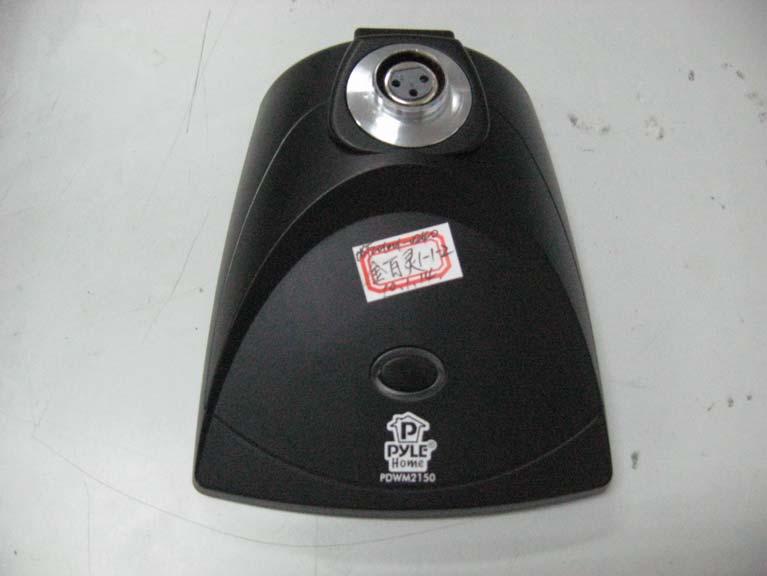

External Photographs of FCCID: X6CGM-633

FCC ID Label Sample FCC ID: X6CGM-633 This device complies with Part 74 of the FCC Rules.

FCCID: X6CGM-633 Label Location

Internal Photographs FCCID: X6CGM-633

Wireless microphone circuit description of GM-633 AUDIO CIRCUIT The audio signal is injected via the microphone sensor into the audio circuit composed of the op amp IC 4558, & compandor IC SP571. The signal is compressed via the compandor circuit at a 2:1 ratio and decompressed by SP571. The level of the output signal is controlled by the pin 9 of SP571. MODULATOR CIRCUIT The modulator circuit is a direct FM type built around the local oscillator controlled by Crystal TXT, Q1 (Type 9018), variable capacitance diode VD1 （2638）, IFT（T64） 1~3, and Cap. The modulated output from the oscillator is sent to the RF pre-amp. RF PRE-AMPLIFIER & FINAL AMPLIFIER 2 transistor amplifier stages, using Q2 (9018) transistors, culminating with a normal transmitter output Q3(3EM_KSP10) of <1mW. The output filter comprised of 4 Caps (3p, 5p, 6p, 10p), 2 L (4.5T, 0.68μH) suppresses the output harmonics and matches the output to the integrate antenna, with output detector consist by Q4 and LED. POWER SUPPLY. the input voltage is supplied by a 9V battery, and with a power indication LED and 2 conductor as filter.

恩 平 金 百 灵 音 响 设 备 有 限 公 司 ENPING JINBAILING AUDIO EQUIPMENT CO.，LTD No.9, B district of Civil & Foreign Capital Industrial Zone, Enping City, Guangdong, China. Telephone: +86-750-7817666 Fax No.: +86-750-7816398 FCC ID: X6CGM-633 Operation Description The EUT is powered by a 9V battery and have one channel between 174-216MHz FM transmitter， it’s Occupied Bandwidth is 100kHz，it cannot be tuned by the end user。

ItemNameTypepcs 1 0603封装Resistor 473 2 0603封装Resistor 1001 3 0603封装Resistor 5601 4 0603封装Resistor 1K3 5 0603封装Resistor 1K/1K81 6 0603封装Resistor 2K22 7 0603封装Resistor 3K31 8 0603封装Resistor 4K72 9 0603封装Resistor 5K64 10 0603封装Resistor 10K9 11 0603封装Resistor 15K3 12 0603封装Resistor 22K4 13 0603封装Resistor 47K2 14 0603封装Resistor 56K1 15 0603封装Resistor 68K1 16 0603封装Resistor 220K2 17 0603封装Ceramic Capacitor 1P1 18 0603封装Ceramic Capacitor 2P1 19 0603封装Ceramic Capacitor 3P1 20 0603封装Ceramic Capacitor 4P1 21 0603封装Ceramic Capacitor 5P1 22 0603封装Ceramic Capacitor 6P1 23 0603封装Ceramic Capacitor 7P1 24 0603封装Ceramic Capacitor 8P1 25 0603封装Ceramic Capacitor 9P1 26 0603封装Ceramic Capacitor 10P1 27 0603封装Ceramic Capacitor 11P1 28 0603封装Ceramic Capacitor 13P1 29 0603封装Ceramic Capacitor 14P1 30 0603封装Ceramic Capacitor 15P1 31 0603封装Ceramic Capacitor 18P1 32 0603封装Ceramic Capacitor 20P1 33 0603封装Ceramic Capacitor 24P1 34 0603封装Ceramic Capacitor 27P1 35 0603封装Ceramic Capacitor 33P1 36 0603封装Ceramic Capacitor 36P1 37 0603封装Ceramic Capacitor 39P1 38 0603封装Ceramic Capacitor 47P1 39 0603封装Ceramic Capacitor 51P1 40 0603封装Ceramic Capacitor 62P3 41 0603封装Ceramic Capacitor 68P3 42 0603封装Ceramic Capacitor 82P3 43 0603封装Ceramic Capacitor 91P3 44 0603封装Ceramic Capacitor 330P1 PDWM-2150T TX BOM 第 1 页，共 3 页 45 0603封装Ceramic Capacitor 390P1 46 0603封装Ceramic Capacitor 1021 47 0603封装Ceramic Capacitor 4721 48 0603封装Ceramic Capacitor 1036 49 Ele Capacitor4*5 1U/25V2 50 Ele Capacitor4*5 2U2/25V1 51 Ele Capacitor4*5 4U7/25V8 52 Ele Capacitor4*5 10U/25V1 53 Ele Capacitor5*5 47U/16V3 54 diode（3216） 41482 55 transistor(SOT-23) T332 56 transistor(SOT-23) KSP 101 57 transistor(SOT-23) J6(9014)1 58 transistor(SOT-23) M6(9015)1 59 IC UTC45581 60 IC UTC5711 61 62 VC diode 26381 63 Crystal 14.98MHz1 64 conductor 0.68uH2 65 conductor 3.3uH3 66 IFT 391 67 IFT 641 68 IFT 0299/96051 69 coil 3.5T2 70 coil 6.5T1 71 switch Y.8.5B61 72 LED red-green 2 73 PCB 1 第 2 页，共 3 页 第 3 页，共 3 页

FCCID: X6C GM-633 Report Number: HST201001-0240-FCC Page 1 of 21 Test Report Applicant: ENPING JINBAILING AUDIO EQUIPMENT CO., LTD. Address of Applicant: No.9,B district of Civil & Foreign Capital Industrial Zone, Enping City, Guangdong, China. Equipment Under Test (EUT): EUT Name: Table Meeting Microphone Model No.: GM-633 GM-386，GM-312，GM-326，GM-348，GM-383，GM-810， GM-316，GM-328，GM-358，GM-385，GM-820，GM-317，GM-336， GM-382，SM-377M，GM-318， CM-337，CM-377，GM-388，SM-377MC， GM-322，GM-338，GM-378，GM-327，SM-377C，WMG-331，WMG-337， WMG-336，WMG-386，SM-2288，SN-606，SG-101，SG-102，SM-386M， SM-386MC，SM-386C，SM-318M，SM-318MC，SM-318C，SG-331， SG-332，J-318，J-328，J-338，J-348， GM-621，GM-631，GM-655，GM-333，JB-138 ，JB-238，WMG-339， WMG-338，WMG-332， GM-811，GM-675，GM-676，GM-677，GM-678，GM-679，SG-661， SG-662，SG-551，SG-552，PDWM8300，PDWM8400，PDWM2100， PDWM2550，PDWM2150 Trade Mark: N A Serial No.: Not supplied by client Standards: FCC PART 74 SUBPART H: 2008 Date of Receipt: Feb. 1, 2010 Date of Test: Feb. 2 to 3, 2010 Date of Issue: Feb. 28, 2010 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. Authorized Signature: Henly Xie / Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Report Number: HST201001-0240-FCC Page 2 of 21 All test results in this report can be traceable to National or International Standards. The test report prepare by: Guangzhou Huesent Testing Service Co.,Ltd. Self-ordained 68# courtyard, No.91, Dongguanzhuang Road,Guangzhou,China. Tel: 86-20-28263298 Fax: 86-20-28263237 http://www.hst.org.cn E-mail:[email protected] Report Number: HST201001-0240-FCC Page 3 of 21 1 Test Summary Test Test RequirementStandard Paragraph Result Carrier Radiated Power FCC Part 2.1046 74.861 e) 1) 54–72, 76–88 and 174–216 MHz bands, 50 mW 470–608 and 614–806 MHz bands, 250 mW PASS Modulation Deviation FCC Part 2.1047 74.861 e) 3) Within 75kHz PASS Frequency Stability FCC Part 2.1055 74.861 e) 4) <0.005% 50 ppm PASS Operating Bandwidth FCC Part 2.1049 c)74.861 e) 5) Within 200kHz PASS Unwanted Radiation FCC Part 2.1049 c)74.861 e) 6) within the mask PASS Radiated Spurious Emission FCC Part 2.1053 74.861 d) 3) < 43+10lgP(W) dB PASS Remark: ♣The EUT has one channel, which is located in the range 174.0MHz to 216.0MHz . Only test result of one samples in 174.2 MHz, 195.1 MHz and 215.8 MHz were recorded in this report. The EUT frequency can be adjustable. Report Number: HST201001-0240-FCC Page 4 of 21 2 General Information 2.1 Client Information Applicant: ENPING JINBAILING AUDIO EQUIPMENT CO., LTD. Address of Applicant: No.9, B district of Civil & Foreign Capital Industrial Zone, Enping City, Guangdong, China. 2.2 General Description of E.U.T. EUT Name: Table Meeting Microphone Item No.: Refer to cover page Serial No.: Not supplied by client 2.3 Details of E.U.T. Power Supply: 9Vdc, 1 x 6F22 size Battery Main Function: Wireless microphone system with an associated receiver for transmitting voice. The final amplifier Collector Voltage and Collector Current are 0.3V & 3.2mA respectively. Necessary Bandwidth: 2M+2DK= 2 x 5kHz + 2 x 20kHz x 1.0 = 50 kHz 2.4 Description of Support Units Connect the EUT to mains power, and then test the EUT with signal generator. 2.5 Standards Applicable for Testing The standard used was FCC PART 74H, 2008 The EUT belongs to licensed low power auxiliary devices. Report Number: HST201001-0240-FCC Page 5 of 21 2.6 Test Location GuangZhou Huesent Testing Service Co., Ltd. No.91, Dongguanzhuang Road, Guangzhou, China. Tel: 86-20-87221905, Fax: 86-20-87223892 CNAS- Accreditation No.: L2885. CMA- Authorisation Certificate No.: 2008191614Z ERP & Spurious Emission tests were subcontracted to the laboratory following- CEPREI (headquarters) lab. No.110, Dongguanzhuang Road, Tianhe District, Guangzhou city, Guangdong Province, P.R. China Tel: 86-20-87237178 Fax: 86-20-87236171 Email: [email protected] FCC- Registration No: 258518 on Mar 25, 2008 2.7 Deviation from Standards None. 2.8 Abnormalities from Standard Conditions None. Report Number: HST201001-0240-FCC Page 6 of 21 3 Equipments Used during Test No. Test item.Name of Equipment’s Model/Type Last Calibrated Date 1 CE EMI receiver R&S ESCS 30 2009-6-8 2 CE LISN R&S ESH2-Z5 2009-6-8 3 CE Shielded room Lindgren 8*5*3 2008-6-8 4 RE EMI RECEIVER R&S ESU 2009-6-8 5 RE Anechoic chamber Lindgren FACT-4 2008-6-8 6 RE Antenna ETS-Lindgren 3142B2009-6-8 7 RF Steady Temperature Chamber GuangGong GD2502009-6-16 8 RF Audio Signal GeneratorHP 8901B 2010-1-21 9 RF Modulation Analyzer HP 8903B 2009-10-22 Note: / Report Number: HST201001-0240-FCC Page 7 of 21 4 Test Results 4.1 E.U.T. Operation Condition Operating Environment: Temperature: 20.0 ° C~25 ° C Humidity: 50 ~70% RH Atmospheric Pressure: 980~1012 mbar EUT Operation: Test the EUT in transmitting mode. Report Number: HST201001-0240-FCC Page 8 of 21 4.2 Test Procedure & Measurement Data 4.2.1 Carrier Radiated Power & Radiated Spurious Emissions Test Requirement: FCC CFR 47 Part 74.861 e) 1) & d) 3) Test Method: EIA/TIA 603-C:2004 section 2.2, FCC CFR 47 Part 2.1047 & 1053 Test Date: Feb. 4, 2010 Measurement Distance: 3m (Semi-Anechoic Chamber) Test Requirement: (d) For low power auxiliary stations operating in the bands other than those allocated for TV broadcasting, the following technical requirements are imposed. (3) T…

Text truncated - open the document above for the full version.

FCC ID: X6CGM-633 SETUP
