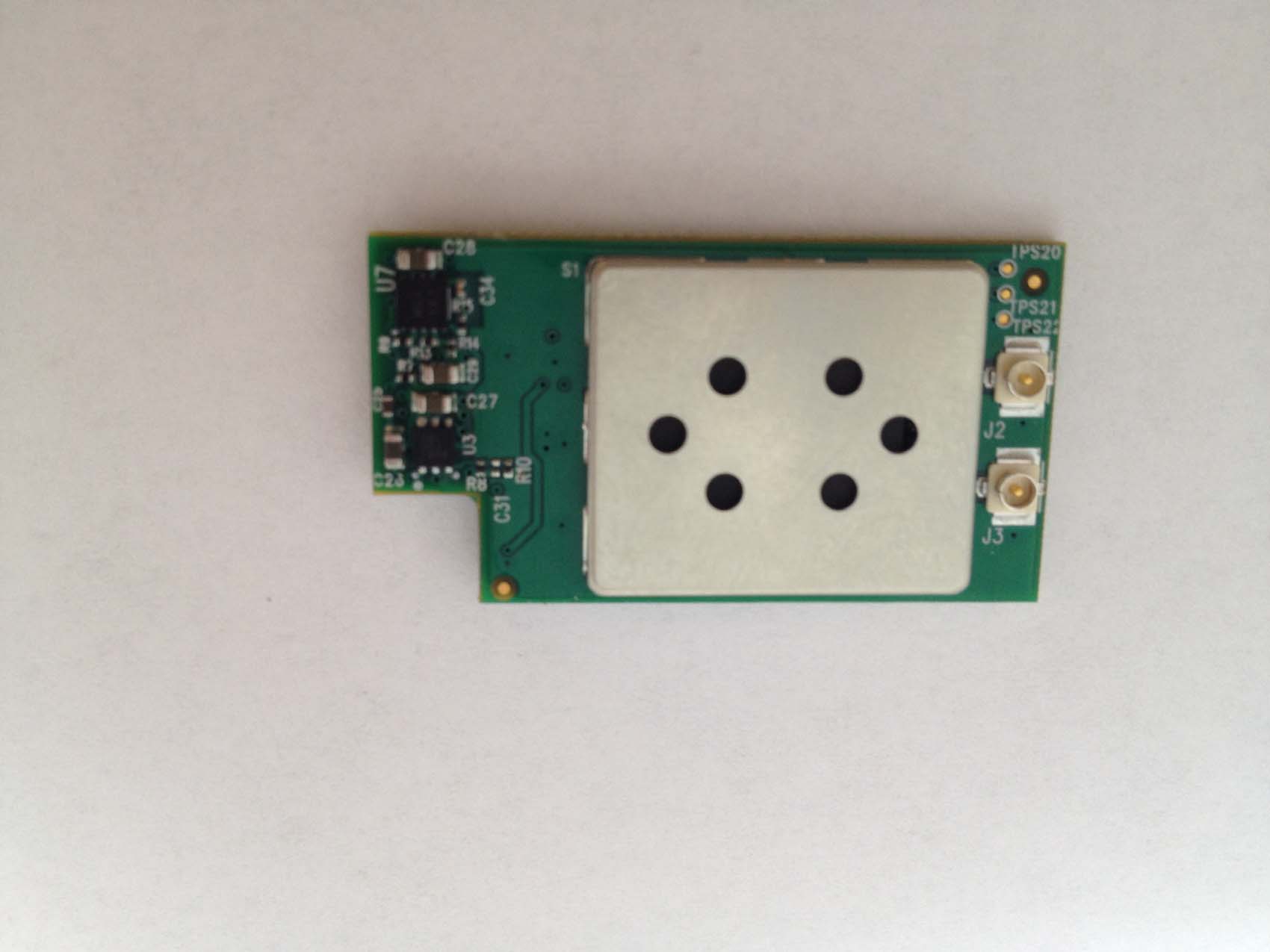

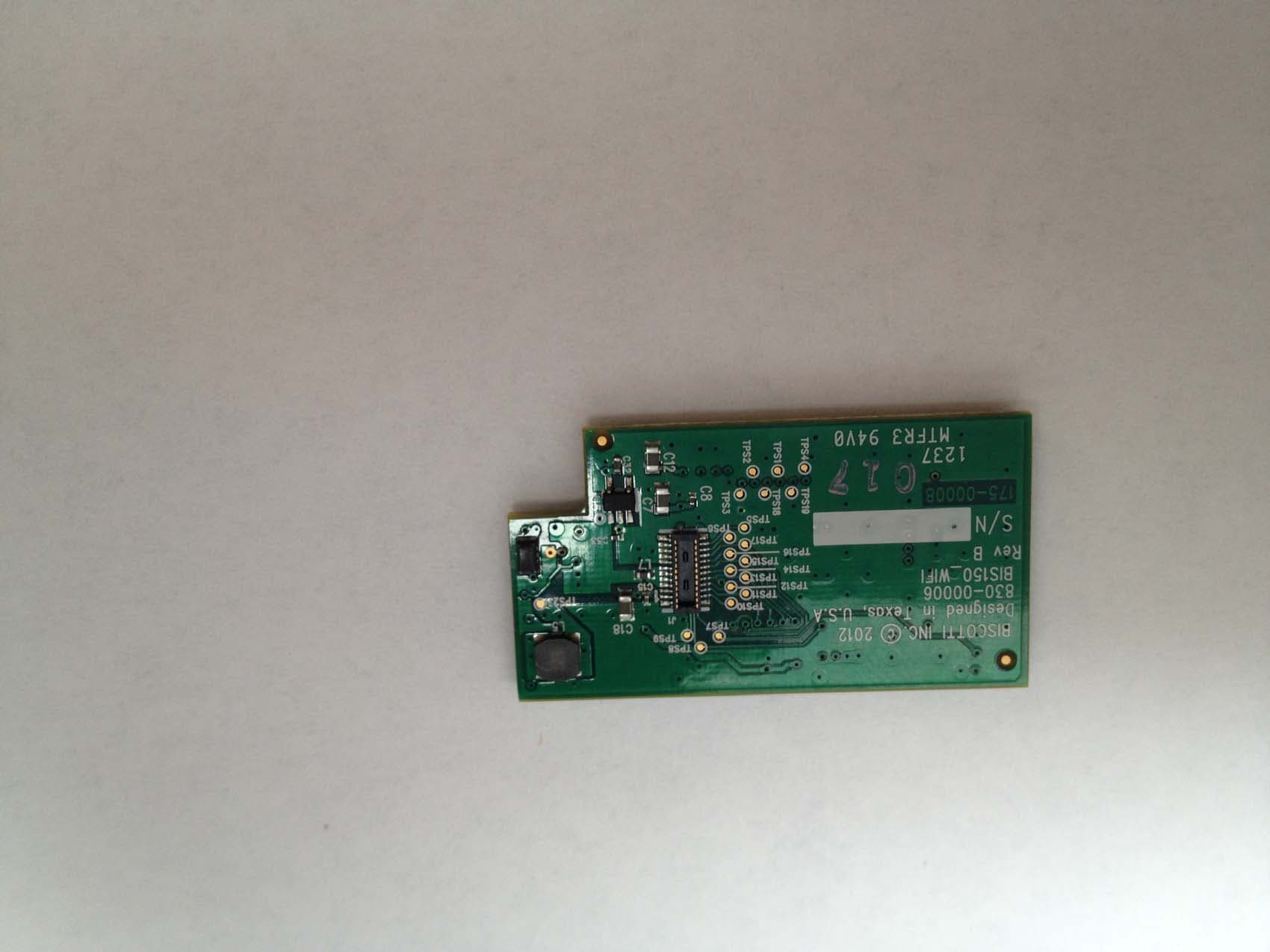

X6JW0001802.11abgn 2x2 radio module

Revision B – 13March13 Biscotti Inc. | 5900 S. Lake Forest Drive | Suite 290 | McKinney, TX 75070 | T +1.214.329.1345 | biscotti.com Page 1 of 2 W0001 Wi‐Fi Module PCBA Integrator Instructions Scope of Document: Provide instructions to Integrators that are licensed to use the Biscotti W0001 Wi‐Fi Module PCBA to ensure agency compliance. Labeling: Integrator must comply with the following labeling instructions. Integrated Product Labeling: Integrator must add the following information verbatim to the exterior of the unit into which the W0001 Wi‐Fi module PCBA has been integrated. Integration Limitations : Integrator must the Taoglas Antenna Solutions Inc. FXP831.07.0100C antennas (or same type of antenna with equal or lesser gain) when integrating the W0001 Wi‐Fi Module PCBA. The antennas must be internal to the case or chassis of the integrated product and must be secured to prevent user from accessing the antenna ports or from changing antennas. The W0001 is approved as a mobile device, and therefore, once installed in to a host device, the antennas must maintain a 20cm separate distance to an operator. In addition, the W0001 must not be installed into a host device with another transmitter, unless the antennas for each transmitter are separated by at least 20cm. Integrator Product Manual Information : The following information must be incorporated verbatim into the end‐user product manual provided by the integrator. “Regulatory Information • This device complies with FCC Part 15 and Industry Canada license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. • Ce dispositif est conforme à la norme FCC Partie 15 et Industrie Canada exempts de licence standard RSS (s). L’opération est soumise aux deux conditions suivantes: (1) cetappareil ne peut pas provoquer d’interférences et (2) cet appareil doit accepter toute interférence, y Revision B – 13March13 Biscotti Inc. | 5900 S. Lake Forest Drive | Suite 290 | McKinney, TX 75070 | T +1.214.329.1345 | biscotti.com Page 2 of 2 compris les interférences qui peuvent causer un mauvais fonctionnement de l’appareil. Warning! Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate this equipment. • Attention! Les changements ou modifications non expressément approuvés par le fabricantpourrait annuler l’autorisation de l’utilisateur à utiliser cet équipement. • This product is for mobile use only. Exposure to Radio Frequency Energy: The radiated output power of the wireless device is below the FCC and Industry Canada radio frequency exposure limits. However, this device should be operated with a minimum distance of at least 20 cm between the antenna and a person’s body and the antennas used with this transmitter must not be collocated or operated in conjunction with any other antenna or transmitter subject to the conditions of the FCC Grant. • Ce produit est destiné à une utilisation mobile seulement. Exposition à l’énergie radiofréquence: La puissance de sortie rayonnée de l’appareil sans fil est en dessous de la FCC et d’Industrie Canada limites d’exposition aux fréquences radioélectriques. Comment jamais, cet appareil doit être utilisé à une distance minimum d’au moins 20 cm entre l’antenne et le corps d’une personne et les antennes utilisées avec ce transmetteur ne doit pas être installé à proximité ou utilisé en conjonction avec une autre antenne ou l’objet émetteur dans les conditions de la subvention de la FCC. • The device for operation in the band 5150‐5250 MHz is only for indoor use to reduce the potential for harmful interference to co‐channel mobile satellite systems • Tout appareil destiné à la bande 5150‐5250 MHz devra être exclusivement utilize en intérieur afin de réduire les risques de perturbations électromagnétiques gênantes sur les systèmes de satellite mobile dans un même canal. • Users should also be advised that high‐power radars are allocated as primary users (i.e., priority users) of the bands 5250‐5350 MHz and 5650‐ 5850 MHz and that these radars could cause interference and/or damage to LE‐LAN devices. • De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.‐ à ‐d., qu’ils ont la priorité) pour les bandes 5250‐5350 MHz et 5650‐5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN‐EL.

Page 1 of 1 National Technical Systems – Silicon Valley TCB 41039 Boyce Road Fremont, CA. 94538 To whom it may concern: The enclosed documents constitute a formal submittal and application for Equipment Authorization for an IEEE 802.11abgn module pursuant to the following rules: Subpart C of Part 15 of FCC Rules (CFR 47), Intentional Radiators Subpart E of Part 15 of FCC Rules (CFR 47), UNII Devices RSS-Gen Issue 3, December 2010, “General Requirements and Information for the Certification of Radiocommunication Equipment” RSS-210, Issue 8, December 2010, “Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment” The applicant will be using the module in their own host products. They have provided a User’s manual and regulatory insert that will be provided with the host devices. National Technical Systems – Silicon Valley, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is included with the application. If there are any questions or if further information is needed, please contact National Technical Systems – Silicon Valley for assistance. Sincerely, Mark E. Hill Staff Engineer MEH/dmg

Biscotti Inc. - Agency Label – W0001 Wi-Fi Module 12Feb2013

EMC Test Data Client: Contact: Standard: Test Specific Details General Test Configuration Yes Biscotti, Inc.Job Number: J89805 Model: W0001 - Module 802.11abgn 2x2 T-Log Number: T89809 Account Manager: Deepa Shetty Nadeem Ahmed FCC 15.247, 15.EClass: N/A Maximum Permissible Exposure Objective: The objective of this test session is to perform final qualification testing of the EUT with respect to the specification listed above. Date of Test: 1/18/2013 Test Engineer: Mark Hill Calculation uses the free space transmission formula: S = (PG)/(4 πd 2 ) Where: S is power density (W/m 2 ), P is output power (W), G is antenna gain relative to isotropic, d is separation distance from the transmitting antenna (m). Summary of Results Device complies with Power Density requirements at 20cm separation:20cm separation: Modifications Made During Testing No modifications were made to the EUT during testing Deviations From The Standard No deviations were made from the requirements of the standard. T89809 (FCC Radio).xlsMPE Calc 18-Jan-13Page 1 of 2 EMC Test Data Client: Contact: Standard: Biscotti, Inc.Job Number: J89805 Model: W0001 - Module 802.11abgn 2x2 T-Log Number: T89809 Account Manager: Deepa Shetty Nadeem Ahmed FCC 15.247, 15.EClass: N/A Use: General Antenna: 2.4 GHz: 3dBi 5 GHz: 5.5dBi Usin g worse case channel/mode for each band Cable AntPower Freq.LossGainat AntEIRP MHzdBmmW*dBdBidBmmW 241222.6182.00322.6363.08 523013.421.905.513.477.62 526015.031.605.515.0112.20 550014.226.605.514.294.35 575516.949.005.516.9173.78 Note: Per RSS-102, 2.5.2, the device is exem pt from routine evaluation due to the maximum eirp < 5W. EUTPower Densit y (S)MPE Limit Powe rat 20 cmat 20 cm mW/cm^2mW/cm^2 0.0721.000 0.0191.000 0.0351.000 0.0151.000 0.0221.000 T89809 (FCC Radio).xlsMPE Calc 18-Jan-13Page 2 of 2

File: R90701 Page 1 EMC Test Report Application for Grant of Equipment Authorization Industry Canada RSS-Gen Issue 3 / RSS 210 Issue 8 FCC Part 15, Subpart E Model: W0001 IC CERTIFICATION #: 8844A-W0001 FCC ID: X6JW0001 APPLICANT: Biscotti Inc. 5900 S. Lake Forest Dr., Suite 290 Allen, TX 75013 TEST SITE(S): NTS Silicon Valley 41039 Boyce Road. Fremont, CA. 94538-2435 IC SITE REGISTRATION #: 2845B-3; 2845B-7 REPORT DATE: February 6, 2013 FINAL TEST DATES: November 9, 27, 28, 29 and December 3, 13 and 30, 2012 and January 7, 2013 TOTAL NUMBER OF PAGES: 111 PROGRAM MGR / QUALITY ASSURANCE DELEGATE / TECHNICAL REVIEWER: FINAL REPORT PREPARER: ______________________________ ______________________________ Mark E Hill David Guidotti Staff Engineer Senior Technical Writer NTS Silicon Valley is accredited by the A2LA, certificate number 0214.26, to perform the test(s) listed in this report, except where noted otherwise. This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full NTS Silicon Valley -- EMC Department Test Report Report Date: February 6, 2013 File: R90701 Page 2 REVISION HISTORY Rev# Date Comments Modified By - 02-06-2013 First release NTS Silicon Valley -- EMC Department Test Report Report Date: February 6, 2013 File: R90701 Page 3 TABLE OF CONTENTS REVISION HISTORY ................................................................................................................................................ 2 TABLE OF CONTENTS ............................................................................................................................................ 3 SCOPE .......................................................................................................................................................................... 4 OBJECTIVE ................................................................................................................................................................ 4 STATEMENT OF COMPLIANCE ........................................................................................................................... 5 DEVIATIONS FROM THE STANDARDS .............................................................................................................. 5 TEST RESULTS SUMMARY ................................................................................................................................... 6 UNII / LELAN DEVICES ........................................................................................................................................ 6 GENERAL REQUIREMENTS APPLICABLE TO ALL BANDS .......................................................................... 8 MEASUREMENT UNCERTAINTIES .................................................................................................................... 9 EQUIPMENT UNDER TEST (EUT) DETAILS .................................................................................................... 10 GENERAL .............................................................................................................................................................. 10 ANTENNA SYSTEM ............................................................................................................................................ 10 ENCLOSURE ......................................................................................................................................................... 10 MODIFICATIONS ................................................................................................................................................. 10 SUPPORT EQUIPMENT ....................................................................................................................................... 10 EUT INTERFACE PORTS .................................................................................................................................... 11 EUT OPERATION ................................................................................................................................................. 11 TEST SITE ................................................................................................................................................................. 12 GENERAL INFORMATION ................................................................................................................................. 12 CONDUCTED EMISSIONS CONSIDERATIONS .............................................................................................. 12 RADIATED EMISSIONS CONSIDERATIONS .................................................................................................. 12 MEASUREMENT INSTRUMENTATION ............................................................................................................ 13 RECEIVER SYSTEM ............................................................................................................................................ 13 INSTRUMENT CONTROL COMPUTER ............................................................................................................ 13 LINE IMPEDANCE STABILIZATION NETWORK (LISN) ............................................................................... 13 FILTERS/ATTENUATORS ..…

Text truncated - open the document above for the full version.

File: R90045 Rev. 1 Page 1 of 26 TEST REPORT Covering the DYNAMIC FREQUENCY SELECTION (DFS) REQUIREMENTS OF FCC Part 15 Subpart E (UNII), RSS-210 Annex 9 Biscotti, Inc. Model(s): W0001 COMPANY: Biscotti, Inc. 5900 S. Lake Forest Dr. Suite 290 Allen, TX, 75013 TEST SITE: NTS Silicon Valley 41039 Boyce Road Fremont, CA 94538 REPORT DATE: February 6, 2013 FINAL TEST DATE: November 14, 2012 TEST ENGINEER: Wayne Fisher PROGRAM MGR / QUALITY ASSURANCE DELEGATE / TECHNICAL REVIEWER: FINAL REPORT PREPARER: ______________________________ ______________________________ Mark E. Hill David Guidotti Staff Engineer Senior Technical Writer NTS Silicon Valley is accredited by the A2LA, certificate number 0214.26, to perform the test(s) listed in this report, except where noted otherwise. This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full NTS Silicon Valley -- EMC Department Test Report Report Date: February 6, 2013 REVISION HISTORY Rev # Date Comments Modified By 1.0 02-06-2013 Initial Release - File: R90045 Rev. 1 Page 2 of 26 NTS Silicon Valley -- EMC Department Test Report Report Date: February 6, 2013 TABLE OF CONTENTS REVISION HISTORY ................................................................................................................................................ 2 TABLE OF CONTENTS ............................................................................................................................................ 3 LIST OF TABLES ....................................................................................................................................................... 3 LIST OF FIGURES ..................................................................................................................................................... 3 SCOPE .......................................................................................................................................................................... 5 OBJECTIVE ................................................................................................................................................................ 5 STATEMENT OF COMPLIANCE ........................................................................................................................... 5 DEVIATIONS FROM THE STANDARD ................................................................................................................ 5 TEST RESULTS .......................................................................................................................................................... 6 TEST RESULTS SUMMARY – FCC PART 15, CLIENT DEVICE ....................................................................... 6 MEASUREMENT UNCERTAINTIES .................................................................................................................... 6 EQUIPMENT UNDER TEST (EUT) DETAILS ...................................................................................................... 7 GENERAL ................................................................................................................................................................ 7 ENCLOSURE ........................................................................................................................................................... 7 MODIFICATIONS ................................................................................................................................................... 7 SUPPORT EQUIPMENT ......................................................................................................................................... 8 EUT INTERFACE PORTS ...................................................................................................................................... 8 EUT OPERATION ................................................................................................................................................... 8 RADAR WAVEFORMS ............................................................................................................................................. 9 DFS TEST METHODS ............................................................................................................................................. 10 RADIATED TEST METHOD ............................................................................................................................... 10 DFS MEASUREMENT INSTRUMENTATION .................................................................................................... 12 RADAR GENERATION SYSTEM ....................................................................................................................... 12 CHANNEL MONITORING SYSTEM .................................................................................................................. 13 DFS MEASUREMENT METHODS ....................................................................................................................... 14 DFS – CHANNEL CLOSING TRANSMISSION TIME AND CHANNEL MOVE TIME .................................. 14 DFS – CHANNEL NON-OCCUPANCY AND VERIFICATION OF PASSIVE SCANNING ............................ 14 DFS CHANNEL AVAILABILITY CHECK TIME .....…

Text truncated - open the document above for the full version.
