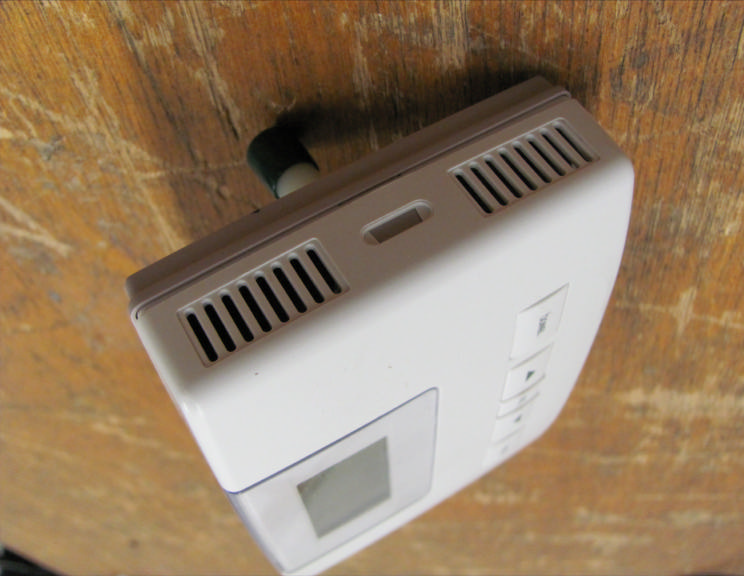

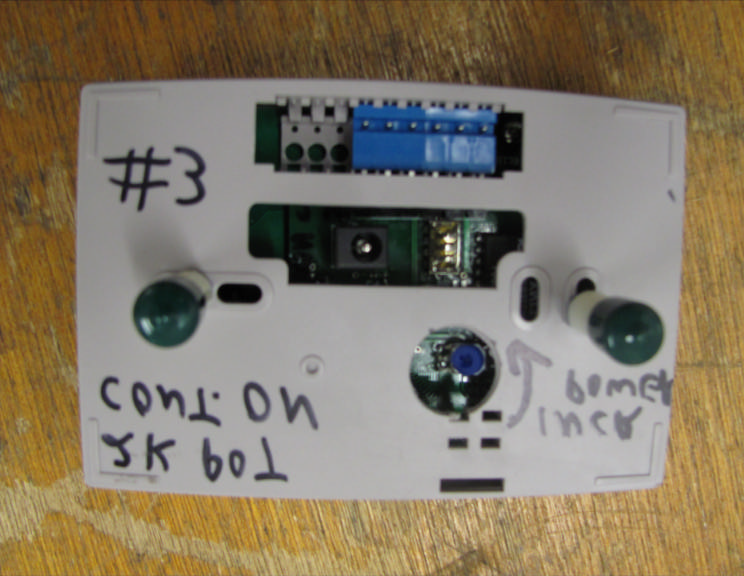

X6Q-RFTH-100Remote Thermostat / Humidity Controller

16 Orka Technology Corporation 6170 W. Lake Mead Blvd. # 111 Las Vegas, NV 89108 Phone (702) 985-5502 Fax (702) 839-9199 www.orkatechnology.com INSTRUCTION TO THE USER (FCC) This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea- sonable protection against harmful interference in a residential installation. This equip- ment generates, uses and can radiate radio frequenc y energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio com- munications. However, there is no guarantee that in terference will not occur in a par- ticular installation. If this equipment does cause harmful interference to radio or televi- sion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following meas- ures: * Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. * Consult the dealer or an experienced radio/TV tec hnician for help. Operation with non-approved equipment is likely to result in interference to radio and TV reception. The user is cautioned that changes an d modifications made to the equip- ment without the approval of manufacturer could voi d the user's authority to operate this equipment. Instruction Manual for the ORKA Remote Thermostat/Humidity Controller Model # RFTH-100 Thank you for your purchase of Orka Technology’s RF TH-100 remote thermostat. We are confident you will find your ev aporative cooler much more effective now that you can control it. S imply place the ther- mostat anywhere in your home, plug it in, plug the cooler into the re- ceiver / power unit, and it will keep the temperatu re where you set it at that location, while monitoring for excess humidity . FOR 115 VOLT PLUG-IN COOLERS ONLY ORKA TECHNOLOGY CORP. “Taking a bite out of energy costs” 2 Model RFTH-100 1 Description 2 Assembly 3 How to use 4 First use settings 5 Cautions 6 Frequently asked questions 7 Troubleshooting 8 Warranty 9 FCC info If you and a neighbor both have Orka Technol- ogy controllers you may have a conflict where one o f them is controlling both units. This will greatly de- pend on the distance between your controller and your neighbor’s. If you find yourself in this situ ation please refer to the CAUTIONS section on page 11. It is a simple matter of changing the address on th e thermostat and the receiver / power module. Page 3 Page 4 Page 6 Page 10 Page 11 Page 12 Page 13 Page 14 Page 16 IMPORTANT NOTICE 15 Additional Limitations : Any implied warranty granted under state law, including warranties of merchantability or fitness for a particular purpose, are limited to one year from the date of purchase. Orka Technology Corp. is not responsible for direct, indirect, incidental or consequential dam- ages. Some states do not allow limitations on how long an implied war- ranty lasts and / or do not allow the exclusion or limitation of incidental damages, so the above limitations and exclusions ma y not apply to you. This warranty gives you specific legal rights , and you may also have other rights which vary from state to state. Orka Technology Corp. 6170 W. Lake Mead Blvd. #111 Las Vegas, NV 89108 Phone: 702-985-5502 Fax: 702-839-9199 www.orkatechnology.com Installation Requirements For most installations it is a simple situation. J ust plug in the receiver, plug in the evaporative cooler, set the controls on the evaporative cooler to low or high fan, pump on and any other things you would do with the cooler without the Orka controller. You will be able to c hange any parameters you set on the cooler if operating the cooler with the cooler manufacture’s criteria. Plug in the remote thermostat/humidity co ntroller and set the pro- gramming as directed. For other types of installation a qualified electri cian will be necessary to insure a quality code approved installation. If yo u have any questions re- garding installing the Orka temperature / humidity controller please contact one of our technical representatives at 702-985-550 2 or on the internet at www.orkatechnology.com. 14 WARRANTY Orka Technology Corp. Limited One Year Warranty and 30 Day Refund Policy 30 Day Refund Policy : During the first 30 days after date of purchase, you may return the Orka Temperature / Humidity cont roller for any reason for a full refund of the purchase price. You must present proof of purchase and return the unit in the original packaging to: Orka Technology Corp., 6170 W. Lake Mead Blvd. #111, Las Vegas, NV 89108. You will be re- funded the purchase price (not including the cost o f return postage) within 90 days upon receipt. 1 Year Limited Warranty : The warranty covers all defects in workman- ship or materials in your Orka Temperature / Humidi ty Controller for a period of one year from the date of purchase. How to get Service: Just return the controller system, properly packa ged and postage prepaid to Orka Technology Corp. at the address above along with proof of purchase which includes date of purch ase. We will repair any faulty workmanship, and either repair or replace an y defective part, at our option. We will do so without any charge to you. We will complete the work in a reasonable time, but, in any case, within 90 days or less. We then will return the repaired or new item shipped prepai d to you. What’s Not Covered : This warranty applies only to the original purch aser at retail and may not be transferred. This warrant y only covers defects aris- ing under normal usage and does not cover any malfu nction, failure or de- fects resulting from misuse, abuse, neglect, altera tion, modification or re- pairs by other than Orka Technology Corp. Orka Tec hnology Corp. makes no warrant…

Text truncated - open the document above for the full version.

1 Scott McCutchan From: Scott McCutchan [[email protected]] Sent: Tuesday, April 20, 2010 5:30 PM To: '[email protected]'; '[email protected]'; '[email protected]' Subject: FCC ID: X6Q-RFTH-100 Mr. Fujimoto: In order for processing of this certification application (FCC ID: X6Q-RFTH-100) to continue, the following issue(s) will have to be addressed: 1) Please indicate compliance with section 15.31(e) of the FCC rules. The item(s) indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Please upload responses and/or exhibits to the electronic filing website. Your correspondence number is FCC ID: X6Q-RFTH-100-1. Best regards, Scott McCutchan Operations Manager Compatible Electronics TCB

Correspondence by Project Project Number: 880108601 Correspondence Number Memo X6Q-RFTH-100-1 The requirements of 15.31(e) have been uploaded.

FCC ID: X6Q-RFTH-100 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.25 in. .75 in.

FCC ID: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

COM 'nAT'BLE ReporL Number: B00309Dl Page 1 of18 r:-a rl1.' '1 FCC Part 15 Subpart B and FCC Section 15.231(e) Test Report ELECTRONICS Remote Thermostat I Humidity Controller m Model: RFTH-JOO FCC PART 15 SUBPARTBand C TESTREPORT for REMOTE THERMOSTAT / HUMIDITY CONTROLLER Model: RFTH-IOO Prepared for ORKA TECHNOLOGY CORPORA nON 6170 WEST LAKE MEAD BOULEVARD, #111 LAS VEGAS, NEVADA 89108 U J,.:.---.,;I-­ Prepared by:_________~c.v KYLE FUJIMOTO $/ICLL ~ Approved by:_________ MICHAEL CHRISTENSEN COMP ATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: MARCH 12,2010 I REPORT APPENDICES I TOTAL BODY A I B I c I D I E PAGES 18 2 I 2 J 2 J 13 I 17 54 This report shall not be reproduced except in full, without the written approval ofCompatible Electronics . • Brea Division Agoura Division Silverado Division Lake Forest Division ' 114 Olinda Drive 2337 Troutdale Drive 19121 EI Toro Road 20621 Pascal Way Brea, CA 92823 Agoura, CA 91301 Silverado, CA 92676 Lake Forest, CA 92630 (714) 579-0500 (818) 597-0600 (949) 589-0700 (949) 587-0400 Report Number: B00309D1 FCC Part 15 Subpart B and FCC Section 15.231(e) Test Report Remote Thermostat / Humidity Controller Model: RFTH-100 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 18 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration – EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 6.3 Facility Environmental Characteristics 12 7. TEST PROCEDURES 13 7.1 RF Emissions 13 7.1.1 Conducted Emissions Test 13 7.1.2 Radiated Emissions (Spurious and Harmonics) Test 14 7.2 Bandwidth of the Fundamental 16 7.3 Periodic Transmission Test 17 8. CONCLUSIONS 18 Report Number: B00309D1 FCC Part 15 Subpart B and FCC Section 15.231(e) Test Report Remote Thermostat / Humidity Controller Model: RFTH-100 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 18 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagram, Charts, and Photos • Test Setup Diagram • Antenna and Amplifier Factors • Radiated Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site – 3 Meters Report Number: B00309D1 FCC Part 15 Subpart B and FCC Section 15.231(e) Test Report Remote Thermostat / Humidity Controller Model: RFTH-100 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 18 GENERAL REPORT SUMMARY Compatible Electronics Inc. generates this electromagnetic emission test report, which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Remote Thermostat / Humidity Controller Model: RFTH-100 S/N: N/A Product Description: See Expository Statement Modifications: The EUT was not modified in order to meet the specifications. Customer: Orka Technology Corporation 6170 West Lake Mead Boulevard, #111 Las Vegas, Nevada 89108 Test Date(s): March 4 and 9, 2010 Test Specifications: EMI requirements CFR Title 47, Part 15, Subpart B Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz – 30 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, section 15.207. Highest reading in relation to spec limit: 50.06 dBuV @ 0.192 MHz (*U = 1.35 dB) 2 Radiated RF Emissions 10 kHz – 4400 MHz (Transmitter and Digital Portion) Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231(e). Highest reading in relation to spec limit: 72.15 (Avg) dBuV @ 418 MHz (*U = 4.22 dB) *U = Expanded Uncertainty with a coverage factor of k=2 Report Number: B00309D1 FCC Part 15 Subpart B and FCC Section 15.231(e) Test Report Remote Thermostat / Humidity Controller Model: RFTH-100 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 18 1. PURPOSE This document is a qualification test repor…

Text truncated - open the document above for the full version.

Ref Lvl 102 dB
V Ref Lvl 102 dB
V RBW 100 kHz VBW 300 kHz RF Att 10 dB A IN1 Unit dB
V P0 TDS SWT 200 ms Center 418.0350701 MHz20 ms/ 04.Mar 2010 08:11 1VIEW1AP 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] 1.23 dB 61.322645 ms 1 [T1] 18.95 dB
V 30.060120 ms 1 [T1] 1.23 dB 61.322645 ms RE-101 Date: 4.MAR.2010 08:11:45 Time of Pulse Train with Blanking Interval – 200 mS Scale Ref Lvl 102 dB
V Ref Lvl 102 dB
V RBW 100 kHz VBW 300 kHz RF Att 10 dB A IN1 Unit dB
VSWT 100 ms Center 418.0350701 MHz10 ms/ P0 TDS 1VIEW1AP 04.Mar 2010 08:13 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] -1.32 dB 61.322645 ms 1 [T1] 18.85 dB
V 30.661323 ms 1 [T1] -1.32 dB 61.322645 ms RE-101 Date: 4.MAR.2010 08:13:13 Time of Pulse Train with Blanking Interval – 100 mS Scale Ref Lvl 102 dB
V Ref Lvl 102 dB
V RBW 100 kHz VBW 300 kHz RF Att 10 dB A IN1 Unit dB
VSWT 100 ms Center 418.0350701 MHz10 ms/ P0 TDS 1VIEW1AP 04.Mar 2010 08:13 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] -0.69 dB 48.096192 ms 1 [T1] 18.23 dB
V 43.887776 ms 1 [T1] -0.69 dB 48.096192 ms RE-101 Date: 4.MAR.2010 08:13:33 Time of Actual Pulse Ref Lvl 102 dB
V Ref Lvl 102 dB
V RBW 100 kHz VBW 300 kHz RF Att 10 dB A IN1 Unit dB
VSWT 60 ms Center 418.0350701 MHz6ms/ P0 TDS 1VIEW1AP 04.Mar 2010 08:15 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] 2.08 dB 48.096192 ms 1 [T1] 17.47 dB
V 5.290581 ms 1 [T1] 2.08 dB 48.096192 ms RE-101 Date: 4.MAR.2010 08:15:23 The Pulse Contains 24 Large Pulses and 17 Small Pulses Ref Lvl 102 dB
V Ref Lvl 102 dB
V RBW 100 kHz VBW 300 kHz RF Att 10 dB A IN1 Unit dB
VSWT 10 ms Center 418.0350701 MHz1ms/ P0 TDS 1VIEW1AP 04.Mar 2010 08:17 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] 4.46 dB 460.921844
s 1 [T1] 18.20 dB
V 2.525050 ms 1 [T1] 4.46 dB 460.921844
s RE-101 Date: 4.MAR.2010 08:17:25 Time of Small Pulse = 460.921844 uS Ref Lvl 102 dB
V Ref Lvl 102 dB
V RBW 100 kHz VBW 300 kHz RF Att 10 dB A IN1 Unit dB
VSWT 10 ms Center 418.0350701 MHz1ms/ P0 TDS 1VIEW1AP 04.Mar 2010 08:18 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] 5.10 dB 861.723447
s 1 [T1] 15.14 dB
V 3.306613 ms 1 [T1] 5.10 dB 861.723447
s RE-101 Date: 4.MAR.2010 08:18:29 Time of Large Pulse = 861.723447 uS Time of Small Pulses = 17*460.921844 uS = 7.835671348 mS Time of Large Pulses = 24*861.723447 uS = 20.681362728 mS Duty Cycle = (7.835671348 mS + 20.681362728 mS) / 61.322645 mS = 46.503%

HOW THE EUT MEETS THE REQUIREMENTS OF 15.31 (e) FOR THE ORKA TECHNOLOGY CORPORATION REMOTE THERMOSTAT / HUMIDITY CONTROLLER MODEL: RFTH-100, FCC ID: X6Q-RFTH-100 The fundamental was maximized on the Lab D test site using a normal test setup with the EUT connected directly to the AC public mains (115 Vac). Next, the EUT was then connected to the Staco Energy Products Variable Auto Transformer Model: 3PN1010. The Variable Auto Transformer allows the Vac input to be varied. The AC input was then dropped to 85% (97.75 Vac) and raised to 115% (132.25 Vac). The actual AC input was measured using a calibrated Fluke Multimeter Model: 87, Serial Number: 956410240, Calibration Due Date: May 28, 2010. The fundamental was then verified again to see that the amplitude did not change. Test Result: The EUT does NOT change amplitude at the fundamental when the AC input voltage is varied between 85% and 115% of the input nominal rated supply voltage.
