X6X2T8000US2T8000US Asset / Vehicle Tag

Protrac iD Pty Ltd

Click to zoom

Application Details

Equipment Class: DSC - Part 15 Security/Remote Control Transmitter
Date of Grant: Dec 08, 2010
Application Purpose: Original Equipment
Date of Application: Dec 08, 2010
Equipment Note: 2T8000US Asset / Vehicle Tag
Frequency Range: 433.80000000 - 433.80000000
Company: Protrac iD Pty Ltd
Country: Australia

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

2T8000US ASSET / VEHICLE TAG Product Information Sheet The Protrac series 2 Active Tags are powered by an internal lithium battery. The tag will, for the duration of its life, transmit a Radio Frequency (RF) signal at a pre- set time interval. The tag life is estimated at 5 years. The transmitted tag data includes Customer Site Code (CSC), Tag ID, Tag Age Counter Value, Movement Alarm and Tamper Alarm status. For protection against adverse environmental conditions, Protrac Asset Tags are encapsulated in a moulded plastic case, which is ultrasonically sealed during the manufacturing process. The 2T8000US tag is generally used for Asset tagging applications and is ideally suited for operating on metallic surfaces (or plastics containing a high metal content). Optional Extras: in-built tamper switch for alarm upon tag removal, motion sensing alarm, temperature sensor for reporting ambient temperature. Description Features · Active 24 x 7 · High Impact resistent UV stabalised PVC constructions. · Transmission unaffected by materials in the surrounding environment. · Easily fixed to all surfaces including metal. · Convenient size (60mm x 29mm x 13mm) for application to large and small assets. · Tags attached to road transport, rolling stock and cargo are monitored at speeds up to 220kph. · Can be read by fixed, mobile or hand held receivers. Specifications Model................................. Frequency........................... ERP.................................... Sensitivity........................... Transmission Range.............. Variable Transmission Rate..... Modulation.......................... Battery................................ Operational Temperature....... Size.................................... Weight................................ Material............................... 2T8000US 433.92 Mhz <300 Micro Watts -103 dBm 0.4 - 50 Meters 10 sec to 180 sec OOK Internal Lithium -30°C to +70°C 60 x 29 x 13 mm 20 grams UV Stabalised PVC (IP65) All rights reserved. Specifications subject to change without notice. © © Protrac iD Pty Lt Protrac iD Pty Lt d d ABN: 58 002 648 704 ABN: 58 002 648 704 www www .protracid.com .protracid.com Made in Made in Australia Australia T T el: +61 7 3806 3224 el: +61 7 3806 3224 Fax: +61 7 3009 0050 Fax: +61 7 3009 0050 Email: Email: [email protected] [email protected] This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution any changes or modifications not expressly approved by Protrac iD Pty Ltd could void the users authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their own expense.

External Photos

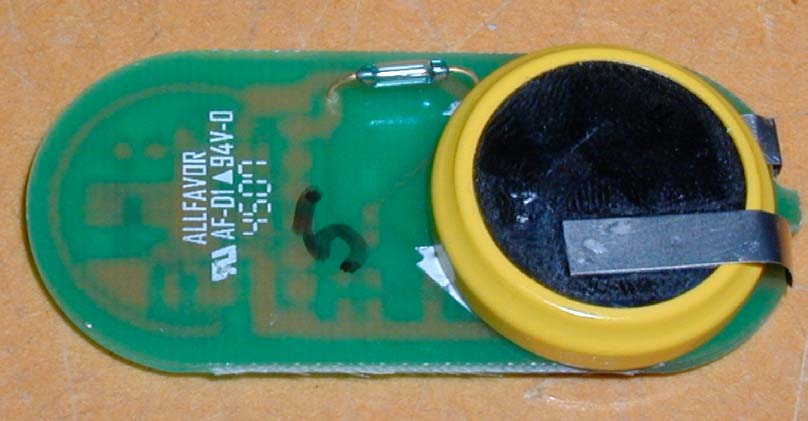

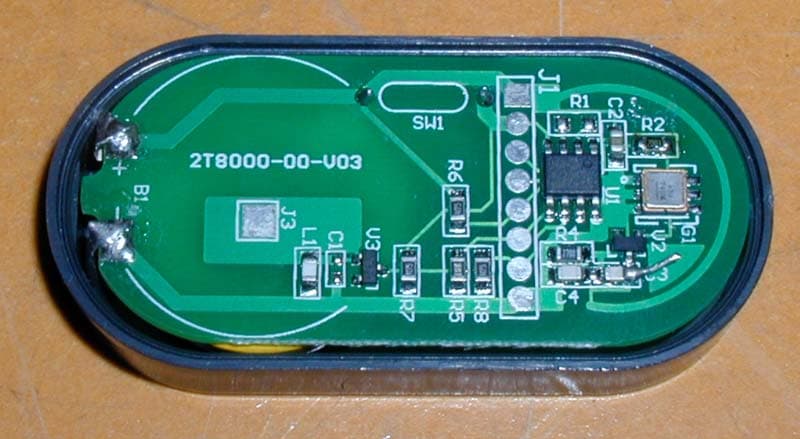

Doc Id: TR-FCC15 (2009-11-18)Page 19 of 22Report No: 1115COMP2T8000US_fcc15ab&c FCC ID: X6X2T8000US This document shall not be reproduced, except in full APPENDIX A – PHOTOGRAPHIC RECORD OF EUT 433.8MHz RFID Tag 433.8MHz Tag PCB Top Doc Id: TR-FCC15 (2009-11-18)Page 20 of 22Report No: 1115COMP2T8000US_fcc15ab&c FCC ID: X6X2T8000US This document shall not be reproduced, except in full 433.8MHz Tag PCB Bottom

ID Label/Location Info

Doc Id: TR-FCC15 (2009-11-18)Page 21 of 22Report No: 1115COMP2T8000US_fcc15ab&c FCC ID: X6X2T8000US This document shall not be reproduced, except in full APPENDIX B – FCC LABEL & LOCATION FCC Label FCC Label Location on EUT

Internal Photos

Test Report

Doc Id: TR-FCC15 (2009-11-18)Page 1 of 22Report No: 1115COMP2T8000US_fcc15ab&c FCC ID: X6X2T8000US This document shall not be reproduced, except in full Compliance Testing Report FCC Title 47 Part 15 Subparts A & B (Class B) & C Client: Protrac ID Pty Ltd Address: Unit 4, Hyperdome Technology Park, 2 - 12 Knobel Court Shailer Park 4128 QLD Report Number: 1115COMP2T8000US_fcc15ab&c Date of Testing: 8 th October 2009 to 22 nd January 2010 File Number: COMP090917 Equipment Name: 433MHz RFID Tag Equipment Model Number: 2T8000US Equipment Serial Number: Not Supplied Equipment FCC ID: X6X2T8000US Equipment Description: RFID Tracking System Tag Result: COMPLIES Tested by: Richard Turner Approved by: Steve Garnham Date of Issue: 15 th November 2010 AUSTEST (NSW) FCC REGISTRATION NUMBER 90455 Results appearing herein relate only to the sample(s) tested. This report may not be reproduced in any form unless done so in full. Original copies of reports are printed on Austest Laboratories official Test Report letterhead, printed in reflex blue. This report is issued errors and omissions exempt and is subject to withdrawal at Austest Laboratories discretion. This document is copyright by Austest Laboratories with a limited grant of reproduction issued to Austest Laboratories’ customers subject to the above conditions. Doc Id: TR-FCC15 (2009-11-18)Page 2 of 22Report No: 1115COMP2T8000US_fcc15ab&c FCC ID: X6X2T8000US This document shall not be reproduced, except in full Table of Contents: 1TEST SUMMARY..................................................................................................................... 4 2MODIFICATIONS..................................................................................................................... 4 3EQUIPMENT UNDER TEST (EUT) DESCRIPTION................................................................ 5 4EUT TEST SETUP & CONFIGURATION................................................................................ 6 4.1Supporting Equipment.................................................................................................... 6 4.2Cables............................................................................................................................. 6 4.3Transmitter Test Channels............................................................................................. 6 5TEST SPECIFICATIONS......................................................................................................... 7 5.1Accreditations & Listings................................................................................................. 7 5.2Deviations from Standards and/or Accreditations........................................................... 7 5.3Test Facility..................................................................................................................... 7 5.4Test Equipment............................................................................................................... 7 5.5Measurement Uncertainties............................................................................................ 8 6FCC Part 15B, Section 15.107 - CONDUCTED LIMITS.......................................................... 8 7FCC Part 15B, Section 15.109 - RADIATED EMISSION LIMITS............................................ 8 8FCC Part 15C, Section 15.203 – ANTENNA REQUIREMENT................................................ 8 9FCC Part 15C, Section 15.205 – RESTRICTED BANDS OF OPERATION............................ 8 10FCC Part 15C, Section 15.207 - CONDUCTED LIMITS.......................................................... 9 11FCC Part 15C, Section 15.209 - RADIATED EMISSION LIMITS, GENERAL REQUIREMENTS.................................................................................................................... 9 11.1 EUT Operating Mode...................................................................................................... 9 11.2 Test Method.................................................................................................................... 9 11.3 Test Results.................................................................................................................. 10 11.3.1 150kHz to 30MHz........................................................................................... 10 11.3.2 30MHz to 1000MHz........................................................................................ 10 11.3.3 1000MHz to 4500MHz.................................................................................... 10 12FCC Part 15C, Section 15.215 – ADDITIONAL PROVISIONS TO THE GENERAL RADIATED LIMITATIONS..................................................................................................... 13 13FCC Part 15C, Section 15.231 – PERIODIC OPERATION IN THE BAND 40.66-40.40MHz AND ABOVE 70MHz.............................................................................................................. 14 13.1 Periodic Operation – Section 15.231 (a)....................................................................... 14 13.2 Field Strength of Emissions – Section 15.231 (b)......................................................... 14 13.3 Emission Bandwidth for Devices Operating Above 70MHz – Section 15.231(c).......... 14 13.3.1 EUT Operating Mode...................................................................................... 14 13.3.2 Test Method.................................................................................................... 14 13.3.3 Test Results.................................................................................................... 15 13.4 Emission Bandwidth for Devices Operating Within the Frequency Band 40.66- 40.70MHz – Section 15.231(d)..................................................................................... 15 Doc Id: TR-FCC15 (2009-11-18)Page 3 of 22Report No: 1115COMP2T8000US_fcc15ab&c FCC ID: X6X2T8000US This document shall not be repro…

Text truncated - open the document above for the full version.

Test Setup Photos

Doc Id: TR-FCC15 (2009-11-18)Page 22 of 22Report No: 1115COMP2T8000US_fcc15ab&c FCC ID: X6X2T8000US This document shall not be reproduced, except in full APPENDIX C – EUT TEST SETUP PHOTOGRAPHS Radiated Disturbance Test Setup Radiated Disturbance Test Setup
