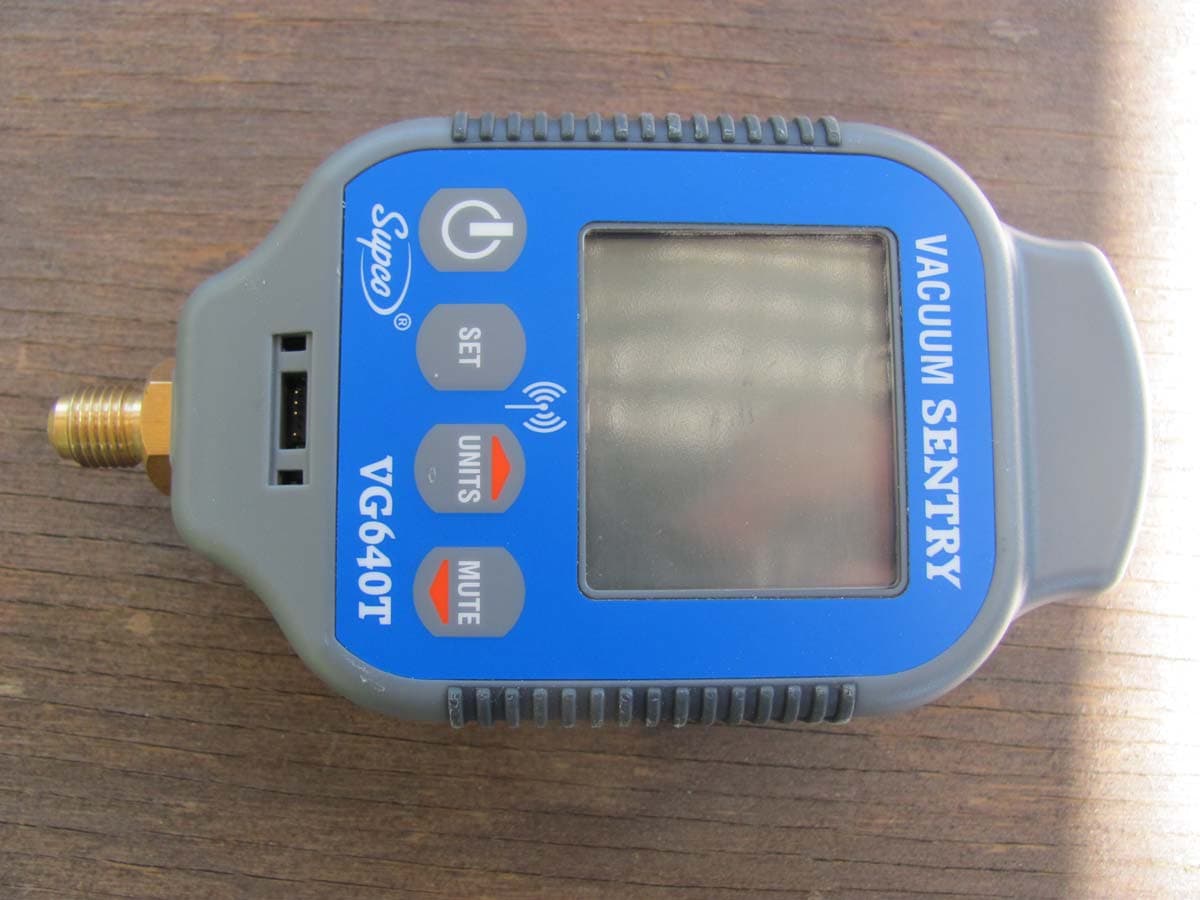

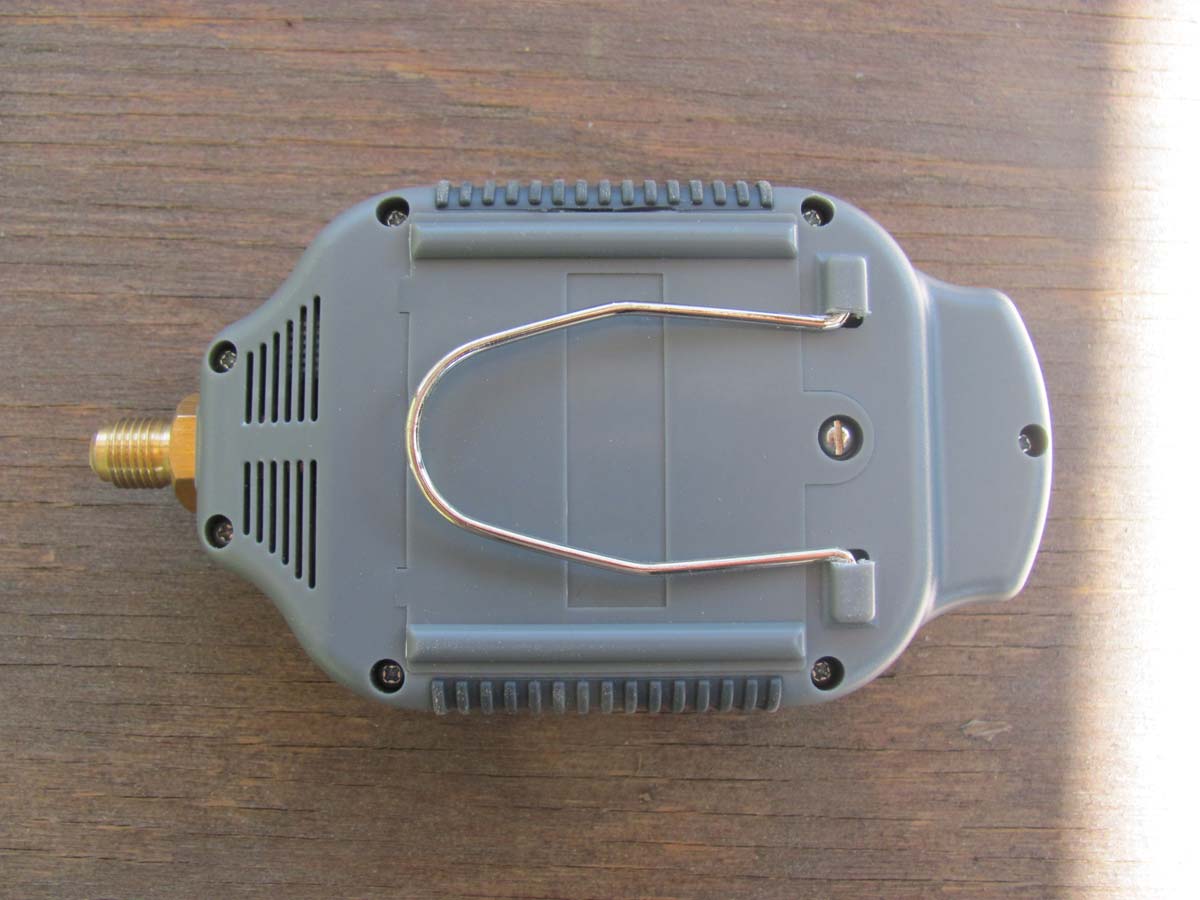

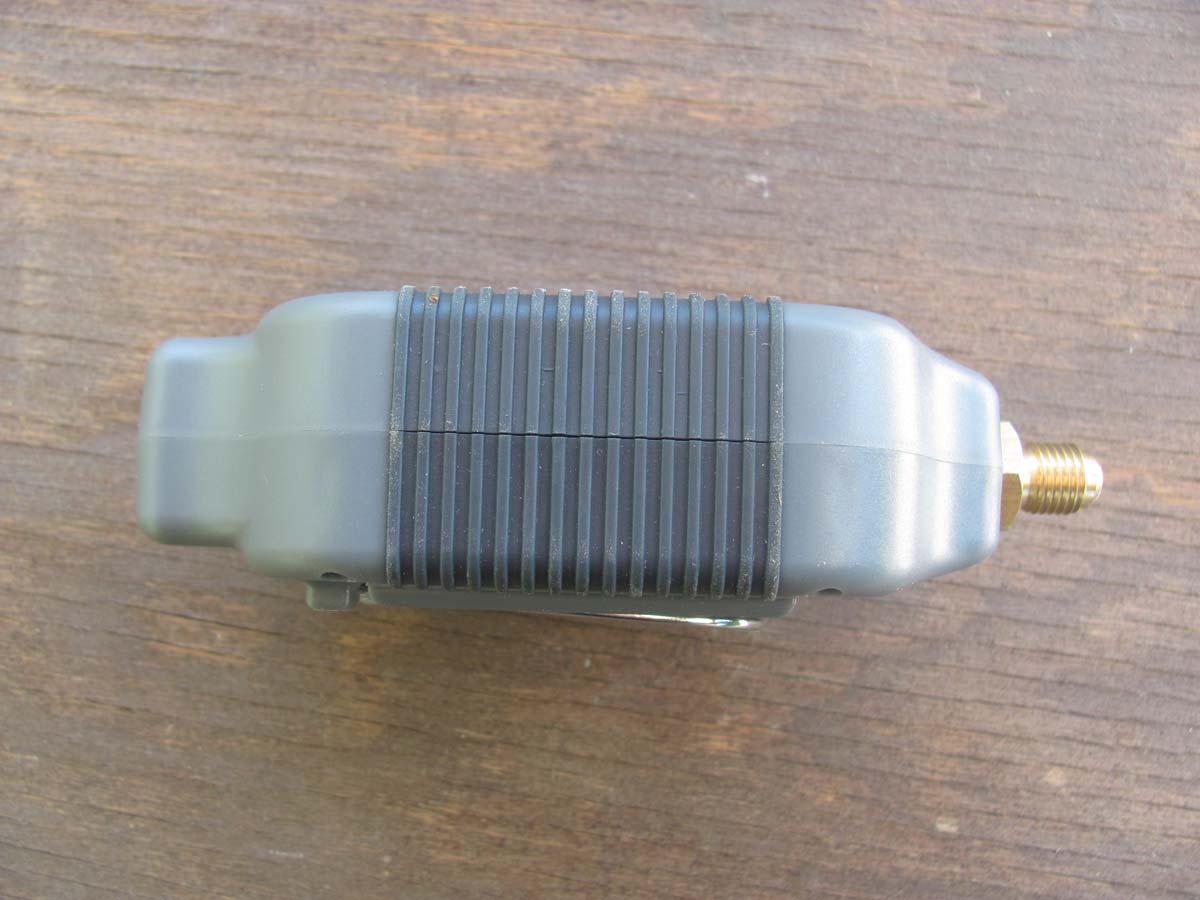

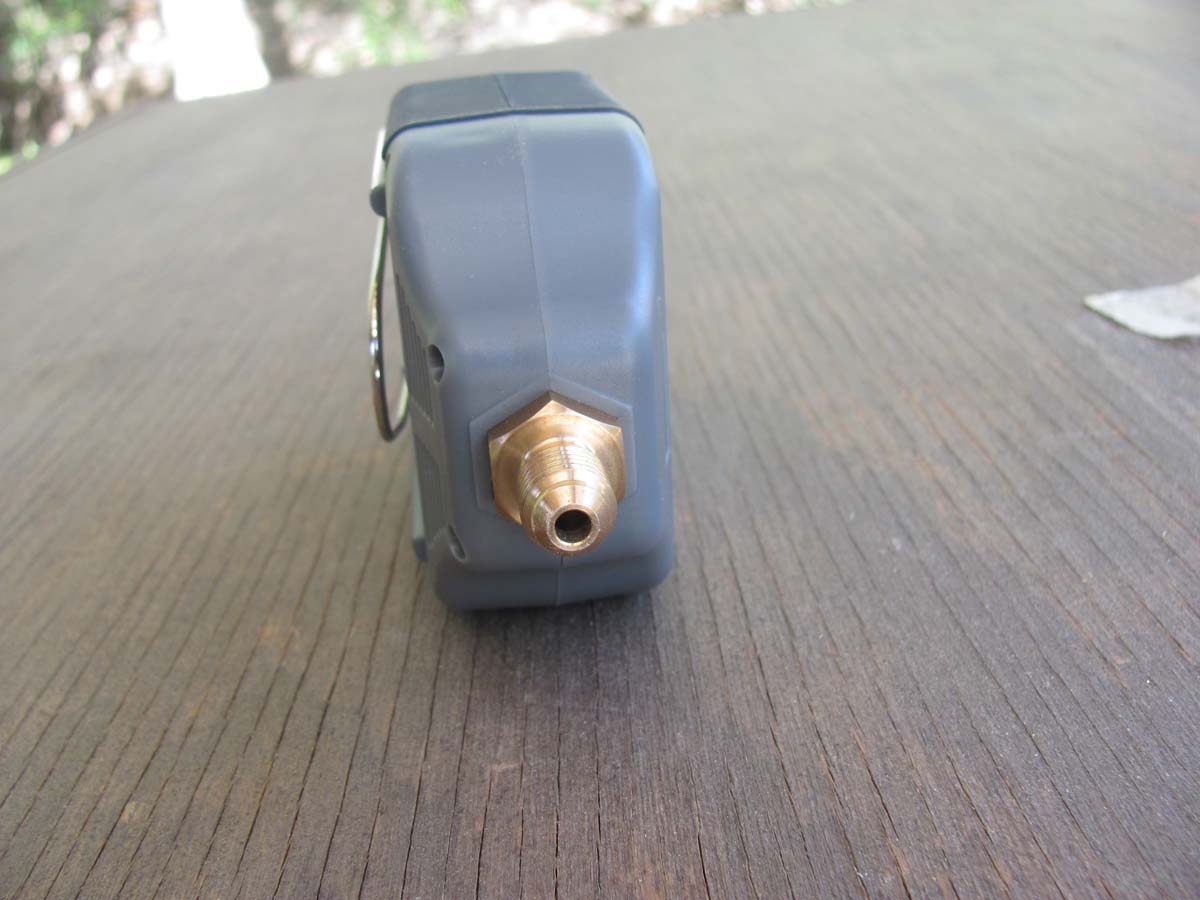

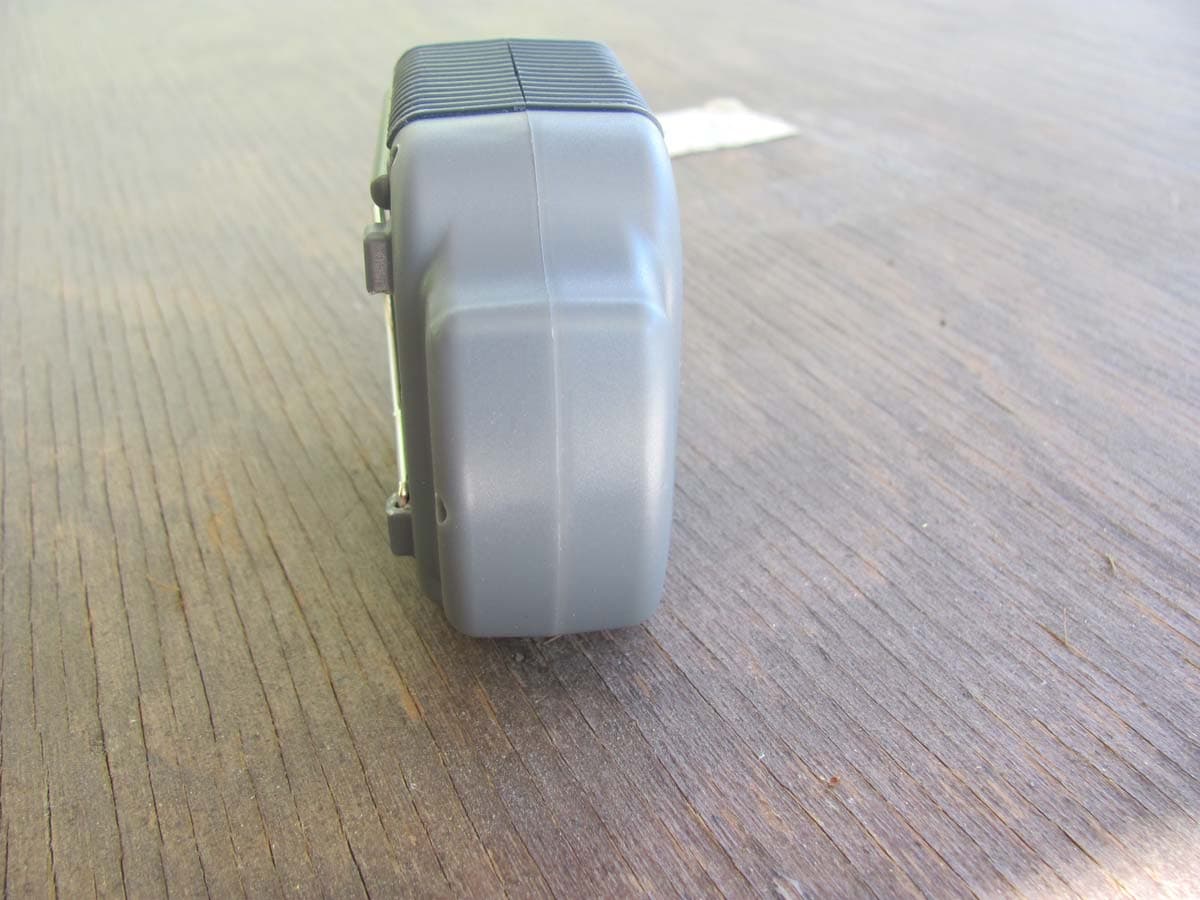

X74VG640T418Digital Vacuum Gauge

VG640T User’s Guide Rev 022311 Page 1/5 SEALED UNIT PARTS CO., INC. PO BOX 21, 2230 LANDMARK PLACE, ALLENWOOD, NJ 08720 USA Phone: 732-223-6644 • Fax: 732-223-1617 www.supco.com • [email protected] VG640T DIGITAL VACUUM GAUGE FEATURES • Ultra fine resolution (as low as 0.5 Micron) • ½ second response time • User selectable low and high vacuum alarms with a remote wireless receiver • Auto shut OFF • Convenient built in hanger VG640T SPECIFICATIONS Sensor Type Thermistor Connector Type Standard ¼ inch male flare fitting. Vacuum Range 0 – 19,000 Micron (0 – 2,600Pascals) Scale Micron, milliBar, Pascal, Torr, milliTorr Resolution 0-200: 0.5 Micron 400-800: 2 Micron 800-2,000: 5 Micron 2,000-6,000: 20 Micron 6,000-9,000: 100 Micron 9,000-16,000: 200 Micron 16,000-19,000: 1,000 Micron Alarm Audible and visual alarms for high and low vacuum Remote Alarm Up to 400 ft * remote audible, visual and vibrating alarm for high and low vacuum Alarm Volume 87 dB for both unit and remote Operating Temp. 0°F to 150°F (-17°C to 65°C) Overpressure 800 PSI maximum Accuracy +/-10% or +/-10 Microns, whichever is larger (50 to 2,000 micron) Power Source 3 AA Batteries (not included) Battery Life 600 Hours continuous usage, with battery indicator Auto Shutoff 8 hours when alarms are enabled. When alarms are disabled: 10 minutes when vacuum reading is above 19,000 micron 1 hour when vacuum reading is below 19,000 micron Weight 6 oz Dimensions 5½′′H x 2.75′′W x 1½′′D * Dist ance is measured when the remote is within a direct line of sight of the VG640T. Obstructions between the remote and the VG640T can reduce this distance. REMOTE ALARM SPECIFICATIONS Operating Distance Up to 400 ft * Alarm Audible, visual and vibrating Alarm Volume 87 dB Operating Temp. -20°F to 160°F (-28°C to 70°C) Power Source 9V Battery (not included) Battery Life 45 hours continuous use, with low battery audible indicator Weight 3 oz Dimensions 5”H x 2½”W x 1”D * Distance is measured when the remote is within a direct line of sight of the VG640T. Obstructions between the remote and the VG640T can reduce this distance. VG640T User’s Guide Rev 022311 Page 2/5 SEALED UNIT PARTS CO., INC. PO BOX 21, 2230 LANDMARK PLACE, ALLENWOOD, NJ 08720 USA Phone: 732-223-6644 • Fax: 732-223-1617 www.supco.com • [email protected] OPERATING CONTROLS • To turn the unit ON, press and release the Power Button. • To turn the unit OFF, press and hold the Power button, until the unit turns OFF. Pressing and releasing the Power button turns on the backlight. • Changing the scale: Press the UNITS button while in normal operation to change the display to the next scale. The scale order is: Micron, mTorr, Torr, Pascal, mBar. The VG640 will keep the scale settings even if the power is turned OFF. CLEANING THE VG640 VACUUM SENSOR It is recommended that the VG640 sensor be cleaned periodically to maintain unit accuracy. Oil and other contaminants reduce the accuracy of the VG640 unit. Follow the instructions below for cleaning. • Use an eyedropper to pour approximately 2 teaspoons of ordinary rubbing alcohol into the vacuum port. • Close the port with the supplied cap. • Shake the VG640 unit for approximately 10 seconds. A slight movement of the vacuum sensor in the case is normal and does not affect the internal connection in any way. • Open the vacuum port. Empty the alcohol and air dry the sensor. Close the vacuum port with the supplied cap when the VG640 is not used. This prevents contamination of the sensor. 90% of the vacuum gauge warranty returns that SUPCO receives are due to contaminated sensors. For vacuum gauges that are heavily contaminated, leave the alcohol in the gauge overnight to clean the sensor more effectively. CHECKING HVAC SYSTEMS FOR LEAKS When checking a system for leaks use only copper tubing and a vacuum proof valve. Generally standard hoses will not hold a vacuum. If using the blank-off valve on the vacuum pump check it for leaks periodically. At the beginning of the test the VG640 reading may increase due to system equalization. The vacuum reading should hold after a minimum of 5 minutes. If the reading continues to increase it may indicate a leak in the system. SETTING THE ALARMS Press the SET button. The unit will display “Set Alarm Low” and show the current value of the low alarm. Use the up (UNITS) and down (MUTE) buttons to set the alarm from 0 to 19000 Microns. To turn the low alarms OFF, press the down button while the set low alarm is at 0 Microns, or press the up button while the set low alarm is at 19000 Microns. Press the SET button when you are done setting the low alarm,. The unit will now display “Set Alarm High” and show the current value of the high alarm. Use the up (UNITS) and down (MUTE) buttons to set the high alarm from the value of the low alarm to 19000 Microns. Note that the VG640 unit will not allow you to set the high alarm below the low alarm. To turn the high alarms OFF, press the down button while the set high alarm is at the low alarm value, or press the up button while the set high alarm is at 19000 Microns. Press the SET button when you are done setting the high alarm. The unit will return to normal operation. To see the current value of the low and high alarms, press the SET button. The unit will show the current value of the low alarm. Press the SET button again to display the current value of the high alarm. Press the SET button again to return the unit to normal operation. When the VG640 unit is turned OFF, the value of the low alarm is retained, but the value of the high alarm is always set to OFF. This VG640T User’s Guide Rev 022311 Page 3/5 SEALED UNIT PARTS CO., INC. PO BOX 21, 2230 LANDMARK PLACE, ALLENWOOD, NJ 08720 USA Phone: 732-223-6644 • Fax: 732-223-1617 www.supco.com • [email protected] prevents the VG640 to go into alarm mode when the unit is powered up while vacuum is not applied. NOTE: When high alarm is set to anything but OFF, the unit will alarm when vacuum is not showing. ALARM CONDITION During an al…

Text truncated - open the document above for the full version.

SEALED UNIT PARTS CO., INC. 2230 Landmark Place • Allenwood, NJ 08720 (732) 223-6644 • Fax: (732) 223-1617 • [email protected] February 18, 2011 CETCB 114 Olinda Drive Brea, CA 92823 Gentlemen: This is a letter of authorization to accept Compatible Electronics, Inc., specifically including the employees of Compatible Electronics, as an Agent for Sealed Unit Parts Co., Inc., 2230 Landmark Place, Allenwood, NJ 08720, for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following Sealed Unit Parts Co., Inc. product: Vacuum Gauge with Remote Wireless Alarm under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part l5 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither Sealed Unit Parts Co., Inc. nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under section 5301 of the Anti-Drug-Abuse act of 1988,21 U.S.C. 853(a). In addition, Sealed Unit Parts Co., Inc. will notify the Federal Communications Commission if, at any time, the situation changes causing Sealed Unit Parts Co., Inc. to be denied federal benefits. If you have any further questions or need additional information, please feel free to give me a call at 732-223-6644. Sincerely, Alexander Brodetsky Senior VP. Engineering

1 SEALED UNIT PARTS CO., INC. 2230 Landmark Place • Allenwood, NJ 08720 (732) 223-6644 • Fax: (732) 223-1617 • [email protected] • www.supco.com February 18, 2011 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Subject: TCB application submittal Gentlemen: We, Sealed Unit Parts Co., Inc., would like to declare that the application being submitted for the device with FCC ID: X74VG640T418, has not been submitted to another TCB or FCC for certification. The application was submitted to Compatible Electronics TCB on February 18, 2011. If you have any questions, please do not hesitate to contact us at 732-223-6644. Sincerely, Alexander Brodetsky Senior Vice President Engineering Sealed Unit Parts Co., Inc.

1 SEALED UNIT PARTS CO., INC. 2230 Landmark Place • Allenwood, NJ 08720 (732) 223-6644 • Fax: (732) 223-1617 • [email protected] • www.supco.com February 18, 2011 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Subject: Request for withholding from public disclosure the schematics, block diagrams, and operational description pursuant to an application for certification Gentlemen: We, Sealed Unit Parts Co., Inc., would like to request that all schematics, block diagrams, and operational descriptions submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457 (d) of the Commission’s Rules, and Section 552 (b)(4) of the Freedom of Information Act. These sections authorize the withholding from public inspection, those materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any questions, please do not hesitate to contact us at 732-223-6644 Sincerely, Alexander Brodetsky Senior VP. Engineering

Correspondence by Project Project Number: Correspondence NumberMemo X74VG640T418-1 1. Please provide data showing that the device meets the requirements of section 15.231 (a) (2) Response: The plot showing the EUT turns off before 5 seconds of being activated has been uploaded.

Report Number: B10228D1 FCC Part 15 Subpart C Section 15.231 Test Report Digital Vacuum Gauge Model: VG640T Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 18 FCC PART 15 SUBPART C TEST REPORT for DIGITAL VACUUM GAUGE MODEL: VG640T Prepared for SEALED UNIT PARTS CO., INC. 2230 LANDMARK PLACE ALLENWOOD, NEW JERSEY 08720 Prepared by:_____________________ ALEX BENITEZ Approved by:____________________ KYLE FUJIMOTO COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: FEBRUARY 28, 2010 REPORT APPENDICES TOTAL BODY A B C D E F PAGES 18 2 2 2 11 9 246 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B10228D1 FCC Part 15 Subpart C Section 15.231 Test Report Digital Vacuum Gauge Model: VG640T Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 18 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration – EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 6.3 Facility Environmental Characteristics 12 7. TEST PROCEDURES 13 7.1 RF Emissions 13 7.1.1 Conducted Emissions Test 13 7.1.2 Radiated Emissions (Spurious and Harmonics) Test 14 7.1.3 RF Emissions Test Results 16 7.2 Bandwidth of the Fundamental 17 8. CONCLUSIONS 18 Report Number: B10228D1 FCC Part 15 Subpart C Section 15.231 Test Report Digital Vacuum Gauge Model: VG640T Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 18 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagram, Charts, and Photos • Test Setup Diagram • Antenna and Amplifier Factors • Radiated Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Radiated Test Site – 3 Meters Report Number: B10228D1 FCC Part 15 Subpart C Section 15.231 Test Report Digital Vacuum Gauge Model: VG640T Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 18 GENERAL REPORT SUMMARY Compatible Electronics Inc. generates this electromagnetic emission test report, which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Digital Vacuum Gauge Model: VG640T S/N: N/A Product Description: See Expository Statement Modifications: The EUT was not modified in order to meet the specifications. Customer: Sealed Unit Parts Co., Inc. 2230 Landmark Place Allenwood, New Jersey 08720 Test Date(s): February 28, 2011 Test Specifications: EMI requirements CFR Title 47, Part 15, Subpart C Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions 150 kHz to 30 MHz The EUT does not directly or indirectly connect to the AC mains, thus this test was not performed. 2 Radiated RF Emissions 10 kHz – 4180 MHz Complies with the limits of CFR Title 47, Part 15, Subpart C, sections 15.205, 15.209, and 15.231. Highest reading in relation to spec limit: 80.19 (Avg) dBuV/m @ 418 MHz (*U = 3.59 dB) *U = Expanded Uncertainty with a coverage factor of k=2 Report Number: B10228D1 FCC Part 15 Subpart C Section 15.231 Test Report Digital Vacuum Gauge Model: VG640T Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 18 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Digital Vacuum Gauge, Model: VG640T (EUT). The EMI measurements were performed according to the measurement procedure described in ANSI C63.4. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by…

Text truncated - open the document above for the full version.

Ref Lvl 102 dB  V Ref Lvl 102 dB  V RBW 100 kHz VBW 300 kHz RF Att 10 dB A I2D Unit dB  V TRG P0 SWT 100 ms Center 418 MHz10 ms/ 1VIEW1AP 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] -0.49 dB 17.835671 ms 1 [T1] 36.59 dB  V 203.607214 ms 1 [T1] -0.49 dB 17.835671 ms D1 17.22 dB  V D2 11.2 dB  V Date: 28.FEB.2011 08:22:58 Time of Pulse Train over 100 mS Scale Ref Lvl 102 dB  V Ref Lvl 102 dB  V RBW 100 kHz VBW 300 kHz RF Att 10 dB A I2D Unit dB  V TRG SWT 50 ms Center 418 MHz5 ms/ P0 1VIEW1AP 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] 0.53 dB 17.835671 ms 1 [T1] 27.89 dB  V 207.014028 ms 1 [T1] 0.53 dB 17.835671 ms D1 17.22 dB  V D2 11.2 dB  V Date: 28.FEB.2011 08:23:30 Time of Pulse Train over 50 mS Scale Ref Lvl 102 dB  V Ref Lvl 102 dB  V RBW 100 kHz VBW 300 kHz RF Att 10 dB A I2D Unit dB  V TRG SWT 20 ms Center 418 MHz2 ms/ P0 1VIEW1AP 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] 0.21 dB 17.875752 ms 1 [T1] 29.45 dB  V 200.360721 ms 1 [T1] 0.21 dB 17.875752 ms D1 17.22 dB  V D2 11.2 dB  V Date: 28.FEB.2011 08:24:13 Time of Pulse Train over 20 mS Scale Ref Lvl 102 dB  V Ref Lvl 102 dB  V RBW 100 kHz VBW 300 kHz RF Att 10 dB A I2D Unit dB  V TRG P0 SWT 1 ms Center 418 MHz100  s/ 1VIEW1MA 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] 1.62 dB 322.645291  s 1 [T1] 64.38 dB  V 200.322645 ms 1 [T1] 1.62 dB 322.645291  s D1 17.22 dB  V D2 11.2 dB  V Date: 28.FEB.2011 08:25:44 Time of Small Pulse = 322.645291 uS Ref Lvl 102 dB  V Ref Lvl 102 dB  V RBW 100 kHz VBW 300 kHz RF Att 10 dB A I2D Unit dB  V TRG P0 SWT 1 ms Center 418 MHz100  s/ 1VIEW1MA 10 20 30 40 50 60 70 80 90 2 102 11 Delta 1 [T1] 0.08 dB 625.250501  s 1 [T1] 65.14 dB  V 200.022044 ms 1 [T1] 0.08 dB 625.250501  s D1 17.22 dB  V D2 11.2 dB  V Date: 28.FEB.2011 08:26:36 Time of Large Pulse = 625.250501 uS 18 Small Pulses @ 322.645291 uS = 5.807615238 mS 3 Large Pulses @ 625.250501 uS = 1.875751503 mS Total On Time = 7.683366741 / 17.835671 mS Total Duty Cycle = 43.08%

Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 3 MHz RF Att 10 dB A IN1 Unit dB  V P0 TDS SWT 10 s Center 418 MHz1 s/ 1AP1VIEW 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -1.26 dB 521.042084 ms 1 [T1] 38.95 dB  V 4.268136 s 1 [T1] -1.26 dB 521.042084 ms D1 46 dB  V D2 54 dB  V Date: 28.FEB.2011 13:40:40 Time of one transmission showing the transmission turns off before 5 seconds when automatically activated.
