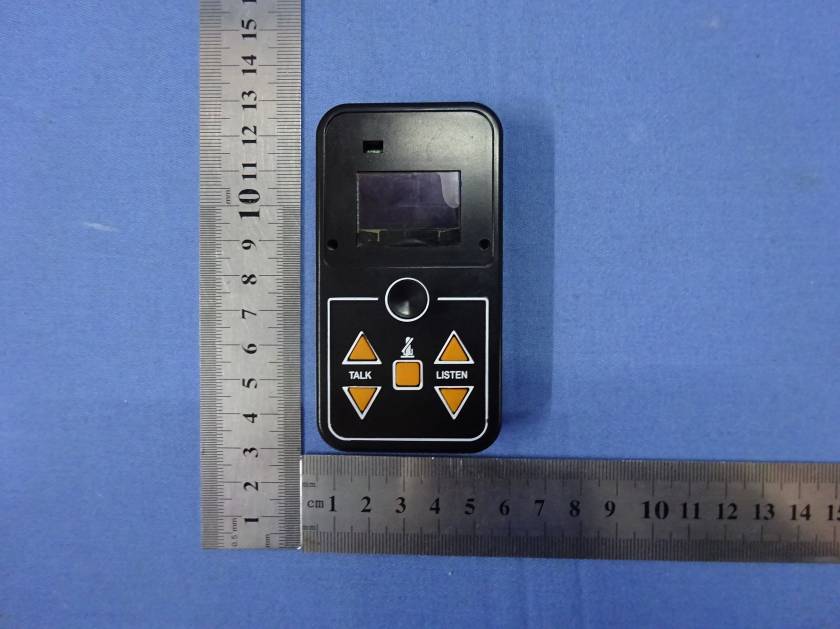

Norcon TTU® -WHS-D Installation & Operating Instructions ***** 510 Burnside Ave. Inwood L.I. NY 11096 Tel. 516 239 0300 Fax. 516 239 8915 www.norcon.org TTU® -WHS-D Wireless Headset is designed to work with the TTU-WR wireless ready unit. FEATURES • Clear 2-way hands-free voice communication. • Quality electronic design and engineered. • Walk around freely while talking to the customer. • Self-powered with fast rechargeable battery Operation Instruction • TTU-WHS-D works with all Wireless Ready TTU units. • Press and hold the MUTE, the LISTEN volume down key and the Power on/off key simultaneously then release the MUTE and LISTEN volume down key to enter the USER’S MANUAL Keep press the LISTEN volume key to obtain the HS ID that matches the RF ID on the TTU-WR unit. Continue to press the Mic MUTE key until the display turns off. • Press and hold the power ON/OFF button to turn the unit on and off. • Press the UP or DOWN triangle key to increase or decrease the TALK or LISTEN volume. • Press the square Mic MUTE key once to turn off the operator’s microphone. Press once again to turn on the microphone again. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This Package Contains: • TTU-WHS-D wireless headset transceiver • Norcon TTU-NC181 Headset • USB Charger • Micro USB cable • Instruction manual Warranty and Service Policy TALK-THRU SYSTEM WARRANTY REPAIRS Norcon Communications Inc. warrants the products Manufactured by Norcon to be free from defects in material and workmanship for a period of one year from the date of shipment from the factory provided: 1) The product has not been abused, misused or improperly maintained, repaired and /or modified during such period, and 2) such defect is not a result of voltage surges/ burnouts, lightning, water damage / flooding, fire, explosion, earthquakes, tornadoes, acts of aggressions / war or similar phenomenon; and 3) the product has been properly installed according to the appropriate Norcon Installation Guide. Both incoming and outgoing freight charges are at customer’s expenses. Domestic repair will be returned to customer by UPS Ground. International repair will be returned to customer using normal shipping arrangements. Any other shipping instructions must be made in writing and will be at the customer’s expense. * Extended two years warranty available. Please call 1-866-239-0300.

Norcon Communications Inc. 510 Burnside Ave. Inwood New York United States 2015-11-27 Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: X7STTUWHSD Product Name: Norcon TTU-Wireless Heaset Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 11/27/2015 Norcon TTU-Wireless Headset

Size: 15*20mm FCC ID: X7STTUWHSD

Label location:

FCC ID: X7STTUWHSD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation          [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,     !-" #$%  &  ! -g extremity SAR, where --f(GHz) is the RF channel transmit frequency in GHz --Power and distance are rounded to the nearest mW and mm before calculation --The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, ---10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m) ---3m So pt = (EXd) 2 /30 x gt Field strength = 91.10dBuV/m @3m Ant gain =2dBi, so Ant numeric gain= 1.58 So pt={ [10 (91.10) /10 6 x 3] 2 /30x1.58 }x1000 mW = 0.244mW So (0.244 mW /5mm)x 0.914 = 0.047<3 Then SAR evaluation is not required So pt={ [10 (91.1/20)
