X7V6291103271TINY (TRN) Mobile Broadband Router

USB Mobile Broadband Router Reference Manual The Mobile Choice for your Broadband Internet Table of Contents 2 Reference Manual Table of Contents Introduction 3 Package contents 3 Additional required items Reference Manual 4 Hardware installation 4 Reset button 4 Modem 5 Connecting Status Overview Bar 7 Data Traffic Usage Report 8 SMS Notification of Data Traffic Usage 9 SMS Remote Control 10 Remote Commands 11 Notification SMS 12 Advanced Settings 13 WLAN Settings 14 LAN Settings 18 System Settings 20 Internet 22 WAN Port Settings 23 Connection Tracker 24 Upgrading the firmware 26 Configurations 27 Troubleshooting 28 Internet 28 Support 30 Technical specifications 30 Guidelines for safe and efficient use 31 Product care and maintenance 31 Limited warranty 32 Introduction 3 Introduction Thank you for choosing the Dovado USB Mobile Broadband Router. Package contents Before continuing to the next section, make sure all of the listed items below are included in your package. If something is missing, kindly contact your reseller. • Router - USB Mobile Broadband router • Power supply • WLAN antenna • Velcro pads, for optional surface mounting of the router • Quick Wizard Guide and Reference Manual Additional required items In addition to the items above you will need a mobile broadband USB modem in order for the product to work. This modem provides the wireless link to your operator’s network and is sold separately.To use the Internet you need a computer. ! ATTENTION: As the DOVADO portfolio of routers are con- stantly being updated to support new modems, features as well as fixes, it is advised that you remain updated with the latest firmware. To download the latest firmware, please visit www.dovado.com/firmware Introduction 4 The Reset button The location of the reset button is at the back of the router. If you need to erase all the inserted parameters and password, along with restoring the factory defaults settings, then hold down the reset button for approximately 8 seconds. For restart of the router just press the reset button quickly. 1. USB-port 2. Internet/SMS LED 3. Reset button 4. SMA connector for WiFi antenna 5. DC Power Input 6. LAN port 7. WAN port 6321547 Reference Manual 5 Modem On the Modem->Modem Settings page, you will be able to insert all the valid inputs in order to access the internet via your mobile operator. There are several relevant bits of information which are necessary in order to complete this task successfully: • APN (Access Point Name). If you are not sure what your mobile operator’s APN is, please contact them or check with your modem manual. • PIN code.This is your PIN code provided with your SIM card which resides in your USB modem. • Username & Password: Some operators may require you to insert a username and password along with APN information in order to authenticate towards the mobile network. If you haven’t been provided this, then using only an APN might be sufficient. If not, then please contact your operator. Reference Manual 6 The following scenarios should assist you in enabling your router for Internet access, depending on which type of USB modem you have inserted into the router. If your scenario is not available in this guide, then please visit www.dovado.com/support for latest update. Once the information has been inserted, the unit will automatically try to establish a connection to the operator’s network. A solid green light on the Internet LED indicates a successful connection. Note: Mobile operators typically have an Access Point Name (APN) as the key relevant point of entry towards the mobile broadband network. Make sure to have the name of your APN in advance of configuring your USB modem. If you are using any other technology besides GPRS, EDGE, UMTS or HSPA, you might not require an APN. Scenario 1: 3G USB modem using a SIM card • In the Modem->Modem Settings page, select to use SIM. • Enter your operator Access Point Name and a PIN code if using one. • Push Save Modem Settings. • Restart the router. Scenario 2: 3G USB modem using a SIM card along with a username and password • In the Modem->Modem Settings page, select to use SIM. • Enter your operator Access Point Name and a PIN code if using one. • Push Save Modem Settings. • Go to Modem->PPP and make sure that PPP is enabled. • Enter your Username and Password • Save PPP Settings. • Restart the router. Reference Manual 7 Connection Status Overview Bar Atop of the user interface, a bar displays an overview of your Internet connection. This information sits outside the security zone of your router, and does not need to be accessed via an authorized login, thus saving time on checking the connec- tion status. The Connection Status Overview Bar shows the following information: Date: Synchronized with a DOVADO NTP (Network Time Protocol) server upon each new successful Internet connection. Time: Displayed in a 24-hour format (HH:MM). In case the displayed time is incorrect, you can set the time-zone in the SYSTEM->NTP page. Signal: The latest measurement gathered by the USB modem upon connection is displayed in a percentage value, along with the technology (2G, 3G or 4G). The value is only updated after initiating a new connection. Connection: Indicates whether your current Internet connection is via the inser- ted USB modem or via an Ethernet WAN port. This is useful if your router has been configured to perform automated failovers between one dropped Internet connection to a secondary (backup) connection. Connection Indicator: Green color indicates that the DOVADO router is con- nected to the Internet via a USB modem. Red color indicates that it is discon- nected from the Internet. Traffic: Quickly displaying this month’s Internet consumption in gigabytes (GB) on the downlink and uplink of both Internet interfaces (USB modem and Ether- net WAN). Reference Manual 8 Data Traffic Usage Report It is possible to keep track of how much Internet traffic is consumed each new calendar month.A l…

Text truncated - open the document above for the full version.

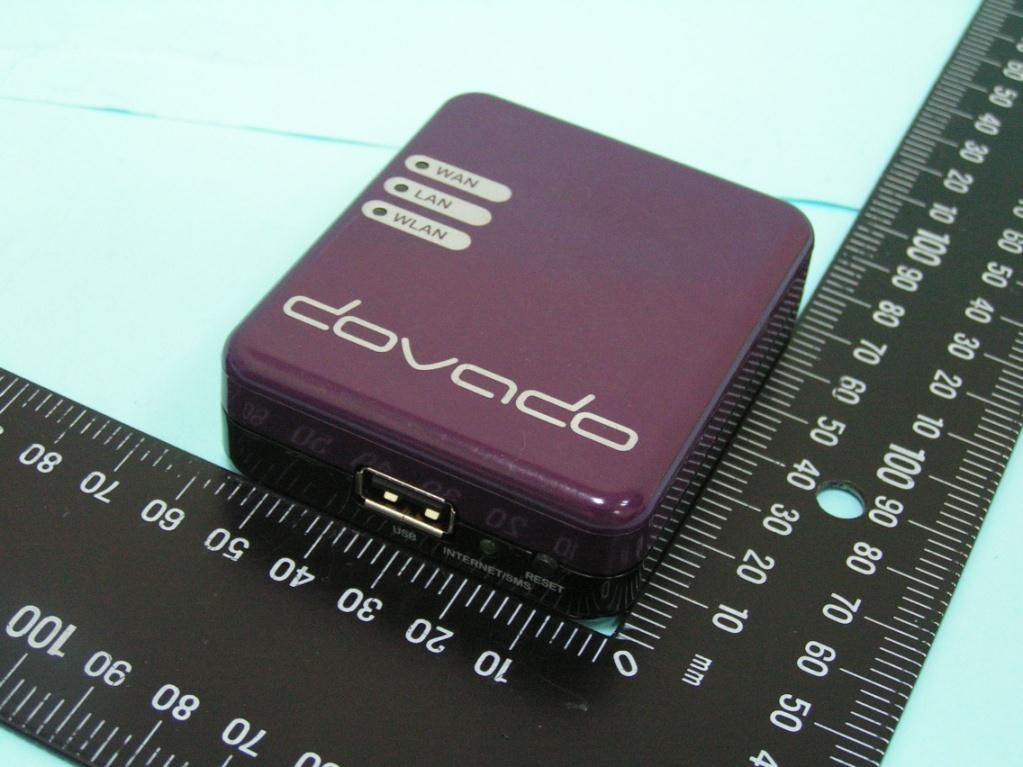

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 24, 2011 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 24, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 24, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 24, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 24, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 24, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 24, 2011 FAX : 886-2-2696-2255

Power: 5V 2A 59*10mm TINY ( TRN) Mobile Broadband Router Dovado P/N: 6291103270344 S/N: FCC ID: X7V6291103271 Made in China

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C4 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 24, 2011 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C4 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 24, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C4 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 24, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C4 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 24, 2011 FAX : 886-2-2696-2255

Page No. : A1 of A2 F FCC TEST REPORT Report No. : FR130931-03AC Appendix A. Maximum Permissible Exposure Page No. : A2 of A2 F FCC TEST REPORT Report No. : FR130931-03AC 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11b/g: 17.35dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 2 3.162278 17.35 54.3250 0.0171

Page No. : A1 of A3 F FCC TEST REPORT Report No. : FR130931-03AI Appendix A. Maximum Permissible Exposure Page No. : A2 of A3 F FCC TEST REPORT Report No. : FR130931-03AI 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Page No. : A3 of A3 F FCC TEST REPORT Report No. : FR130931-03AI 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11n (20MHz) : 15.29 dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 2 3.162278 15.29 33.8065 0.0107 Max Conducted Power for IEEE 802.11n (40MHz) : 15.24 dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 2 3.162278 15.24 33.4195 0.0105

SPORTON International Inc. Report Format Version: a F FCC TEST REPORT Report No. : FR130931-03AC FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : TINY (TRN) Mobile Broadband Router Brand Name : Dovado Model No. : TRN Filing Type : New Application Applicant : DOVADO FZ-LLC Dubai Internet City,Al-Thuraya Tower 1,P.O. Box 500422,Dubai, United Arab Emirates Manufacturer : EDIMAX TECHNOLOGY CO., LTD. No.3,Wu-Chuan 3rd Road,Wu-Ku Industrial Park, New Taipei City, Taiwan Received Date : Mar. 15, 2011 Final Test Date : Oct. 24, 2011 Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Dec. 13, 2011 FAX : 886-2-2696-2255 F FCC TEST REPORT Report No. : FR130931-03AC Table of Contents 1 SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2 GENERAL INFORMATION ...................................................................................................................................... 3 2.1 Product Details ................................................................................................................................................................................... 3 2.2 Accessories ........................................................................................................................................................................................ 3 2.3 Table for Filed Antenna ....................................................................................................................................................................... 3 2.4 Table for Carrier Frequencies ............................................................................................................................................................. 3 2.5 Test Manner ........................................................................................................................................................................................ 3 2.6 Table for Test Modes .......................................................................................................................................................................... 4 2.7 Table for Testing Locations ................................................................................................................................................................. 4 2.8 Table for Supporting Units .................................................................................................................................................................. 4 2.9 Table for Parameters of Test Software Setting .................................................................................................................................... 5 2.10 EUT Operation during Test ................................................................................................................................................................. 5 2.11 Test Configuration ............................................................................................................................................................................... 6 3 TEST RESULT ......................................................................................................................................................... 7 3.1 AC Power Line Conducted Emissions Measurement .......................................................................................................................... 7 3.2 Maximum Peak Output Power Measurement .................................................................................................................................... 13 3.3 Power Spectral Density Measurement .............................................................................................................................................. 15 3.4 6dB Spectrum Bandwidth Measurement ........................................................................................................................................... 21 3.5 Radiated Emissions Measurement .................................................................................................................................................... 31 3.6 Band Edge and Fundamental Emissions Measurement .................................................................................................................... 51 3.7 Antenna Requirements ..................................................................................................................................................................... 56 4 LIST OF MEASURING EQUIPMENTS .................................................................................................................. 57 5 TEST LOCATION ................................................................................................................................................... 59 6 TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 60 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE ................................................................................. A1 ~ A2 APPENDIX B. TEST PHOTOS ......................…

Text truncated - open the document above for the full version.

SPORTON International Inc. Report Format Version: a F FCC TEST REPORT Report No. : FR130931-03AI FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : TINY (TRN) Mobile Broadband Router Brand Name : Dovado Model No. : TRN Filing Type : New Application Applicant : DOVADO FZ-LLC Dubai Internet City,Al-Thuraya Tower 1,P.O. Box 500422,Dubai, United Arab Emirates Manufacturer : EDIMAX TECHNOLOGY CO., LTD. No.3,Wu-Chuan 3rd Road,Wu-Ku Industrial Park, New Taipei City, Taiwan Received Date : Mar. 15, 2011 Final Test Date : Oct. 24, 2011 Statement Test result included is only for the 802.11n of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Nov. 15, 2011 FAX : 886-2-2696-2255 F FCC TEST REPORT Report No. : FR130931-03AI Table of Contents 1 SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2 GENERAL INFORMATION ...................................................................................................................................... 3 2.1 Product Details ................................................................................................................................................................................... 3 2.2 Accessories ........................................................................................................................................................................................ 3 2.3 Table for Filed Antenna ....................................................................................................................................................................... 3 2.4 Table for Carrier Frequencies ............................................................................................................................................................. 4 2.5 Test Manner ........................................................................................................................................................................................ 4 2.6 Table for Test Modes .......................................................................................................................................................................... 4 2.7 Table for Testing Locations ................................................................................................................................................................. 4 2.8 Table for Supporting Units .................................................................................................................................................................. 5 2.9 Table for Parameters of Test Software Setting .................................................................................................................................... 5 2.10 EUT Operation during Test ................................................................................................................................................................. 5 2.11 Test Configuration ............................................................................................................................................................................... 6 3 TEST RESULT ......................................................................................................................................................... 7 3.1 AC Power Line Conducted Emissions Measurement .......................................................................................................................... 7 3.2 Maximum Peak Output Power Measurement .................................................................................................................................... 13 3.3 Power Spectral Density Measurement .............................................................................................................................................. 15 3.4 6dB Spectrum Bandwidth Measurement ........................................................................................................................................... 21 3.5 Radiated Emissions Measurement .................................................................................................................................................... 31 3.6 Band Edge and Fundamental Emissions Measurement .................................................................................................................... 51 3.7 Antenna Requirements ..................................................................................................................................................................... 56 4 LIST OF MEASURING EQUIPMENTS .................................................................................................................. 57 5 TEST LOCATION ................................................................................................................................................... 59 6 TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 60 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE ................................................................................. A1 ~ A2 APPENDIX B. TEST PHOTOS .............................…

Text truncated - open the document above for the full version.

Page No. : 1 of 19 FCC TEST REPORT Report No. : FR130931-03 Co-location Report Page No. : 2 of 19 FCC TEST REPORT Report No. : FR130931-03 1 TEST RESULT 1.1 Radiated Emissions Measurement 1.1.1 Limit 20dBc in any 100 kHz bandwidth outside the operating frequency band. In case the emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 1.1.2 Measuring Instruments and Setting Please refer to section 2 of equipments list in this report. The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Attenuation Auto Start Frequency 1000 MHz Stop Frequency 10th carrier harmonic RB / VB (Emission in restricted band) 1MHz / 1MHz for Peak, 1 MHz / 10Hz for Average RB / VB (Emission in non-restricted band) 1MHz / 1MHz for peak Receiver Parameter Setting Attenuation Auto Start ~ Stop Frequency 9kHz~150kHz / RB 200Hz for QP Start ~ Stop Frequency 150kHz~30MHz / RB 9kHz for QP Start ~ Stop Frequency 30MHz~1000MHz / RB 120kHz for QP Page No. : 3 of 19 FCC TEST REPORT Report No. : FR130931-03 1.1.3 Test Procedures 1. Configure the EUT according to ANSI C63.4. The EUT was placed on the top of the turntable 0.8 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz VBW and RBW for peak reading. Then 1MHz RBW and 10Hz VBW for average reading in spectrum analyzer. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum value. 8. If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High – Low scan is not required in this case. Page No. : 4 of 19 FCC TEST REPORT Report No. : FR130931-03 1.1.4 Test Setup Layout For radiated emissions below 30MHz For radiated emissions above 30MHz Above 10 GHz shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade from 3m to 1m. Distance extrapolation factor = 20 log (specific distance [3m] / test distance [1m]) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor [9.54 dB]. 1.1.5 Test Deviation There is no deviation with the original standard. 1.1.6 EUT Operation during Test The EUT was programmed to be in continuously transmitting mode. 3 or 1m Page No. : 5 of 19 FCC TEST REPORT Report No. : FR130931-03 1.1.7 Results of Radiated Emissions (9kHz~30MHz) Final Test Date Aug. 04, 2011 Test Site No. 03CH02-HY Temperature 24.2°C Humidity 50.5% Test Engineer Daniel Freq. Level Over Limit Limit Line Remark (MHz) (dBuV) (dB) (dBuV) - - - - See Note Note: The amplitude of spurious emissions that are attenuated by more than 20 dB below the permissible value has no need to be reported. Distance extrapolation factor = 40 log (specific distance / test distance) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor. Page No. : 6 of 19 FCC TEST REPORT Report No. : FR130931-03 1.1.8 Results of Radiated Emissions (30MHz~1GHz) Final Test Date Aug. 04, 2011 Test Site No. 03CH02-HY Temperature 24.2°C Humidity 50.5% Test Engineer Daniel Configuration WLAN + 3G Function ZTE 3G Dongle (Model:MF626) Horizontal Page No. : 7 of 19 FCC TEST REPORT Report No. : FR130931-03 Vertical Note: The amplitude of spurious emissions that are attenuated by more than 20dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Page No. : 8 of 19 FCC TEST REPORT Report No. : FR130931-03 Final Test Date Aug. 04, 2011 Test Site No. 03CH02-HY Temperature 24.2°C Hu…

Text truncated - open the document above for the full version.
