X7X-BR10RFID Blade Reader

I n t e l l e t t o T e c h n o l o g i e s In c . w w w . i n t e l l e t t o . c o m Blade Reader (BR10) User Manual Publication date: April.16.2012 B l a d e R e a d e r U s e r M a n u a l P a g e | ii 1 Contents 2 Safety instruction and Warnings ................................................................................................................... 1 3 Device Application ......................................................................................................................................... 1 4 Technical Data ............................................................................................................................................... 1 5 Physical characteristics .................................................................................................................................. 1 6 Charging the unit ........................................................................................................................................... 2 7 On the screen indicators ............................................................................................................................... 2 8 Read range .................................................................................................................................................... 2 9 Communication and command set ............................................................................................................... 3 10 Approvals ....................................................................................................................................................... 4 10.1 Approval for United States of America, FCC ......................................................................................... 4 10.2 Approval for Industry Canada, IC .......................................................................................................... 4 10.3 Labeling................................................................................................................................................. 4 B l a d e R e a d e r U s e r M a n u a l P a g e | 1 2 Safety instruction and Warnings Use this documentation to familiarize yourself with all necessary steps and considerations that must be considered before using this device. This device must strictly be used in accordance with the guild lines explain in this documentation and any changes or use of parts and additional devices which is not recommended by the manufacturer may cause harmful injuries and the manufacturer is not liable for such cases. Users must consult with the most recent documentation available at the time of purchase. The manufacturer is not responsible for the use of outdated or unsuitable documentation that may lead to incorrect use of the device. Any modification and/or repairs must be conducted by the manufacturer or its qualified representative. 3 Device Application Blade Reader is a RFID Bluetooth reader designed for the purpose of reading passive RFID-tags. Blade Reader operates at 13.56 MHz and is suitable for applications that require RFID read in a short to medium range. Blade reader is equipped with a flexible antenna, a display, buzzer and 4 user buttons. Blade Reader thin and flexible antenna allows the device to be used for reading RFID tags attached to books without a need to move the books off the shelf. 4 Technical Data Model Number BR10 Frequency 13.56MHz Baud Rate 115200bps User interface 4 switches, buzzer and a 102x64 LCD with back light RF Power 1/4W Battery Pack 17Wh, 7.2V Lithium Ion, 8 hours of full scanning operation Charger adaptor 9 Volt 1Amp DC adaptor (2.1mm center positive Jack) Weight 0.345 KG Color Gray and Purple or Black and Gray Tag support ISO 15693, ISO 14443A/B, HF EPC, Tag-it™, FeliCa™ Dimensions 9cmx22cmx29cm (WxHxD) Bluetooth Bluetooth 2.1/2.0/1.2/1.1 compliant, read range up to 10 meters Compliance FCC, ICS, CE and RoHS Operating Temperature 0 up to +40 centigrade Storage Temperature -15 up to +50 Centigrade Enclosure ABS 5 Physical characteristics Following figure 1 shows the Blade Reader physical dimensions and location of important parts. B l a d e R e a d e r U s e r M a n u a l P a g e | 2 1- Loop antenna 2- Battery pack location 3- LCD display 4- Keypad 5- Buzzer & Bluetooth antenna location 6- Charger input 7- Location of made in label 6 Charging the unit Blade reader is equipped with a rechargeable battery pack. To re-charge your unit you must use the adaptor shipped with the device. A blue led indicator located on keypad turns on while the unit is charging and turns off when the unit is fully charged. Please note the unit must be charged before using for the first time. Charging process for a discharged unit to become fully charged takes about 4 to 6 hours. 7 On the screen indicators Following figure shows the indicators for Bluetooth status (connected and not connected), battery status (full, good, low) and firmware version loaded. This information is visible to user at all time. The rest of display shows messages depending to controller application software being used. 8 Read range The RFID tag read range depends on type of tags being used. Following figure show the nominal read range when 50mm square tags are being used. B l a d e R e a d e r U s e r M a n u a l P a g e | 3 9 Communication Blade Reader accepts commands over air (i.e. Bluetooth SPP connection). As soon as Blade Reader receives a command from inquiring device it executes the command and sends back a full or partial respond. It is up to inquiring device to recognize the end of response based on command/reply protocol. A Bluetooth device needs to turn the RF on and set the protocol before issuing any RFID command. Issuing an inventory command returns all unique identifiers of tags (UID) in the proximity of the Blade Reader. Bluetooth device further can issue read command using the UIDs received from inventory command to read data block of each t…

Text truncated - open the document above for the full version.

I n t e l l e t t o T e c h n o l o g i e s I n c . w w w . i n t e l l e t t o . c o m April.24, 2012 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: X7X-BR10 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics X7X-BR10_Schem.pdf Parts List X7X-BR10_PartsLst.pdf Block diagrams X7X-BR10_BlockDia.Pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. April.24, 2012 Sincerely, Homayoun Ahmadi ___________________________ Title: VP Product Development On behalf of : Intelletto Technologies Inc. Phone No.: 905 943 4260 Ext 244 Fax No.: 905 943 4470 Email : [email protected]

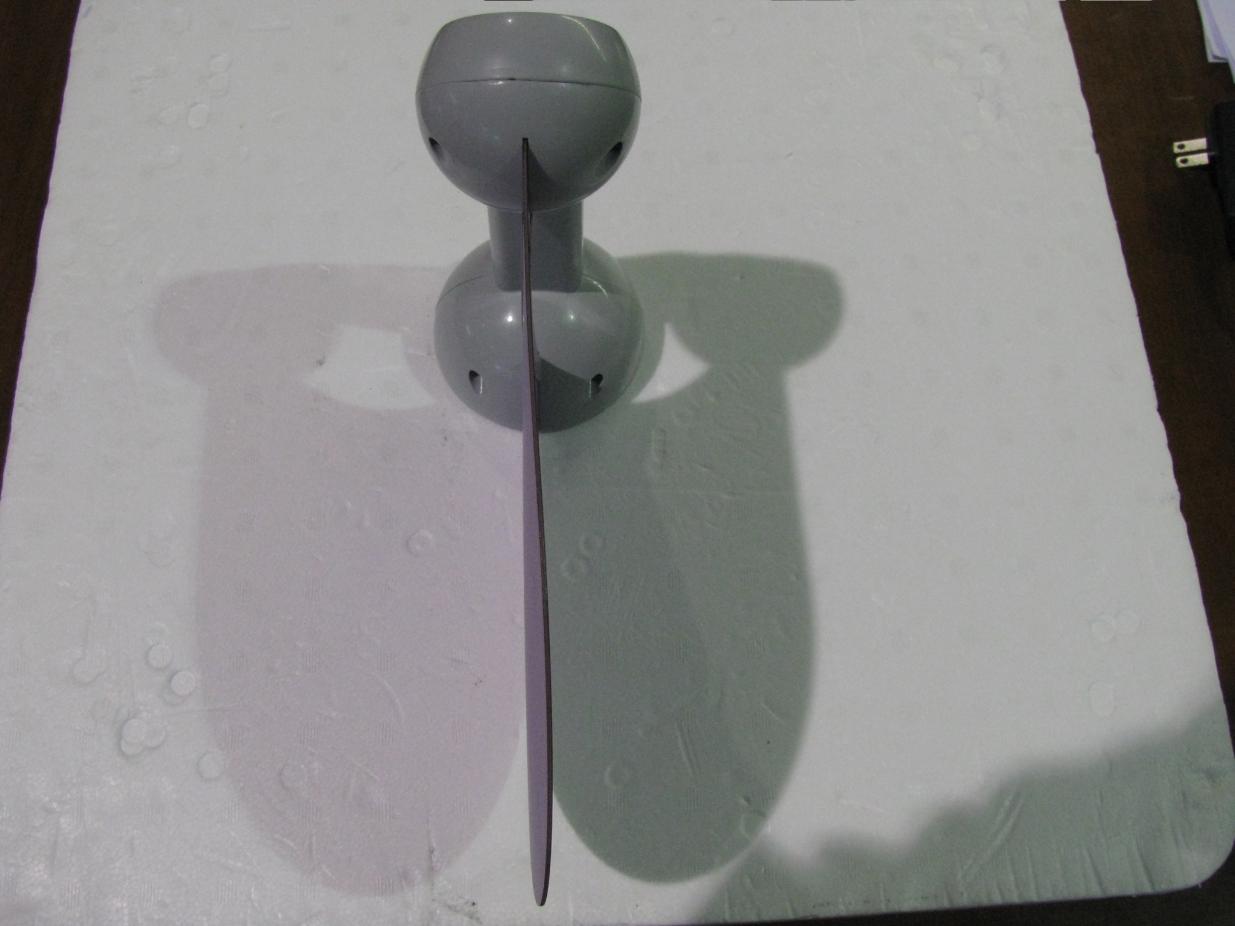

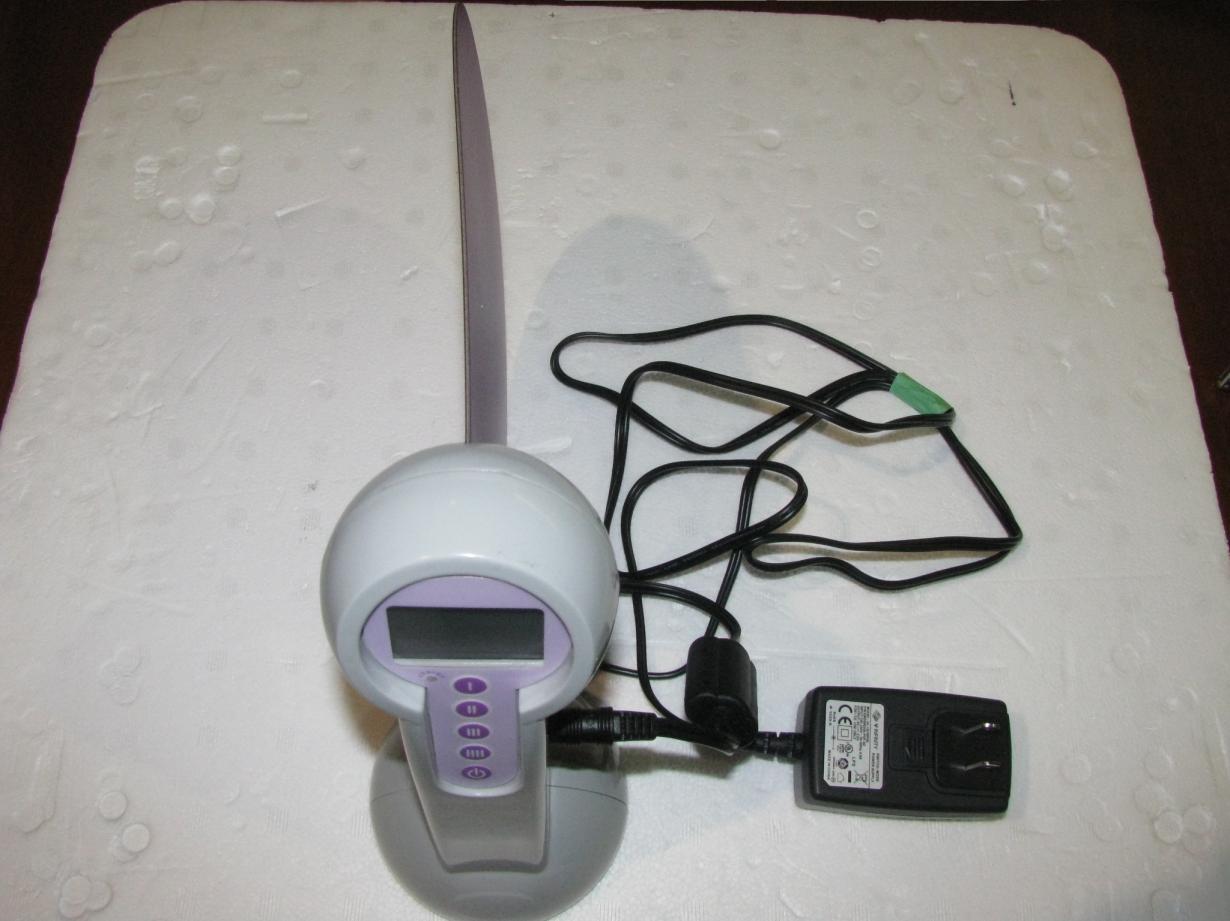

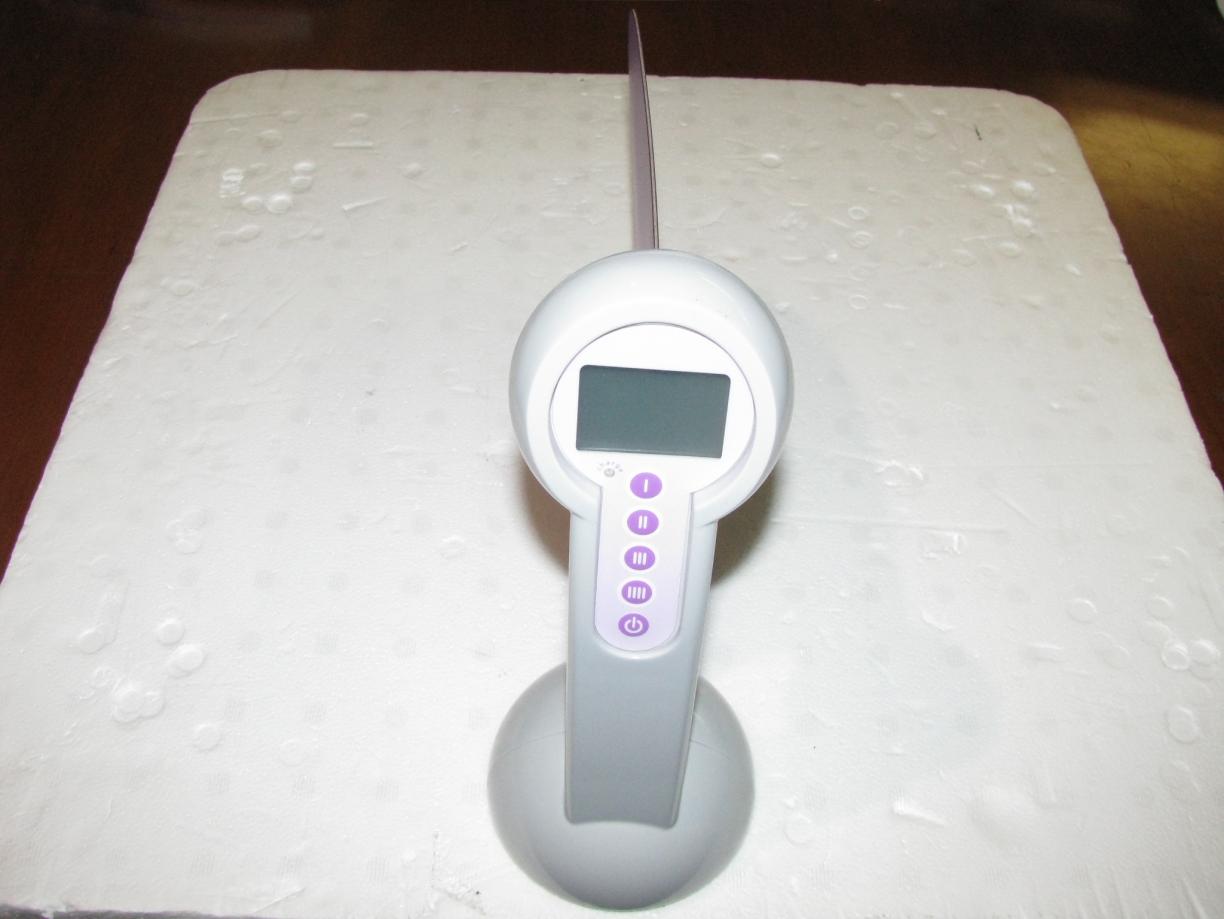

Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 1 of 5 Report issued: 4/26/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Blade Reader (Scanner) - Front view Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 2 of 5 Report issued: 4/26/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Blade Reader (Scanner) - Side view Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 3 of 5 Report issued: 4/26/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Blade Reader (Scanner) - Rear view Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 4 of 5 Report issued: 4/26/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Blade Reader (Scanner) with switch mode power supply/charger Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 5 of 5 Report issued: 4/26/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Blade Reader (Scanner) with switch mode power supply/charger and external blue tooth device

Label Location Label Location Blade Scanner Model: BR10 Made in Canada S/N: ntelletto IC: 8859A-BR10 FCC ID: X7X-BR10 9 VDC 15W + - Contains: Module 2.4GHz FCC ID: T9J-RN42 IC: 6514A-RN42 This device complies with Part 15 of FCC Rules. Operation is subject to following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Intelleto Technologies inc. Blade Scanner Label and location

Blade Scanner Model: BR10 Made in Canada S/N: ntelletto IC: 8859A-BR10 FCC ID: X7X-BR10 9 VDC 15W + - Contains: Module 2.4GHz FCC ID: T9J-RN42 IC: 6514A-RN42 This device complies with Part 15 of FCC Rules. Operation is subject to following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 1 of 6 Report issued: 4/25/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Blade Reader (Scanner) - Internal view1 Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 2 of 6 Report issued: 4/25/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Blade Reader (Scanner) - Internal view2 Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 3 of 6 Report issued: 4/25/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Blade Reader (Scanner) - Internal view3 Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 4 of 6 Report issued: 4/25/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Blade Reader (Scanner) - Internal view4 Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 5 of 6 Report issued: 4/25/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Blade Reader (Scanner) - Internal view5 Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 6 of 6 Report issued: 4/25/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Blade Reader (Scanner) - Internal view6

Operation Manual Product Name: Blade Reader (Scanner) Model Number: BR10 Publication date: April.16.2012 B l a d e R e a d e r O p e r a t i o n M a n u a l P a g e | 2 Product description Blade Reader is a Bluetooth RFID reader. Following diagram shows how Blade Reader is being used to in conjunction with a Bluetooth device (e.g. tablet pc) to read RFID tags. 13.56MHz RF front end Receiver The main receiver is composed of RF envelope detection stage, first gain and band-pass filtering stage, second gain and filtering stage with AGC and digitizing stage which output is connected to the digital processing block. The main receiver also comprises a RSSI measuring stage with measures the demodulated signal after first gain and filtering stage. The auxiliary receiver is basically used only to measure the RSSI of the modulation signal on the input not connected to main input Transmitter The transmitter part composes of 13.56MHz oscillator, protocol processing digital part and RF output stage. The 13.56MHz quartz oscillator directly generates the RF frequency for RF output stage. It also generates clock signal for digital part which is used by main controller. The frequency on SYS_CLK in normal operation is 6.78MHz, set at ‘Modulator and SYS_CLK control’ register. The RF output stage is a non-overlapping driver with output resistance set at 4Ω. Bluetooth Module Blade reader uses a Bluetooth module (Roving Networks Bluetooth module RN-42 ) for communicating with external Bluetooth devices. The Bluetooth module is connected through a serial connection (TTL level) to main controller. Following is the block diagram of this module based on the manufacturer datasheet. B l a d e R e a d e r O p e r a t i o n M a n u a l P a g e | 3 User interface Blade Reader is equipped with a LCD display. Information such as version of the firmware and charge status plus Bluetooth connection status is displayed at the most upper lines of the display. The rest of display area is addressable by user by issuing write display command thorough a Bluetooth connection. Blade Reader is equipped with four user keypad. User is able to issue a command through a Bluetooth connection to read the last status of buttons. Power up and power down operation Power up and power down operations can be started with pressing power button (toggle button) on Blade Reader by a user. Power up operation consists of following operations:  Sets RF protocol registers for proper clock and protocol.  Sets the clock frequency for controller unit from internal clock to external clock (6.78MHz).  Clearing display unit and setting the proper scan rate.  Checking and displaying battery status and Bluetooth connection on the user display.  Enters command mode (i.e. accepting commands from external Bluetooth device). Command Mode operation In this mode Blade Reader accepts commands over air (i.e. Bluetooth SPP connection). As soon as Blade Reader receives a command from inquiring device it executes the command and sends back a full or partial respond. It is up to inquiring device to recognize the end of response based on command/reply protocol. Command mode can be used to read RFID tag data. A Bluetooth device needs to turn the RF on and set the protocol before issuing any RFID command. Issuing an inventory command returns all unique identifiers of tags (UID) in the proximity of the Blade Reader antenna. Bluetooth device further can issue read command using the UIDs received from inventory command to read data block of each tag. Bluetooth device also can issue commands to send visual and audible feedback to user (Display command or Beep command). Power up Mode 1 User is able retrieve Bluetooth MAC address of the Blade Reader by holding button 1 on power up. Power up mode 1 consists of following operations: 1. Sets the baud rate for Bluetooth module to 115200bps. B l a d e R e a d e r O p e r a t i o n M a n u a l P a g e | 4 2. Sets the Bluetooth to be discoverable. 3. Set the name for Bluetooth module to “Blade-Reader xxxx” ( xxxx is last 4 characters of MAC address). 4. Displays the MAC address for Blade Reader. Power up Mode 2 Blade Reader enters this mode if button 2 is pressed on power up. Device enters a self read mode and executes inventory command. If a RFID tag detected, it beeps.

REGISTRATION #6844A-1 Testing Laboratory Certificate #2555.01 R-2621 C-2864 REG#612361 Page 1 of 67 Report issued: 4/26/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc This report is based on GEMC report template 60601-1-2-2004-Rev4 Global EMC Labs EMC / EMI Test Report As per FCC Part 15.225, Subpart C: 2011 RSS 210:Issue 8: 2010 on the Blade Reader (Scanner) Sanjiv Vyas Project Engineer Global EMC Inc. 180 Brodie Drive, Unit 2 Richmond Hill, ON, L4B 3K8 Canada Ph: (905) 883-8189 Testing produced for Intelletto Technologies Inc. See appendix A for full customer & EUT details. Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 2 of 67 Report issued: 4/26/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Table of Contents Table of Contents ................................................................................................................... 2 Report Scope .......................................................................................................................... 3 Summary ................................................................................................................................ 4 Test Results Summary ....................................................................................................... 5 Justifications or Deviations ................................................................................................ 6 Applicable Standards, Specifications and Methods ............................................................... 7 Document Revision Status ................................................................................................. 8 Definitions and Acronyms ..................................................................................................... 9 Testing Facility .................................................................................................................... 10 Calibrations and Accreditations ....................................................................................... 10 Testing Environmental Conditions and Dates ................................................................. 11 Detailed Test Result Section ................................................................................................ 12 Power Line Conducted Emissions ................................................................................... 13 Radiated Emissions .......................................................................................................... 20 RFID Emissions Mask ..................................................................................................... 36 20 dB Bandwidth Measurement....................................................................................... 47 Carrier Frequency Stability .............................................................................................. 48 Appendix B – EUT & Test Setup Photos ............................................................................ 56 Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 3 of 67 Report issued: 4/26/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Report Scope This report addresses the EMC verification testing and test results of the Blade Reader (Scanner), herein referred to as EUT (Equipment Under Test) performed at Global EMC Labs. The EUT was tested for compliance against the following standards: FCC Part 15 Subpart C: 2011 RSS 210: Issue 8: 2010 Radiated emissions and conducted emission testing were evaluated on the EUT. Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. The results contained in this report relate only to the item(s) tested. This report does not imply product endorsement by A2LA or any other accreditation agency, any government, or Global EMC Inc. Opinions/interpretations expressed in this report, if any, are outside the scope of Global EMC Inc accreditation. Any opinions expressed do not necessarily reflect the opinions of Global EMC Inc, unless otherwise stated. Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 4 of 67 Report issued: 4/26/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Summary The results contained in this report relate only to the item(s) tested. FCC ID # X7X-BR10 IC Registration # 8859A-BR10 Equipment under test Blade Reader (Scanner) EUT Passed all tests performed. Yes Tests conducted by Sanjiv Vyas Note: For testing dates see ‘Testing Environmental Conditions’. Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 5 of 67 Report issued: 4/26/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Test Results Summary Standard/Method Description Result FCC 15.207 / 15.107 ICES-003 Power line conducted emissions PASS – See Justification FCC 15.209 RSS-GEN Tables 5 & 6 Radiated emissions PASS FCC 15.203 RSS-Gen 7.1.2 Antenna Requirement PASS – See Justifications FCC 15.205 RSS-GEN Table 3 Restricted Bands PASS – See Justifications FCC 15.225 (a)(b)(c)(d) RSS-210 A2.6 Emissions Mask PASS FCC 15.225 (e) RSS-210 A2.6 Carrier Frequency Stability PASS Overall Result PASS If the product as tested complies with the specification or requirement, the EUT is d…

Text truncated - open the document above for the full version.

Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 1 of 7 Report issued: 4/25/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Power Line Conducted Emissions Test Set up _ Photo 1 Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 2 of 7 Report issued: 4/25/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Power Line Conducted Emissions Test Set up _ Photo 2 Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 3 of 7 Report issued: 4/25/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Radiated Emissions Test Set up _ Photo 1 Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 4 of 7 Report issued: 4/25/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Radiated Emissions Test Set up _ Photo 2 Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 5 of 7 Report issued: 4/25/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Radiated Emissions Test Set up _ Photo 3 Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 6 of 7 Report issued: 4/25/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Radiated Emissions Test Set up _ Photo 4 Client Intelletto Technologies Inc. Product Blade Reader (Scanner) Standard(s) FCC Part 15 Subpart C 2011 & RSS-210: Issue 8 Page 7 of 7 Report issued: 4/25/2012 GEMC File #: GEMC-FCC-20796R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc Carrier Frequency Stability Test Set up
