X99YK-500Flash Spike Strip Remote Control

Index . Safe usage of Product 01 . Product introduction 02 . Deployment & Launch 03 . Reloading Strips 06 . Maintain Used Strips 11 . Maintenance Tips 13 . FAQ 15 . Performance Index 17 1. Safe usage of product Thank you for using Flash Spike Strip. Our product is the safest and the first design of electronic remote control & automatic mechanical ejection tactical equipment. It brings success and safety to Operator in stop chasing tasks when facing the high speed wild running car near the road. For user’s benefit, please also carefully read over below safety instructions before using the product to safely use our product and guarantee the success of your task. Please don’t stand in front of launch hatch door of suitcase when using the product. Operator’s first maintenance task need to be under supervisor of experienced engineer. During maintenance task, please switch off the power before you refill strips into suitcase. During maintenance task, please avoid touching pole hook lock or turn pole hook handle after you locked it done and before you completely refill it into suitcase. During maintenance task, please pay attention to sharp spike and strip self-expansion when folding it. Please wear gloves if required. Product has complex circuit inside suitcase, please avoid throwing or swing it in the task. Product function problem can only be repaired by qualified engineer. 2. Product introduction 3. Deployment & Launch Deployment i. Put the suitcase aside the road with control panel facing outside of road. Adjust launching hatch door of suitcase (with mark ‘FLASH SPIKE STRIP’ or ‘CAR INTERCEPTOR’) to face the road inside vertically. See below diagram please. ii. Switch on the power clockwise in the left side of control panel. The system light in the center of control panel should start blinking in every 5 seconds. It indicates system has been started. See below diagram please. iii. Please pick up either of Mini remote control or Hand-held STOP remote control from top side of suitcase and walk to safe/tactical location to get ready for tasks. Please test status of wireless connection with system by pressing Button A. The status light on both sides of suitcase should start blinking then please press Button B to stop wireless connection testing. If the status light is not on after pressing Button A, please extend antenna of remote control or walk near to the system until it can receive signal properly. After go through above steps, now the system has been deployed and is ready for launch. It can be on standby at least 720 hours until the system has no juice. 05 Flash Spike Strip Launch i. If the chasing or suspect is coming soon, please open the safety of system by pressing button C of remote control. ii. Once operator see car chasing or suspect, press button D right away and the system will launch strip spike and block off the entire road within 2 seconds. Note: At Launch steps above, in some special cases such like missing remote control, battery has no juice etc. , operator can also manually switch on ‘emergency switch’ clockwise in the right side of panel of suitcase to launch strip spike to block off the road immediately after power is on. We’d highly recommend operator never let this happen because anyone who gets close to the road is very dangerous in stopping chasing tasks. Flash Spike Strip 4. Reloading Strips i. Switch off the power of system by turning power switch anticlockwise on the left side of the control panel. The system light in the center of control panel should be off now. PLEASE ALWAYS REMEMBER TO SWITCH OFF THE POWER BEFORE YOU RELOADING STRIPS INTO THE SUITCASE. See diagram below please: ii. The door of launch hatch of suitcase should be open now after just finished task. If it’s not or operator accidentally closed it, operator can also switch on ‘emergency switch’ clockwise on the right panel of suitcase to open the door of launch hatch.See diagram below please: Flash Spike Strip iii. Slowly plug in strip spike into suitcase by pushing pole hook until spring bolts automatically locks the strips. See diagram below please: iv. Pull out pole hook by below stepsa) Push pole hook lock ahead until its end (about 5 CM) b) Turn pole hook handle from horizontal to vertical 90 degree c) Then operator can pull pole hook from strip away d) Close the launch hatch door of suitcase e) put pole hook back ii. Two people walk towards by one foot hold edge of strips to fold. iii. Stay put to hold strips until iv. Make pole hook chain the pole hook lock it done. backbone of strips through 13 Flash Spike Strip v. run hook’s socket through vi. Press down pole hook cap screw cap one by one until last to fasten one end vii. While one hand keep pressing down the pole hook cap, another hand turn pole hook handle on the other side from vertical 90 degree to 180 degree (a complete horizontal line). Then pole hook lock will automatically lock the strips(you will hear ‘click’ when it automatically locks strips). 6. Maintenance Tips The system has 4 D cells in cell box and it can be on standby for at least 720 hours for ready to launch. It has 5 power lights to indicate the power of cell. The light will become off one by one as the mark of decreasing power. Please change the 4 D cells at the appropriate time. The system has two remote controls. One is built as mini remote control shape and another is built as hand-held STOP shape so it will meet both requirements of normal highway patrol asking pull over and SWAT hidden interceptor tasks. There is a built-in 23A-12V cell in mini remote control. Please replace it at appropriate time. The hand-held STOP remote control has a built-in charge battery and flashlight function. Please charge it at appropriate time. Suitcase top can prevent rain water but please avoid water flood into suitcase because the product has complex circuit inside the suitcase. Operator should test this system at least once each year to make sure it’s in a good for use status. If op…

Text truncated - open the document above for the full version.

ENCODER 433MHz RF OSCILLATOR ASK MODULATION 12V Battery Key board Charge Circuit

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 APPLICANT Name ：Beijing Quanyong Manufacture & Trade Co.,Ltd. RR Date： Jan，15，2010 APPLICANT Address: Room 402, unit 4, building 11, LiNong Lane, PingGu District, Beijing, China To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Beijing Quanyong Manufacture & Trade Co., Ltd.hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Flash Spike Strip model name：YK-500 We affirm that between SIEMIC and Beijing Quanyong Manufacture & Trade Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature ： Client’s title ：General Manager Contact information ： [email protected] Telephone: 010- 60918162

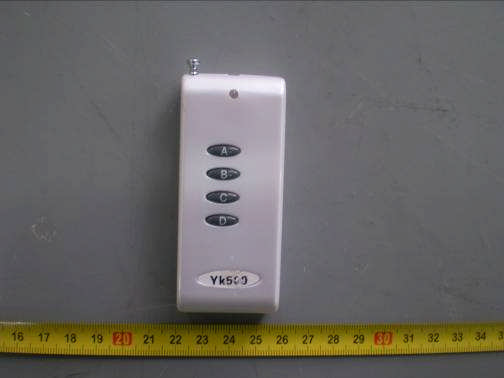

Front View of EUT Rear View of EUT

FCC ID Label Sample For FCC ID：X99YK-500 FCC ID：X99YK-500 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label

Top View of PCB Bottom View of PCB

CIRCUIT EXPLANATION The circuit has 5 parts as follows: 1: PT2264 is an encoder press one of the keys, it can send out different codes, 2: TR2 is an electric switch, which can control the RF oscillator. Its function is a ASK modulator. 3: RF oscillator is composes of C1、C2、C3、CR1、R7、TR1.CR1 is a crystal filter which frequency is 433MHz. Signal is sent out by antenna inside. 4: 12V rechargeable battery supply the power to all the circuits. 5: Charge Circuit is composed of C4、R8 and BR1

Beijing Quanyong Manufacture & Trade Co., Ltd FlashSpikeStrip Model:YK-500 24March2010 ReportNo.:902604 (This report supersedesNONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: PeterCai TestEngineer Jackson Chen Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title:RFTest Report forFlashSpikeStrip Model:YK-500 To:FCC15.231:2009 Serial#:902604 Issue Date:24March2010 Page:2of41 www.siemic.com.cn Laboratory Introduction ATION SIEMIC,headquartered in the heart of Silicon Valley, with superior facilities in US andAsia, is one of the leading independent testing and certification facilities providingcustomers withone-stop shop servicesfor Compliance Testing and Global Certifications. In addition totestingandcertification, SIEMIC provides initial design reviews andcompliance managementthrough out a project. Our extensive experience withChina,Asia Pacific,North America, European, and internationalcompliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for theglobal markets. Accreditations for Conformity Assessment Country/RegionAccreditation BodyScope USAFCC, A2LAEMC , RF/Wireless, Telecom CanadaIC, A2LA, NISTEMC,RF/Wireless, Telecom TaiwanBSMI , NCC , NISTEMC, RF, Telecom , Safety Hong KongOFTA , NISTRF/Wireless,Telecom AustraliaNATA, NISTEMC, RF, Telecom , Safety KoreaKCC/RRA, NISTEMI, EMS, RF , Telecom, Safety JapanVCCI, JATE, TELEC,RFTEMI,RF/Wireless, Telecom MexicoNOM, COFETEL,CanietySafety,EMC , RF/Wireless, Telecom EuropeA2LA, NISTEMC, RF, Telecom , Safety Accreditations for Product Certifications CountryAccreditation BodyScope USAFCCTCB, NISTEMC , RF , Telecom CanadaICFCB, NISTEMC , RF , Telecom SingaporeiDA, NISTEMC , RF , Telecom Title:RFTest Report forFlashSpikeStrip Model:YK-500 To:FCC15.231:2009 Serial#:902604 Issue Date:24March2010 Page:3of41 www.siemic.com.cn This page has been left blank intentionally. Title:RFTest Report forFlashSpikeStrip Model:YK-500 To:FCC15.231:2009 Serial#:902604 Issue Date:24March2010 Page:4of41 www.siemic.com.cn CONTENTS 1EXECUTIVE SUMMARY &EUTINFORMATION.............................................................................................................5 2TECHNICAL DETAILS..................................................................................................................................................6 3MODIFICATION............................................................................................................................................................7 4TEST SUMMARY..........................................................................................................................................................8 5MEASUREMENTS, EXAMINATION AND DERIVED RESULTS........................................................................................9 ANNEX A. TEST INSTRUMENT & METHOD.........................................................................................................................18 ANNEX B.EUT AND TEST SETUP PHOTOGRAPHS...........................................................................................................22 ANNEX C.TEST SETUP AND SUPPORTING EQUIPMENT...................................................................................................23 ANNEXD.USER MANUAL / BLOCKDIAGRAM / SCHEMATICS/ PART LIST.......................................................................27 ANNEXE.SIEMIC ACCREDITATIONCERTIFICATES..........................................................................................................28 Title:RFTest Report forFlashSpikeStrip Model:YK-500 To:FCC15.231:2009 Serial#:902604 Issue Date:24March2010 Page:5of41 www.siemic.com.cn 1Executive Summary & EUTInformation The purpose of this test programme was to demonstrate compliance of theBeijingQuanyong Manufacture&TradeCo.,Ltd,FlashSpikeStrip, against the current Stipulated Standards. TheFlash SpikeStriphasdemonstrated compliance with theFCC15.231:2009. EUT Information EUT Description Flash Spike Strip Model No YK-500 Serial No N/A Input Power 12Vdc,23A Classification Per Stipulated Test Standard DSC Title:RFTest Report forFlashSpikeStrip Model:YK-500 To:FCC15.231:2009 Serial#:902604 Issue Date:24March2010 Page:6of41 www.siemic.com.cn 2TECHNICAL DETAILS PurposeCompliance testingofFlash Spike Stripwith stipulated standard Applicant / Client BeijingQuanyongManufacture&TradeCo.,Ltd Room402,Unit4,LinnongHutong11,PingguDistrict,Beijing Manufacturer BeijingQuanyongManufacture&TradeCo.,Ltd Room402,Unit4,LinnongHutong11,PingguDistrict,Beijing Laboratory performing the tests SIEMIC Nanjing(China)Laboratories NO.2-1,Longcang Dadao, Yuhua EconomicDevelopment Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number902604 Date EUT receivedMarch1,2010 Standard appliedFCC15.231:2009 Dates of test (from–to)March15toMarch23,2010 No of Units:#1 Equipment Category: DSC Trade Name:N/A Model:YK-500 RFOperating Frequency (ies):433.99MHz Number of Channels :1 Modulation :ASK FCC ID：X99YK-500 Title:RFTest Report forFlashSpikeStrip Model:YK-500 To:FCC15.231:2009 Serial#:902604 Issue Date:24March2010 Page:7of41 www.siemic.com.cn 3MODIFICATION NONE Title:RFTest Report forFlashSpikeStrip Model:YK-500 To:FCC15.231:2009 Serial#:902604 Issue Date:24March2010 Page:8of41 www.siemic.com.cn 4TEST SUMMARY The product was tested in accordance with the following specifications. Alltesting has been performed according to below product classification: DSC Test Results Summary Test StandardDescriptionPass / Fail 47CFRPart 15.231: 2009 15.203Antenna RequirementPass 15.207Conducted Emissions VoltageN/A 15.231(b)Fundamental & Radiated Spurious Emission LimitsPass 15.231(c)20dBBandwidthPass 15.231(a)(1)DeactivationPass ANSI C63.4: 2009 PS: All measurement uncertainties are not …
