® SBW-97-TP Operation Guide Pair Button (Fn + P) Clean Button (Fn + C) www.iKey.com • 1.800.866.6506 Pairing Instructions • Insert the provided SBW-97-TP Dongle into an open USB port on your computer. The system will detect and install the appropriate drivers. Once the SBW-97-TP Dongle has been detected and properly installed by Windows you are ready to pair the keyboard. • In order to enter pairing mode, press the Fn + P keys simultaneously and then release both keys. The Scroll Lock/Pairing LED indica- tor will flash blue until the keyboard pairs to the SBW-97-TP Dongle. The operating system will recognize the new keyboard and install the needed drivers. No special drivers are required to operate the keyboard. Upon suc- cessful pairing the LED will turn off. If you do not see the LED illuminate when attempting to pair, you may have to charge the battery (see charging instructions below). Charging Instructions • To charge the keyboard, insert the provided Micro USB charging cable into the back of the keyboard and plug the other end of the cable into a powered USB port on any computer. The Caps Lock/Charging LED indicator will illuminate orange when charging and will turn off when fully charged. In a fully discharged state, the battery takes 5 hours to completely recharge. • With average usage of the keyboard, the anticipated battery life is two weeks. Functionality and Features • To conserve power, the keyboard can be turned off when not in use by pressing the Fn + F1 keys simultaneously. All three LEDs will flash once indicating the keyboard has turned off. The same key combination will then turn the power back on. Each time the keyboard is powered off it will need to be paired with the host again. • To disable the keyboard for cleaning, press the Fn + C keys simultaneously. The Scroll Lock LED will continuously flash green indicat- ing the keyboard is in clean mode. After cleaning the keyboard press the Fn + C keys again to reactivate keyboard. The LEDs will stop flashing to indicate keyboard is active. Note: The SBW-97-TP ships from iKey with the internal battery fully charged and ready to use out of the box. Power Button (Fn + F1) ® SBW-97-TP Operation Guide ©2012 iKey, Ltd. All rights reserved. Lock Key Indicators There are six LED indicators located at the top of the keyboard. These are dual purpose indicating LEDs. • The first LED is Num Lock and may also indicate low power. When Num Lock is on the LED will be green and when the battery has low power the LED will blink red. • The second LED indicates Caps Lock and Charging. Caps Lock is indicated by a green LED and when the keyboard battery is being charged the LED will be orange. • The third LED is the Scroll Lock and Pairing LED. When Scroll Lock is on the LED will be green. When the keyboard is put into paring mode the LED will blink blue for two minutes or until the keyboard pairs to a dongle. Sleep Mode After 10 seconds of inactivity, the unit will go into Sleep Mode. This is a power saving feature on the board that will put the board in a low power state until needed again. To wake the unit from sleep mode press any key or use the touchpad. We recommend pressing the space bar or using the touchpad to prevent interference with any programs on your computer. Signal Distance The SBW-97-TP can function up to a distance of 10 meters (~30 feet) from the host com- puter. The signal may be lost if the keyboard gets out of range, but the unit should start working again if you move back within the 10 meter signal distance. If the unit still does not work it may need to be re-paired. Other Keyboards/Mice Our SBW-97-TP units will not interfere with any other keyboard, mouse, or keyboard/ mouse combo that is plugged into the USB or PS2 ports of the computer. Questions? Contact ® 512.837.0283 800.866.6506 Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph: The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The user should not modify or change this equipment without written approval form D-Link Corporation. Modification could void authority to use this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. [email protected] www.iKey.com SBW-97-TP Dongle

Date: '1/ r& I(.61 ~ Compl iance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 530 I of the Anti-Drug Abuse Act of 1988,21 U.S.c. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program ; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, survei \lance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; iKey, Ltd 2621 Ridgepoint Dr.. Suite 235 1 Austin . Tx 78754 800.866.6506 www.ikey.com 910805 e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product's compliance with requirements ofthe relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, l)i1tJv%=< Operations Manager / Dave Hudd leston iKEY, Ltd 2621 Ridgepoint Drive, Austin, TX 78754 1)101(05 2

--------------------------- Federal Communications Commission FCC 10: XA9-SBW97TPD Product Name: Wireless Dongle Model Name: SBW-97-TP-DONGLE Trade Name: iKEY Dear Sir: Tn accordance with 47 C.F.R. Section 0.459, we would like to request confidentiality on some exhibits we submitted for above application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics and Operation Description. BY' ~= By: Dave Huddleston (Signature) (Printed) Title Operations Manager Applicant: iKEY, Ltd ----~~--------------------------------------------- Address 2621 Ridgepoint Drive , Austin , TX 78754 Tel I-512-837-0283 Fax: 1-512-926-0220 Date iKey, Ltd 2621 Ridgepoint Dr., Suite 235 1 Austin, Tx 78754 800.866.6506 www ikey.com 9 tliH05 3

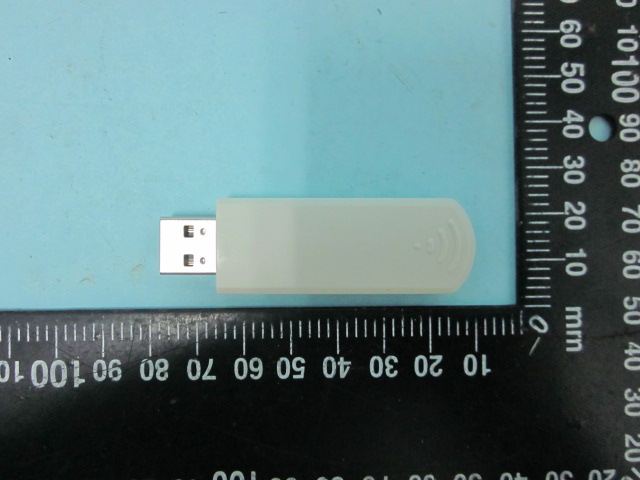

ETC Report No. : 12-08-RBF-021-05 Sheet 1 of 2 Sheets FCC ID.: XA9-SBW97TPD Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 1. 2.

20*6 mm FCC ID: XA9-SBW97TPD

ETC Report No. : 12-08-RBF-021-05 Sheet 1 of 2 Sheets FCC ID.: XA9-SBW97TPD Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 1. 2. ETC Report No. : 12-08-RBF-021-05 Sheet 2 of 2 Sheets FCC ID.: XA9-SBW97TPD Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 3. 4.

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Wireless Dongle MODEL : SBW-97-TP-Dongle Serial Model : SBW-97-TP-Dongle-0 FCC ID. : XA9-SBW97TPD Frequency Range : 2402MHz~2478MHz for APPLICANT : iKEY, Ltd ADDRESS : 2621 Ridgepoint Drive, Austin, TX 78754 Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5, DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 FAX: (02)26010910 http ： // www.etc.org.tw; e-mail ： [email protected] Report Number : 12-08-RBF-021-05 ETC Report No. : 12-08-RBF-021-05 FCC ID. : XA9-SBW97TPD Rev. No 2.0 TEST REPORT CERTIFICATION Applicant : iKEY, Ltd 2621 Ridgepoint Drive, Austin, TX 78754 Manufacturer : IPA Electronics (Taiwan) Corp. 5F-3, #190, Sec. 2, Zhong Xing Rd, Xindian District, New Taipei City, Taiwan 231 Description of EUT a) Type of EUT : Wireless Dongle b) Trade Name : iKEY c) Model No. : SBW-97-TP-DONGLE d) Serial Model : SBW-97-TP-DONGLE-0 e) Power Supply : Power From PC f) Frequency Range : 2402MHz~2478MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Summary of Tests Test Results Radiated Emission Pass Conducted Emission Pass Band Edge Requirement Pass ETC Report No. : 12-08-RBF-021-05 FCC ID. : XA9-SBW97TPD Rev. No 2.0 Date Test Item Received : Aug. 24, 2012 Date Test Campaign Completed : Sep. 18, 2012 Date of Issue : Oct. 29, 2012 Test Engineer : ( Jiapeng Chen, Engineer ) Approve & Authorized Signer : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 12-08-RBF-021-05 FCC ID. : XA9-SBW97TPD Rev. No 2.0 Table of Contents Page 1 GENERAL INFORMATION ...................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology ........................................................................................................................ 1 1.4 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE ..................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 5 2.5 User Information .......................................................................................................................... 6 3. SYSTEM TEST CONFIGURATION ......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT.............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument ................................................................................................................ 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.4.1 RF Portion ......................................................................................................................................... 11 4.4.2 Other Emissions ................................................................................................................................. 15 4.5 Field Strength Calculation ......................................................................................................... 17 4.6 Photos of Radiation Measuring Setup........................................................................................ 18 5 CONDUCTED EMISSION MEASUREMENT ....................................................................... 19 5.1 Standard Applicable ................................................................................................................... 19 5.2 Measurement Procedure............................................................................................................. 19 5.3 Conducted Emission Data .......................................................................................................... 20 5.4 Result Data Calculation ............................................................................................................. 22 5.5 Conducted Measurement Equipment ....................…
