XBGWM5200A

AVALUE TECHNOLOGY INCORPORATION

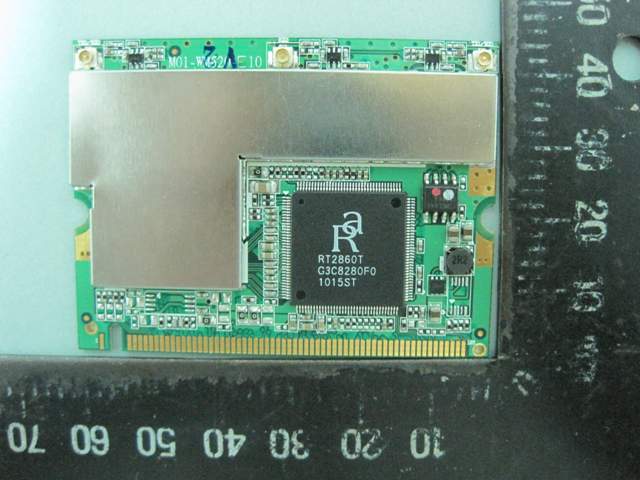

802.11n compliant 2.4GHz Mini-PCI Module

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Sep 05, 2010
Application Purpose: Original Equipment
Date of Application: Sep 05, 2010
Equipment Note: 802.11n compliant 2.4GHz Mini-PCI Module
Frequency Range: 2422.00000000 - 2452.00000000
Company: AVALUE TECHNOLOGY INCORPORATION
Country: Taiwan

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.42 GHz - 2.45 GHz	116.00 mW

Modular Type

Limited Single Modular Approval

Confidentiality

Long Term

Grant Notes

Output Power listed is the maximum combined conducted output power as indicated in the filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 2T3R Spatial Multiplexing MIMO configuration as described in this filing. When operating in 802.11n, 40 MHz mode, the operating frequency segment is limited to 2422 to 2452 MHz
