XBQ-S10MID(MOBILE INTERNET DEVICE)

User’s Manual S10 This guide may be changed for product improvement without prior notice. Thanks for purchasing viliv. Please read the precautions throughly before using the product. Copyright Yukyung Technologies Corp. has the copyright for this guide. Contents of this manual may not be copied or produced in any form or means without prior authorization from Yukyung Technologies Corp. ©2010 Yukyung Technologies Corp. All rights reserved. Certification This device has acquired EMC certification for home use (Class B) and is designed not only for use in residential area but anywhere. Registered Trademark viliv is the registered trademark of Yukyung Technologies Corp. Windows7, Windows Vista, Windows XP, Windows 2000, Windows CE are the registered trademarks of Microsoft Corporation. Liability Disclaimer Infringement of Intellectual Property Rights: Playing, copying or distributing any part or all of any copyrighted contents such as software, music or video with this device may infringe on a third party’s legitimate intellectual property rights or violate copyright law. All legal responsibilities for the infringement of copyright or intellectual property rights from the use of this device lie with the user. Improper Use: The manufacturer of this device is not liable for any damage or improper use and operation by using this device and infringement of copyright and portrait right by user when taking photos In addition, the manufacturer is not liable for bodily injury or property damage that may occur arising from inappropriate use other than operation standards or conditions. Data Loss: Any audio, video or photo files stored in this device may be deleted due to damage or operational error caused by user’s careless handling or unknown failure or when the device undergoes warranty repair. Therefore, the files must be backed up in a separate place. In these cases, the manufacturer is not liable for the loss or damage of data stored in the device. Specification Change: The standards, accessories, embedded software and manual contents of this device may be changed without user's prior consent or prior notice to the user. Grade B Device (Broadcast Communication Device for Residential Area) Contents Safety Precautions for Use .............................................. 4 Names of Parts ................................................................ 7 Basic Components ............................................................................ 7 Front View ......................................................................................... 8 Keyboard ........................................................................................... 9 Top View ............................................................................................ 10 Left / Right View ................................................................................ 11 Rear View .......................................................................................... 12 Installation and Cable Connection ................................... 13 Connecting the Earphone & Microphone Combo Port ...................... 13 USB Connection ................................................................................ 14 USB Data Link Connection ................................................................ 14 Power Connection (Charging Adaptor) .............................................. 15 Inserting · Extracting USIM Card ....................................................... 16 Rotating LCD Screen ........................................................................ 17 Separating · Attaching Battery ......................................... 18 Separating Battery ............................................................................. 18 Attaching Battery ............................................................................... 18 Basic Operation ............................................................... 19 Turning the Power On/Off .................................................................. 19 Touch Screen ................................................................................... 19 Running Virtual Keyboard .................................................................. 20 Set Up for villv Manager .................................................................... 20 Recovery Solution (AMI Rescue) Guide .......................... 21 Way to Use Recovery Solution (AMI Rescue) ................................... 21 General Specifications ...................................................................... 22 Specifications .................................................................. 22 S10 English 4 Safety Precautions for Use This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ tv technician for help. Information to User This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device mu…

Text truncated - open the document above for the full version.

YUKYUNG TECHNOLOGIES INC. 200-11, Anyang-Dong, Manan-Ku, Anyang-Si, Kyunggi-Do, Korea TEL No : +82-31-463-6906 / FAX No : +82-31-445-5995 March 23, 2010 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 In re : YUKYUNG TECHNOLOGIES INC. FCC Application for FCC ID:XBQ-S10 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, Sincerely, DAVID SEO Team Manager

YUKYUNG TECHNOLOGIES INC. 200-11, Anyang-Dong, Manan-Ku, Anyang-Si, Kyunggi-Do, Korea TEL No : +82-31-463-6906 / FAX No : +82-31-445-5995 March 23, 2010 Timco Engineering, Inc. 849 NW State Road 45 P.O.Box 370 Newberry,m Florida 32669 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: XBQ-S10. including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from YUKYUNG TECHNOLOGIES INC. LTA Co.,LTD. (Contact Person) Contact name: LEE, Kyung-Taek Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] Sincerely, DAVID SEO Team Manager

YUKYUNG TECHNOLOGIES INC. 200-11, Anyang-Dong, Manan-Ku, Anyang-Si, Kyunggi-Do, Korea TEL No : +82-31-463-6906 / FAX No : +82-31-445-5995 March 29, 2010 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : YUKYUNG TECHNOLOGIES INC FCC ID: XBQ-S10 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, YUKYUNG TECHNOLOGIES INC. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give YUKYUNG TECHNOLOGIES INC. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name Schematics CONF APPENDIX XBQ-S10 SCH DIA.pdf Parts list CONF APPENDIX XBQ-S10 PL.pdf Block diagram CONF APPENDIX XBQ-S10 BLK DIA.pdf CONFIDENTIAL Operational description CONF APPENDIX XBQ-S10 OpDes.pdf SHORT-TERM CONFIDENTIAL User’s Manual SHORT-TERM CONF XBQ-S10 Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, DAVID SEO Team Manager

YUKYUNG TECHNOLOGIES INC. 200-11, Anyang-Dong, Manan-Ku, Anyang-Si, Kyunggi-Do, Korea TEL No: +82-31-463-6906 / FAX No: +82-31-445-5995 March 23, 2010 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 In re: YUKYUNG TECHNOLOGIES INC. FCC Application for FCC ID:XBQ-S10 Cover letter Gentlemen: The product is approved by TIMCO TCB. We want to add the HSPA module in the product. The HSPA module is already authorized under FCC ID: QISEM770W. This module is electrically identical to that originally approved. We,Yukyung Technologies Inc., will used only WCDMA(HSDPA) Transmitter in the thing to take the approval. This product is not used HSUPA, GSM850 and PCS1900 Band. So we tested the SAR and ERP measurement for WCDMA(HSDPA). Please refer to the test reports and user’s manual. The transmitters (HSDPA module and WLAN) can not operate simultaneous. If the Combo module is ON, HSDPA Transmitter is power off automatically. Also If the HSDPA is ON, WLAN is OFF. Refer to the next page. We will add the label of the module to take the approval on the product. Please refer to the label location and sample label file. Sincerely, DAVID SEO Team Manager About Multiple Transmitters; This is manager program and control power of WIFi &Bluetooth, Camera and 3G Modem in Product. If the Power of Wifi & Bluetooth is ‘ON’, Modem power is selected automatically ‘OFF’. If the Power of Modem is ‘ON’, the Wifi & Bluetooth power is choose automatically ‘OFF’. User can not choose ‘ON’ both Wifi & Bluetooth and Modem power. So, The transmitters (HSDPA module and WLAN) can not operate simultaneous. And if the Power of Modem is ‘ON’, it is operate WCDMA(HSDPA) only by softwarely

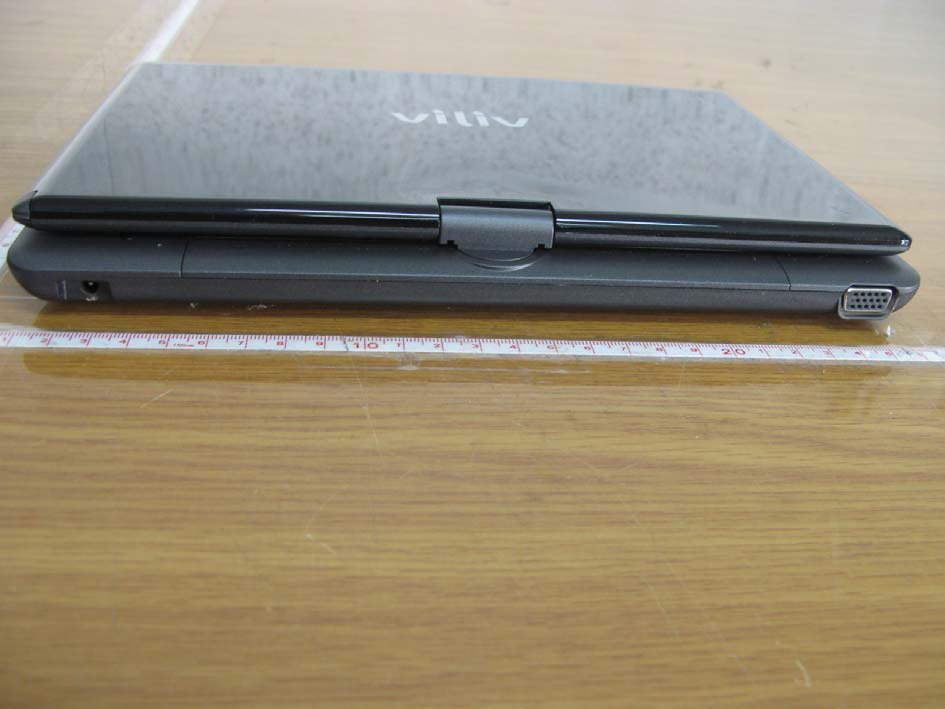

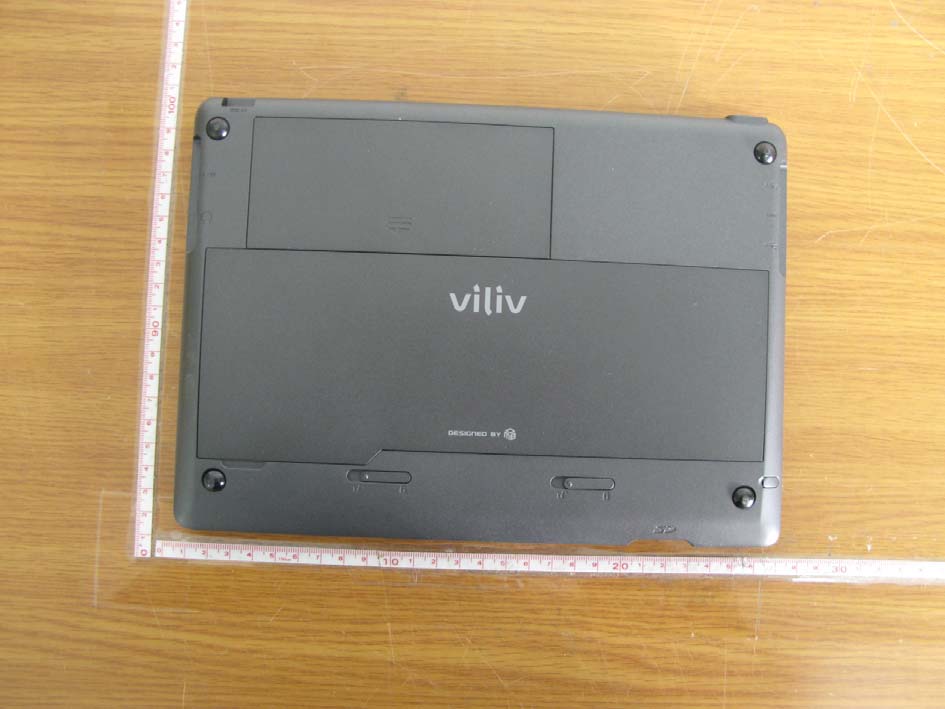

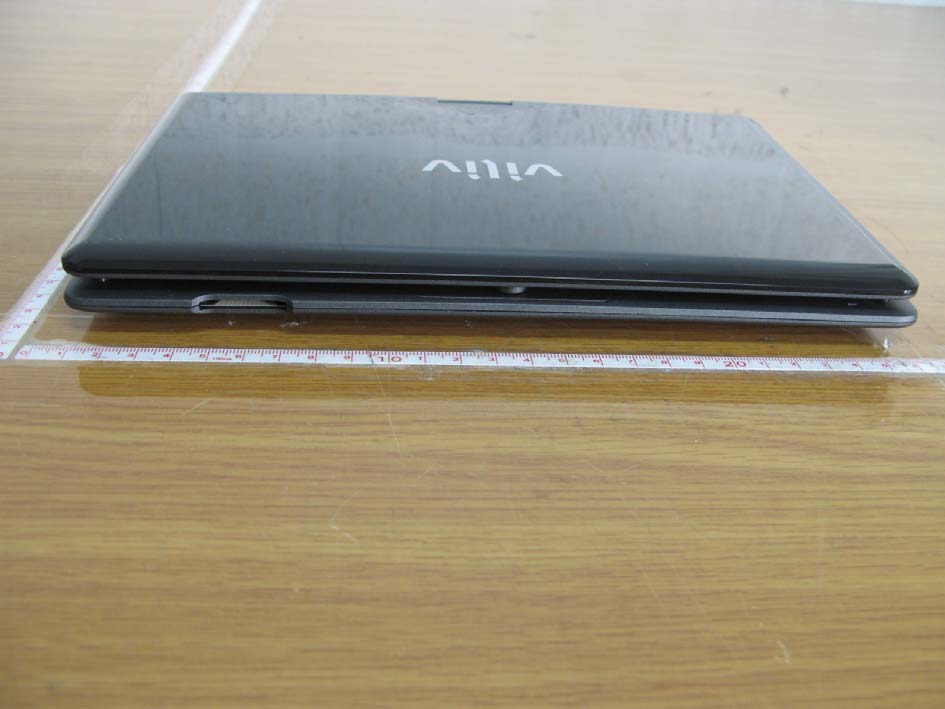

FCC ID : XBQ-S10 Copyright ○ c 2010, LTA Co., Ltd. Page 1 of 4 255mm 185mm FCC ID : XBQ-S10 Copyright ○ c 2010, LTA Co., Ltd. Page 2 of 4 25mm FCC ID : XBQ-S10 Copyright ○ c 2010, LTA Co., Ltd. Page 3 of 4 FCC ID : XBQ-S10 Copyright ○ c 2010, LTA Co., Ltd. Page 4 of 4

FCC ID:XBQ-S10 Copyright Ⓒ 2010, LTA Co., Ltd. SAMPLE LABEL & LOCATION Note:  The available label area on the device is limited because it is relatively small and has many contoured surfaces, keypads, Lcd displays, charge contacts and other connectors.  The batteries are designed for easy removal and the label will be visible whenever the batteries are removed for charging or replacement.  The label will be readily visible at the time of purchase because the device will be marketed without the battery installed.

FCC ID : XBQ-S10 Copyright ○ c 2010LTA Co., Ltd. Page 1 of 16 Internal photo FCC ID : XBQ-S10 Copyright ○ c 2010LTA Co., Ltd. Page 2 of 16 Main Board –Front Main Board –Rear FCC ID : XBQ-S10 Copyright ○ c 2010LTA Co., Ltd. Page 3 of 16 Speaker–Front Speaker –Rear FCC ID : XBQ-S10 Copyright ○ c 2010LTA Co., Ltd. Page 4 of 16 Camera –Front Camera –Rear FCC ID : XBQ-S10 Copyright ○ c 2010LTA Co., Ltd. Page 5 of 16 Power –Front Power –Rear FCC ID : XBQ-S10 Copyright ○ c 2010LTA Co., Ltd. Page 6 of 16 LCD –Front LCD –Rear FCC ID : XBQ-S10 Copyright ○ c 2010LTA Co., Ltd. Page 7 of 16 HDD –Front HDD –Rear FCC ID : XBQ-S10 Copyright ○ c 2010LTA Co., Ltd. Page 8 of 16 D-SUB –Front D-SUB –Rear FCC ID : XBQ-S10 Copyright ○ c 2010LTA Co., Ltd. Page 9 of 16 SD Card –Front SD Card –Rear FCC ID : XBQ-S10 Copyright ○ c 2010LTA Co., Ltd. Page 10 of 16 Mouse –Front Mouse –Rear FCC ID : XBQ-S10 Copyright ○ c 2010LTA Co., Ltd. Page 11 of 16 USB –Front USB –Rear FCC ID : XBQ-S10 Copyright ○ c 2010LTA Co., Ltd. Page 12 of 16 LED –Front LED –Rear FCC ID : XBQ-S10 Copyright ○ c 2010LTA Co., Ltd. Page 13 of 16 ANT Location WLAN ANT 3G ANT BT ANT 2.5Cm 3Cm 5Cm FCC ID : XBQ-S10 Copyright ○ c 2010LTA Co., Ltd. Page 14 of 16 BT Antenna BT Antenna BT Module POWER Board Front Side BT ant 1.1Cm FCC ID : XBQ-S10 Copyright ○ c 2010LTA Co., Ltd. Page 15 of 16 WLAN Antenna Connector MAIN Board Front Side WLAN Module WLAN ant 4.0Cm FCC ID : XBQ-S10 Copyright ○ c 2010LTA Co., Ltd. Page 16 of 16 3G Antenna Connector 3G Module 3G ant 11Cm

Specification For LTCC Chip Antenna Model Name : RCA2450P90 Customer : Title: Name : APPROVED By Date : Signature : RN2 Technologies co., Ltd. Issued Date : KI TAE KIM RN2 Technologies co., Ltd. 195-2, Soonam-ri, Sindoon-myeon, Icheon-si, Kyeongi-do, KOREA Phone : (+81) 31-638-0300 FAX : (+81) 31-638-3443 RN2 Technologies 1. Description and Application MODEL : RCA2450P90 Description Surface mount, LTCC Chip Antenna Features - Multilayer LTCC( Low Temperature Cofired Ceramics) Technology - SMD ( Surface Mounted Device ) - Miniature Size - High Stability in Temperature/Humidity Change - Free Impedance Matching - Suitable for 2450MHz W orking Frequency Operation Applications - Bluetooth device ( mobile Phone, headset, carkit, serial port, dongle, MP3 ) - WLAN ( Access Point, Notebook, PDA ) - DMB( receiver ) - HPi( High speed Portable internet) 2. Temperature Range Operating temperature range : -40 to + 85 °C 3. Properties 3.1 Electrical Specification : ITEM Specification Meas. Conditions Model P90 Center frequency 2.45 GHz Test board Bandwidth 100 MHz min. Test board / Matching Gain 2.18 dBi Test board / Matching VSWR 2 Max Test board / Matching Polarization Linear Azimuth Beamwidth Omni Impedance 50 Ω Page 2 of 12 RCA2450P90 Ver.02 Dec.-2005 RN2 Technologies 3.2 Mechanical Specification Mechanical Outline & Feeding Identification Mark GND Feeding Part Number 3.3 Land Layout Page 3 of 12 RCA2450P90 Ver.02 Dec.-2005 RN2 Technologies 4. Electrical characteristics 4.1 Measurement Data ( S11 & Smith chart ) 4.2 Radiation pattern -45 -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 5 Alzmuth 2400MHz 2450MHz 2500MHz AZIMUTH Page 4 of 12 RCA2450P90 Ver.02 Dec.-2005 RN2 Technologies -45 -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 5 Elevation 2400MHz 2450MHz 2500MHz Elevation R.F. Anechoic Antenna Chamber (10.0m×6.0m×4.0m) Gain Units(dBi) Frequency (MHz) Average Min Max 2400 -1.53 -5.32 0.80 2450 0.04 -2.86 2.07 Azimuth 2500 -1.63 -3.93 0.34 2400 -2.86 -32.94 1.12 2450 -1.33 -18.50 2.18 Elevation 2500 -2.88 -23.90 0.55 Page 5 of 12 RCA2450P90 Ver.02 Dec.-2005 RN2 Technologies 5. Test board and matching circuit for measurements T est board 5.2 Matching Circuits for measurements P90 In such case of internal SMD antenna, the resonant frequency is dependent on the GND size or other nearby active/passive components, and therefore can be different from what is measured on our test board. Page 6 of 12 RCA2450P90 Ver.02 Dec.-2005 RN2 Technologies 6. Soldering Conditions 6.1 Recommended Solder - A lead free alloy solder, Sn/Ag/Cu ratio of 96.5/3.0/0.5 is recommended - Do not allow the iron-tip to directly touch the ceram ic element 6.2 Solder reflow Profile Temp.[°C] 30 60 90 120 150 180 210 240 270 50 100 150 200 250 300 t1 t2t3 t4 T1 T2 T3 T4 Time [sec] Air Coolin Ramp Up Pre-Heating Peak Soaking Temp.[°C] T1:160±5°CT2:180±5°C T4:250±5°CT3:230±5°C Time [sec] t1:60±5sect2:100±15sect3:30±5sect4:60±10sec Page 7 of 12 RCA2450P90 Ver.02 Dec.-2005 RN2 Technologies Page 8 of 12 RCA2450P90 Ver.02 Dec.-2005 7. Pack aging 7.1 Dimension of the tape (Unit : mm) P1 8.00 9.30±0.10 16.00±0.30 MAX 5°이하 1.30±0.10 0.30±0.05 3.30±0.10 D0 P0 4.00 0.10 P2 2.00 _ + MAX 5°이하 1.75±0.10 7.5 7.2 Dimension of the reel (Unit : mm) Marking Quantity per reel : 5000 pcs 7.3 Leader and Tail tape Tail tape (No components) Tail tape (No components) components 300 to 800 mm300 to 800 mm Tail tape (No components) Tail tape (No components) components 300 to 800 mm300 to 800 mm RN2 Technologies 8. Envir onmental Specification. ITEM PROCEDURE REQUIREMENTS/RESULT Temperature Cycle Test Sample on the testing Jig 1. One Cycle : Step1: 85 ± 5 °C fo r 30min Step2: -40 ± 5 °C for 30min 2. Number of Cycles : 100 3. Normal Condition in 1 hour 1. Meet the electrial Specification after test Thermal Shock Test Sample on the testing Jig 1. One Cycle : Step1: 85 ± 5 °C fo r 30min Step2: -40 ± 5 °C for 30min 2. Number of Cycles : 100 3. Normal Condition in 1 hour 1. Meet the electrial Specification after test Solderability Test Sample on the testing Jig 1. Solder : 250 ± 5°C fo r 5± 1 sec. 1. More than 85% of the electrode pad shall be covered with solder. Heat Resistance Test Sample on the testing Jig 1. Temperature : 85 ± 2 °C 2. Duration : 1000 + 48 hours 1. Meet the electrial Specification after test Low Temp. Resistance Test Sample on the testing Jig 1. Temperature : -40 ± 5 °C 2. Duration : 1000 + 48 hours 1. Meet the electrial Specification after test Vibration Resistance Test Sample on the testing Jig 1. Frequency: 10~ 55MHz 2. Acceleration : 10g 3. Sweep Time: 1.5 mm, 2hours/axis 4. Axis : X, Y and Z direction 1. No appearance damage 2. Meet the electrial Specification after test Humidity Resistance Test Sample on the testing Jig 1. One Cycle : Step1:Temperature 85°C for 500 hours with humidity 85% Step2: Decrease Temperature 85°C to 25°C 2. Maintain for 1~2 hour after decreasing te mperature 25°C 1. Meet the electrial Specification after test Page 9 of 12 RCA2450P90 Ver.02 Dec.-2005 RN2 Technologies Drop Shock Test Sample on the testing Jig 1. Dropped onto hard wood from height of 150 c m for 5 times; each –x, x, -y, y and –z, z direction except I/O direction. 1. No appearance damage 2. Meet the electrial Specification after test Shock /Deflection Test Sample on the testing Jig Shown Fig 1 Acceleration : 980m/s 2 Period : 6ms Cycle : 10 Times No appearance damage and 2mm Deflection Soldering Strength Pushing Force at 0.5mm/s until electrode pads are pealed of f or ceramics are broken Test Sample on the testing Jig Shown Fig 2 7kgf Minimum (electrode pads are pealed of f or ceramics are broken) Tensile Strength Test Sample on the testing Jig Shown Fig 3 1. No m echanical damage by forces applied on the right 2. S trength (F) > 4kgf Dipping test Step1 : 120~150°C fo r 1min preheating Step2 : 270 ± 5°C fo r 20± 0.5s…

Text truncated - open the document above for the full version.

YUKYUNG TECHNOLOGIES INC. 200-11, Anyang-Dong, Manan-Ku, Anyang-Si, Kyunggi-Do, Korea TEL No: +82-31-463-6906 / FAX No: +82-31-445-5995 TUNE-UP PROCEDURE Programming of this product's transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment's external operation.

Report File No. : F690501/RF-SAR001859 Date of Issue : 2010-03-26 Page : 2 / 79 Contents 1. General Information 1.1 Testing Laboratory........................................................................................... 3 1.2 Details of Applicant.......................................................................................... 3 1.3 Version of Report............................................................................................. 3 1.4 Description of EUT(s)....................................................................................... 3 1.5 Test Environment............................................................................................. 4 1.6 Operation description........................................................................................ 4 1.7 Evaluation procedures....................................................................................... 5 1.8 The SAR Measurement System............................................................................ 6 1.9 System Components.......................................................................................... 8 1.10 SAR System Verification.................................................................................... 9 1.11 Tissue Simulant Fluid for the Frequency Band.......................................................... 11 1.12 Test Standards and Limits.................................................................................. 12 2. Instruments List.................................................................................... 14 3. Summary of Results................................................................................ 15 APPENDIX A. Photographs of EUT & EUT’s Test Setup B. DASY4 SAR Report C. Uncertainty Analysis D. Calibration certificate Report File No. : F690501/RF-SAR001859 Date of Issue : 2010-03-26 Page : 3 / 79 1. General Information 1.1 Testing Laboratory SGS Testing Korea Co., Ltd. Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 Homepage : www.kr.sgs.com/ee 1.2 Details of Manufacturer Manufacturer : YUKYUNG TECHNOLOGIES INC. Address : 200-11, Anyang-Dong, Manan-Ku, Anyang-Si, Kyunggi-Do, Korea Contact Person : DAVID SEO Phone No. : 82-31-463-6906 Fax No. : 82-31-445-5995 1.3 Version of Report Version Number Date Revision 00 2010-03-26 Initial issue 1.4 Description of EUT(s) EUT Type : MID (MOBILE INTERNET DEVICE) Model : S10 Serial Number : N/A Mode of Operation : WCDMA V, WCDMA II Duty Cycle : WCDMA 100% Body worn Accessory : None Tx Frequency Range : 826.4 MHz ~ 846.6 MHz (WCDMA V), 1852.4 MHz ~ 1907.6 MHz (WCDMA II) Conducted Max Power : 22.0 dBm(WCDMA V), 22.1 dBm(WCDMA II) Battery Type : DC 7.4 V(Li-Ion Polymer Battery) Report File No. : F690501/RF-SAR001859 Date of Issue : 2010-03-26 Page : 4 / 79 1.5 Test Environment Ambient temperature : 21 ~ 22 ° C Tissue Simulating Liquid : 21 ~ 22 ° C Relative Humidity : 40 ~ 60 % 1.6 Operation Configuration The device in WCDMA mode was controlled by using a Communication tester(CMU 200). Communication between the device and the tester was established by air link. Measurements were performed at the lowest, middle and highest channels of the operating band. The EUT was set to maximum power level during all tests and at the beginning of each test the battery was fully charged. The DASY4 system measures power drift during SAR testing by comparing e-field in the same location at the beginning and at the end of measurement. Report File No. : F690501/RF-SAR001859 Date of Issue : 2010-03-26 Page : 5 / 79 1.7 EVALUATION PROCEDURES - Power Reference Measurement Procedures The Power Reference Measurement and Power Drift Measurements are for monitoring the power drift of the device under test in the batch process. The Minimum distance of probe sensors to surface determines the closest measurement point to phantom surface. The minimum distance of probe sensors to surface is 4 mm. This distance cannot be smaller than the Distance of sensor calibration points to probe tip as defined in the probe properties (for example, 2.7 mm for an ET3DV6 probe type). - The entire evaluation of the spatial peak values is performed within the Post-processing engine (SEMCAD). The system always gives the maximum values for the 1 g and 10 g cubes. The algorithm to find the cube with highest averaged SAR is divided into the following stages: 1. The extraction of the measured data (grid and values) from the Zoom Scan. 2. The calculation of the SAR value at every measurement point based on all stored data (A/D values and measurement parameters) 3. The generation of a high-resolution mesh within the measured volume 4. The interpolation of all measured values from the measurement grid to the high-resolution grid 5. The extrapolation of the entire 3-D field distribution to the phantom surface over the distance from sensor to surface 6. The calculation of the averaged SAR within masses of 1g and 10g. The probe is calibrated at the center of the dipole sensors that is located 1 to 2.7mm away from the probe tip. During measurements, the probe stops shortly above the phantom surface, depending on the probe and the surface detecting system. Both distances are included as parameters in the probe configuration file. The software always knows exactly how far away the measured point is from the surface. As the probe cannot directly measure at the surface, the values between the deepest measured point and the surface must be extrapolated. The angle between the probe axis and the surface normal line is less than 30 degree. In the Area Scan, the gradient of the interpolation function is evaluated to find all the extreme of the SAR distribution. The uncertainty on the locations of the extreme is less than 1/20 of the grid size. Only local maximum within –2 dB of the global maximum are searched and passed for the Cube Scan measurement. In the Cube Scan, the…

Text truncated - open the document above for the full version.

Ref. No.: LR500191003E Copyright ○ c 2010, LTA Co., Ltd. Page 1 of 25 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: Mar 10 ~ Mar 31, 2010 Test Report S/N: LR500191003E Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT Classification : Licensed Transmitter worn on body (PCT) Manufacturing Description : MID(MOBILE INTERNET DEVICE) Manufacturer : YUKYUNG TECHNOLOGIES INC. Manufacturer (RF Module) : Huawei Technologies Co.,Ltd (FCC ID:QISEM770W) Model name : S10 Test Device Serial No.: : Identical prototype Rule Part(s) : §24(E), §22(H), §2 Frequency Range (Tx / Rx) : 826.40~846.60 MHz / 871.40~891.60 MHz (Cellular WCDMA) 1852.4~1907.6 MHz / 1932.4~1987.6 MHz (PCS WCDMA) Max. RF Output Power : 0.105W ERP Cellular WCDMA 0.173 W EIRP PCS WCDMA Data of issue : March 31, 2010 This test report is issued under the authority of: The test was supervised by: Kyung-Taek LEE, Technical Manager Hyun-Chae You, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 XBQ-S10 YUKYUNG TECHNOLOGIES INC. Ref. No.: LR500191003E Copyright ○ c 2010, LTA Co., Ltd. Page 2 of 25 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 EFFECTIVE RADIATED POWER OUTPUT ----------------------------------------------- 3.3 DESCRIPTION OF TEST ---------------------------------------------------------------------------- 3.3.1 OUTPUT POWER (RADIATED) ------------------------------------------------------------- 3.3.2 OCCUPIED BANDWIDTH (CONDUCTED) ----------------------------------------------- 3.3.3 BANDE EDGES COMLIANCE(CONDUCTED) ---------------------------------------------- 3.3.4 SPURIOUS EMISSIONS (RADIATED) ----------------------------------------------------- 3.3.5 FREQUENCT STABILITY(CONDUCTED) ---------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 7 7 8 13 16 22 24 Ref. No.: LR500191003E Copyright ○ c 2010, LTA Co., Ltd. Page 3 of 25 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2010-09-30 ECT accredited Lab. RRL KOREA KR0049 2011-06-20 EMC accredited Lab. FCC U.S.A 610755 2011-04-22 FCC filing VCCI JAPAN R2133, C2307 2011-06-21 VCCI registration IC CANADA IC5799 2010-05-03 IC filing Ref. No.: LR500191003E Copyright ○ c 2010, LTA Co., Ltd. Page 4 of 25 2. Information’s about test item 2-1 Applicant & Manufacturer Company name : YUKYUNG TECHNOLOGIES INC. Address : 200-11, Anyang-Dong, Manan-Ku, Anyang-Si, Kyunggi-Do, Korea Tel / Fax : TEL No : +82-31-463-6906 / FAX No : +82-31-445-5995 2-2 Equipment Under Test (EUT) Trade name : MID(MOBILE INTERNET DEVICE) Model name : S10 Date of receipt : March 09, 2010 EUT condition : Pre-production, not damaged HSPA Module : Huawei Technologies Co.,Ltd (FCC ID:QISEM770W) Identification mark: 0682 Antenna type : Swivel Antenna RF output power : Cellular WCDMA(22.0dBm) / PCS WCDMA (22.07dBm) – Conducted power Modulation : QPSK Temperature range : 0 ~ +°C40°C Power for Batt. : Battery Pack: 7.4V (Li-Ion Polymer RECHARGEABLE BATTERY) 2-3 Tested frequency Cellular WCDMA PCS WCDMA Channe…

Text truncated - open the document above for the full version.
