XCQ2020ZR1122AMaxx Action Spy Playset

USE 4 X 1.5V “AG13” BATTERIES USE 2 X 1.5V “AG3” BATTERIES FOR WATCH FUNCTION (INCLUDED & NOT REPLACEABLE) USE 8 X 1.5V “AG13” BATTERIES FOR WALKIE TALKIE FUNCTION (INCLUDED) DISTRIBUTED BY SUNNY DAYS ENTERTAINMENT,LLC 433 SE MAIN STREET, SUITE A, SIMPSONVILLE SC 29681 MADE IN CHINA Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Small batteries. Hazardous if swallowed. SDE 03/CHINA H05-30 WARNING:

Transmitter Block Diagram Clock Block Diagram Microphone X1 Audio IC U1 Modulator MCU IC: K8299 Oscillator x-tal: 32.768KHz Display

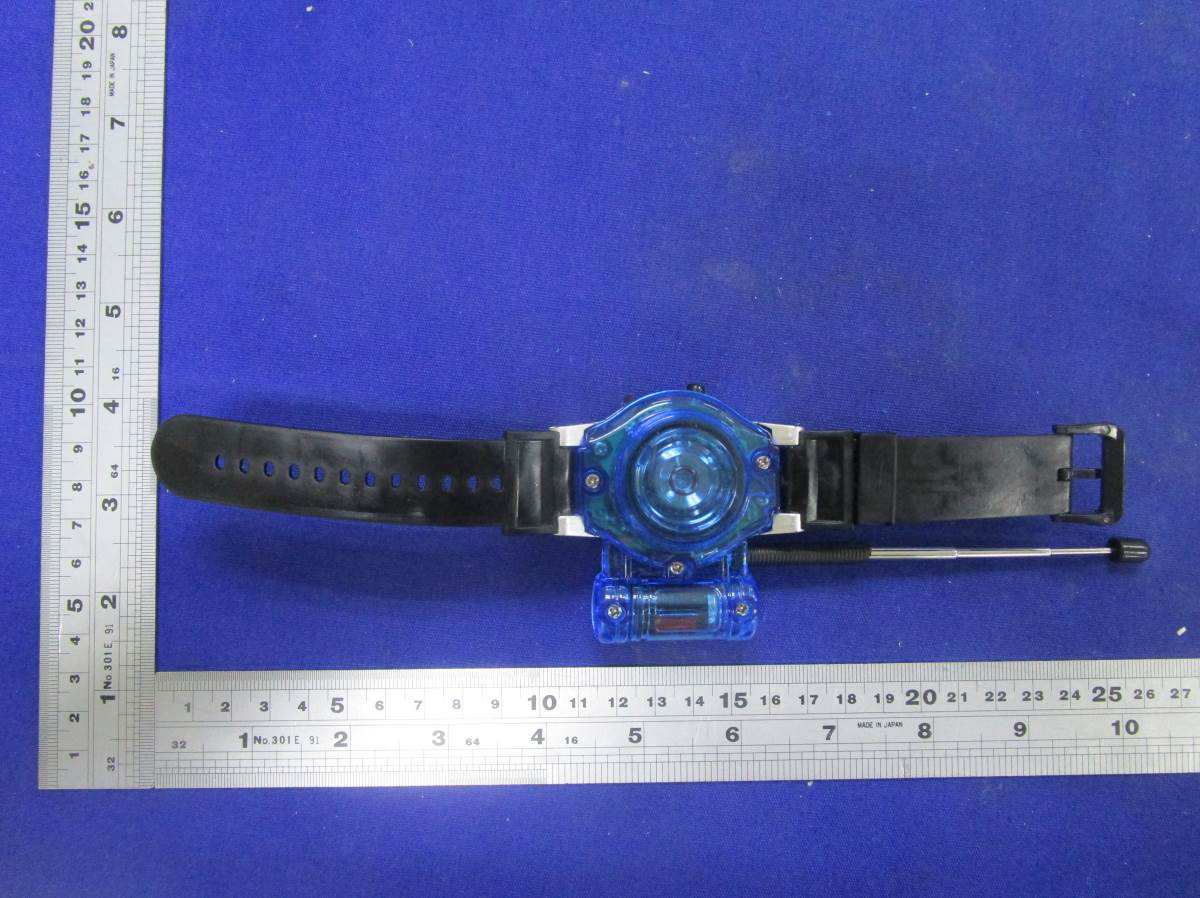

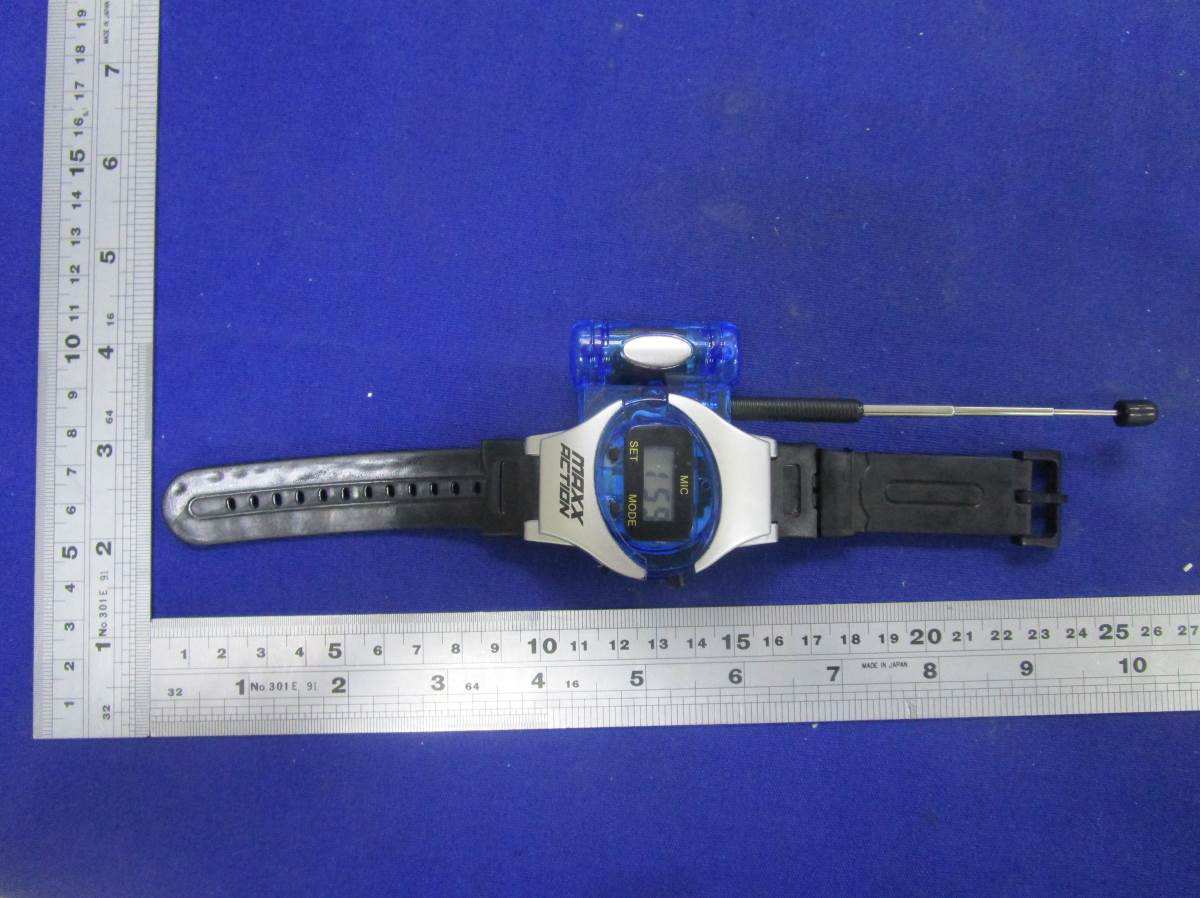

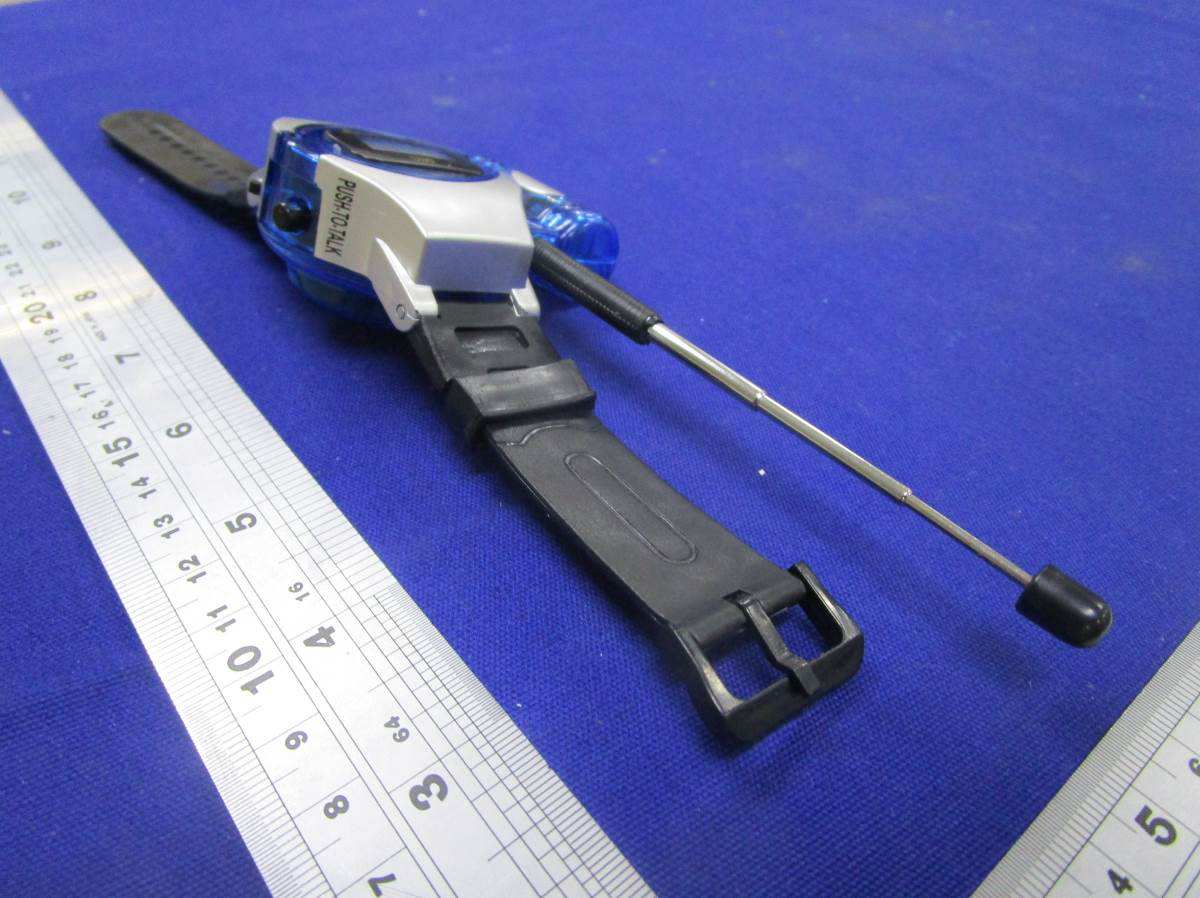

Page 1 of 2 External Photos Page 2 of 2

Page 1 of 5 Internal Photos Page 2 of 5 Page 3 of 5 Page 4 of 5 Page 5 of 5

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions L1 Audio IC Audio amplifier U1 Audio in Generate signal to modulator SPK Oscillator Generate 49.860MHz carrier X1, Q1 Antenna Type: integral antenna Antenna Gain: 0dBi Modulation Type: AM modulation The nominal conducted output power specified: -47.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -49.15dBm (+/- 3dB)

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a transmitter for a Maxx Action Spy Playset operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by four 1.5V AG13 batteries and one 1.5V AG3 battery. EUT has an ON/OFF Switch. Turn the “ON-OFF” switch at the side of the walkie talkies to "ON" position. Press the “Talk” button for transmitting, and speak in a normal voice level into the speaker/microphone. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal conducted output power specified: -47.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -49.15dBm (+/- 3dB) Modulation Type: AM modulation According to the KDB 447498: The worst-case peak radiated emission for the EUT is 48.1dBμV/m at 3m in the frequency 49.86MHz The EIRP = [(FS*D) ^2 / 30] mW = -47.13dBm The ERP = EIRP – 2.15 = -49.28dBm which is within the production variation. The maximum conducted output power specified is -44dBm= 0.00004mW The source- based time-averaging conducted output power =0.00004* Duty cycle mW =0.00004 mW(Duty cycle =100%) The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 308.6 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: XCQ2020ZR1122A

ZHONGRUN ELECTRON & TOYS CO.LTD TEST REPORT SCOPE OF WORK RF TESTING–320128 REPORT NUMBER SZHH01444477-001 ISSUE DATE MAY 9, 2020 PAGES 14 DOCUMENT CONTROL NUMBER FCC ID_b-235 © 2017 INTERTEK Intertek Report No.: SZHH01444477-001 • The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01 November 2017 Page: 1 of 14 FCC ID_b-235 Test Report ZHONGRUN ELECTRON & TOYS CO.LTD Application For Certification FCC ID: XCQ2020ZR1122A Product Name: Maxx Action Spy Playset Additional Name: Maxx Spy Walkie Talkie Watch Set Model: 320128 Transceiver Report No.: SZHH01444477-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-18] Prepared and Checked by: Approved by: Sign on file Terry Tang Senior Engineer Jimmy Wen Assistant Manager Date: May 9, 2020 Intertek Report No.: SZHH01444477-001 Version: 01 November 2017 Page: 2 of 14 FCC ID_b-235 Test Report GENERAL INFORMATION ZHONGRUN ELECTRON & TOYS CO.LTD MODEL: 320128 FCC ID: XCQ2020ZR1122A Grantee: ZHONGRUN ELECTRON & TOYS CO.LTD Grantee Address: Laimei Lndustrial Chenghai Borough Shan Tou City Guangdong China Contact Person: Run Guo Chen Tel: 86 754 85515566 Manufacturer: ZHONGRUN ELECTRON & TOYS CO.LTD Manufacturer Address: Laimei Lndustrial Chenghai Borough Shan Tou City Guangdong China Model: 320128 Type of EUT: Transceiver Description of EUT: Maxx Action Spy Playset Serial Number: N/A FCC ID : XCQ2020ZR1122A Date of Sample Submitted: March 27, 2020 Date of Test: April 29, 2020 Report No.: SZHH01444477-001 Report Date: May 9, 2020 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% Intertek Report No.: SZHH01444477-001 Version: 01 November 2017 Page: 3 of 14 FCC ID_b-235 Test Report SUMMARY OF TEST RESULT ZHONGRUN ELECTRON & TOYS CO.LTD MODEL: 320128 FCC ID: XCQ2020ZR1122A TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a Dedicated antenna, in accordance to section 15.203, is considered sufficient to comply with the provisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Intertek Report No.: SZHH01444477-001 Version: 01 November 2017 Page: 4 of 14 FCC ID_b-235 Test Report Table of Contents 1.0 General Description ..................................................................................................................................... 5 1.1 Product Description .................................................................................................................................... 5 1.2 Related Submittal(s) Grants ...................................................................................................................... 5 1.3 Test Methodology ....................................................................................................................................... …

Text truncated - open the document above for the full version.

Page 1 of 1 RADIATED PHOTOS (EUT was placed in the centre of the turntable)
