XD6MAL-HP00HONOR CHOICE TNHCHOP Pencil

ShenzhenTinnoMobileTechnology Corp. 27-001,SouthsideofTianlongmobileHQBuilding,TongfaSouthRoad,XiliStreet,NanshanDistrict,Shenzhen,PRC U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO:American Certification Body, Inc. 313 ParkAvenue Suite300 Falls Church, VA 22046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: TINNO USA INC Contact Name: Brandy Kang Street Address: 2301W.PLANOParkway,SUITE102 City/Province/Zip: Plano, TX 75075 Telephone No: (626) 200-5096 Email: [email protected] FRN #: 0033457680 This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of theApplicantnoted below. U.S. Agent Signature: Date: 2023-10-14 Signed by (Printed Name/Title): Brandy Kang / CEO The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission- related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Shenzhen Tinno Mobile Technology Corp. Grantee Code: XD6 Contact Name: Xiaoping Li Street Address: 27-001, South side of Tianlong mobile HQ Building, Tongfa South Road, Xili Street, Nanshan District City/Province/Zip: Shenzhen /Guangdong/518000 Telephone No: (86) 755-86095550 Email: [email protected] FRN #: 0018783100 Applicant Signature 1 : Date:2023-10-14 Signed by (Printed Name/Title): Xiaoping Li / Manager 1 - Lettersshouldbeplacedonappropriateletterhead.

Shenzhen Tinno Mobile Technology Corp Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: February 1, 2024 Subject: Certifications concerning “covered” equipment pursuant to Part 2.911(d)(5)(i) and (ii) To whom it may concern, Shenzhen Tinno Mobile Technology Corp certifies that the equipment FCC ID: XD6MAL-HP00 for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Shenzhen Tinno Mobile Technology Corp certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List ( as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, ________________________ Name: Xiaoping LI E-mail: [email protected]

Rev. 1/1/03 ShenzhenTinnoMobileTechnologyCorp Date: February 1, 2024 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: XD6MAL-HP00 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: ◆ Parts List ◆ Schematic Diagram ◆ Block Diagram ◆ Operational Description ◆ Tune-up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ ContactPerson:Xiaoping LI E-mail:[email protected]

Shenzhen Tinno Mobile Technology Corp Date: February 1, 2024 Power of Attorney To whom it may concern, Please be notified that I, Xiaoping LI, have designated Jim Tsai inSporton International Inc.as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jim Tsai inSporton International Inc.,on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C 862. This authorization is limited to the product of as following: FCC ID:XD6MAL-HP00 If you have any acknowledgement and response, please send it toSporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, ____ Contact Person:Xiaoping LI E-mail:[email protected]

1/1 ShenzhenTinnoMobileTechnologyCorp Date: February 1, 2024 Federal Communications Commission Authorization and Evaluation Division RE : CertificationApplication FCC ID : XD6MAL-HP00 ToWhom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, Public Notice DA 04-1705 of the Commission’s policy and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarilywithheld from public disclosure for an initial period of 180 days: Test set-up photos External Photos Internal Photos User Manual The application contains technical information, which Shenzhen Tinno Mobile Technology Corp deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, ____ ContactPerson:Xiaoping LI E-mail:[email protected]

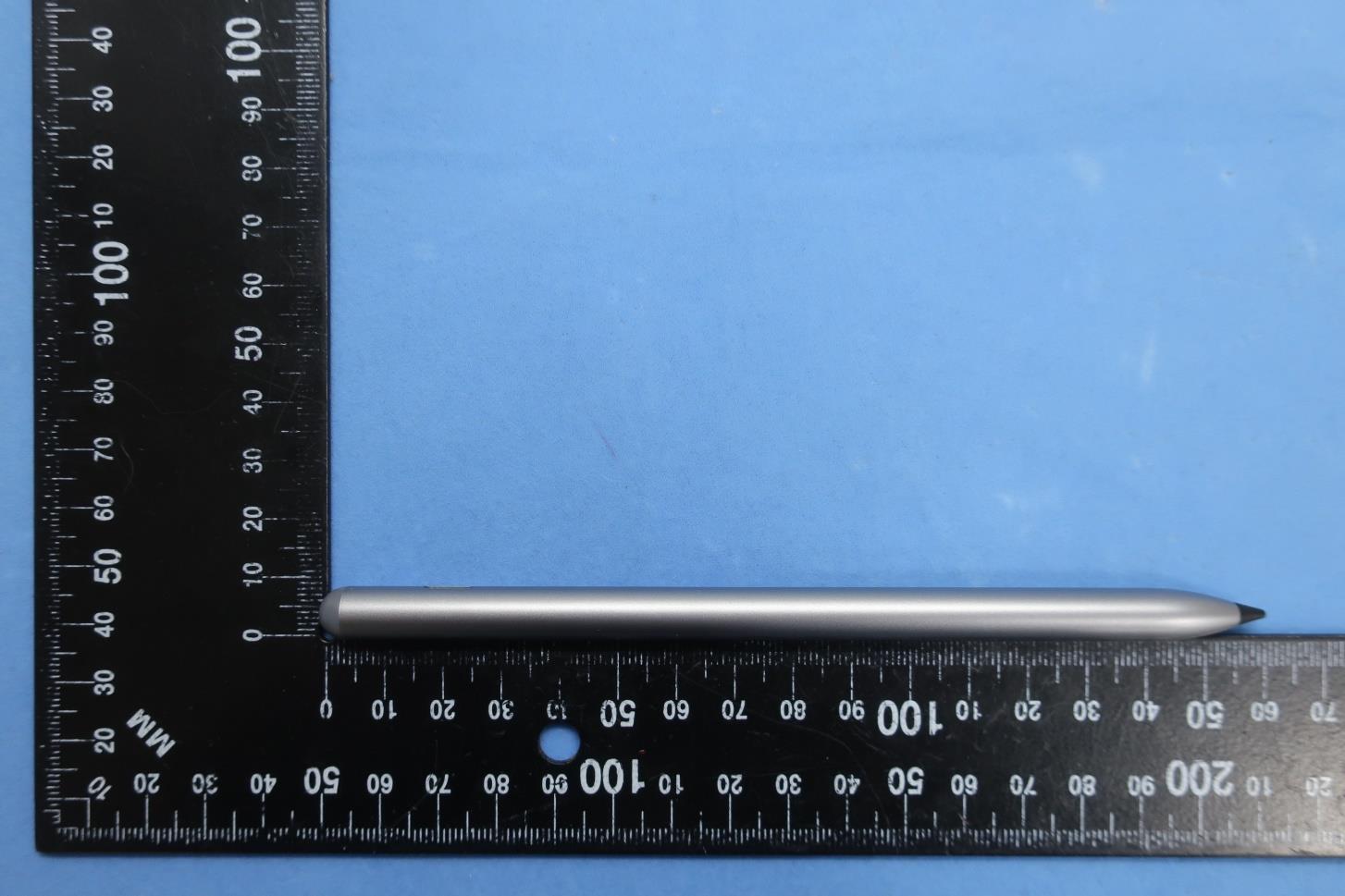

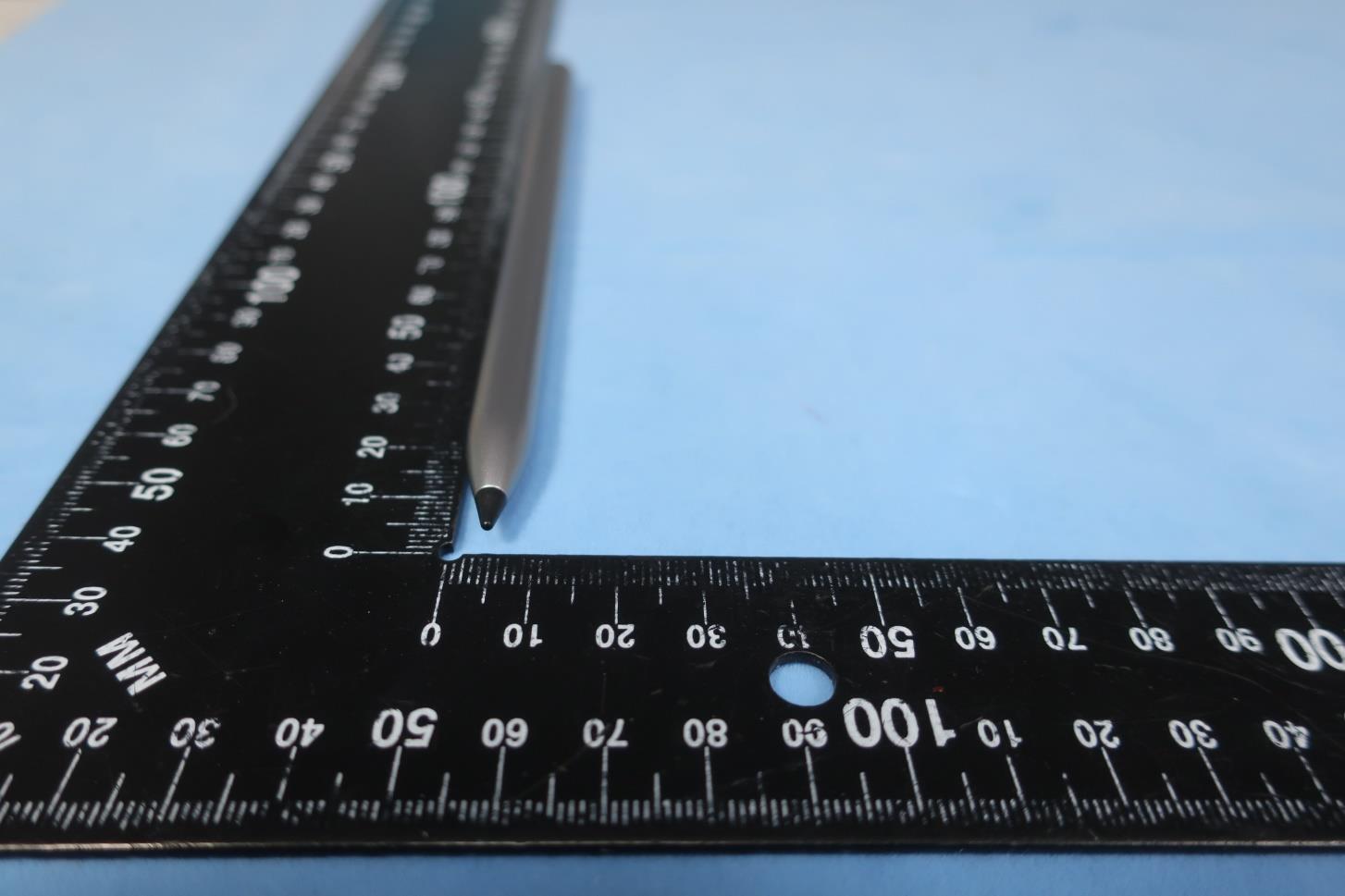

Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 1 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 2 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 3 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 4 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 5 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00

Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 6 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 720510 2. Internal Photograph of EUT Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 7 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 8 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 9 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 10 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 11 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 12 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 13 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 14 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 15 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 16 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 17 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 18 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 19 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 20 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 21 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 22 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 23 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00 Photographs of EUT Report No.: EP3D0505A Brand Name: TNHCHOP, HONOR CHOICE; Model Name: MAL-HP00 Sporton International Inc.(Shenzhen) Page Number : 24 of 24 TEL : 86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : XD6MAL-HP00

Sporton International Inc. (Shenzhen) Page Number : 1 of 6 TEL : +86-755-86379589 / FAX : +86-755-86379595 Report Issued Date : Feb. 04, 2024 FCC ID : XD6MAL-HP00 Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA3D0505 RF Exposure Evaluation Report APPLICANT : Shenzhen Tinno Mobile Technology Corp. EQUIPMENT : HONOR CHOICE TNHCHOP Pencil BRAND NAME : TNHCHOP MODEL NAME : MAL-HP00 FCC ID : XD6MAL-HP00 STANDARD : 47 CFR PART 2.1093 FCC KDB 447498 D01 v06 The product evaluation date was started from Jan. 09, 2024 and completed on Jan. 09, 2024. We, Sporton International Inc. (Shenzhen), would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1093 and FCC KDB 447498 D01 v06, and pass the limit. Without written approval of Sporton International Inc. (Shenzhen), the test report shall not be reproduced except in full. Approved by: Si Zhang Sporton International Inc. (Shenzhen) 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China Sporton International Inc. (Shenzhen) Page Number : 2 of 6 TEL : +86-755-86379589 / FAX : +86-755-86379595 Report Issued Date : Feb. 04, 2024 FCC ID : XD6MAL-HP00 Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA3D0505 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 4 1.1. Testing Laboratory ............................................................................................................................. 4 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 5 3. MAXIMUM RF TUNE UP POWER AMONG PRODUCTION UNITS .......................................................... 6 4. RF EXPOSURE EVALUATION ................................................................................................................... 6 Sporton International Inc. (Shenzhen) Page Number : 3 of 6 TEL : +86-755-86379589 / FAX : +86-755-86379595 Report Issued Date : Feb. 04, 2024 FCC ID : XD6MAL-HP00 Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA3D0505 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA3D0505 Rev. 01 Initial issue of report Feb. 04, 2024 Sporton International Inc. (Shenzhen) Page Number : 4 of 6 TEL : +86-755-86379589 / FAX : +86-755-86379595 Report Issued Date : Feb. 04, 2024 FCC ID : XD6MAL-HP00 Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA3D0505 1. Administration Data 1.1. Testing Laboratory Sporton International Inc. (Shenzhen) is accredited to ISO/IEC 17025:2017 by American Association for Laboratory Accreditation with Certificate Number 5145.01. Testing Laboratory Test Firm Sporton International Inc. (Shenzhen) Test Site Location 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China TEL: +86-755-86379589 FAX: +86-755-86379595 Test Site No. Sporton Site No. FCC Designation No. FCC Test Firm Registration No. SAR01-SZ CN1256 421272 Applicant Company Name Shenzhen Tinno Mobile Technology Corp. Address 27-001,South Side of Tianlong Mobile Headquarters Building,Tongfa South Road,Xili Community, Xili Street,Nanshan District, Shenzhen City,Guangdong Province,PRC. Manufacturer Company Name Shenzhen Tinno Mobile Technology Corp. Address 27-001,South Side of Tianlong Mobile Headquarters Building,Tongfa South Road,Xili Community, Xili Street,Nanshan District, Shenzhen City,Guangdong Province,PRC. Sporton International Inc. (Shenzhen) Page Number : 5 of 6 TEL : +86-755-86379589 / FAX : +86-755-86379595 Report Issued Date : Feb. 04, 2024 FCC ID : XD6MAL-HP00 Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA3D0505 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type HONOR CHOICE TNHCHOP Pencil Brand Name TNHCHOP Model Name MAL-HP00 FCC ID XD6MAL-HP00 Wireless Technology and Frequency Range Bluetooth: 2402 MHz ~ 2480 MHz Mode Bluetooth LE Antenna Type Bluetooth : FPC Antenna Antenna Gain Bluetooth: gain 0.8 dBi EUT Stage Production Unit Remark: 1. The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. Comments and Explanations: 1. The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. 2. The maximum RF output tune up power, antenna gain also the safe distance used for evaluate RF exposure were declared by manufacturer. Sporton International Inc. (Shenzhen) Page Number : 6 of 6 TEL : +86-755-86379589 / FAX : +86-755-86379595 Report Issued Date : Feb. 04, 2024 FCC ID : XD6MAL-HP00 Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA3D0505 3. Maximum RF Tune Up power among production units <Bluetooth> Mode Maximum Average Power (dBm) Bluetooth LE 4.8 4. RF Exposure Evaluation Mode Maximum Average Power (dBm) Bluetooth LE 4.8 Note: 1. Per KDB 447498 D01v06 the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Bluetooth Max Power (dBm) Separation Distance (mm) Frequency (GHz) exclusion thresholds 4.8 < 5 2.48 1.0 Conclusion: Per KDB 447498 D01v06, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 1.0 which is ≤ 7.5 for 10-g extremity SAR, ext…

Text truncated - open the document above for the full version.

Sporton International Inc. (ShenZhen) Page Number : 1 of 43 TEL : +86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : +86-755-8637-9595 Report Version : Rev. 01 FCC ID: XD6MAL-HP00 Report Template No.: BU5-FR15CBT4.0 Version 2.0 FCC RF Test Report Report No. : FR3D0505 FCC RF Test Report APPLICANT : Shenzhen Tinno Mobile Technology Corp. EQUIPMENT : HONOR CHOICE TNHCHOP Pencil BRAND NAME : TNHCHOP MODEL NAME : MAL-HP00 FCC ID : XD6MAL-HP00 STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DTS) Digital Transmission System TEST DATE(S) : Jan. 02, 2024 ~ Jan. 10, 2024 We, Sporton International Inc. (Shenzhen), would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International Inc. (Shenzhen), the test report shall not be reproduced except in full. Approved by: Jason Jia Sporton International Inc. (ShenZhen) 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China Sporton International Inc. (ShenZhen) Page Number : 2 of 43 TEL : +86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : +86-755-8637-9595 Report Version : Rev. 01 FCC ID: XD6MAL-HP00 Report Template No.: BU5-FR15CBT4.0 Version 2.0 FCC RF Test Report Report No. : FR3D0505 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Product Feature of Equipment Under Test ........................................................................................ 5 1.4 Product Specification of Equipment Under Test ................................................................................ 5 1.5 Modification of EUT ........................................................................................................................... 5 1.6 Testing Location ................................................................................................................................ 6 1.7 Test Software ..................................................................................................................................... 6 1.8 Applicable Standards ......................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 Carrier Frequency Channel ............................................................................................................... 7 2.2 Test Mode .......................................................................................................................................... 8 2.3 Connection Diagram of Test System ................................................................................................. 9 2.4 Support Unit used in test configuration and system ........................................................................ 10 2.5 EUT Operation Test Setup .............................................................................................................. 10 2.6 Measurement Results Explanation Example ................................................................................... 10 3 TEST RESULT .......................................................................................................................................... 11 3.1 6dB and 99% Bandwidth Measurement .......................................................................................... 11 3.2 Output Power Measurement ............................................................................................................ 18 3.3 Power Spectral Density Measurement ............................................................................................ 19 3.4 Conducted Band Edges and Spurious Emission Measurement ..................................................... 26 3.5 Radiated Band Edges and Spurious Emission Measurement ........................................................ 35 3.6 AC Conducted Emission Measurement........................................................................................... 39 3.7 Antenna Requirements .................................................................................................................... 41 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 42 5 MEASUREMENT UNCERTAINTY ............................................................................................................ 43 APPENDIX A. CONDUCTED TEST RESULTS APPENDIX B. AC CONDUCTED EMISSION TEST RESULT APPENDIX C. RADIATED SPURIOUS EMISSION AND PLOTS APPENDIX D. DUTY CYCLE PLOTS APPENDIX E. SETUP PHOTOGRAPHS Sporton International Inc. (ShenZhen) Page Number : 3 of 43 TEL : +86-755-8637-9589 Report Issued Date : Feb. 01, 2024 FAX : +86-755-8637-9595 Report Version : Rev. 01 FCC ID: XD6MAL-HP00 Report Template No.: BU5-FR15CBT4.0 Version 2.0 FCC RF Test Report Report No. : FR3D0505 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR3D0505 Rev. 01 Initial issue of report Feb. …

Text truncated - open the document above for the full version.

Kunshan Ruixiang Communication Communication Technology Co., LTD www.innowave.cn PC006 Capacitive Pen antenna antenna report V1.05 Reporter: Chen Bing Date: 2024,1.2 timedescriptionedition 2023/11/30CNC machine first version of passive debugging dataV1.01 2023/12/06CNC Machine Sample Optimization Report-monopolar antennaV1.02 2023/12/07CNC Machine Sample Optimization Report--PIFA antennaV1.03 2023/12/26P0 Machine Sample Optimization Report-The PIFA antennaV1.04 2024/01/02P0 Machine Sample verificationV1.05 Project development profile main antenna frequency range Antenna Type Antenna form Design area Match changes BT2.4GHz~2.48GHz Copper axis + FPC PIFA The inside side of the prototype Not available The prototype state EVT model machine Environme ntal treatment USB landing Test the software version LibraVersion .3.0.3.1 Test Instrument s GTS1800、Agilent E5071C The date the instrument was calibrated July 12, 2023 BT antenna matching circuit PA Antenna E3 E2 E1 Illustration number Matching value E1NC E20 E3NC Test darkroom: GTS1800 BT antenna for passive debugging of the S parameters BT antenna passive debugging parameters (BT) Bluetooth antenna frequ ency MHz productivene ss (%) productive ness (dB) Gain 240040.64-3.910.66 241041.02-3.870.71 242041.50-3.820.77 243041.50-3.820.78 244041.11-3.860.72 245041.78-3.790.79 246041.98-3.770.80 247041.30-3.840.74 248041.59-3.810.76 Avg41%-3.830.74 Sample validation data on Jan Efficiency distribution map of the BT antenna BT antenna apple 3D diagram 2.4GHz2.44GHz2.48GHz X Y Z X Y X Y Z Z 1. Whether the USB grounding is sufficient has a great impact on the efficiency. It is suggested that the grounding resistance of USB and antenna is less than 0.5 ohms. Thanks

Sporton International Inc. (ShenZhen) Page Number : E1 of E2 TEL : +86-755-8637-9589 FAX : +86-755-8637-9595 FCC ID: XD6MAL-HP00 FCC RF Test Report Report No. : FR3D0505 Appendix E. Setup Photographs <Conducted Emission> Remote View Rear View Sporton International Inc. (ShenZhen) Page Number : E2 of E2 TEL : +86-755-8637-9589 FAX : +86-755-8637-9595 FCC ID: XD6MAL-HP00 FCC RF Test Report Report No. : FR3D0505 <Radiated Emission> LF HF

BT antenna
