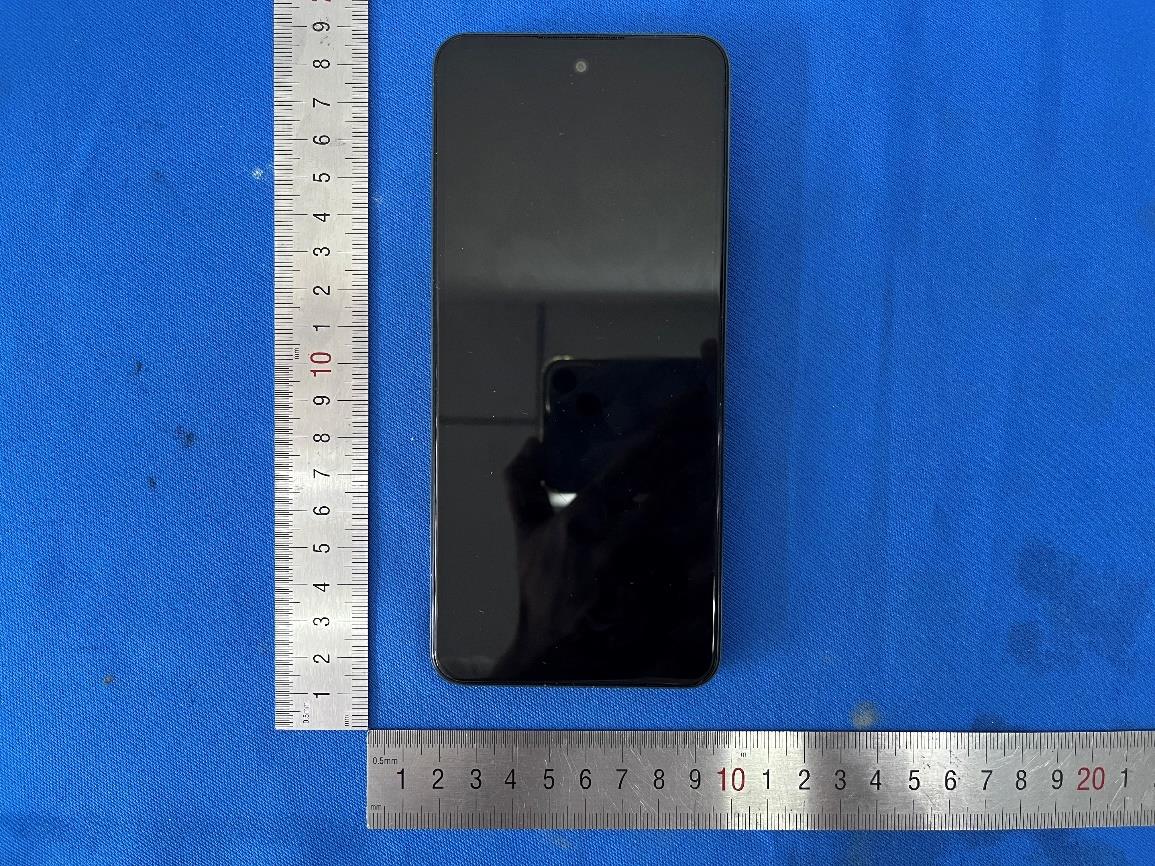

1 Photographs – EUT Constructional Details Model No: U680AA

Label Location

1 Photographs – EUT Constructional Details Model No: U680AA

ReportNo.: SEWM2304000111RG08 AppendixC Calibrationcertificate 1. Dipole D750 V3-SN 1210 D835V2-SN 4d 161 D1750V2-SN 1038 D1900V2-SN 5d114 D2300V2-SN 1072 D2450V2-SN 1038 D260 0V2- SN 1180 D5GHzV2-SN1313 2. DAE DAE4-SN1324 3. Probe EX3DV4-SN3793

DipoleD750V3SN1210 Head Liquid Date of MeasurementReturnLoss(dB)Δ %Impedance(Ω)ΔΩ 2021-09-08-28.3/52.8/ 2022-09-07-27.91.4%52.30.5 Ω DipoleD835V2SN 4d161 Head Liquid Date of MeasurementReturnLoss(dB)Δ %Impedance(Ω)ΔΩ 2020-08-28-27.1/52.8/ 2022-08-27-27.61.85%52.10.7 Ω DipoleD1750V2SN 1038 Head Liquid Date of MeasurementReturnLoss(dB)Δ %Impedance(Ω)ΔΩ 20 21-12-1 6-36.6/51.0/ 2022-12-15-36.80.55%50.60.4 Ω DipoleD1900V2SN5d114 Head Liquid Date of MeasurementReturnLoss(dB)Δ %Impedance(Ω)ΔΩ 20 20 -08-27-23.2/51.9/ 202 1-08-2 6-24.34.74%52.60.7 Ω 2022- 08-25-23.8-2.59%52.30.4 Ω DipoleD2600V2SN1180 Head Liquid Date of MeasurementReturnLoss(dB)Δ %Impedance(Ω)ΔΩ 2021/5/12-29.77/47.2/ 2022/5/11-28.64.03%48.1-0.9 Ω 2023/5/10-29.371.34 %47.8-0.6 Ω DipoleD2 45 0V2 SN 922 Head Liquid Date of MeasurementReturnLoss(dB)Δ %Impedance(Ω)ΔΩ 20 20 -08 -27-24.7/56.0/ 20 22-08 -27-25.22.02 %55.20.8 Ω D5GHzV2– serial no.1313 5GHzV2Head Date of Measurement Freq. Return-Loss (dB) Δ % Real Impedance (ohm) ΔΩ 2022 -01 -25 5250-29.9/47.0/ 5600-28.5/53.5/ 5750-34.1/50.2/ 2023 -01 -24 5250-29.61.2%47.1-0.1 5600-28.21.1%53.10.4 5750-33.90.6%51.3-1.1

Authorized Signature: Panta Sun Wireless Laboratory Manager ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2304000111RG08 Rev.: 01 Page: 1 of 116 FCC SAR TEST REPORT Application No.: SEWM2304000111RG Applicant: Shenzhen Tinno Mobile Technology Corp. Manufacturer: Shenzhen Tinno Mobile Technology Corp. Product Name: Smart Phone Model No.(EUT): U680AA, U680AC FCC ID: XD6U680AA Standards: FCC 47CFR §2.1093 Date of Receipt: 2023-05-04 Date of Test: 2023-05-23 to 2023-06-13 Date of Issue: 2023-06-13 Test conclusion: PASS * * In the configuration tested, the EUT detailed in this report complied with the standards specified above. ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2304000111RG08 Rev.: 01 Page: 2 of 116 REVISION HISTORY Report Number Revision Description Issue Date SEWM2304000111RG0 8 01 Original 2023-06-13 ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2304000111RG08 Rev.: 01 Page: 3 of 116 TEST SUMMARY Frequency Band Maximum Reported SAR(W/kg) Head Body-worn Hotspot Product specific 10g SAR WCDMA Band II 0.14 0.50 1.30 3.11 WCDMA Band IV 0.11 0.67 1.22 3.17 WCDMA Band V 0.33 0.44 0.44 / LTE Band 2 0.19 0.63 1.25 3.01 LTE Band 5 0.42 0.48 0.52 / LTE Band 7 0.02 0.31 0.99 / LTE Band 12 0.31 0.52 0.54 / LTE Band 14 0.41 0.47 0.50 / LTE Band 30 0.18 0.53 1.06 / LTE Band 66 0.15 0.53 1.16 / WI-FI (2.4GHz) 1.17 0.20 0.41 / WI-FI (5GHz) 1.16 0.35 0.55 1.07 BT 0.13 <0.10 <0.10 / SAR Limited(W/kg) 1.6 4.0 Maximum Simultaneous Transmission SAR (W/kg) Scenario Head Body-worn Hotspot Product specific 10g SAR Sum SAR 1.39 1.06 1.47 3.17 SPLSR / / / / SPLSR Limited 0.04 0.1 Note: 1) According to TCB workshop October,2014 RF Exposure Procedures Update (Overlapping Bands): SAR for LTE Band 4 (Frequency range:1710 - 1755 MHz) is respectively covered by LTE Band 66 (Frequency range:1710 - 1780 MHz) Reviewed by Well Wei Prepared by Nick Hu ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2304000111RG08 Rev.: 01 Page: 4 of 116 CONTENTS 1 GENERAL INFORMATION ........................................................................................................................................... 6 1.1 DETAILS OF CLIENT ................................................................................................................................................... 6 1.2 TEST LOCATION ........................................................................................................................................................ 6 1.3 TEST FACILITY ........................................................................................................................................................... 7 1.4 GENERAL DESCRIPTION OF EUT ............................................................................................................................... 8 1.4.1 DUT Antenna Locations(Back View) ............................................................................................................. 9 1.5 TEST SPECIFICATION ............................................................................................................................................... 12 1.6 RF EXPOSURE LIMITS .............................................................................................................................................. 13 2 LABORATORY ENVIRONMENT .............................................................................................................................. 14 3 SAR MEASUREMENTS SYSTEM CONFIGURATION ............................................................................................ 15 3.1 THE SAR MEASUREMENT SYSTEM ......................................................................................................................... 15 3.2 ISOTROPIC E-FIELD PROBE EX3DV4 ...................................................................................................................... 16 3.3 DATA ACQUISITION ELECTRONICS (DAE) ................................................................................................................ 17 3.4 SAM TWIN PHANTOM .............................................................................................................................................. 17 3.5 ELI PHANTOM ......................................................................................................................................................... 18 3.6 DEVICE HOLDER FOR TRANSMITTERS ..................................................................................................................... 19 3.7 MEASUREMENT PROCEDURE ................................................................................................................................... 20 3.7.1 Scanning procedure ...................................................................................................................................... 20 3.7.2 Data Storage ................................................................................................................................................. 22 3.7.3 Data Evaluation by SEMCAD ...................................................................................................................... 22 4 SAR MEASUREMENT VARIABILITY AND UNCERTAINTY .................................................................................. 24 4.1 SAR MEASUREMENT VARIABILITY ............................................................................................................................ 24 4.2 SAR MEASUREMENT UNCERTAINTY ......................................................................................................................... 24 5 DESCRIPTION OF TEST POSITION ......................................................................................................................... 25 5.1 HEAD EXPOSURE CONDITION ...............................................................…
